MUSIC HALL cd25.3 User manual

DIGITAL AUDIO
cd25.3
music hall
power play/pause stop prev next
open/close cd25.3 cd player

music hall
cd 25.3 cd player
Congratulations on Your Purchase
You have selected a state-of-the-art cd player. Each component chosen for assembly. in
the construction of the cd 25.3 cd player was selected to provide you with superior
performance and the highest level of sound reproduction available today. Please take a
few moments to read over the operating instructions to insure that you get the best
performance from your unit and years of trouble-free service.
SAFETY GUIDELINES
This product is designed and manufactured to strict quality and safety standards. However,
you should be aware of the following installation and operation precautions:
1. Take heed of warnings and instructions
Read all the instructions before connecting or operating the unit.
Keep this manual so you can refer to these safety instructions. Heed all warnings and
safety information in these instructions and on the unit.
2. Water and Moisture
To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. If
the unit is exposed to moisture, immediately disconnect the power cord from the wall.
Take the unit to an authorized Nusic Hall service center for inspection. Do not touch the
unit, power cord, or plug with wet hands.
3. Object or liquid entry
Do not allow foreign objects or liquids into the unit. If this happens, immediately
disconnect the power cord from the wall and take the unit to an authorized music Hall
service center for inspection.
4. Ventilation
Please allow for a small amount of unobstructed clearance around the unit. Do not place
the unit on a bed, sofa, rug, or similar surface that could block ventilation from the bottom.
Avoid stacking other components on top of the unit. If the component is placed in a
bookcase or cabinet, the cabinet should be ventilated to allow proper cooling.
5. Heat
Keep the unit away from naked flames, radiators, heat registers, stoves, or any other heat-
producing appliances (including amplifiers).
1

music hall
cd 25.3 cd player
6. Climate
The unit has been designed for use in moderate climates. Do not attempt to use below 4I
degrees Fahrenheit (5 degrees Celsius) or above 95 degrees Fahrenheit (35 degrees
Celsius).
7. Rack and Stands
Place the unit on a fixed, level surface strong enough to support its weight. Do not place
it on a moveable cart that could tip over. We recommend only using stands approved for
use with audio equipment.
8. Cleaning
Unplug the unit from the mains supply before cleaning. The case should normally require
only a wipe with a soft lint-free cloth.
9. Power Sources
Only connect the unit to a power supply of the type and voltage described in the operating
instructions or specified on the rear panel of the unit.
10. Power cord protection
Connect the unit to the power outlet only with the cord supplied. Do not modify the
supplied cable in any way. Do not attempt to defeat grounding and/or polarization
provisions. Do not use extension cords. Do not route the power cord where it will be
crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way.
11. Non-use periods
If the unit is to be left unused for a long period of time, the power cord should be
unplugged from the wall outlet.
12. Damage Requiring Service
Stop using the unit immediately and have it inspected by an authorized Music Hall service
center whenever:
1. The power supply cord or plug has been damaged.
2. Liquid has been spilled into the unit.
3. The unit has been exposed to rain.
4. The unit does not operate properly.
5. The unit has been dropped or damaged.
6. Smoke or any unusual smell is detected from the unit.
2

music hall
cd 25.3 cd player
CAUTION:
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and interlock failed or
bypassed. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user serviceable
parts inside the player, leave all servicing to qualified service personnel.
WARNING!
To reduce the risk of electrical shock, fires, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose the unit to rain or moisture.
3. Do not touch the power cord or plug with wet hands.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Indicates that the user of this unit must understand important operation and
maintenance instructions.
Indicates high-voltage power inside the unit, which will cause electric shock.
3
DO NOT REMOVE COVER (OR BACKS
NO USER SERVICEABLE PARTS INSIDE

music hall
cd 25.3 cd player
Getting Started
Thank you for purchasing the Music Hall c d 25.3 cd player. It is assembled using hand
selected parts, a precision cd transport.
When used in a top-end audio system, your Music Hall’ s cd player will provide years
of enjoyment. The c d 25.3 is the perfect complement to Music Hall’ s a 25.3 integrated
amplifier.
A Few Precautions
Please read this manual carefully. In addition to installation and operating instructions, it
provides valuable information that will help you get optimum performance from your
system. Please contact your authorized Music Hall dealer for answers to any questions you
might have. In addition, all of us at music Hall welcome your questions and comments.
Save the Music Hall cd 25.3 shipping carton and all enclosed packing material
for future use. Shipping or moving the c d 25.3 in anything other than the original
packing material may result in severe damage that is not covered by the warranty. Be sure
to keep the original sales receipt. It is your best record of the date of purchase, which
you will need in the event warranty service is required.
Placement
Use common sense when placing the c d 25.3. Always place the dac cd player on a level ,
firm surface. Blake sure that the shelf or cabinet can support its weight. Do not stack
heavy components on top of the c d 25.3. Avoid placing the unit where it may be
subject to excessive heat, such as on top of a large power amplifier or near a heat register.
For best performance, avoid placing the unit where it may be subject to vibration, such as
near a speaker.

music hall
cd 25.3 cd player
Output Connections
Audio Output
These outputs are located on the back of your cd 25.3 and are labeled AUDIO OUTPUT.
Connect these outputs to a line level (cd, dac) input on your amplifier. Match the Red (+)
interconnect lead to the (R) analog out and the White (-) interconnect lead to the (L)
analog out.
Digital Output
Use this output to connect to a device with a coaxial/optical digital input. A suitable 75
ohm screened cable should be used. Never connect the digital output socket to a
conventional audio input.
music hall

25.3

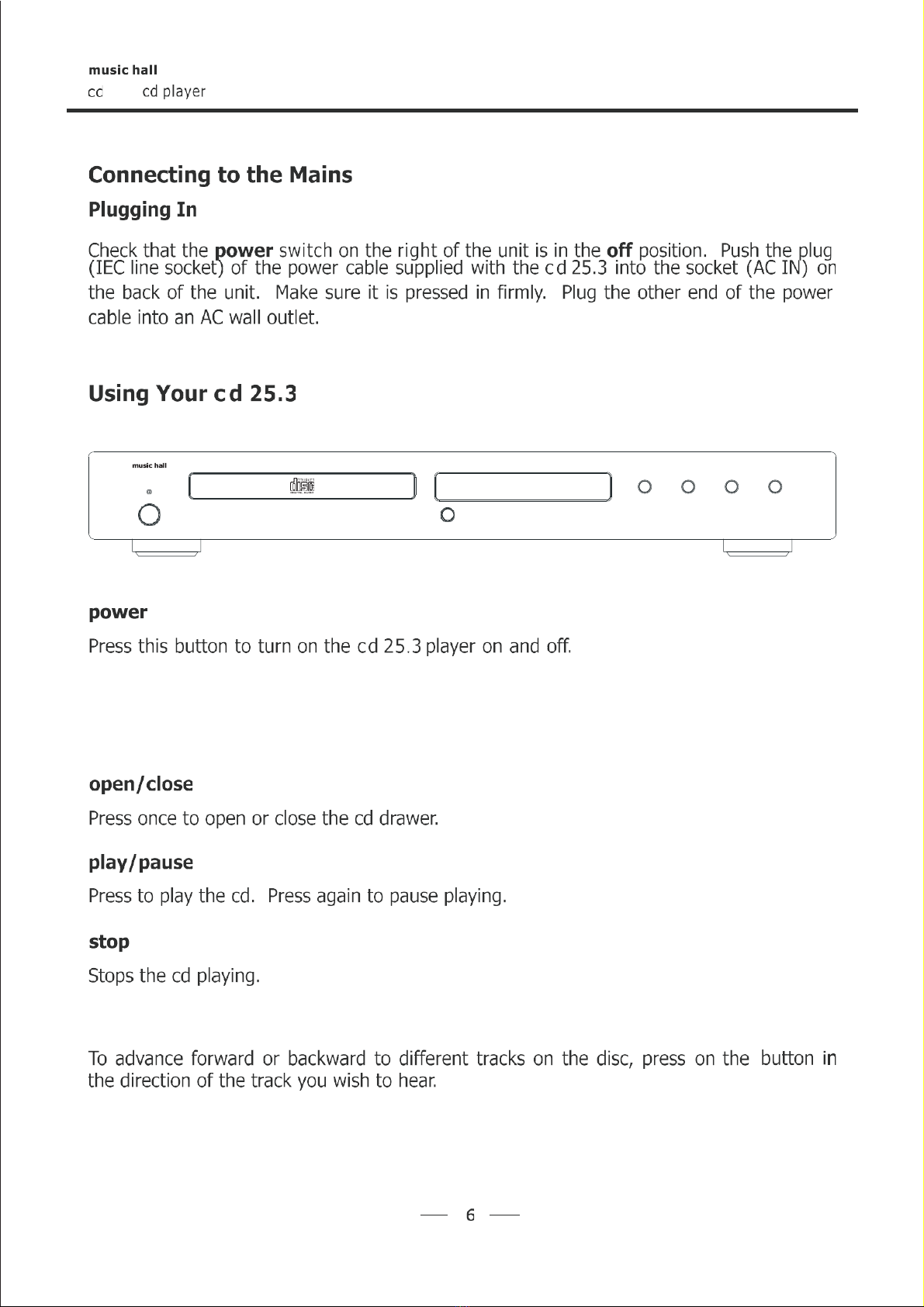

led status indication: this illuminated display indicates the cd 25.3 2 possible states: led is
illuminated blue: the cd 25.3 is switched on. the device is ready for use.
led is illuminated red: the cd 25.3 is in the standby mode.
Prev. and next
power
play/pause
stop
prev
next
open/close
cd25.3 cd player

1
2
4
3
music hall
cd 25.3 cd player
Using The Remote Control
Note: Install the two batteries supplied before trying to use your
remote control.
The supplied remote control is a system remote and therefore not all buttons
will function with the cd 25.3. The remote controls the cd 25.3 and a 25.3
source
1
2
pair
3
integrated amp.
1 2 3
4 5 6
4
Do not place anything in front of the display area of the unit, or the remote
7 8 9
control may not
work.how to change
to symbols on mac
keyboard
6 / 0
dim
5
⏮ (PREVIOUS)
/
▶
(PLAY/PAUSE)
⏭
(NEXT)
music hall
a25.3/cd25.3
Skips to the previous / next track. Pressing the button successively continues this function.
Note: There is no need to hit the play button. Once the desired track is located, remove
your finger. The player will automatically begin playing your selected track.
Allows you to start or pause disc playing. Pressing once, starts the disc playing. Pressing
again, pauses play. Pressing one more time, resumes play.
OPEN/CLOSE
Press this button to open and close the cd drawer.
(FAST BACKWARD) / ■ (STOP) / p¥• (FAST FORWARD)
Scans backward / forward while the disc is playing.
Stops disc playing. Pressing twice will delete a stored program once it has played.
BUTTONS NUMBERED 1-0
These buttons allow direct access to individual tracks on the disc. To select a track, press
the corresponding keypad button. The player will move to the selected track and begin
playing. There is no need to hit the play button. For tracks greater than 9, enter the
digits in sequence. For example, to play track 13, press 1, then 3. The display will show
13 and the cd will begin playing in a few seconds.
X
X

5
DIMMER
Dims the display. Press the dimmer button repeatedly to toggle through the settings.
7

6
25.3
/
turn off the repeat function
the fourth time this -
COAXIAL/OPTICAL
ESS ES9018K2M 32bit/384 KHz
Comtrue CT5302

music hall
cd 25.3 cd player
Radio Interference
The cd 25.3 is a digital audio device that has been designed to very high standards of
electromagnetic compatibility.
cd players generate and can radiate RF (Radio Frequency) energy. In some cases this
can cause interference with FBI and AM radio reception. If this is the case, keep the dac
cd player and its connecting cables as far from the tuner and its antenna. Connecting the
cd 25.3 and the tuner to different mains sockets may also help to reduce interference.
USA - This product complies with FCC requirements.
9

music hall
cd 25.3 cd player
Guarantee
This entitles you to have the Music Hall cd 25.3 repaired or replaced, at our discretion,
free of charge for one year after purchase, at any authorized Music Hall dealer, provided
the unit was purchased from an authorized dealer. Your original sales receipt is used as
proof of purchase date. music Hall can take no responsibility for defects arising from
accident, misuse, abuse, wear and tear, neglect or through unauthorized repair and or
adjustment; neither can Music Hall accept responsibility for damage or loss occurring
during transit to or from the person claiming under the guarantee.
Warranty
Your music Hall c d 25.3 warranty covers parts and labor costs for one year from
the
purchase date. After one year, you must pay for both parts and labor costs. The warranty
does not cover transportation costs at any time.
Claims under guarantee
The cd 25.3 should be packed in the original packing and returned to the dealer from
whom it was purchased, or to an authorized music Hall Service Center. It should be sent
by a reputable carrier carriage prepaid. Do not send the dac/cd player via USPS (United
States Postal Service). No responsibility can be accepted for the unit while in transit to the
dealer, customer, or authorized service agent, therefore, customers are advised to insure
the unit against loss, damage, or theft while in transit.
10
