Mutant Engage 10 User manual

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
Mutant – The New Species
Engage Subwoofers

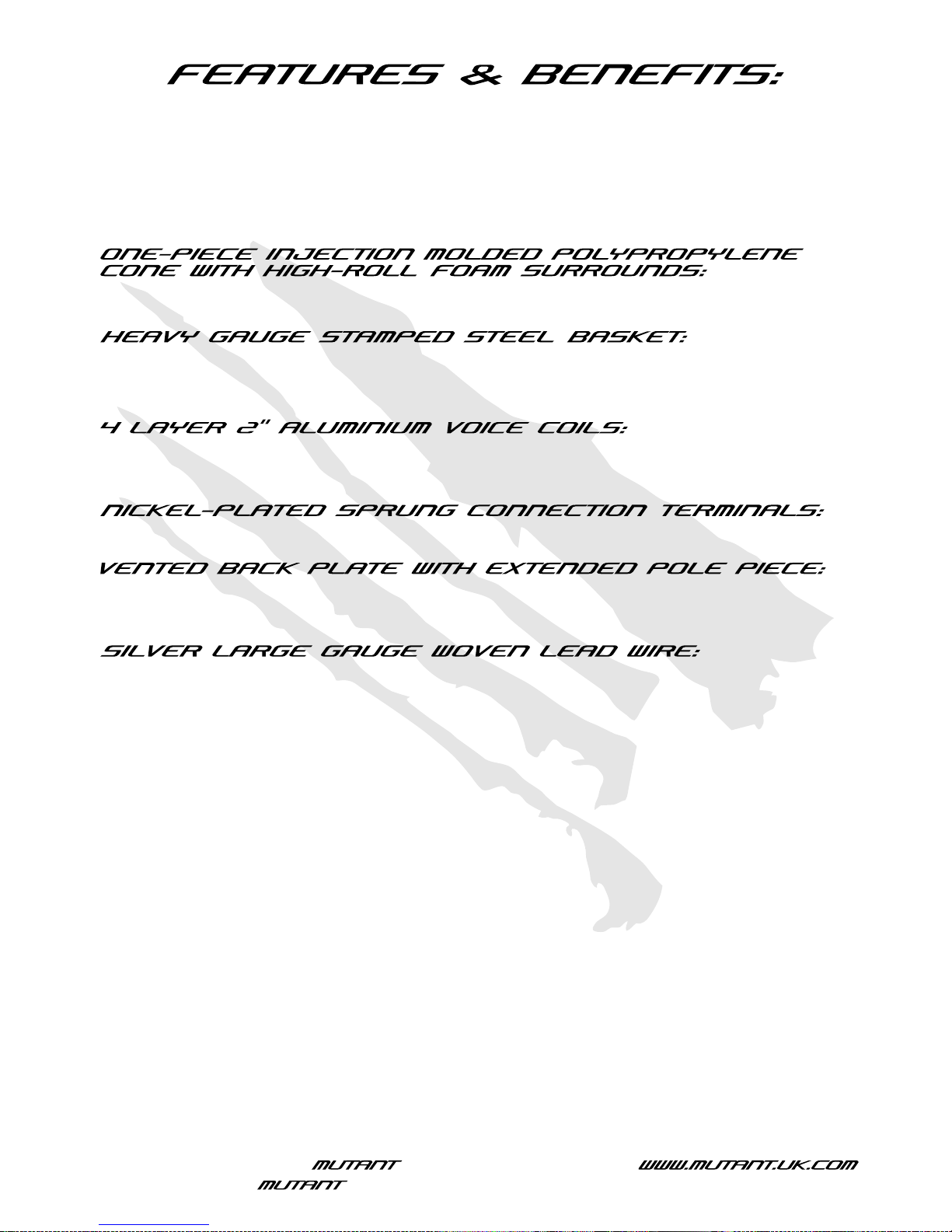

Features
Dimensions
Engage 10
Engage 12

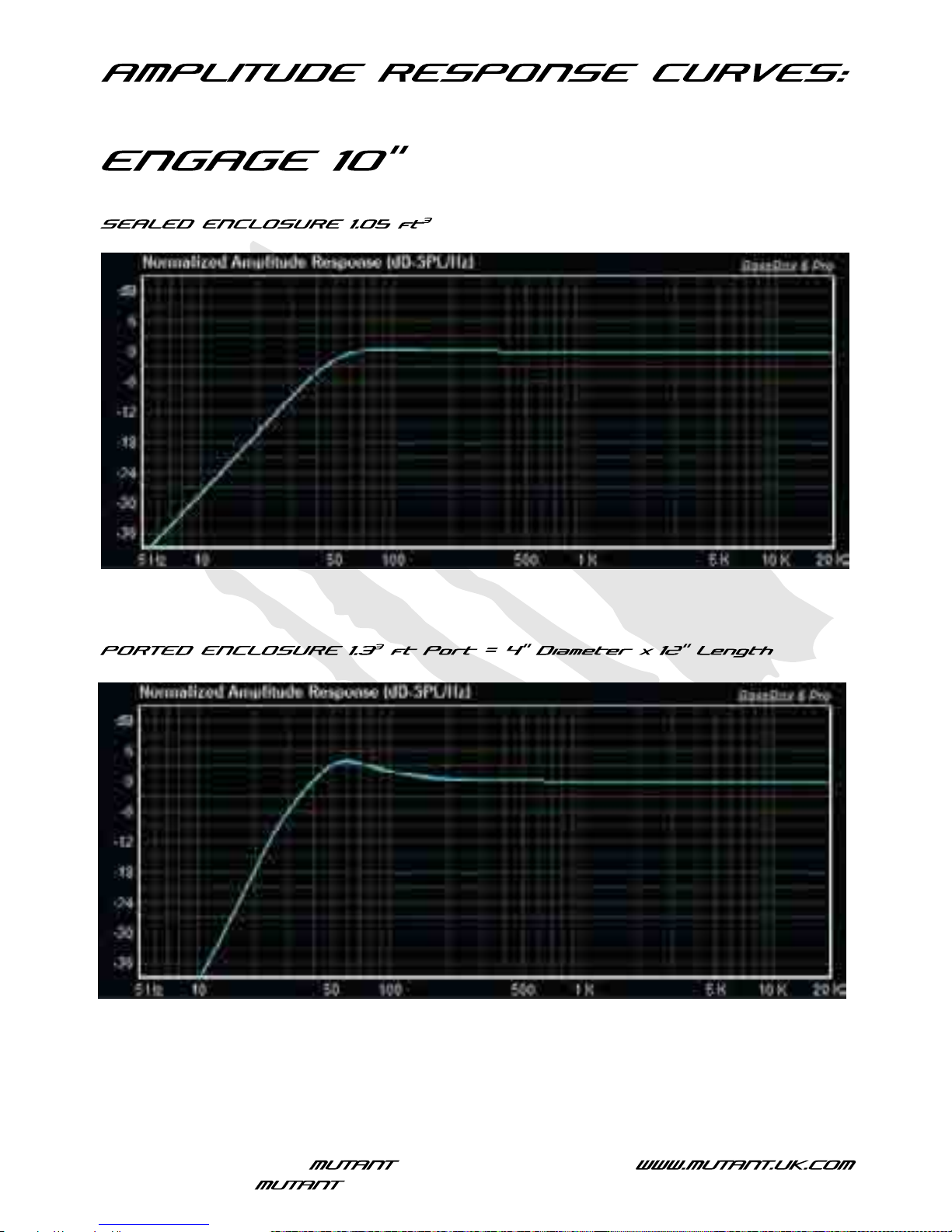

Amplitude Response Curves
Thiele Parameters
Recommended Enclosures
Trouble Shooting
Warranty

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
subwoofers are the latest creation from the
labs.
The new Engage range of Subwoofers are made from heavy stamped steel
baskets and one piece custom tooled cones, and will work just as well in
ported or sealed enclosures.
Since its awakening back in 2004, Car Audio has been
continuously developing and creating ICE to cater for the markets ever
changing needs, with the newly acquainted Engage range leading the way!
Ever striving to offer a collection of products to suit all desires and budgets,
Engage Subwoofers are Audio at its’ symphonic best.
Please read the following installation instructions to ensure the correct
operation of your speakers for many years to come.
Regards
The Mutant Crew
WARNING! Audio Systems can produce sound levels over 135dB.
Continuous exposure to sound pressure levels over 100dB may cause
permanent hearing damage.
When driving, please be vigilant for emergency vehicles as warning sirens
may not be heard.
Please remember to respect local regulations :
Hand in non-working electrical equipment to an appropriate waste disposal
centre.
PUBLISHED BY ARMOUR AUTOMOTIVE LTD.
© Copyright 2009 by Armour Automotive Ltd. All rights reserved.
Specifications and design are subject to change without notice.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
Allows linear movement of the cone over the full excursion.
Provides a solid platform for the motor assembly ensuring perfect alignment
every time.
Superb thermal capacity allows higher power handling for longer periods of
time.
Allows easy tment of large gauge wire to minimize power loss.
Allows for increased subwoofer excursion whilst also cooling the voice coil
and releasing pressure, keeping cone movement linear.
Minimizes power loss to the voice coil and also reduces the possibility of lead
wire detachment.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
4 ohm 800W
A
G
F
E
D
A
B
C
A263 317. 5
B227 280
C151 162
D122.5 136
E138.5 152
F145.1 159.2
G244 296

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
Max Power (Watts) 400 500
RMS Power (Watts) 200 250
Impedance (Ohms) 4 4
Frequency Response (Hz) 36 - 2500 32 - 2000
Magnet Size (oz) 40 50
Voice coil diameter (inches) 2 2
Sensitivity (dB) dB (1W/1M) 84.7 87.1
Resonant Frequency (Hz) fs 35.359 30.311
Mechanical Q Factor Qms 9.912 8.601
Electrical Q Factor Qes 0.746 0.624
Total Q Factor Qts 0.69 0.582
Equivalent Volume (Ltr) Vas 32.621 74.377
DC Resistance (ohms) Re 3.2 3.2
Linear Excursion X-Max 13.5 13.5
Effective Piston Area (mm2) Sd 363.05 530.93
Mechanical Mass (g) Mms 116.245 148.372
Mechanical Compliance (mm) Cms 174.292 185.814
Force Factor ™ Bl 10.522 12.035
Reference Efecency (%) No 0.187 0.321
Diaphragm Mass (g) Mmd 112 .267 141.338
Non Linear
Parameters
Krm (m
ohm)
Krm 7.89 7 12.487
Kxm Kxm 21.518 21.469
Erm Erm 0.789 0.726
Exm Exm 0.782 0.783

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
subwoofers can be used in either sealed or ported applications,
depending on your music tastes and specific requirements.
We recommend using a minimum of 3/4” (18mm) MDF for constructing your enclosure. Also be sure
to glue all joints with a high strength wood glue and once assembled, all joints should be sealed
with silicone sealant.
You may wish to experiment by placing your enclosure in different positions in the boot. You will
find that by changing the direction the subwoofer faces, the bass response will alter.
Note that all measurements need to be internal measurements (If they are being taken externally
you will need to subtract the width of the wood from each measurement accordingly.
To calculate the internal volume in Ft3, multiply the Height (A)
x Width (B) x Depth (C) in inches, then divide that total by 1728.
To calculate the internal volume in Litres, multiply the Height (A)
x Width (B) x Depth (C) in centimetres, then divide that total by 1000.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
Minimum and maximum sealed enclosure volumes are given.
The minimum enclosure will yield high impact bass and is suitable for applications where space is
at a premium. Any sealed enclosure between the min and max recommended sizes can be used and
will exhibit characteristics more similar to that of the enclosure size that it is closest to in volume.
MTEN10 0.8ft3/ 22.7ltr 1.05ft3/ 29.7ltr 1.4ft3/ 39.6ltr
MTEN12 1.0ft3/ 28.3ltr 1.4ft3/ 39.6ltr 1.8ft3/ 51.0ltr
MTEN10 1.0ft3/ 28.3ltr 3"D x 9"L 1.3ft3/ 36.8ltr 4"D x 12"L 1.6ft3/ 45.3ltr 4"D x 14"L
MTEN12 1.2ft3/ 34.0ltr 4"D x 10"L 1.7ft3/ 48.1ltr 4"D x 15"L 2.1ft3/ 59.5ltr 5"D x 16"L
If space is not an issue, the maximum enclosure will yield greater amounts of low end bass
(between 25-35 Hz) and also has a ver y smooth response, ideally suited to sound quality
applications. However, this can be at the expense of some power handling capability. We
recommend using a subsonic filter set to 25Hz.
The minimum enclosure will have a greatly increased output over a sealed enclosure, at frequencies
between 30Hz-75Hz.
The port opening should not be against a solid panel such as a seat back or side panel, and there
should be at least 6 inches free space in front of the port.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
Check connections on subwoofer are good and connections at amplier are good.
Check that gain levels are correct at all ampliers and processors.
Check that the enclosure is totally sealed (except for the port in ported enclosure
types) and that it is within the minimum and maximum recommended enclosure sizes
and that in the case of a ported box the port is of the correct length and diameter.
The subwoofer may have been damaged due to incorrect enclosure parameter or may
have been driven by to small an amplier causing a clipped signal to be sent to the
subwoofer which may have damaged the voice coils.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
• Damage due to improper/incorrect installation
• Subsequent damage to other components
• Damage due to exposure to moisture, excessive heat, chemicals, and or UV radiation
• Damage caused due to negligence, misuse, accident or abuse. (Repeated returns for the same damage
may be considered abuse)
• Any cost related to the removal or re-installation of the product.
• Damage caused by Amplier clipping or distortion.
• Any carriage costs incurred.
Please register your product online at www.mutant.uk.com/registration to be entered into our free quarterly
prize draw. For prize details please visit www.mutant.uk.com. You will also have the opportunity to be rst to
hear of any new Mutant Products.
Armour Automotive Ltd warrants this product to be free from defects in material and workmanship under
normal use for a period of 12 months from date of original purchase with receipt. Should service be
necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty
period, Armour Automotive will repair or replace (at its discretion) the defective merchandise with equivalent
merchandise at no charge. Discontinued products may be replaced with more current equivalent products.
The warranty excludes damage or abuse caused by customer misuse. All warranties are to be handled by the
original retailer where the goods were purchased.
This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent
to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express
warranty as provided herein beginning with the date of the original purchase at retail, and no warranties,
whether express or implied, shall apply to this product thereafter.
If you need to make a warranty claim or require service to your Mutant product, please return to your
original dealer with the product and your original bill of sale.

For more information about car audio visit our website at
is a brand name of Armour Automotive Ltd.
Why not attach your receipt here so you can nd it should you need it!!!
Model Number: ___________ Date of Purchase: ____________
DEALER:_________________________________________________________________
(Enter your dealer telephone number here for future reference)
*Calls cost 60p per minute. Opening hours: 9:00am - 5:30pm Mon-Thu, 9:00am - 1:30pm Fri.
Call costs correct at date of creation
