MuxLab 500222 User manual
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
User Manual
500222
© MuxLab Inc. 2023 1 94-000999-A/SE-000999-A
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
Table of Contents
1. Safety Precautions....................................................................................................................................................3
2. Introduction................................................................................................................................................................4
3. Features.......................................................................................................................................................................4
4. Package Contents...................................................................................................................................................4
5. Specifications............................................................................................................................................................5
6. Technical Drawings.................................................................................................................................................5
7. Installation...................................................................................................................................................................6
8. Applications................................................................................................................................................................8
© MuxLab Inc. 2023 2 94-000999-A/SE-000999-A
Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury.
Do not dismantle the housing or modify the module. It may result in electrical shock or
burns.
Do not open or remove the housing of the device as you may be exposed to dangerous
voltage or other hazards.
To prevent fire or shock hazard, do not expose the unit to rain, moisture and do not install
this product near water. Keep the product away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an
object or liquid falls or spills on the housing, unplug the module immediately.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
Using supplies or parts not meeting the product specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
Install the device in a place with adequate ventilation to avoid damage caused by
overheat.
Unplug the power when left unused for a long period of time.
Information on disposal of devices: do not burn or mix with general household waste,
please treat them as normal electrical waste.
1. Safety Precautions
To ensure the best performance from the product, please read all instructions carefully before
using the device. Save this manual for future reference.
Copyright Notice
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated
without the express permission of MuxLab Inc. Product specifications and information in this
document are for reference only, and the content may be updated from time to time without
prior notice.
© MuxLab Inc. 2023 3 94-000999-A/SE-000999-A
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
40 Watts RMS
Frequency Range 96Hz – 20KHz (+/- 3dB)
Impedance 8Ω
Tweeter 1” (25mm) Titanium Dome
Woofer 6.25” (165mm) Graphite Cone, Rubber Surround
3. Features
2. Introduction
The MuxLab Passive Ceiling Speaker 8 Ohms/70V/100V, 40W (Model: 500222) is a high-
performance full band and easy installation speaker ideal for providing background music
and vocal performance in a wide range of applications and installations and is designed with
advanced linear sound source technology. This speaker can be used as an 8 ohm speaker at
40 W but can also be cascaded when set as a 70V speaker system with taps at 2.5W, 5W,
10W and 20W, and as a 100V speaker system with taps at 5W, 10W, 20W and 40W.
The MuxLab Passive Ceiling Speaker 8 Ohms/70V/100V, 40W comes with a 6.25” coaxial
40W loudspeaker driver that has excellent dispersion, wide bandwidth, and smooth frequency
response which makes this the top choice for today’s overhead commercial and residential
applications.
One (1) Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
One (1) Speaker hole template
One (1) Safety Wire Rope for Ceiling Speaker
One (1) User manual (available via download)
4. Package Contents
Notes
：
Confirm that the product and accessories are all included. If not, please contact the
supplier from which you purchased the unit.
© MuxLab Inc. 2023 4 94-000999-A/SE-000999-A
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
Attachment
Included Accessories
Dimension (H x D)
Weight
Termination
Nominal Coverage
Material
Shipping Weight
Cut out diameter
Warranty
Order Information
5. Specifications
8.0 lbs (3.6 kg)
Audio Input
Tweeter
Woofer 6.25” (165mm) Graphite Cone, Rubber Surround
Frequency Range +/- 3dB
Analog Audio Signal
96Hz ~ 20KHz
1” (25mm) Titanium Dome
Cutout template grille
236 x 257 mm (9.01” x 10.11”)
3.3kg
Standard pressed connector
8.90” (226mm)
90 degrees conical
ABS + iron
Low-profile grille
2 years
500222 Passive Ceiling Speaker 8 Ohms/70V/100V, 40W (UPC: 627699002223)
Power Handling RMS 40W (IEEE 219)
Sensitivity (1W @ 1m) 86dB
Crossover Frequency 3.5 kHz
Conformity (Input) 100V (8Ω)
Impedance 8Ω
© MuxLab Inc. 2023 5 94-000999-A/SE-000999-A
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
Taps 8Ω, 0, 40W, 20W, 10W, 5W
6. Technical Drawings
7. Installation

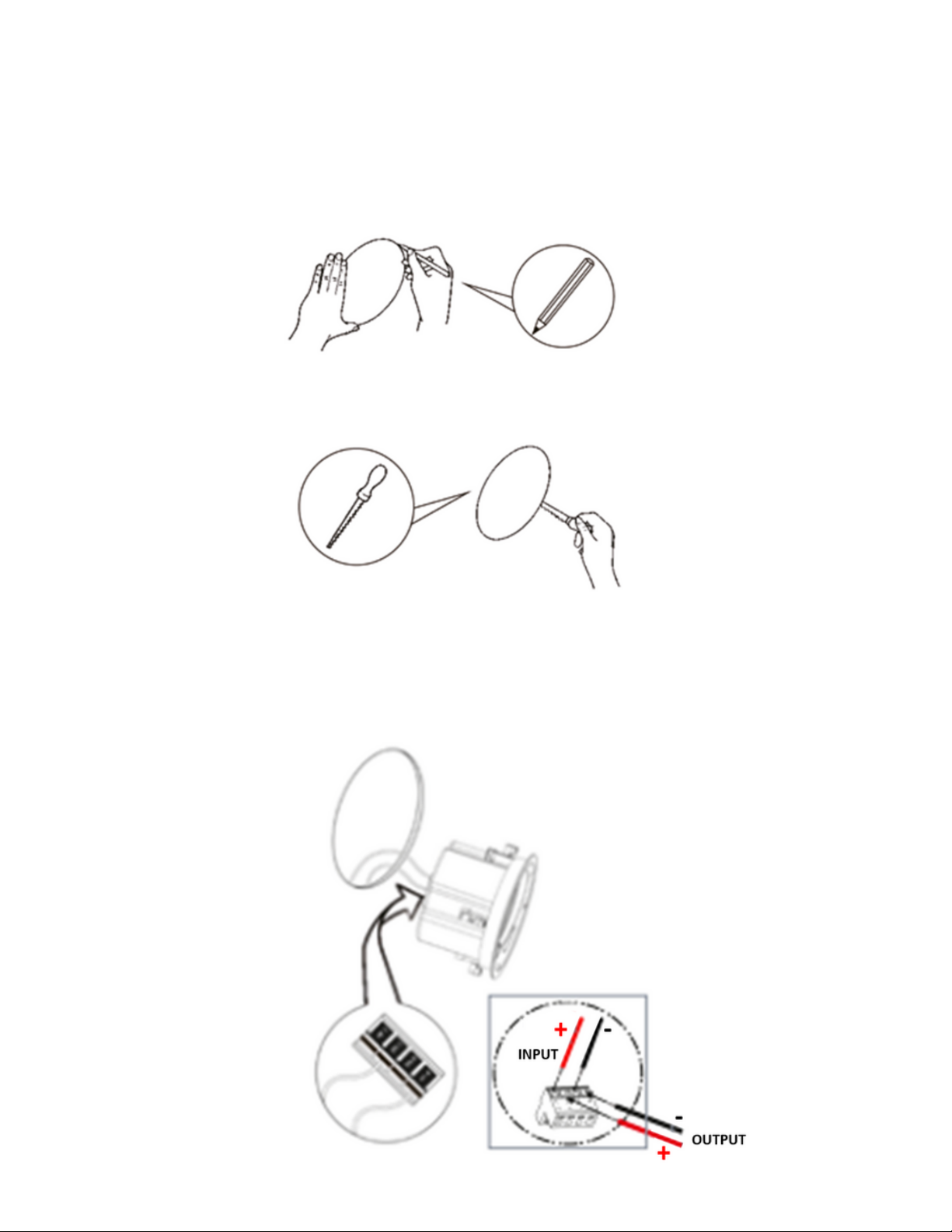

STEP 1
Using a stud finder (available at low cost at most hardware stores) or other accurate method,
locate center point between two joists and mark. Using template provided, trace hole pattern
on surface of ceiling.
© MuxLab Inc. 2023 6 94-000999-A/SE-000999-A
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
STEP 2
Using a sabre saw, keyhole saw or very sharp utility knife, cut hole in ceiling. Following trace
pattern.
STEP 3
Run loudspeaker wire to sound source location. There are several methods you can use to
accomplish wiring, depending on the construction characteristics of the room or house. You
can add a professional touch to your installation by using a speaker terminal plate at the
source location. Leave sufficient amount of wire at speaker location (8-10 inches / 20-25 cm)
to complete connection.
© MuxLab Inc. 2023 7 94-000999-A/SE-000999-A
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W

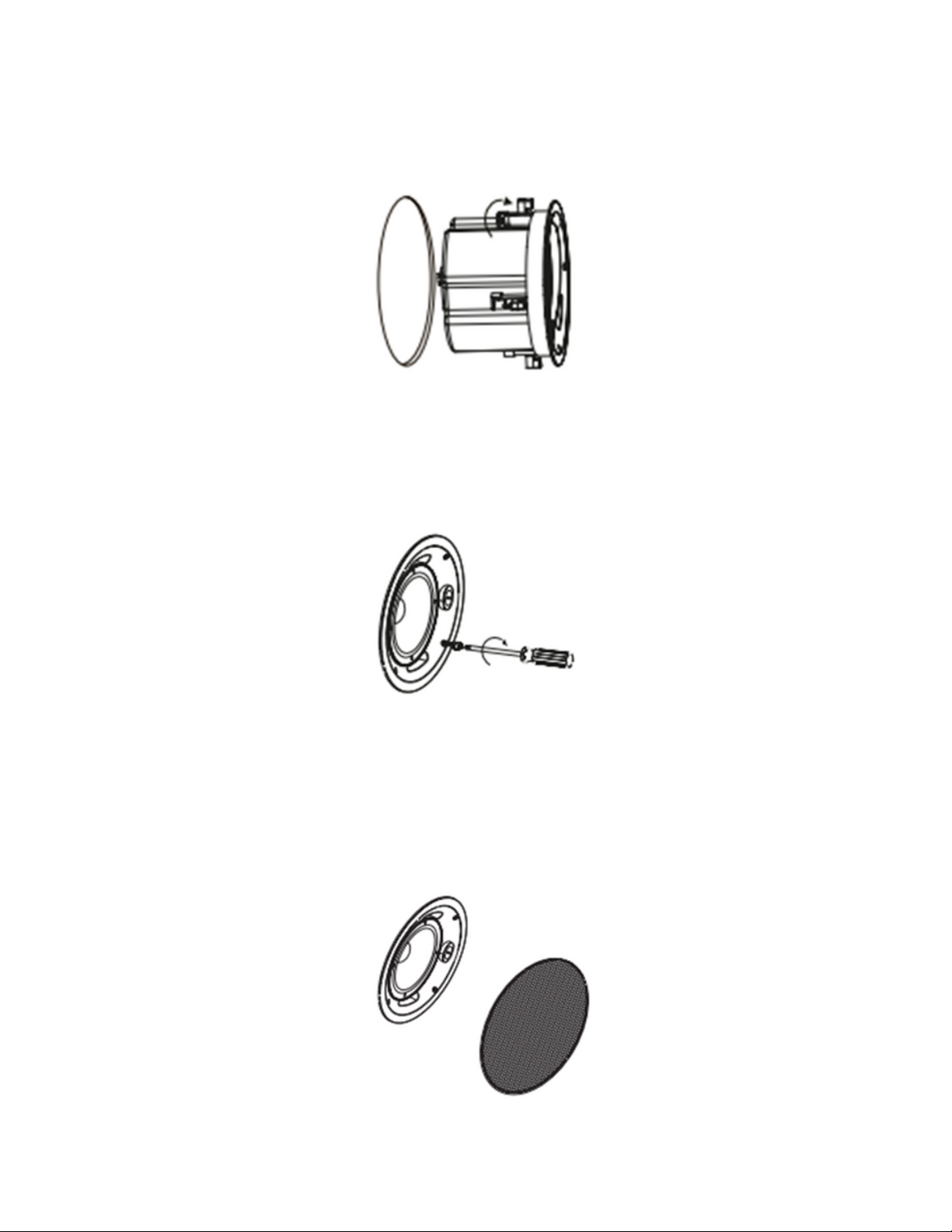

STEP 4
Attach loud speaker wire to speaker terminals observing correct polarity and position speaker
frame up into cutout. Be careful not pinch wires in the process.
STEP 5
Carefully tighten the four mounting screws. This will cause the mounting wings to rotate our
behind the mounting surface and secure the speaker in place.
STEP 6
After the speaker panel is secured tightly, test sound. When you are satisfied the speaker is
operational, then affix grill. As grill is designed for a snug fit you’ll need to position one edge
into slot first and press or squeeze around perimeter of grill, while pushing leading edges into
grill slot.
© MuxLab Inc. 2023 8 94-000999-A/SE-000999-A
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
8. Applications
The Passive Ceiling Speaker 8 Ohms/70V/100V, 40W are ideal for hotels, conference rooms,
shopping center, education, hospitals, retail stores, performing art centers, restaurants,
airports, houses of worship, and board rooms.

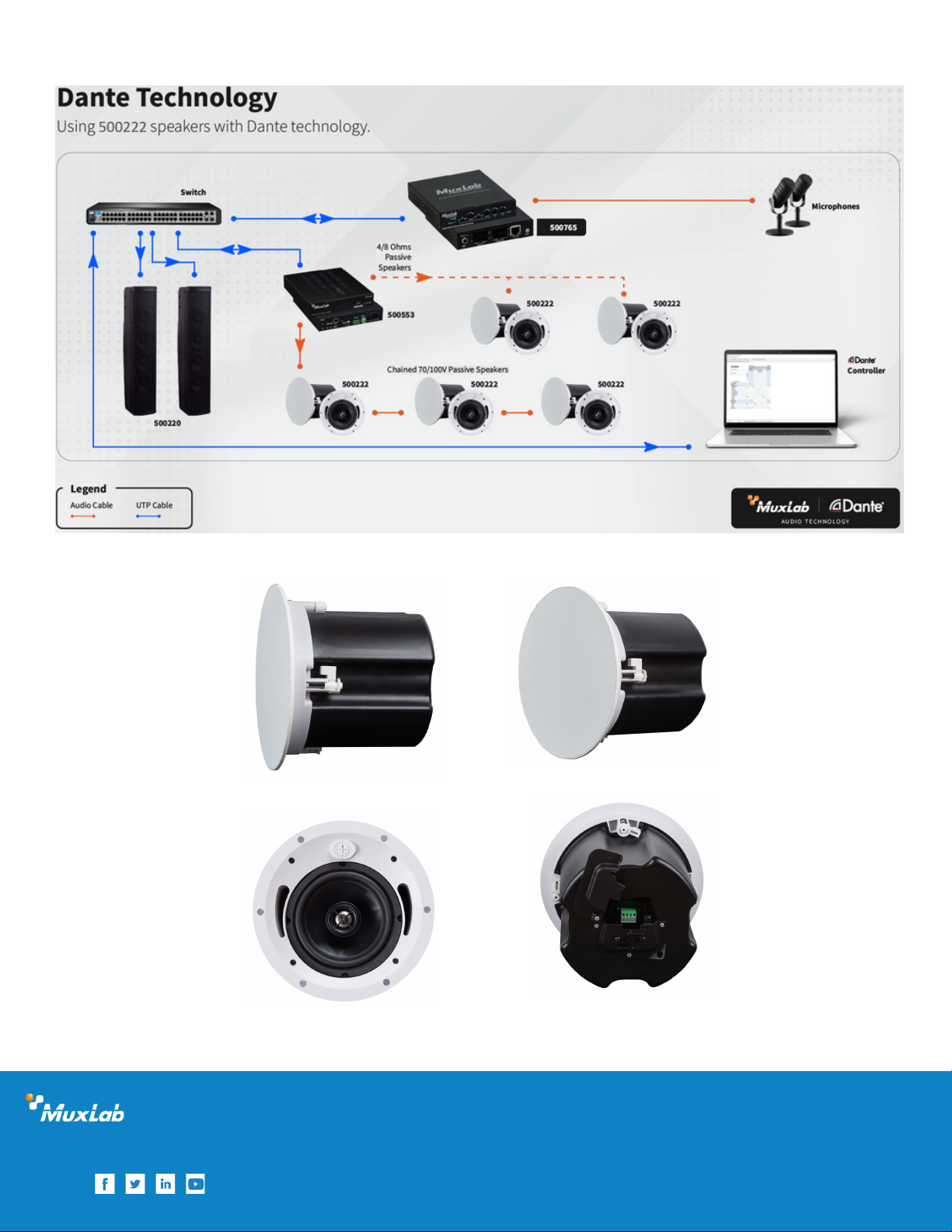

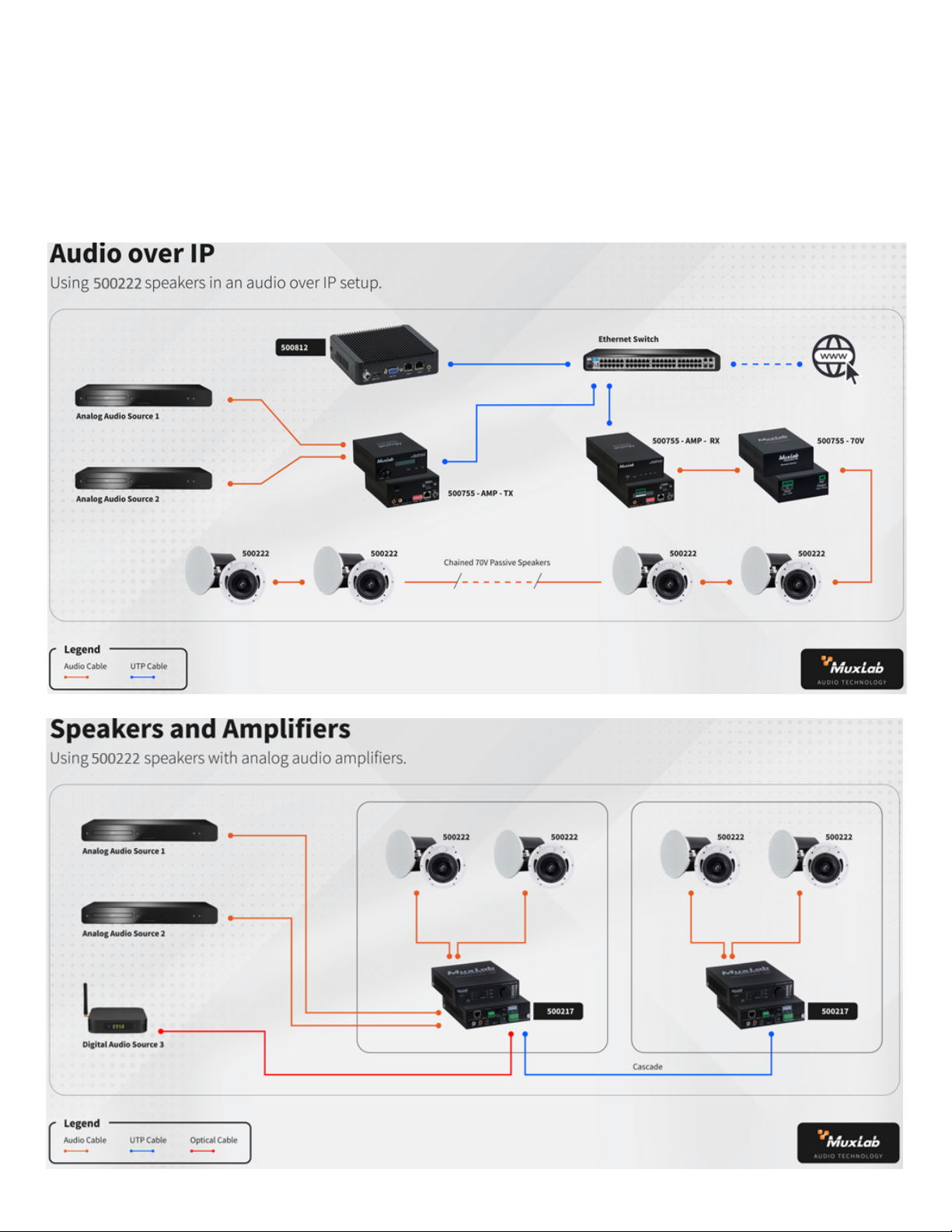

Below you will find some diagrams showing the 500222 speakers as a solution in different
scenarios working together with other MuxLab devices.
Passive Ceiling Speaker 8 Ohms/70V/100V, 40W
500222
