Thank you for choosing our products.We f
ocus on producing professional,high-quality,cost
-effective high-tech products. Let you easily en
joy high-definition digital life brought by techno
logy.For the optimum performance and safety,
please read these instructions carefully before
connecting,operating or adjusting the product.
And please keep this manual for future refere
nce.

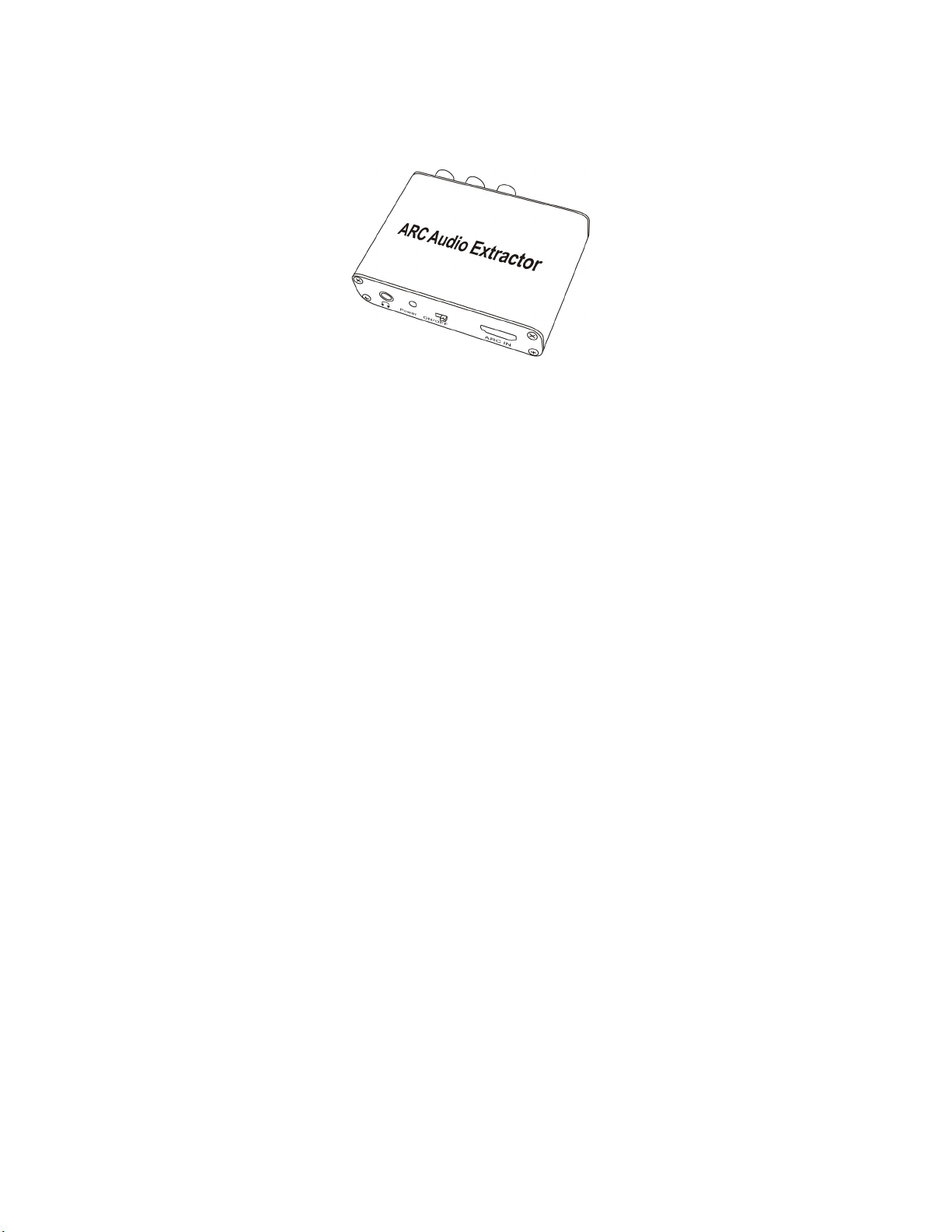

Introduction:
Introduction:Introduction:
Introduction:
This HDMI Audio Return Channel Adapter can
transmit audio from TV of support ARC functi
on to optical,coaxial,3.5mm audio of adapter vi
a HDMI /ARC interface, and output simultaneo
usly, which perfectly solves problems of havin
g no audio output interface that TV cannot be
connected to the sound system.
Features:
Features:Features:
Features:

EN
2
Support SPDIF output
Support COAXIAL output
Support RCA Stereo output
Support 3.5mm stereo headphone output
3.5mm stereo headphone port equipped with
high-performance audio.amplifier
Support switch noise reduction
Support automatic signal mute function
Support transmission of 192KHz audio
sampling rate
Optical fiber coaxial interface supports 5.1
channel transmission
Specifications:
Specifications:Specifications:
Specifications:
Material ........................................ Aluminum Alloy
Color............................................................. Black
Power Supply Interface ........................Micro USB
Maximum operating current .........................65mA
Power Adapter Specification..........AC 100V-240V
50/60HZ, DC 5V/1A
Working environment temperature........-10~+55℃
Storage temperature ............................-20~+60℃
Operating Humidity..10~90%RH(non-condensing)

EN
3
Storage humidity.......5~95%RH (non-condensing)
Case size .............................81.5*58.5*21.5 (mm)
Weight .............................................................88g
Package Contents:
Package Contents:Package Contents:
Package Contents:
Adapter...........................................................1pcs
Users Manual ................................................1pcs
DC5V/1A Power Adapter.................1pcs(optional)
USB power supply line...................1pcs (optional)

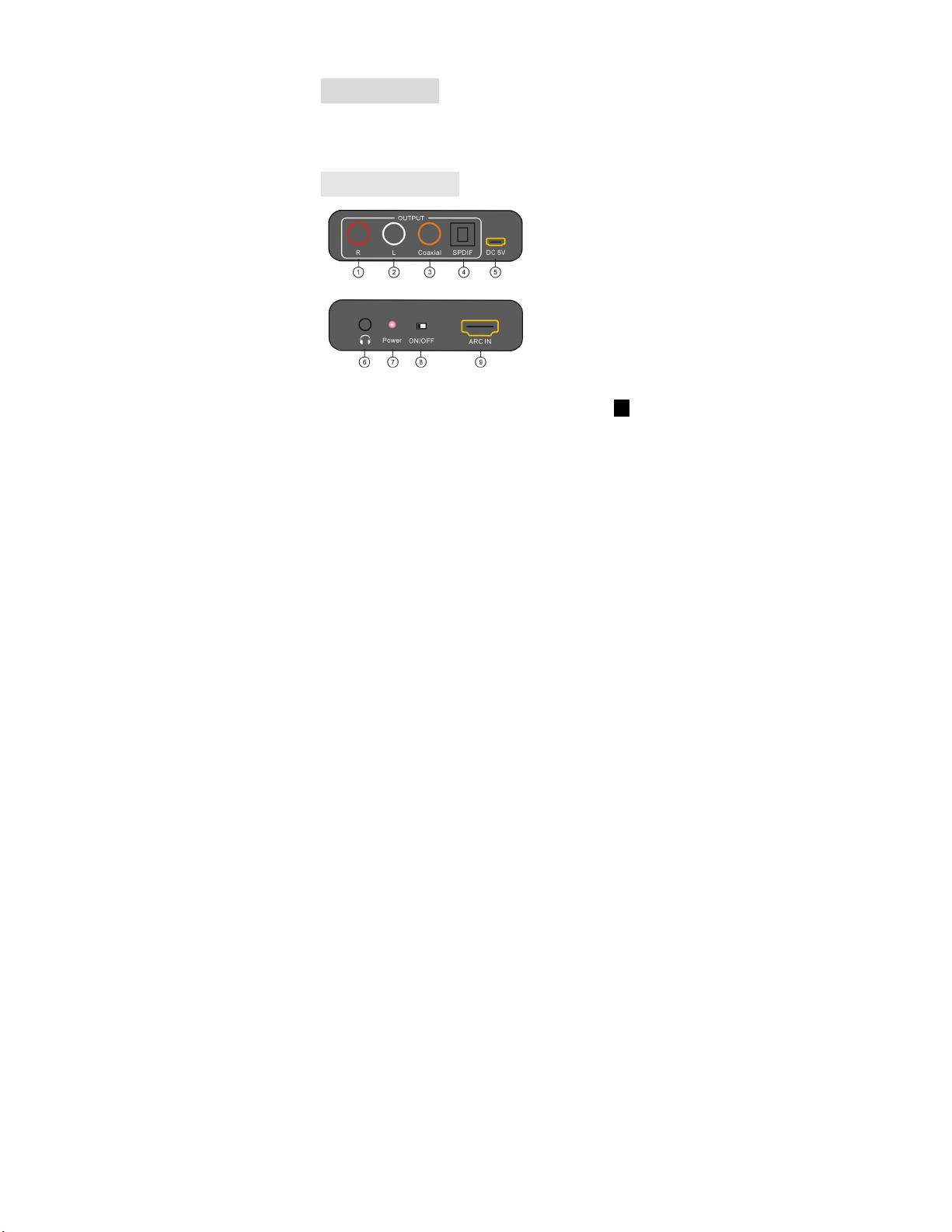

Diagram of Interfaces:
Diagram of Interfaces:Diagram of Interfaces:
Diagram of Interfaces:
① R:Right channel output

EN
4
②L:Left channel output
③Coaxial:Coaxial digital audio output
interface,connected audio amplification equipment
④SPDIF:Optical digital audio output interface,
connected audio amplification equipment
⑤DC 5V:5V Power Interface
⑥ :3.5mm stereo output
⑦Power:Power indicator,light up
⑧ON/OFF:ARC function switch(not power switch)
⑨ARC IN:HDMI/ARC input port , connected to the
HDMI/ARC interface of the TV

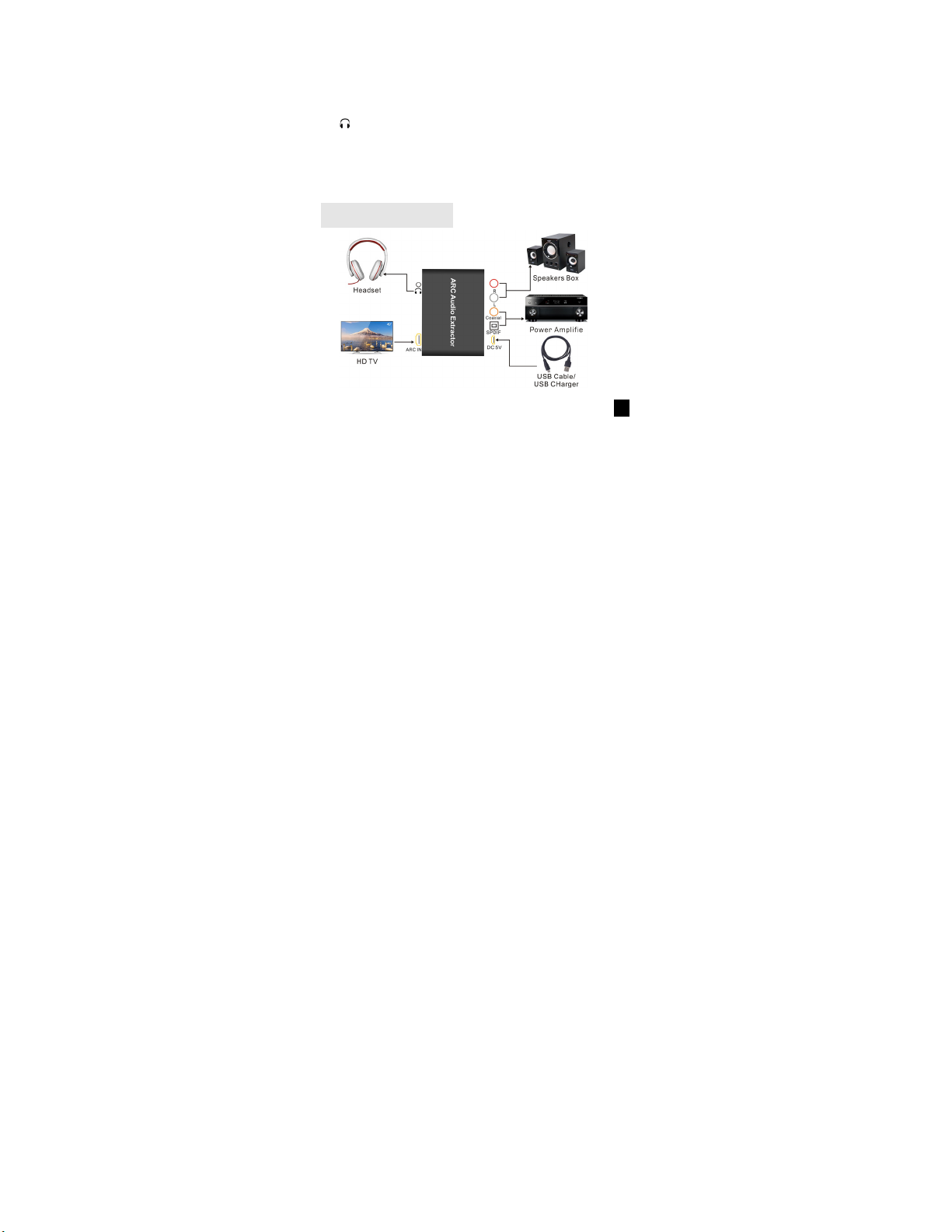

Connection Diagram:
Connection Diagram:Connection Diagram:
Connection Diagram:

EN
5
1.Connect the HDMI port of adapter to the HDMI/ARC
port of TV via an HDMI cable.
Note:
Note:Note:
Note: Please connect HDMI port with “ARC” mark.
2.Use optic cable, coaxial cable or RCA cable and
3.5mm audio cable to connect to the amplifier system.
3.Connect the DC head of the power adapter to the DC
input of the adapter and plug the adapter into the power
outlet.
4.Turn the adapter switch to the ON position.
Note
NoteNote
Note：
：：
：
Please use the machine as the instruction listed to keep
the long lifetime of it.
1. Please do not expose this unit to the damp,
high-temperature, dusty, erosive, or oxidative
environment.
2. All parts will be free from the strong shake, hit, fall.
3. Please do not touch the power adapter plug with wet
hands.
4. Please hold the plug when unplugging. Do not pull the
power cable directly.
5. Please turn the unit off when it is not in use for a long
period of time.
6. Please do not open the cover and do not touch the

EN
6
inside parts.
7. Please use the original factory USB Power Cable.
Common fault diagnosis and processing methods:
Common fault diagnosis and processing methods:Common fault diagnosis and processing methods:
Common fault diagnosis and processing methods:
Before powering on, you should carefully check whether
the cable is normal and you must ensure that all
connectors are properly connected.
Common faults are judged and handled as follows:
N
o
Problem
Description
Solutions
1 Non-Power-
Connected
1. whether the power light is on. If
off , whether the power supply or
power cable is properly
connected to the power
connector.
2. Whether the power supply is
DC 5V; whether the current
reaches 500mA
2 Non-Audio
1. whether the TV supports ARC
function
2. whether Adapter switch ON
3. Whether the HDMI cable is
connected to the TV supports

EN
7
ARC HDMI interface
4.Whether the TV is turned on
ARC function (use the TV's
remote control to open)
5. Whether it is AGW26 standard
HDMI1.4 HD cable (inferior
quality or HDMI 1.3 version HD
line without ARC function)
3
RCA
port ,headp
hone port
have noise
Set the TV to stereo output
(PCM/LPCM 2-channel output)
4
Non 5.1
audio
output with
coaxial
SPDIF
1. Whether the audio format is 5.1
channel when playingon the TV
2. Set the fiber optic port of the
TV to the source code output.
(Different brands of TVs display
different ways. For example, a
Sony TV is: "Output unchanged
compressed audio" or "For
multi-channel content,
