Mylek COMPAKT MY18VCB User manual

User Manual -
Please read and retain
for future reference
www.hsdonline.co.uk
MY18VCB
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 1

Introduction
General Information
Please read the entire instruction manual before using the
product and then save it for future reference. We reserve the right
for any errors in text or images and any necessary changes made
to technical data. If you have any questions concerning technical
problems please contact our Customer Services on 0800 091 3171.
Contents
1. Introduction
2. Safety instructions
3. Operation
4. Maintenance
5. Environmental Responsibilities
6. Warranty
Safety Instructions
General safety instructions for power tools:
Warning: Read all the instructions. Failure to comply
with the following instructions can lead to electric
shocks, fires or serious injury.
SAVE THESE INSTRUCTIONS.
The term “power tool” in the following text refers to your handheld
mains operated or battery operated tool.
www.hsdonline.co.uk
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 2

www.hsdonline.co.uk
Symbols
Read the manual
Warning
Wear ear protection
Wear dust mask
Indoor use only
Do not expose to rain or water
Do not burn
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 3

www.hsdonline.co.uk
General Safety Instructions
WARNING! Read all instructions. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury. The term
“power tool” in all of the warning listed below refers to your mains
operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1. Keep work area clean and well lit. cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres. such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which, may
ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
Personal safety
1. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
2. Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
3. Avoid accidental starting, Ensure the switch is in the off-position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these devices
can reduce dust-related hazards.
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 4

www.hsdonline.co.uk
Power tool use and care
1. Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power
tool that cannot be controlled with the switch is dangerous and must be
repaired.
3. Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustment, changing accessories or storing
power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc. In accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
Battery tool use and care
1. Endure the switch is in the off position before inserting battery pack. Inserting
the battery pack into power tools that have the switch on invites accidents.
2. Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of battery may create a risk of fire when used with
another battery pack.
3. Use power tools only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
4. When battery pack is not in use, keep it away from other metal objects like
paper clips, coins, keys, nails, screws or other small metal objects, that can
make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
5. Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts eye,
additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 5

www.hsdonline.co.uk
12
93
4
8
7
5
6
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 6

www.hsdonline.co.uk

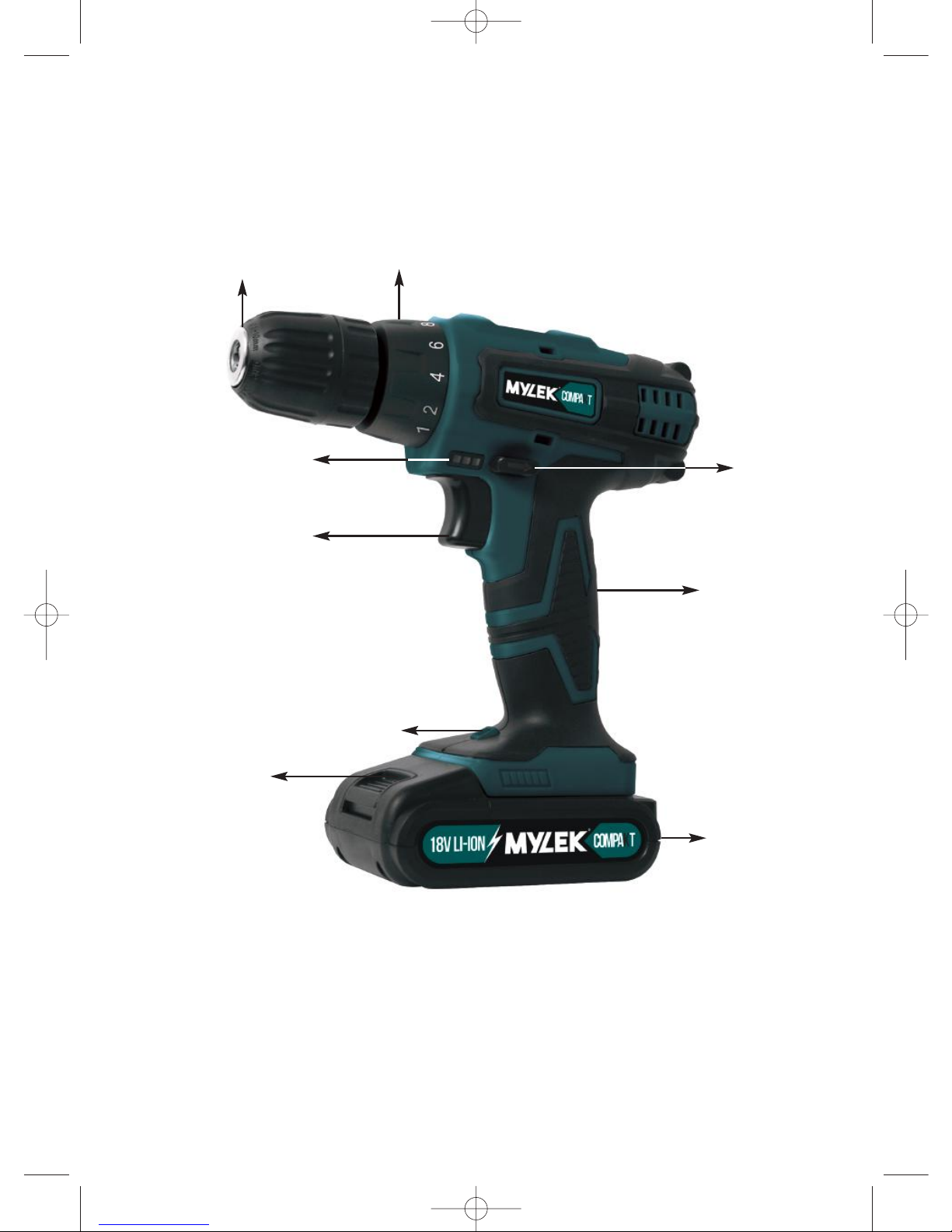

COMPONENT LIST
TECHNICAL DATA
1. 0.8-10mm chuck
2. Torque setting
3. Forward/Reverse rotation control
4. Soft grip handle
5. Battery pack release button
6. Battery pack
7. Trigger switch
8. LED sight light
9.Battery charge indicator
Not all the accessories illustrated or
described are included in standard
delivery.
ACCESSORIES
1300MAH LI-ION battery pack 1pc
Fast charger 1pc
Twist drills 6pcs
Screwdriver bits 6pcs
Bit holders 1pc
We recommend that you purchase your
accessories from the same store that
sold you tools.
TECHNICAL DATA
Voltage: 18V (LI-ION )
No-load speed: 0-700RPM
Max. torque: 28Nm
Torque setting: 18+1
0.8-10mm keyless chuck
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 7

www.hsdonline.co.uk
CHARGER PROCEDURE
Recharging the batteries
A CHARGING THE INSTALLED
BATTERY: Do not use another battery
charger. When the battery is empty,
the machine is switched off by means
of a protective circuit : The chuck no
longer rotates. In a warm environment
or after heavy use, the battery pack
may become too hot. Allow time for
battery to cool down before
recharging.
BIMPORTANT NOTES CHARGING THE
BATTERY: The battery in your new
tool is not charged when it leaves the
plant. Therefore it must be charged
for 1 hour before using for the first
time!
1When the battery charger adaptor is
plugged into the battery and the LED
light shows Red on the adaptor, the
battery is ready for charging. When
the battery LED light shows Green on
the adaptor, the battery is fully
charged and ready for use.
2 Do not leave the battery connected
to the charger for longer than 5
hours. Please remember this is a 3-5
hour charging unit.
WARNING: When battery
charge runs out after
continuously use or exposure
to direct sunlight or heat, allow
time for the battery to cool
down before recharging to
achieve the full charge
1
Removing/installing battery pack
2
To remove or install the
battery pack
1 Hold down the battery release
button.
2 Slide the battery out.
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 8

www.hsdonline.co.uk
1 TRIGGER SWITCH
Depress to start and release to stop
your drill. The trigger switch is fitted
with a brake function which stops
your chuck immediately when you
quickly release the switch. It is also a
variable speed switch that delivers
higher speed and torque with
increased trigger pressure. Speed is
controlled by the amount of trigger
switch depression.
2 TRIGGER SWITCH LOCK
The trigger switch can be locked in
OFF position. This helps to reduce
the possibility of accidental starting
when not in use. To lock the switch,
place the forward and reverse
rotation
selector in
the centre
position by
pushing it on
either side of
the drill.
3REVERSIBLE
The forward/reverse rotation control
located above the trigger switch
control the direction of rotation. For
drilling and screw driving use forward
rotation marked “ ” (lever is
moved to the left). Only use reverse
rotation marked “ ” (lever is
moved to the right) to remove screws
or release a jammed drill bit. When
the selector is in the centre position,
the switch is locked.
4 CHUCK ADJUSTMENT (FIG G)
To open the chuck jaws rotate the
front section of the chuck. Insert the
drill bit between the chuck jaws and
rotates the front section in the
opposite direction. Ensure the drill
bits is in the centre of the chuck jaws.
Finally, firmly rotates the front chuck
section in the opposite directions.
Your drill bit is now clamped in the
chuck.
Fig.G
5TORQUE ADJUSTMENT (FIG G)
(Screw driving force of your drill
driver)
The torque is adjusted by rotating the
torque adjustment ring. The torque is
greater when the torque adjustment
ring is set on a higher setting. The
torque is less when the torque
adjustment ring is set on a lower
setting.
Make the setting as follows:
1-5 for driving small screws
6-11 for driving screws into soft material
11-15 for driving screws into soft and
hard material
15-18 for driving larger screws
for heavy drilling
OPERATING INSTRUCTIONS
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 9

www.hsdonline.co.uk
6 USING THE SIGHT LIGHT
The sight light allows you to keep a
clear view under less illuminated
circumstances. To turn on the light
simply press the trigger switch. When
you release the trigger switch, the
light switches off.
7 DRILL
When drilling into a hard smooth
surface, use a centre punch to mark
the desired hole location. This will
prevent the drill bit from slipping off
centre as the hole is started. Hold the
tool firmly and place the tip of the bit
at the point to be drilled. Depress the
trigger switch to start the tool. Move
the drill bit into the workpiece,
applying only enough pressure to
keep the bit cutting. Do not force or
apply side pressure to elongate a
hole.
NOTE: If your tool stops working when
drilling a hole automatically, it’s
normal. This is the electrical
protection for battery. Completely
release the trigger switch, then
depress it to start the tool again.
DISPOSAL OF AN EXHAUSTED
BATTERY PACK
To preserve natural resources,
please recycle or dispose of the
battery pack properly. This battery
pack contains LI-ION batteries.
Consult your local waste authority for
information regarding available
recycling and/or disposal options.
Discharge your battery pack by
operating your drill, then remove the
battery pack from the drill housing
and cover the battery pack
connections with heavy duty
adhesive tape to prevent short circuit
and energy discharge. Do not
attempt to open or remove any of the
components.
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 10

Environmental Responsibilities
Meaning of crossed-out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities.
Contact your local council for information regarding the collection
systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain damaging
your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to
take back your old appliance for disposal free of charge.
SERVICE WARRANTY
Hygiene Supplies Direct guarantees the product free from defects in materials
and workmanship for a period of 1 year from date of purchase.
Should this unit be operated under conditions other than those recommended,
at voltages other than the voltage indicated on the unit, or any attempts made to
service or modify the unit, then the warranty will be rendered void. The product
you buy may sometimes differ slightly from illustrations. This warranty is in
addition to, and does not affect, your statutory rights.
If you have any problems with this product, please call our Help Desk
on 0800 091 3171 or email [email protected]
www.hsdonline.co.uk
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 11

Hygiene Supplies Direct Ltd, Castleford, England WF10 1PA
declares that the 18V Cordless Drill is exclusively manufactured and imported for Mylek.
www.hsdonline.co.uk
MY18VCB_18V_Drill_Manual 17/5/18 10:21 Page 12
