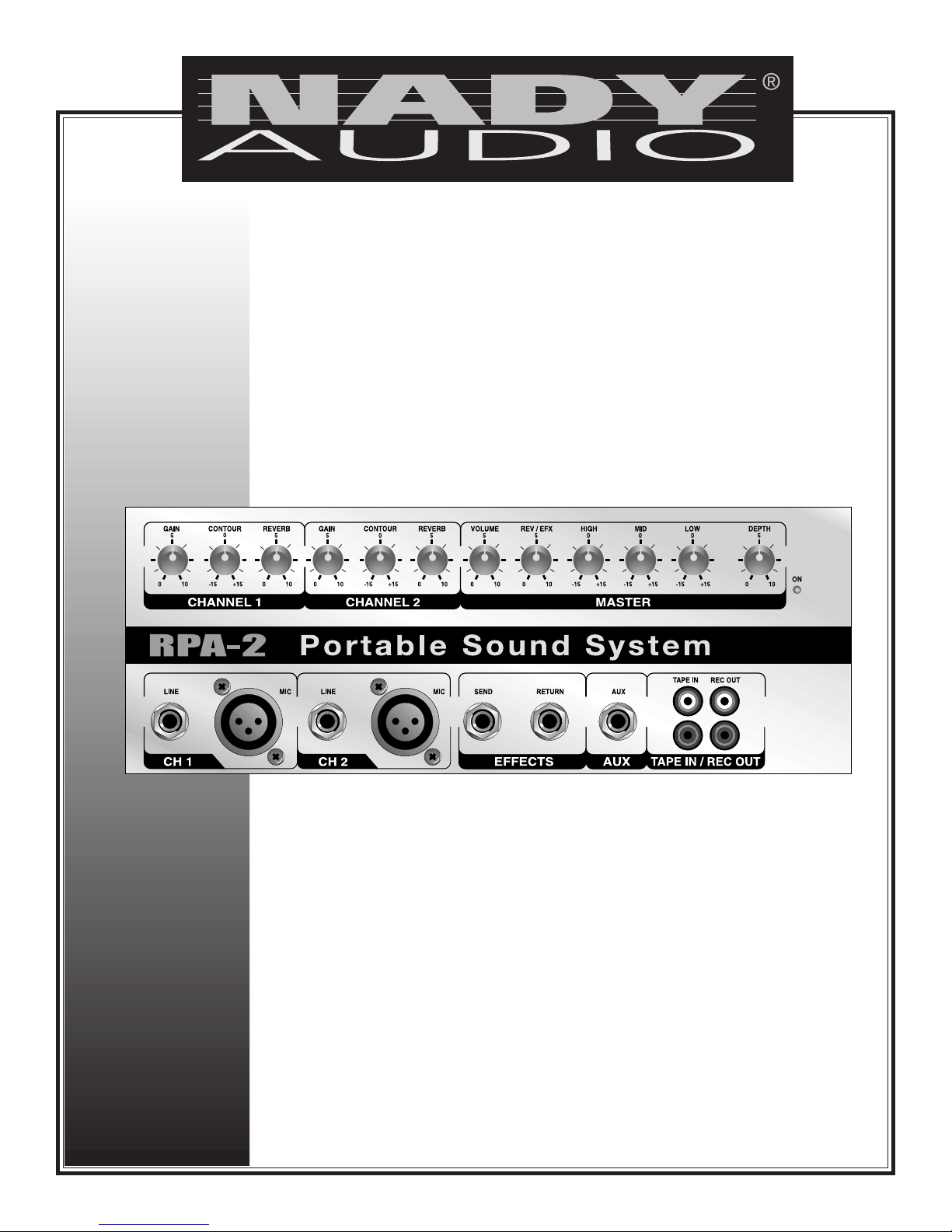

Nady Audio RPA-2 User manual

RPA-2
PORTABLE SYSTEM
2 CHANNEL PORTABLE SOUND SYSTEM
OWNER’S MANUAL

RPA-2
2 CHANNEL PORTABLE SOUND SYSTEM
Date of Purchase ____________________________________
Dealer’s Name ______________________________________
City _______________________________________________
State _____________________ Zip _____________________
Model # ____________________________________________
Serial # ___________________
FEATURES
TABLE OF CONTENTS
Congratulations on your choice of the NADY AUDIO RPA-2
Portable Sound System — you have purchased one of the finest
portable sound systems on the market today. This unit was
developed using the expertise of professional sound engineers
and working musicians. You will find that your new NADY AUDIO
RPA-2 has superior performance and greater flexibility than any
other portable sound systems in its price range. Please read this
manual carefully to get the most out of your new unit.
Thanks for selecting NADY AUDIO as your choice in portable
sound system.
FEATURES ................................................................................. 2
WARNING ................................................................................... 3
INSTALLATION .......................................................................... 4
FRONT PANEL CONTROLS & CONNECTIONS ...................... 5
REAR PANEL CONTROLS & CONNECTIONS ........................ 6
SPECIFICATIONS ...................................................................... 7
2
• Compact (“take anywhere”) complete one-piece portable sound
system with built-in powered mixer and speaker
• Collapsible/locking handle and built-in rubber rollerblade wheels
• 65W RMS @ 4 Ω
• 2 mono balanced (XLR and 1/4" TRS) inputs
• 10" woofer and compression dome tweeter
• Channel Controls - Gain, Reverb, and Contour controls
• Master Volume, High, Mid and Low EQ controls
• DSP Reverb with Level and Depth controls
• 1/4" Effect Send, Return, and Line Out jacks; RCA Tape In/Rec
Out
• Rugged enclosure with vinyl cover, carrying handle, and
basemount for mounting on a speaker stand

IMPORTANT SAFETY INSTRUCTIONS
WARNING
ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
An equilateral triangle enclosing a lightening flash/arrowhead symbol is
intended to alert the user to the presence of uninsulated “dangerous
voltage”within the product’s enclosure which may be of sufficient
magnitude to constitute a risk of electric shock.
An equilateral triangle enclosing an exclamation point is intended to alert
the user to the presence of important operating and service instructions in
the literature enclosed with this unit.
3
When using this electronic device, basic precautions should always be taken, including the following:
1. Read all instructions before using the product.
2. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming
pool, etc.).
3. This product should be used only with a cart or stand that will keep it level and stable and prevent wobbling.
4. This product, in combination with headphones or speakers, may be capable of producing sound levels that could cause
permanent hearing loss. Do not operate for a long period of time at a high volume level or at a level that is uncomfortable.
If you experience any hearing loss or ringing in the ears, you should consult an audiologist.
5. The product should be positioned so that proper ventilation is maintained.
6. The product should be located away from heat sources such as radiators, heat vents, or other devices
(including amplifiers) that produce heat.
7. The product should be connected to a power supply only of the type described in the operating instructions or as marked on the
product. Replace the fuse only with one of the specified type, size, and correct rating.
8. The power supply cord should: (1) be undamaged, (2) never share an outlet or extension cord with other devices so that the
outlet’s or extension cord’s power rating is exceeded, and (3) never be left plugged into the outlet when not being used for
a long period of time.
9. Care should be taken so that objects do not fall into, and liquids are not spilled through, the enclosure’s openings.
10. The product should be serviced by qualified service personnel if:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen into, or liquid has been spilled onto the product.
C. The product has been exposed to rain.
D. The product does not appear to operate normally or exhibits a marked change in performance.
E. The product has been dropped, or the enclosure damaged.
11. Do not attempt to service the product beyond what is described in the user maintenance instructions. All other servicing should
be referred to qualified service personnel.

INSTALLATION
4
To ensure years of enjoyment from your NADY AUDIO RPA-2, please read and understand this manual thoroughly before
using the unit.
INSPECTION
Your RPA-2 was carefully packed at the factory in packaging designed to protect the units in shipment. Before installing and using your
unit, carefully examine the packaging and all contents for any signs of physical damage that may have occurred in transit.
(Note: Nady Systems is not responsible for shipping damage. If the unit is damaged, do not return to us, but notify your dealer and the
shipping company immediately to make a claim. Such claims must be made by the consignee in a timely manner.)
CONTENTS:
•Instruction manual
•RPA-2 (verify that the unit’s serial number is same as shown on shipping carton)
•AC Power cord
•Warranty Card
POWER CONNECTION
The RPA-2 has an internal power supply and is designed to operate from an external AC source. Power requirements for electrical
equipment differ from area to area. Be sure to confirm that the voltage selected by the voltage selector switch on the back panel is
proper for your area (120VAC/60 Hz or 230VAC/50Hz) per the information below:
Europe (except UK): 230V, 50Hz
UK and Australia: 240V, 50Hz
USA and Canada: 120V, 60 Hz
For other areas, please check with local authorities.
When ready to operate, plug the AC cord into the power source. Make sure that the unit is turned off before connecting to the AC
power source to avoid possible loud transients which can damage your speakers or your ears, especially when monitoring with
headphones.

FRONT PANEL CONTROLS & CONNECTIONS
5

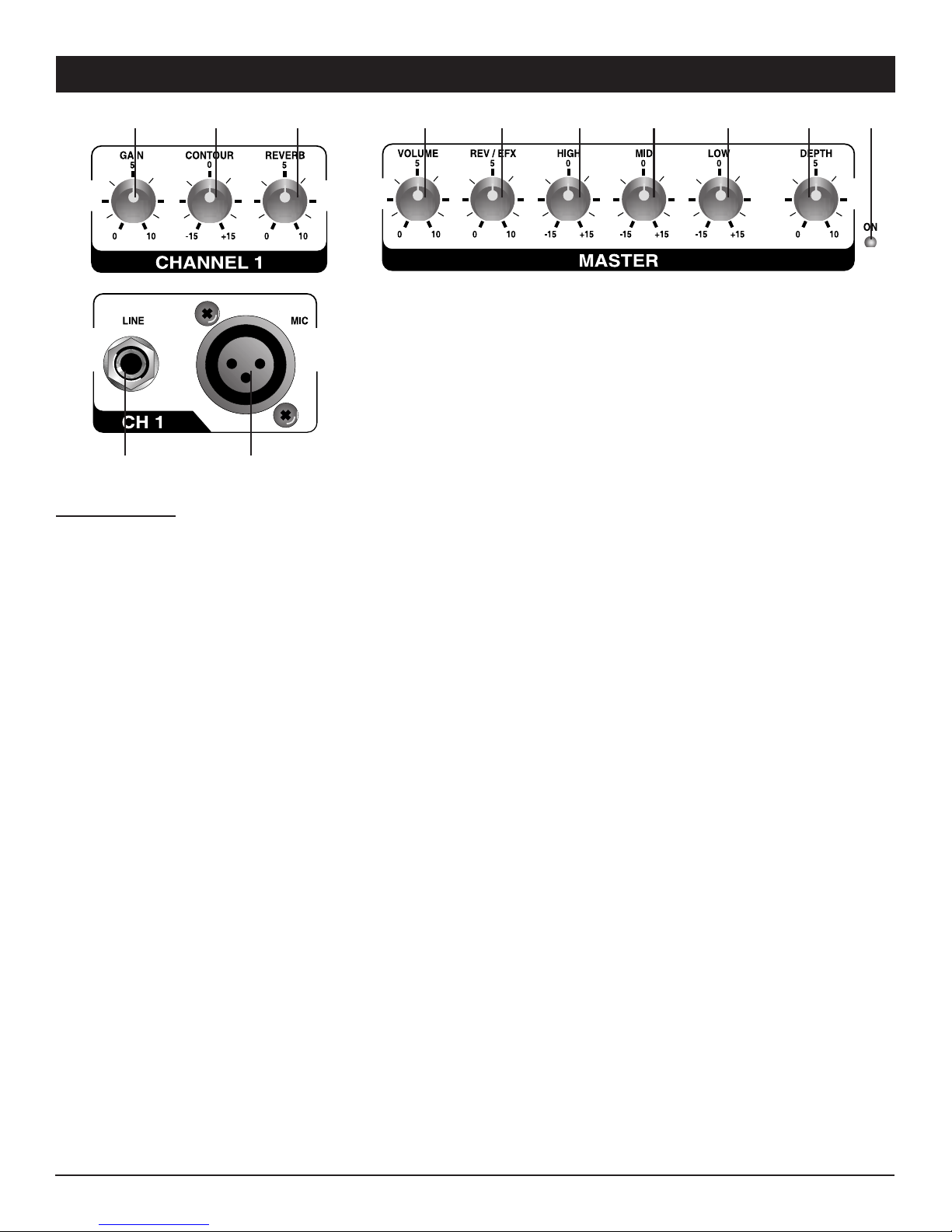

(1) (2) (3)
FRONT PANEL
Note: 1 through 5 below are referenced to Channel 1. The other
channels are identical.
(1) GAIN CONTROL
The Gain Control determines the proportion of the channel signal
in the mix.
(2) CONTOUR CONTROL
Adjusting this control will contour the audio, either bringing out
more highs and definition or increasing low and mid frequencies to
provide more punch.
(3) REVERB CONTROL
The Reverb Control adjusts the level of signal sent by each
channel to the internal Reverb DSP (Digital Sound Processor).
The signal sent is mono, post-Contour and will be affected by the
channel Gain Control.
(4) LINE INPUT
The Line input is designed to accept balanced or unbalanced line-
level signals such as those from keyboards, drum machines, or
samplers. Use the GAIN control (1) to adjust for the desired level.
If a balanced signal is to be connected to the line input, then a
1/4" TRS (stereo) phone plug should be wired for: Tip = positive
(+), Ring = negative (-), Sleeve = ground.
(5) MIC INPUT
The Mic input is an electronically balanced XLR type designed to
accept signals from any balanced low impedance (Low Z)
microphone. It will be necessary to adjust the channel gain with
the input GAIN control (1) to achieve a nominal operating level.
The XLR jack is configured for: Pin1 = ground, Pin2 = positive (+),
Pin3 = negative (-).
(4) (5)
(6) (7) (8) (9) (10) (11) (12)
(Note: Only either the Mic or the Line input of a given channel can
be connected at one time. Do not connect both simultaneously to
the same channel.)
(6) MASTER — VOLUME CONTROL
This controls the final level of the signal output.
(7) MASTER — REVERB CONTROL
This controls the level of the reverb effects sound.
(8) MASTER — HIGH CONTROL
The control has a shelving response giving 15dB of boost or cut at
12KHz.
(9) MASTER — MID CONTROL
The control has a shelving response giving 15dB of boost or cut at
1.5KHz.
(10) MASTER — LOW CONTROL
The control has a shelving response giving 15dB of boost or cut at
100Hz.
(11) MASTER — DEPTH CONTROL
This controls the amount of feedback of the reverb reflection, i.e.
the number of reflections and the length of time before they
diminish in volume.
(12) POWER ON LED INDICATOR
Indicates when the unit is ON.

REAR PANEL CONTROL & CONNECTIONS
6
REAR PANEL
(17) POWER SWITCH
Turns the unit ON or OFF. Always turn level controls down before
turning on the unit.
(18) VOLTAGE SELECTOR SWITCH
For selecting the proper voltage (115/230VAC) to match the power
supply in your area.
Note: To avoid damage to your unit, always make sure this switch
is set to the correct supply voltage. Damage caused by improper
use is not covered by the warranty.
(18) (17)
(19)
(19) POWER CONNECTOR WITH FUSE HOLDER
This standard IEC power cord receptacle is used to connect the
AC power to your unit. It features a built-in fuse holder for a
5X20mm, (2.5A/250V for 115VAC, and 1.5A/250V for 230VAC
operation) fast-blow fuse. If the fuse continuously blows, shut off
the unit and have it serviced by qualified service personnel.
(20) EXTERNAL SPEAKER OUTPUT
1/4" (6.3mm) jack for connecting an external speaker cabinet to
the RPA-2. The connected speaker impedance must be 8 ohms
or greater. The RPA-2 external speaker output delivers 25W RMS
of power @ 8 Ohms.
CAUTION: Do not overload the RPA-2 with speaker loads less
than 8 ohms as this will degrade performance and may harm the
unit. Damage caused by improper use is not covered by the
warranty.
(21) LINE OUTPUT
This 1/4" (6.3mm) audio output is line level, post Master Volume,
designed for connecting to external recorders, mixers, or amplifi-
ers.
(20) (21)
FRONT PANEL CONTROLS & CONNECTIONS
(13) EFFECTS SEND
This line level output can be connected to external recorders,
amplifiers, or effects processors. The signal is a mix of the
channel inputs determined by each Channel Gain control.
(14) EFFECTS RETURN
This input can be used to return the effected signal into the RPA-2
or it can be used as an auxiliary input. The input signal can be
adjusted by the Master Volume and the unit the Return jack is
connected to.
(13) (14) (15) (16)
(15) AUXILLIARY OUTPUT
This line level output can be connected to external recorders,
mixers, or amplifiers.
(16) TAPE IN AND TAPE OUT
The Left and Right TAPE IN allows cassette recorders or CD
players to be added to the Main output. The RECORD OUTPUT,
with TAPE RCA jacks, provides signal output to a cassette deck or
home audio equipment.

SPECIFICATIONS
7
The specifications above are correct at the time of printing of this manual. For improvement purposes, all specifications for this unit,
including design and appearance, are subject to change without prior notice.
AMPLIFIER AND SPEAKER
Power ..............................................................................................................................................................................65W RMS @ 4 Ω
S/N Ratio ........................................................................................................................................................................................ >115dB
THD Power output, 20Hz to 20KHz .................................................................................................................................................. <0.1%
Speaker .................................................................................................................................................................................................8 Ω
Tweeter type ................................................................................................................................................................Compression Dome
Woofer ................................................................................................................................................................................................... 10"
FREQUENCY RESPONSE (Mic input to output)
Line level o/p @ +4dBu into 600 Ω..............................................................................................................................20Hz- 20KHz ±3dB
Power amp o/p 1 watt into 8 Ωper side .......................................................................................................................20Hz- 20KHz ±3dB
SENSITIVITY @ LINE OUTPUT +4dBu with Master and Channels controls set to MID
Mic/Line .......................................................................................................................................................................................-54/-24dB
Tape in ................................................................................................................................................................................................. -6dB
Max Input Level XLR ........................................................................................................................................................................... -9dB
Max Input Level 1/4" ......................................................................................................................................................................... +22dB
MASTER EQUALIZATION
Low EQ .................................................................................................................................................................................100Hz ±15dB
Mid EQ ................................................................................................................................................................................ 1.5KHz ±15dB
Hi EQ .................................................................................................................................................................................... 10KHz ±15dB
MICROPHONE PREAMP E.I.N. (150ohm Terminated, max. Gain) ............................................................................................ -102 dBm
POWER REQUIREMENTS ....................................................................................................................100-120, 220-240 VAC, 50-60 Hz
FUSING............................................. 5x20mm glass type, 2.5A/250V for 115VAC, and 1.5A/250V for 230VAC operation, fast-blow fuse
DIMENSIONS (H x W x D) ....................................................................................................... 20" x 13.5" x 13.5" (50.3 x 34.3 x 34.3cm)
WEIGHT ............................................................................................................................................................................ 41 lbs. (18.6 Kg

SERVICE FOR YOUR NADY AUDIO PRODUCT
(U.S.) Should your NADY AUDIO product require service, please contact the Nady Service Department via telephone
at [phone], or e-mail at [e-mail].
(International) For service, please contact the NADY AUDIO distributor in your country through the dealer from
whom you purchased this product.
DO NOT ATTEMPT TO SERVICE THIS UNIT
YOURSELF AS IT CAN BE DANGEROUS AND
WILL ALSO VOID THE WARRANTY.
NADY SYSTEMS, INC. •6701 SHELLMOUND STREET, EMERYVILLE, CA 94608
Tel: [phone] •Fax: [phone] •www.nady.com
