WGA - 15
OWNER’S MANUAL
Lightning Wireless Guitar Amp System

Quick User Controls Guide
WGA-15 15W Wireless Guitar Amp
System Features
WGA-15
15W WIRELESS GUITAR AMP
Versatile, powerful practice amp•
with 15W RMS output
6” speaker•
Gain control; Volume with killer•
distortion; Treble and bass controls;
Headphone output
Built-in VHF receiver with Receiver•
On and Audio Received LEDs
WGT WIRELESS BODYPACK
TRANSMITTER
Wireless instrument bodypack•
transmitter with up to 250 feet
typical operating range (depending
on site conditions)—up to 500+
feet line-of-sight
Proprietary companding circuitry•
for an industry-best 120dB
Dynamic Range, and the clearest,
most natural sound available
Noise-free transmitter•
On/Off operation
Off/Standby/On switch allows•
convenient audio muting with
the transmitter “On”
Low battery LED indicator flashes•
once for unit “On”; lights steady
for low battery alert
Locking 3.5mm mini-jack•
provides secure connection
for instrument cable
Easily accessible input level•
adjust control for optimal sound
Instrument cable included•

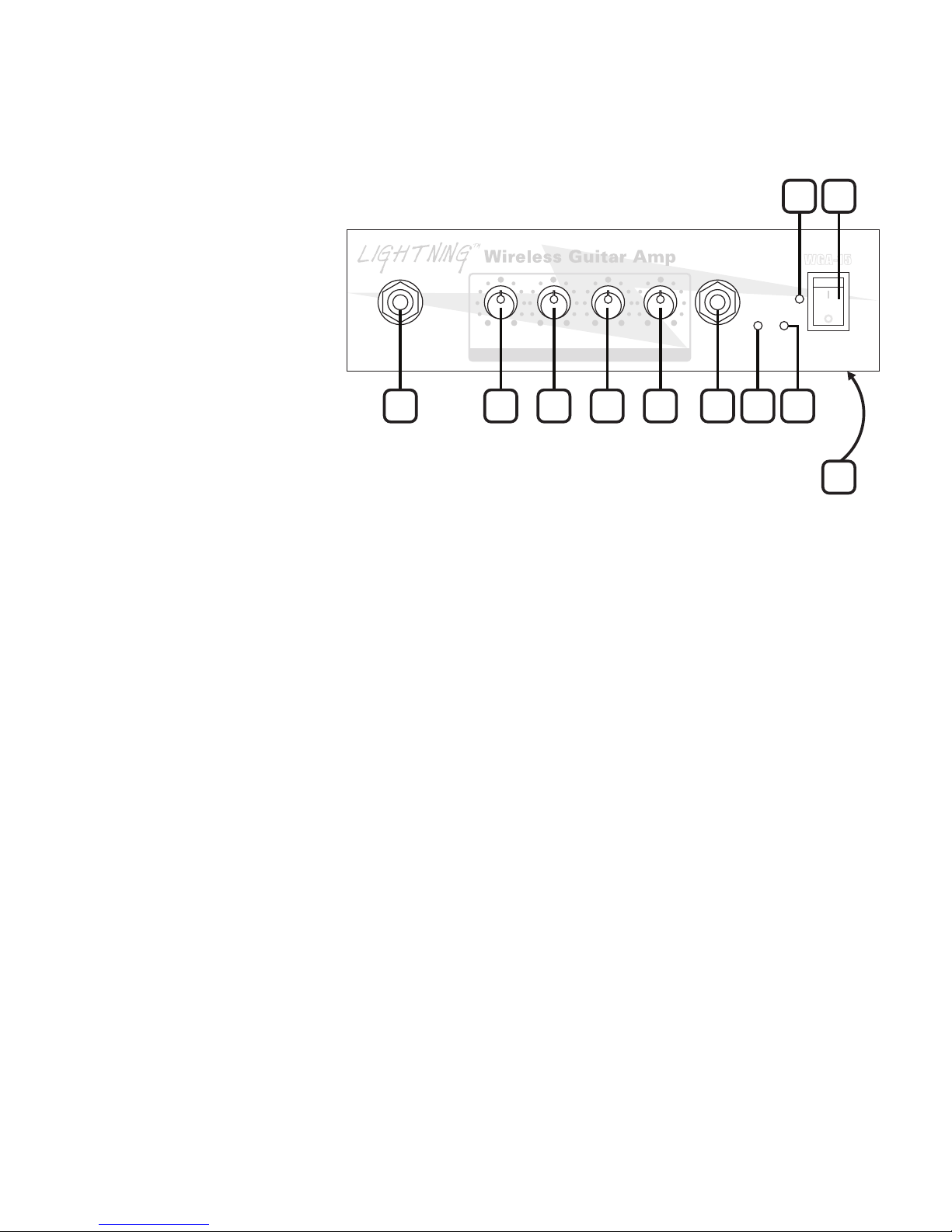

1. POWER LED Lights red to indicate
the power is on
2. POWER SWITCH Turns on power to the
amplifier. Make sure unit is plugged
into AC and the Level control is turned
down before turning on the amp.
3. INPUT JACK Use this jack to plug in
the guitar cord when not in wireless
operation. Plugging into this jack will
automatically disable the wireless
receiver capability.
4. GAIN CONTROL This control adjusts the
input gain of the guitar audio. Turn this
control to minimum for clean sounding
guitar. Turn it to maximum for heavy
distortion. Blues-style distortion can
be achieved by setting this control
to mid-level.
5. LEVEL CONTROL This control adjusts the
final master volume of the audio.
6. TREBLE CONTROL This control adjusts
the treble frequencies (approximately
5K Hz) to increase high cut, presence,
and add definition to your sound.
7. BASS CONTROL This control adjusts
the bass frequencies (approximately
120 Hz) for warmer sound and stronger
low end.
8. PHONE JACK This jack should be
used for headphones. When plugging
into this jack, the internal speaker
is disabled.
Note: this jack is meant to receive a
stereo headphone ¼” TRS plug. Do not
plug a mono ¼” TS plug into this jack.
9. AUDIO LED Lights amber to indicate
audio is present on received TX signal.
10. TX LED Lights green to indicate the
guitar transmitter is on, within range,
and the RF signal is being received.
11. ANTENNA The antenna wire is dressed
inside the amp cabinet. Do not remove
or reposition this wire.
INPUT PHONE POWER
3
ON
TXAUDIO
010 0 10 0 10
GAIN LEVEL TREBLEBASS
010
4 5 6 7 8
1 2
9 10
11
2

3
Quick User Controls Guide
WGT Wireless Body Pack Transmitter
12. BELT CLIP
13. INPUT JACK
14. POWER SWITCH To power transmitter Off/On
15. LOW BATTERY INDICATOR Indicates battery needs replacement
16. LEVEL ADJUST Connect directly into guitar/bass output jack
17. GUITAR CABLE
17
14 15 16
12
13
OFFON
LEVEL
LO
BAT
Service Information
In the U.S. If you are experiencing operational problems with your system, please refer to the Support page at
www.nady.com for assistance. Should your wireless system require service, please contact the Nady Service
Department at [phone] for a Return Authorization (R/A) Number and service quote (if out of warranty).
Make sure the R/A Number is clearly marked on the outside of the package that you are returning.
If your unit is out of warranty, please enclose a cashier’s check or money order (or pay by credit card) per
instructions by the Nady Service Department. Ship your unit prepaid to: Nady Systems, Service Department,
6701 Shellmound Street, Emeryville, CA 94608. Include a brief description of the problem you are experiencing.
For service of a unit under warranty, please follow the instructions in the following section.
Outside the U.S. For service or warranty matters please contact the Nady distributor in your country through
the dealer/store from which you purchased this product.
Do not attempt to service this unit yourself as
it can be dangerous and will also void the warranty.
Specifications
WGA-15 GUITAR AMP
Power Output 15 Watts RMS @ 4Ω
Speaker 6” full-range guitar speaker
Impedance 4Ω
Power Handling 20 Watts
Guitar Input Connector ¼” TS mono connector, with
automatic receiver bypass
Input Impedance 200KΩ
Headphone Output Connector ¼” TRS stereo connector
Bass Control +/- 12dB @ 120Hz
Treble Control +/- 12dB @ 5KHz
Power Requirements 115VAC 60Hz
Internal Fuse 0.5A 250V
Dimensions (H x W x L) 11.8” x 5.7” x 7.4”
Weight 10.5 lbs
WGA-15 BUILT-IN RECEIVER
Operating Frequency VHF single channel,
between 174-216 MHz
Antenna Wire, inside back of amp
Indicators Audio Received LEDs on RX (green)
and TX (amber)
WGT TRANSMITTER
Audio Inputs 3.5mm mono locking jack for
connecting to instrument cable
Controls OFF/STANDBY/ON switch;
Input level adjust
LED Indicator Unit “ON” (single flash),
Low Battery Alert (steady)
RF Power Out 50mW (Max. allowed by FCC)
Battery 9V Alkaline
Battery Life Up to 15 hours
Dimensions 4.1” x 2.4”x 0.8” (10.4 x 6.1 x 2.0 cm)
Weight (w/o battery) 3.6 oz (101 g)

6701 Shellmound Street |Emeryville, CA USA 94608
T510.652.2411 |F510.652.5075 |www.nady.com
One Year Limited Warranty
Nady Systems, Inc. warrants to the original consumer purchaser that the unit is free from any defects in material or workmanship for a
period of one year from the date of original retail purchase. If any such defect is discovered within the warranty period, Nady Systems, Inc.
will repair or replace the unit free of charge, subject to verification of the defect or malfunction upon return to Nady Systems. Please do not
return your Nady product to the store where it was purchased as Nady Systems handles your warranty service directly. Communication
with our Service Department is the most efficient means of servicing your unit and we are dedicated to keeping you a satisfied customer.
To the extent permitted by law, any applicable implied warranties, including warranties of merchantability and fitness are hereby
limited to one year from the date of purchase. Consequential or incidental damages resulting from a breach of any applicable
express or implied warranties are hereby excluded. This warranty is in lieu of all other agreements and warranties, general or special,
express or implied and no representative or person including a Nady dealer, agent, or employee is authorized to assume for us
any other liability in connection with the sale or use of this Nady Systems’ product.
Whereas some states do not allow limitations on how long implied warranties last, and do not allow exclusion of incidental or
consequential damages, the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights
and you may also have other rights which may vary from state to state.
This warranty is subject to the following conditions:
1) This system must have been purchased from an authorized Nady dealer and all warranty service must be performed by
Nady’s service department. Any service not performed by Nady will automatically void this warranty.
2) Items not covered: physical damage resulting from improper handling of the unit in transit from the factory by the shipper (Nady Systems
is not responsible for such damage and all such claims must be made against the shipping company by the consignee); defects caused by
normal wear of the product (expendable parts are typically connectors, cables, potentiometers, switches and similar components); damage
or defects caused by abuse, neglect, accident, failure to connect or operate the unit in any way that does not comply with applicable
technical or safety regulations, or improper repair, excessive heat or humidity, alteration or unreasonable use of the unit, causing cracks,
broken cases/housings or parts; damage caused by leaking batteries; finish or appearance items; items damaged in shipment en route
to Nady Systems, Inc. for repair. The warranty is null and void if any Nady serial number has been removed or defaced.
How To Obtain Service:
1) If factory service is required, you must contact our Service Department at [phone] for a return authorization (RA) number.
Make sure the RA number is clearly marked on the outside of your package.
(Please note: if an RA number is not included, our shipping department cannot accept your package.)
2) Send the unit back to Nady Systems, 6701 Shellmound Street, Emeryville, CA, 94608, freight pre-paid. You must include proof of date and
place of purchase (i.e., photocopy of your bill of sale) or Nady cannot be responsible for repair or replacement. Nady Systems, Inc. will not repair,
nor be held responsible, for any units returned without proper identification, return address, and RA number clearly marked on the package.
3) Per the above, Nady will perform all warranty service and return the unit to you at no charge. Nady Systems will inform the buyer if product sent
in does not meet the terms of this warranty and will provide a quote for fixing the unit and/or shipping it back exclusively at the buyer’s expense.
