PC104-688VL VIA Eden PC/
104 CPU Board User’s Manual
Feb 2004
Version: 1.0
Part Number: PC104-
688VL

ii
Copyright
©Copyright 2002 NAGASAKI IPC. The content of this publication may not be reproduced in
any part or as a whole, transcribed, stored in a retrieval system, translated into any
language, or transcribed in any form or by any means, electronic, mechanical, magnetic
etc. or otherwise without the prior written permission of NAGASAKI IPC.
Disclaimer
NAGASAKI makes no representation of warranties with respect to the contents of this
publication. In an effort to continuously improve the product and add features,
NAGASAKI reserves the right to revise the publication or change specifications contained
in it from time to time without prior notice of any kind from time to time.
NAGASAKI shall not be reliable for technical or editorial errors or omissions, which may
occur in this document. NAGASAKI shall not be reliable for any indirect, special, incidental
or consequential damages resulting from the furnishing, performance, or use of this
document.
Trademarks
Trademarks, brand names and products names mentioned in this publication are used for
identification purpose only and are the properties of their respective owners.
Technical Support
If you have problems or difficulties in using the system board, or setting up the relevant
devices, and software that are not explained in this manual, please contact our service
engineer for service, or send email to [e-mail].
Returning Your Board For Service & Technical Support
If your board requires servicing, contact the dealer from whom you purchased the
product for service information. You can help assure efficient servicing of your product by
following these guidelines:
 A list of your name, address, telephone, facsimile number, or email address where
you may be reached during the day
 Description of you peripheral attachments
 Description of you software (operating system, version, application software, etc.)
and BIOS configuration
 Description of the symptoms (Extract wording any message)
For updated BIOS, drivers, manuals, or product information, please visit us at
www.nagasaki.com.tw

iii
Table of Content
PC104-688VL VIA Eden PC/104 CPU Board User’s Manual ..................................................................... i
Table of Content .........................................................................................................................................iii
Chapter 1 Introducing the PC104-688VL System Board......................................................................... 1
Overview.................................................................................................................................................. 1
Layout....................................................................................................................................................... 2
Specifications.......................................................................................................................................... 3
Packing List .............................................................................................................................................. 4
Chapter 2 Hardware Installation............................................................................................................... 5
Before Installation................................................................................................................................... 5
Hardware Features ................................................................................................................................ 6

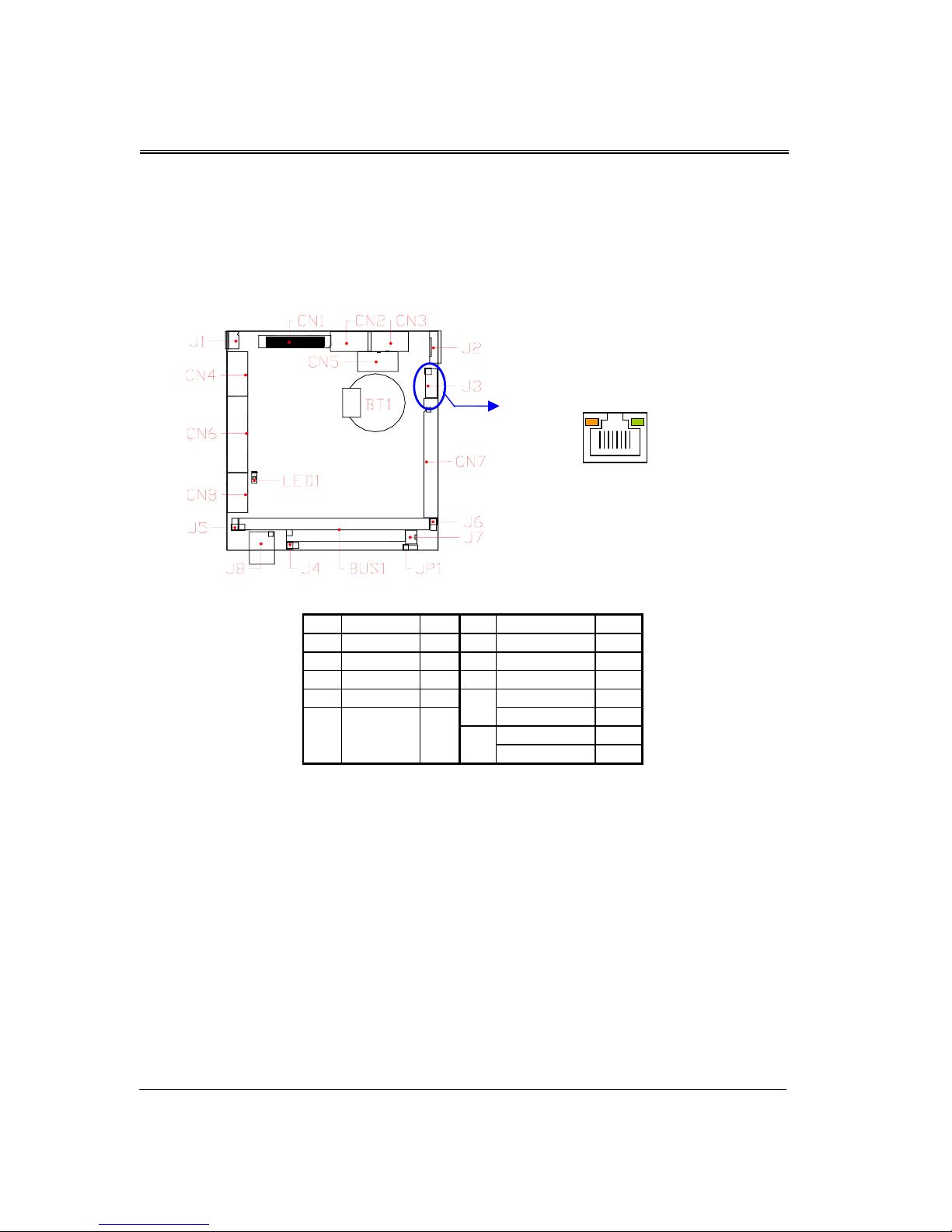

J8: Power Connector (4-pin 2.5mm JST) ........................................................................ 7
J4: Reset Header................................................................................................................. 7
J3: RJ45 LAN /Adapter Connector with LED indicators............................................... 8
J2: Keyboard/Mouse Connector..................................................................................... 9

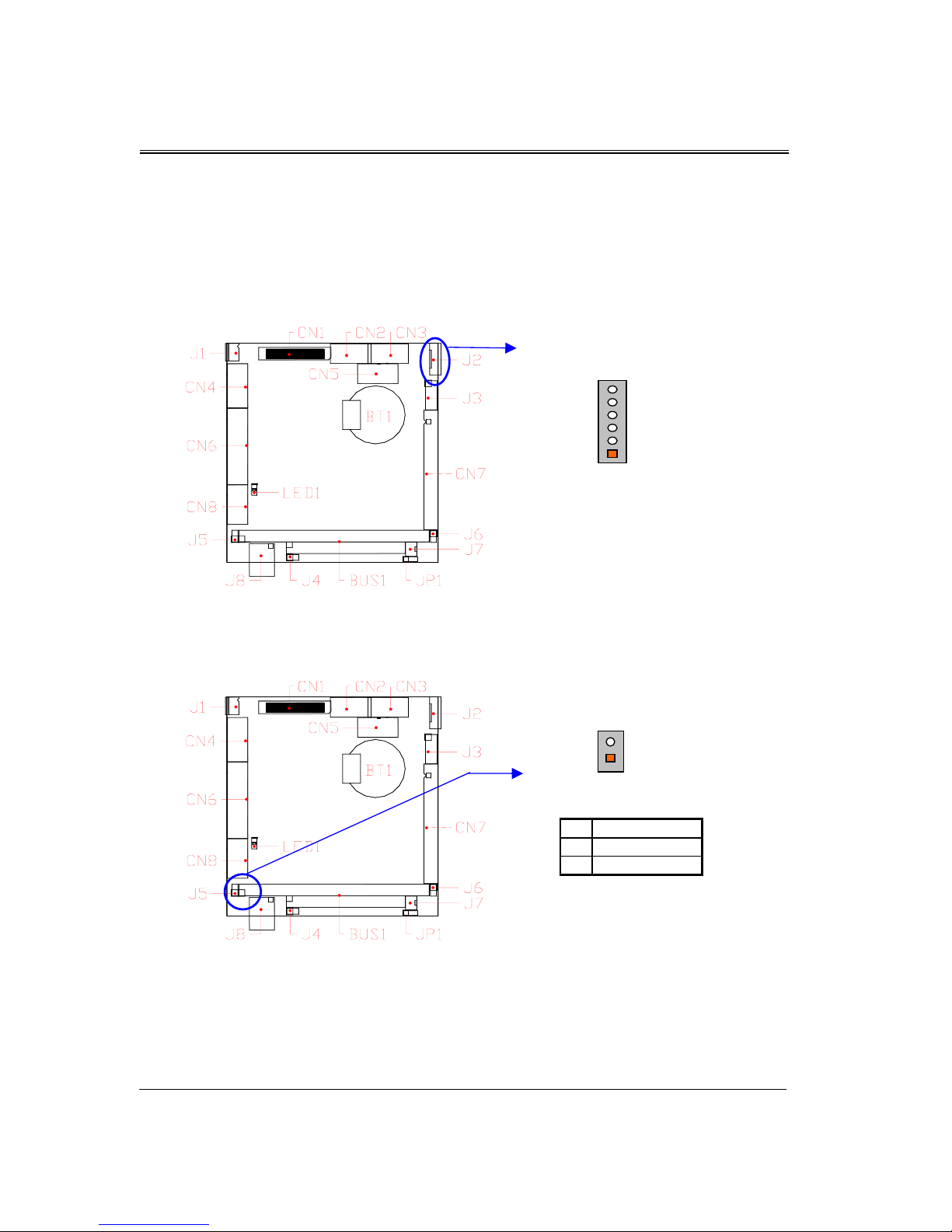

J5: External Speaker Header ............................................................................................ 9
CN4: Audio Connector ................................................................................................... 10
CN8: USB Connector ........................................................................................................ 10
FB4641: Provides Audio and USB Board........................................................................ 11
LED1: Power/Watchdog & J6: External HDD LED Header......................................... 11
CN7: IDE hard Disk Connectors...................................................................................... 12

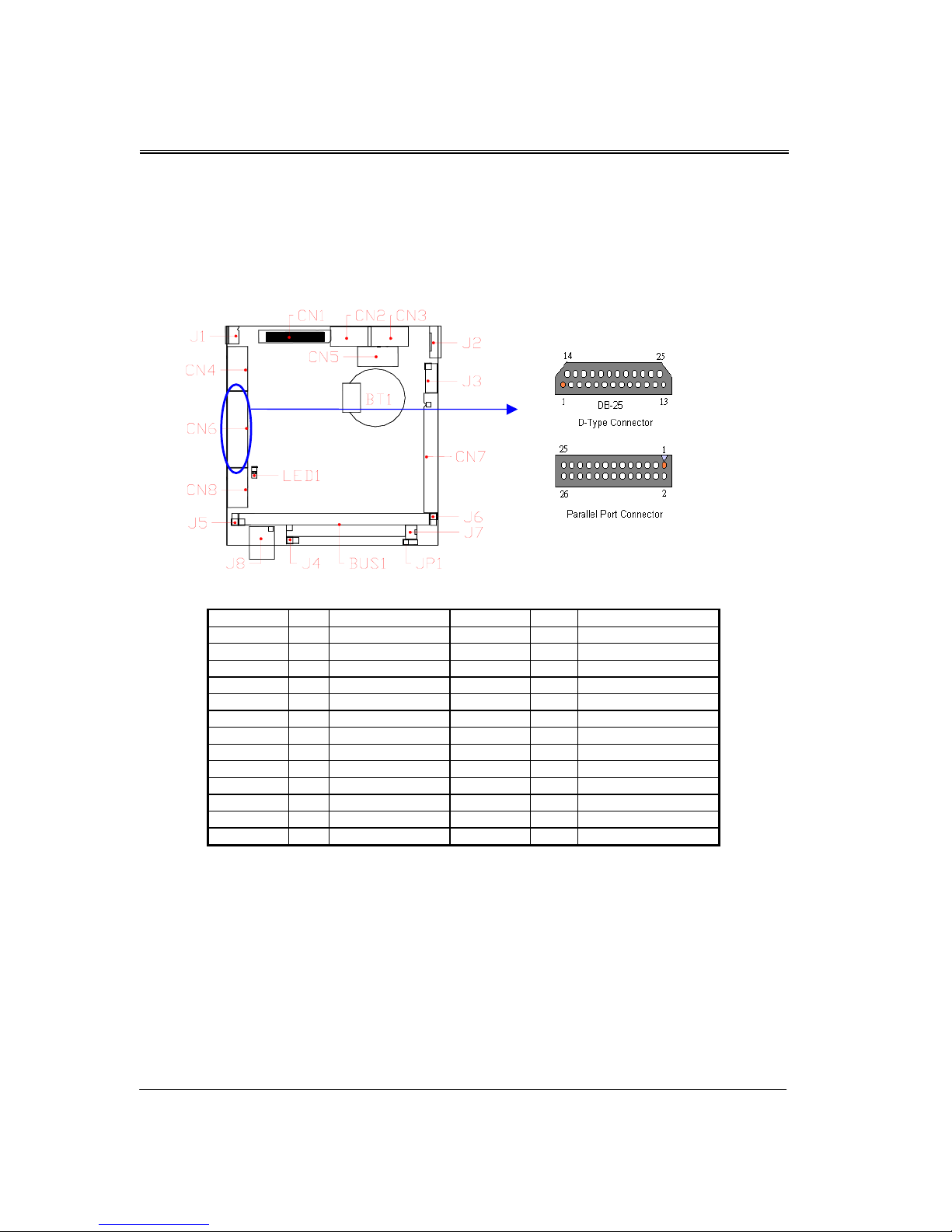

CN6: 26-pin Parallel Port Connector (26-pin 2.0mm IDC).........................................13

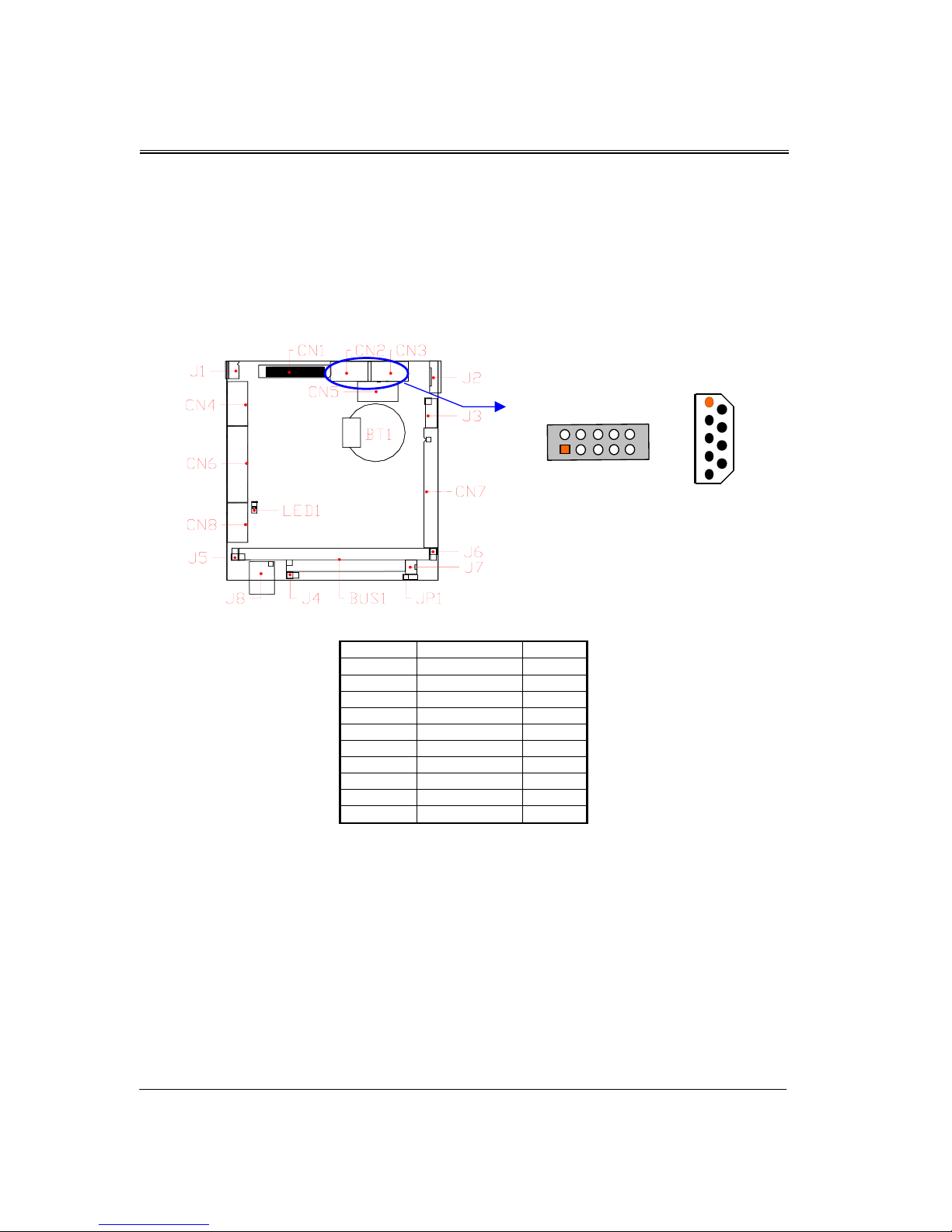

CN2 & CN3: Serial Port Connectors RS-232C Pin Definitions .................................... 14
J7 & JP1: External Battery Header and Battery Select Jumper ............................... 15
JP1: Clear CMOS Data .................................................................................................... 15
BUS1: PC/104 Bus Connectors ........................................................................................ 16
DIMM1: So-DIMM Socket ................................................................................................. 17

iv
Chapter 3 Installing CRT........................................................................................................................... 19
CRT Display (CN5) ................................................................................................................................ 19
Chapter 4 BIOS Setup............................................................................................................................... 21
Overview................................................................................................................................................ 21
BIOS Functions............................................................................................................................ 22
Keyboard Convention.............................................................................................................. 23
STANDARD CMOS SETUP ..................................................................................................................... 24
ADVANCED CMOS SETUP ................................................................................................................... 26
ADVANCED CHIPSET SETUP................................................................................................................. 31
POWER MANAGEMENT ....................................................................................................................... 34
PCI/PLUG AND PLAY ............................................................................................................................ 36
PERIPHERAL SETUP................................................................................................................................. 39
Hardware Monitor Setup .................................................................................................................... 42
Password Setup .................................................................................................................................... 43
Chapter 5 Driver and Utility ..................................................................................................................... 45
VGA /Audio Driver for WIN98/WIN95................................................................................................ 45
BIOS Flash Utility .................................................................................................................................... 46
LAN Utility ............................................................................................................................................... 46
Watchdog Timer................................................................................................................................... 47
Watchdog Timer Setting ..........................................................................................................48
Watchdog Timer Enabled............................................................................................... 48
Watchdog Timer Trigger .................................................................................................. 48
Watchdog Timer Disabled .............................................................................................. 48
Chapter 6 Technical Reference.............................................................................................................. 49
Trouble Shooting for Error Messages................................................................................................. 49
Technical Reference ........................................................................................................................... 52
Real-Time Clock and Non-Volatile RAM ............................................................................... 52
CMOS RAM Map ....................................................................................................................... 54
I/O Port Address Map ............................................................................................................... 55
Interrupt Request Lines (IRQ) ...................................................................................................56
DMA Channel Map................................................................................................................... 57
DMA Controller 2 ....................................................................................................................... 57
Serial Ports ................................................................................................................................... 58
Parallel Ports ............................................................................................................................... 62

v
Appendix................................................................................................................................................... 65
Dimension .............................................................................................................................................. 65
PC104-688VL...............................................................................................錯誤! 尚未定義書籤。
FB4605 .......................................................................................................................................... 66
FB4641 .......................................................................................................................................... 66

1
Chapter 1 Introducing the PC104-688VL System Board
Overview
The PC104-688VL is a VIA Eden Low power processor, all in one, PC/104 CPU board.
This user’s manual provides information on the physical features, installation, and BIOS
setup of the PC104-688VL.
Built to unleash the total potential of the VIA Eden Processor, the PC104-688VL is a
single boards computer capable of handling today’s demanding requirements. Able
to support 400 MHz CPU, this unit supports 10/100M interface network port, synchronous
pipeline burst SDRAM up to 512MB and a onboard VGA port up to 8MB share memory
that can support CRT.
Each PC104-688VL has two ports for I/O communications. Two RS-232 ports are
available. There is also a watchdog timer that can be configured from software to
automatically reset the system. And for easy configuration, AMI BIOS are available.
Power management is also featured to lower the rate of consumption. The unit
supports doze mode, <Suspend Mode> and <Standby mode> as well as it adheres to
the “Green Function” standard.
The PC104-688VL is perfect for POS and POI applications, network systems, panel /
MMI’s, order entry kiosks, test equipment, OEM projects or as a motherboard for a
panel PC. The unit is only 90.2x95.9mm, offering unparalleled performance in a very
small footprint.

NAGASAKI IPC
2

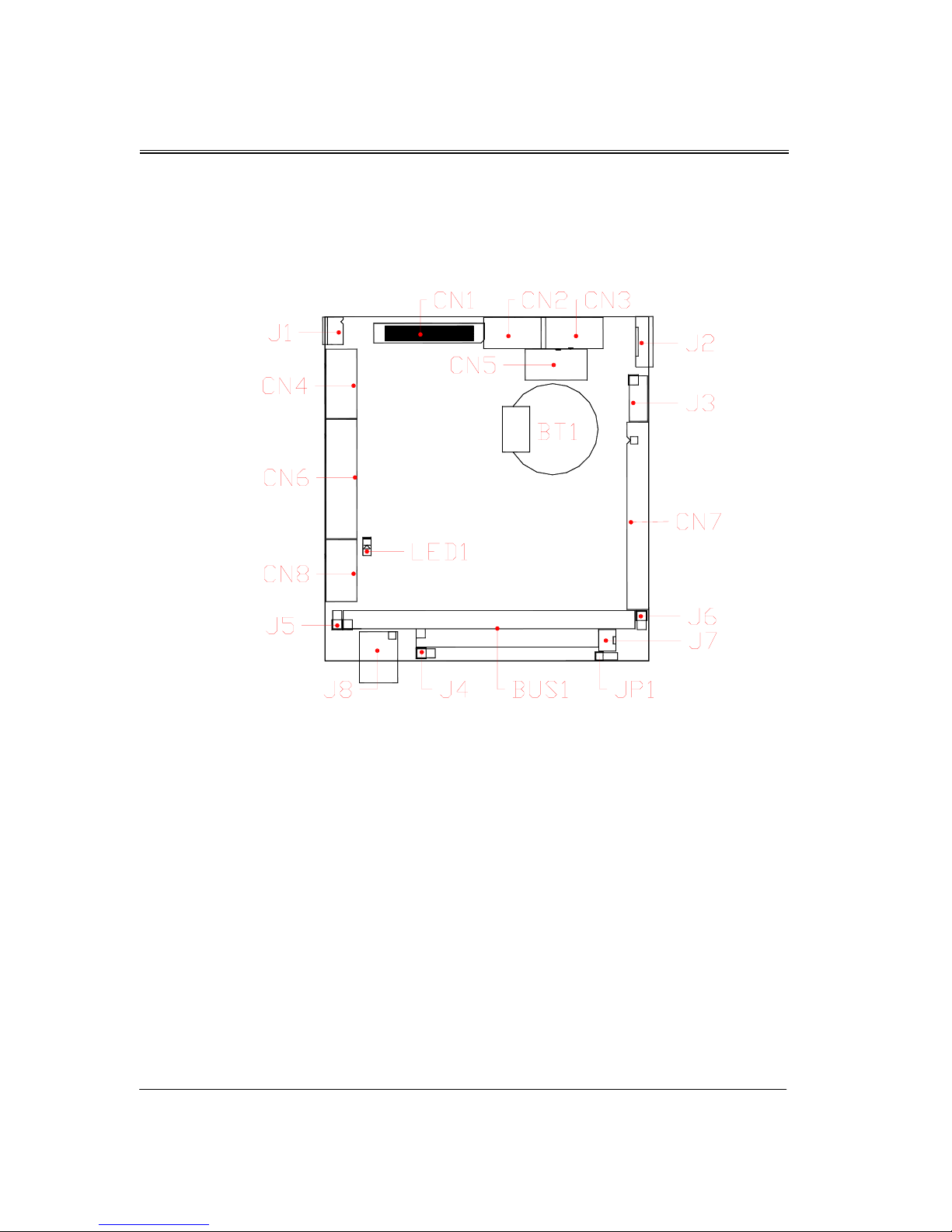

Layout

NAGASAKI IPC
3
Specifications
 Supports 300 ~ 733 MHz Low Power CPU. (400MHz for standard)
 VIA VT8601T+VT82C696B chipset and 64KB or above L2 cache inside the CPUs.
 One SoDIMM socket for up to 512MB PC-133 SDRAM.
 One 100M/10M Ethernet port.
 Onboard VGA port (VT8601T embedded) supports CRT up to 8MB shared
memory.
 One parallel port, two RS-232, two USB, and One PCI IDE interface.
 PS/2 compatible keyboard and mouse interface.
 Provides header for external speaker and hard disk access LED.
 Software programmable watchdog timer.
 Provides cooling fan connector for monitoring.
 Provides One AC97 Audio function.
 Flash BIOS with easy upgrade utility.
 PC/104 form factor, 90.2 mm x 95.9 mm (3.55” x 3.775”)
 Power requires +5V only, 2.2A maximum. (400MHz CPU)

NAGASAKI IPC
4
Packing List
Upon receiving the package, verify the following things. Should any of the mentioned
happens, contact us for immediate service.
• Unpack and inspect the PC104-688VL package for possible damage that may
occur during the delivery process.
• Verify the accessories in the package according to the packing list and see if
there is anything missing or incorrect package is included.
• If the cable(s) you use to install the PC104-688VL is not supplied from us, please
make sure the specification of the cable(s) is compatible with the PC104-688VL
system board.
Note: after you install the PC104-688VL, it is recommended that you keep the
diskette or CD that contains drivers and document files, document copies,
and unused cables in the cartoon for future use.
The following lists the accessories that may be included in your PC104-688VL package.
Some accessories are optional items that are only shipped upon order.
• One PC104-688VL All-In-One PC/104 CPU board
• One VGA (CRT interface) adapter cable
• One 44-pin hard disk drive interface cable
• Two serial port and parallel port interface cable
• One PS2 keyboard and mouse port adapter cable
• One 10-pin LAN adapter cable with FB4605A board.
• One USB cable, One Audio cable, and one FB4641 Audio/USB adapter board.
• One compact disc containing manual file in PDF format and necessary
drivers and utilities
• One hard copy of Quick Installation Guide

NAGASAKI IPC
5
Chapter 2 Hardware Installation
To set up a PC104-688VL system board, complete the description Chapter 2 and
Chapter 3.
This chapter introduces the system board connectors, jumper settings and then guides
you to apply them for field application.
Before Installation
Before you install the system board, make sure you follow the following descriptions.
1. Before removing the board from its anti-static bag, wear an anti-static strap to
prevent the generation of Electricity Static Discharge (ESD). The ESD may be
created from human body that touches the board. It may do damage to the
board circuit.
2. Install or unplug any connector, module, or add-on card, be sure that the power is
disconnected from the system board. If not, this may damage the system board
components, module, or the add-on-card.
3. Installing a heat sink and cooling fan is necessary for heat dissipation from your
CPU. If heat sink or cooling fan is not mounted, this may cause the CPU fail due to
over-heating problem.
4. When you connect the connectors and memory modules, be careful with the pin
orientations.

NAGASAKI IPC
6
Hardware Features
The following lists the connectors and jumpers to install the PC104-688VL.
Item Description
CN1 LCD Connector with 24 bit TTL signals (Reserved for VIA8606)
CN2, CN3 10-pin RS-232 port connector
CN4, CN8 Connector to daughter board FB4641, provides AC97 signals for Audio and USB
CN5 10-pin CRT connector
CN6 26-pin 2.0mm parallel port connector
CN7 44-pin 2.0mm IDE 2 hard disk connector
J1 3-pin for case/CPU cooling fan
J2 5-pin for Keyboard and Mouse connector
J3 10-pin for RJ45-Lan connector
J4 2-pin Reset header
J5 2-pin for external speaker header
J6 2-pin for HDD LED indicator
J7 2-pin External battery header
J8 4-pin Power connector
JP1 3-pin Battery Select /Clean CMOS jumper
LED1 Power and watchdog of LED indicator

NAGASAKI IPC
7

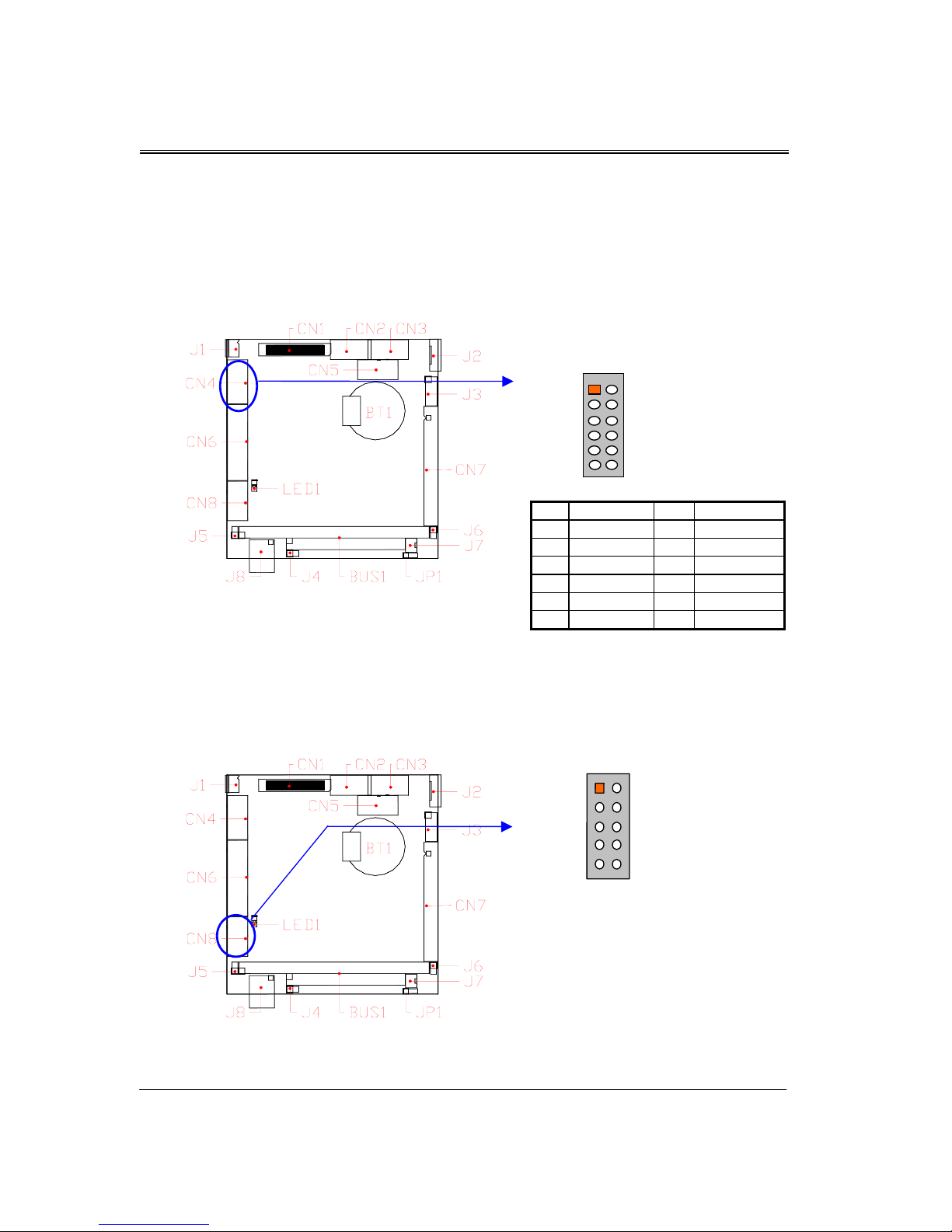

 J8: Power Connector (4-pin 2.5mm JST)

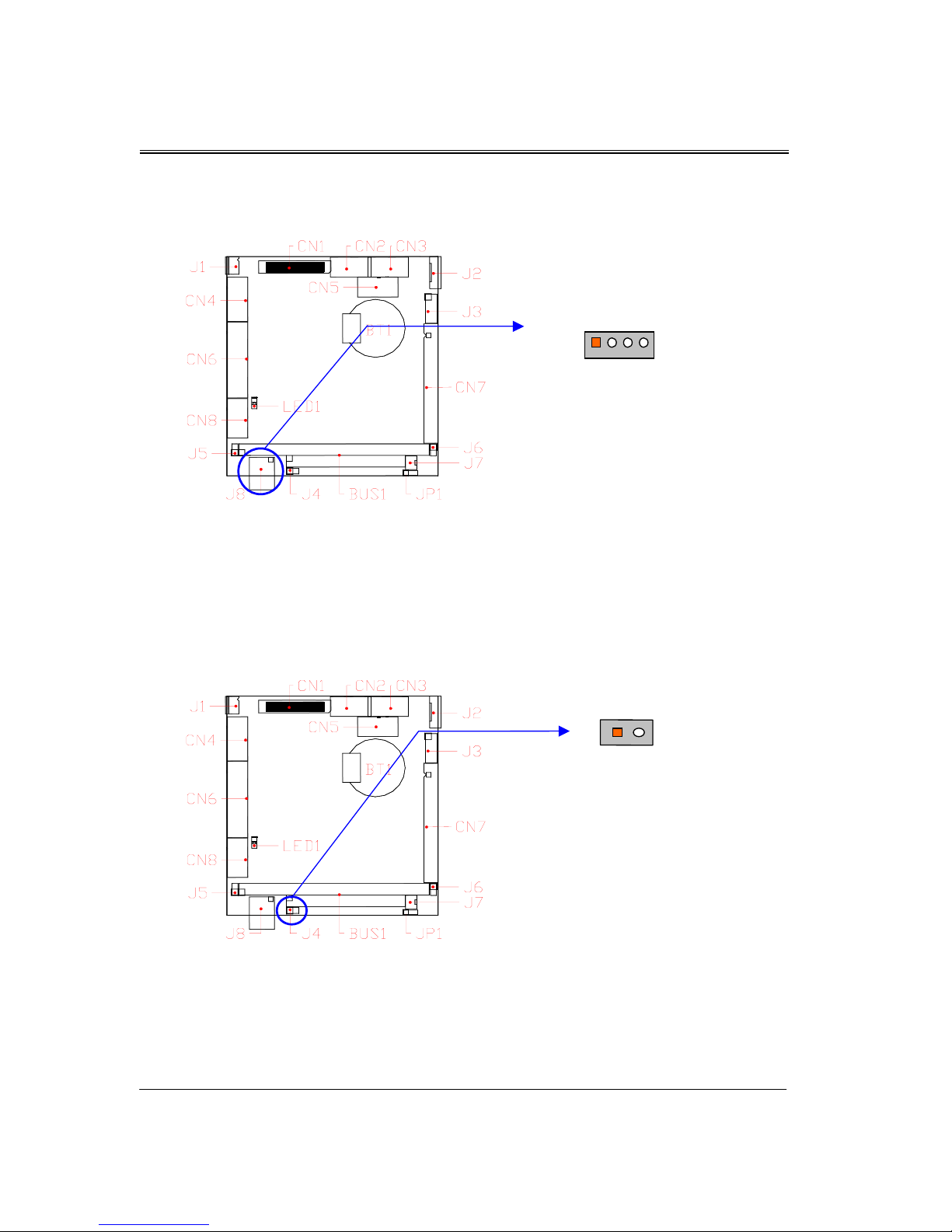

 J4: Reset Header
J4 is a 2-pin header for connecting to system reset bottom. Short-circuit these 2 pins to
hardware reset PC104-688VL as well as restart system. It is similar to power off the
system and then power it on again.
Pin 1: VCC (+5V)
Pin 2: Ground
Pin 3: Ground)
Pin 4: VDD (+12V)
J8
4
1
Pin 1: Reset +
Pin 2: Reset -
1 2
J4

NAGASAKI IPC
8
 J3: RJ45 LAN /Adapter Connector with LED indicators
FB4605A is a RJ45 connector with 2 LEDs for LAN. The left side LED (orange) indicates
data is being accessed and the right side LED (green) indicates on-line status. (On
indicates on-line and off indicates off-line) J3 provide twist-pair signals of LAN port if
you got LAN version and adapter board (FB4605A) with cable. The following table lists
the pin assignments of J3 to RJ45 connector on the FB4605A LAN adapter board:
The following lists the pin assignment of J3.
J3 Signal RJ45
J3 Signal RJ45
1 TPTX+ 1 6 Access LED -
2 TPTX - 2 7 On-Line LED -
3 TPRX+ 3 8 Case GND -
4 TPRX - 6 FBG1 49
FBG1 5
FBG2 7
5 LED
Common
-
10 FBG2 8
1 8
RJ45 connector on FB4605A adapter
board
(Front View)

NAGASAKI IPC
9
 J2: Keyboard/Mouse Connector
J2 is a 6-pin 2.0mm JST connector, use the included adapter cable you can attach
standard PS/2 type keyboard and mouse.
 J5: External Speaker Header
PIN Signal
1 Speaker+
2 Speaker-
J2
6
1
Pin 1: Mouse Data
Pin 2: Keyboard Data
Pin 3: Ground
Pin 4: VCC
Pin 5: Mouse Clock
Pin 6: Keyboard Clock
1
2
J5

NAGASAKI IPC
10
 CN4: Audio Connector
CN4 is a 12-pin 2.0mm IDC connector with AC97 signals for Audio I/O. Use the included
Audio cable and FB4641 adapter board for your Audio applications.
 CN8: USB Connector
Use the USB adapter cable and FB4641 board, you can attach up to 2 USB devices.
CN4 Description CN4 Description
1 BITCLK 2 +12v
3 +5V 4 SYNC
5 Ground 6 Ground
7 +3.3V 8 ACRST#
9 SDOUT 10 SPKR
11 SDIN 12 SDIN2
Pin 1: USBV0 Pin2: Case Ground
Pin 3: USBD0 - Pin4: USBG1
Pin 5: USBD0+ Pin6: USBD1+
Pin 7: USBG0 Pin8: USBD1-
Pin9: Case Ground Pin10: USBV1
CN8
10
2
9
1
11
CN4
2
12
1

NAGASAKI IPC
11
 FB4641: Provides Audio and USB Board
The J3, J4, and J5 connectors on FB4641 are 2-way Line-In, mono Microphone input,
and 2-way Lineout respectively. You can connectors J1, CN2 cable from PC104-688VL
CN4 and CN8. The following figure shows these Audio connectors on FB4641 board:
J5 J4 J3 CN1 CN3
J1
J2
CN2

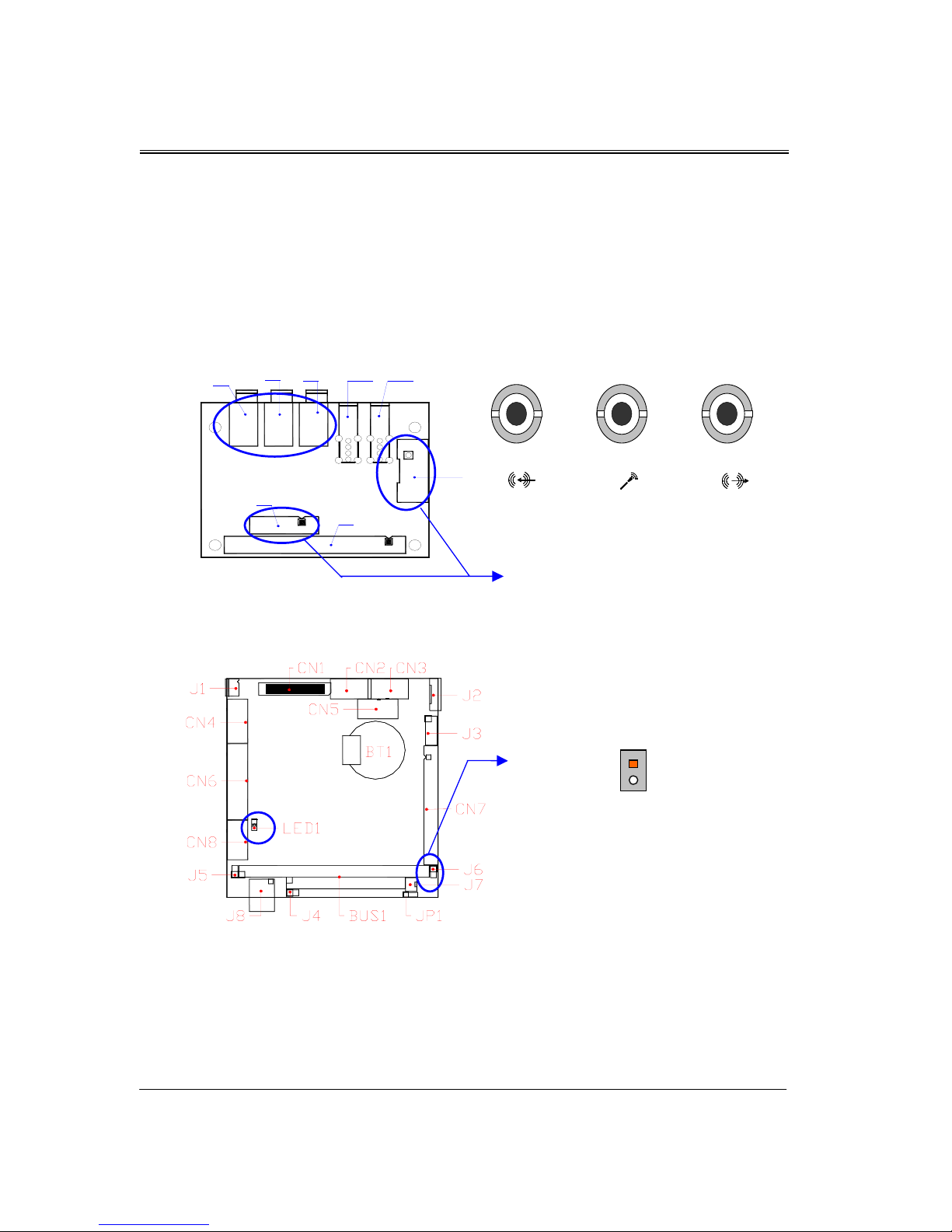

 LED1: Power/Watchdog & J6: External HDD LED Header
1
2
J6
Pin1: HDD LED+
Pin2: HDD LED -
Line-Out
Line-In
Mic-In
J3 J4 J5
Connector to PC104-688VL
CN4/CN8

NAGASAKI IPC
12

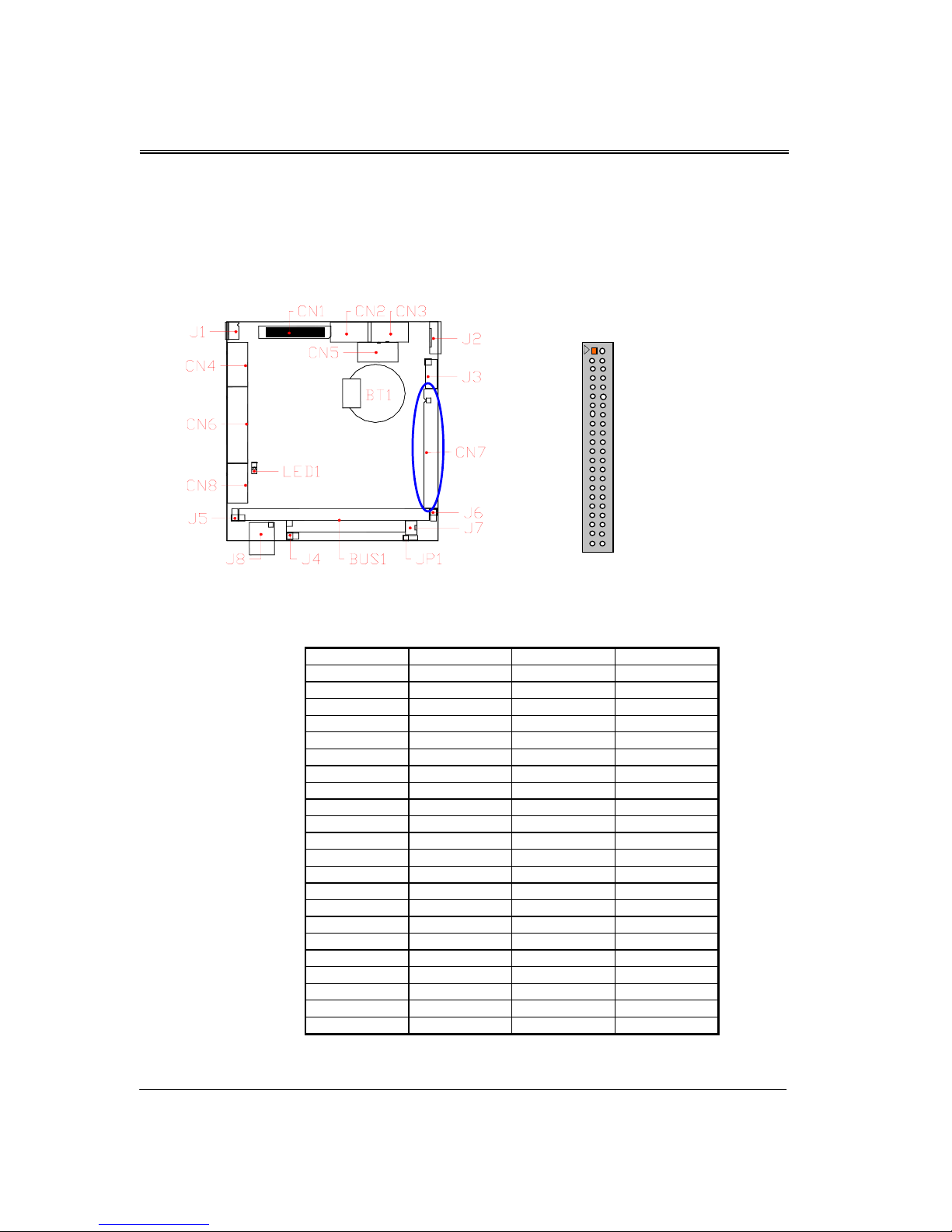

 CN7: IDE hard Disk Connectors
CN7 is 44-pin 2.0mm IDC connectors. Use the included hard disk cables to attach up
to two 2.5” hard disk drives.
The following table lists the pin description of CN7.
Pin Description Pin Description
1 -RESET 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 NOT USED
21 IDEDREQ 22 GROUND
23 -IOW A 24 GROUND
25 -IOR A 26 GROUND
27 IDEIORDYA 28 GROUND
29 -DACKA 30 GROUND
31 AINT 32 GROUND
33 SA 1 34 Not Used
35 SA 0 36 SA 2
37 CS 0 38 CS 1
39 HD LED A 40 GROUND
41 VCC 42 VCC
43 GROUND 44 Not Used
CN7 – Hard disk connector
12
43 44

NAGASAKI IPC
13
 CN6: 26-pin Parallel Port Connector (26-pin 2.0mm IDC)
The included printer interface cable is used to transfer 26-pin connector into standard
DB25 connector.
CN6 DB-25 Description CN6 DB-25 Description
1 1 -STROBE 2 14 -AUTO FORM FEED
3 2 DATA 0 4 15 -ERROR
5 3 DATA 1 6 16 -INITIALIZE
7 4 DATA 2 8 17 -PRINTER SELECT IN
9 5 DATA 3 10 18 Ground
11 6 DATA 4 12 19 Ground
13 7 DATA 5 14 20 Ground
15 8 DATA 6 16 21 Ground
17 9 DATA 7 18 22 Ground
19 10 -ACKNOWLEDGE 20 23 Ground
21 11 BUSY 22 24 Ground
23 12 PAPER 24 25 Ground
25 13 PRINTER SELECT 26 -- No Used

NAGASAKI IPC
14
 CN2 & CN3: Serial Port Connectors RS-232C Pin Definitions
CN2 (COM1) & CN3 (COM2) are 10-pin 2.0mm IDC connectors. The included serial
port adapter cables are used to transfer 10-pin 2.0mm IDC into standard DB-9
connector. The following tables show the signal connections of these connectors
and the included adapter cable for CN2 & CN3:
CN2 & CN3 RS-232 Signal DB9
1 -DCD2 1
2 -DSR2 6
3 RXD2 2
4 -RTS2 7
5 -TXD2 3
6 -CTS2 8
7 -DTR2 4
8 -RI2 9
9 GROUND 5
10 GROUND Shield
5
1
9
6
DB9
CN2 & CN3
2
1
9
10
