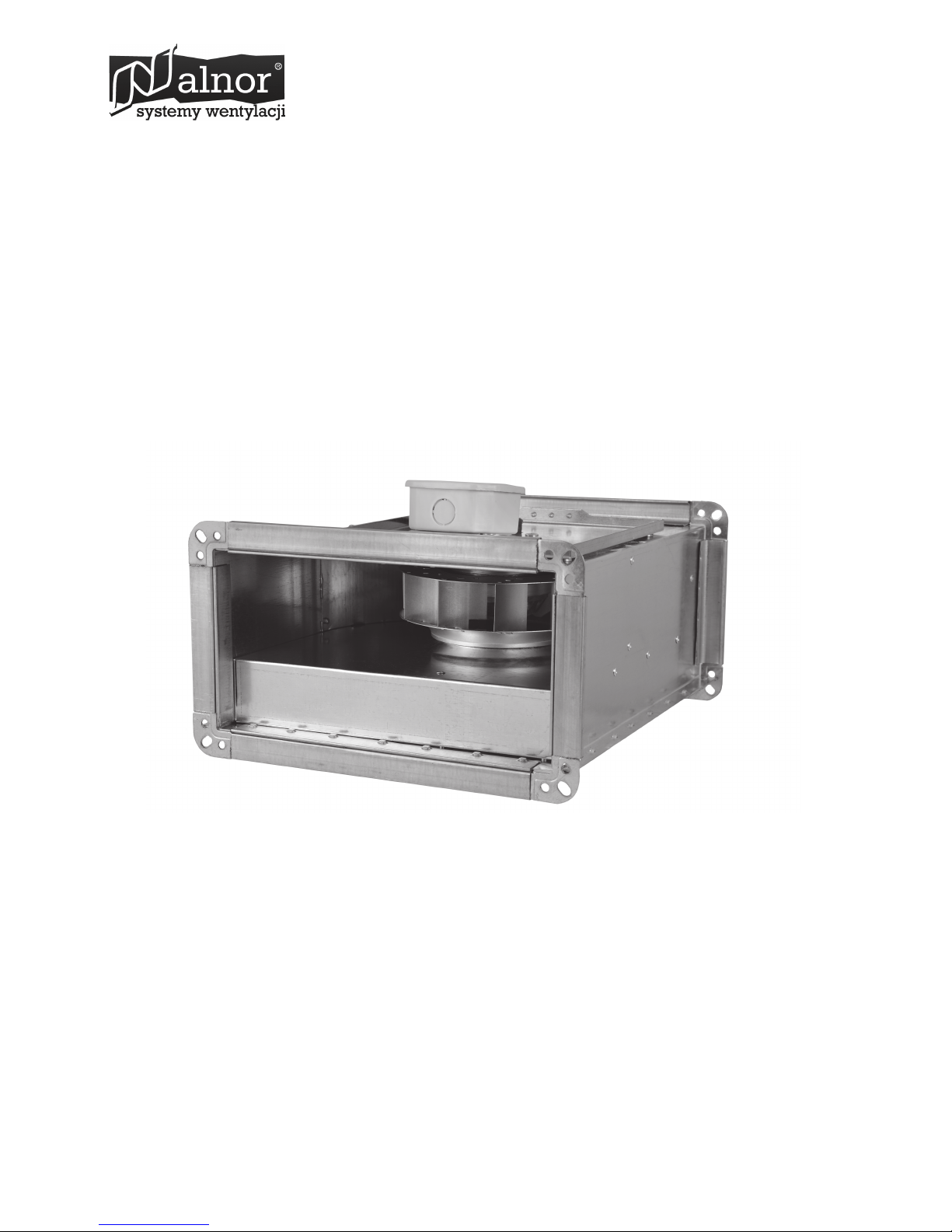

Nalnor DV-SQ-400-200 User manual

User’s Manual
Rectangular In-line Duct Fans
DV-SQ-400-200
DV-SQ-600-350
Models

Safety warnings
• These fans contain rotating parts and electrical connections. Therefore, pay attention to safety warnings during their
assembly, maintenance and operation.
• Electrical connections and assembly must be made by authorized persons.
• Electrical connections of the fan should not be damaged when the ceiling or the wall is drilled or broken.
• The product must have an air duct of its own.
• During transport, operation and maintenance, hands should be protected with gloves against cuts.
• The fan should in no way be touched while operating.
• Proper cleaning should be done with periodic intervals; otherwise the product might be harmed.
• Keep the fan away from children and do not let unauthorized people to use it.
• Do not use do product at ambient temperature over 40 °C
• We herewith declare that our products do not contain asbestos, mercury, PCBs (polychlorinated biphenyls), deemed harm-
ful to human or environmental health.
Markings on the products or declared values on the other printed documents has been obtained in the laboratory in accordan-
ce with related standards. These values may vary depending on product usage and environmental conditions.

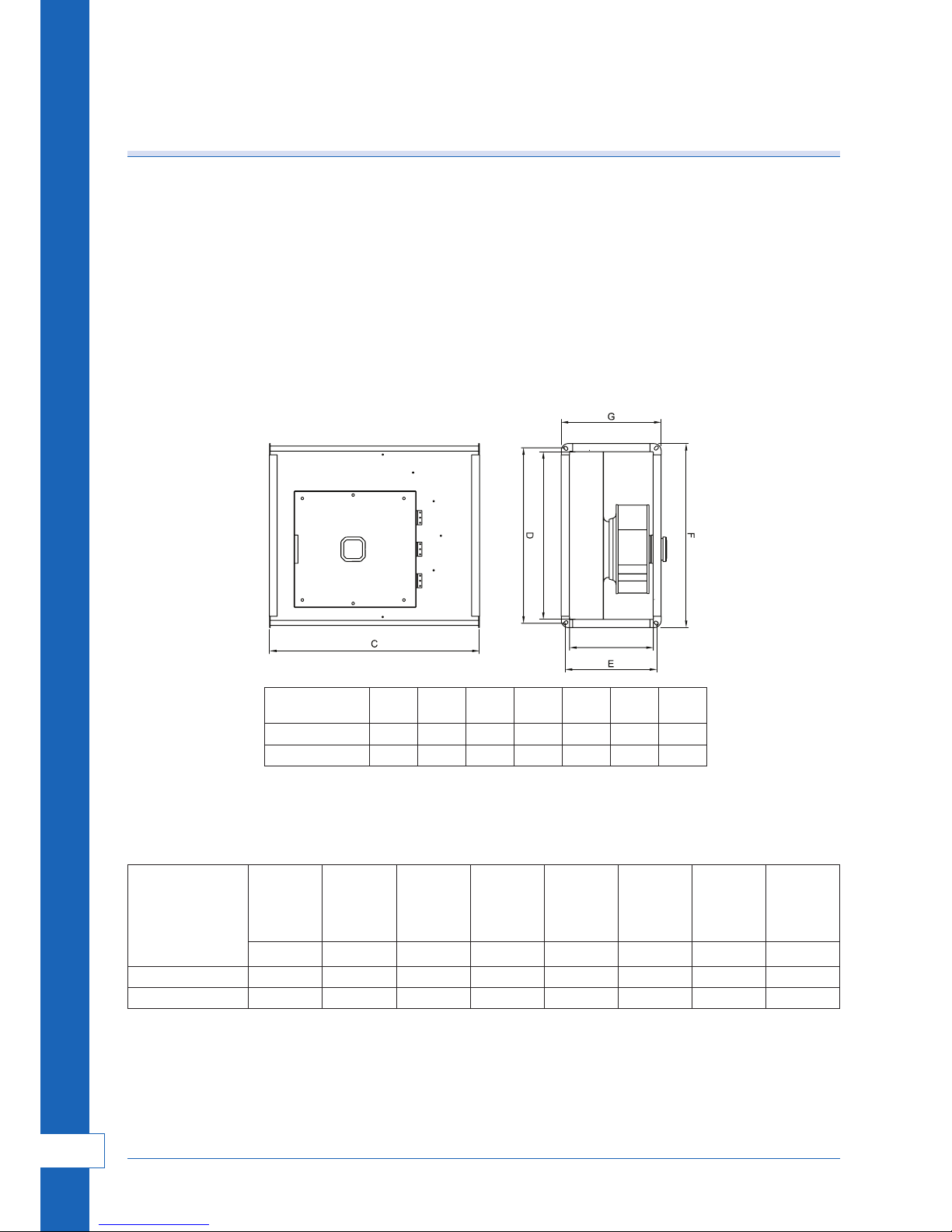

Dimensions
Technical data
Type A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
DV-SQ-400-200 400 200 500 420 220 450 250
DV-SQ-600-350 600 350 760 620 370 650 400
B
A
Type
Voltage
Frequency
Power
Capacitor
Speed
Air Flow
Sound level
Weight
V Hz W (uf) d/d m3/h dB(A) kg
DV-SQ-400-200 230 50 130 5 2675 1150 75 11
DV-SQ-600-350 230 50 380 8 1420 3400 78 32
c
ALNOR® ventilation systems
is a legally protected trademark and technical patent. All rights reserved.
2
www.ventilation-alnor.co.uk
Manual - Duct fans
DV-SQ

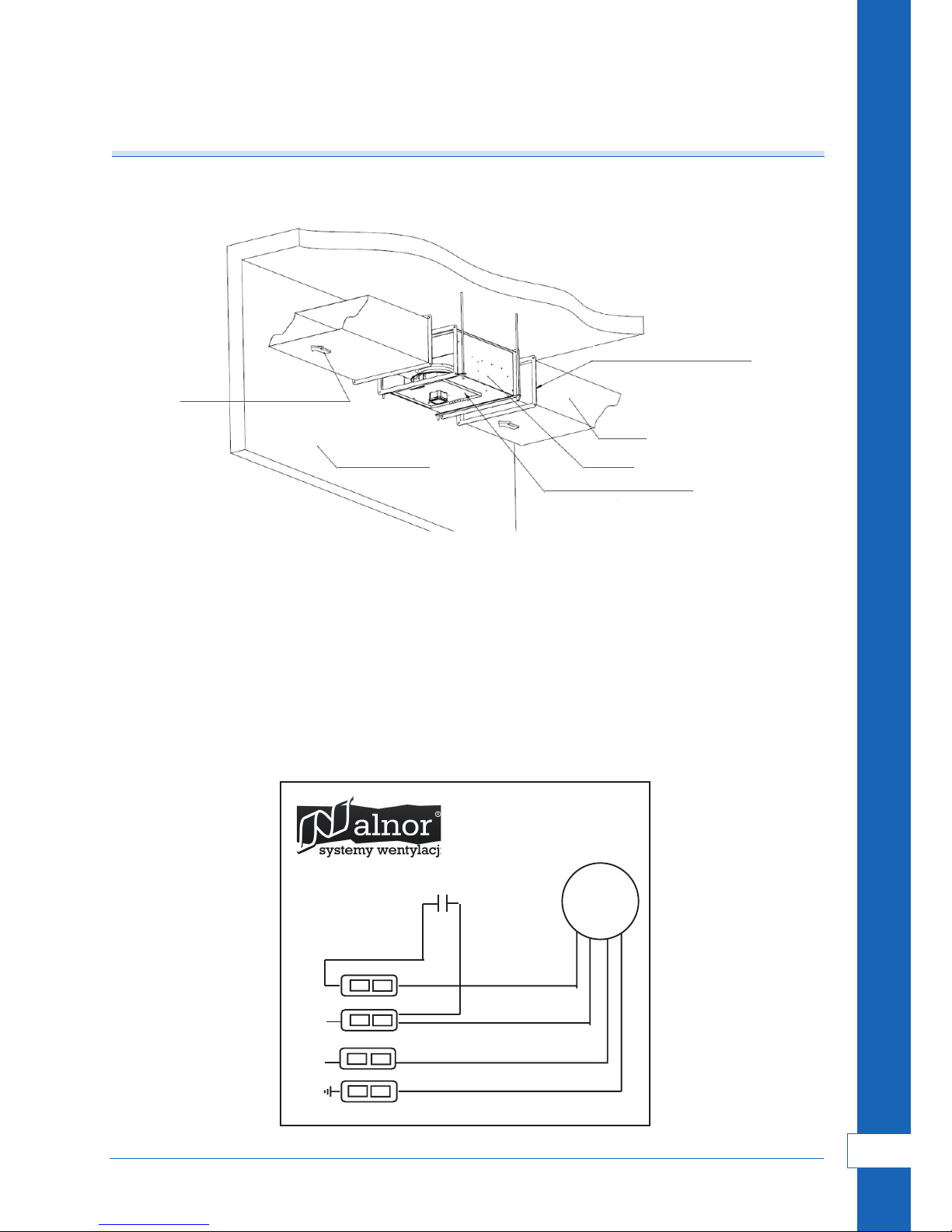

Assembly
1. For ceiling assembly, drill the appropriate holes and insert the dowel according to their size and distance.
2. Product should be suspended and fixed as shown in figure.
3. Make sure to install according to the direction of air flow.
4. Air ducts should be connected to flanges as shown in figure which are isolated with sealing sponge tape between product
and air duct.
5. Make sure that the power cord is connected correctly by looking at the electrical diagram. Device mounted on an all pole
circuit breaker, connect the splitter.
6. Perform trial operation of the fan, check if there are any errors in the product and vibrations.
Wiring diagram
Single-phase connection
DV-SQ
DUCT
FLANGE + SEALING TAPE
MAINTENANCE COVER
AIR DIRECTION
WALL
M
N
L
Brown
Black
Blue
Yellow-Green
C
~
3
ALNOR® ventilation systems
is a legally protected trademark and technical patent. All rights reserved.
www.ventilation-alnor.co.uk
Manual - Duct fans
DV-SQ

Abnormal Situation Possible Cause How to Fix
Too much sound (noise) Rotor imbalance Change the rotor
The device is not working
Motor is damaged Change the motor
Condensator is not working Change the condensator
Faulty speed adjustment connection Check the installation (assembly)
The device is rotating slowly Faulty connection Check the electrical connection
Defects and How to Fix Them:
• Products should be installed only by authorized persons.
• Installation of the product should be specified in the project, installation to the wall or floor must be securely mounted. If
mounted on the wall, it should be mounted with bracket or with clamps.
• Fan blades must be installed at least 2,3 m above floor level, in case of wall installation.
• Fan can not be installed outside the window or wall.
• Necessary precautionary measures should be done to avoid back flow of gases into the chamber from outdoor gas pipe or
other fuels device. Wearing gloves is recommended during the assembly process
• The product must be connected to the input and output channels.
• Turn off the power before connecting electrical cords.
• When mounting brackets and mounts are installed correctly, make sure that they are solid enough to safely carry the
weight of product.
• Even if main power supply to the product is switched off, You should make sure of that while connecting facilities.
• Before installation please check whether the electrical connection information (voltage, power, frequency, etc..) which is
indicated on product label is matching with mounting area specification.
• There is no obstruction on the Air flow way.
• In terms of safety, ground terminal which is located in connection box should be connected to the building ground.
• Make sure that motor thermal and overload relay are connected properly.
• Product wiring, electrical connections must be as in the diagram.
• Contact separation in all poles along with a switch that must be connected to fixed wiring installations in accordance with
the rules.
Usage
Rectangular In-Line Duct Fans engineered for medium and large ventilation needs where space is at a premium. DV-SQ Rectan-
gular fans developed and manufactured for high performance, trouble-free, and direct-to-duct operations.
DV-SQ fans are perfect for use in residential, commercial and industrial environments, for ventilation applications such as:
bathrooms, toilets, utility rooms, indoor swimming pools, gyms and storerooms, cafes, bars, restaurants, shops, schools, offi-
ces, factories, buildings, warehouses, pubs, hotels, shopping centers, and leisure centers, workshops, and spot ventilation.
Users are obliged to read carefully the manual before attempting to assemble, operate or maintain fans.
Expected life of the products is 10 years.
When using your product for the first time;
• Before connecting electric cables, you must not forget to cut the power supply. Be sure that electrical connections of the
• product are established correctly and safely.
• Be sure that safety equipment is connected correctly.
• Properly establish earthing connections.
• Be sure that the cable and electric connection box are closed correctly and do not admit water leakage.
• Air exit direction should be in the direction indicated with the label on the body. There shall not be any obstacles in the
air flow route.
• The wings should rotate in the correct direction.
• While the product is operating, there shall not be any vibration or internal rubbing or hitting voice due to the rotation of
the fan
• or the suction fan.
• Power supply, current and frequency values shall comply with the product label.
• If any electricity warning device turns on, electric connection should immediately be cut from the main power supply.
Before
• starting the product, all the installation should be controlled again carefully.
• If any problem occurs, please consult authorized persons.
• In case of any defect after you have started using the product continuously, the type of defect should be determined. In
order to remove
• the defect, the technical service must be contacted. You must not try to fix the problem yourself.
c
ALNOR® ventilation systems
is a legally protected trademark and technical patent. All rights reserved.
4
www.ventilation-alnor.co.uk
Manual - Duct fans
DV-SQ

Cleaning, maintenance and transport
In order to protect your product from being damage during transport;
The product has been packaged according to normal transport conditions. In order to avoid possible damage, it should always
be carried in its original package.
• The product shall be kept in its own package in a vibration-free, dust-free environment away from abrasive orchemical
material until it isdelivered to its placeof assembly. Do not accept the products which are not in their original package or
which were opened before being delivered to you.
• The products should be stocked into the vehicle in a way to stay motionless in case of any turn over or fall down.
• While heavy products are being carried, use appropriate lifters to protect products or the people carrying the products.
• All necessary measures should be taken in orderto prevent damages arising from sudden and careless lifting and putting
down.
• The products should be carried one by one carefully. They shall not be thrown or carried carelessly from hand to hand.
Aftertaking the product out of its package;
• The delivered product should be checked.
• The product must be checked for damage during transport. If thereis any lost or damaged part, it should immediately be
nformed to the transporter or our firm verbally or by writing.
• Do not hold the product on its connection box or electric cables. Abstain from applications which will damage the wings
or the protective cage while carrying.
Periodic cleaning and maintenanceof the product;
• Before cleaning or maintenance, even if the product is turned off, be surethatelectric connection has been cut from the
main power supply.
• All electrical eqipment should be regularly controlled, connections should be checked and damaged or worn-out cables
and equipment should be replaced.
• Periodic maintenance should be carried out at least once every six months or more frequently, depending on its frequency
of use. Maintenance and cleaning of the productshould be carried out by qualified staff.
• Check the product regularly. In order to prevent dirt or accumulations in the wing, motor or grill, carry out the maintenan-
ce according to the operating conditions of the product. Otherwise, the expected life of your product can be substantially
shortened or serious damage can occur.
• While cleaning the product, pay attention to protecting the balance on the wing and the turbine.
• Bolts which might become looseduring maintenance should be checked.
• Inappropriate parts should be immediately replaced.
• The product should not be cleaned with inflammable or combustible cleaners; it should be cleaned with a wet cloth.
• The product should in no way be exposed to water or pressure water
Warranty and Service
Dear Customer,
We believe that providing good service is as important as providing good products for You, therefore we will appreciate any
remarks concerning technical features and exploitation of our products.
We recommend You to Use your product according to the user’s manual.
The warranty provided by ALNOR Systemy Wentylacji Sp. z o.o. does not cover the damages arising out of using the product
under conditions other than its normal conditions of use. The following conditions are also not included in the warranty:
1. Damages and defects arising out of faulty usage,
2. Damages and defects which occur while loading, unloading or carrying the product after ithas been delivered,
3. Damages and defects arising due to low or high voltage, faulty electrical installation and using the product at a different
voltage than the one written on its label,
4. Damages and defects due to fire, eathquake, lightening strike, etc.
5. Damages occuring due to using the product under conditions not conforming to the issues stated in the user’s manual.
The above-mentioned damages are fixed on payment.
In case the warranty service is unfounded, the customer will be responsible for any costs associated with non-warranty con-
ditions.
Assembly and transport of the product is not included in the product price.
Warranty deed form is available for download from our website: www.ventilation-alnor.co.uk.
Since the invoice will be taken as reference if a misunderstanding occurs about the warranty period, the user must keep the
invoice and a copy of it together with the Warranty Deed.
If the warranty deed is altered, the original serial number on the product is removed or altered; the warranty deed will become
invalid.
5
ALNOR® ventilation systems
is a legally protected trademark and technical patent. All rights reserved.
www.ventilation-alnor.co.uk
Manual - Duct fans
DV-SQ

Warranty terms and Conditions
1. The warranty period is 24 months from the date of sale.
2. The product including all its components is under the warranty of our company.
3. In case of defects with in the warranty period, the period spent in repairing is added to the warranty period.The repairing
period is maximum 30 days. This period starts from the date of delivery of the product to the services centre or in case of
absence of service centre to the seller, the agency there presentative, the importer or the manufacturer of the product re-
spectively. In case the defect is not repaired within 10 working days, the importer or the manufacturer is entitled to supply
another product with similar features until the repair is completed. The warranty period of the replaced product is limited
with the warranty period of the product which is purchased.
4. In case the product has material, work manship and manufacturing defects during warranty period, the product will be
repaired free of charge and expenses of any sort including labor, the value of the parts replaced or any our charges.
5. The consumer may request for replacement of product free of charge or price reductions in the rate of defects:
-In case the product permanently dysfunctions due to repeating of the same defect for more than twice or more than
twice or more than four different times within the warranty period
-In case the maximum period for repairing is exceeded
-In case it is determined by a written report that the defect cannot be removed by the seller, agency, representative, impor-
ter or manufacturer of the product respectively in case of absence of service centres.
6. The present warranty does not cover damages resulting from use of product against the instructions in the manual.
7. General Administration of Protection of Consumer Rights and Competition in the Ministry of Industry and Commerce may
be applied for problems regarding the warranty certificate.

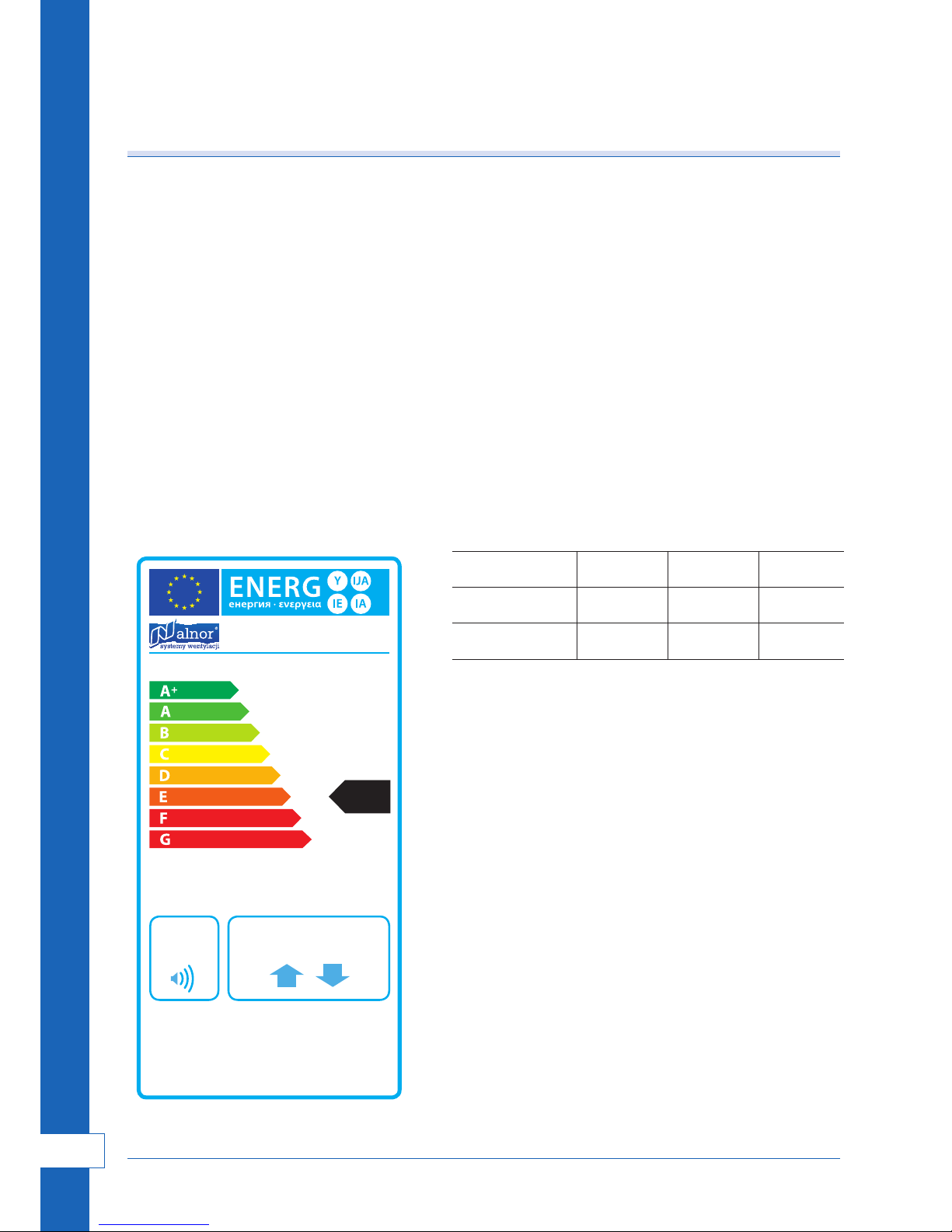

Energy efciency label
E
2016 1254/2014
75
dB
ENERGIA ·  · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE  ENERGI
A++
A+
A+++
A++
A+
A-80%
A-60%
A-40%
A-20%
1150 m3/h
DV-SQ-400-200
Type Noise level
[dB]
Airflow
[m3/h] Energy class
DV-SQ-400-200 75 1150 E
DV-SQ-600-350 78 3400 E
