NANLITE LitoLite 5C User manual

Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
LitoLite 5C

1
Technical Data
LitoLite 5C

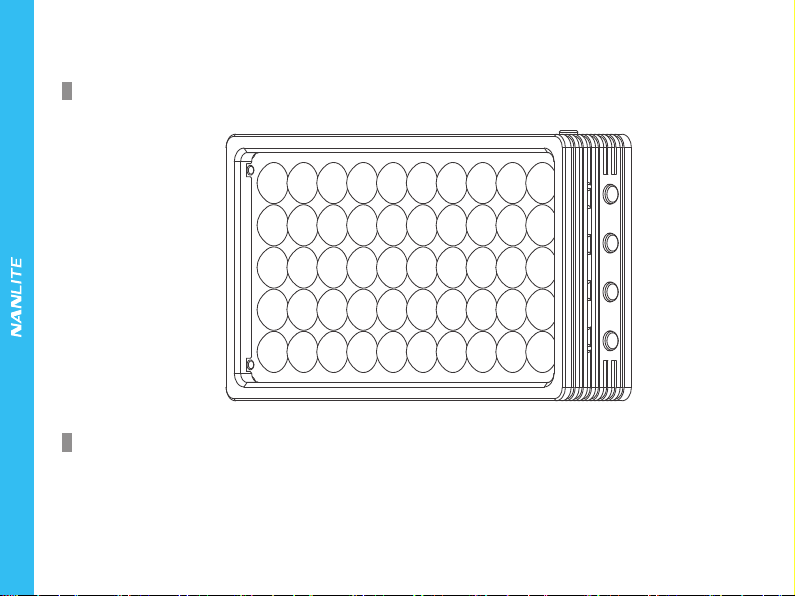

Product Diagram
LED Total Power: 5W x 2+4W x 3 Lithium Battery: 3.7V/2400mAh, 8.88Wh
Rated Power: 7W Color Temperature: 2700K-7500K + G/M Adjustment
Input Voltage/Current: DC5V/2A CRI: Average 95 TLCI: Average 97
RGBWW LED Pocket Light

2
5. Display
6.“ ”“ ”
7. Switch
8. Mode
2. USB
Type C port
1. Reset
3. Power
4. 1/4-20
mount

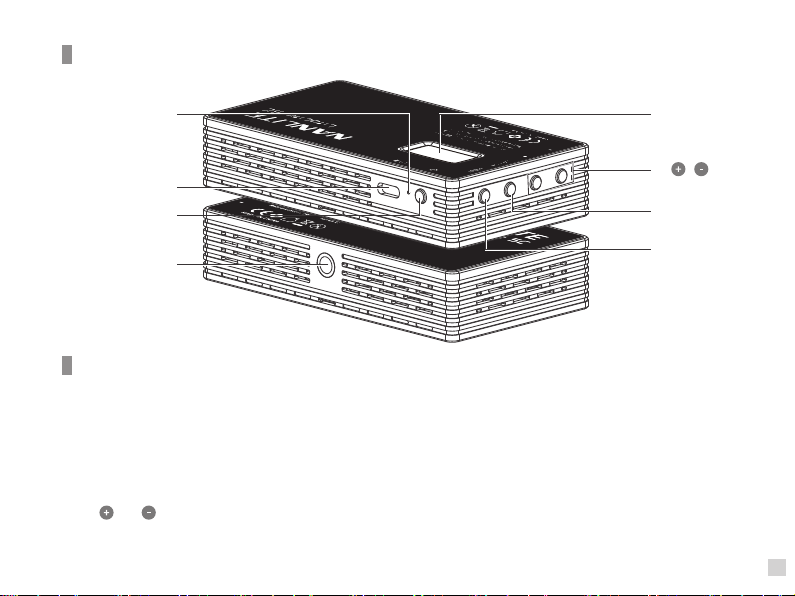

Product Details
1. Reset: To reset the fixture in the event it ever freezes up or stalls.
2. USB Type C port: DC input & firmware updates.
3. Power: Long press the power button for powering on/off the fixture. Short press the power button, the DIM function
of the fixture will reset to 0%, short press the power button again to restore the previous setting of DIM.
4. 1/4-20 mount: Standard mounting fixture.
5. Display: Menu and option display.
6. " " & " " : Increase or decrease settings, supports long/short press.
7. Switch: Switch selected options.
8. Mode: Switch between modes CCT, HSI, Effects and Menu.
Detail Description

3
②Built-in battery automatically powers unit once charged and unplugged from a power source.
Connecting with USB adapter.
Connecting with power bank.
1. Powering the unit.

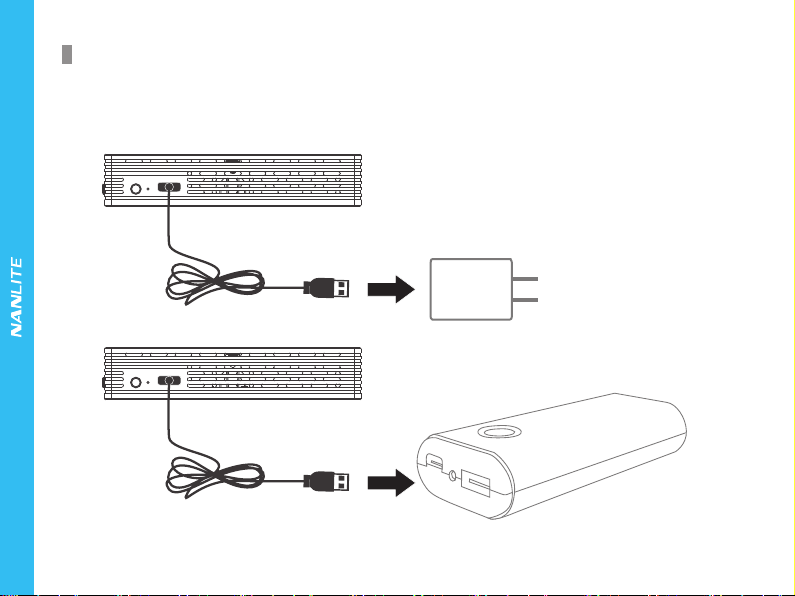

①Connecting the fixture with a USB cable, then connect with a USB adapter or powerbank
(recommended 5V/2A or above - not included).
Usage

4
#1 #2 #3
④There are built-in magnets in both ends, allows you to simply attach the fixture on irony surface.
Built-in magnet
Built-in magnet Attach the fixture on irony surface

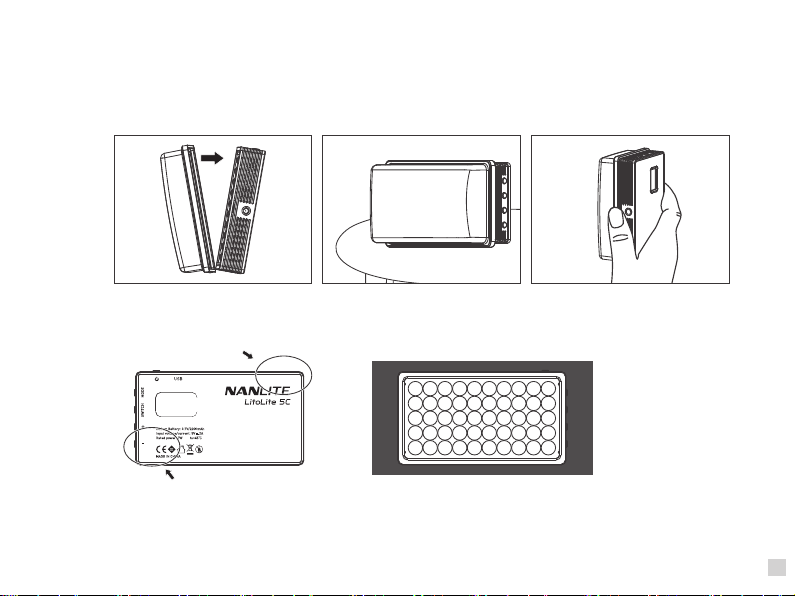

2. Installation
①Attach the diffuser to the fixture. (See #1)
②Horizontal option. (See #2)
③Handheld option. (See #3)

5
3. Bluetooth Remote Control
The LitoLite 5C has built-in bluetooth connection function.

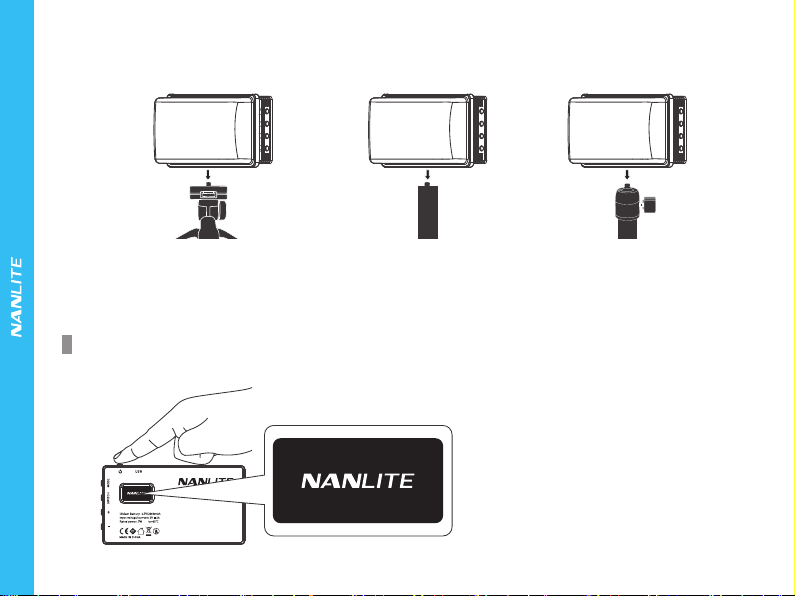

⑤1/4-20 mounting options (Note: Tripod, light stand, clamp and ball head are not included.)
⑥Waterproof bag is an optional accessory, fixture must be setup before placed in bag or controlled via remote options.
Mounting to tripod Mounting to a light stand Mounting to a ball head
1. Long press 'power' button to turn on, 'NANLITE' logo will be displayed on start up.
How to Operate

6

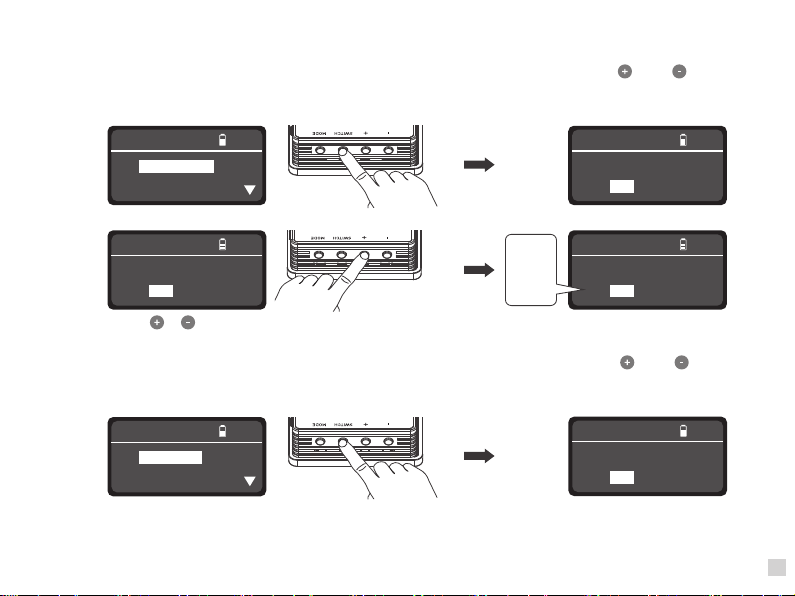

①In CCT Mode: press “Switch” button to select from DIM, CCT and G/M, press" " and " " to adjust the value
of DIM, CCT and G/M.
DIM range: 0% --- 100% CCT range: 2700K --- 7500K G/M range: -50 --- +50.

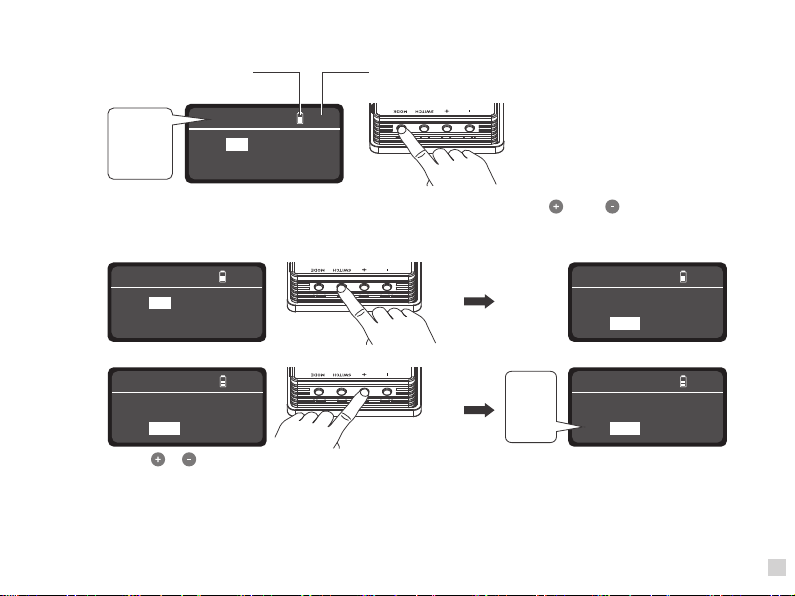

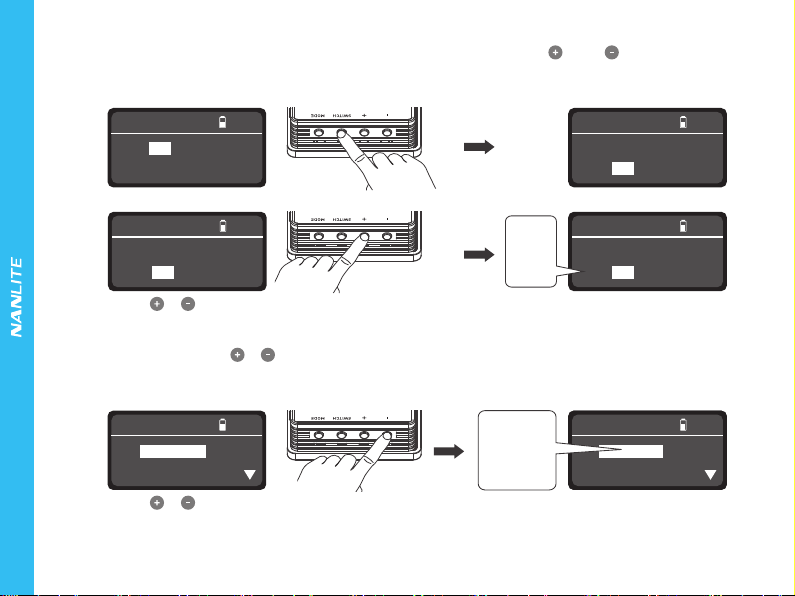

2. "Mode" button: Press to switch between modes - CCT, HSI, Effects and Menu.
CCT
CCT: 5600K G/M:0
DIM: 100%
6.0h
Battery indicator Time remaining
CCT
HSI
EFFECT
MENU
CCT
DIM: 100%
6.0h
CCT: 5700K G/M:0
Note: In effect mode, the adjustable range of DIM, CCT and G/M are the same as CCT mode.
Press "Switch" button to select from DIM, CCT and G/M.
Press " " " " to choose needed value.
2700K
.
.
.
.
.
7500K
CCT
CCT: 5600K G/M:0
DIM: 100%
6.0h CCT
DIM: 100%
6.0h
CCT: 5600K G/M:0
CCT
DIM: 100%
6.0h
CCT: 5600K G/M:0

7
EFFECT 6.0h
DIM: 000%-100%
FX: WELDING
HSI
HUE: 001 SAT:100
DIM: 100%
6.0h
Press "Switch" button to select from DIM, HUE and SAT.
000
.
.
.
.
.
360
HUE LOOP
.
.
.
.
WELDING
HSI
HUE: 000 SAT:100
6.0h
DIM: 100%
HSI
HUE: 000 SAT:100
DIM: 100%
6.0h
HSI
HUE: 000 SAT:100
DIM: 100%
6.0h
EFFECT 6.0h
FX: HUE LOOP
DIM: 100%

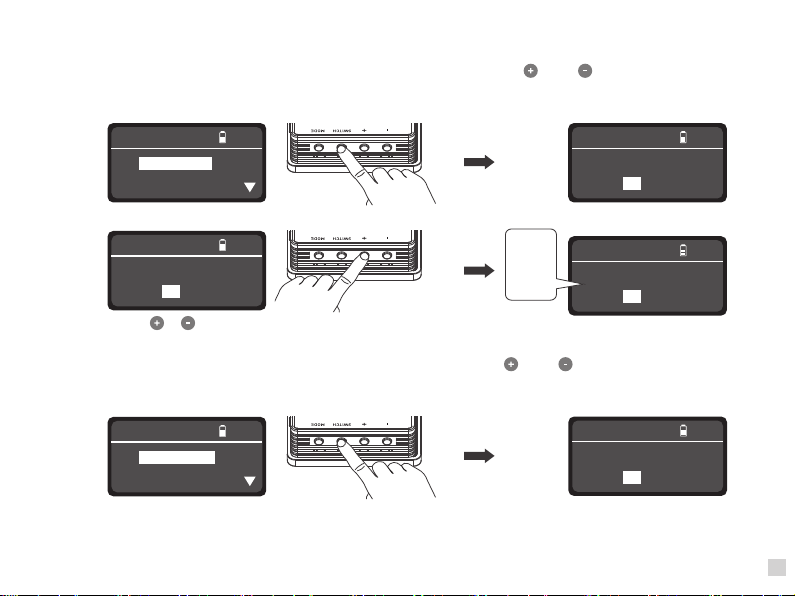

②In HSI mode, press "Switch" button to select from DIM, HUE and SAT, press " " and " " to adjust the value
of DIM, HUE and SAT.
DIM range: 0% --- 100% HUE range: 0 --- 360 SAT range: 0 --- 100.
③In Effect mode, pres " " " " to select special effect that needed, LitoLite 5C has built-in effects including Hue
Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi,
Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding.
Note: In effect mode, the adjustable range of DIM, HHUE and SAT are the same as HSI mode.
Press " " " " to choose needed value.
Press " " " " to choose needed special effect.

8
EFFECT 6.0h
FX: HUE LOOP
DIM: 100%
EFFECT 6.0h
HUE1: 000 HUE2:360
SPD: 08S
EFFECT 6.0h
HUE1: 000 HUE2:360
SPD: 08S
EFFECT 6.0h
HUE1: 360 HUE2:360
SPD: 08S
000
.
.
.
.
.
360
EFFECT 6.0h
FX: CCT LOOP
DIM: 100%
EFFECT 6.0h
SPD: 08S
CCT: 2700K-7500K

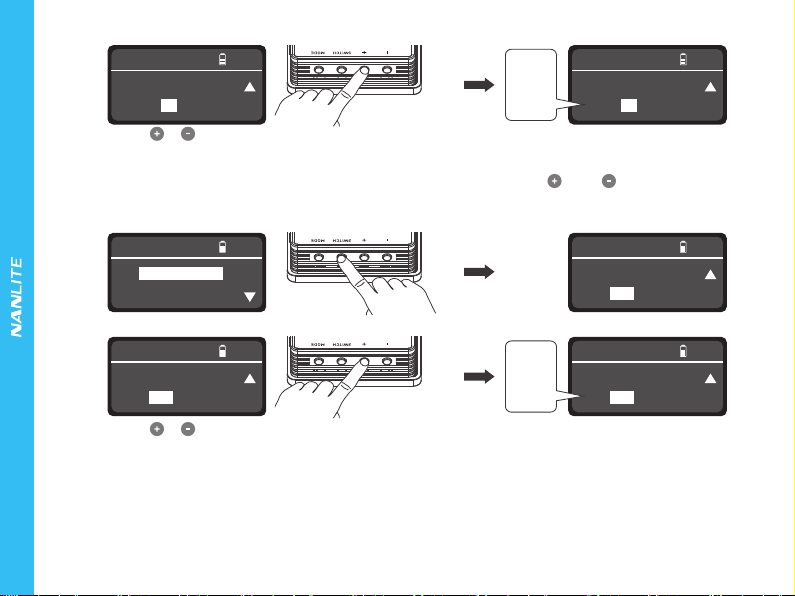

(1) HUE LOOP
Press "Switch" button to select from DIM, HUE 1, HUE 2 and Speed(SPD), press " " and " " to adjust the
value of DIM, HUE 1, HUE 2, and Speed(SPD).
Speed range: 02S...30S.
Press "Switch" button to select from DIM, HUE 1, HUE 2 and SPD.
Press " " " " to choose needed value.
(2) CCT LOOP
Press “Switch” button to select from DIM, CCT 1, CCT 2, and Speed (SPD), press " " and " " to adjust the
value of DIM, CCT 1, CCT 2, and Speed (SPD).
Speed range: 02S...30S.
Press "Switch" button to select from DIM, CCT 1, CCT 2 and SPD.

9
EFFECT 6.0h
SPD: 09S
CCT: 2700K-7500K
EFFECT 6.0h
SPD: 08S
CCT: 2700K-7500K
02S
.
.
.
.
.
30S
EFFECT 6.0h
FX: INT LOOP
DIM: 000%-100%
EFFECT 6.0h
CLR: CCT CCT:5600K
SPD: 08S
EFFECT 6.0h
CLR: CCT CCT:5600K
SPD: 08S
EFFECT 6.0h
CLR: HUE HUE:000
SPD: 08S
HUE
CCT
(3) INT LOOP
Press "Switch" button to select from DIM 1, DIM 2, speed(SPD) and color(CLR), press " " and " " to adjust
the value of DIM 1, DIM 2, speed(SPD) and color(CLR).
Speed range: 02S...30S. Color includes CCT and HUE.
Press " " " " to choose needed value.
Press "Switch" button to select from DIM 1, DIM 2, SPD and CLR.
Press " " " " to choose needed value.

10
EFFECT 6.0h
FX: CCT FLASH
DIM: 100%
EFFECT 6.0h
CCT: 5600K G/M:0
INTVL: 1.0S
EFFECT 6.0h
CCT: 5600K G/M:0
INTVL: 1.0S
EFFECT 6.0h
CCT: 5600K G/M:0
INTVL: 1.1S
0.1S
.
.
.
.
.
10.0S
EFFECT 6.0h
FX: HUE FLASH
DIM: 100%
EFFECT 6.0h
HUE: 000 SAT: 100
INTVL: 1.0S
(4) CCT FLASH
Press "Switch" button to select from DIM, CCT, G/M and INTVL, press " " and " " to adjust the value of DIM,
CCT, G/M, INTVL.
INTVL range: 0.1S....10.0S.
(5) HUE FLASH
Press "Switch" button to select from DIM, HUE, SAT, INTVL, press " " and " " to adjust the value of DIM ,
HUE, SAT, INTVL.
INTVL range: 0.1S....10.0S.
Press "Switch" button to select from DIM, CCT, G/M and INTVL.
Press " " " " to choose needed value.
Press "Switch" button to select from DIM, HUE, SAT, INTVL.

11
Press "Switch" button to select from DIM, CCT, G/M, PULSES/M.
EFFECT 6.0h
HUE: 000 SAT: 100
INTVL: 1.0S
EFFECT 6.0h
HUE: 000 SAT: 100
INTVL: 1.1S
0.1S
.
.
.
.
.
10.0S
EFFECT 6.0h
FX: CCT PULSE
DIM: 100%
EFFECT 6.0h
PULSES/M: 040
CCT: 6500K G/M: 0
EFFECT 6.0h
PULSES/M: 040
CCT: 6500K G/M: 0
EFFECT 6.0h
PULSES/M: 041
CCT: 6500K G/M: 0
001
.
.
.
.
.
240
(6) CCT PULSE
Press "Switch" button to select from DIM, CCT, G/M, PULSES/M(minute), press " " and " " to adjust the
value of DIM, CCT, G/M, PULSES/M(minute).
PULSES/M range: 001...240.
Press " " " " to choose needed value.
Press " " " " to choose needed value.

12
Press "Switch" button to select from DIM, HUE, SAT, PULSES/M.
Press "Switch" button to select from DIM, CCT, INTVL.
EFFECT 6.0h
FX: HUE PULSE
DIM: 100%
EFFECT 6.0h
PULSES/M: 040
HUE: 000 SAT: 100
EFFECT 6.0h
PULSES/M: 040
HUE: 000 SAT: 100
EFFECT 6.0h
PULSES/M: 041
HUE: 000 SAT: 100
001
.
.
.
.
.
240
EFFECT 6.0h
FX: STORM
DIM: 100%
EFFECT 6.0h
CCT: 5600K
INTVL: 02S-06S
(7) HUE PULSE
Press "Switch" button to select from DIM, HUE, SAT, PULSES/M(minute), press " " and " " to adjust the
value of DIM, HUE, SAT,PULSES/M(minute).
PULSES/M(minute) range: 001...240.
(8) STORM
Press "Switch" button to select from DIM, CCT, INTVL, press " " and " " to adjust the value of DIM, CCT
and INTVL .
INTVL range: 01S...60S.
Press " " " " to choose needed value.

13
特效 特效
特效
特效
6.0h 6.0h
Press "Switch" button to select from DIM, COLOR and SPD.
EFFECT 6.0h
CCT: 5600K
INTVL: 02S-06S
EFFECT 6.0h
CCT: 5600K
INTVL: 03S-06S
01S
.
.
.
.
.
60S
EFFECT 6.0h
FX: POLICE CAR
DIM: 100%
EFFECT 6.0h
COLOR: RB
SPD: 050
EFFECT 6.0h
COLOR: RB
SPD: 050
EFFECT 6.0h
COLOR: RB
SPD: 051
001
.
.
.
.
.
100
(9) POLICE CAR
Press "Switch" button to select from DIM, COLOR and Speed(SPD), press " " and " " to adjust the value of
DIM, COLOR (B/RB/BW/RBW) and Speed (SPD).
Speed range: 001...100.
Press " " " " to choose needed value.
Press " " " " to choose needed value.

14
Press "Switch" button to select from DIM, CCT, G/M and SPD.
Press "Switch" button to select from DIM1, DIM2, CCT, G/M and SPD.
EFFECT 6.0h
FX: TV
DIM: 000%-100%
EFFECT 6.0h
SPD: 050
CCT: 5600K G/M: 0
EFFECT 6.0h
SPD: 050
CCT: 5600K G/M: 0
EFFECT 6.0h
SPD: 051
CCT: 5600K G/M: 0
001
.
.
.
.
.
100
EFFECT 6.0h
FX: PAPARAZZI
DIM: 100%
EFFECT 6.0h
SPD: 050
CCT: 5600K G/M: 0
(10) TV
Press "Switch" button to select from DIM 1, DIM 2, CCT, G/M and Speed (SPD), press " " and " " to adjust
the value of DIM 1, DIM 2, CCT, G/M and Speed (SPD).
Speed range: 001...100.
(11) PAPARAZZI
Press "Switch" button to select from DIM, CCT, G/M and Speed(SPD), press " " and " " to adjust the value
of DIM, CCT, G/M and Speed (SPD).
Speed range: 001 …100.
Press " " " " to choose needed value.

15
特效
特效
特效特效 6.0h 6.0h
Press "Switch" button to select from DIM 1, DIM 2, CCT, G/M and SPD.
EFFECT 6.0h
SPD: 050
CCT: 5600K G/M: 0
EFFECT 6.0h
FX: CANDLE/FIRE
DIM: 000%-100%
EFFECT 6.0h
SPD: 050
CCT: 5600K G/M: 0
EFFECT 6.0h
SPD: 050
CCT: 5600K G/M: 0
EFFECT 6.0h
SPD: 051
CCT: 5600K G/M: 0
001
.
.
.
.
.
100
(12) CANDLE/FIRE
Press "Switch" button to select from DIM 1, DIM 2, CCT, G/M and Speed (SPD), press " " and " " to
adjust the value of DIM 1, DIM 2, CCT, G/M and Speed (SPD).
Speed range: 001 …100.
Press " " " " to choose needed value.
Press " " " " to choose needed value.
EFFECT 6.0h
SPD: 051
CCT: 5600K G/M: 0
001
.
.
.
.
.
100
16
Press "Switch" button to select from DIM, COLOR and SPD.
Press "Switch" button to select from DIM, CCT , G/M and SPD.
EFFECT 6.0h
FX: DISCO
DIM: 100%
EFFECT 6.0h
COLOR: 03
SPD: 050
EFFECT 6.0h
COLOR: 03
SPD: 050
EFFECT 6.0h
COLOR: 03
SPD: 051
001
.
.
.
.
.
100
EFFECT 6.0h
FX: BAD BULB
DIM: 100%
EFFECT 6.0h
SPD: 050
CCT: 5600K G/M: 0
(13) DISCO
Press "Switch" button to select from DIM, Color and Speed (SPD), press " " and " " to adjust the value of
DIM, Color and Speed (SPD).
Color range: 03, 06, 09, 12, 15, 18, 21, 24. Speed range: 001 …100.
(14) BAD BULB
Press "Switch" button to select from DIM, CCT , G/M and Speed (SPD), press " " and " " to adjust the
value of DIM, CCT, G/M and Speed (SPD).
Speed range: 001 …100.
Press " " " " to choose needed value.

17
特效
特效
特效
Press "Switch" button to select from DIM, COLOR, SPD and DECAY.
EFFECT 6.0h
SPD: 050
CCT: 5600K G/M: 0
EFFECT 6.0h
SPD: 051
CCT: 5600K G/M: 0
001
.
.
.
.
.
100
EFFECT 6.0h
FX: FIREWORK
DIM: 100%
EFFECT 6.0h
COLOR: 03
SPD: 050 DECAY: 050
EFFECT 6.0h
COLOR: 03
SPD: 050 DECAY: 050
EFFECT 6.0h
COLOR: 03
SPD: 051 DECAY: 050
001
.
.
.
.
.
100
(15) FIREWORK
Press "Switch" button to select from DIM, Color, Speed (SPD) and Decay, press " " and " " to adjust the
value of DIM, Color, Speed (SPD) and Decay.
Color range: 03, 06, 09, 12, 15, 18, 21, 24. Speed range: 001 …100. Decay range: 001 …100.
Press " " " " to choose needed value.
Press " " " " to choose needed value.

18
Press "Switch" button to select from DIM, CCT, G/M, SPD and DECAY.
Press "Switch" button to select from DIM 1, DIM 2, CCT, G/M, SPD and PAUSE.
EFFECT 6.0h
FX: EXPLOSION
DIM: 100%
EFFECT 6.0h
CCT: 5600K G/M: 0
SPD: 050 DECAY: 050
EFFECT 6.0h
CCT: 5600K G/M: 0
SPD: 050 DECAY: 050
EFFECT 6.0h
CCT: 5600K G/M: 0
SPD: 051 DECAY: 050
001
.
.
.
.
.
100
EFFECT 6.0h
FX: WELDING
DIM: 000%-100%
EFFECT 6.0h
CCT: 5600K G/M: 0
SPD: 050 PAUSE: OFF
(16) EXPLOSION
Press "Switch" button to select from DIM, CCT, G/M, Speed (SPD) and Decay, press " " and " " to adjust
the value of DIM, CCT, G/M, Speed (SPD) and Decay.
Speed range: 001 …100. Decay range: 001 …100.
(17) WELDING
Press "Switch" button to select from DIM 1, DIM 2, CCT, G/M, SPD and Pause, press " " and " " to adjust
the value of DIM 1, DIM 2, CCT, G/M, SPD and Pause. Speed range: 001 …100.
The Pause includes "OFF" and "ON". When the status is "ON", the fixture will go out.
Press " " " " to choose needed value.

菜单
语言：中文
版本：V0.00.01
6.0h
19
3. Long press the "Power" button to turn off the light.
·Lighting effects and additional functionality maybe added with future firmware releases, for details of these please
see www.nanlite.com.
Press the "Mode" button to switch to MENU mode.
EFFECT 6.0h
CCT: 5600K G/M: 0
SPD: 050 PAUSE: OFF
EFFECT 6.0h
CCT: 5600K G/M: 0
SPD: 051 PAUSE: OFF
EFFECT 6.0h
CCT: 5600K G/M: 0
SPD: 051 PAUSE: OFF
001
.
.
.
.
.
100
MENU 6.0h
LANGUAGE: ENG
VERSION:V0.00.01
MENU 6.0h
LANGUAGE: ENG
VERSION:V0.00.01
中文
ENGLISH
④Menu
Press the "Mode" button to switch to MENU mode, to set the language and check the firmware version of your fixture,
press " " and " " to set the language (Chinese and English).
Press " " " " to choose needed value.
Press " " and " " to set the language (Chinese and English).

20
1. Please open the package to check for damage caused in transit, if damaged please do not use and contact place
of purchase or manufacturer as soon as possible.
2. Do not use if power cord is damged or unplug with excessive force.
3. Ensure the power supply’s voltage matches the voltage specified by the fixture before installation.
4. When cleaning or not using the light, please turn it off.
5. Stored the light safely and away from children.
Safety Precautions
1. Do not place any object on the light emitter.
2. Keep the light away from direct contact with liquids (Waterproof bag optional).
3. Don't place the light near flammable substances like alcohol or gasoline.
4. When cleaning the light, please wipe off debris or dirt by using a dry cloth with clean water or neutral cleanser.
5. The light should be operated safely where it won't be at risk of getting wet or under extreme temperature.
6. Don't repair the light by yourself. Attempts to self repair will void warranty, for repairs please return to place of
purchase.
7. When connected to charger via USB cable and the brightness is above 0%, the light uses charger as power supply
and battery is not being charged.
Notice
