USER MANUAL
PavoBulb 10C

1
Product Diagram
PavoBulb 10C
RGBWW LED Bulb
Rated Power: 10W
Input Voltage/Current: DC 5V/2.4A
AC 100-240V 50Hz/60Hz
Color Temperature: 2700K-7500K
CRI: Average 95
TLCI: Average 97
Technical Data

2
Detailed Description
Detailed Description
1. Diffuser: To soften the light.
2. CCT/HUE Button: Short press CCT/HUE button to adjust CCT or HUE by intervals.
3. MODE Button: Short press MODE button to switch modes between CCT and HSI.
4. DIM Button: Short press DIM button to adjust the intensity by intervals.
5. E27 Head: Power the bulb with E27 Edison-base.
6. USB Type-C Port: For power input or firmware updates. And for DMX signal input and output when connected with
USB-C to DMX cable splitter. (Note: The USB-C to DMX cable splitter is sold separately.)
1. Diffuser
2. CCT/HUE Button
3. MODE Button
4. DIM Button
5. E27 Head
6. USB
Type-C port

3
Usage
1. Power connection
① Connecting the fixture via a USB cable, then to a USB adapter with output 5V/2.4A or more. (See #1)
(Note: USB adapter is not included)
② Screwing the bulb into E27 Edison-base to power the bulb directly.
Note: Please ensure the power is disconnected before screwing in. (See #2)
DC power supply
AC power supply
#1 #2
E27 Edison-base

4
③ Connection with BT-BA-SNP-E27 battery adapter. (See #3)
2. Connection between the Light Fixture and WC-USBC-C1 Wire Controller. (See #4)
The fixture can be controlled by the wire controller in CCT mode, HSI mode, EFFECT mode, CHANNEL setting,
LANGUAGE, DMX mode, WIRELESS PROTOCOL, BLUETOOTH RESET,FIRMWARE UPDATE and VERSION
checking (please refer to wire controller user manual for detailed instructions).
(Note: Wire controller is sold separately.)
#4#3
MODE SWITCH

5
Remote Control and Control Method by Wire Controller
·PavoBulb 10C supports DMX, 2.4G and wire controller control, and includes a built-in Bluetooth as well.
▲Address code need to be pre-set for DMX and 2.4G control.
1. Address setting
The address code of the fixture can be set by connecting DMX/RDM console, wire controller or by APP via the
transmitter box. (For specific operations, please refer to the relevant manuals.)
2. DMX Remote Control
①Connect the fixture to the DMX/RDM console with a DMX adapter cable.
·The connection between the fixture and DMX adapter cable is as follows:
·The connection between light fixtures, or light fixture and DMX/RDM console should use DMX adapter cable.
(DMX adapter cable is not included.)
XLR plug/socket and the wire should be connected as shown above.
·Pin1, Pin2, Pin3 for connecting DMX signal. Pin4, Pin5 has no connection.
▲NOTE: When connecting DMX, make sure the internal pin is not in contact with the inner case. The fixture can
match the DMX512 (1990) control signal.
GND 1
DATA- 2
DATA+ 3
NC
NC
DMX IN
1 GND
2 DATA-
3 DATA+
NC
NC
DMX OUT

6
②DMX Terminator
ln DMX control mode, the DMX output of the last fixture should be connected with a DMX terminator
(Not included). This prevents interference caused by DMX signals in the transmitting process.
The terminator is connected with a 120Ω(OHM) resistor across Pin 2 and Pin 3. (As shown below)
DMX Terminator Connection
Connect a 120Ω(OHM) resistor
across Pin 2 and Pin 3 in an XLR
plug and insert into the DMX OUT
socket on the last unit.
PIN 2PIN
120Ω
1
2
3
5
4
Please scan the QR code to check or download the latest DMX reference guide.
③Set the channel of the fixture.
④Refer to the DMX reference guide and control the light via DMX/RDM console. (For detailed operation please
refer to the DMX/RDM console operation manual.)
Note: DMX reference guide "PavoBulb_10C_DMX_REFERENCE_GUIDE_EN" is downloadable from
www.nanlite.com.

7
3. 2.4G Remote Control
·Set the address of the 2.4G remote controller to be consistent with the light fixture, enabling the fixture to be
remotely controlled by 2.4G remote controller or by APP via the transmitter box.
Note: ①2.4G remote controller and transmitter box are sold separately.
·The following is how to modify the wireless control protocol using the wire controller.
(Note: The wire controller is sold separately.)
Press SWITCH button to WIRELESS PROTOCOL.
②The fixture supports the 2.4G wireless protocol V1.0 and V2.0. Please set fixture to V2.0 while using
WS-RC-C1 or WS-RC-C2 remote controller. Please set fixture to V1.0 while using other remote controllers.
MENU
LANGUAGE: ENG
CH: 512
MENU
WIRELESS PRO: V1.0
BT: RESET
MODE SWITCH

8
Operating Instructions
1. The Bulb will light up automatically once powered.
2. DIM Button: Short press DIM button to adjust brightness by intervals from 0%, 20%, 40%, 60%, 80%, 100%.
When it reaches 100%, press the DIM button, the brightness will reset to 0%.
3. MODE Button: Short press MODE button to switch modes between CCT and HSI.
4. CCT/HUE Button: Short press CCT/HUE button to adjust CCT or HUE by intervals.
When reaching to maximum value, it will return to minimum value when pressing the button again. (When the HUE
was adjusted to 360, press the button again it will return to 30.)
CCT: 2700K, 3200K, 4300K, 5600K, 6500K, 7500K.
HUE: 0, 30, 60, 90, 120, 150, 180, 210, 240, 270, 300, 330, 360.
5. Bluetooth Reset: Long press the three buttons at the same time until the bulb flashes in blue for 3 seconds,
that means the reset is completed.
Press + - to select V1.0 or V2.0.
MENU
WIRELESS PRO: V1.0
BT: RESET
MENU
WIRELESS PRO: V2.0
BT: RESET
MODE SWITCH

9
Notice
1. When the fixture is turned on, do not look directly at the emitter.
2. Please do not leave flammable or explosive articles within 0.5m of the fixture.
3. Avoid placing lamps near flammable and volatile substances, such as alcohol or gasoline.
4. When cleaning the fixture, please use soft cloth with neutral detergent to wipe off dirt. Please do not use abrasives
or strong detergent.
5. During use, do not cover, restrict or obstruct ventilation holes, so as not to affect the heat dissipation and cause
damage to the fixture. Please take care when using the lamp for long periods, as the surface temperature can be
high.
6. Please do not disassemble the fixture or attempt to carry out repairs. Any required maintenance shiould be carried
out by suitably qualified professionals, opeerating in strict compliance with the instructions described in this manual.
6. Firmware Update: ①When the PavoBulb 10C is powered by the E27 Magnetic Mount, long press MODE button
after inserting the USB flash drive with new firmware, the bulb will flash in blue. Then long press the DIM button
and CCT/HUE button at the same time to start the firmware upgrade. After the upgrade is completed, the bulb
will flash in green before entering the normal function state. If the upgrade fails, the bulb will flash in red for
3 seconds and then return to the normal function state. ②The PavoBulb 10C can be upgraded by the wire
controller. For the detailed operations, please refer to the user manual of the wire controller.
7. When not using the fixture, it will turn off automatically once disconnected from a power supply.

10
The light won't start up.
1. Please ensure the standard E27 lamp holder being used.
2. Please ensure the power voltage value as indicated.
What's in the box? Please kindly check.
Safety Precautions
1. Please open the package to check for possible damage. If damaged, do not use. Please contact your dealer or
the manufacturer as soon as possible.
2. Please use the standard E27 lamp holder with safety certification.
3. Before installation, please make sure the power supply voltage is correct and compatiblewith that specified on
fixture.
4. Please turn off the power when fixture is not in use or being cleaned.
5. Please operate the fixture safely. Keep fixture away from children.
PavoBulb 10C×1 USB Type-C Cable×1 User Manual×1
The light won't boot up properly
DiagnosisFault Detection
Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
PavoBulb 10C

11

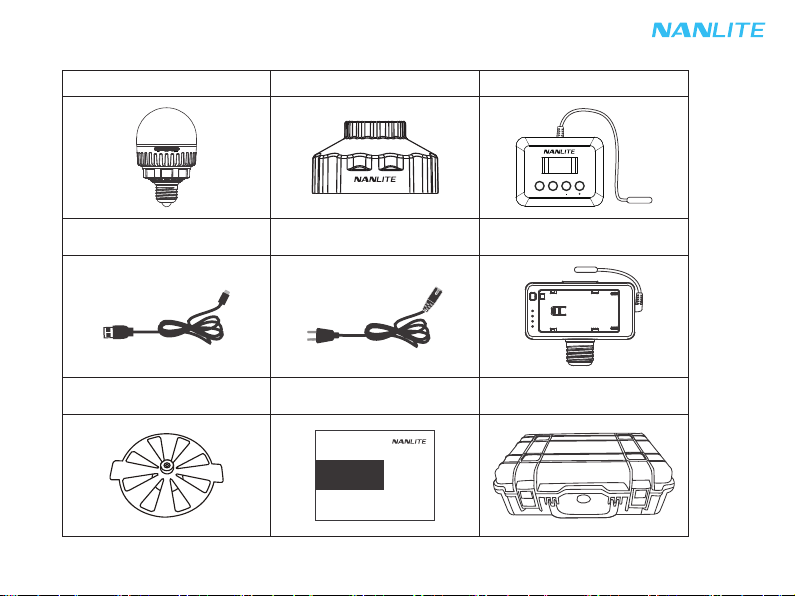

PavoBulb 10C×4
PavoBulb 10C 4KIT
AS-MBA-E27 Magnetic Mount×2 WC-USBC-C1 Wire Controller×2
USB Type-C Cable×2 AC Cable×1 BT-BA-SNP-E27 Battery
Adapter with E27 Head×2
AS-BSC Bouncer with Suction
Cup for Light Bulb×4 User Manual×1 Hard Case×1
AS-MBA-E27
MODE SWITCH
Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
PavoBulb 10C

12
This manuel and all stats within it were produced under controlled conditions, and are accurate at time of print.
Any future changes to design/technical data can be found at www.nanlite.com.
PavoBulb 10C 12KIT
PavoBulb 10C×12 AS-MBA-E27 Magnetic Mount×6 WC-USBC-C1 Wire Controller×6
USB Type-C Cable×3 AC Cable×3 BT-BA-SNP-E27 Battery
Adapter with E27 Head×6
AS-BSC Bouncer with Suction
Cup for Light Bulb×12 User Manual×1 Hard Case×1
AS-MBA-E27
MODE SWITCH
Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
PavoBulb 10C

[phone]
[e-mail]
[phone]
Zhanglin,324,Dongli Chenghai Shantou Guangdong China
Version: V2 2022-01-25
