NANLITE PavoTube T8-7X User manual

Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
PavoTube T8-7X

1
Product Diagram
PavoTube T8-7X
RGBWW LED Pixel Tube Light
Rated Power: 8W
Input Voltage/Current: DC5V/2A
Color Temperature: 2700K-7500K
CRI: Average 96
TLCI: Average 97
Technical Data
PavoTube T8-7X MADEIN CHINA
Batterycapacity: 3.7V/4400mAh
RatedInput: 5V/2A
ta=45℃

2
DIM CCT/HUE
Reset
8. CCT/HUE Button
7. 1/4-20 Mount Receiver
2. Button
3. DIM Button
5. USB Type-C Port
4. Reset Button
6. LED Indicator

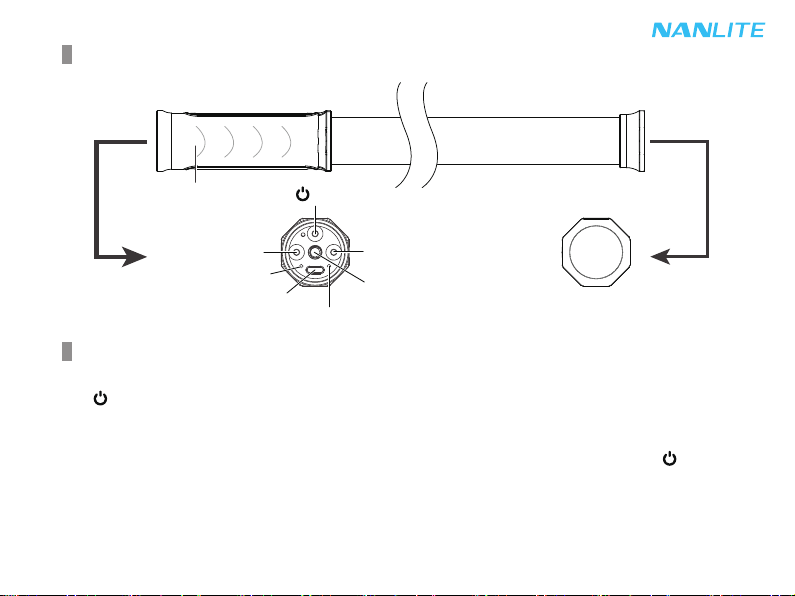

Product Details
Detailed Description
1. Handle: To hold the fixture.
2. Button: Long press the button to turn the light on/off, short press the button to switch between CCT and HSI
modes.
3. DIM Button: Short press DIM button to adjust the intensity in fixed intervals.
4. Reset Button: Press the reset button to turn off the fixtute when the function is stuck. Long press the button to
restart the fixture if needed.
5. USB Type-C Port: For power input or firmware updates. And for DMX signal input and output when connected with
USB-C to DMX cable splitter. (Note: The USB-C to DMX cable splitter is sold separately.)
1. Handle

3
DIM CCT/HUE
Reset
6. LED Indicator: To determine the status of power input. The indicator flashes when charging; the indicator is on
when fully charged; the indicator is on when the light is being used.
7. 1/4-20 Mount Receiver: To mount accessories with a 1/4-20 mount.
8. CCT/HUE Button: Short press CCT/HUE button to adjust the CCT/HUE in fixed intervals.
Usage

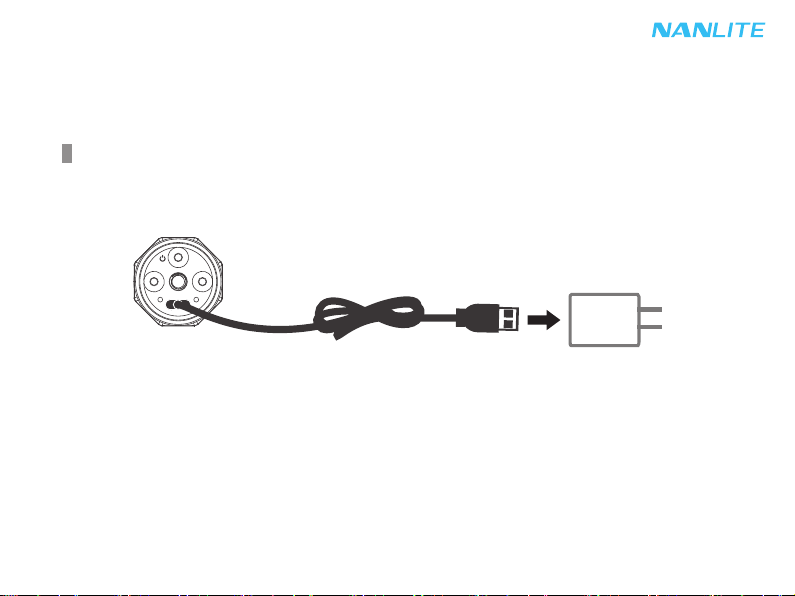

1. Connection between the Light Fixture and Power Outlet
①Connecting the fixture with USB cable and USB adapter with output of 5V/2A or above.
(Note: USB adapter is not included.)
②Built in battery automatically powers unit once charged and unplugged from a power source.

4
DIM CCT/HUE
Reset
2. Connection between the Light Fixture and WC-USBC-C1 Wire Controller
The fixture can be controlled by the wire controller in CCT mode, HSI mode, EFFECT mode, PIXEL FX mode,
CHANNEL setting, LANGUAGE, DMX mode, DMX PIXEL, WIRELESS PROTOCOL, BLUETOOTH RESET,
FIRMWARE UPDATE and VERSION checking (please refer to wire controller user manual for detailed instructions).
(Note: Wire controller is sold separately.)
MODE SWITCH

5
Remote Control and Control Method by Wire Controller
·PavoTube T8-7X supports DMX and wire controller control, and includes a built-in Bluetooth as well.
▲Address code need to be pre-set for DMX control.
1. Address setting
The address code of the fixture can be set by connecting DMX/RDM console, wire controller or by APP via the
transmitter box. (For specific operations, please refer to the relevant manuals.)
2. DMX Remote Control
①Connect the fixture to the DMX/RDM console with a DMX adapter cable.
(1) The connection between the fixture and DMX adapter cable is as follows:
·The connection between the light fixture and DMX/RDM console, light fixture and light fixture should use DMX
adapter cable. (DMX adapter cable is not included.)
XLR plug/socket and the wire should be connected as shown above.
·Pin1, Pin2, Pin3 for connecting DMX signal. Pin4, Pin5 has no connection.
▲NOTE: When connecting DMX, make sure the internal pin is not in contact with the inner case. The fixture can
match the DMX512 (1990) control signal.
DMX IN DMX OUT
1 GND
2 DATA-
3 DATA+
NC
NC
NC
NC
GND 1
DATA- 2
DATA+ 3

6
②DMX Terminator
ln DMX control mode, the DMX output of the last fixture should be connected with a DMX terminator
(Not included). This prevents interference caused by DMX signals in the transmitting process. The terminator is
connected with a 120Ω(OHM) resistor across Pin 2 and Pin 3. (As shown below)
DMX Terminator Connection
Connect a 120Ω(OHM) resistor
across Pin 2 and Pin 3 in an XLR
plug and insert into the
DMX OUT socket on the last unit.
PIN 2PIN
120Ω
1
2
3
5
4
Please scan the QR code to check or download the latest DMX reference guide.
③Set the channel of the fixture.
④Refer to the DMX reference guide and control the light via DMX/RDM console.
(For detailed operation please refer to the DMX/RDM console operation manual.)
Note: DMX reference guide "PavoTube_T8-7X_DMX_REFERENCE_GUIDE_EN " is downloadable from
www.nanlite.com.

7
Safety Precautions
1. Please open the package to check for possible damage. If damaged, do not use. Please contact your dealer or the
manufacturer as soon as possible.
2. Please do not use power cable which are faulty or have insulation damage. Please be careful when unplugging and
do not drag the power cable.
3. Before installation, please make sure the power supply voltage is correct and compatible with that specified on
fixture.
4. Please turn off the power when fixture is not in use or being cleaned.
5. Please operate the fixture safely. Keep fixture away from children.
Operating Instructions
1. Long press button to turn on the light.
2. DIM button: Short press DIM button to adjust the intensity in fixed intervals of 0%, 20%, 40%, 60%, 80%, 100%.
When at 100%, press the DIM button, the intensity will reset at 0%.
3. button: Short press the button to switch modes between CCT and HSI.
4. CCT/HUE button: Short press CCT/HUE to adjust CCT or HUE settings in certain intervals. When reaching to
maximum value, it will return to minimum value upon pressing the button again. (When the HUE was adjusted
to 360, press the button again it will return to 30.)
CCT: 2700K, 3200K, 4300K, 5600K, 6500K, 7500K.
HUE: 0, 30, 60, 90, 120, 150, 180, 210, 240, 270, 300, 330, 360.
5. Bluetooth Reset: Long press the three buttons at the same time until the fixture has bule twinkle for 3 seconds and
reset completes.
6. Long press to turn off the light.

8
Notice
1. When the fixture is turned on, do not look directly at the emitter.
2. Do not place any object on the light fixture or let any liquid flow into the interior.
3. Avoid placing lamps near flammable and volatile substances, such as alcohol or gasoline.
4. When cleaning the fixture, please use soft cloth with neutral detergent to wipe off dirt. Please do not use abrasives
or strong detergent.
5. The fixture should be operated safely where it won't be at risk of getting wet or under extreme temperature.
6. Please do not disassemble the fixture or attempt to carry out repairs. Any required maintenance shiould be carried
out by suitably qualified professionals, opeerating in strict compliance with the instructions described in this manual.
What’s in the box? Please kindly check.
PavoTube T8-7X×1 USB Type-C Cable×1 User Manual×1
PavoTube T8-7X
PavoTube T8-7X MADEINCHINA
Batterycapacity:3.7V/4400mAh
RatedInput:5V/2A
ta=45℃
Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
PavoTube T8-7X

9
USB Type-C Cable×4
PavoTube T8-7X×4
Carrying Bag×1
PavoTube T8-7X 4KIT
This manual and all stats within it were produced under controlled conditions, and are accurate at time of print.
Any future changes to design/technical data can be found at www.nanlite.com.
General Fault Detection and Diagnosis
1. Please check that the power adapter, cable and outlet are properly
connected and that the cable is not faulty or loose.
2. Please check wether the voltage value is within the specified
paremeters.
The fixture won't boot up properly.
Diagnosis
Fault Detection
User Manual×1
PavoTube T8-7X MADEINCHINA
Batterycapacity:3.7V/4400mAh
RatedInput:5V/2A
ta=45℃
Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
PavoTube T8-7X

[phone]
[e-mail]
[phone]
Zhanglin,324,Dongli Chenghai Shantou Guangdong China
Version: V3 2022-01-05
www.nanlite.com
