Nanometer Technologies SMART OVEN User manual

Nanometer Technologies
SMART OVEN

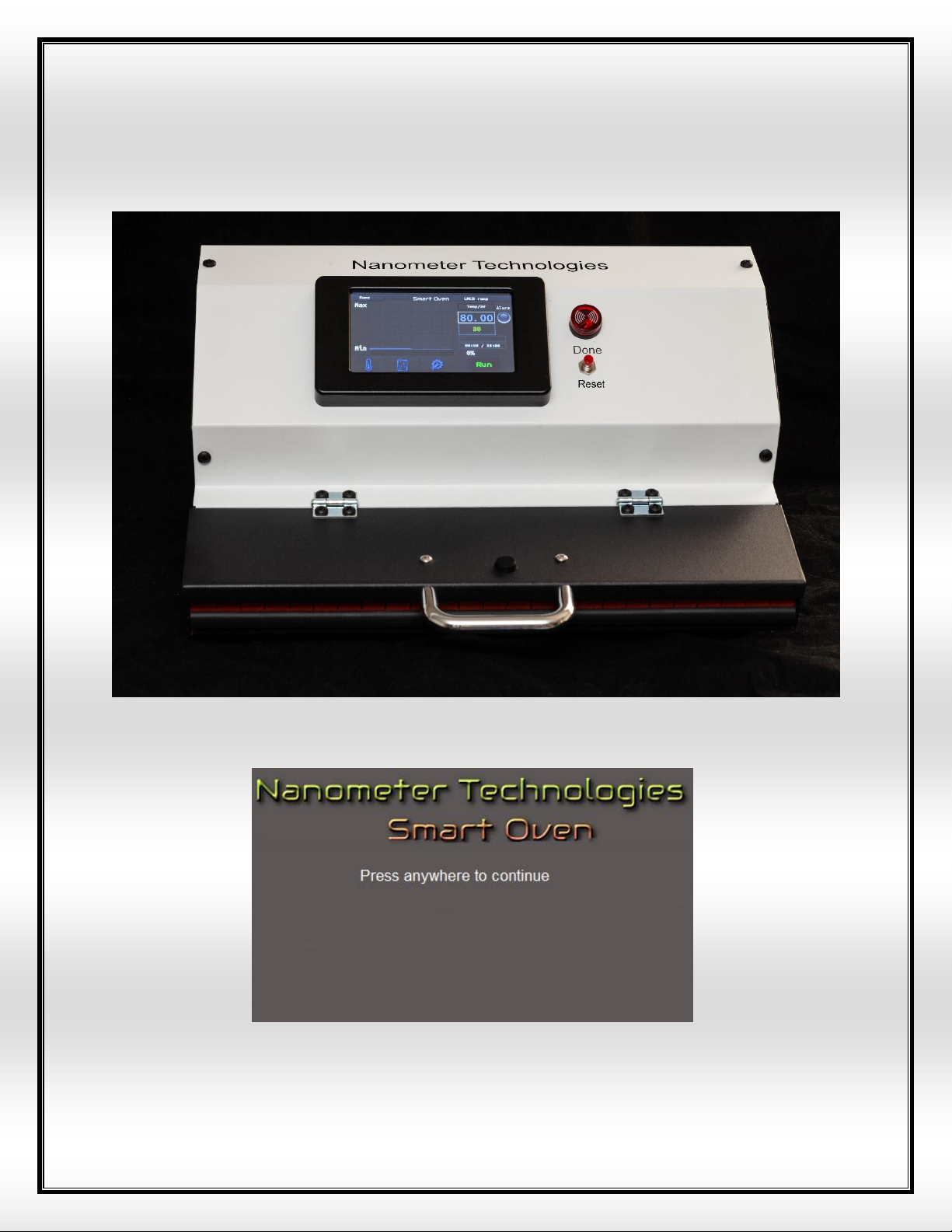

Start up splash page, press anywhere to continue
during power up.

`

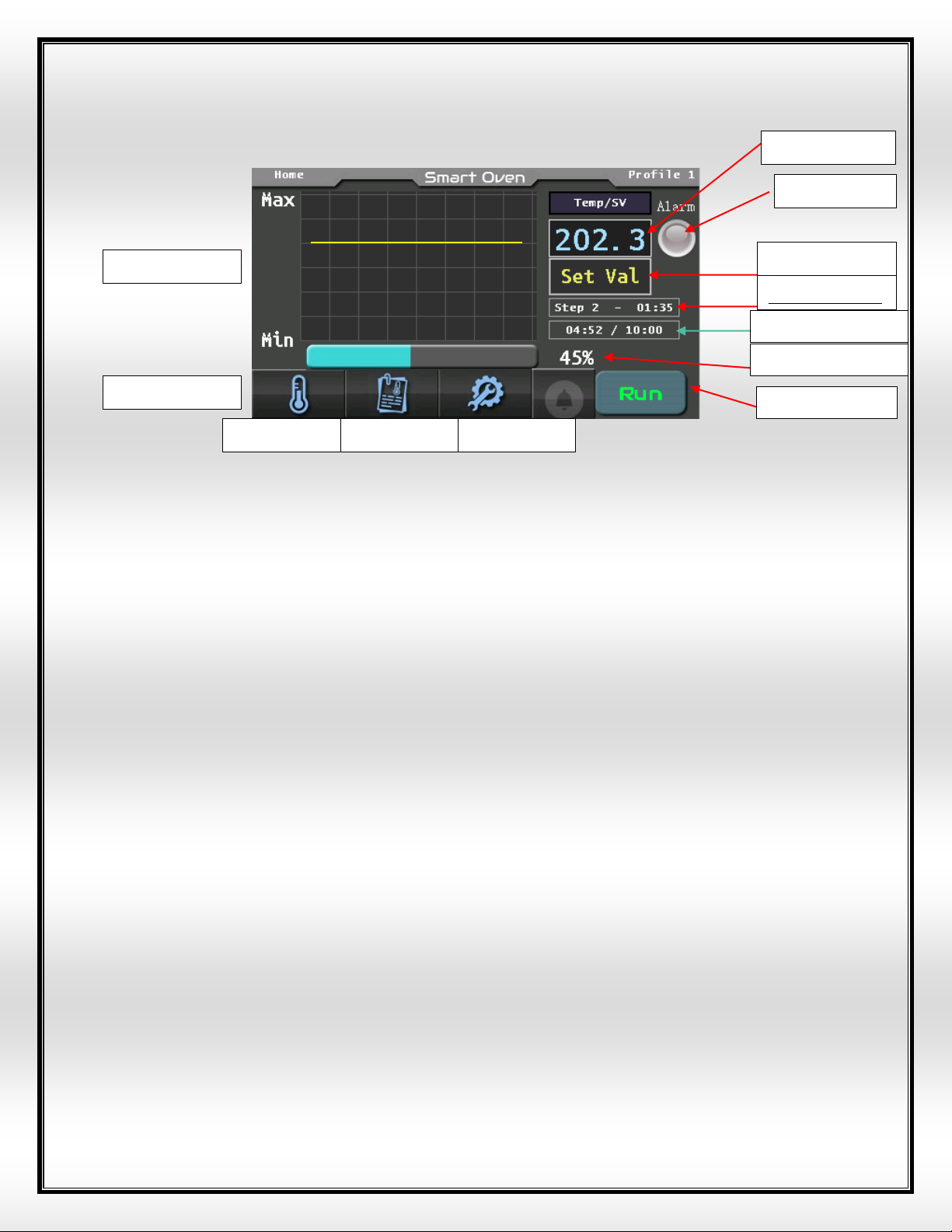

Run page:
1. There are 2 modes on the Smart Oven
a. Manual Mode, select a profile and the oven goes to that
programmed temperature and controls to that temp.
b. RUN Mode, the oven runs either a Ramp/Step Profile
with timing OR runs for the step time value (if there is no
temp. change) press the RUN button for this mode of
operation. When the profile is done the buzzer will turn
ON, press the reset button to turn it off, there is a switch
on the back to disable the buzzer as well.
c. To use for a timed cure, set the step time to that value
(Example 10 min.) then press run, the buzzer will go off
after 10 min.
TEMPS PAGE:
The TEMPS page sets the graph size.
Graph time scales
1x = 36 sec. per unit
2x = 18 sec. per unit
3x = 12 sec. per unit
4x = 9 sec. per unit
Temperature
Temp. Set
value
valuevalueval
ueTempuratur
e
Step #/Time
valuevalueval
ueTempuratur
e
Temp. Set value
valuevaluevalue
Elapsed Time/
total
% of step time
RUN button
Min/Max
temp.
Page buttons
Alarm
display
Temps
page
Profile
page
Settings
page

Temps Page:
1. Use the Graph min/max to set the size of the displayed
temp., use update to set it (stores with the profile).
Profiles Page:
The Smart Oven comes pre-loaded with many popular
epoxy types and curing temperatures such as 353ND at
120 deg C for 5 min. (see the list at the end of this
document)
Temp.
Set Temp.
Graph
min/max
Graph update
Temp. Deg
C
HOM
E
Up arrow
Down arrow
Copy
profile
Edit Profiles
Load
Profiles

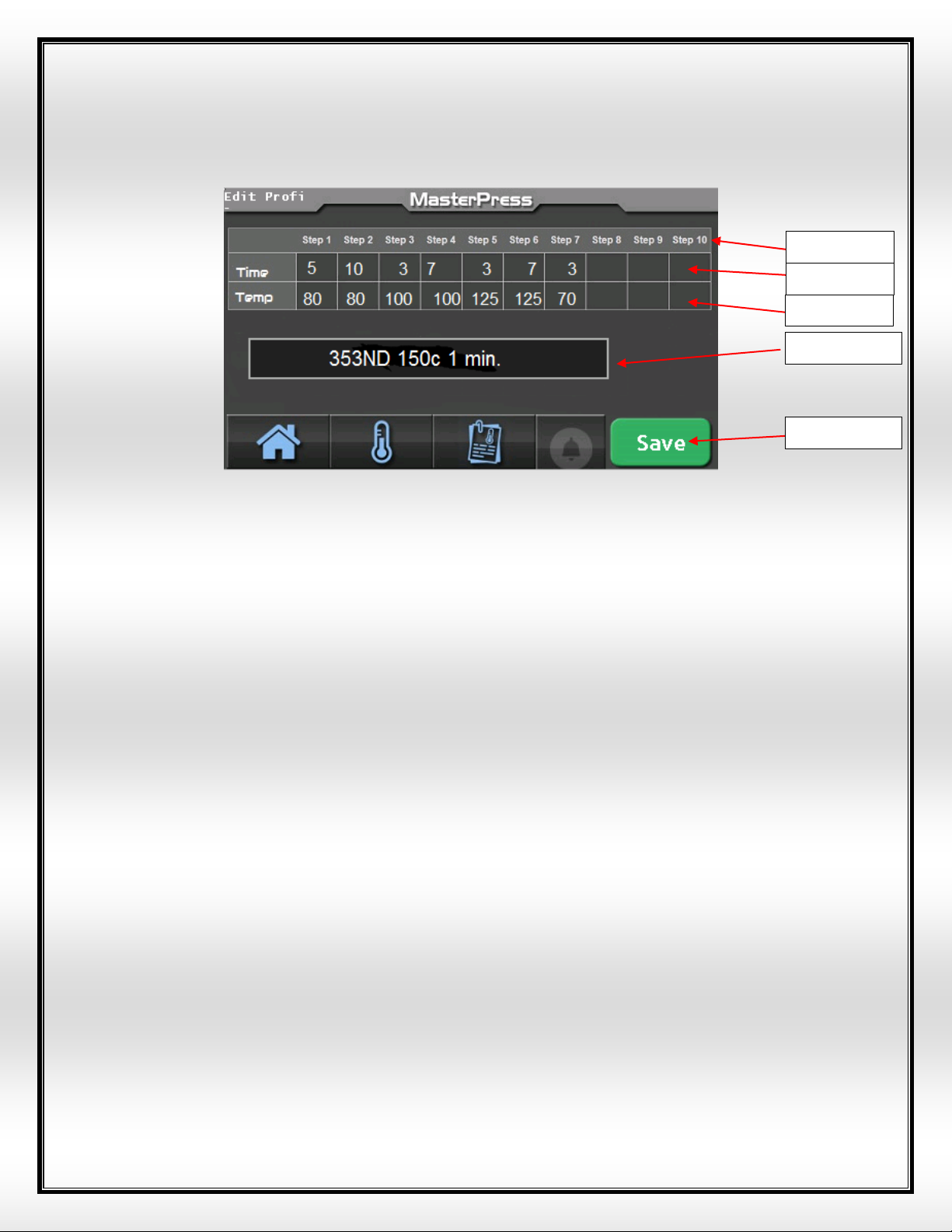

Edit Profiles Page:
1. When you select name or a time/temp a keyboard
pops up to enter the values/names.
2. Save: Saves the profile to memory.
3. Ramp/Soak: when the temperature changes
between steps it will RAMP to the new temperature
in the step time.
Process Step
Description
Temp (C )
Duration (min)
0-00
Preheat Ramp
80
5
0-01
Preheat Soak
80
10
0-02
Temp 1 Ramp
100
3
0-03
Temp 1 Soak
100
7
0-04
Temp 2 Ramp
125
3
0-05
Temp 2 Soak
125
7
0-06
Temp 3 Ramp
150
3
0-07
Temp 3 Soak
150
7
0-08
Cool down
20C
15
Example of a Ramp/Soak profile
Step #
Step Time
Step
Temp.
Profile
name
Save Profile

Settings Page:
1. Graph speed changes how fast the display
updates.
2. Import/Export, use the SmartOvenProfileSync.exe
program, select the correct COM port (USB
connector internal to oven)
3. Top Temp PID, these are factory set do not
change without contacting the factory
4. Alarm: sets the Alarm temp., the alarm display is
on the HOME page.
5. Save saves the settings.

Back view
1. On/Off, controls AC power to the oven
2. AC input jack, 3-amp slo blo fuse
3. Buzzer On/Off, disables the buzzer.
Specifications:
Resolution: 0.25deg C
Accuracy: +/- 2.5 deg C @ 150deg C , +/- 2 deg C @ 25-120 ( thermocouple accuracy )
Max Temperature: 150 deg C
Stability: (lid closed) +/-0.75 deg C
Heating: 12 deg./Min.
Cooling: 1.5 deg / min.
Settling time: 3 minutes
Capacity: 24 connectors (variable depends on heater block)
Weight: 5 lbs.
Power 120vac or 240 vac 3 amps
Width: 13.5” 343mm, Height 5” 127mm, depth 9.3” 236mm

Ramp/Soak Specs:
10 steps per profile
Program time and temps
Save up to 25 profiles
Save names per profile
Linear ramping to temp.
Over shoot +/- 5 %
160degC thermal shutdown protection
Buzzer on/off switch
Pre-set Oven Profiles list:
LMCO ramp soak Mil Spec.
353ND 150c 1min
353nd 120c 5 min
353nd 100 10min
353nd 80c 30min
F112 90c 15min
F123 100c 5min
3577 150c 30min
3677 120c 60min
AB9123 100C 5 Min
AB9123 120C 2MIN
AB9123 150C 1MIN
1min 100c

Before using this electrical equipment, the following basic precautions should always be followed: 1. Read
all instructions. 2. Keep oven out of reach of children. 3. Before use, check that the voltage of wall outlet
corresponds to the one shown on the rating. 4. Do not operate equipment with a damaged cord or plug,
or after the oven malfunctions, is dropped or damaged in any manner. Return oven to the nearest
authorized service center in order to avoid a hazard. 5. Do not let cord hang over the edge of table or hot
surface. 6. Do not immerse plug, cord or oven into water due to risk of electric shock. 7. This oven is not
intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have proper training by a person responsible for their
safety. 8. Always wear protective, insulated oven mitts or gloves when removing ferrules or handling the
unit. THE OVEN GETS VERY HOT! 9. Do not touch hot surfaces. 10. Place ferrules or connectors in the tray
before putting into the oven to avoid injury. 11. Do not operate the oven for any other purpose than its
intended use. 12. Always move “Power” switch to “OFF” position before removing the plug from the wall
outlet. 13. Do not place paper, cardboard, plastic or other flammable materials inside the oven. 14. Unplug
from main power socket when not in use. 15. Servicing and repair should only be conducted by an
authorized technician. 2 16. If oven is used in any manner not specified in this manual, the protection
provided by the equipment may be impaired.
CAUTION: DO NOT USE THIS PRODUCT IN ENVIRONMENTS WHERE FLAMMABLE OR EXPLOSIVE GASSES
MAY BE PRESENT. WARNING: ACCESS TO THE POWER SWITCH AND PLUG SHOULD BE MAINTAINED FOR
EMERGENCY DISCONNECT. WARNING: CAUTION HOT SURFACES: This oven generates high temperatures
during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons
or damage to property. WARNING: OVEN CORD MUST BE ROUTED AWAY FROM ALL HOT SURFACES.
CAUTION: This oven is hot during operation and retains heat for some time after turning off. Always use
oven mitts when handling hot materials and allow metal parts to cool before cleaning. • Position the oven
so that it is never against a wall or in a corner. • When operating the oven on a work surface keep the
surrounding areas clear and free from clutter. Ensure adequate air space surrounding the oven for
circulation. • Do not place anything on top of the oven while it is operating or while it is hot. • Do not
operate this oven with other major equipment plugged into the same power socket- there is a risk of
blowing the fuse. • Do not touch the hot oven surfaces while the unit is on or while cooling. • All users of
this oven must read and understand this User’s Guide before operating this equipment. • If the oven
begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair the
malfunctioning oven. • Do not leave oven unattended during use.
