NATI BlueMAX 53542 User manual

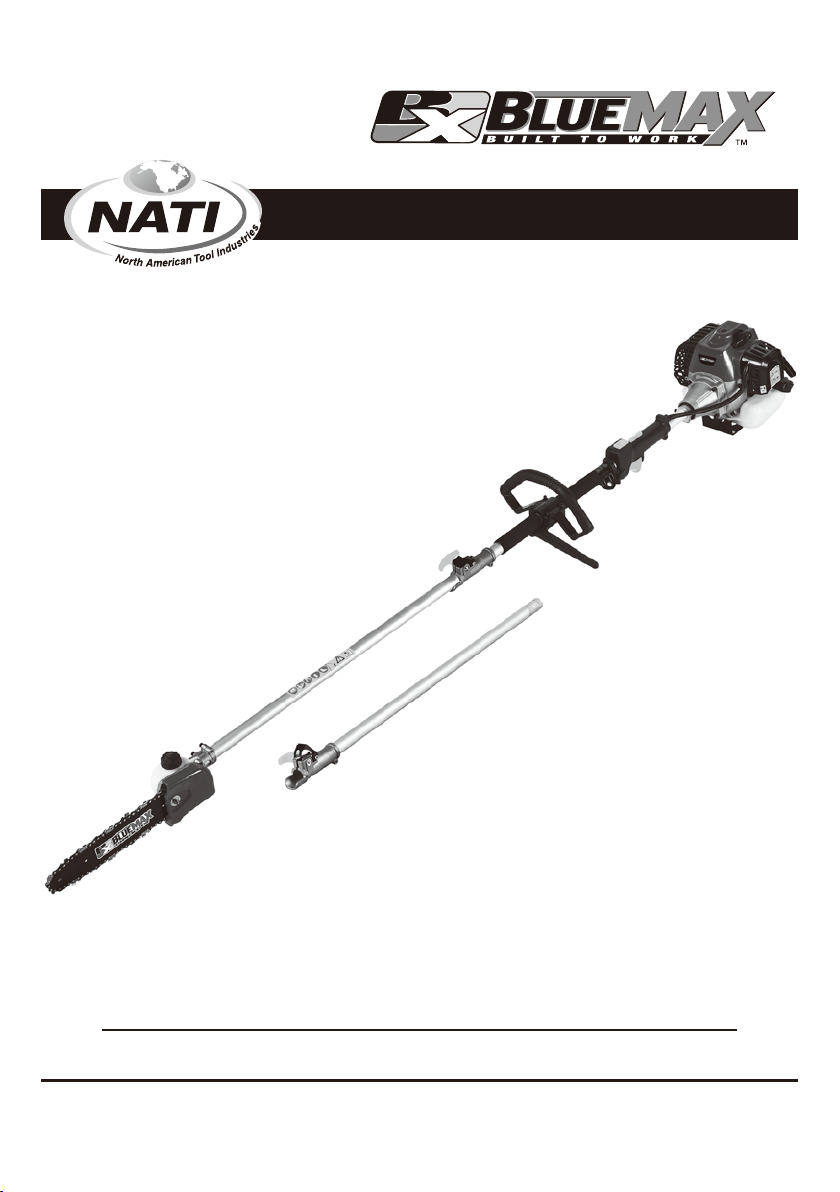

Gasoline Pole Saw
Model: 53542
*Actual product may vary slightly
Please carefully read and save these instructions before appempting to assemble, maintain, install, or operate this product.
Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property
damage and/or personal injury. Please keep instructions for future reference.
For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.
For Customer Service, Call 1-800-348-5004
or e-mail [email protected] 88053542 07/2015

CALIFORNIA PROPOSITION 65
WARNING:
You can create dust when you cut, sand, drill or grind materials such as wood,
paint, metal, concrete, cement, or other masonry. This dust often contains
chemicals known to cause cancer, birth defects, or other reproductive harm.
Wear protective gear.
WARNING:
This product or its power cord may contain chemicals, including lead, known
to the State of California to cause cancer and birth defects or other reproductive
harm. Wash hands after handling.
IMPORTANT!
When using equipment, a few safety precautions must be observed to avoid
injuries and damage. Please read the complete operating manual with due
care. Keep this manual in a safe place, so that the information is available
at all times. If you give the equipment to any other person, give them
these operating instructions as well. We accept no liability for damage
or accidents which arise due to non-observance of these instructions
and the safety information herein.
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE.
This manual will explain how to use the solar panel kit safely and effectively.
Please read and follow these instructions and precautions carefully.
IMPORTANT SAFETY INSTRUCTIONS
1-800-348-5004
[email protected] 2

1
1
9 10 12
11
15
1426 13
16
3a
3b
6
7
8
2
2
6
21
17
23
18
4
5
22
24
20 19
5
4
1
2
3
1-800-348-5004
[email protected] 3

4
5
4
3a
3b
25
4
6
8
5
K
I
N
G
R
G
H
7
9
1-800-348-5004
[email protected] 4

2 mm
10
12
14
11
13
15
1 2
L S
L PS O
M
1-800-348-5004
[email protected] 5

16
18
20
17
19
21
O
1-800-348-5004
[email protected] 6

23
25
27
24
26
a
b
T
22
1-800-348-5004
[email protected] 7

2928
30
13
1-800-348-5004
[email protected] 8

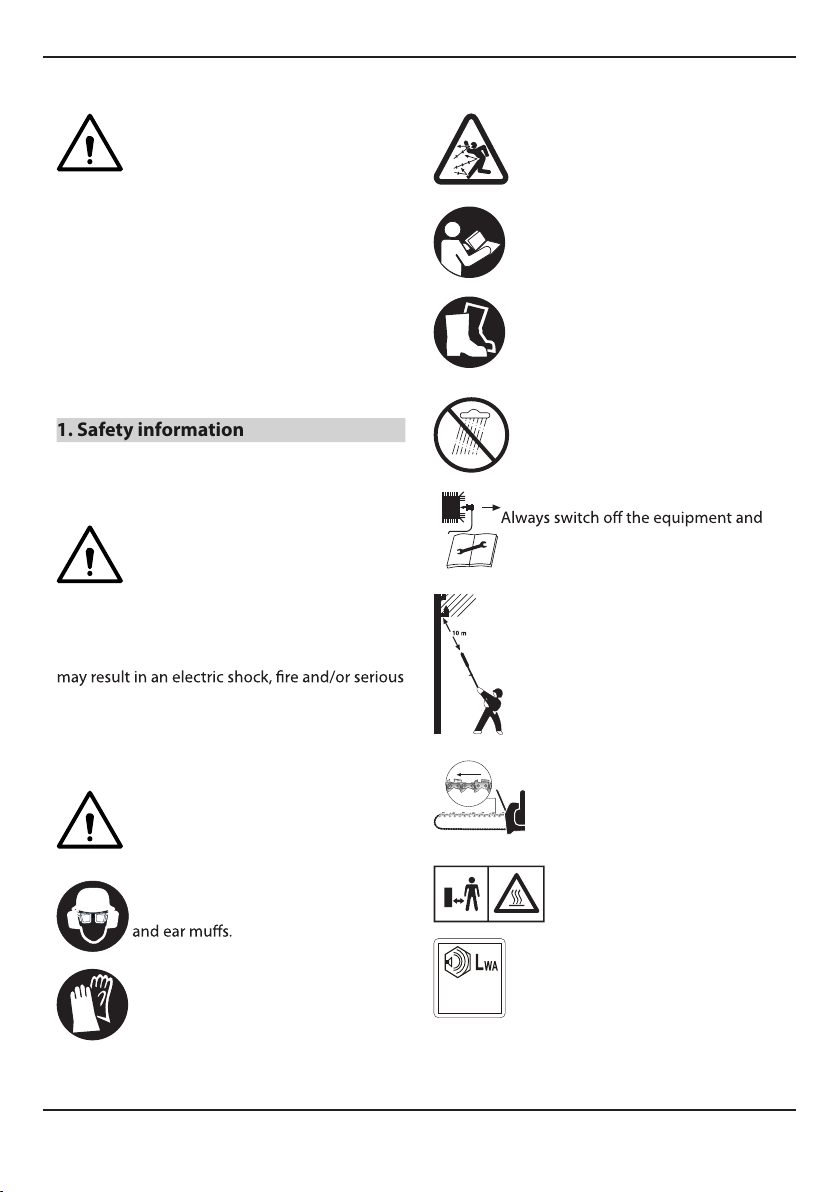

Watch out for falling and catapulting
parts.
Read the directions for use before
operating the equipment.
Wear sturdy, non-slip footwear.
Protect the equipment from rain and
damp.
pull out the spark boot plug before
carrying out any maintenance work.
Electric shock can cause fatal injury.
Keep a distance of at least 10 m from
power cables.
Direction of the chain movement
and teeth.
Caution: Hot equipment parts.
Keep your distance.
dB
114
Sound power level guaranteed
Important!
When using the equipment, a few safety
precautions must be observed to avoid injuries
and damage. Please read the complete operating
instructions and safety regulations with due care.
Keep this manual in a safe place, so that the
information is available at all times. If you give the
equipment to any other person, hand over these
operating instructions and safety regulations as
well. We cannot accept any liability for damage
or accidents which arise due to a failure to follow
these instructions and the safety instructions.
1. Safety information
For the relevant safety information please refer to
the booklet included in delivery.
Warning!
Read all the safety information and
instructions.
Any errors made in following the safety
information and the instructions set out below
injury. Keep all safety information and
instructions in a safe place for future use.
Explanation of the symbols on the equipment
Warning!
Wear protective headgear, goggles
Wear safety gloves.
1-800-348-5004
[email protected] 9

• Original operating instructions
• Safety information
3. Intended use
The pole-mounted petrol-powered pruner is
suitable for extensive sawing work, felling trees
or sawing any materials other than wood.
The equipment may be used only for its intended
purpose. Any other use is deemed to be a case
of misuse.
The user/operator and not the manufacturer will
be liable for any damage or injuries of any kind
which result from such misuse.
Please note that our equipment has not been
designed for use in commercial, trade or
industrial applications. Our warranty will be
voided if the equipment is used in commercial,
trade or industrial businesses or for equivalent
purposes.
4. Technical data
Engine type: 2-stroke engine,
air-cooled, chrome cylinder
Engine power (max.): 0.85 kW/ 1.2 HP
Displacement: 32.6 cm3
Engine idle speed: 3400 min-1
Max. engine speed: 9500 min-1
Max. cutting length: 254 mm
Weight with cutter bar and chain: 7.6 kg
Chain: Kangxin ALP-50-39S
Cutter bar: Kangxin AL10-39-507P,10"
Ignition: Electronic
Drive: Centrifugal clutch
Tank capacity: 825 ml
Spark plug: L8RTF/NHSP LD
Sound and vibration
LpA sound pressure level: 93,9 dB(A)
KpA uncertainty: 2,5 dB
LWA sound power level: 108,2 dB(A)
KWA uncertainty: 2,5 dB
2. Layout and items supplied
2.1 Layout
1. Cutter bar
2. Saw chain
3a. Oil tank / cap
3b. Gear unit
4. Drive rod mechanism
5. Connecting piece
6. Additional handle
7. Eyelet
8. Handle
10. Throttle lock
11. Throttle lever
12. Spark plug boot
13. Starter cable
14. Petrol tank / cap
16. Choke lever
17. Clip
18. Screw (4x)
19. Open-ended wrench size 8/10
20. Allen key
21. Cutter guard
22. Carrying strap
23. Oil/petrol mixing bottle
24. Multifunction tool
25. Lubrication nipple
26. Fuel pump “primer“
2.2 Items supplied
• Open the packaging and take out the
equipment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
available). • Check to see if all items are present.
• Inspect the equipment and accessories for
transport damage.
• If possible, keep the packaging until the end
of the guarantee period.
Important!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
