Swimming Pool Heat Pump
INSTALLATION AND USER MANUAL
PHCP50
PHCP80
PHCP110
Rev 1 Jan 14

2
Content
I. Application.................................................................................................................4
II. Features.....................................................................................................................4
III. Technical Parameters ..............................................................................................5
IV. Dimension ...............................................................................................................6
V. Installation Guide .....................................................................................................7
VI. Operation Instruction ..............................................................................................9
VII.Testing...................................................................................................................11
VIII. Precautions..........................................................................................................12
IX. Maintenance..........................................................................................................14
X. Troubleshooting......................................................................................................14
XI. Service...................................................................................................................15
XII. Warranty ..............................................................................................................15
XIII. Exploded Views and Parts Listings....................................................................16

3
Warning
A. DO NOT use this unit for any other purpose than to regulate swimming pool water
temperature. Utilization for any other application will void warranty.
B. The inlet & outlet connection joint can not support any other piping system’s
weight.
C. Make sure outlet air do not hurt any person, animal & plant.
D. Please make sure to switch off the power before any examination and repair.
Precautions
A. The unit must be installed & maintained by professional technician, the Power
layout must comply with local concerned regulation. Please read the manual
carefully.
B. Set proper temperature in order to get desired water temperature.
C. Please do not stack substances that can block air flow near inlet or outlet area.
D. The unit will automatically start up upon power available although power stop
during operation.
E. If the machine is stopped for a long time or in winter season, please cut off the
power supply and drain water clear of the machine by opening the tap of inlet pipe.
F. Do not put your hand or pole into air outlet of evaporator, forbid to disassemble the
working fan .
G. If any abnormal status occurs such as abnormal noise, smell, smoke, electricity
leakage, please switch off power immediately and contact your local dealer , please
do not check the unit by yourself.
H. Do not store combustible or flammable material near unit.

4
I. Application
1- Set swimming pool water temp efficiently and economically to provide you comfort
and pleasure
2- User may choose the model technical parameter according to professional guide, this
series of swimming pool heater has been optimized in factory (refer to technical
parameter table).
II. Features
1- High efficient titanium heat exchanger
2- Sensitive and accurate temp control and water temp display
3- Environment-friendly R410A refrigerant.
4- High pressure, low pressure & water flow protection system
5- Exceeding low temp auto stop protection
6- Temp control compulsory defrosting
7- International brand compressor
8- Easy installation and operation

5
III. Technical Parameters
Model PHCP50 PHCP80 PHCP110
Heating capacity 50000 BTU 80000 BTU 100000 BTU
Voltage 208-230V
Frequency/phase 60Hz/1Ph
Heating current(air80°F,water80°F) 10.8A 15.6 A 21.3 A
Heating power(air80°F,water80°F) 2.3KW 3.4 KW 4.4 KW
Heating current(air80°F,water95°F) 13.2 A 19 A 24.5 A
Heating power(air80°F,water95°F) 2.7 KW 3.9 KW 5.7 KW
Compressor RLA/LRA 11.6A/60.2A 21.2A/123A 30.2A/139A
Fan motor rating 0.5 A 1.2 A 1.2 A
Design pressure(High) ≤609 PSIG ≤609 PSIG ≤609 PSIG
Design pressure(Low) ≤261 PSIG ≤261 PSIG ≤261 PSIG
Refrigerant(R410A) 56.4oz 95.2oz 116.4oz
Net weight(KG) 68 112 135
Water circulation flow 83-116 L/min 108-142 L/min 133-167 L/min
Noise ≤50 dB(A) ≤50 dB(A) ≤58dB(A)
Waterproof class IPX4 IPX4 IPX4
Remarks:
1. This product can work well during air temp 32℉～109℉(0ºC to 43°C). Efficiency will not be
guaranteed out of this range and parameters are different under various conditions.
2. Related parameters are subject to adjustment periodically for technical improvement without
further notice. For details please refer to nameplate.

6
IV. Dimension
A B C D E F G H
PHCP110 879 383 690 900 857 530 83 933
PHCP80 662 452 694 687 652 360 83 734
A B C D E F G H
PHCP50 392 590 398 420 961 280 84 658
E
H
C
B
D
A
FG
Name
Size(mm)
Model
E
B
H
C
F
G
D
A
Size(mm)
Name
Model

7
Note:
The picture above is the specification diagram of the pool heater, for technician’s installation and
layout reference only. The product is subject to adjustment periodically for improvement without
further notice.
V. Installation Guide
1. Drawing for water pipes connection
Pump
POOL WATER IN
WATER TO SWIMMING POOL
STOP VALVE
THREE WAY
VALVE
SWIMMING
POOL WATER
TREATMENT
SYSTEM
work together
STOP VALVE
STOP VALVE THREE WAY
VALVE
Notice：The drawing is just for demonstration, and layout of the pipes is only for reference.
2.Electric Wiring Diagram
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
230V/60Hz L1
L2
Breaker/fuse
(Customer prepare)
Earthing
Power Supply
230V/ 60Hz L1
L2
Pump
Heat Pump contactor
Terminal Board
Users'Electric Box
Note：The swimming pool heater must be electrically bonded.
Outlet
Inlet
Ground
Ground

8
Options for protecting devices and cable specification.
Model PHCP50 PHCP80 PHCP110
Breaker
Rated current A 20 35 42
Rated Residual Action
Current mA 30 30 30
Fuse A 20 35 42
Power cord （AWG ）3×12 3×10 3×8
Signal cable ( AWG ）3×20 3×20 3×20
Note: The above data is adapted to power cord ≤ 10 m .If power cord is ＞10 m, wire diameter must
be increased. The signal cable can be extended to 50 M at most.
Pump protecting device, cable specification is subject to user’s option.
1. Installation instruction and requirement
The swimming pool heater must be installed by a professional team. The users are not
qualified to install by themselves, otherwise damage may happen to the heater or
threat the body safety of the user.
A．Installation
1-The swimming pool heater should be installed in a place with good ventilation;
2-The frame must be fixed by bolts (M10) to concrete foundation or brackets. The
concrete foundation must be solid and fastened; the bracket must be strong enough
antirust treated.
3-Please don’t stack substances that will block air flow near inlet or outlet area, and
there is no barrier within 50cm behind the main machine, or the efficiency of the
heater will be reduced or even stopped.
4-The machine needs an appended pump (Supplied by the user). The recommended
pump specification-flux: refer to Technical Parameter, Max. lift ≥10m;
5-When the machine is running, there will be condensation water discharged from the

9
bottom, please pay attention to it. Please hold the drainage nozzle (accessory) into the
hole and clip it well, and then connect a pipe to drain the condensation water out.
B．Wiring
1-Connect to appropriate power supply, the voltage should comply with the rated
voltage of the products. Bond the machine well to earth.
2-Wiring must be handled by a professional technician according to the circuit
diagram.
3-Set GFCI (Ground fault circuit interrupter) protector according to the local code for
wiring (leakage operating current ≤30mA).
4-The layout of power cable and signal cable should be orderly and not affecting each
other.
C．Switch on after finishing all wiring construction and re-checking.
VI. Operation Instruction

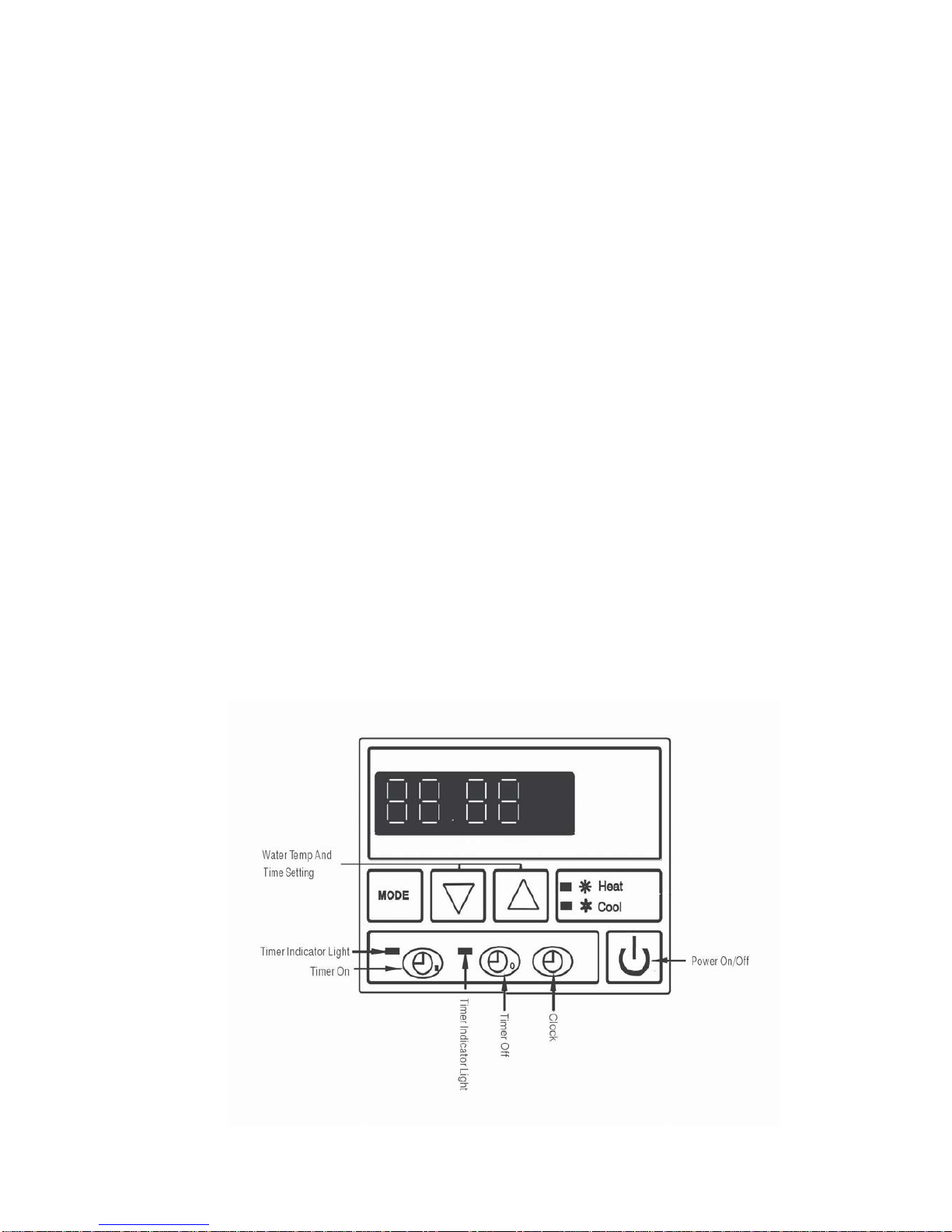

Picture for keys

10
1. Operation Display
a.The display shows Time when the machine is off
b.The display shows Temperature of the swimming pool water when the machine is
on.
2. Water temperature setting
a. Press MODE key can switch HEAT-COOL circulating mode.
b. Available no matter the machine is on or off. Press HEAT or COOL light up.
c.Press the key or to set water temperature. The controller indicates twinkling
temp.
.Press or to adjust to your desired water temp.
d. 5 seconds later, the controller display will back to the normal mode.
3. Time setting
A. Available no matter the machine is on or off.
B. Press key to set time，when the clock on the screen is twinkling, press
again to set hour. Use or to adjust hour. Before the twinkling stops, press
to set minute. Use or to adjust. After adjusting，press and water
MODE
Down-ALLOW Set required temperature and time
UP-ALLOW Set required temperature and time
LED screen Display time, temperature and machine
Power on/off
CLOCK Set local time.
TIME OFF Set the time required machine auto-stop.
Light A Shows the auto-stop time being set.
TIME ON Set the time required machine auto-work.
Light B Shows the auto-work time being set.
COOL Shows the cool mode
HEAT Shows the heat mode
MODE Key Heat or cool mode selection

11
temperature will be displayed. 30 seconds later，the controller display will be back to
the normal mode.
4. Timer on and off
A. Press set timer on. When the indicator light is on and the time is twinkling,
press again to set hour. Use or to adjust. Before the twinkling stops,
press to set minute.
B. Use or to adjust. After adjusting, press and water temperature
will been seen.
30 seconds later, the controller display will be back to the normal mode.
C. Press to set timer off. When the indicator light is on and the time is
twinkling, press again to set hour. Use or to adjust before twinkling
stop, press to set minute. Use or to adjust. After adjusting, press
and water temperature will been seen. 30 seconds later, the controller display
will be back to the normal mode.
5. Cancel timer on and off
Press or to cancel timer on and off. When the number is twinkling,
press when timer indicator light is off and LED shows water temperature, the
timer on and off is canceled. 30 seconds later, the controller display will be back to the
normal mode.
VII.Testing
1．Inspection before use
A．Check installation of the whole machine and the pipe connections according to the
pipe connecting drawing;

12
B．Check the electric wiring according to the electric wiring diagram; and bonding
connection.
Ｃ．Make sure that the main machine power switch is off
Ｄ．Check the temperature setting.
E．Check the air inlet and outlet.
2．Trial
Ａ．The user must “Start the Pump before the Machine, And Turn off the Machine
before the Pump”, or the machine will be damaged.；
Ｂ．The user should start the pump, check for any leakage of water; and then set
suitable temperature in the thermostat, and then switch on power supply.
Ｃ．In order to protect the swimming pool heater, the machine is equipped with a time
lag starting function, when starting the machine, the blower will run 3 minutes
earlier than the compressor.
D．After the swimming pool heater starts up, check for any abnormal noise from the
machine.
VIII. Precautions
1Attention
A．Set proper temperature in order to get comfortable water temperature; to avoid
overheating or overcooling.
B．Please don’t stack substances that can block air flow near inlet or outlet area, or the
efficiency of the heater will be reduced or even stopped.

13
C．Please don’t put hands into outlet of the swimming pool heater, and don’t remove
the screen of the fan at any time.
D．If there are abnormal conditions such as noise, smell, smoke and electrical leakage,
please switch off the machine immediately and contact the local dealer. Don’t try
to repair it yourself.
E．Don’t use or stock combustible gas or liquid such as thinners, paint and fuel to avoid
fire.
F．In order to optimize the heating effect, please install heat preservation insulation on
pipes between swimming pool and the heater. During running period of the
swimming pool heater, please use a recommended cover on the swimming pool.
G．Connecting pipes of the swimming pool and the heater should be ≤10m, or the
heating effect of the heater cannot be ensured.
2. Safety
A．Please keep the main power supply switch far away from the children.
B．When a power cut happens during running, and later the power is restored, the
heater will start up automatically. So please switch off the power supply when there
is a power cut, and reset temp when power is restored.
C．Please switch off the main power supply in lightning and storm weather to prevent
from machine damage that caused by lightning.
D．If the machine is stopped for a long time, please cut off the power supply and drain
water clear of the machine by opening the tap of inlet pipe.

14
IX. Maintenance
A．“Cut off” power supply of the heater before any examination and repair.
B．In winter seasons, please drain water clear of the machine, “cut off” power supply
to prevent any machine damage, and cover the machine body with plastic foil to
avoid dust.
C．Please clean this machine with household detergents or clean water, NEVER
gasoline, thinners or any similar fuel.
D. Check bolts, cables and connections regularly.
X. Trouble shooting for common faults
Faulty Reason Solutions
Not starting
Main power is off Wait for power to be reinstated
Switch off Switch on
Burnt out fuse Replace it
Circuit breaker drops out Switch Circuit Breaker back on
There is air
outlet but the
heating is not
satisfactory
Blocked air inlet Clean out the stem
Blocked air outlet Clean out the stem
3 minutes time lag protection Please wait
Temperature set too low Increase temperature setting accordingly
If the above mentioned faults cannot be solved, please contact the professional and inform model
and detailed faulty condition.
Atten: Please don’t disassemble and repair the swimming pool heater by yourself, please leave it
to the professionals.

15
Failure code
EE 1 High pressure protection
EE 2 Low pressure protection
EE 3 Low water pressure protection
EE 4 Over current (3 phase machine)
PP 1 Pool water temp sensor failure
PP 2 Exhaust temp sensor failure
PP 3
Heating coil pipe temp sensor failure
PP 4 Gas return temp sensor failure
PP 5 Air temp sensor failure
PP 6 Compressor exhaust overload protection
PP 7 When the temperature≤+32℉, auto stop protection（not Failure
）
EE8/888/Abnormal
Communication failure
XI. Service
For service and warranty, contact:
Phone Number: 1.888.238.7665
XII. Warranty
Register warranty online at www.nautyl.ca

16

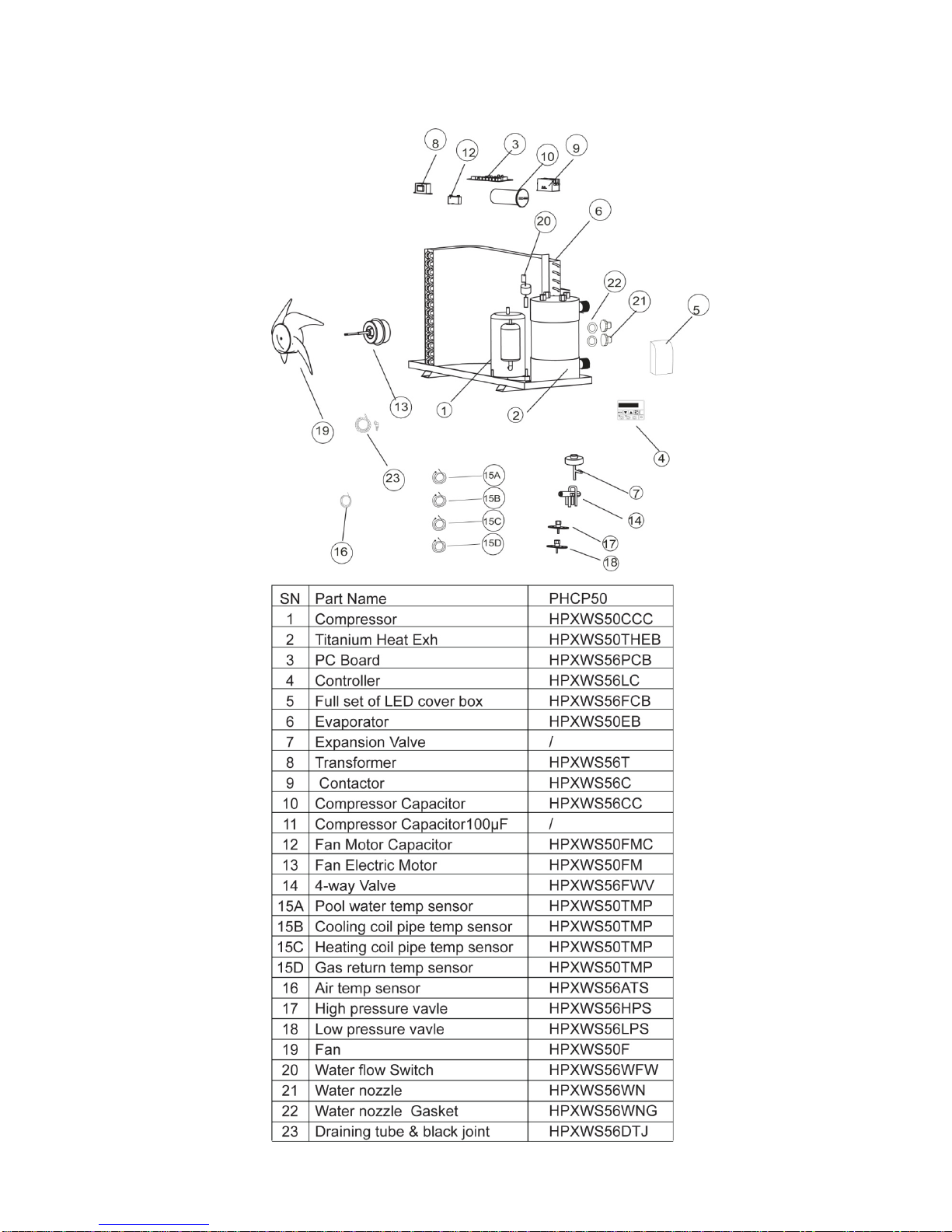

XIII. Exploded Diagram – PHCP50

17
Exploded Diagram – PHCP80

18
Exploded Diagram – PHCP110

1
Thermopompe pour piscine
MANUEL D’INSTALLATION ET
D’UTILISATION
PHCP50
PHCP80
PHCP110
Rev 1 Jan 14

2
Table des matières
I. Utilisation...................................................................................................................4
II. Caractéristiques.........................................................................................................4
III. Paramètres techniques.............................................................................................5
IV. Dimensions ..............................................................................................................6
V. Guide d’installation...................................................................................................7
VI. Instruction pour le fonctionnement.......................................................................10
VII. Vérifications.........................................................................................................12
VIII. Précautions..........................................................................................................13
IX. Entretien................................................................................................................15
X. Dépannage en cas de problèmes communs............................................................16
XI. Service...................................................................................................................17
XII. Garantie................................................................................................................17
XIII. Schémas éclatés et listes de pièces.....................................................................18
