Naviter Oudie 2 User manual

© 2003 - 2015 ... Naviter d.o.o.
Manual for
Oudie 2
Last modified 9.12.2015
version 6.50

Oudie 2I
© 2003 - 2015 ... Naviter d.o.o.
Table of Contents
Foreword 0
Part I Introduction 2
................................................................................................................................... 21 In the Box
................................................................................................................................... 32 Charging the battery
................................................................................................................................... 43 Mounting with the holder
Part II Getting started 6
................................................................................................................................... 61 Getting to know Oudie 2
................................................................................................................................... 72 Turning Oudie 2 on and off
................................................................................................................................... 73 Upgrading firmware
................................................................................................................................... 104 Copying filesto Oudie 2
................................................................................................................................... 125 Learning to use Oudie 2
................................................................................................................................... 136 Connecting to the GPS source
.......................................................................................................................................................... 15Cables and converters
Part III How to 19
................................................................................................................................... 191 Using Profiles
................................................................................................................................... 212 Set takeoff altitude
................................................................................................................................... 233 Manage airspace warnings
................................................................................................................................... 254 Using Thermal Assistant
................................................................................................................................... 275 Using Side view
................................................................................................................................... 286 Entering the task
................................................................................................................................... 377 Flying badge, record and racing tasks
................................................................................................................................... 398 Flying Assigned Area tasks
................................................................................................................................... 479 Flying with the FAI Triangle Assistant
................................................................................................................................... 4910 Flarm Radar
................................................................................................................................... 5311 Finish flight
................................................................................................................................... 5512 Connect to the internet
................................................................................................................................... 5813 Connect to SeeYou Cloud
................................................................................................................................... 5914 Connect to Soaring Spot
Part IV Map page 62
................................................................................................................................... 631 Cursor info
.......................................................................................................................................................... 64Waypoints .......................................................................................................................................................... 65Flarm .......................................................................................................................................................... 66Airspace .......................................................................................................................................................... 67Task
................................................................................................................................... 682 Glider position

IIContents
II
© 2003 - 2015 ... Naviter d.o.o.
................................................................................................................................... 683 Arrow towardsthe North
................................................................................................................................... 694 Wind vector
................................................................................................................................... 695 Glideslope indicator
................................................................................................................................... 706 Speed to Fly indicator
................................................................................................................................... 707 Vector map
................................................................................................................................... 708 Flight trace
................................................................................................................................... 719 Terrain collision
................................................................................................................................... 7210 Airspace warning
................................................................................................................................... 7211 Navboxes
................................................................................................................................... 7312 Animation speed
................................................................................................................................... 7413 Command bar
Part V Information page 76
Part VI Statistics page 78
Part VII Menu 80
................................................................................................................................... 811 < Prev and Next >
................................................................................................................................... 812 Esc
................................................................................................................................... 813 Settings
................................................................................................................................... 824 Display options
................................................................................................................................... 835 Map orientation
................................................................................................................................... 846 Add Waypoint
................................................................................................................................... 877 Zoom
................................................................................................................................... 888 Wind
................................................................................................................................... 899 McCready & Altitude
................................................................................................................................... 9210 Goto
.......................................................................................................................................................... 94Details overview
.......................................................................................................................................................... 95Edit Waypoint.......................................................................................................................................................... 96Waypoint filter
................................................................................................................................... 9911 Task
.......................................................................................................................................................... 100List edit .......................................................................................................................................................... 101Map edit .......................................................................................................................................................... 102Edit Point .......................................................................................................................................................... 103Load task .......................................................................................................................................................... 104Task options
.......................................................................................................................................................... 105Upload Task declaration
.......................................................................................................................................................... 106Multiple start points
................................................................................................................................... 10612 Next map
................................................................................................................................... 10713 Info page
................................................................................................................................... 10714 Statistics
................................................................................................................................... 10715 About
................................................................................................................................... 10816 Exit

Oudie 2III
© 2003 - 2015 ... Naviter d.o.o.
................................................................................................................................... 10917 Save Settings
................................................................................................................................... 10918 Team
................................................................................................................................... 11019 Thermal assistant
................................................................................................................................... 11120 Flarm points
................................................................................................................................... 11121 Switch Profile
................................................................................................................................... 11222 ConnectMe
................................................................................................................................... 11223 Logbook
.......................................................................................................................................................... 112Statistics, replay and upload flight
Part VIII Settings 116
................................................................................................................................... 1161 Map
.......................................................................................................................................................... 117Scheme properties
................................................................................................................................... 1182 Airspace
................................................................................................................................... 1193 Waypoints(Wpts)
................................................................................................................................... 1214 Track & Target
................................................................................................................................... 1225 OLC & FAI area
................................................................................................................................... 1236 Setup Task
................................................................................................................................... 1247 Navboxes
.......................................................................................................................................................... 128Edit
................................................................................................................................... 1308 Symbols
................................................................................................................................... 1319 Warnings
................................................................................................................................... 13210 Thermal
................................................................................................................................... 13411 Polar
................................................................................................................................... 13512 Units
................................................................................................................................... 13613 Fonts
................................................................................................................................... 13714 Input
.......................................................................................................................................................... 138Port Settings
.......................................................................................................................................................... 139Bluetooth
................................................................................................................................... 14015 Commands
................................................................................................................................... 14116 Setup Menu
................................................................................................................................... 14217 Files
................................................................................................................................... 14418 Log
................................................................................................................................... 14419 User Interface (UI)
................................................................................................................................... 14620 Flarm
................................................................................................................................... 14821 Miscellaneous(Misc)
................................................................................................................................... 14922 Hardware
.......................................................................................................................................................... 150Terminal
................................................................................................................................... 15123 LX1600
................................................................................................................................... 15324 Oudie Live

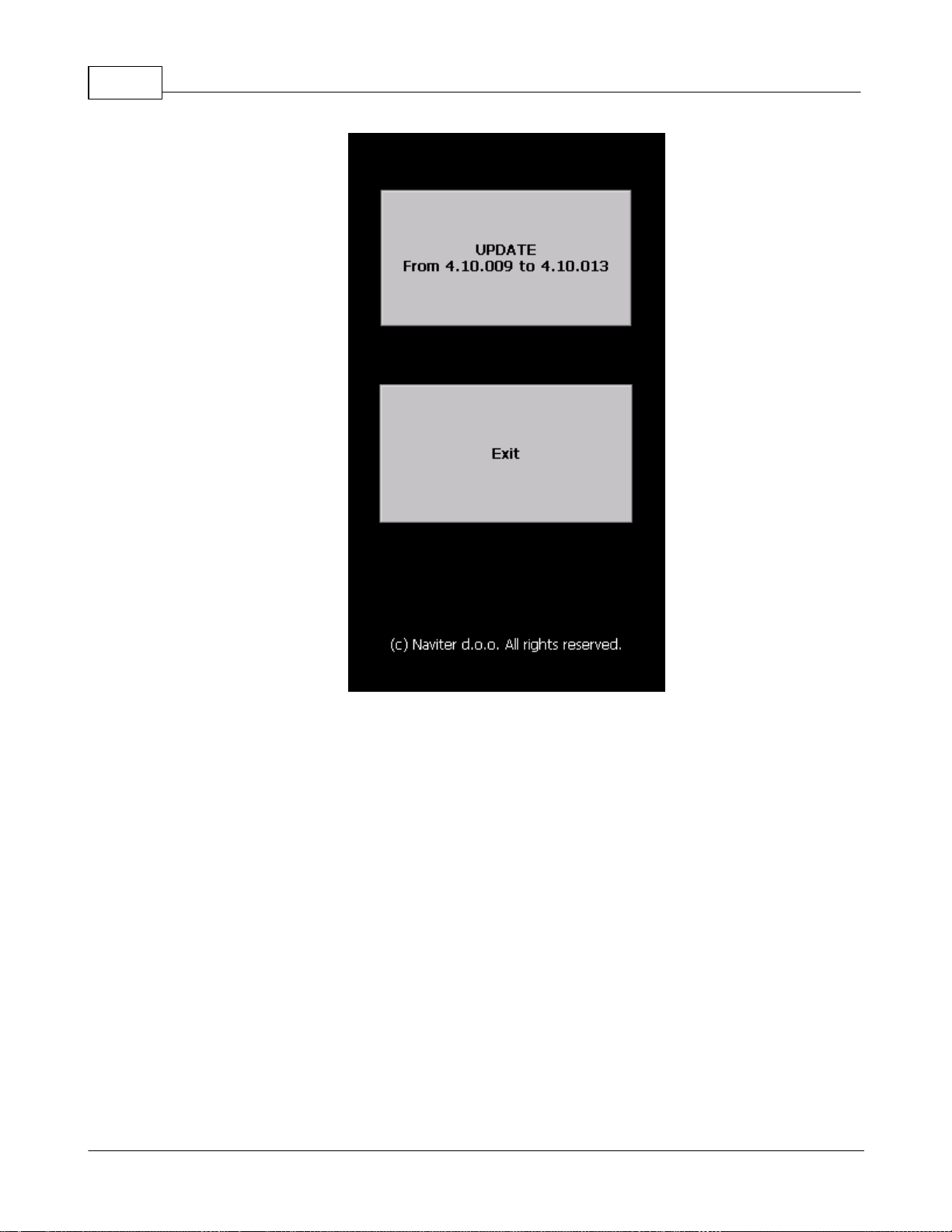

Part IX Oudie firmware 156
................................................................................................................................... 1561 Main screen

IVContents
IV
© 2003 - 2015 ... Naviter d.o.o.
................................................................................................................................... 1562 Settingsscreen
.......................................................................................................................................................... 157Volume .......................................................................................................................................................... 158Backlight .......................................................................................................................................................... 159Language .......................................................................................................................................................... 160Autorun .......................................................................................................................................................... 161Calibration .......................................................................................................................................................... 162USB
Part X Windows Mobile tips and tricks 165
Part XI Technical specification 167
Part XII Troubleshooting 170
Part XIII Notice of non-liability 172
Part XIV Limited Warranty 174
Index 175

Part I

Introduction 2
© 2003 - 2015 ... Naviter d.o.o.
1 Introduction
Oudie 2 version 6.50
Company Naviter is dedicated to solving glider pilot's problems and Oudie 2 is one of the answers in this
challenge. Its intended use is helping glider, para-glider and hang glider pilots navigate during leisure,
cross country and competition flights.
Oudie 2 is a Personal Gliding Assistant which aims at providing everything a glider pilot needs in one
simple package. For this reason Oudie 2 is shipped with all cables which are required to connect to your
flight data recorder or GPS, a basic suction cup holder as well as car and wall chargers. The proven
Naviter software packages SeeYou Mobile and ConnectMe are preinstalled already. You can literally take
it out of the box and use it in your glider.
Oudie 2 works great in combination with other Naviter products such as SeeYou for the PC, ConnectMe,
Soaring Spot and others. It was designed to answer the question which was most frequently posted to us
as "Which device should I buy to run SeeYou Mobile?"
Naviter is a Slovenian based software company. We focus on highly featured and easy to use software
for glider pilots. The needs of glider pilots worldwide are what we are interested in.
Naviter d.o.o.
Planina 3
4000 Kranj
Slovenia
email: [e-mail]
web: http://www.naviter.com/
All rights reserved by Naviter d.o.o. 2003-2015

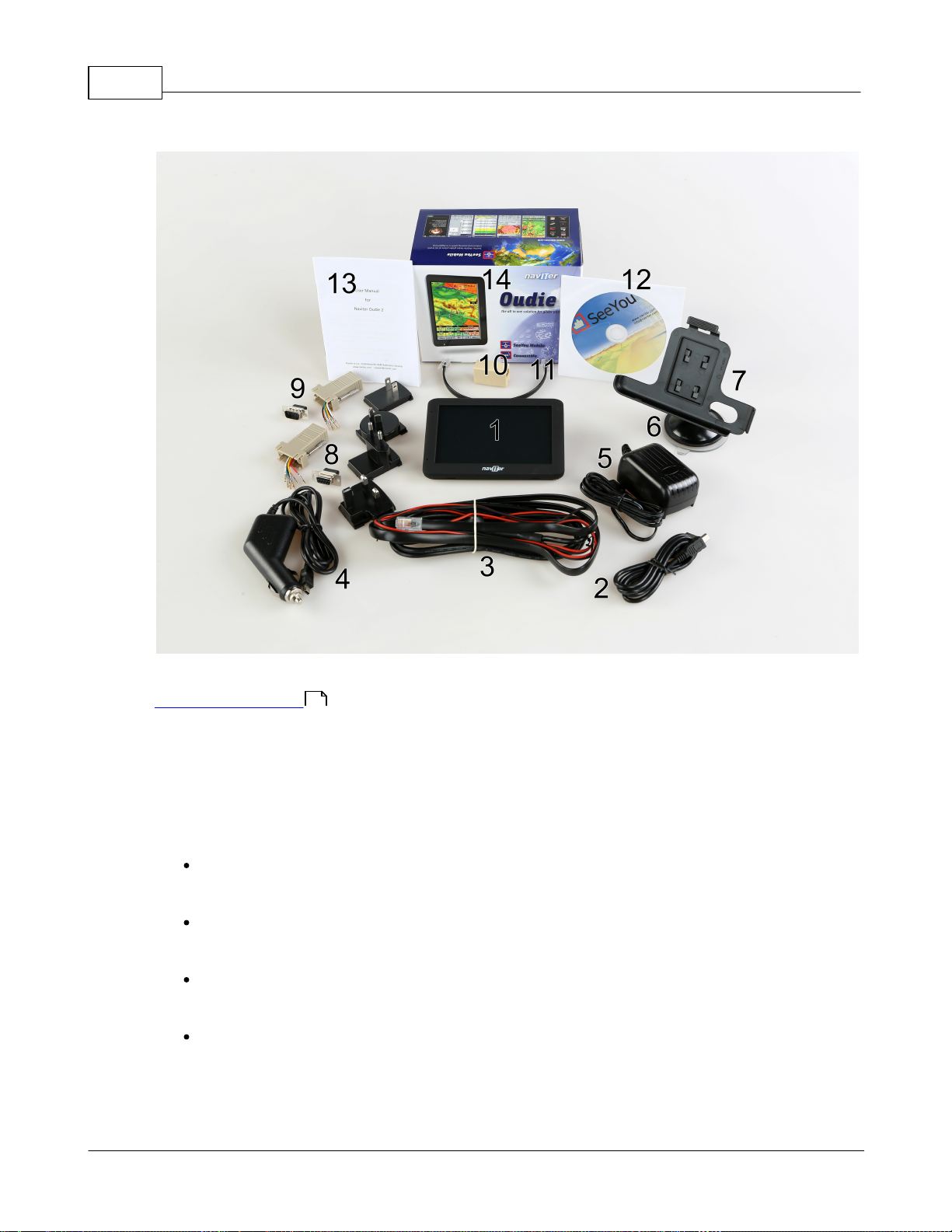

1.1 In the Box
The Oudie is delivered with SeeYou Mobile and vector maps (topographical data, ground elevation data,
cities, rivers, lakes, roads, etc.) preinstalled. Airport and Airspace files for much of the world are also
pre-installed. Your Oudie was delivered in a package with the following items:
1. Oudie
2. USB cable
3. Serial cable and 12V charger cable with RJ45 connector
4. Car charger
5. Universal wall charger with 4 different plugs
6. Suction cup mount
7. Cradle
8. Universal RJ45 to DB9 Female converter
9. Universal RJ45 to DB9 Male converter
10. RJ45 Female/Female Gender Changer
11. RJ12 Cable extension
12. CD ROM
13. Getting started manual

Oudie 23
© 2003 - 2015 ... Naviter d.o.o.
14. Gift Box
See also:
Cables and converters
1.2 Charging the battery
There are several ways to charge Oudie's internal battery.:
Connect the wall charger cable to AC 110-240 V power source and insert the connector to the
Oudie .
Connect the car charger to the DC 12-24 V source and insert the connector to the mini USB slot
on the Oudie.
Connect the Power and Serial data cable to DC 12V power source and insert the USB connector
to the mini USB slot
Connect the USB cable to an external Power Pack battery (not included)
The Power indicator light indicates charging status of the Oudie. Green light means that the device's
internal battery is fully charged. Amber light indicates that the battery is charging.
15

Introduction 4
© 2003 - 2015 ... Naviter d.o.o.
1.3 Mounting with the holder
The mounting kit consists of the cradle and the suction cup mount. First insert the cradle into the suction
cup mount until you hear and feel a strong click.
Then insert Oudie into the cradle so that you hear a strong click again.
Use the screw on the holder to adjust the tightness of the cradle. Turn the cradle into ideal viewing
position for your use.
Note: Do not place the Oudie in positions which obstruct pilot's movements, vision of nearby traffic or
instruments.

Part II

Getting started 6
© 2003 - 2015 ... Naviter d.o.o.
2 Getting started
This topic wants to cover some of the basic things you need to know about how to use your Oudie 2. If
this is the first time you are using Oudie 2 please take a few moments to read about the basics about
how to use Oudie 2:
. Getting to know Oudie
. Turning Oudie on and off
. Running SeeYou Mobile for the first time
. Copying files to Oudie 2
. Learning to use SeeYou Mobile
. Connecting to the GPS source
. Cables and converters
. Using profiles with SeeYou Mobile
. Flying badge, record and racing tasks
. Flying Assigned Area tasks
. Using Thermal Assistant
. Flying with the FAI Triangle Assistant
. Flarm Radar
2.1 Getting to know Oudie 2
1. Power On/Off button
2. Power indicator
3. Earphone jack
4. microSD card slot
5. Mini USB port
6. Stylus
7. Speaker
8. Reset key
6
7
10
12
13
15
19
37
39
25
47
49

Oudie 27
© 2003 - 2015 ... Naviter d.o.o.
Note for Oudie IGC: The Oudie IGC looks the same as the sketch above with the only difference that the MiniUSBconnector is
at the other end of the device and that a quick charger connector is located next to the miniUSB connector.
2.2 Turning Oudie 2 on and off
To turn the Oudie 2 ON press the power button for 1 second. In order to prevent turning on the device by
accident you have to press the confirm button in five seconds.
To turn the Oudie 2 OFF go to Menu > Next > Exit > Yes . Once SeeYou Mobile software is turned off ,
press the power button for 1 second while the device is running then choose the desired action:
Power Off: will stop the navigation and turn off the device. You should do this before long term
storage. Battery should be at least 50% full before you store it for a long time.
Sleep: will turn off the screen, GPS, Bluetooth and power down the processor. The navigation will be
put on hold and the battery will drain very slightly. After switching back on you are ready for navigation
in just a few seconds. You should use the Sleep function when you are waiting to launch and want to
conserve the battery for example. It's ok to use Sleep over night as well. The battery drain is
negligible.
Cancel: will do nothing and return focus to navigation.
To reboot press the reset button on the back of the device.
See also:
Getting to know Oudie 2
2.3 Upgrading firmware
Keep your Oudie 2 updated at all times with OudieUpdater.
OudieUpdater is a very simple, amazingly effective software. It will help you keep your Oudie 2 updated
with latest versions, airspaces files and maps at all times.
On windows it installs into the tray, sits there quietly until there is something you need to know. That’s
all! Press the buttons when there is something to update and keep your Oudie 2 updated at all times. Just
look out for this message:

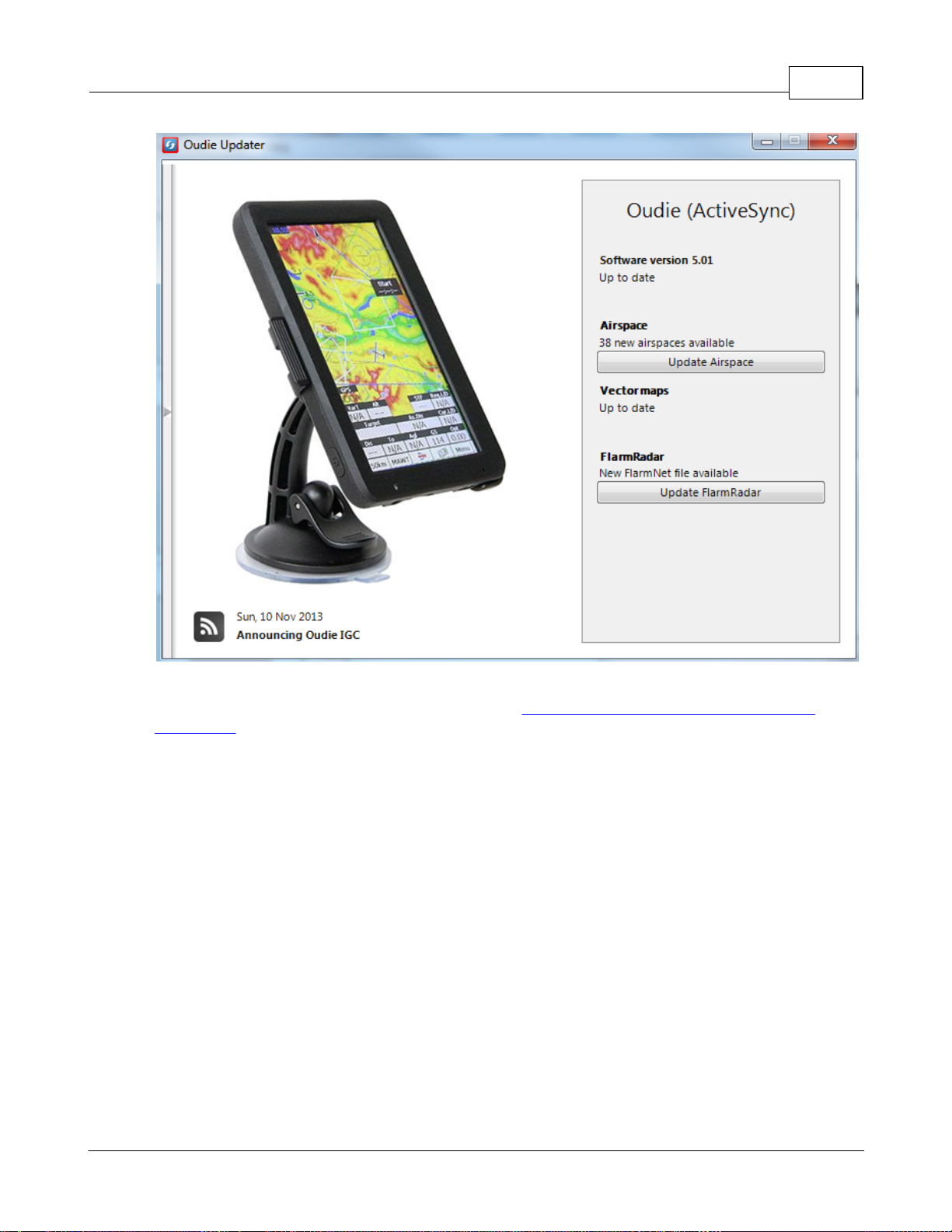

Click on message and OudieUpdater will show up:
6

Getting started 8
© 2003 - 2015 ... Naviter d.o.o.
How it works?
Please download and install OudieUpdater on your PC: http://download.naviter.com/OudieUpdater/
ousetup.exe
1. To update Software, Airspace or Maps press buttons by side and wait until copying of all files is
completed.
2. Disconnect Oudie 2 from PC.
3. Reboot Oudie 2 with restart button on the back side.
4. Wait until it boots into an Update dialog box.

Oudie 29
© 2003 - 2015 ... Naviter d.o.o.
5. Press "Update" and wait until the process is finished.

Getting started 10
© 2003 - 2015 ... Naviter d.o.o.
6. Reboot Oudie 2. That´s all. Now you are running latest software version.
If you need to check your Oudie 2 software version go to: Menu > About.
2.4 Copying files to Oudie 2
Copying files on the Oudie 2 similar to Upgrading the firmware . Just copy files in the root of your
Oudie 2 Resident Flash memory when connected to PC with the supplied USB cable.
If you need more instructions this is the whole procedure:
1. Connect your Oudie 2 with PC using the USB cable which was supplied in the box,
2. Once connected, tap "Connect to PC" or the USB Stick icon on Oudie 2,
3. You should now see Oudie 2 as an external Mass Storage drive on your PC (named TFAT),
4. Copy Files to the root or folder on your Oudie 2 device,
5. Once you finished copying files Safely remove your Oudie 2 from the PC software.
6. Disconnect Oudie 2 from PC and run the Oudie 2 software.
7. Then go to Menu > Settings > Files > Waypoints > "..." > Select your waypoints file > press Active
and close all dialogs with OK.
8. We strongly recommend that you remember this setting with Menu > Next > Save Settings > Save
Profile > Yes.
7

Oudie 211
© 2003 - 2015 ... Naviter d.o.o.
Mobile Wizard connects SeeYou with Oudie 2 to transfer files via Active Sync. Mobile Wizard never
expires. That means you don't have to have a registered version of SeeYou to transfer all of the required
data to the Pocket PC.
1. Set your USB port as Active Sync. After powering on your Oudie go to settings screen and under USB
port select Active Sync (See more at Main screen ).
2. Connect Oudie to your PC by connecting the USB cable
3. Tap "Connect to PC" on your Oudie screen to start the communication if prompted (newer Oudies
won't ask)
4. Remember which drive letter was assigned to your Oudie
5. Run SeeYou
6. Go to File > Mobile Wizard
First page of the Mobile wizard allows you to select the Items you wish to transfer to the device. You
can choose from
. Waypoints and Tasks
. Airspace
. Settings (Vector map color scheme, units, triangle properties, default observation zones)
Second page gives you the possibility to select basename and destination folder for the data you have
selected to upload on the first page.
. Files that will be created will have the same name as Basename and respective extensions CUB for
airspace, CIT for vector maps and CUP for waypoints and tasks.
. Choose "Copy to my Computer" as the destination for files
. Click "Browse" to select the location on your Oudie where you would like to save the files
. Use the Browse buttons to select the destination folder easily.
Third page asks you to draw a rectangle for the area you want to transfer to the Pocket PC.
Use Ctrl+Up, Ctrl+Down to zoom out and zoom in. Click on the the borders of the map to move
horizontally and vertically. This is the same procedure as in the other Map views in SeeYou.
Fourth page shows progress in transferring or saving files.
Once the transfer has completed successfully, you may close Mobile wizard with the Finish button.
156

Getting started 12
© 2003 - 2015 ... Naviter d.o.o.
See also:
Getting Started
2.5 Learning to use Oudie 2
There is two recommended options to learn SeeYou Mobile before you get airborne.
File replay
This is by far the most efficient way to learn Oudie 2 software. What it does is it replays an already flown
flight and enables you to see the data you would have been looking at if you had Oudie 2 with you on the
particular flight.
In order to set this up, copy some of your flights from the desktop PC to your device. Then go to Menu >
Settings > Input , then change input to "File". Press the "..." button and choose a flight you wish to
replay. Alternatively you can go to Menu > Logbook > choose the flight you wish to replay > Tools >
Replay flight. Then use the buttons to change Waypoints, MacCready and pages. Tap on the screen to
see what happens and setup Navboxes to what you want them to be. Note that you can setup Navboxes
separately for each of the two Map pages.
Simulator
In the Simulator input mode, you can move the glider freely even without a prerecorded flight which
enables you to go places you haven't visited in the air yet. To move the glider, tap on it, then drag a line
out of the glider in the direction you want it to move. The longer the line, the faster it will go in the
6
137
124

Oudie 213
© 2003 - 2015 ... Naviter d.o.o.
specified direction.
Learning SeeYou Mobile on the ground will give you time to think about gliding, task and scenery in the
air rather than software.
Oudie 2 Simulator for desktop PC
In addition we have created a 100% functional copy of our software which runs on the desktop PC. This
program enables you to test all features of Oudie 2 before you decide that you would like to use it in
flight. To download the simulator for PC please visit our website: http://www.naviter.com/products/
oudie-2/
See also:
Getting Started
2.6 Connecting to the GPS source
There are three basic ways to connect Oudie to the GPS source:
1. Built-in GPS
2. Serial cable connection to external GPS source
3. Bluetooth
You can choose which option you would like to use through Menu > Settings > Input dialog in SeeYou
Mobile:
6

Getting started 14
© 2003 - 2015 ... Naviter d.o.o.
1. Built-in GPS
The built-in GPS in Oudie is always on COM 1 > 4800bps. You can setup the Oudie to use internal GPS by
selecting Menu > Settings > Input > Internal GPS
2. Serial cable connection to external GPS source
The supplied Serial data cable enables you to connect to external data source such as your Variometer,
Flight data recorder, anti-collision device or similar. You should select Menu > Setting > Input > Serial
cable in order to use this option. You will need the manual from the other device in order to determine
the correct Port Settings such as Baud rate. You should always use COM 4 on Oudie for this type of
connection.
The supplied Data/Power cable has a RJ45 connector by default with standard IGC pinout. Several
converters are included in the box which enable you to connect to flight recorders with RJ12 or DB9
connectors. Special cables are also available as an accessory for a very simple direct connection to some
specific flight recorders such as LX 7007, CAI 302, LX 1600 etc. Please refer to the chapter Cables and
Converters of this manual to learn more about how to connect your Oudie with different GPS devices.
It is very important to understand that the supplied Serial cable must be connected to 12 V direct current
source (such as your glider's battery) in order to work.
15

Oudie 215
© 2003 - 2015 ... Naviter d.o.o.
3. Bluetooth
Another way to receive external data source is to connect through Bluetooth. Go to Menu > Settings >
Input > Bluetooth to pair Bluetooth device with Oudie:
1. press Lookup on Oudie (only devices which advertize SPP protocol are displayed)
2. Select the device you would like to connect to
3. Press "Pair..."
4. enter the PIN of the device you are connecting to
5. connection should be established on COM 5 (make sure the Baude rate is correct)
You should refer to the manual of the other device in order to find out about its settings such as Pairing
key, baud rate, availability of the serial communication protocols etc. Once the devices are paired and
serial communication is established the data flow starts immediately.
K6 Bluetooth is a special protocol which should be used when connecting to the K6 Bluetooth device
because it enables even more features than the standard Bluetooth protocol.
2.6.1 Cables and converters
Oudie is delivered with a variety of cables and converters which enable you to connect Oudie to your
almost any logger "out of the box":
1. Power and data cable
It provides power to Oudie and (optionally) to the device which is
connected to the RJ45 connector.
It has three connectors:
. mini USB connector must be connected to Oudie
. black and red cable must be connected to 12V power supply
(red is 12V, black is ground). Allowed input voltage is 10-30V.
. RJ45 connector with standard IGC pinout where
pins 1 and 2 = +12V (anything between 10-30V is ok)
pin 5 = Receive to Oudie
pin 6 = Transmit from Oudie
pins 7 and 8 = Ground
Use directly with these devices: Swiss Flarm, Volkslogger, K6 Mux, VW1150
2. RJ 45 Female/Female Gender Changer
This connector can be used for extending the 8-wires cable using another RJ45 connector (for example
ethernet cable). It can also be used to connect RJ12 connector with 6-wires cable which can be used for
data communication with Colibri, LX 20/2000, MiniBox, RedBox and other devices using RJ12 connectors.
