Naviter Oudie 3 User manual

© 2003 - 2013 ... Naviter d.o.o.
Oudie 3 Help
Last modified 26.7.2013
for version 4.50

Oudie 3I
© 2003 - 2013 ... Naviter d.o.o.
Table of Contents
Foreword 0
Part I Introduction 2
................................................................................................................................... 21 In the Box
................................................................................................................................... 32 Charging the battery
Part II Getting started 5
................................................................................................................................... 51 Getting to know Oudie 3
................................................................................................................................... 62 Turning Oudie 3 on and off
................................................................................................................................... 63 Upgrading firmware
................................................................................................................................... 84 Running Oudie 3 software for the first time
................................................................................................................................... 125 Using vario
................................................................................................................................... 126 Copying filesto Oudie 3
................................................................................................................................... 137 Learning to use Oudie 3
................................................................................................................................... 138 Using Profileswith Oudie 3
................................................................................................................................... 169 How Airspace warning works
................................................................................................................................... 1910 Entering and flying the tasks
................................................................................................................................... 2911 Flying with the FAI Triangle Assistant
................................................................................................................................... 3212 Using Thermal Assistant
Part III Map page 36
................................................................................................................................... 371 Cursor info
.......................................................................................................................................................... 38Waypoints .......................................................................................................................................................... 39Airspace
................................................................................................................................... 412 Glider position
................................................................................................................................... 413 Arrow towardsthe North
................................................................................................................................... 424 Wind vector
................................................................................................................................... 425 Vector map
................................................................................................................................... 436 Airspace warning
................................................................................................................................... 437 Navboxes
................................................................................................................................... 448 Animation speed
................................................................................................................................... 449 Command bar
Part IV Information page 46
Part V Statistics page 48
Part VI Menu 50
................................................................................................................................... 511 Esc

IIContents
II
© 2003 - 2013 ... Naviter d.o.o.
................................................................................................................................... 512 < Prev and Next >
................................................................................................................................... 513 Settings
................................................................................................................................... 524 Display options
................................................................................................................................... 535 Screen lock
................................................................................................................................... 546 Map orientation
................................................................................................................................... 567 Exit
................................................................................................................................... 578 Zoom
................................................................................................................................... 589 Volume & Altitude
................................................................................................................................... 5910 Goto
.......................................................................................................................................................... 60Details overview
.......................................................................................................................................................... 61Edit Waypoint.......................................................................................................................................................... 61Waypoint filter
................................................................................................................................... 6311 Task
.......................................................................................................................................................... 63List edit .......................................................................................................................................................... 64Map edit .......................................................................................................................................................... 65Edit Point .......................................................................................................................................................... 66Load task .......................................................................................................................................................... 67Task options
................................................................................................................................... 6812 Next map
................................................................................................................................... 6913 Info page
................................................................................................................................... 6914 Statistics
................................................................................................................................... 6915 About
................................................................................................................................... 6916 Save Settings
................................................................................................................................... 7017 Thermal assistant
................................................................................................................................... 7018 Switch Profile
................................................................................................................................... 7119 Add Waypoint
................................................................................................................................... 7120 Wind
................................................................................................................................... 7221 Logbook
Part VII Settings 74
................................................................................................................................... 741 Map
.......................................................................................................................................................... 75Scheme properties
................................................................................................................................... 762 Airspace
................................................................................................................................... 773 Waypoints(Wpts)
................................................................................................................................... 794 Track & target
................................................................................................................................... 805 OLC & FAI area
................................................................................................................................... 816 Task
................................................................................................................................... 827 Navboxes
.......................................................................................................................................................... 86Edit
................................................................................................................................... 878 Symbols
................................................................................................................................... 889 Warnings
................................................................................................................................... 8910 Thermal assistant

Oudie 3III
© 2003 - 2013 ... Naviter d.o.o.
................................................................................................................................... 9111 Polar
................................................................................................................................... 9212 Units
................................................................................................................................... 9313 Fonts
................................................................................................................................... 9414 Input
................................................................................................................................... 9615 Commands
................................................................................................................................... 9616 Menu
................................................................................................................................... 9717 Files
................................................................................................................................... 9918 Log
................................................................................................................................... 10019 User Interface (UI)
.......................................................................................................................................................... 101Manage languages
................................................................................................................................... 10220 Miscellaneous(Misc)
................................................................................................................................... 10321 Hardware
.......................................................................................................................................................... 104Terminal
................................................................................................................................... 10522 Vario
Part VIII Oudie firmware 108
................................................................................................................................... 1081 Main screen
................................................................................................................................... 1082 Settingsscreen
.......................................................................................................................................................... 109Volume .......................................................................................................................................................... 110Backlight .......................................................................................................................................................... 111Language .......................................................................................................................................................... 112Autorun .......................................................................................................................................................... 113Calibration .......................................................................................................................................................... 115USB
Part IX Windows Mobile tips and tricks 118
Part X Technical specification 120
Part XI Troubleshooting 123
Part XII Notice of non-liability 125
Part XIII Limited Warranty 127
Index 128

Part I

Oudie 32
© 2003 - 2013 ... Naviter d.o.o.
1 Introduction
Oudie 34.50
Company Naviter is dedicated to solving glider pilot's problems and Oudie 3 is one of the answers in this
challenge. It´s intended use is helping para-glider, hang glider and other pilots navigate during leisure,
cross country and competition flights.
Oudie 3 is a Personal Gliding Assistant which aims at providing everything a glider pilot needs in one
simple package. For this reason Oudie 3 have big bright sun readable screen, excellent vario and a large
battery which is powerful enough for more than twelve hours of flying. Vario and Navigation software,
maps and airspaces for Oudie 3 are already preinstalled. You can literally take it out of the box and
launch.
Oudie 3 works great in combination with other Naviter products such as SeeYou for the PC, Soaring Spot
and others. It was designed to answer the question which was most frequently posted to us as "Why do
you not build the device for paraglider and hang glider pilots?"
Naviter is a Slovenian based software company. We focus on highly featured and easy to use software
for glider pilots. The needs of paraglider, hang glider and sailplane pilots worldwide are what we are
interested in.
Naviter d.o.o.
Planina 3
4000 Kranj
Slovenia
email: [e-mail]
web: http://www.naviter.com/
All rights reserved by Naviter d.o.o. 2003-2013
1.1 In the Box
The Oudie 3 is delivered with pre-installed Oudie 3 software and world-wide vector maps (topographical
data, ground elevation data, cities, rivers, lakes, roads, etc.). Airspace and Airports files for much of the
world are also pre-installed. Your Oudie 3 was delivered in a package with the following items:
1. Oudie 3
2. Protective case
3. Getting started manual
4. SeeYou Trial CD
5. Universal Wall Charger (110-220V)
6. Car Charger (12V)
7. USB Cable
8. Velcro tape for easy installation
9. PDF Manual on the CD
10. 2 pcs Naviter stickers

Introduction 3
© 2003 - 2013 ... Naviter d.o.o.
SLIKA
1.2 Charging the battery
There are several ways to charge Oudie 3's internal battery.:
Connect the wall charger cable to AC 110-240V power source and insert the connector to the
charging slot on the Oudie (fa st cha rg e) ,
Connect the car charger to the DC 12-24 V source and insert the connector to the mini USB slot
on the Oudie (slow cha rg e),
Connect the USB cable to an external Power Pack battery or PC (slow cha rg e).
Fast charge with the wall charger take about 6 hours to fully charge the Oudie 3 status in about 6
hours. Slow charge will take about 10 hours to fully charge the battery.

Part II

Getting started 5
© 2003 - 2013 ... Naviter d.o.o.
2 Getting started
This topic wants to cover some of the basic things you need to know about how to use your Oudie 3. If
this is the first time you are using Oudie 3 please take a few moments to read about the basics about
how to use Oudie 3:
. Getting to know Oudie 3
. Turning Oudie 3 on and off
. Upgrading firmware
. Running Oudie 3 software for the first time
. Using vario
. Copying files to Oudie 3
. Learning to use Oudie 3
. Using profiles with Oudie 3
. Entering the task
. How Airspace warning works
. Flying Assigned Area tasks
. Flying with the FAI Triangle Assistant
. Using Thermal Assistant
2.1 Getting to know Oudie 3
1. Power On/Off button
2. Power indicator
3. Earphone jack
4. microSD card slot
5. Mini USB port
6. Fast charging socket
7. Stylus
8. Speaker
9. Reset key
5
6
6
8
12
12
13
42
19
16
19
32
32

Oudie 36
© 2003 - 2013 ... Naviter d.o.o.
2.2 Turning Oudie 3 on and off
To turn the Oudie 3 ON press the power button for 1 second. In order to prevent turning on the device by
accident you have to press the confirm button in five seconds.
To turn the Oudie 3 OFF, press the power button for 1 second while the device is running then choose
the desired action:
Power Off: will stop the navigation and turn off the device. You should do this before long term
storage. Battery should be at least 50% full before you store it for a long time.
Sleep: will turn off the screen, GPS, Bluetooth and power down the processor. The navigation will be
put on hold and the battery will drain very slightly. After switching back on you are ready for navigation
in just a few seconds. You should use the Sleep function when you are waiting to launch and want to
conserve the battery for example. It's ok to use Sleep over night as well. The battery drain is
negligible.
Cancel: will do nothing and return focus to navigation.
To reboot press the reset button on the back of the device.
See also:
Getting to know Oudie 3
2.3 Upgrading firmware
Upgrading the firmware on the Oudie 3 is as simple as downloading one file from www.oudie3.com,
saving it in the root of your Oudie's 3Resident Flash memory and resetting the Oudie 3.
If you need more instructions this is the whole procedure:
1. Download the Update executable from www.oudie3.com to your PC (or directly to Oudie, then skip
to #5):
2. Connect your Oudie to PC using the USB cable which was supplied in the box
3. Once connected, a PC icon is displayed on Oudie and new removable disk is available on the PC
(named TFAT)
4. Copy UpdateOudie.exe to the root of your Oudie drive (TFAT). Warning! Make sure it’s name not
“UpdateOudie (1).exe” or something. Browsers and Operating Systems want to interfere sometimes. File
name must be UpdateOudie.exe
5. Reset Oudie (or press and hold the On/Off key for 1 second and select “Power off” then power it
back on by holding the button for another second).

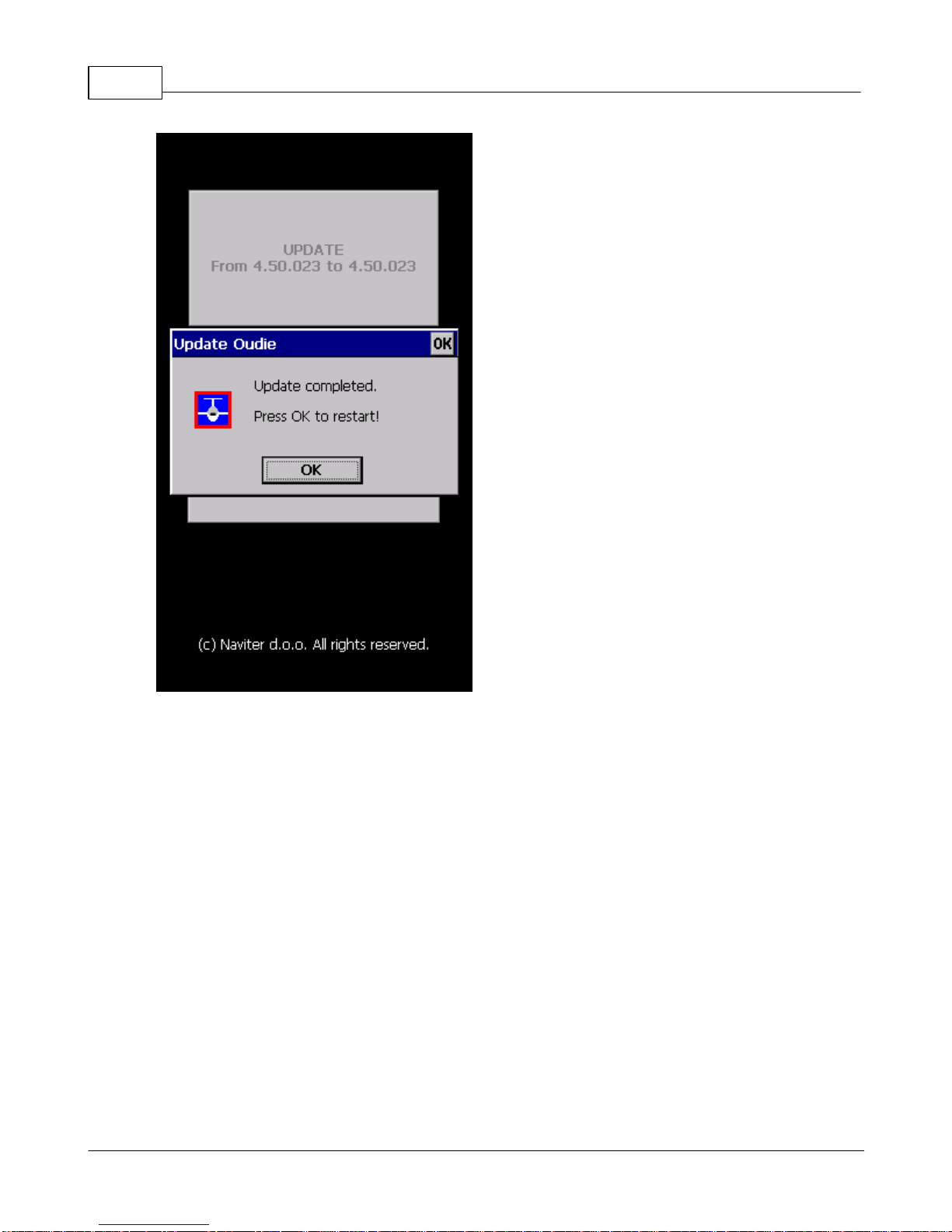

6. Wait until it boots into an Update dialog box
7. Press “Update” and wait until the process is finished
5

Getting started 7
© 2003 - 2013 ... Naviter d.o.o.
8. Reboot the Oudie one more time, to complete the update.

Oudie 38
© 2003 - 2013 ... Naviter d.o.o.

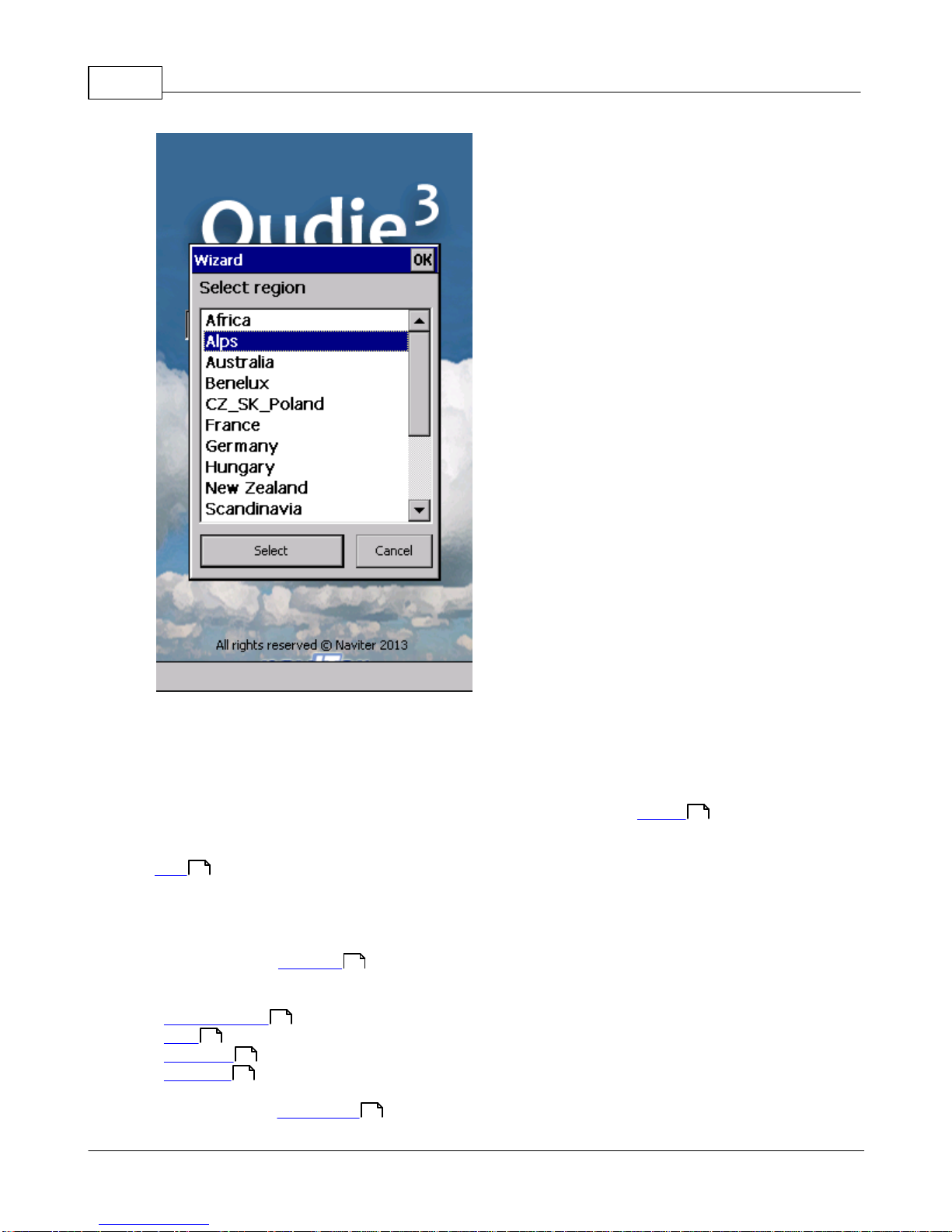

2.4 Running Oudie 3 software for the first time
When you turn the Oudie 3 on for the first time or after a reset, navigation software is started
automatically.
Language
Select language which you would like to use on Oudie 3 and confirm this by tapping on the Select
button:

Getting started 9
© 2003 - 2013 ... Naviter d.o.o.
Region
Select region in which you are going to fly and confirm this with Select button:

Oudie 310
© 2003 - 2013 ... Naviter d.o.o.
Connecting to the GPS
When the navigation device is turned on for the first time or after a long period of non-use, initialising the
integrated GPS receiver can take up to 40 minutes. Optimal conditions for problem-free and fast GPS
receptions are: having a clear view of the open sky, no high buildings immediately close by and
remaining in one place until the GPS position has been determined. The Navbox on the upper side of
the map will show you the GPS status (by default - you can change the navboxes later).
Map with symbols
This is where you will be looking for information all the time. You can do many things on the Map page:
You can move the map by dragging it. It will return to the position of the glider after 10 seconds
automatically or by pressing the Map orientation symbol.
You can move the Navboxes around the map to place then where you need them.
You can also tap on any symbol to bring up additional dialogs for:
. Map orientation by tapping on upper(North) arrow,
. Wind by tapping on the Wind vector,
. Map zoom by tapping on the Zoom button,
. Pan mode is a special mode where you can freely move around the map to explore some details
along the course.
. Move the glider (lower arrow ) if you tap on the glider.
82
36
82
54
71
57
54
41

Getting started 11
© 2003 - 2013 ... Naviter d.o.o.
. Moving on Map 2 by tapping on the Map 2 Navbox .
Tapping on a waypoint on the map gives you a list of Airspaces and Waypoints . Waypoints are
sorted on distance from the tap. This is a quick way to select a waypoint from a group of waypoints.
The Navboxes are what you will use to display the information you need. Be at waiting for Start gate,
Final glide, Navigation, Optimization or another issue, use Menu > Navboxes to select which items you
want displayed.
Command bar
holds 2 shortcuts to specific actions. In addition to the Command bar, actions are also assigned to any
hardware buttons on the Pocket PC. You can select which buttons do which actions through Menu >
Settings > Commands .
The default actions for software buttons from left to right (Command bar) are:
. Zoom
. Menu
Try the functions of these buttons.
See also:
82
76 77
82
44
96
57
50

Oudie 312
© 2003 - 2013 ... Naviter d.o.o.
Getting Started
2.5 Using vario
Oudie 3 features an excellent vario. It is the best vario you can find on the market. It is extremely
accurate and responsive at the same time.
You can control the audio settings of the vario on the Menu > Settings > Vario page. We went into a
lot of trouble fine tuning the vario sound. Make sure to try the default settings in the air before you
change them.
You can control the size and position of the Vario Symbol on the map. Simply drag it on the screen if you
wish to move it to a new position. Go to Menu > Settings > Symbols > Vario to change it size and
appearance. You can choose from a few different shapes for the vario, its transparency, size and more.
2.6 Copying files to Oudie 3
Copying files on the Oudie 3 similar to Upgrading the firmware . Just copy files in the root of your
Oudie's 3 Resident Flash memory when connected to PC with the supplied USB cable.
If you need more instructions this is the whole procedure:
5
105
87
6

Getting started 13
© 2003 - 2013 ... Naviter d.o.o.
1. Connect your Oudie 3 with PC using the USB cable which was supplied in the box,
2. Once connected, tap "Connect to PC" or the USB Stick icon on Oudie 3,
3. You should now see Oudie 3 as an external Mass Storage drive on your PC (named TFAT),
4. Copy Files to the root or folder on your Oudie 3 device,
5. Once you finished copying files Safely remove your Oudie 3 from the PC software.
6. Disconnect USB cable from Oudie 3 and PC.
See also:
Getting Started
2.7 Learning to use Oudie 3
There are two recommended ways to learn how to use Oudie 3 before you get airborne.
File replay
This is by far the most efficient way to learn Oudie 3 software. What it does is it replays an already flown
flight and enables you to see the data you would have been looking at if you had Oudie 3 with you on the
particular flight.
In order to set this up, copy some of your flights from the desktop PC to your device. Then go to Menu >
Settings > Input , then change input to "File". Press the "..." button and choose a flight you wish to
replay. Now use the buttons to change Waypoints, MacCready and pages. Tap on the screen to see what
happens and setup Navboxes to what you want them to be. Note that you can setup Navboxes
separately for each of the two Map pages.
Simulator
In the Simulator input mode, you can move the glider freely even without a prerecorded flight which
enables you to go places you haven't visited in the air yet. To move the glider, tap on it, then drag a line
out of the glider in the direction you want it to move. The longer the line, the faster it will go in the
specified direction.
By learning how to use Oudie 3 software on the ground you will have more time to think about gliding,
task and scenery in the air. It is warmly recommended.
See also:
Getting Started
2.8 Using Profiles with Oudie 3
If you feel no need to use more than one set of Navboxes or fly more than one type of gliders ignore
this feature and go read the next chapter.
5
94
82
5
82

Oudie 314
© 2003 - 2013 ... Naviter d.o.o.
If however you fly several types of gliders at different
locations you are likely to be fed up with changing the
polar, terrain, waypoint and airspace files each time
before the flight. Profiles were added in Oudie 3
software. You can have separate setups for each of
your gliders or type of flying. Here's how it works.
1. When you first ran Oudie 3, a Default profile was
created. Anything you have changed in the application
was stored to this profile. Now comes a day when you
fly the another glider with a significantly different polar
than the one you have used previously. To avoid
entering the polar, header and hardware data each
time you go fly this glider, you may create a new profile
by going to Menu > Settings > Miscellaneous and
click the "Add Profile..." button.
102

Getting started 15
© 2003 - 2013 ... Naviter d.o.o.
2. You get to choose to either
. Copy current profile (which makes an exact copy of
your current settings),
. Create a new profile (which creates a copy of the
default settings).
You may give the new profile a name according to what
you are going to use it for. Be it "RACE", "XC" or "Hike
and fly glider".

Oudie 316
© 2003 - 2013 ... Naviter d.o.o.
3. Next time you start Oudie 3 you will have two (or
more) profiles to choose from. You have 10 seconds to
select a profile. If you do nothing, the profile you used
last is loaded.
4. After you have loaded the profile for the first time
you will want to set it up according to your preferences.
Here is a handful of settings you will probably want to
change before use:
Links to Terrain, Airspace and Waypoint files
Pilot name and Glider type settings
Navboxes for Map1
Navboxes for Map2
See also:
Getting Started
2.9 How Airspace warning works
Avoiding forbidden airspace is often just as important as navigating in general. It can however be much
trickier than finding the right valley since the airspace structure is very abstract and often complicated.
Oudie 3 will be your best friend if you use the whole potential of what it's got to offer.
97
99
82
82
5
