NAYATI NGWT 3-55 AM Manual

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 1
INSTALLATION, OPERATION and MAINTENANCE,
INSTRUCTIONS
Note: The picture is illustration only. We reserved the right to make technical changes in the interest in
progress without prior notice.
GAS WOK RING TABLE
MODELS:
NGWT 3-55 AM
PT NAYATI INDONESIA
JI. Raya Terboyo No.19
Semarang ~ 50112
Central Java - Indonesia
Telephone : (0062) + 024 658 05 73
Telefax : (0062) + 024 658 05 72
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 2
Dear customer,
Thank you for choosing our product as your trusted partner. We ensure you that we always give
our best as we produce this appliance by using the finest materials. NAYATI Gas Wok Ring Table
is excellent choice to cook. In order to obtain maximum benefits of this appliance, please read this
manual instruction carefully. Please notice the warnings and safety instructions to keep your safety.
DO NOT use this appliance except its utility.
If you have any question or difficulty in operating this appliance, please contact your dealer or
NAYATI to acquire mechanic assistance.
NAYATI TEAM
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 3
Page
Cover …………………………………………………………......................................... 1
Preface ………………………………………………………… ...................................... 2
Table of Content ………………………………………….............................................. 3
General Information ……………………………………………..................................... 4
Safety Instructions ………………………………… ..................................................... 5
Technical Data …………………………………........................................................... 7
•Data Table ……………………… .................................................................. 7
•Overall Dimension ……………………………................................................ 8
Technical Data Plates ………………………………………………………………………. 9
Component List …………………… ........................................................................... 11
Installation (for the Installer) …………………............................................................ 13
•Position and Fixing ………………………...................................................... 14
•Gas Supply Connection ………………… ..................................................... 15
•Replacing Nozzle …………… ...................................................................... 16
•Pilot Adjustment …………............................................................................ 17
•Primary Air Adjustment ………… ................................................................. 18
Control Panel Description ………… .......................................................................... 19
Use Instructions (for user) …………………............................................................... 20
•Warning ……………..................................................................................... 20
•Turn ON / OFF ………………………............................................................ 21
Routine Cleaning and Maintenance …………… ....................................................... 22
Trouble Shooting ……………… ................................................................................ 24
Warranty ……………………...................................................................................... 25
TABLE OF CONTENT
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 4
Please read this manual instruction carefully before operating this appliance.
NAYATI Gas Wok Ring Table is an excellent cooking appliance. This appliance is using gas. This
appliance used for many cooking purposes from sautéing, shallow frying, frying, until boiling. It is
very important to keep this instruction book together with the appliance for future consultation. If
this appliance sold or transferred elsewhere, make sure this book goes with it. Therefore, the new
user can read about its functions and other relevant information.
If you have any question about the appliance, please contact your nearest dealer or contact
NAYATI.
GENERAL INFORMATION
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 5
Very important!: Before installing, place the appliance on solid, flat, stable and horizontal surface
and connection availability.
Read this manual instruction carefully before using NAYATI Gas Wok Ring Table. This appliance is
for food preparation only. Below are safety instructions that strictly conformed:
•Improper installation, maintenance, cleaning, or modification to the appliance could lead to
severe injury or death and could damage the appliance.
•The mechanics must instruct staff regularly to avoid accident and damage of the appliance.
•NAYATI Gas Wok Ring Table may be used for skilled staff only.
•DO NOT place the appliance in a toxic area or have a risk of explosion.
•DO NOT place the appliance near flammable materials such gasoline, fat, clothes, liquid
gas, paper, etc.
•DO NOT place the appliance in wet or humid room or condition such in rain or near water
leaks, etc.
•DO NOT use the appliance for drying clothes, paper, or living animals.
•DO NOT use the appliance to heat non-food products.
•Put the appliance in a good ventilated room.
•Before cleaning or maintaining the appliance, detach the gas line and allow it to cool.
•DO NOT touch the area .This sign means VERY HOT. Beware of severe burning
injury.
•DO NOT attempt to dismantle or repair the appliance. The authorized mechanics must do
all jobs.
SAFETY INSTRUCTIONS
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 6
INJURY RISK !
-Avoid Gas Wok Ring Table installation next to fat Fryer.
-Water could splash into the Fryer and may injure the user.
-It is recommended to keep a safe distance between Gas Wok
Ring Table and other kitchen equipment like Fryer.
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 7
NAYATI Gas Wok Ring Table is made of stainless steel and cast iron. This appliance equipped
with wok ring adaptor. Therefore, the user can cook either with wok or pan.
•Data Table
Table 1: Technical Specification
Technical Specification
Model NGWT 3-55 AM
Overall Dimension (mm) Width Depth Height
380 600 300
Gas Inlet 3/4 “
Gas Consumption LPG : 11.5 kW
LNG : 13 kW
Gas Connection Pressure G30 / G31 = 28-30mBar / 37mBar
G20 = 20mBar
Ignition Manual
TECHNICAL DATA
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 8
•Overall Dimension
NGWT 3-55 / AM
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 9
Figure 1:
Technical plate reports the current gas setting, Gas Wok Ring Table nominal data, gases table,
categories, and pressures for other CE countries.
Figure 2:
Technical Plate reports warnings in European languages and destined languages.
TECHNICAL DATA PLATES
Fi
g
. 1
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 10
Figure 3:
Technical plate reports warning and current setting on appliance packaging.
Fi
g
. 2
Fi
g
. 3
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 11

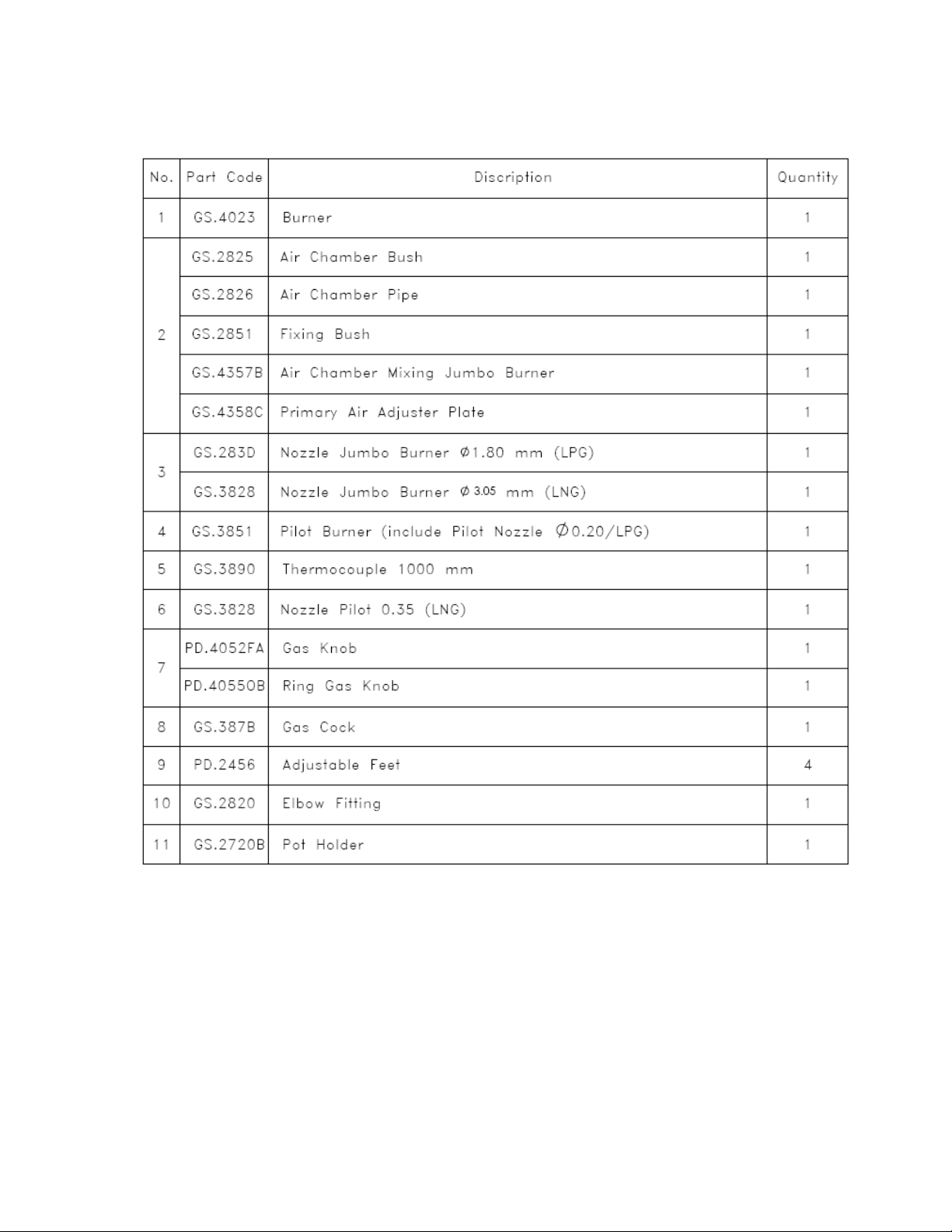

COMPONENT LIST
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 12
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 13
Very important!: Before installing, place the appliance on solid, flat, stable and horizontal surface
and connection availability.
The following instructions are intended for authorized and qualified installer. Before doing
installation, adjustment, and maintenance operations, the installer must follow local and legal
regulations. Cut the electrical power before doing any installation.
1. This appliance is using gas. Gas services should be installed according to:
a. Local and international standards
b. Local recommendation, such as building standards and recommendation concern with
combustion
c. Directions and regulations from the gas and power supply companies
d. Regulation concern with prevention accident measures
2. Remove all packaging material and protective coatings.
3. Ensure gas supply is sufficient to operate this appliance.
4. Install the appliance by using Qualified Gas Filter.
5. Before testing, put the appliance in a good ventilated room and keep all flammable material
away.
6. Take a leakage test by using soapy water solution. Spread the soapy solution on joints and pipe
fitting. A leakage will be indicated by bubbles comes from the joints or pipefitting. Another way
is by looking at the gas counter. If there is no movement on the gas counter, it means no gas
leakage.
7. Before cleaning or maintaining the appliance, please isolate gas supply to the safe place.
8. Install the appliance by following Safe International Gas Standards.
INSTALLATION (for the installer)
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 14
9. If the appliance has not preset to the gas availability, you must convert it into another gas type.
Authorized personnel must do this by referring to the technical data (primary air regulation and
nozzle table), changing the main burner and pilot burner nozzles. Once this has been done, a
new rating data plate should be affixed to the new data by referring to the new gas type.
•Position and Fixing
Authorized personnel must do the installation. Install the appliance according to National
Safety Standard about gas-heated standard. Place the appliance in good ventilated room with
permanent ventilation ducts to guarantee sufficient exchange of air and keep the work place
healthy. If the Gas Wok Ring Table not connected to a flue, it is recommended to install it
under efficient hood, which could evacuate burned gases and cooking steams. Make sure that
any object around or under Gas Wok Ring Table does not obstruct air volume required for
combustion. Put away any flammable materials near Gas Wok Ring Table. When the
appliance is freestanding, keep a distance at least 10 cm from side, and rear walls. Especially
when the appliance close to wall and does not protected with fire-resistant materials made.
Install the appliance separately or side by side with other appliance according to recommended
range. Put Gas Wok Ring Table on solid, flat, and horizontal floor. Adjust the height of the four
feet by using brackets. Before turn the appliance ON, remove the protective film. Remove any
adhesive with appropriate solvent. Eliminate all packaging material according to national laws.
Warning!
NEVER USE FREE FLAME TO FIND GAS LEAKS!
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 15
•Gas Supply Connection
-Before installing and connecting Gas Wok Ring Table to gas supply, carefully
control the fixed part of gas system, which conformed to National Building
Regulation.
-Verify gas pipes sections to guarantee sufficient supply for all gas heated
appliances. Install it in similar condition to avoid excessive pressure drops.
-The pipes must be made of steel (with junctions made using white cast iron, or
galvanized steel fittings, or autogenously welded joints) or copper pipes (with
mechanical joints and couplings without seals or mastics or brazed joints).
-Control the gas bottle (if any) placed correctly and protected in dry area.
-Check whether the gas pipes can easily inspected. If the pipes installed in floor
and wall, make sure that this work done according to professional standard with
reference points that make it possible to find the pipes.
-Before installing Gas Wok Ring Table, make sure that it is set for the gas and
pressure (see Technical Data Plates). Consult the paragraph “Gas Conversion”.
-Connect Gas Wok Ring Table to gas supply using solid fittings or flexible steel
pipes with suitable sections related to nominal power and length.
-Check whether the flexible pipes does not pass or near hot surfaces, put under
stress and traction, contact with sharp edges, or other things that could damage
the pipe.
-Install quick ON – OFF valve between the gas mains and each single appliance
where easy to reach.
-After install Gas Wok Ring Table safely, take a pressure test the whole gas circuit
by using leak finder spray or non-corrosive foams.
-Gas Wok Ring Table is equipped with ISO 7/ 1 screw thread, gas connection of
3/4 inches diameter and suitable adapter for ISO 228/ 1 G screw thread gas
connection are provided together with the appliance according to destined
countries.
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 16
1
2
3
4
5
•Replacing Nozzle
a. Lift the Burner (1) about 10 mm and pull from mixing chamber (3)
b. Remove the fixing screw (2). This screw can be reach from below.
c. Remove the complete mixing chamber (3) by turn anticlockwise from the Nozzle.
d. Turn the pressure ring (4) from Nozzle. DO NOT lose the pressure ring.
e. Remove the screw (5) and take the complete Nozzle unit.
f. Remove the Nozzle from the Nozzle carrier and replace with the new one that suit to the
table depend to the country and gas type.
g. Fix the Nozzle with a non-hardening sealing tape.
h. Replace the burner by following instructions to opposite direction. Notice the Primary Air
Adjustment.
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 17
•Pilot Adjustment
Adjust the Pilot flame according to natural gas. Follow direction below:
a. Remove the covering screw (10) with washer (11) by using small screwdriver.
b. Adjust Nozzle (C) to make Main Burner ignites well.
c. Turn clockwise to reduce gas flow. Otherwise, turn anticlockwise to increase gas
quantity.
d. When operated with liquid gas, turn Nozzle (C) clockwise.
e. Fix gas after regulating washer (11) and covering screw (10).
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 18
•Primary Air Adjustment
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 19
•NGWT 3-55 AM
A: Burner Knob
To open and close the burner gas supply
CONTROL PANEL DESCRIPTION
20140227

Manual Instructions for Gas Wok Ring Table
NAYATI
AMICUS 20
•Warning
This appliance is a gas cooker for professional use. It shall be used by authorized people only.
Before starting, please make sure that the appliance is in good condition and put it in a good
ventilated room. Below are several preliminaries warning that strictly conformed:
1. If there is a persistent breakdown, please contact authorized mechanic.
2. User is only responsible for daily routine cleaning for maintenance.
3. Qualified mechanic must do all operations related to installation and maintenance according to
Regulation in force.
4. Use Gas Wok Ring Table only to COOK FOOD: SHALOW FRYING, FRYING, SAUTEING, until
BOILING. DO NOT use Gas Wok Ring Table for other purposes. Any other uses may be
considered as improper and dangerous use. Please control the appliance when operating.
5. Before operating Gas Wok Ring Table for the first time, carefully clean the appliance to remove
industrial oil/ lubricant.
6. After using Gas Wok Ring Table, close the gas valve in UP position.
USE INSTRUCTIONS (for user)
20140227
Table of contents
Popular Stove manuals by other brands

Desa
Desa SVYD18N Series OWNER'S OPERATION AND INSTALLATION MANUAL

inventum
inventum LK010 instruction manual

Brunner
Brunner BPH 7/25 Instructions for use

Quadra-Fire
Quadra-Fire GRAND BAY 40 Installation, operation, venting and maintenance instructions

Hi-Flame
Hi-Flame Olymberyl Gabriel OL357i-B manual

Defy
Defy DGS 130 owner's manual

Brock
Brock GS 001 W manual

Wood Pellet Products
Wood Pellet Products Gravity Grill owner's manual

Dovre
Dovre 250DV Installation instructions and operating manual

Quadra-Fire
Quadra-Fire GARN-DMBK-IPI-B installation manual

Primus
Primus 3043 Instructions for use

Extraflame
Extraflame COMFORT PLUS CRYSTAL user manual
