NB 902 User manual

User Manual www.newbalance-watch.com
902
NM-705.1
EX2

Design of the Watch
1
[EL] EL Button
• To turn on the EL back
light for about 3 seconds.
[S] Stop
• To activate the ‘stop’
function in Exercise, Count
Down Timer Mode. Press to
activate the ‘stop’ function.
• To increase the setting
value during setting display
[R/V] Reset / View Button
• To select different
sub-functional displays in
the Workout Mode.
• To reset counting in the
Workout Mode.
• To decrease the setting
value during setting display.
Thank you for purchasing this watch. Please read this manual thoroughly before using
the watch!
[M] Mode Button
• To select among function modes:
Home Time, Workout, Daily
alarm, Countdown timer and
Dual time.
• Hold down to select/exit setting
display in the following modes:
Home Time, Workout, Daily
alarm, Countdown timer and
Dual time.
• To select among different setting
items in setting mode.
[S/L] Start / Lap Button
• To activate the ‘start’ function in
the Workout and Timer Modes.
• To take Lap records when the
chronograph is running.

Time Mode
• Time System: am, pm, hour, minute,
second
• Time Format: 12-hour or 24-hour format
• Calendar Range: 2000~2099
Alarm Mode
• Daily alarm and hourly chime
• Alarm Sound: 30 seconds
Workout Mode
• Heart rate measuring range: 30 to 240
bpm.
• Hear Rate Alert Zone:
3 Pre-defined and 1 user defined.
• Auto-calibration or manual input of
stride length.
• Above / below heart rate zone alert
• Workout Timer: Max 23H59M59S
• Distance: 99.99 km / 63.13 mile
• Step: Max 99,999
• Calorie: Max 9,999 kcal
Recall Mode
• Store up to 10 segments and up to
100 lap records
• Each Segment summary contains:
time stamp, total lap no., Workout
time, average pace, calorie
consumption, distance, average
speed, max HR, average HR, step and
above/on/below zone timer
• Each Lap Record contains: split time,
lap time, distance, average pace,
average HR and average speed within
the lap

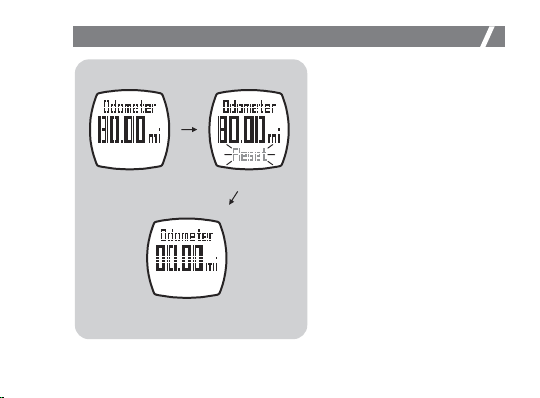

• Odometer function
Timer Mode
• Resolution: 1 second
• Measuring range: 23H59M59S
Others
• Back Light Type: Electro-Luminescent
(EL) back light
• 10 LCD level contrasts adjustable
• Metric / Imperial unit selectable
• 5 ATM water resistance
Specifications
2

Day of week
Date
(month, day)
Current Time
(hour, minute,
second)
Home Time Mode Workout Mode Recall Mode
Dual Time Mode Countdown Timer Mode Daily Alarm Mode
[M] [M]
[M]
[M] [M]
[M]
Major Function Modes
3

Home Time Mode
How to Select a Time Set
• To select Time Setting Mode, hold down [M] for about 2
seconds in Home Time Mode.
• Press [M] to move the selection among these 16
settings refer to the adjacent diagram.
• Press [S] or [R/V] to adjust the value.
• Hold down [M] to exit the Time Setting Mode.
• Chime-when this function is on, audible sound will be
heard at zero minute hourly.
• Beep-when this function is on, audible sound will be
heard as key is pressed.
hold [M]
Second
Minute
Hour
Year
Chime
Time Format
Day
Month
Beep
Gender
Birth
Unit
Contrast
BMI
Weight
Height
hold [M]
[M]
[M]
[M]
[M] [M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
Time Set Mode
4

Heart Rate Features
• This Watch supports 5.3kHz chest strap (not included in this packaging), thus, with
chest strap, this Watch can provide a continuous supply of heart rate data like current
heart rate, average heart rate and maximum heart rate to user for guiding them to
achieve their fitness goal.
Precautions / Tips
• There is two contacts located on the back of the Chest Strap. These two contacts
must be firmly contacted with the user’s skin during measurement.
• DO NOT take heart rate measurement when diving or under water.
• Clean the contacts occasionally by applying a few drops of water, and wipe it dry with
a paper towel to remove any residual grease.
• DO NOT use hand cream; it will insulate the signal between the skin and the contacts.
• Clean your skin with soap and water for better signal transmission.
• For those with extremely dry skin, apply some conductive gel or water may help.
• Adjust the Chest Strap with the supplied elastic band until it is hold on your chest
firmly to avoid loosen it when doing exercise.
• Avoid doing any awkward motion during measurment, otherwise error may be
resulted.
Battery DoorElastic band
contact contact
release slot
Soft Belt
Front View Back View
Workout Mode - Precaution/Tips for Heart Rate Measurement
5

How to Wear the Chest Strap
• Refer to the below steps to wear the
chest strap on one’s chest:
1) Extend the elastic band for allowing a
loose fitting the chest strap on your
chest.
2) Connect one connector with the chest
strap. Ensure that the connector is
completely lodged into the chest strap.
3) Fit the chest strap on your chest with
one hand.
4) Connect the opposite connector to the
chest strap with the another hand.
5) Fasten the elastic band until it is fitted
on your chest comfortably.
6) Adjust the chest strap until the two
contacts are firmly contacted with
your skin.
IMPORTANT: DO NOT wearing the chest
strap over your cloth, otherwise the chest
strap CANNOT get the heart rate signal.
NOTE: In dry seasons, wetting the contacts
with some water can make the signal
transmission better.
Workout Mode - Wearing the chest strap
5.1

Step/Distance
Time
Workout Mode - Healthier Lifestyle and Pedometer
5.2
Tips to achieve a Healthier Lifestyle
• The below are the general guide for
achieving a healthier lifestyle:
• Ta ke enough sleep,
• Make social connection,
• Do more exercise,
• Take a daily walk, and
• Eat balanced diet.
How to Increase Walking Steps
• It is suggested that walking could
make contribution to health. Some
tips which would increase your
walking steps:
• Walk to your office by getting off
the bus earlier or park your car
farther away from your office.
• Establish a walking habit every
day.
• Walking with some soft music or
friends.
• Set up a goal (How many km
within a week) for your walking.

Step/
Distance/
Calorie expenditure
Time
speed A
speed B
walk/run 1 walk/run 1
start startstop stop
Workout Mode - What is a Pedometer
5.3
Pedometer Features
• This Watch provides some
advanced pedometer features for
guiding user to achieve his/her
fitness goals.
• The information includes distance,
speed, exercise time and calorie
expenditure for walk or run. The
data can be read instantly or
saved into a record for recall later.

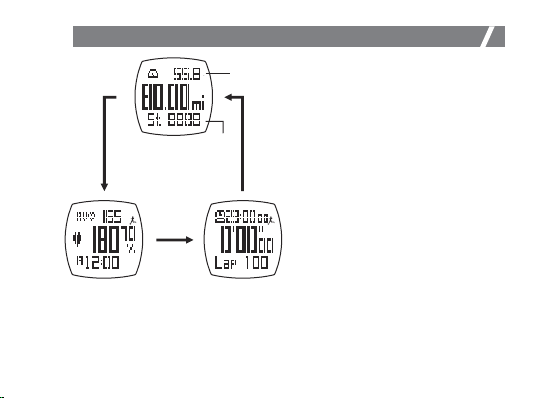

Workout Mode
5.4
Distance View
HRM View Worktime View
Press
[R/V]
1st line
3rd line
Press
[R/V]
Press
[R/V]
Workout Mode
Under workout mode, users can
select those sub-functions by
pressing [R/V] button:
• Distance view
• HRM view
• Worktime view
The 1st and 3rd line display can be
customised by user, refer to chapter
5.7.1 for the selection.

Stop

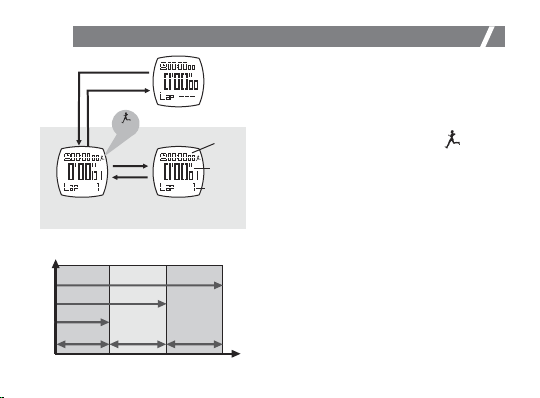

Run Lap Time
Display
10
Seconds
Press
[S/L]
Lap
Time
Lap No.
Split
Time
Press
[S/L]
Press
[S]
Workout
ON
Start
Workout
Time
[S/L] [S/L] [S/L] [S]
Stop
Workout
Split Time 3
Split Time 2
Split Time 1
Lap 3Lap 2Lap 1
Workout Mode - Operation
5.5
How to Turn ON/OFF the Exercise Function
• Five seconds after Workout Mode is
selected, the Heart Rate function will be
turned ON automatically but workout
function hasn’t been turned ON yet.
• Press [S/L] to turn on the workout.
• When workout function is turned ON,
workout data will be updated yet.
• The Heart Rate measurement will be
STOPPED automatically if NO ‘heart rate’ is
detected for 5 minutes.
• Press [S/L] can make a lap record.
• As workout is finished, press [S] to turn off
the workout. Hold [R/V] to reset the current
workout and saved into recall mode.
NOTE:
1) The Chest strap/Watch MUST be worn on
the user’s chest/wrist properly before heart
rate/pedometer measurement.
2) User can use the Watch without the chest
strap, then NO heart rate data will be
recorded for that exercise session.
3) When segment or lap memory is not
available. The oldest segment will be
deleted automatically to spare memory.

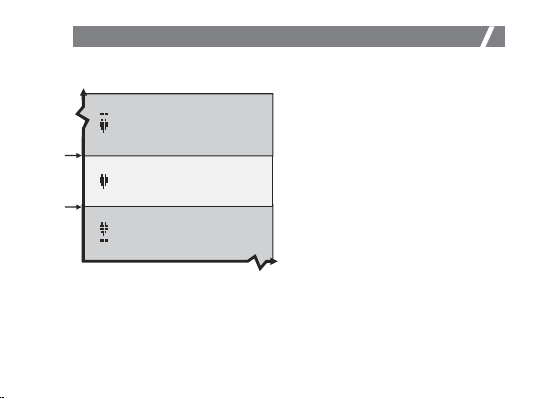

The Objective Heart Beat Range
(the ideal range for training
or health reason)
The Objective Heart Beat Range
(the ideal range for
training or health reason)
Above HR Zone
“ Bi - Bi ”
Below HR Zone
“ Bi ”
Heart rate
(beats per minute)
Above
Zone
Below
Zone
Workout Mode - Heart Rate Alert
5.6
• The Heart Rate Alert feature is a
supplementary feature of the Heart
Rate Measurement function. This
feature can be function by setting a
objective heart rate range, and hence,
the Watch will alert the user when
he/she gets a heart rate measurement
which is out of the objective heart rate
range.
• In order to hear the audible alert of
above and below zone alert, zone alert
shall be turned on. (refer to 5.8.1)
How to Acquire the Objective Heart Rate
Range
• The objective heart rate range is the
region that binding by the upper and
lower heart rate limits. These limits
must be set according to application
and on one’s own health condition.
• These limits can be obtained by the
following:
1) Get these two limits by consulting a
doctor or trainer.
2) Get these two limits by %EMHR
WARNING: Consult a doctor or trainer
for setting the zone prior to undergo an
serious Cardo-fitness training.

[M]
[M]
[M]
[M] [M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
[M]
Exercise
Mode
Hold
[M]
Hold
[M]
HR Zone
Select
Above Zone
ON/OFF
Below Zone
ON/OFF
My Zone
Lower Limit
HR View
3rd Line
Work Time View
1st Line
Work Time View
3rd Line
Calibrate
Run Distance
Calibrate
Walk Distance
HR View
Run stride
Walk stride
Distance View
3rd Line
Distance View
1st Line
My Zone
Upper Limit
Workout Mode - Setting Sequence
5.7.1

Lap No.
Work Time
Lap Time
Speed
Speed - Average
Pace
Pace - Average
Distance
Step
HR
HR - Average
HK Zone - Above
HR Zone - In
HR Zone - Below
Calorie
Time
To Set the Workout Mode
• Press and hold the [M] button
under workout mode to select
the ‘Setting’ display.
The Setting Sequence
• If one of the settings is flashing,
press the [S] or [R/V] button to
change the value(hold the
button to change the value at a
faster pace).
• To calibrate ‘Walk’ and ‘Run’
stride, see next chapter for
details.
• Above HR Zone and Below HR
Zone can refer to 5.6 for more
details.
• In figure show the selection of
1st and 3rd line display.
Workout Mode - Setting Sequence
5.7.1

Set the
walkstride
calibrate
distance
[S]
Walk
Stride
Calibrate
Walk
[S/L] [M]
Walk and Run Stride
• To get the accurate walk and run speed and
distance calculation, user need to enter their
personal walk and run stride.
• User can enter their personal walk and run stride
by selecting auto or manual calculation.
To auto set the Walk and Run Stride
• Select ‘Calibrate walk or run distance’ setting
under workout setting mode.
• Input the known distance by pressing [S] or
[R/V].
• Press [S/L] to start calibrating.
• User start to walk or run for the specific distance.
• When reaches, press [S] to finish calibration
• The watch will automatic calculate the walk/run
stride.
To manual set the Walk and Run Stride
• Select ‘Calibrate walk or run stride’ setting under
workout setting mode.
• Press [M] to enter ‘Walk’ or ‘Run Stride’ display
• When the digit is flashing, press [S] or [R/V] to
enter the value of the stride.
Workout Mode - Setting Mode - Walk and Run stride
5.7.2

1) Cause: Dry Skin.
Solution: Apply conductive gel or saliva thoroughly to chest area. Even water will help if
conductive gel is not available.
2) Cause: Chest strap is not placed firmly over the chest.
Solution: Make sure the chest strap is placed firmly over the chest by tightening elastic
band.
3) Cause: Muscle tremors caused by holding the Chest strap too hard on your chest.
Solution: The contacts must make firm contact (NOT too hard) with the user’s skin
during measurement. This will ensure good and consistent readings even while walking
or jogging with arms swing naturally.
4) Cause: Dead skin on chest.
Solution: Usually rubbing your skin with a towel will help.
5) Cause: A thin layer of body grease insulate the ECG signal which prevents the Chest
Strap or Watch from picking up one’s ECG.
Solution: Wipe chest and the back of Chest Strap with a tissue or soft towel.
6) Cause: Hairy skin.
Solution: Apply conductive gel to chest area or wrist.
7) Cause: Irregular heartbeats.
Solution: N/A It is difficult to consistently pick up a reading for those with irregular heart
beats. Inconsistent response times are expected for those with arrhythmia.
8) Cause: Battery Low.
Solution: It might be due to the battery level of the Chest Strap / watch is low. Replace
the battery and try again.
9) Cause: Interference of other RF devices (Chest-Strap Measurement)
Solution: Depart from the place where RF source potentially exist.
5.8 Workout Mode - Potential Causes for NO Heart Rate Reading
or Long Response Time

Segment no.
Time Stamp Odometer
[R/V]
[R/V]
[R/V]
[R/V]
[R/V]
[R/V]
Total Lap No./
Work Time/
Average Pace
Calorie/
Distance/
Average Speed
Max HR/
Average HR/
Step
Above/In
/Below
Zone Time
Segment 1
Segment 2
Segment 3
[S]

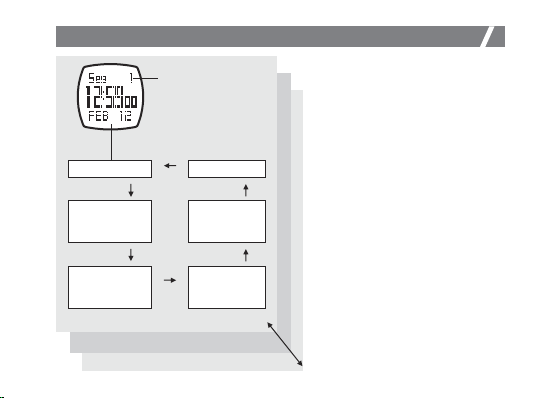

Recall Mode - Summary Display
6
Recall Mode
• User can review the Segment
Session in details here.
• It can store up to 10 Segment
Sessions with 100 Lap Records.
• Each segment contains
Summary and Lap Record
display.
Summary Display
• User can review the summary
information for Segment session.
• Press [S] to select the Workout
session.
• Press [R/V] to review the
summary information as
adjacent diagram.
• Press [S/L] to enter Lap Record
display.

Lap no.
Split time/
Lap Time
[R/V] [R/V]
[R/V]
Lap 1
Lap 2
Lap 3
[S]
Distance/
Average pace
Average HR/
Average speed
Lap Record Display
• User can review the information
for each lap
• Press [S] to select the lap record
• Press [R/V] to review the lap
information as adjacent diagram
• Press [S/L] to return to
Summary Display
Recall Mode - Lap Record Display
6.1

Hold
5 Seconds
[R/V]
Odometer
View
Reset
Clear memory
Hold
1 Second
[R/V]
• Odometer is used to count the
travelled distance until next
reset.
• Select the Odometer Session
by pressing [R/V].
• Hold [R/V], display will show
“Reset” and keep holding
[R/V] button for more 5
seconds.
• Odometer Session will be
cleared to zero.
Recall Mode - Clear Odometer
6.2

Increase /
Decrease the
value
scroll
the setting
faster
[S] or [R/V] Hold
[S] or [R/V]
Hold
[M]
[S] or [R/V]
Alarm
On/Off
Hours Setting Minutes Setting
[M]

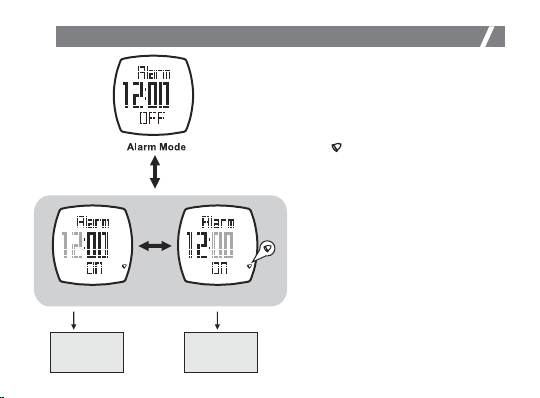

Daily Alarm Display
• In the Daily Alarm Display, Alarm
Time (hours, minutes) appears on
the 2 row of the display.
Daily Alarm ON and OFF
• When the Daily Alarm Indicator
‘ ’ appears (which means the
daily alarm is ON), the watch
starts beeping at the alarm time.
Daily Alarm Sound
• The alarm beeps for 30 seconds
when the daily alarm function is
turned ON.
• You can stop the beeping by
pressing any button.
Note:
Alarm will be turned on automatically
if any changes has been made to the
setting
Alarm Mode
7
