X350/X550 User Manual
Page 3
Contents
Safety Information ...........................................................................................................4
Regulatory Compliance ...................................................................................................5
FCC Information..........................................................................................................5
MIC Certification Information .......................................................................................6
Product Overview............................................................................................................7
Minimum System Requirements......................................................................................8
Host PC.......................................................................................................................8
Access Devices...........................................................................................................8
Install the Hardware ........................................................................................................9
Install the X-series PCI Card .......................................................................................9
Connect Peripheral Devices ......................................................................................11
Install the NComputing vSpace Software ......................................................................12
Product Registration......................................................................................................18
Online Registration....................................................................................................20
Offline Registration....................................................................................................21
Upgrading Your PC or Moving Your Card to Another PC ..............................................25
Uninstallation.................................................................................................................25
Updating the vSpace Software ......................................................................................26
Using the vSpace Console ............................................................................................28
From the Start menu, vSpace has the following four commands: ..............................30
Local Settings............................................................................................................30
X350/X550 PCI Card .............................................................................................31
Information & Settings ...........................................................................................38
USB-Device Assignment(s) ...................................................................................41
Troubleshooting ............................................................................................................44
Glossary........................................................................................................................45

X350/X550 User Manual
Page 4
Safety Information
Refer to the following to prevent any physical injury or loss of assets caused by damage
to the product.
A user must read this User Guide carefully before use and properly follow the
instructions.
•Make sure that the place of installation is not too hot (above 35˚C), too cold
(below 0˚C), or too wet (above 85% relative humidity).
•Avoid any severe impacts to the product
•Make sure that the product is not exposed to direct sunlight or any hot
machinery.
•Please keep the product away from any items which have strong magnetic
properties.
•Do not disassemble, repair or rebuild the product.
•Please properly route all cables and power cords to avoid a tripping hazard. An
electric shock, fire, damage to the product or physical injury may occur as a
result of tripping over the cable.
•Please disconnect the Cat 5e or Cat 6 cable from the product when it is not in
use for a long period of time.

X350/X550 User Manual
Page 5
Regulatory Compliance
FCC Information
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try and correct the interference by
one or the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment to a power outlet on a circuit different from which the
receiver is connected
•Consult your dealer or an experienced radio TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. For enhancing
performance and reliability, we recommend using FTP or STP cable between the X350
or X550 PCI card and the XD2 devices.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.

X350/X550 User Manual
Page 6
NCC
-
XD2
(B)
NCC
-
X350(B)
NCC
-
X
5
50(B)
MIC Certification Information
X350 PCI Card
1.
기기의명칭
(
모델명
): NComputing X-series (X350)
2.
인증받은
자의
상호
:
엔컴퓨팅
주식회사
3.
제조자
/
제조국가
:
엔컴퓨팅
주식회사
/
한국
4.
제조년월
:
제품
참조
X550 PCI Card
1.
기기의명칭
(
모델명
): NComputing X-series (X550)
2.
인증받은
자의
상호
:
엔컴퓨팅
주식회사
3.
제조자
/
제조국가
:
엔컴퓨팅
주식회사
/
한국
4.
제조년월
:
제품
참조
XD2 Access Device
1.
기기의명칭
(
모델명
): NComputing X-series (XD2)
2.
인증받은
자의
상호
:
엔컴퓨팅
주식회사
3.
제조자
/
제조국가
:
아 온
/
중국
4.
제조년월
:
제품
참조
기기는 가정용(
B
급)으로 전자파적합 등록을 한 기기로서 주로 가정에서 사용 하는
것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다.
제품의 성능 및 신뢰성 향상을 위하여 X350/
X550 PCI Card
와
XD2 Access
Device
의
연결 시
FTP
혹은
STP Cable
의 사용을 권장 합니다.

X350/X550 User Manual
Page 7
Product Overview
The X550 desktop virtualization kit includes a license for NComputing vSpace
software, one full-height X550 PCI card, and five (5) XD2 access devices.
The X350 desktop virtualization kit includes a license for NComputing vSpace
software, one low-profile X350 PCI card, and three (3) XD2 access devices.
NComputing vSpace desktop virtualization software divides your host PC's resources
into independent virtual workspaces that give each user their own full PC experience.
The X-series PCI card connects your PC to each of the XD2 access devices through a
standard Category 5e or shielded Category 6 cable (sold separately). Each XD2
connects to a user’s keyboard, monitor, mouse and speakers. All these components
work together to efficiently harness the excess computing capacity of your PC so
multiple users can share it at the same time.
One X350 Kit Enables Four Users to Share a PC (Seven with Two Kits)
One X550 Kit Enables Six Users to Share a PC (Eleven with Two Kits)
One X550 kit adds five users to a PC, and an X350 kit adds three users to a PC.
Including the first user that works directly on the PC, this means that:
Six users can share a single PC with one X550 kit. With two X550 kits, you can add
ten users to a PC for a total of eleven users sharing one PC.
Four users can share a single PC with one X350 kit. With two X350 kits, you can
add six users to a PC for a total of seven users sharing one PC.

X350/X550 User Manual
Page 8
Minimum System Requirements
Host PC
The host PC operating system can be Windows Server 2003 R2 SP2 (Standard or
Enterprise Edition, 32-bit) or Ubuntu Linux. Please visit the support section of the
NComputing website for the latest operating system support information.
Each X550 PCI card requires a free full-height PCI slot , while each X350 requires either
a free full-height or half-height PCI slot.
For a single X-series kit (X350 or X550 with 2 to 6 users), a host PC should have a
minimum of a 2.4 GHz processor or any dual-core processor and 1 GB RAM.
For a dual card installation (two X350 or two X550 ktis with 7 to 11 users), a host PC
should have a minimum of a 3.0 GHz processor or an equivalent dual-core processor
and 2 to 3 GB RAM.
Access Devices
For each XD2 access device you will need:
•PS/2 keyboard
•PS/2 mouse
•Monitor (supporting 800x600, 1024x768, 1280x1024 or 1440x900 resolution)
•A Category 5e cable for lengths up to 5 meters or a shielded (STP or FTP)
Category 6 cable for lengths between 5 and 10 meters
•Optional: speakers or headphones
•Optional: USB devices and USB cables (connect directly to host PC and can be
assigned to each station via the vSpace software)

X350/X550 User Manual
Page 9
Install the Hardware
Before attempting to install the X350/X550 kit, verify that your Windows or Linux OS is
supported by vSpace, and that the OS is properly installed, updated and all devices
viewable in the OS device manager are working properly. Also, check to be sure your
package includes one X550 (or X350) PCI card, five (or three) XD2 devices, the vSpace
installation CD, and ten (or six) monitor mounting screws.
Install the X-series PCI Card
1. Disconnect all peripheral and power cables from the host PC.
2. Remove the host PC system cover.
3. Locate an available PCI slot for the X-series PCI card.

X350/X550 User Manual
Page 10
4. Insert one PCI card and secure the bracket to the chassis with a retaining screw
(or other fastening mechanism specific to your PC). Note: The X550 is a full-
height PCI card, and the X350 is a half-height PCI card.
Optional installation of a second PCI card (matched pairs only)
If the system has a second available PCI slot and you wish to use a second X-series
kit, insert the second card into the available slot and secure the card to the chassis.
Note that only matched sets of cards are supported. For example, you can use two
X550 cards in a PC or two X350 cards. You cannot use both an X350 and an X550
card in the same system.
5. Replace the system cover and reconnect all peripheral and power cables.

X350/X550 User Manual
Page 11
Connect Peripheral Devices

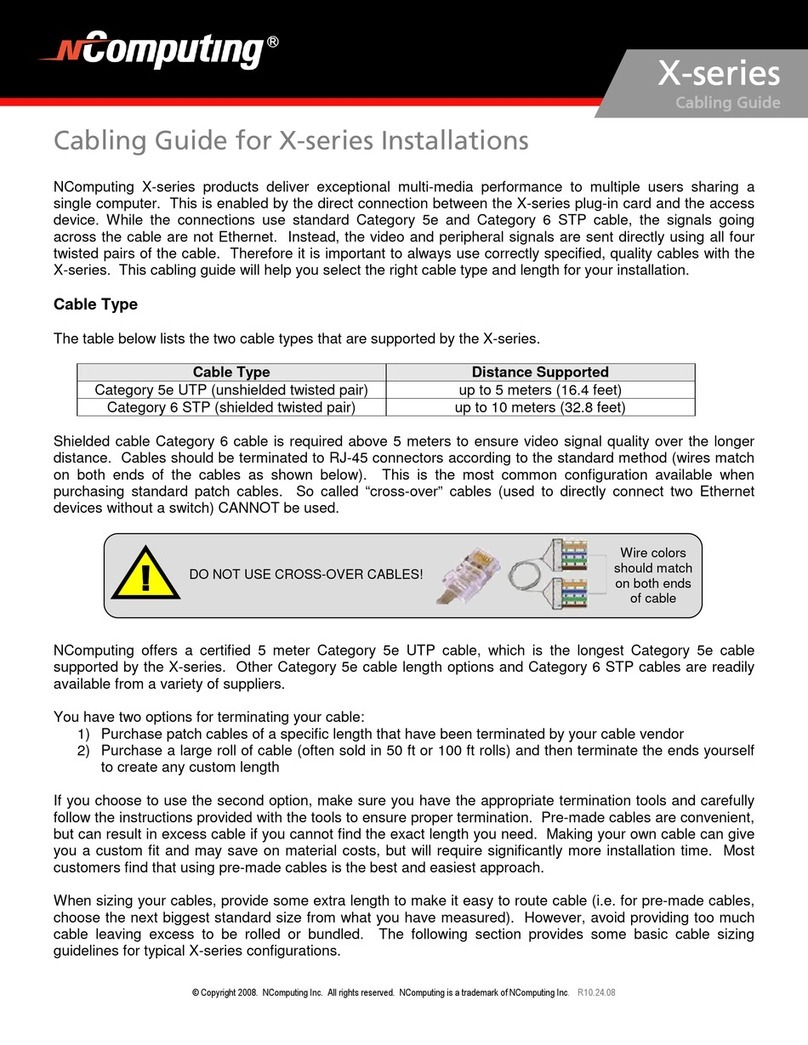

Connect each access device to a port on the PCI card using high quality Cat 5e or
shielded Cat 6 cables. These must be standard direct (not crossover) cables.
Maximum cable length between the X-series card and an access device is:
Standard Category 5e UTP cable: up to 5 meters
Standard Category 6 STP or FTP cable: up to 10 meters
WARNING: You must NOT attach any Ethernet networking equipment, such as a hub,
switch, or router, between the access device and the PCI card. The signals being sent
from the X350/X550 PCI card to the XD2 device are NOT Ethernet.
Connect the desired peripheral devices to each XD2 access device. If you plan to use
any USB devices, connect these directly to the host PC – these can then be assigned to
each XD2 station with the vSpace software.
Using two screws (provided) you can attach the XD2 to the back of an LCD monitor that
has VESA compliant mounting holes as shown below.

X350/X550 User Manual
Page 12
Install the NComputing vSpace Software
Turn on the host PC. After Windows starts, it will automatically bring up a dialog box
called “Found New Hardware Wizard.” (For Linux please visit the support section of the
NComputing website and enter “Linux” into the knowledge base for the latest information
on installation in Linux).
Do not install anything from Windows Update for the X350/X550 PCI card. Simply
click “Cancel” on this screen.
Now insert the software installation CD into the host PC's CD drive.
If the installer does not automatically launch, go to "My Computer," open the CD drive
icon, and manually start the "Install.exe" application.
At the installation screen, click on the "Install vSpace for X-series" button.
Before actual installation starts, the software attempts to connect to the Internet to
compare the software version on the CD with the latest software version on the
NComputing update server. If there is a later version on the NComputing server, a
prompt will appear to ask if you want to use the version on the CD or if you want to
download the latest version.

X350/X550 User Manual
Page 13
At the installation "Welcome" screen, close all running programs, and click on the "Next"
button.
Read the antivirus and firewall warning screen, follow the applicable instructions, and
click on the "Next" button.
At the software license screen, read the vSpace software end user license agreement
(EULA) and optionally print it out. When you are finished, click the "I agree" checkbox,
and then click "Next.”

X350/X550 User Manual
Page 14
At the product terms of use screen, read the terms of use document and optionally print
it out. When you are finished, click the "I agree" checkbox, and then click "Next."
From the "Choose Destination Location" screen, you can choose to install vSpace in the
default location, or you can navigate to a different location and install vSpace there.
When you are finished, click on the "Next" button.
At the "Create Password for Administrator" screen, select whether to use or disable use
of an administrator password. If you choose to use an administrator password, enter it
and retype it. Click on the "Next" button.

X350/X550 User Manual
Page 15
Note: This password only applies to the vSpace software installed on this PC. Resetting
a forgotten password will require uninstalling and reinstalling the vSpace software.
Therefore, the system administrator needs to manage this password carefully.
Note: The NComputing Administration Console allows you to administer vSpace
software and parameters associated with the access devices on this PC. It will
automatically be installed on this system.
At this point, one of the following ”ready to copy files” screens will be displayed. If this is
the first time vSpace has been installed on this system, the “Create sys info file” check
box will appear on the screen. Unless it is requested by support, we recommend you
leave the box unchecked. Review your selections and click on the "Next" button.
or
The vSpace software will then be installed.
Note: “Create sys info file” enables the Windows utility to create a system information
file and place it in your My Documents folder. This process will create a record of your
system’s configuration but it may take some time to create.

X350/X550 User Manual
Page 16
At the "Add new users" pop-up, select whether or not you would like to add new users to
the system. If you click on the "Yes" button, the installation program will launch a screen
to administer user accounts on the host PC. If you click the "No" button, the installation
process will continue without bringing up the user administration screen.
If you choose to add or set up new User Accounts later, you can do so by going to
StartSettingsControl PanelUser Accounts. You can also search on “To add a new
user to the computer” in the Windows Help and Support Center for more information.
Note: It is recommended that all users have their own user accounts to enable control of
their own settings. If you click on the “Yes” button, the “Local Users and Groups”
Windows utility (screen shot shown below) will be displayed on an otherwise blank
overlay screen. You can right click and select “New User…” to add each desired
individual user account. When you are finished adding users, close the “Local Users
and Groups” utility and you will be brought back to finish the vSpace installation process.
At the "vSpace successfully installed" screen, you have the opportunity to display and
read/print the latest “readme” file. This file normally contains notes specific to the
version of vSpace you have just installed. Then select whether or not to immediately
restart the computer.

X350/X550 User Manual
Page 17
Note: You must reboot the computer before you can use the vSpace software or the
access devices connected to the host PC.

X350/X550 User Manual
Page 18
Product Registration
The X350/X550 PCI card contains an embedded hardware license which allow it to
support up to five/three access devices. When first installed, the X350/X550 starts a trial
license which permits you to use up to five/three attached access devices for the next 30
days. Until you register, sessions are limited 60 minutes and a reminder info box like the
one shown below will be displayed at least once a day on every user station. If you fail
to register the X350/X550 card with NComputing (online or offline) within the 30-day trial
period, the PCI card will cease to function.
Reminder box displayed daily on each
user station attached to an unregistered
PCI card.
Warning box that 60 minute session limit
has been reached that appears on user
station prior to station shut down.
Allowing a card’s trial license to expire will not prevent you from later registering the
card. You can always launch the vSpace Registration application from the PC’s main
screen, via
Start > All Programs > vSpace > vSpace Registration
Then perform either online or offline registration, and full PCI card functionality will be
delivered once the card is successfully registered with NComputing.
NOTE: If you have two matched X-series cards installed in the system, the vSpace
Registration application will register both cards at the same time.

X350/X550 User Manual
Page 19
At any time during the registration process, you can use the "Back" button to return to a
previous screen to change your entries, and you can also click on the "Cancel" button to
cancel the process at that point.
At the registration program “welcome” screen, if vSpace password protection is turned
on, you will need to enter your password. Then Click the "Next" button.
At the "Collecting information about your system" screen, enter the name of the person
that will be maintaining the vSpace software on this system. You must also enter the
person’s company, select a location country from the dropdown box, enter street
address, city, state/province, zip code, and phone number, reseller/dealer name where
the product was purchased, and select the type of expected product use from the
second dropdown box. The email address must be entered twice and the two fields are
compared to prevent typing errors.
All fields in this screen must be completed. When finished, click the "Next" button.
The "Select registration method" screen allows you to pick how you will register your
X350/X550 PCI card.
Remember that successful registration is necessary for the X350/X550 card to
function past the initial 30 days.

X350/X550 User Manual
Page 20
You can select to register either “On Line” or “Off Line,” and after selecting the desired
registration method, click on the "Next" button.
If you choose online registration, follow the instructions in the next section. If you have
chosen offline registration, skip ahead to that section.
Online Registration
When you select to register online, the screen presented allows you to select what serial
number(s) to register. The window provides a list of X350/X550 PCI card number(s) read
directly from the card(s). For each serial number, the window shows if it is registered or
not yet registered. Any unregistered PCI card(s) will have the appropriate box checked.
Click on the "Next" button to proceed.
In the "Ready to register On-Line" screen, you will see the user information previously
entered and the PCI card numbers chosen for registration. Confirm that the information
is correct and click on the "Next" button to complete the process.
Other manuals for X350
2
This manual suits for next models
1
Table of contents
Other NComputing PCI Card manuals
