NDI N BOT User manual

Manual
N BOT
NDI Camera Motorized Head

NBOT, NDI Motorized Head
3
Contents
Pre-Caution Before Operation / Warranty
N BOT , NDI Camera Motorized Head
1.Introduction 6
7
8
4-1 Front
4-2 Rear
9
4-3 Components
11
5. Operation
5-1 LED Status
5-2 System Diagram
5-3 N BOT Controlling
5-4 CAMERA COMPATIBILITY
5-5 Video Over IP (NDI) Workflow
14
6-1 SHARON Finder Apps Download 15
6-2 SHARON Finder GUI
6-3 Rename and Reconfigure IP Address
6-4 Reboot N BOT
6-5 Reset Password
7. N BOT Webserver

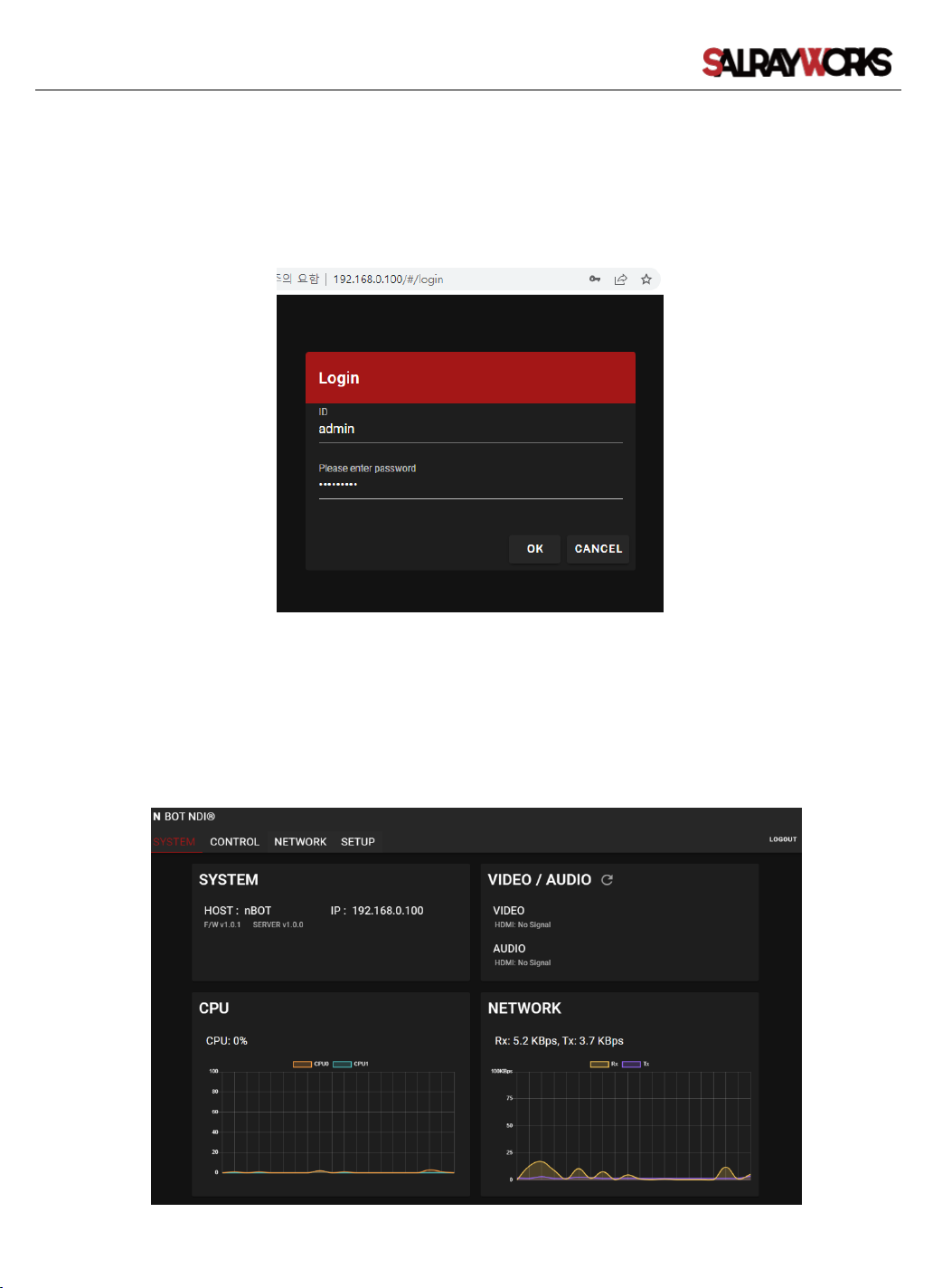

7-1 Log In
7-2 System Mode
7-3 Control Mode 18
7-4 Network Mode 19

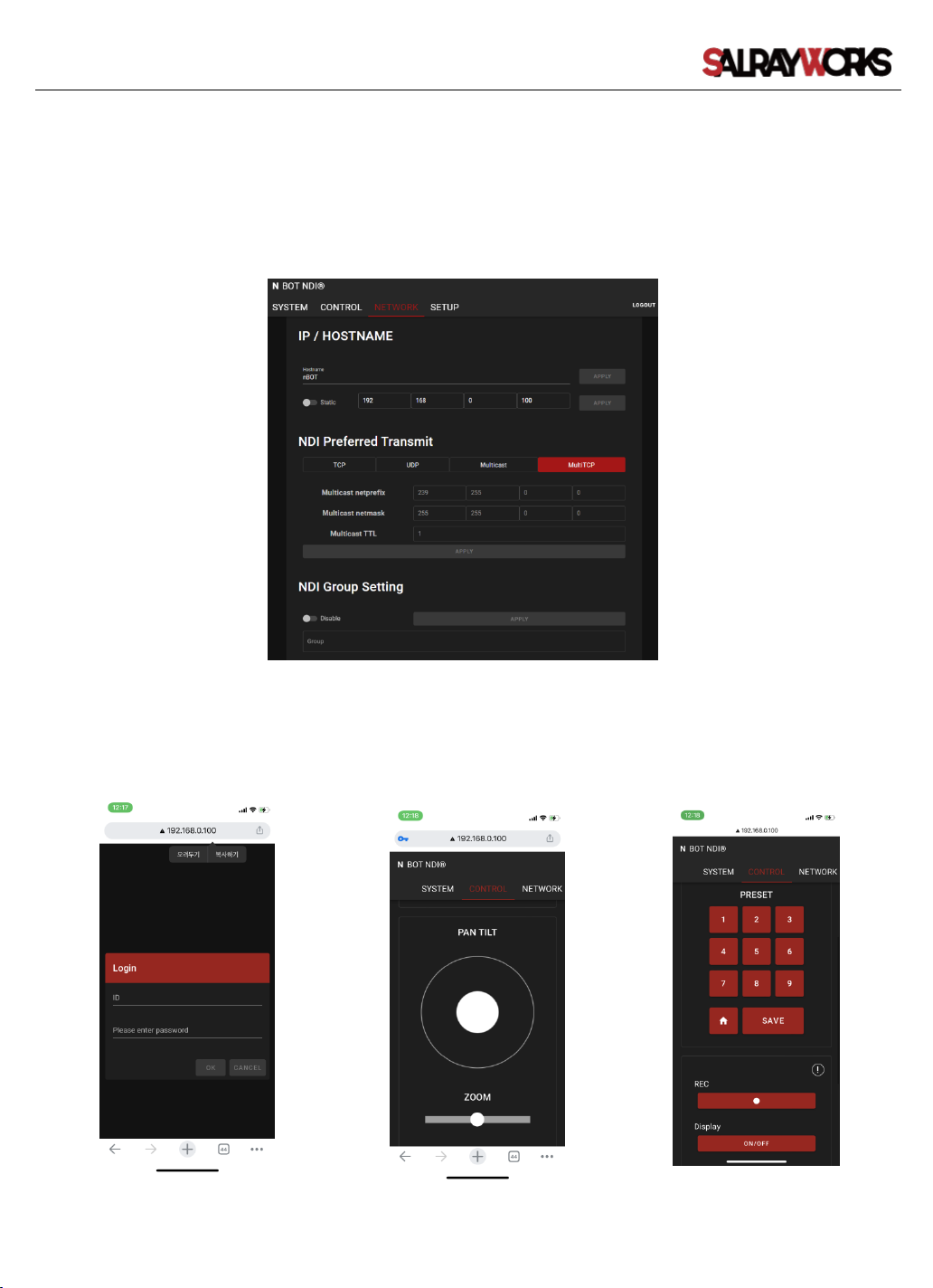

7-5 Smart Phone Model
Appendix—A. N BOT VISCA IP COMMANDS Key List 23 - 25
12
13
16
17
2. Key Highlight
3. Technical Specification
4. Product Overview
6. SHARON Finder
8. SONY Multiport Converter Modul
8-1 The List of Camera Model
8-2 What to check if it doesn’t work
8-3 List of SONY Camera supported by SONY MULTIPORT Interface shoe
8-4 List of camera tested in the ZFC-L zoom and focus control
20
21

NBOT, NDI Motorized Head
3
Power
The power cord and power outlet act as the main power disconnect device in case of an emergency such as a fire, so do
not stack or block objects in front of the power outlet so that you can unplug the power cord from the power outlet at any
time.
Precautions before installation
Describes basic precautions that users should be aware of when installing and using the product in case of a situation that
may cause bodily harm. Therefore, before installing or using the product, be sure to familiarize yourself with the
information described here.
General precautions
During and after installation of the product, the area around the product must be kept clean and dust-free.
Do not leave tools, cables, etc. in the aisle, as this may result in personal injury.
When installing the product, avoid wearing loose-fitting clothes, neckties, scarves, or sleeves that may get caught in the
product.
Do not take any action that could cause damage to persons or equipment.
If you need to open the cover of the product to extend the product's performance or repair a malfunction, be sure to
contact the place of purchase for professional help.
Power Precautions
When connecting power to the product, first check that the wiring is not overloaded.
When connecting the power to the product, do not wear jewelry such as rings, necklaces, or watches. If these accessories
are connected to a power source or ground, there is a risk of burning the parts.
Always check the work area for potential hazards. Be sure to check for wet floors, ungrounded power extension cables,
frayed internal power cords, and floors that do not have a safety grounding facility.
There must be an outlet near the appliance and the outlet must be easily accessible.
Install by service personnel and install the appliance so that it is connected to a socket-outlet with a protective earth wire
Before proceeding with hardware installation, turn off the power of the system to be installed,
and then touch a grounded surface such as the metal side of the power supply to discharge
static electricity from the body.
The manufacturer assumes no liability for direct or indirect damage resulting from the use of
improper parts by unauthorized service personnel.
If power is supplied during installation, it may cause damage to system components and body.

NBOT, NDI Motorized Head
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation
of French phrase "Conformité Européene" which literally means "European Conformity". The
term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive
93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.
4

NBOT, NDI Motorized Head
Warranty
Standard 1 Year Warranty
SalrayWorks product is guaranteed against any manufacturing defects for one year from the date of
purchase.
The original purchase invoice or other documentary evidence should be supplied at the time of any
request for repair under warranty.
The product warranty period beings on the purchase date. If the purchase date is unknown, the
product warranty period begins on the thirtieth day after shipment from a SalrayWorks office.
Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under
warranty.
Viruses and malware infections on the computer systems are not covered under warranty.
Any errors that are caused by unauthorized third-party software installations, which are not
required by our computer systems, are not covered under warranty.
All mail or transportation costs including insurance are at the expense of the owner.
All other claims of any nature are not covered. All accessories including headphones, cables,
batteries, metal parts, housing, cable reel and consumable parts are not covered under warranty.
Warranty only valid in the country or region of purchase.
Your statutory rights are not affected.
5

NBOT, NDI Motorized Head
N BOT, NDI Camera Motorized Head
ZŽďŽƚŝĐWĂŶdŝůƚ,ĞĂĚ
ϲ
Bring the remote-control functionality to your Hand-held camcorder with the N BOT Robotic Pan Tilt
Head from Salrayworks. More than just a motorized head, N BOT interfaces with PTZ-compatible co
ntrol systems, allowing you the same kind of experience. From pan and tilt control to powering your
camera and controlling its zoom lens via LANC or other protocols, this head is a compact PTZ solutio
n for cameras weighing up to 3.2Kg. The head easily mounts to most tripod legs and with an option
al bracket, it can be mounted on a wall or ceiling. It can send your camera's video output to external
video displays, switchers, and controllers while also receiving control information for pan and tilt ope
rations via VISCA IP or NDI . The head is equipped with LED indicators, a tally light, and a remote por
t that allows you to adjust the zoom and focus of select camera lenses.
oDƵůƚŝƉůĞƐŝŐŶĂůŝŶƚĞƌĨĂĐĞƐƐƵĐŚĂƐ,D/E/ƚĂůůLJĂŶĚ>E
o^ƚƵƌĚLJĂůƵŵŝŶƵŵĐŽŶƐƚƌƵĐƚŝŽŶ
oĂŵĞƌĂƉĂŶƚŝůƚĂŶĚnjŽŽŵĐŽŶƚƌŽů
os/^/WĂŶĚE/ƌĞŵŽƚĞĐŽŶƚƌŽů
oŽŵƉĂƚŝďůĞǁŝƚŚE/^ƚƵĚŝŽDŽŶŝƚŽƌ^ĂůƌĂLJǁŽƌŬƐƉƌŽ^ƚŝĐŬŽŶƚƌŽůůĞƌ
oƵŝůƚͲŝŶƚĂůůLJůŝŐŚƚ
o/ĚĞĂůĨŽƌůŝǀĞĞǀĞŶƚƐ
oŽŶƚƌŽůĂǀĂƌŝĞƚLJŽĨ^ŽŶLJWĂŶĂƐŽŶŝĐĂŶŽŶĂŶĚ:sĐĂŵĞƌĂƐ
oͲdĂƉƉŽǁĞƌŽƵƚƉƵƚƚŽƉŽǁĞƌĐĂŵĞƌĂĂŶĚĂĐĐĞƐƐŽƌŝĞƐ
oWůĂƚĞǁŝƚŚЬƚŚƌĞĂĚĨŽƌĐĂŵĞƌĂŵŽƵŶƚŝŶŐ
1. Introduction

NBOT, NDI Motorized Head
Salrayworks introduces N BOT, the world's first NDI® motorized camera head.
• Fitted with up to a 3.2 kg camera it moves up to 340 PAN degrees and TILT Down 35
degrees as well as 20 degrees UP 1 at a rate of 15 degrees per second.
• This exquisitely designed N BOT is incredibly quiet and smooth in motion, so it won't
interfere with in-studio shooting or your live Streaming.
• The NDI® hardware (silicon-based) achieves about 140Mbit at 1080p60 and is visually
lossless.
• Power (POE+) and NDI stream through an Ethernet cable. The camera's zoom-in-out, focus
and IRIS can be controlled remotely using the LANC input. N BOT simplifies video streaming
with cableless.
• It stores and recalls up to 10 positions with a precision less than 0.1 degrees. Whether at
the studio or on the stage, memorizes the previous location with extreme accuracy and
immediately begins shooting.
NDI/PoE+
Quite Motion
Precise
Preset
2. Key Highlight
7

NBOT, NDI Motorized Head
8
•Robotic Pan / Tilt Head
Input
•Supports Sony VISCA operation via Ethernet connection
•POE+ (Power over Ethernet – 802.3at) support
•HDMI video/audio input
Pan
Turning radius 170 degrees to the right and 170 degrees to the left ( 340 degrees )
** 360 degrees possible when the sensor is off**
Speed: 180 degrees in 10 seconds (Variable speed in 1~24 steps)
Tilt Turning radius up 20 degrees down 35 degrees
Speed: 15 degrees per second (Variable speed from 1 to 24 steps)
Preset
10 position Save
Save Pan/Tilt Position Save , Speed Save
Zoom In/Out Position Save , Speed Save Pan/Tilt 1/3 ( at Zoom Servo)
Ex-Control
1.LANC input Camera
Remotely control Zoom In/Out ( Speed 1~12 step ), Focus
2. Sony Multi Control (option)
3. Zoom Servo Control (option)
Tally Internal / external Tally support
Output
NDI output to IP over Ethernet connection
1080p60 full HD resolution support
Tally Light
LANC , Sony Multi , Zoom Servo
Management
Front status LED support
Support rear USB port service terminal
Support for remote firmware update
Physis
Dimension : 128(H) X 157(W) X 157(D)
Operation Temperature : 0~45℃
Weight : 1.87 Kg
Power Consumption: Max 30W
Input Voltage AC220V 60Hz/ AC110V 60Hz/AC 24V 60Hz Power Consumption PAN: 4.4W TILT: 4.4WP/T Operating Speed Left/Right
Rotation Speed: 5°/sec Up/Down Rotation Speed: 2°/sec P/T Operation Angle Left/Right Rotation Angle:
0°∼340° Up/Down Rotation Angle: +45°∼-85° Operating Temperature -20°C∼+50°C Operating Humidity Less than 90% Accurate
Load 5Kg Color IVORY Dimensions 152 (L)X147(H)X215(W) Material ABS & ALUMINUM PLATE Weight Approx. 2.2K.
Installation Precautions • It is recommended to install so that the height of the center of the housing at the top of the CAMERA
MOUNT BASE is less than 50mm. Cause • Do not exceed the loading weight (5kg) of this PAN-TILT and install it so that the center of
the housing member coincides with the center of this PAN-TILT. How to operate TILT (upper, lower) angle In the figure above, if you
loosen two bolts in the part where the label is drawn, you can see two bolts in the half-moon-shaped groove. Loosen these two bolts
2-3 turns to adjust to the desired angle position, and tighten so that it does not loosen, the angle adjustment is successful. How to
operate the PAN (left, right) angle SPT-510 There are two bolts on the top of the connector at the bottom of the outside. Loosen
these two bolts 2-3 turns to adjust them to the desired angle and tighten them so that they do not loosen.
3. Technical Specification

NBOT, NDI Motorized Head
9

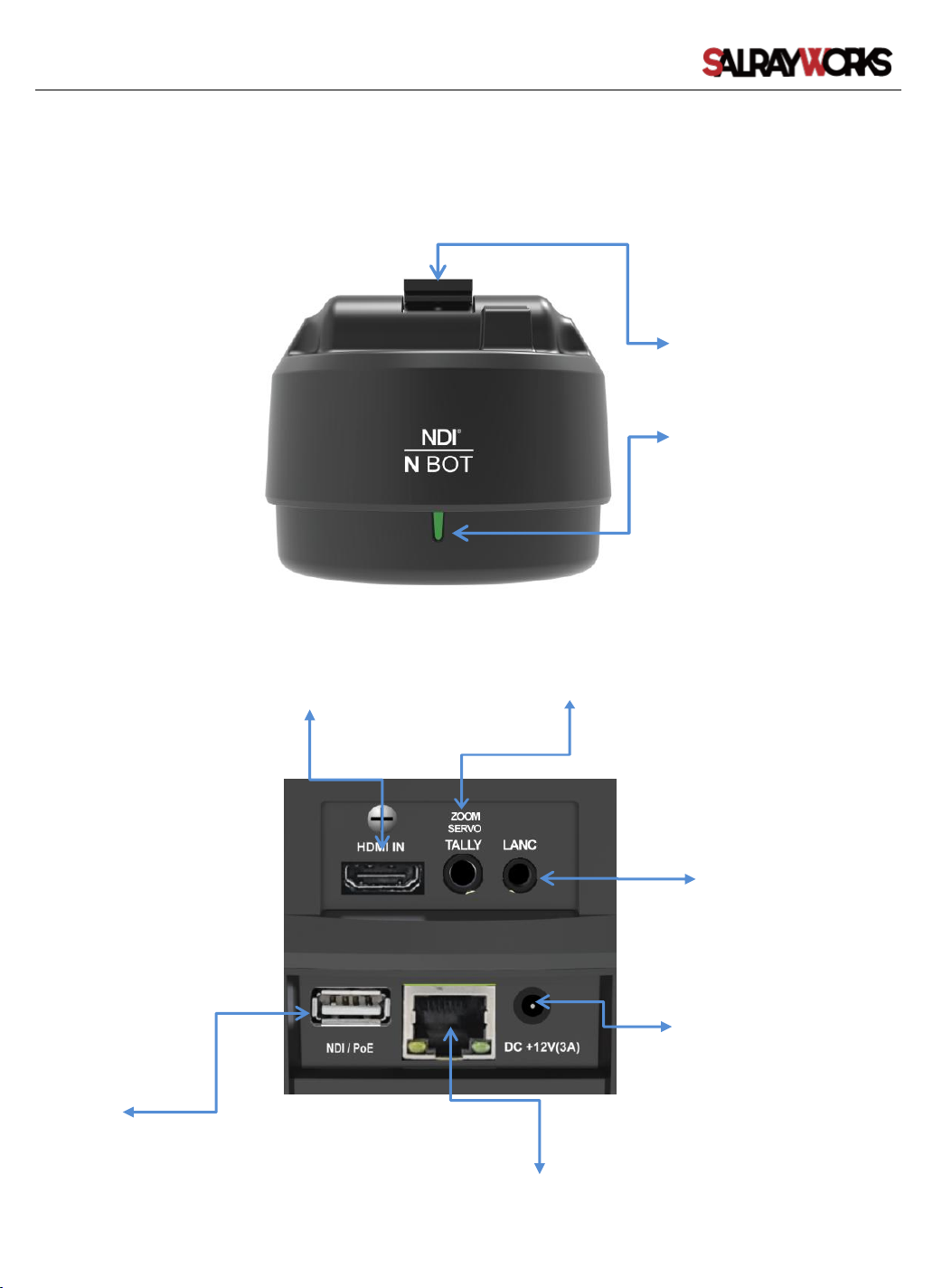

4.1. Part
4.1. 1 Front
4.2. Rear
Aluminum Quick Release
Plat + Clamp Adaptor Mount
Tally Light and
Status LED
4. Product Overview
HDMI Input Tally and ZOOM Servo
DC Power Input
Ethernet ( NDI/PoE+)
USB Connecter
LANC Control (2.5 mm )

NBOT, NDI Motorized Head
3. Quick Release Clamp
2. DC power
4. LANC cable
This product consist of
1. N BOT PAN TILT Head
2. DC Power : DC 12V 3A
3. Quick Release Clamp Adaptor
4. LANC Cable ( 2.5 π 3pol, 2.5 π 3pol)
5.Multiport Converter Cable ( Option ) Multi Protocol ( 3.5 π 4pol , Multiport)
6.Multiport Lanc Cable ( Option ) Lanc Protocol ( 2.5 π 3pol , Multiport)
4.3 Components
10

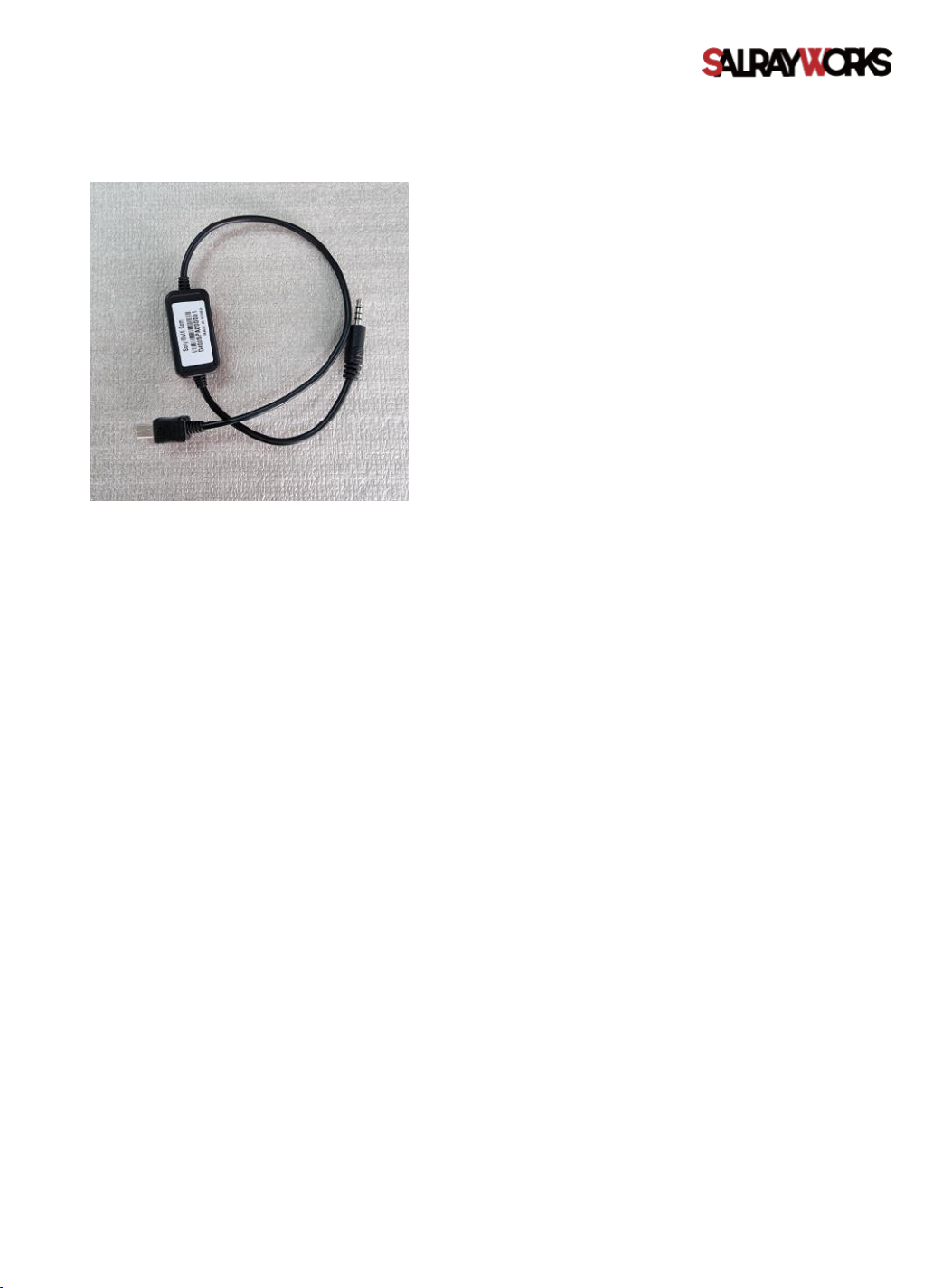

5. Multiport Converter Cable ( Option ) 6. Multiport Lanc Cable ( Option )
1. N BOT PAN TILT Head

NBOT, NDI Motorized Head
5. Operation

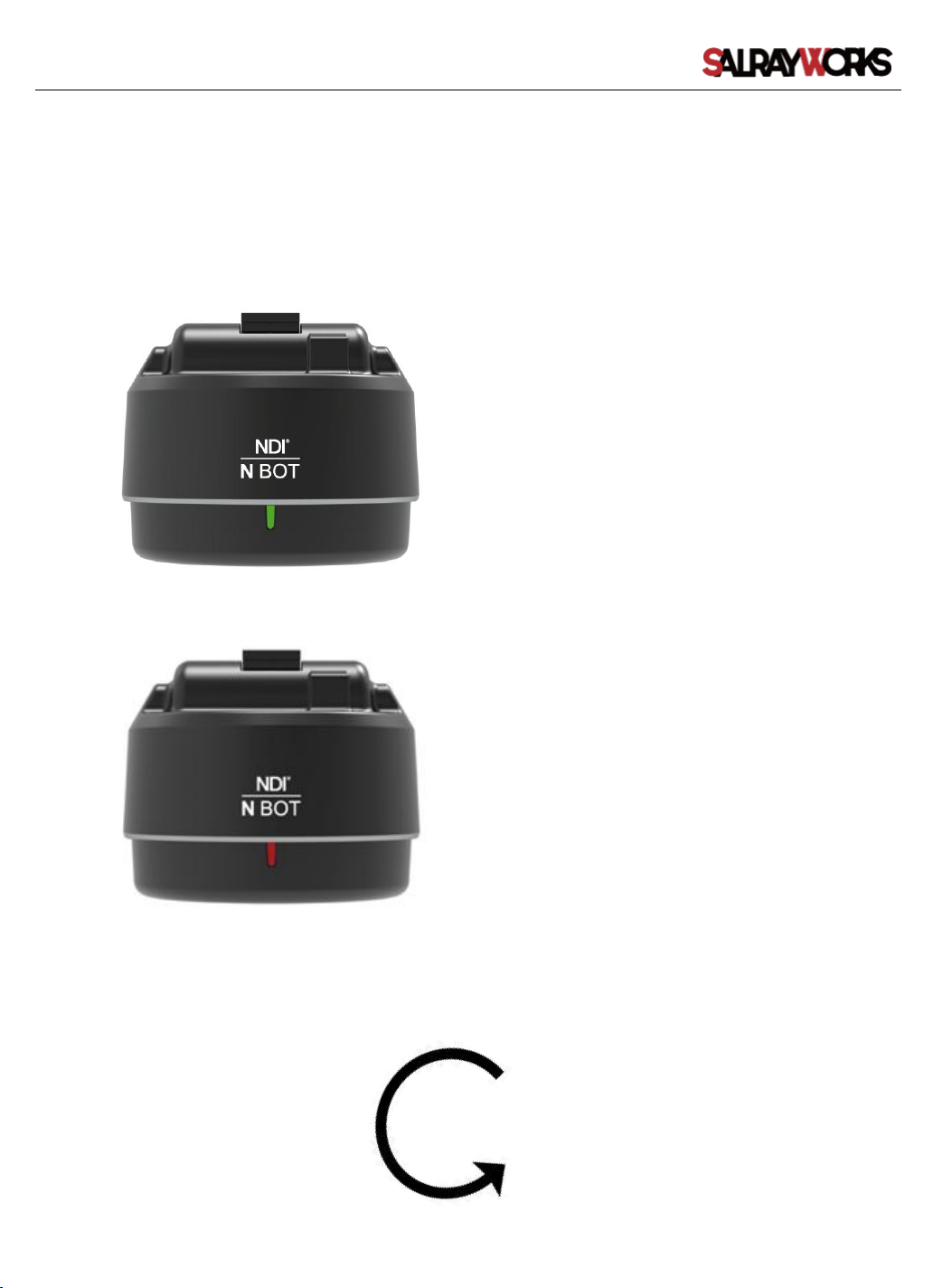

5.1. LED Status
The status LED has two colors, green and red, and the meaning of each color is as follows.
11
•Green blinking during booting
•Green blinks when command is received
•Red LED lights up when Tally On command
•Red LED turns off when Tally Off command
N BOT performs calibration by rotating 348 degrees at every boot.
348°

NBOT, NDI Motorized Head
12
DC Power
DC Power
Ethernet Cable
Protocol Cable

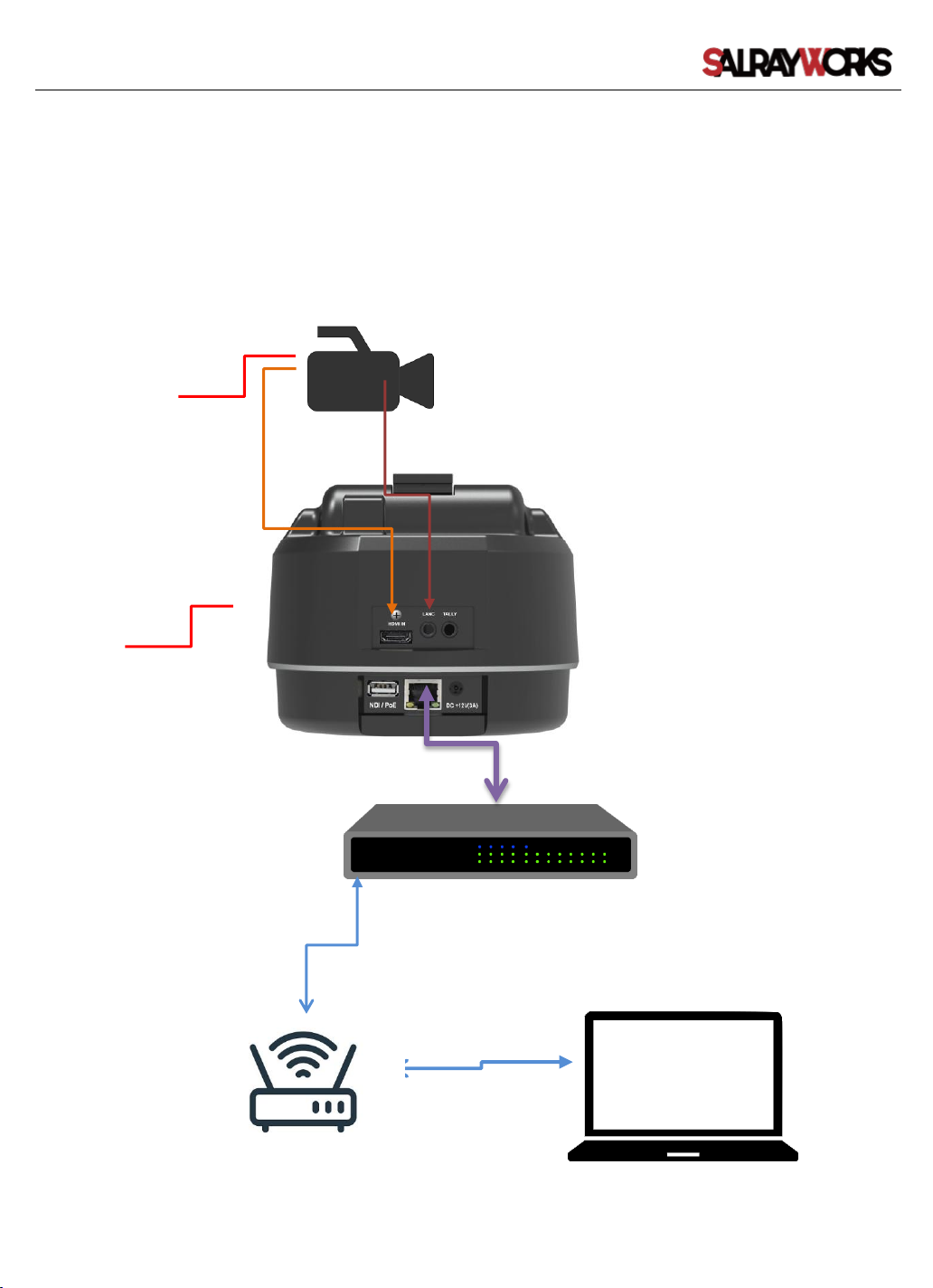

5.2. System Diagram
As shown in the figure below, N BOT is easily connected to the legacy Internet network with a camera, IP switch,
router and PC with a minimal cable Ethernet cable.
Ethernet Cable
Power (PoE)and Protocol
Ethernet Cable
Protocol Cable
HDMI Cable
IP Switch
IP Router
LANC Cable

NBOT, NDI Motorized Head
5.3 N BOT Controlling
It is possible to operate and intuitive preset with fine movements through VISC IP with SHARON proSTICK Controller
Camera OSD, PAN TILT, Preset, can be controlled with Free SW ( N BOT webserver ) through NDI network.
Free Studio monitors available on NDI.TV
SHARON proSTICK Controller
13
N BOT webserver

NBOT, NDI Motorized Head
Black Magic Cinema SONY Panasonic Canon JVC
5.4 CAMERA COMPATIBILITY
You should make sure that 2.5 mm LANC terminal is on the camera
It must not exceed 3.2Kg including the lens
To operate the ZOOM remotely, the motorized zoom ( electric ) must be installed on the camera.
Auto or Manual is not converted thru LANC, but the Camera must be manually select in advance to able to
remotely support Focus and Iris
5.5 Video Over IP (NDI ) Workflow
TRICASTER
SHARON proSTICK
N BOT Webserver
14

NBOT, NDI Motorized Head

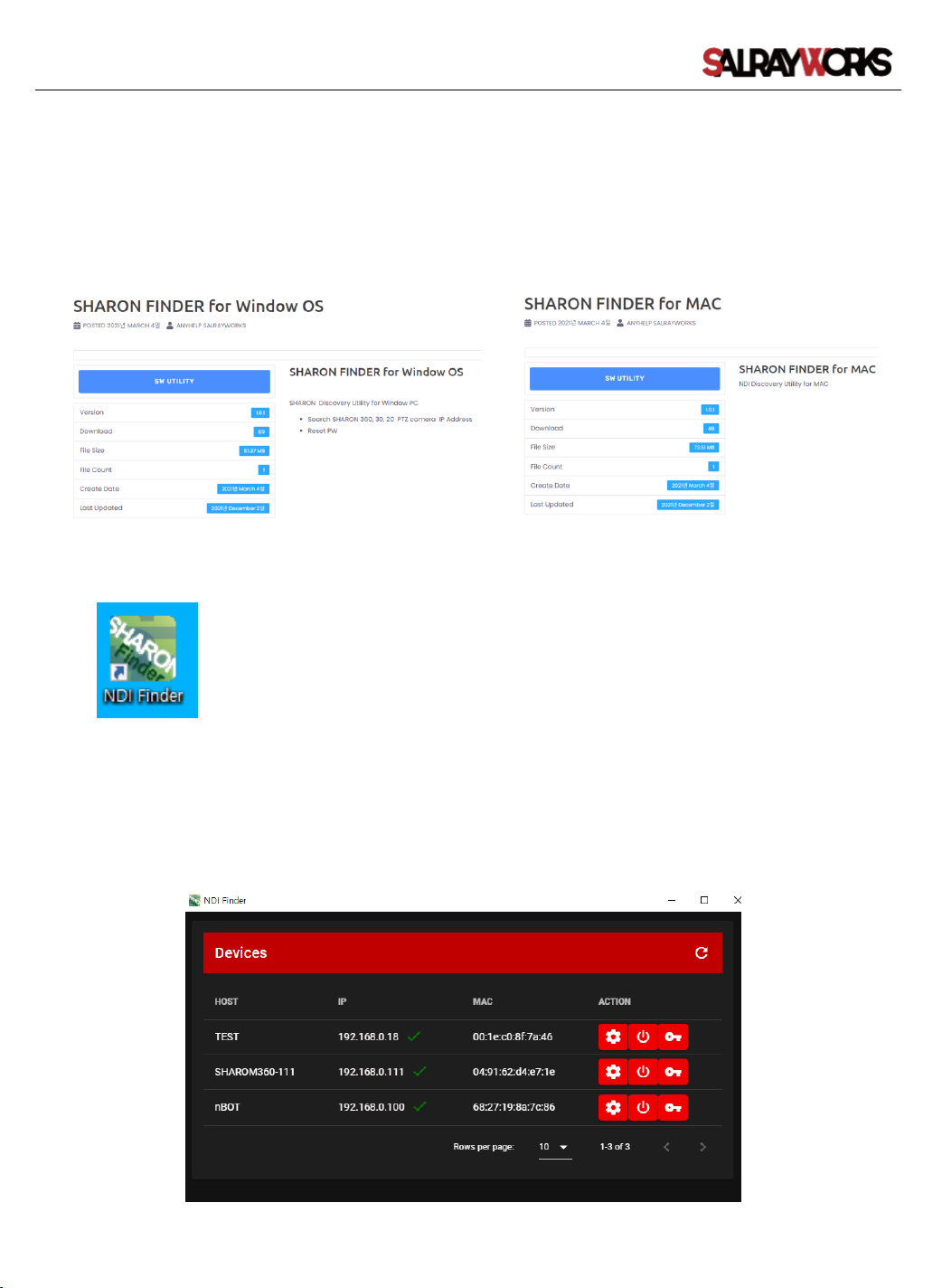

Please visit to SalrayWorks download page as below http://salrayworks.com/index.php/download/ndi-finder-for-
window-pc/ and you can download and install Sharon finder app for both of Window and MAC OS version.
When the installation is complete, the Desktop SHARON Finder Icon will appear on your Desktop
If you click SHARON finder icon, the following window appears, scan all NDI devices on the same Network and
display a list as below.
6. SHARON Finder
6-1. SHARON Finder Apps Download
6-2. SHARON Finder GUI
15

NBOT, NDI Motorized Head
You can reboot the connected N NOT
6-3. Re-Name and Re-Configure IP Address
It is possible to change the IP address or Change the name of N BOT as below Menu
6-4. Reboot N BOT
6-5. Reset Password
If forgot PW, and reset PW
16

NBOT, NDI Motorized Head
Open a Web-Browser and enter address 192.168.0.100 to open the login Window as below or
if the password Is not correct, please find update IP address by SHARON Finder.
You can fin the firmware version and current IP address in the system Menu, and check the current real-
time CPU usages in CPU menu and check the current video resolution in Video and the Bit rate in Audio
Menu. And real time monitoring of current Bandwidth usage in Network
7. N BOT Webserver
7-1. Log In
7-2. System Mode
17

NBOT, NDI Motorized Head
Power, REC, Display, Auto-Focus : These functions can be operated remotely via LANC. However, the connected
Camera Model must support the LANC protocol for these functions. If the camera model does not support thru
LANC, you must manually set the focus in advance. Only then can the focus be adjusted remotely above menu.
If the toggle button above does not work , connected camera is not supported. Up to 9 presets can be saved and recalled.
If the camera falls into a locked state due to an external shock or the weight of camera, click the icon above to display
Forced Driving menu as shown below, allowing you to forcibly move the camera’s PAN TILT.
7-3. Control Mode
18

NBOT, NDI Motorized Head
In the Network Menu, you can change the name or IP address of currently contacted N BOT. You can select
the transmission specified in the current SDI SDK version., and you can decide whether to apply the NDI group
Setting.
7-4. Network Mode
7-5. Smart Phone Mode
If you turn on WIFI on your smartphone, open a Chrome on the same network and enter the address of 192.168.0.100 you can
operate the N BOT web server as below ( Automatically fit the screen size )
Log In Mode Control Mode Control Mode
19

NBOT, NDI Motorized Head
8. SONY Multiport Converter Module.
8-1 The List of Camera Model
Some Sony camera models can be remotely controlled only through the Multi interface Shoe instead of the
2.5 mm LANC terminal. In this case, you must purchase the SONY Multiport Converter Module separately.
Remote support for the following function.
•Zoom Tele (SW command )
•Zoom Wide (SW command)
•Recoding Start/Stop (SW command)
•Auto Focus (SW command & HW command)
•Power On/Off (HW command)
•Sutter (SW command & HW command
8-2 What to check if it doesn’t work
•The installed ZOOM lens must have a power zoom lens type.
•Firmware version installed in N BOT must be 2.1.0 or higher
•In Zoom, the setting must be set to SERVO
•The cable must be installed before powering on the NBOT so that it can recognize the cable when booting.
20
