NEC PXT-42XD2 User manual

PXT-42XD2
42 HIGH DEFINITION PLASMA TV

Table of Contents
Important Safety Precautions...........................................................................................................1
Important Notice ..............................................................................................................................3
Preparations ......................................................................................................................................4
Identification of Controls ..................................................................................................................7
Connections .....................................................................................................................................10
Basic Operations..............................................................................................................................14
Memorizing the Channels ...............................................................................................................16
Channel and Program Selection .....................................................................................................19
Time Zone & EPG & Sleep Timer...................................................................................................25
Teletext & Subtitle 6
Troubleshooting...............................................................................................................................28
Specifications...................................................................................................................................30
Picture Adjustment .........................................................................................................................20
Sound Adjustment ..........................................................................................................................21
Rating and Lock Setup ....................................................................................................................23
..........................................................................................................................2
Image Adjustments for D-SUB (PC) Mode/Component Mode .....................................................27

Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly
handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN
RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe
the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service
life of your TV product, please read the following precautions carefully before using the product.
1. Read these instructions---All operating instructions must be read and understood before the product is operated.
2. Keep these instructions---These safety and operating instructions must be kept in a safe place for future reference.
3. Heed all warnings---All warnings on the product and in the instructions must be observed closely.
4. Follow all instructions---All operating instructions must be followed.
7.Power cord protection---Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
NOTE: where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.
5.Attachments---Only use attachments/accessories specified by the manufacturer. Do not use attachments not
recommended by the manufacturer. Use of improper attachments can result in accidents.
6. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your product dealer or local power company. For added
protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the cable system.
8.Overloading---Do not overload wall outlets, extension cords, or convenience receptacles on other
equipment as this can result in a risk of fire or electric shock.
9.Entering of objects and liquids---Never insert an object into the product through vents or openings. High voltages are
present in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do
not spill water or liquid on the product.
10. Servicing---Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
11.Damage requiring service---If any of the following conditions occurs, unplug the power cord from the AC outlet, and
request a qualified service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid is spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not
described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
e. If the product has been dropped or the cabinet has been damaged in any way.
f. When the product displays an abnormal condition or exhibits a distinct change in performance. Any noticeable abnormality
in the product indicates that the product needs servicing.
12. Replacement parts---In case the product needs replacement parts, make sure that the service person uses
replacement parts specified by the manufacturer, or those with the same characteristics and performance as the
original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
13. Safety checks---Upon completion of service or repair work, request the service technician to perform safety
checks to ensure that the product is in proper operating condition.
14. Wall or ceiling mounting---When mounting the product on a wall or ceiling, be sure to install the product according to
the method recommended by the manufacturer. This is a safety feature.
1
Important Safety Precautions

Important Safety Precautions (Continued)
2
15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. Do not place the product on an unstable
trolley, stand, tripod or table. Placing the product on an unstable base can cause the
product to fall, resulting in serious personal injuries as well as damage to the product.
When mounting the product on a wall, be sure to follow the manufacturer’s instructions.
Use only the mounting hardware recommended by the manufacturer.
16.Careful move---When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over. Sudden stops, excessive force and uneven
floor surfaces can cause the product to fall from the trolley.
Never attempt to move the TV unless the AC power cord has been disconnected.
17. Lightning---Unplug this apparatus during lightning storms or when unused for long
periods of time.
For added protection for this television equipment during a lightning storm, or when it is
left unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the equipment due to lightning and
power-line surges.
18. Do not use this apparatus near water---for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
Do not use immediately after moving from a low temperature to high temperature
environment, as this causes condensation, which may result in fire, electric shock, or
other hazards.
19. Clean only with dry cloth---Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
20. Ventilation---Do not block any ventilation openings. Install in accordance with the
manufacturer instructions. The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings since insufficient ventilation
can cause overheating and/or shorten the life of the product. Do not place the product on
a bed, sofa, rug or other similar surface, since they can block ventilation openings. This
product is not designed for built-in installation; do not place the product in an enclosed
place such as a bookcase or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
21.Heat sources---Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
22.Panel protection---The display panel used in this product is made of glass.
Therefore, it can break when the product is dropped or impacted upon by other objects.
Be careful not to be injured by broken glass pieces in case the display panel breaks.
23.Pixel defect---The display panel is a very high technology product, giving you finely detailed pictures. Occasionally, a few
non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the
performance of your product.
WARNING: For continued safety, apparatus with class I construction shall be connected to a mains socket outlet with a
protective earthing connection.

Do not use in hot and cold rooms (locations)
!When the unit is used in rooms (locations) with low temperature, the picture may
leave trails or appear slightly delayed. This is not a malfunction, and the unit will
recover when the temperature returns to normal.
!Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location
exposed to direct sunlight or near a heater, as this may cause the cabinet to deform
and the to malfunction.
!Storage temperature: 0°C to +50°C
!Working temperature: 5°C to +40°C
screen
About Temperature
About After-Image The extended use of fixed image program material can cause a permanent
on the screen.
This background image is viewable on normal programs in the form of a stationary fixed
image. This type of irreversible screen deterioration can be limited by observing the
following steps:
A. Reduce the brightness/contrast setting to a minimum viewing level.
B. Do not display the fixed image for extended periods of time.
C. Turn the power off when not in actual use.
Important Information Regarding Use of Video Games, Computers,
Captions or Other Fixed Image Displays.
after-image
!Do not allow a still picture to be displayed for an extended period, as this can cause a
permanent after-image to remain on the screen.
Examples of still pictures include logos, video games, computer images, teletext and
images displayed in 4:3 mode.
CAUTIONS:
!The permanent after-image on the screen resulting from fixed image use is not an
operating defect and as such is not covered by the warranty.
!This product is not designed to display fixed images for extended periods of time.
Cleaning and
Maintenance
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or
a weak detergent solution.
!
!
!
Use eyeglass cleaner to remove stubborn dirt from the screen.
Never use alcohol, paint thinner or benzine to clean this unit.
Before using a chemically treated cloth, read the instructions that came with the
cloth carefully.
Important Notice
3

Preparations
Unpacking
Make sure the following accessories are provided with the product.
PXT-42XD2
42 HIGH DEFINITION PLASMA TV
Remote control unit (x 1) “AAA” size battery (x 2) AC cord (x 1)
Product shape varies in some
countries.
Owner’s Manual (x 1) Warranty Card (x 1)
Note
= Always use the AC cord supplied with the TV.
=We recommend you to retain the packaging material in case you need to transport the TV at a later date.
4

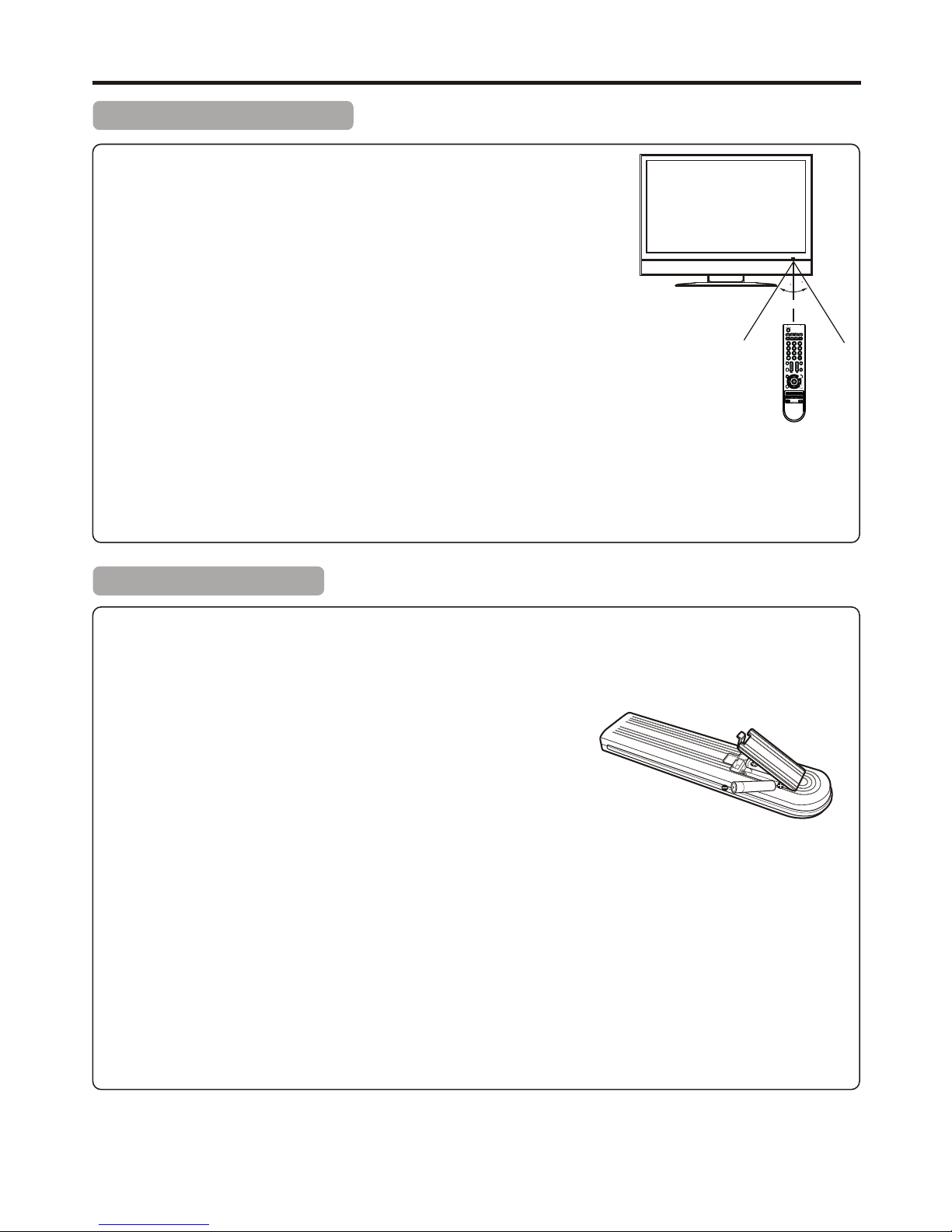

<Use the remote control by pointing it towards the remote sensor window of the
set. Objects between the remote control and sensor window may prevent proper
operation.
Cautions regarding use of remote control
<Do not expose the remote control to shock. In addition, do not expose the remote
control to liquids, and do not place in an area with high humidity.
<Do not install or place the remote control under direct sunlight. The heat may cause deformation of the unit.
<The remote control may not work properly if the remote sensor window of the main unit is under direct sunlight or strong
lighting. In such a case, change the angle of the lighting or the TV set, or operate the remote control closer to the remote
sensor window.
If the remote control fails to operate the TV functions, replace the batteries in the remote control.
Precaution on battery use
Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.
<Place batteries with their terminals corresponding to the (+) and (–) indications.
<Different types of batteries have different characteristics. Do not mix batteries of different types.
<Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old
batteries to leak chemicals.
<Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a rash. If chemical
leakage is found, wipe with a cloth.
<If the remote control is not used for an extended period of time, remove the batteries from the remote control.
<The batteries (battery pack of batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
Open the battery cover.
1
<(Place the batteries with their terminals corresponding to the (+)
and (–) indications in the battery compartment.)
Insert two size-AAA batteries.
2
Replace the cover and slide in reverse until the lock snaps.
3
Preparations
Using the Remote Control
30
30
5m
Installing the Batteries
5

Insert the AC plug into a conveniently located AC outlet.
=This product should be operated only from the type of power source indicated on the marking label.
=Always unplug the AC cord from power outlet when not using for a long period of time.
75-ohm coaxial cable (round cable)
INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture
screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
Optimum reception of colour requires a good signal and will generally mean that an outdoor antenna must be used.
The exact type and position of the antenna will depend upon your particular area.
=It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave
conditions.
=The antenna cable should not be bundled with the power cord and the like.
=Since your new TV has a digital receiver, please ensure you have the best possible antenna installation so to avoid picture defects
and disappointment, otherwise picture defects may occur.
TV REAR
RF
Antenna Connection
Preparations (Continued)
Power Connection
Note
Note
6

Power Indicator
Remote Sensor
Main Unit (front view/side view)
Identification of Controls
CH
VOL
CH
VOL
MENU
SOURCE
Channel Up/Down
Volume Up/Down
MENU
Select Input Source Signal
Power On/Standby
Functions of VOL+/-, CH+/-, MENU, SOURCE and POWER are also provided to the remote control. This operation
manual provides a description based on operating functions with the remote control.
1. POWER
2. SOURCE
To access input source menu
3. MENU
Press this button to access the menu main page
4. VOL+/-
Press the VOL+ or VOL- button to directly increase or decrease the sound volume level;
In menu operations, these buttons serve as right/left buttons.
5. CH+/-
Press these two buttons to directly change the TV channel;
In menu operations, these buttons serve as up/down buttons.
Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.
Power Switch
Note
7

RS – 232 terminal: For service only. The user should not use this terminal.
S/PDIF digital audio output (optical): Connects to the digital audio input of a digital audio component.
HDMI input: HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital audio/video
interface between this TV and any HDMI-equipped audio/video component, such as a set-top box and DVD player.
HDMI supports enhanced, or high-definition video, plus two-channel digital audio.
D-SUB PIC(Video)/AUDIO input: Connects to a PC or other Analog RGB devices such as Video Conferencing.
COMPONENT INPUT 1: Connects to your DVD player.
Component video provides better picture quality than the S-VIDEO or the composite video connections.
COMPONENT INPUT 2: Connects to your DVD player.
Component video provides better picture quality than the S-VIDEO or the composite video connections.
AV OUTPUT: Connects to your VCR to record programs as desired or connects to your audio amplifier.
Only analog TV programs, AV1and AV2 input sources can be output through the AV output jacks.
Headphones jack: Connects to your headphones. If your headphones do not match the jack, use a suitable plug
adaptor (not supplied).
S-VIDEO input: Connects to the S-VIDEO output jack of your VCR or other video equipment that has S-VIDEO.
S-VIDEO provides better picture quality than the composite video connection.
AV INPUT 1: Connects to the composite video and audio output jacks on your VCR or other video device.
AV INPUT 2: Connects to the composite video and audio output jacks on your VCR or other video device.
RF input: Connects to your cable system or outdoor antenna.
AC power input jack: Connects to AC power cord.
Main Unit (rear view)
Identification of Controls (Continued)
COMP ONENT INP UT 1
LR AUDIO
COMP ONENT INP UT 2
LR AUDIO
S/PDIF
1 2 3 4 5 6 7 8 9 10 11 12 13
1
2
3
4
5
6
7
8
9
10
11
12
13
8

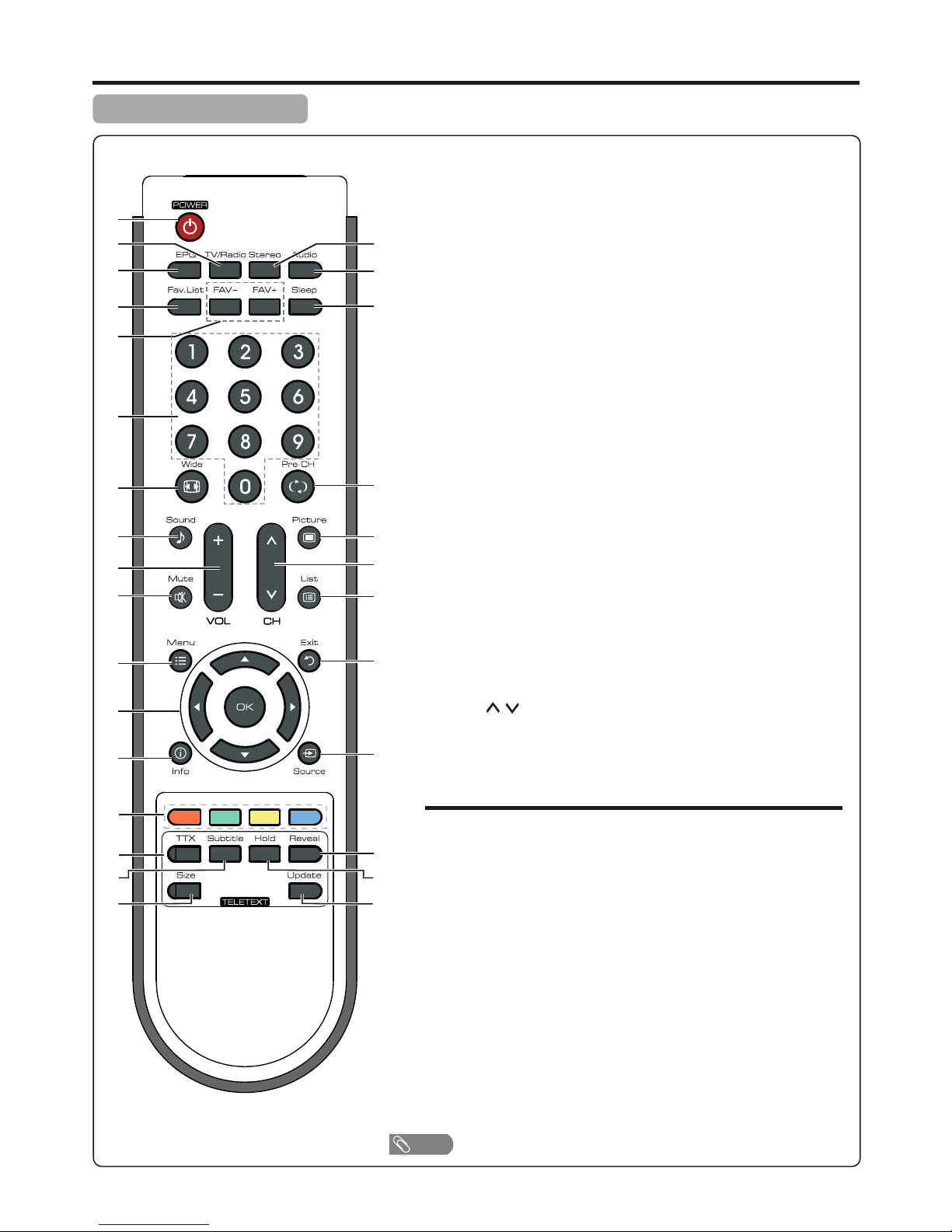

Remote Control Unit
Identification of Controls (Continued)
1
3
4
15
16
6
7
8
10
9
17
18
19
20
21
22
2
5
11
12
13
14
POWER: Switches the TV power on or Standby.
TV/Radio: Switches between TV and Radio mode. (DTV only)
EPG: Displays the Electronic Program Guide (DTV only).
Fav.List: Displays the favorite channel list.
FAV+/–: Selects the favorite channel.
0 – 9 number buttons: Press to enter channel numbers or
input password.
Wide: Selects the screen size. (For analog program only)
Sound: Selects sound mode.
VOL+/–: Increases or decreases the volume.
Mute: Mutes the sound.
Menu: Displays the main menu screen.
5/6/3/4/OK: Press the arrows to navigate through the
menus or adjust an item. Press OK to confirm a selection or
enter a sub-menu.
Info: Displays the information banner.
Stereo: Selects Stereo or Mono sound.
Audio: Selects audio track. (DTV only)
Sleep: Sets the sleep timer.
Pre-CH: Returns to the previous channel.
Picture: Selects picture mode.
CH / : Changes channel up and down.
List: Displays the channel list.
Exit: Exits the menu screen.
Source: Displays input source menu.
Coloured buttons (RED/GREEN/YELLOW/BLUE): Direct
access to the coloured items or corresponding pages.
(Teletext)
TTX: Used to call teletext, change to transparent mode and
then exit. (Teletext)
Subtitle: Displays the subtitle. (DTV only)
Size: Press this button several times to display the upper, then
the lower part of the screen and then return to the normal size
teletext page. (Teletext)
Reveal: To reveal or hide the concealed information. (Teletext)
Hold: To stop or resume sub-page acquisition. (Teletext)
Update:
(Teletext)
Press the button to view the updated teletext page.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
23
24
25
26
27
28
29
Below is teletext control buttons:
In teletext mode, EPG button is used to display the index page.
Note
9

Carefully check the terminals for position and type before making any connections.
The illustration of the external equipment may be different depending on your model.
Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their
terminals.
Refer to the operating manual of the external device as well.
When connecting an external device, turn the power off to avoid any issues.
Cautions before connecting
Connections
Connecting digital optical audio
For a full Home Theater sound experience, you must connect your Hi-Fi or
Audio processor to the S/PDIF OUT(Optical) terminal on the TV rear.
The S/PDIF OUT terminal only can output digital TV program’s audio.
Audio Processor HIFi System
OR
S/PDIF IN
(Optical)
Optical cable
COMPON ENT INPUT 1
LR AUDIO
COMPON ENT INPUT 2
LR AUDIO
S/PDIF
Note
Connecting a VCR
VCR
AV cable
S-VIDEO
S-VIDEO
cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR.
Note: For better video, you can use the S-video terminal if your source supports it.
How to connect:
1. Turn on your TV, then press Source button. The Source menu opens.
2. Press 5or6to select AV1(or S-Video if using S-VIDEO terminal), then press OK to confirm.
3. Turn on your VCR , insert a videotape and press the Play button.
To play VCR
TV REAR
TV REAR
10

Connecting a Camcorder
Connections (Continued)
or
AV cable
Camcorder
“PlayStation”
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and camcorder.
How to connect:
To playback Camcorder
The operations of the camcorder may be different and is dependant on your model. Please read the user manual of your camcorder
to confirm operation.
1. Turn on your TV, then press Source button. The Source menu opens.
2. Press 5or6to select AV2, then press OK to confirm.
3. Turn on your camcorder and set it to output mode. (For details, refer to your camcorder user manual.)
4. Insert the tape into the camcorder and press Play button.
Note
Connecting a HDMI device
HDMI cable
Device with HDMI output
COMPON ENT INPUT 1
LR AUDIO
COMPON ENT INPUT 2
LR AUDIO
S/PDIF
Connect the HDMI cable between the HDMI interface on the unit and HDMI output on the device.
To play from the device using HDMI:
How to connect a device using HDMI Connection:
1. Turn on your TV, then press Source button. The Source menu opens.
2. Press 5or6to select HDMI, then press OK to confirm.
3. Turn on your device and set it to the correct mode. See the device’s user guide for more information.
If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal. Connect the audio
cable to the D-SUB AUDIO IN jack on the TV rear.
Note
TV REAR
TV REAR
11

Connecting Component Video
Connections (Continued)
COMPON ENT INPUT 1
LR AUDIO
COMPON ENT INPUT 2
LR AUDIO
S/PDIF
To connect a device using component video:
1. Turn on your TV, then press Source button. The Source menu opens.
2. Press 5or6 to select YPbPr1 (or YPbPr2), then press OK to confirm.
3. Turn on your external device and set it to the correct mode. See the device’s user guide for more information.
To play component video from an external device:
Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Cb/Pb, Cr/Pr output jacks on
the device .
Connect the Audio cable between the AUDIO input jacks on the unit and AUDIO output jacks on the device.
Component video cable
Audio cable
Device with
component video
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Connecting a Computer
COMPON ENT INPUT 1
LR AUDIO
COMPON ENT INPUT 2
LR AUDIO
S/PDIF
How to connect:
1. Turn on your TV, then press Source button. The Source menu opens.
2. Press5or6to select D-Sub, then press OK to confirm.
3. Turn on your computer, and adjust the display properties as required.
To play video from a computer
Connect a D-sub cable between the D-SUB jack on the computer and the D-SUB input jack on the unit.
Connect an Audio cable between the AUDIO output on the computer and AUDIO input jack on the unit.
D-Sub cable
(analog RGB) To monitor port
(15-pin D-Sub)
To audio output jack
Audio cable
(stereo mini plugs)
TV REAR
TV REAR
12

Connecting a VCR (for Recording)
Connections (Continued)
Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR.
How to connect:
1. Turn on your TV, select a program you wish to record.
2. Turn on your VCR, insert a videotape for recording.
3. Press the Record button to begin recording.
To record program
S-VIDEO
AV cable
VCR for Recording
Insert the plug of the headphone into the TV’s Headphone jack.
When using headphones, adjust the headphone volume so as to avoid excessive levels, as hearing damage may result.
Headphones
! Only analog TV programs, AV1 and AV2 input sources can be output through the AV output jacks.
Connecting Headphones
Note
TV REAR
TV REAR
13

Basic Operations
With the power on, press the Power button on the unit or on the remote control to turn off the unit, and put the unit in
standby mode. To cut off the power completely, press the Power Switch.
With the power on, press MENU and the main menu screen displays.
Turning On
Insert the power cord into the wall outlet.
Press the Power Switch on the unit, then press the Power button on the unit or on the remote control.
The unit will be turned on and you will be ready to use its features.
Turning Off
List of main menus to help you with operations
Video Menu (TV Mode) Audio Menu (TV Mode) Setup Menu (TV Mode)
Rate Menu (TV Mode) System Menu (TV Mode) Display Menu (D-Sub & Component Mode)
To navigate through the OSD main menu
Turning On/Off the Power
Main Menu Overview
1
2
Video Audio Setup Rate System Display
Aspect Ratio
Picture Mode
Contrast
Brightness
Color
Tint
Sharpness
Advanced
Wide
Standard
50%
50%
50%
50%
50%
Sound Mode
100Hz
500Hz
1KHz
5KHz
10KHz
Balance
Custom
Auto
84%
79%
50%
79%
94%
50
19%
SPDIF Mode
HP Volume
Auto Install
Manual Install
Channel List
Favorite List
Manual Adjust
Video Audio Setup Rate System Display Video Audio Setup Rate System Display
Video Audio Setup Rate System Display Video Audio Setup Rate System Display Video Audio Setup Rate System Display
Rating
Channel Lock
Password
Parent Lock
Source
State
TV
NSW/ACT
H.Position
Phase
AutoAdjust
48%
50%
48%
V.Position
3
Note
Within the menu, press 5,6,3,4 to navigate through the options or adjust an option. Press OK to confirm a
selection or enter a sub-menu.
Press MENU or EXIT to return to the previous level menu. To exit the menu system, press MENU or EXIT
repeatedly. Or you may wait for some seconds and the on-screen menu will disappear from the screen automatically.
=To clearly introduce the menu operations, this operation manual provides a description based on operation with the remote control.
Press the 3/4to select menu. Press 6 to access the menu.
4
Note
=Display menu can only be used in D-Sub and Component mode.
=Menu items that are not selectable are grayed out.
=The illustrations and on-screen displays in this manual are for explanation purposes (some are enlarged, others cropped) and may
vary slightly from the actual ones.
14

Selecting the Input Signal Source
Basic Operations (Continued)
1
2
3
Press Source button.
Press OK or Source button to confirm the selection.
Press 6or 5to select the input source.
Options include:
!TV — Watch the TV signal.
!AV1 — Watch the signal from the AV1 input terminals.
!AV2 — Watch the signal from the AV2 input terminals.
!S-Video — Watch the signal from the S-VIDEO input terminal.
!YPbPr1 — Watch the signal from the COMPONENTinput 1 terminals.
!YPbPr2 — Watch the signal from the COMPONENTinput 2 terminals.
!D-Sub — Watch the signal from the D-SUB jack.
!HDMI — Watch the signal from the HDMI input jack.
=You can also make use of OSD main menu (System menu)to select the input source.
You can quickly go to first item (TV )and last item (HDMI) by pressing 3or4button.
Note
Displaying the Information Banner
Press the Info button to display the information banner. The information banner displays current status information such as
the channel number and signal source.
Depending on the mode, different information is displayed. In DTV mode, more information will be displayed. Below is an
example banner in DTV mode.
=The above OSD is only served as an example, and it is in DTV mode.
=Information banner content varies, depending on the broadcaster and your settings.
Note
In DTV mode, the information banner may contain:
!Channel number and name.
!Current time.
!Current program name, start and end play times.
!Next program name and start and end play times.
!TV or Radio.
!Audio mode (stereo or mono), audio track.
!Signal strength for current channel.
!Signal resolution.
!Program rating, etc.
Source
1. TV
2. AV1
3. AV2
4. S-Video
5. YPbPr1
6. YPbPr2
7. D-Sub
8. HDMI
Select
OK
First/Last
Video Audio Setup Rate System Display
Source
State
TV
NSW/ACT
7
007 7 Digital 15:13
STEREO English Signal Strength 95%
Digital SD Stereo
TV
SUB
TTX BLUE HEELERS
PASSIONS
15:00-15:59
16:00-16:59
576i G
AC3
15

Your TV can memorize and store all of the available programs (including TV and Radio programs). After the available programs
are memorized, use Channel up/down button to scan through the available stations.
You can complete an auto search to search for all programs (including radio and
TV stations) available to your television. The television then stores them in
memory on the program list.
If desired programs can not be searched by Auto Install, you can make use of
Manual Install to search programs manually.
Fine tuning is not necessary under normal conditions. However, in area of
inferior broadcast conditions where adjustment is necessary for a better
picture and sound, use Fine tuning.

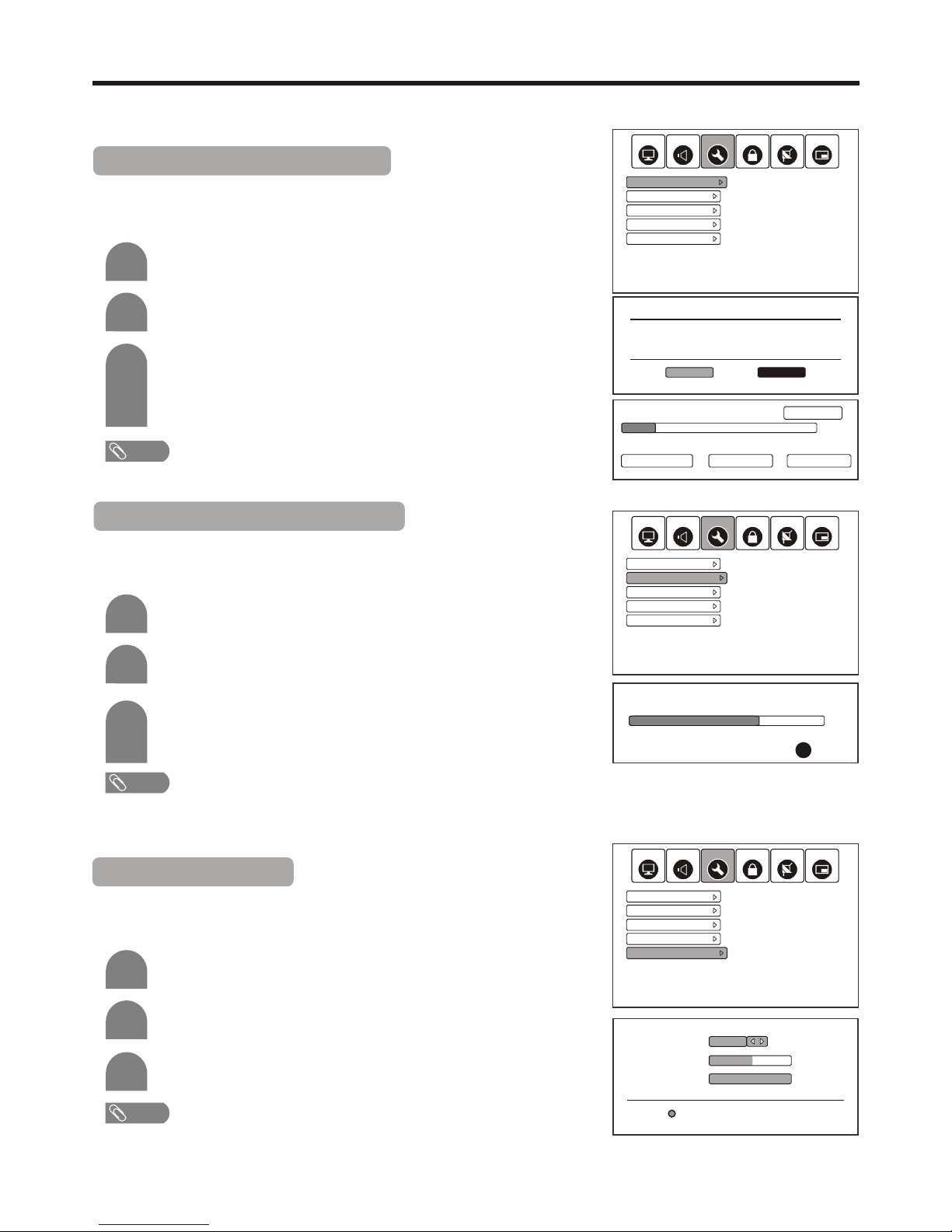

Auto Searching for Programs
Memorizing the Channels
1
3
Press MENU and the main menu screen displays.
Highlight Auto Install item, and then press OK. Now a confirmation
box opens up, use 3/4to select Yes to confirm and the TV
automatically searches for all available TV/DTV program and radio
program, or select No to cancel the operation.
Press 3/4to select Setup menu, press 6 to access the menu.
=You can press EXIT button to stop the search.
Note
2
Manual Searching for Programs
1
3
Use channel select buttons to select a channel position in which you
want to store.
Now a process screen opens up, press 4 or 3to search program
upward or downward. When a program is located, the search stops,
and this program is stored in the specified channel position.
= Manual Install is only used to search analog TV program.
=You can press EXIT button to stop the search.
Note
2
Manual Fine Tuning
1Navigate to Setup menu and press 6or 5 to select Manual
Adjust, and then press OK to access the sub-menu.
Highlight Program, press 4 or 3to select a program which you
want to perform fine tune.
= Fine Tune is only for analog TV program.
Note
2
Navigate to Setup menu and press 6or 5 to select Manual Install
and then press OK.
Press 6 to select Fine Tune, and then press and hold 4 or 3 to fine
tune until the best possible picture and sound are obtained.
3
Auto Install
Manual Install
Channel List
Favorite List
Manual Adjust
Video Audio Setup Rate System Display
All program will be lost!
Do you want to continue?
Caution
Yes No
Channel: 28 Search Type: Full Search
17%
TV 1 Radio 0 Others 0
20. ABC HDTV No Items No Items
Auto Install
Manual Install
Channel List
Favorite List
Manual Adjust
Video Audio Setup Rate System Display
Waiting ...... 471.338 MHz
34
Go Exit Quit
Auto Install
Manual Install
Channel List
Favorite List
Manual Adjust
Video Audio Setup Rate System Display
Program
Fine Tune
Label
(Press to input character, 4 letters max)
TV 7
22
16
0

Labeling Channels
Memorizing the Channels (Continued)
If a channel is not already labeled, you can label the channel so you know what
channel you are watching.
1Navigate to Setup menu and press 6or5 to select Manual Adjust,
and then press OK to access the sub-menu.
Highlight Program, press 4 or 3to select a program which you want
to label.
=The labels of digital broadcasting channels are automatically assigned and thus can not be assigned by users.
Note
2
Press 6or5 to select Label, and then press YELLOW button to open
the label editing screen. Use 5,6,3,4to navigate among characters
and then press OK to select it. To delete, press RED button; to switch
between uppercase and lowercase, press YELLOW button; to save,
press GREEN button.
The maximum length of label is 4 characters.
3
Channel List Management
After auto install, a default channel list is created. You can make use of Channel List to select program, to skip unnecessary
channels, to sort programs, and to create a favorite program list.
1Press List button to call up Channels List.
Or you may navigate to Setup menu and press 6or5 to select Channel List,
and then press OK to access the sub-menu.
Press 6or5 to select your unwanted channel, press GREEN button and a skip
symbol appears alongside the selected channel in the list, which means this
channel will be skipped.
=To restore a skipped channel, enter into the channel list, use 6or5 to select the channel, then press GREEN button and the skip
symbol will disappear.
=If the channel list has more than one page, you may press3or4 to scroll the page upward or downward.
Note
2
3
To skip unnecessary channels
After auto install, you can skip unnecessary channels so that only the channels you want to watch are selected with Channel
up/down buttons.
If you want to skip more channels, repeat the above steps to set more skip
symbols to more channels.
Press EXIT to quit the list. Now when you press Channel up/down buttons,
these unwanted channels will be skipped.
1Select the channel you want to move in the channel list.
Press BLUE or YELLOW button to move the channel upward or
downward to a desired new position.
To sort channels
This function allows you to arrange the channel order.
Repeat the above steps for each channel you wish to move.
2
3
=If the channel list has more than one page, you may press3or4 to scroll the page upward or downward.
Note
Auto Install
Manual Install
Channel List
Favorite List
Manual Adjust
Video Audio Setup Rate System Display
Program
Fine Tune
Label
(Press to input character, 4 letters max)
22
ABC
Delete Save
Caps Lock
A B C D E F
G H I JK L
M N OPQR
S T UV W X
Y Z ! @#$
^&*-_+
Channels List - TV
1. TV 2
2. TV 3
7. 7 Digital
70. 7 HD Digital
72. 7 Digital 2
73. 7 Digital 3
8. TV 7
22. TV 9
29. TV 10
Favorite Skip
Move Up Move Down
17
Channels List - TV
1. TV 2
2. TV 3
7. 7 Digital
70. 7 HD Digital
71. 7 Digital 1
72. 7 Digital 2
73. 7 Digital 3
22. TV 9
29. TV 10
Favorite Skip
Move Up Move Down
71. 7 Digital 1
8. TV 7

Memorizing the Channels (Continued)
You can make use of channel list to set up your favorite channels.
1In the channel list, press 6or5 to select your favorite program, press RED
button and a favorite symbol appears alongside the selected channel.
Repeat the above steps to set more favorite channels.
= If you want to cancel favorite setting, select the program in the channel list, press RED button and the favorite symbol will
disappear.
=If the channel list has more than one page, you may press3or4 to scroll the page upward or downward.
Note
Now a favorite channel list has been created. You can press Fav. List button to
call up the favorite list, or make use of OSD main menu (Setup menu) to display
the favorite list.
Favorite Channel Setup
After favorite list is created, you can arrange the favorite program order.
1Select the channel you want to move in the Favorite List.
Press BLUE or YELLOW button to move the channel upward or downward to
a desired new position.
To sort favorite channels
This function allows you to arrange the favorite program order.
Repeat the above steps for each channel you wish to move.
2
3
Favorite List Management
3
2
Favorite List
2. TV 3
22. TV 9
29. TV 10
Move Up
Move Down
18
Channels List - TV
1. TV 2
2. TV 3
7. 7 Digital
70. 7 HD Digital
71. 7 Digital 1
72. 7 Digital 2
73. 7 Digital 3
8. TV 7
22. TV 9
Favorite
Move Up
Skip
Move Down
8. TV 7
29. TV 10
