Nectre Fireplaces WONDERFIRE AF18 Installation instructions

Installed primarily as a decorative appliance. Not certified as a Space Heater.
WONDERFIRE AF18 OF MANUAL VALVE
INSTALLATION & OPERATING MANUAL
Nectre Wonderfire fire boxes are approved to be installed as a zero
clearance firebox and are designed to operate on Natural Gas.
Approval Number: AGA 4464 G
VERSION 1

2
WARRANTY INFORMATION
The benefits provided to you under the following warranty are in addition to any other rights and remedies available to
you under the law.
1. Warranty
If:
(a) during the first 10 years from the date of purchase (Firebox Warranty Period), there is a defect in the firebox of the
Gas Burner; or
(b) during the first 2 years from the date of purchase (Parts Warranty Period), there is a defect in the gas valves or
other parts of the Gas Burner,
due to improper workmanship or material, Glen Dimplex will replace or repair the Gas Burner without charge. Any
replacement product is warranted only for the time remaining on the original Firebox Warranty Period or the Parts
Warranty Period as relevant.
2. Registration
All in and out of warranty claims and service requests are to be emailed to: [email protected]
The email should include the following information:
• Proof of purchase—A copy of the customer’s invoice.
• Store details and contact person. (Please ensure ALL details are correct)
• All relevant customer details, if not on the proof of purchase
• Detailed report of the issue with pictures where possible showing any damage or technical issue.
3. Exclusions
Glen Dimplex is not obliged to replace or repair the Gas Burner under clause 1 if:
(a) it has been improperly stored, installed, connected, used, operated or repaired, or damaged, abused, tampered
with, altered (without our written approval), or not maintained in strict accordance with our installation and
operating instructions; or
(b) it has been installed in an outdoor setting.
4. Limit of Liability
The warranty provided under this warranty is limited to replacement or repair of the Gas Burner only, at our option.
To the extent permitted by law, Glen Dimplex excludes liability for consequential loss or any other loss or damage
caused to property or persons arising from any cause whatsoever, and damage arising from normal wear and tear.
5. Claiming under the Warranty
In order to claim under this warranty you must, within the Firebox Warranty Period or the Parts Warranty Period
(as relevant), contact Glen Dimplex, providing the original proof of purchase and the details below:
Supplier Name___________________________________________________________________________
Date Of Purchase / settlement of property if new home _________________
Model / Serial Number_______________________
This warranty does not cover the cost of claiming under the warranty or transporting the Real Flame Gas Burner to and
from the supplier.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
If you would like to speak to someone about your Gas Burner or claiming under this warranty, please contact the
Service Warranty Desk on 1300 554 155.
Glen Dimplex Australia Pty Ltd ACN 69 118 275 460
Head Office: 1340 Ferntree Gully Road, Scoresby 3179
Telephone: [phone] Facsimile: [phone]

3
INSTALLATION NOTICE
The installation of this appliance is only to be carried out by an authorised person in accordance
with the Manufacturer’s Instructions, local gas fitting regulations, AS/NZS5601.1-2013 installation
code for gas burning appliances and any other relevant statutory regulations.
In all cases the installation of this appliance shall meet the requirements as set out in
AS/NZS5601.1-2013
NOTE: A slight smell may be apparent for the first few hours of use. This is due to the heat resistant
paint curing. It is recommended to open windows in the room for the first lighting of the fire. In
some instances a slight discolouration may occur inside the firebox. This is a normal condition
and is not covered by warranty.
IMPORTANT SAFETY NOTICES
DO NOT LACE ARTICLES ON OR AGAINST THIS A LIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIAL NEAR THE A LIANCE.
DO NOT S RAY AEROSOLS IN THE VICINITY OF THIS A LIANCE WHILST IT IS IN O ERATION.
CARE MUST BE TAKEN TO ENSURE THAT ANY RETURN AIR REGISTER OR EXHAUST SYSTEM
DOES NOT ADVERSELY AFFECT THE O ERATION OF THE A LIANCE OR DRAUGHT OF
CHIMNEY OR FLUE.
DO NOT MODIFY THIS A LIANCE.
THIS A LIANCE IS DESIGNED TO O ERATE WITH LUMINOUS FLAMES. THIS MAY EXHIBIT
SLIGHT CARBON DE OSITS.
ermanent ventilation of the room where the fire is to be situated is essential while fire is in operation.
The room must have a minimum cross sectional area of 40,000sq mm of effective ventilation.
It is recommended that you service your gas fire every 2 years.
VENTILATION REQUIREMENTS
THIS IS RIMARILY A DECORATIVE A LIANCE AND IS NOT CERTIFIED AS A S ACE HEATER.
WARNING
This firebox has a naked flame, care should be taken when it is operating if children or the infirm are in close
proximity. For protection of young children or the infirm, a secondary guard is required. A safety screen is
recommended if constant supervision is not possible. It is recommended that a secondary guard complying
with AS-NZS2286 be installed.
The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilitites, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.

4
CONTENTS
Contents .................................................................................................................4
Data Plate ...............................................................................................................5
Dimensions .............................................................................................................5
User Instructions.....................................................................................................6
Installation Instructions ...........................................................................................7
Servicing Details .....................................................................................................9
Fault Finding Chart ...............................................................................................10
Glen Dimplex contact information.........................................................................12

5
DATA PLATE (Affixed to the base of the unit for reference to gas pressure & consumption)
5
AF18 OF Manual valve (Eurosit 630)
Gas Injector Size (mm) TPP N.G.C. (Mj/Hr)
Natural Gas 1 x injector multiport 7 ports x 1.25 0.5kPa high/0.35kpa Low 35 high
320mm
240mm
462mm

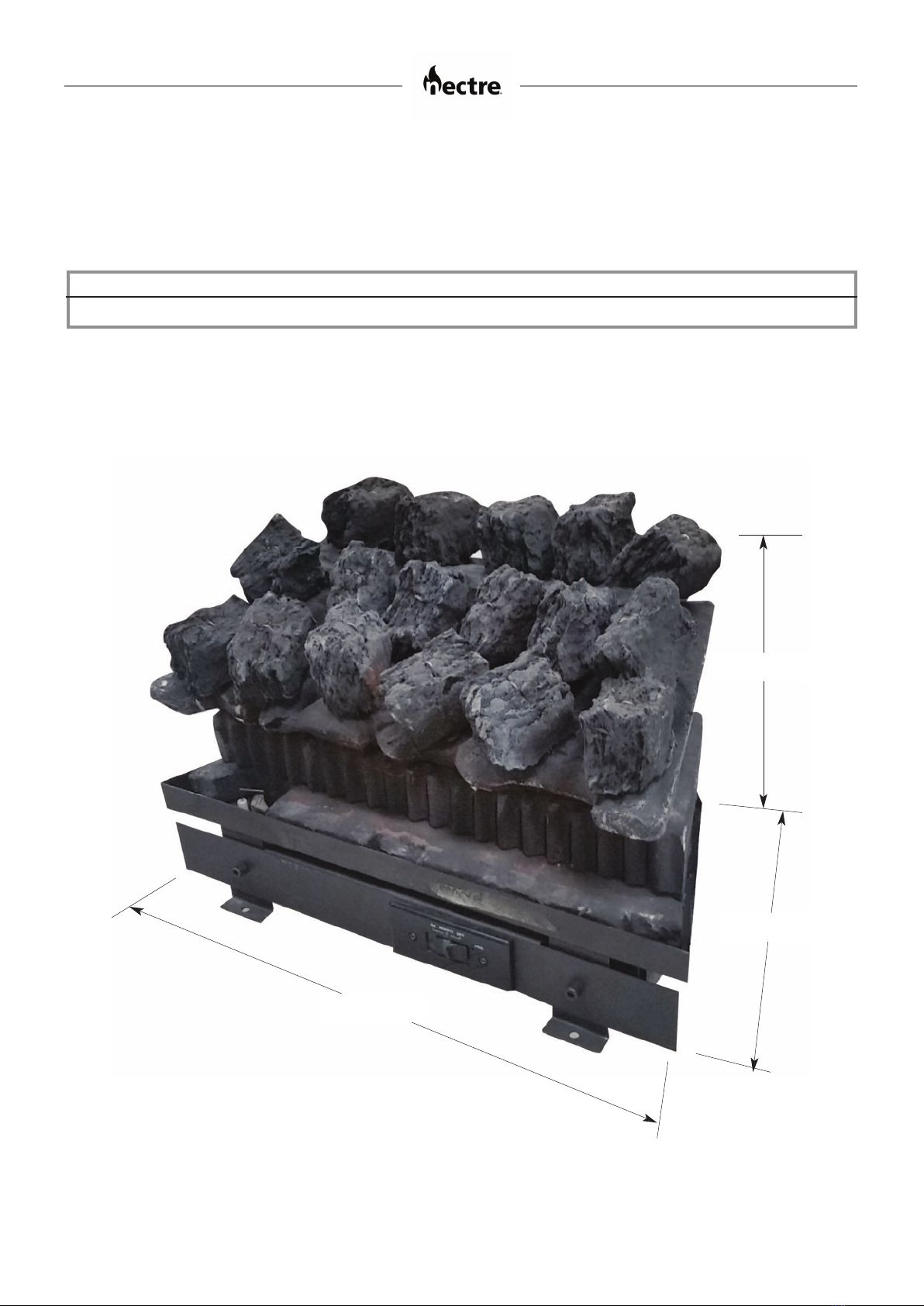

DIMENSIONS

6
USER INSTRUCTIONS
• ALWAYS USE A FIREGUARD WHEN O ERATING THE FIRE IN THE RESENCE OF
CHILDREN OR THE INFIRM
• ENSURE THAT CURTAINS CANNOT BLOW ACROSS THE FIRE O ENING ENSURE THAT
THE CHIMNEY OR FLUE IS NOT BLOCKED
• WASH HANDS AFTER HANDLING COALS AND ENSURE CHILDREN DO NOT HANDLE
THEM AS THE COLOURING MAY CONTAIN TOXIC DYES
GAS FITTING REGULATIONS
The installation of gas appliances is covered by gas fitting regulations in most States which specify
that any gas appliance shall only be installed by authorised personnel. Installation by an
unauthorised person is an offence under these regulations and could lead to cutting off of gas
supply and prosecution.
LIGHTING
lease read carefully before attempting to light your fire for the first time.
Your fire is fitted with a safety gas tap, Piezo igniter, pilot, flame failure and oxygen depletion
device. To turn the fire on, ensure that the gas supply is on, turn the gas knob to (*),depress the
gas knob and while still depressing the knob, push the Piezo igniter button until the pilot is alight.
eep the gas knob depressed for 20 seconds after the pilot has lit.(The first time that the unit is
used it may take longer for the pilot to light as you will have to wait for gas to fill the line). Release
the gas knob and check that the pilot stays alight. If it does not, repeat the above procedure. If the
pilot does not stay alight contact the supplier. Once the pilot is alight you may turn the gas control
knob to the high setting (7) . The fire will ignite from the pilot. If required you may now turn the gas
control knob back to the pilot setting (*). The fire will extinguish leaving only the pilot on. Take care
not to turn the pilot off as well. A slight resistance is felt before the fully off position. If the pilot is
turned off do not try to light it for about a minute as a safety interlock times until unit has cooled
down.
It is advisable that if the fire is to be left for extended periods, the gas control knob should be
turned back to the off setting. To relight, follow the procedure from the beginning.
PLEASE NOTE: do not operate your fire at the maximum setting for more than a few minutes in
the first eight hours following installation. This will avoid thermal shock to the coals and burner
surface. The new coals may give off a burnt odour during this period. Any minor surface cracking
of the burner or the coals is normal and is not a cause for concern. If you think that the burner may
have been damaged by misuse or accident at any time, please call your supplier/installer for
service. Before removal of any part of the fire, ensure that the fire is cold.
SERVICE
The appliance should require little maintenance. Periodically check that the chimney is drawing
properly and that no debris has fallen into the appliance. If the flames are very small or the pilot not
functioning, it may be due to dirt in the lines, but this must be serviced by an authorised gas fitter.

7
INSTALLATION INSTRUCTIONS
Location
Installation must meet Australian gas codes AS/NZS 5601.
INSTALLATION CLEARANCES (where FFB is used)– Clearances from combustible materials
Floor 0mm
Sides 80mm
Top / gather 50mm
Flue outer 25mm
Back 25mm
PRELIMINARY
• This appliance must be installed by an Authorised person.
• This appliance must be installed in accordance with the Gas Installation Code AS5601 Clauses
5.12.13.2 to 5.12.13.5.
• Installation must be in accordance with municipal Building codes, any other relevant statutory
regulations as well as these instructions
• The Wonderfire Gas Fire is only to be used with Natural Gas.
• It is recommended that a secondary guard complying with AS 2286 be installed.
• Ensure that loose fabrics such as curtains and furniture cannot touch the appliance. It is
recommended that a fire guard be used with the appliance.
• The guard is fitted to this appliance to reduce the risk of fire or injury from burns and no part of
it should be permanently removed. For protection of young children or the infirm, a secondary
guard is required.
• The overall dimensions of the fire is 465mm wide (front), 325mm wide (rear) x 240mm Deep x
320mm high. (See below for minimum fire place dimensions).
• The appliance may be installed in an existing open fireplace (as a Type 1 appliance), in an
existing fireplace with the Wonderfire FFB fan assisted convector box (as a Type 1 appliance)
or in a purpose built enclosure with the Wonderfire FFB fan assisted convector (zero clearance)
box (as Type 2 appliance).
• If fitting the Wonderfire with the FFB firebox, please also refer to the Instructions for the
“Wonderfire FFB”
• There must be a minimum of 50mm gap between the gather and any combustible materials if
FFB firebox is used.
• Packaging and transit protection must be removed from the appliance prior to installation. This
includes pallet, plastic wrap, temporary labels and foam protection
FITTING TO AN EXISTING OPEN FIREPLACE
Before installing in an existing open fireplace:
• The Wonderfire (type 1) must be installed in a fire resistive fire place with a proved draught.
• The chimney must be swept and inspected to see that it is in sound condition.
• The chimney must be a minimum size of 150x150mm if masonry or 150mm diameter if round
metal flue).
• NOTE – WHERE THE APPLIANCE IS INSTALLED INTO A MASONARY FIREPLACE A
FABRICATED FLUE MUST BE USED.

8
INSTALLATION INSTRUCTIONS (continued)
• An AGA approved 150mm diameter Gas Cowl must be fitted.
• The flue or chimney of an open gas fire must be kept clear at all times. Devices which close or
temporally close the flue or chimney are not permitted. (e.g. a damper must be removed or
securely disabled in the fully open position.)
• If these conditions are met the chimney should usually provide satisfactory draw. In any event,
the chimney and final installation must be tested for spillage into the room. This can be done by
lighting a paper fire in the fireplace (before the appliance is installed) and holding a smoking
twist of paper or a smoking match by the front of the fireplace. Air conditioning vents near the
fireplace may also cause spillage.
• The fireplace must be at least 470mm wide (front), 325mm wide (rear) x 250mm Deep x
400mm high to suit the Type 1 burner.
• The room must have total fixed ventilation equal to the chimney / flue area.
• Refer also to “Wonderfire FFB Convector Box” instructions if fitting a Convector Box.
Fitting the unit
• The unit should be fixed to the base of the fireplace with a screw to each front corner of the
burner.
Gas
• Gas connection is to a ½” BSP male fitting connected to the RHS of the valve. It is located
100mm from front, 45mm up from floor and 170mm in from front RH corner of the appliance
• Thoroughly blow out the supply pipe to clear any dust and debris.
• Ensure all connections are gas tight.
• Note: Do not bring the gas supply down the active chimney.
Coals
The WONDERFIRE has ceramic coals and a burner designed to appear like a coal fire.
• The unit is supplied with the ceramics assembled ready for operation.
• When the unit is unpacked check that no damage has occurred in transport.
• Carefully place the ceramic coal assembly on top of the burner making sure that it sits in place
correctly.
• No other coals should be added as this will adversely affect the performance of the fire.
• Wash hands after handling the ceramic base or coal assembly.
Co issioning
• Once the fire is fitted and connected to the gas, test the unit’s operation.
• After 10 minutes operation from cold, test for fireplace spillage, i.e. all products of combustion
are entering the flue, by traversing the perimeter of the opening or canopy, using a smoke
generator (E.g. a smoking twist of paper or smoke match).

9
SERVICING DETAILS
• The following notes are to assist a serviceman in the event of a malfunction.
• Servicing must only be carried out by authorised personnel.
• Spare parts and advice are available from Glen Dimplex on 1300 554 155.
• See also the Fault Finding chart.
To Check Burner Pressure
• Gas consumption is 35 MJ/hr - Natural Gas ONLY.
• Appliance Test point pressures: High:Natural Gas 0.50 kPa
• The burner pressure test point is on the valve to the left. The rear test point is the supply or inlet
pressure and the front point is the appliance test point.
• Remove test point plug and connect manometer. Switch the gas and appliance on. Take
pressure reading once the unit is running and it should be within tolerance. Turn the unit and
gas off, disconnect the manometer and replace the test point plug.
• The pilot runs off the inlet pressure and needs a minimum of 1.135 pa to stay alight.
To Make Pressure Adjust ents
• The regulator adjusts the burner pressure. The adjusting screw is on the right hand side of the
valve under the plastic front cover.
GAS CONTROL
• The SIT gas control and valve is situated under the burner tray. To access; remove the coals
and disconnect the gas supply. Remove the burner and place upside down on a flat surface
covered with old newspaper.
BURNER
• To access the burner remove the coals. The burner is glued in to the burner tray. Examine it for
any damage and check the venturi at the rear for lint and dust. Carefully clean as required.
• Ensure that the main injector is located centrally with respect to the venturi.
• Minor cracking of the ceramics is normal and will not affect the operation of the appliance.
FAN (if the appliance is fitted in a FFB convector box)
• To remove the fan, ensure that the fan has been unplugged from the power supply, unscrew the
4 screws holding the fan to the front of the fire box. Carefully lift the fan assembly forward.
• The fan’s wiring diagram is located next to the terminal block. The fuse is a 1 amp fuse.
WARNING
Improper use of this gas fire could be hazardous to health. This fire is to be used either in a
WONDERFIRE FFB convector box properly installed and flued in accordance with its
instructions, or a non-combustible fireplace with the chimney or flue free of any obstruction
or damper.
The fireplace, hearth, chimney, flue, canopy or any other part associated with the fireplace
must conform with the relevant building regulations for domestic type solid fuel burning
appliances.
We strongly recommend the use of an approved fireguard whenever young children
or the infirm are in the presence of a working fire.

10
FAULT FINDING CHART
Fault
Igniter Sparks but
no Ignition
ossible Cause
No Gas
Corrective Action
Check supply
Purge lines
Gas Ignites but goes
out
Thermocouple cable loose
Thermocouple Faulty
Oxypilot Air inlet blocked
Gas pressure too low
Tighten at rear of valve
Replace Oxypilot
Blow/clean out
Pilot runs off mains pressure which must be at
least 1.135 pa
Gas will not ignite
After turning off
Time safety lock in operation Wait over a minute and retry
Flame Abnormality Incorrect Pressure
Dirt in jets or burner
Check and reset pressures
Clean Jet and Burner
Low Flame Incorrect Pressure Check and reset pressures

11

GLEN DIMPLEX AUSTRALIA PTY LTD
ABN 69 118 275 460
Head Office/Factory/Showroom
1340 Ferntree Gully Rd.
Scoresby Vic 3179
Ph: 1300 554 155 Fax: [phone]
