Monessen Hearth MAGNUM MCUF36E-F User manual
Installation and
Operating Instructions
264720
MCUF cover
Do Not Build a Wood Fire.
26D4720 2/13 Rev. 10
26D4720
2
MCUF Series Vent-Free Firebox
Before You Start .......................................................................................................... 5
What You Will Need for Installation ............................................................................. 5
Firebox and Framing Dimensions ............................................................................... 6
Minimum Hearth Dimensions ...................................................................................... 6
Brass or Chrome Trim ............................................................................................... 15
Optional Wide Canopy .............................................................................................. 15
Forced Air Kit ............................................................................................................ 15
3
26D4720
MCUF Series Vent-Free Firebox
Please leave these instructions with the appliance.
Please retain these instructions for future reference
.
1. Due to high temperatures, the appliance should be
located out of trafc and away from furniture and
draperies.
2. Children and adults should be alerted to the hazard
of high surface temperature and should stay away
to avoid burns or clothing ignition.
3. Young children should be carefully supervised when
they are in the same room with the appliance.
4. Do not place clothing or other ammable material
on or near the appliance.
5. Any safety screen or guard removed for servicing
an appliance, must be replaced prior to operating
the heater.
6. Installation and repair should be done by a qualied
service person.
7. To prevent malfunction and/or sooting, an unvented
gas heater should be cleaned before use at least
annually by a professional service person. More
frequent cleaning may be required due to exces-
sive lint from carpeting, bedding material, etc. It is
imperative that control compartments, burners and
circulating air passageways be kept clean.
8. Early signs of
carbon monoxide poisoning are similar to the u with
headaches, dizziness and/or nausea. If you have these
signs, obtain fresh air immediately. Have the heater
serviced as it may not be operating properly.
9. The installation must conform with local codes or, in
the absence of local codes, with the
10. This unit complies with ANSI Z21.91 ventless rebox
enclosures for gas-red unvented decorative room
heaters.
11. Do not install heater in a bathroom or bedroom.
12. Correct installation of the logs, proper location of the
heater, and annual cleaning are necessary to avoid
potential problems with sooting. Sooting, resulting
from improper installation or operation, can settle on
surfaces outside the replace. See log placement
instructions for proper installation.
13. Avoid any drafts that alter burner ame patterns. Do not
allow fans to blow directly into replace. Do not place
a blower inside burn area of rebox. Ceiling fans may
create drafts that alter burner ame patterns. Sooting
and improper burning will occur.
14. Candles, incense, oil lamps, etc. produce
combustion byproducts including soot. Vent-free appli-
ances will not lter or clean soot produced by these
types of products. In addition, the smoke and/or aro-
matics (scents) may be reburnt in the vent-free appli-
ance which can produce odors. It is recommended to
minimize the use of candles, incense, etc. while the
vent-free appliance is in operation.
15. An unvented gas-red heater uses air (oxygen) from
the room in which it is installed. Provisions for adequate
combustion and ventilation air must be provided. See
installation guidelines.
16. Keep room area clear and free from combustible
materials, gasoline and other ammable vapors and
liquids.
17. Unvented gas heaters are a supplemental zone heater.
They are not intended to be a primary heating appli-
ance.
18. Unvented gas heaters emit moisture into the living
area. In most homes of average construction, this
does not pose a problem. In houses of extremely
tight construction, additional mechanical ventilation is
recommended.
19. During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain
oils, lms or bonding agents. These chemicals are not
harmful but may produce annoying smoke and smells
as they are burned off during the initial operation of the
appliance; possibly causing headaches, or eye or lung
irritation. This is a normal and temporary occurrence.
The initial break-in operation should last two to three
hours with the burner at the highest setting. Provide
maximum ventilation by opening windows or doors to
allow odors to dissipate. Any odors remaining after this
initial break-in period will be slight and will disappear
with continued use.
26D4720
4
MCUF Series Vent-Free Firebox
20. Input ratings are shown in BTU per hour and are for
elevations up to 2,000 feet. For elevations above 2,000
feet, input ratings should be reduced 4 percent for each
1,000 feet above sea level. Refer to the National Fuel
Gas Code.
21. The appliance and its appliance main gas valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test pres-
sures in excess of 1/2 psig (3.5 kPa).
22. The appliance must be isolated from the gas supply
piping system by closing its equipment shutoff valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig
(3.5 kPa).
23. Do not use this room heater if any part has been under
water. Immediately call a qualied service technician
to inspect the room heater and to replace any part of
the control system and any gas control which has been
under water.
24. Never burn solid fuels in a replace where a unvented
room heater is installed.
25. Always have a replace screen in place when the
appliance is in operation, and unless other provisions
for combustion air are provided, the screen shall have
an opening(s) for induction of combustion air.
26. Do not ll spaces around the rebox with insulation or
other materials. These spaces must be maintained to
prevent the rebox from coming in contact with com-
bustible materials.
Nous recommandons que nos
appareils de chauffage au gaz
soient installés et entretenus par
des professionnels qui ont été
accrédités aux È.U. par le National
Fireplace Institute ® (NFI) comme
étant des spécialistes du NFI en
matièred’appareils de chauffage
au gaz.
It is normal for replaces fabricated of steel
to give off some expansion and/or contraction
noises during the start up or cool down cycle.
Similar noises are found with your furnace heat
exchanger or car engine.
It is not unusual for gas replace to give off some
odor the rst time it is burned. This is due to the
manufacturing process.
It is recommended that you burn your replace
for at least ten (10) hours the rst time you use it.
Place the fan switch in the “OFF” position during
this time.
5
26D4720
MCUF Series Vent-Free Firebox
The MCUF36 and MCUF42 Series are vent-free reboxes.
They feature a self contained heat-circulating system.
This installation manual will enable you to obtain a safe,
efcient and dependable installation of your vent-free
rebox.
Do not alter or modify the rebox or its components under
any circumstances. Any modication or alteration of the
rebox system, including but not limited to the rebox and
accessories, may void the warranty, listings and approvals
of this system and could result in an unsafe and potentially
dangerous installation.
Carefully inspect the contents for shipping damage. If any
parts are missing or damaged, immediately inform the
dealer from whom you purchased the appliance. Do not
attempt to install any part of the appliance unless you have
all the parts in good condition.
Check your packing list to verify that all listed parts have
been received. You should have the following:
1. Vent-Free Gas Firebox
2. Canopy
3. Installation and Operating Instructions
4. Five (5) sheet metal screws for canopy
• Phillips screwdriver • Square
• Framing materials • Hammer
• Saw and / or sabersaw • Tee joint
• Level • Pipe wrench
• Measuring tape • Pliers
• Electric drill and bits
• Fireplace surround materials (noncombustible)
• Caulking material (noncombustible)
• Piping complying with local codes
• Wall nishing materials
• Pipe sealant approved for use with propane/L.P.G.
(resistant to sulfur compounds)
Refer to the installation instructions provided with the log
sets for items required for log set installation.
In planning the installation for the appliance it is necessary
to determine where the unit is to be installed and whether
optional accessories are desired. Gas supply piping should
also be planned. The following steps represent the normal
sequence of installation. Each installation is unique, how-
ever, and might require a different sequence.
1. Position rebox prior to framing or into prepared fram-
ing.

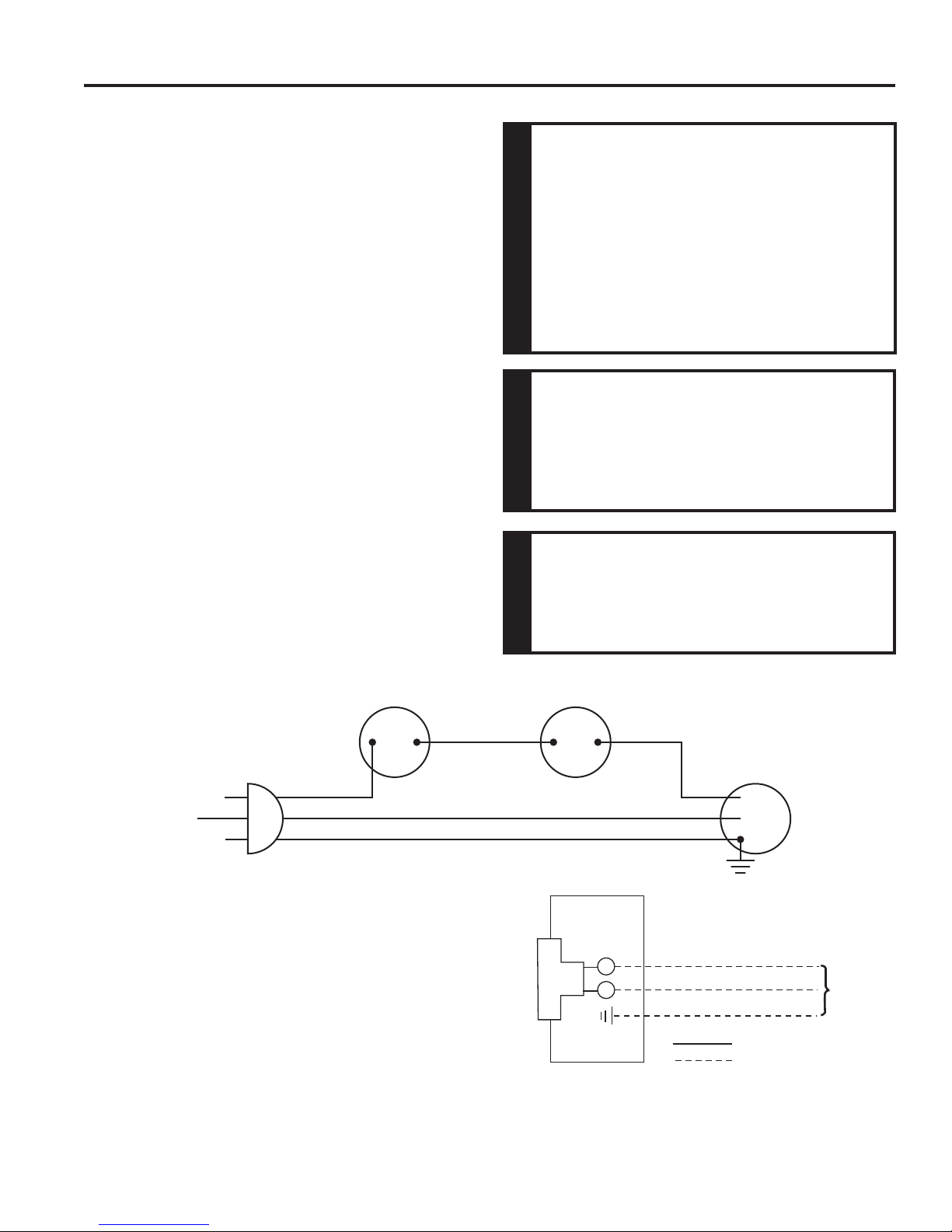

2. Field wire main power supply to models with fan kit.
(Electrical connections should only be performed by an
experienced, licensed /certied tradesman).
3. Plumb gas line. (Gas connections should only be per-
formed by an experienced, licensed/certied trades-
man).
4. Install vent-free gas log heater per the instructions
provided with the vent-free gas log heater.
5. Complete nish wall material, surround and optional
hearth extension to your individual taste.
26D4720
6
MCUF Series Vent-Free Firebox
E
D
F
G
556M”
3256”
256O”
6”
A
B
256O”
2656M"
96M”
856M”
376”
C
264720
MCUF dims
Min. Rough
Opening
Depth
Min. Rough
Opening
Height
H - Min. Rough Opening Width
K
J
J
L
376M”
I
A 41Z\v" 47"
B 36" 42"
C 18Z\v" 18Z\v"
D 32" 38"
E 20C\v" 20C\v"
F 27Z\v" 33Z\v"
G 33M\," 39M\,"
H 41Z\v" 47Z\v"
I 17C\v" 17C\v"
J 48C\v" 53"
K 68M\," 74M\,"
L 34Z\x" 37Z\x"

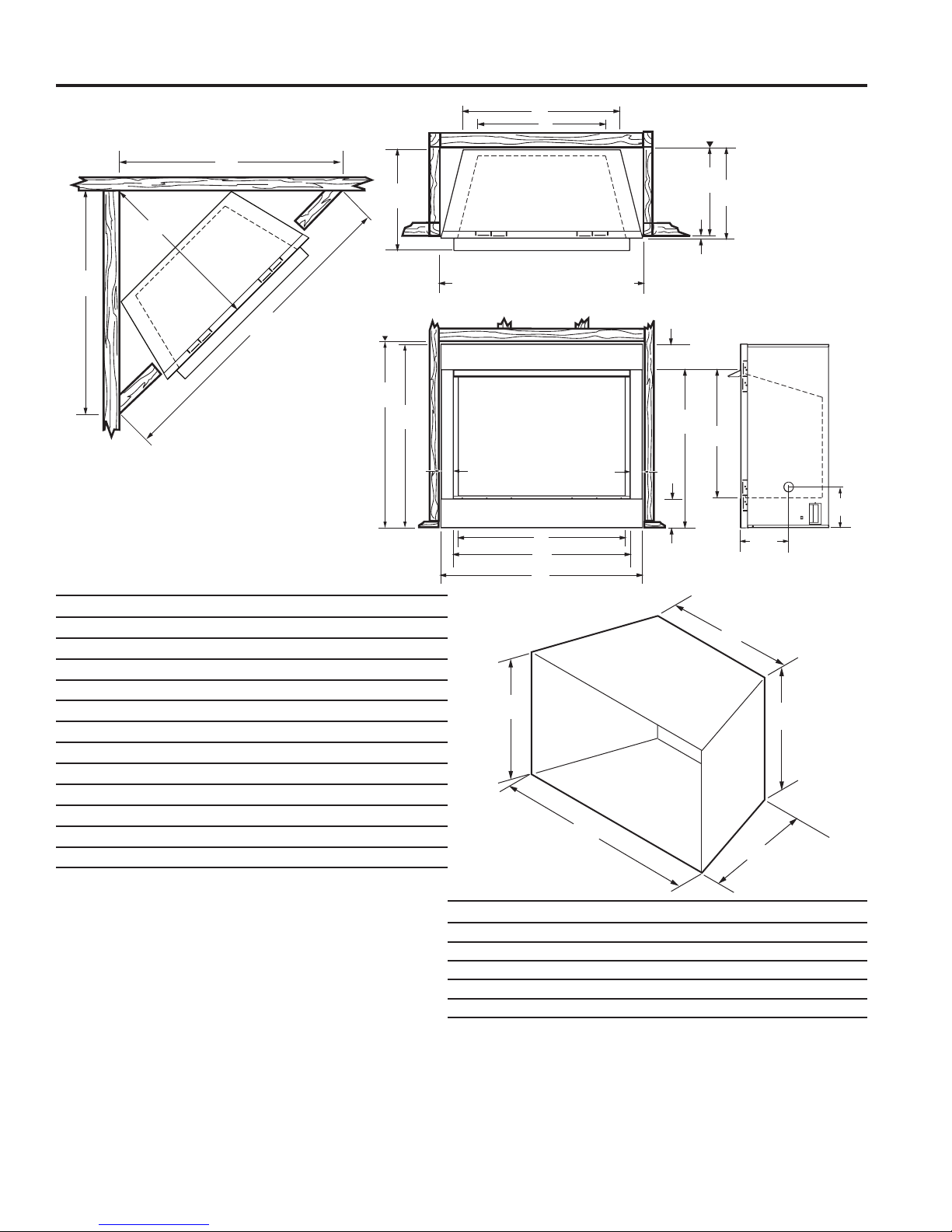

Figure 1 -
Firebox and Framing Dimensions
A
B
C
DE
FP2686
hearth dims
A 26Z\v" 25C\v" 32Z\v" 31C\v"
B 15" 14C\v" 15" 14C\v"
C 32B\," 31Z\," 38B\," 38Z\,"
D 25" 25" 25" 25"
E 20Z\x" 20Z\x" 20Z\x" 20Z\x"
Figure 2 -
Minimum Hearth Dimensions
7
26D4720
MCUF Series Vent-Free Firebox
Carefully select the best location for installation of your
vent-free rebox. The following factors should be taken
into consideration:
• Clearance to side wall, ceiling, woodwork and windows.
Refer to “Clearances/Height Requirements on Page 8.
Minimum clearances to combustibles
• Location must not be affected by drafts caused by
kitchen exhaust fans, ceiling fans, return air registers
for forced air furnaces / air conditioners, windows or
doors.
• Installation must provide adequate ventilation and com-
bustion air.
• Location should be out of high trafc or windy or drafty
areas.
•
• Never obstruct the front opening of the vent-free rebox
or restrict the ow of combustion and ventilation air.
• Minimize modications to existing construction. Refer
to Figure 3 below for location suggestions.
• Do not install in the vicinity where gasoline or other
ammable liquids may be stored. The vent-free rebox
must be kept clear and free from these combustible
materials.

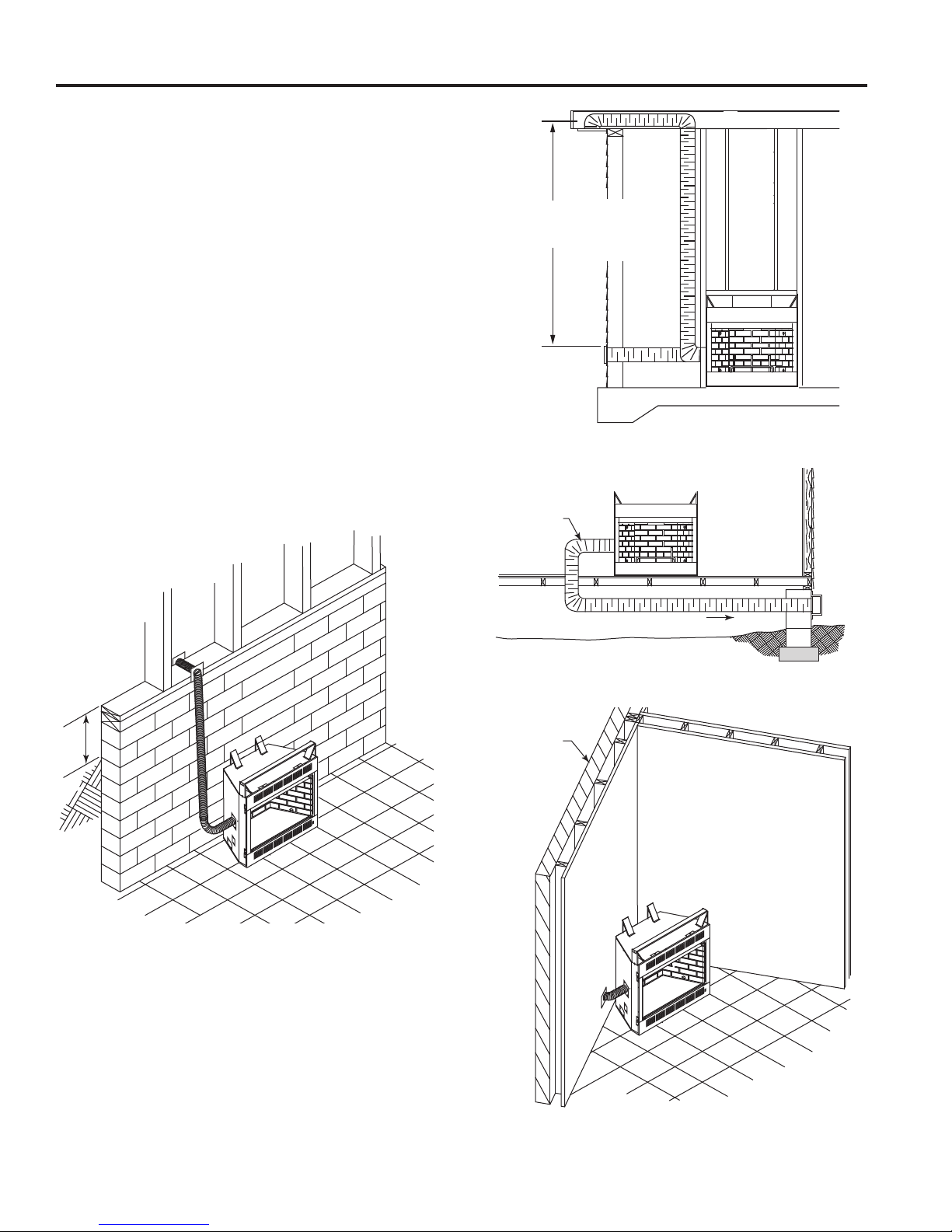

FP2440
fireplace locations
Figure 3 -
Possible Firebox Locations
Ensure that minimum clearances shown in Figures 4
through 7 are maintained. Left and right clearances are
determined when facing the front of the rebox.
Follow these instructions carefully to ensure safe instal-
lation. Failure to follow these requirements may create a
re hazard.
1. The clearance from the inside
of the appliance to any combustible wall should not be
less than 6". Figure 4
2. The ceiling must be at least 42”
from the top of the rebox opening. Figure 4
3. The appliance may be placed
against a combustible back wall.
6"
Minimum
42"
Minimum
6"
Minimum
FP2687
minimum clearances
FP2687
Figure 4 -
Clearance and Height Requirements
This inner chamber rebox oor must
be installed at least 6" above any combustible ooring
material, such as carpeting or asphalt tile, which is
closer than 14" to the base of the rebox. Figure 5
Or
The inner chamber rebox oor may be installed nearer
to the oor if a minimum of 14" of noncombustible mate-
rial such as slate or marble is installed between the base
of the rebox and the combustible ooring. Figure 6
26D4720
8
MCUF Series Vent-Free Firebox
FP2688
min floor combustible
Combustible
Material
6" Minimum
FP2688
Figure 5 -
Minimum Clearance above Combustible Flooring
14” Minimum
FP2689
min floor clear noncomb
Noncombustible
Material
May be Less
than 6"
FP2689
Figure 6 -
Minimum Clearances above Combustible Flooring with
Noncombustible Material Installed at Base of Fireplace
5. The canopy supplied with the unit
must be installed. If a combustible mantel is installed,
it must meet the clearance requirements as shown in
Figure 7a. However, if lower mantel height is desired,
refer to Figure 7b.
The Vermont Castings Group Barrington Cabinet
Mantel Model series BWC300, BWC400 and BWC500 are
specially designed to comply with all mantel temperature
requirements. Any custom-built mantel must comply with all
clearance requirements shown in this instruction manual.
12”
10”
8”
6”
256O”
12”
16”
19”
21”
23”
FP2842
Mantel clearances
Figure 7a -
Mantel Clearances
FP2842
12”
8”
8”
14”
FP2691
mantel clear wide canopy
Figure 7b -
Mantel Clearances for Wide Prole Canopy Only
FP2691
45°
1”
256O”
3”
5”
6”
56O”
56O”
56O”
FP2692
mantel leg clearance
Fireplace Finish Wall
Combustible
Material Area
Hood
FP2692
Figure 8 -
Mantel Leg Clearance
9
26D4720
MCUF Series Vent-Free Firebox
Firebox framing can be built before or after the appliance
is set in place. Construct rebox framing following Figure
1. Refer to Figure 1 on Page 6 for rebox dimensions. The
framing headers may rest on the top of the rebox.
The rebox may be installed directly on a combustible oor
or raised on a platform of an appropriate height. When
the rebox is installed directly on carpeting, tile, or other
combustible material, other than wood ooring, the rebox
shall be installed on a metal or wood panel extending the
full width and depth of the enclosure.
Combustibles may not come any closer to the top of the
enclosure than the standoffs will allow.
1. Bend out the nailing anges located on each side of the
rebox.
2. Slide the rebox into prepared framing or position rebox
in its nal position and frame later.
3. Level the rebox by checking the top edge of the rebox.
Shim if necessary.
4. Anchor rebox to the side framing members using 8d
nails or other suitable fasteners. Figure 9
5. The canopy must be installed for safe operation of
the heater. Refer to Page 11 for canopy installation
details.
FP2693
nailing flanges
Nail Sides
Through
Nailing
Flanges
FP2693

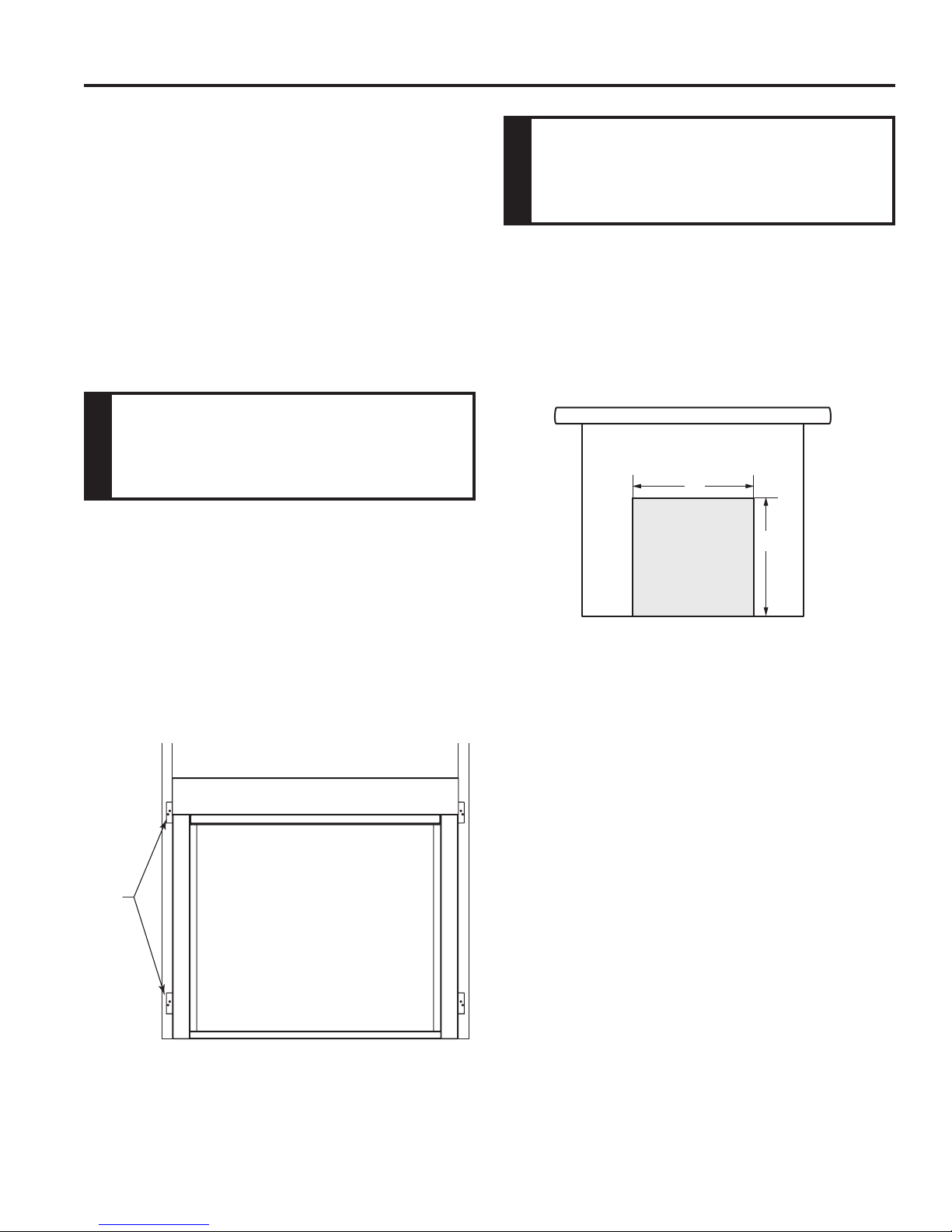

Figure 9 -
Side Nailing Flanges
When nishing a custom cabinet, mantel, or other built-in
enclosure, the opening size to accommodate the replace
with trim installed is as follows:
A 42" 47C\v"
B 38Z\," 38Z\,"
A
B
FP2694
custom cabinet
FP2694
Figure 10 -
Custom Cabinet
26D4720
10
MCUF Series Vent-Free Firebox
Consult all local codes. All gas piping must be installed to
comply with local codes, or in the absence of local codes,
with the latest edition of the National Fuel Gas Code ANSI
Z223.1/NFPA54.
Remove the baseplate for ease of gas line installation.
Remove three (3) screws along the front edge of the base-
plate. Remove four (4) screws which secure the baseplate
to the combustion casing (two at rear and one along each
side). Replace baseplate prior to connecting gas line to
heater. Consult heater installation and operating instruc-
tions for correct installation of the heater into the rebox.
The 1/2" gas line may enter either from the left side or right
side of the rebox. Gas access holes are provided on both
sides of the rebox.
A listed manual shutoff valve must be installed upstream
of the appliance. A union tee and plugged 1/8" NPT pres-
sure tapping point should be installed upstream of hte
appliance.
Install main gas valve (equipment shutoff
valve) in an accessible location. The main gas valve is for
turning on or shutting off the gas to the replace.
A sediment trap may be upstream of the heater to prevent
moisture and contaminants from passing through trap to
the heater controls and burners. Failure to do so could
prevent the heater from operating reliably. Consult appli-
cable codes.
An external regulator must be used on all propane / L.P.G.
heaters, in addition to the regulator tted to the heater, to
reduce the supply tank pressure to 13" w.c. (maximum).
Any copper tubing used to supply propane / L.P.G. from
the tank must be internally tinned.
After completing connection, test all gas joints from the
gas meter to the gas heater regulator for leaks. Using
soap and water solution or a gas sniffer. DO NOT USE
AN OPEN FLAME.
11
26D4720
MCUF Series Vent-Free Firebox
A canopy is furnished with each rebox and be
installed for safe operation. Figure 11
1. Remove the three (3) screws from the top front frame
assembly. Also remove the two (2) screws on the side
frames. Figure 11
2. Align the canopy with the holes in the top frame.
3. Replace the screws previously removed.
4. Tighten side screws. Make sure the canopy is level and
secure.
FP2695
install canopy
Hood
Screws
FP2695

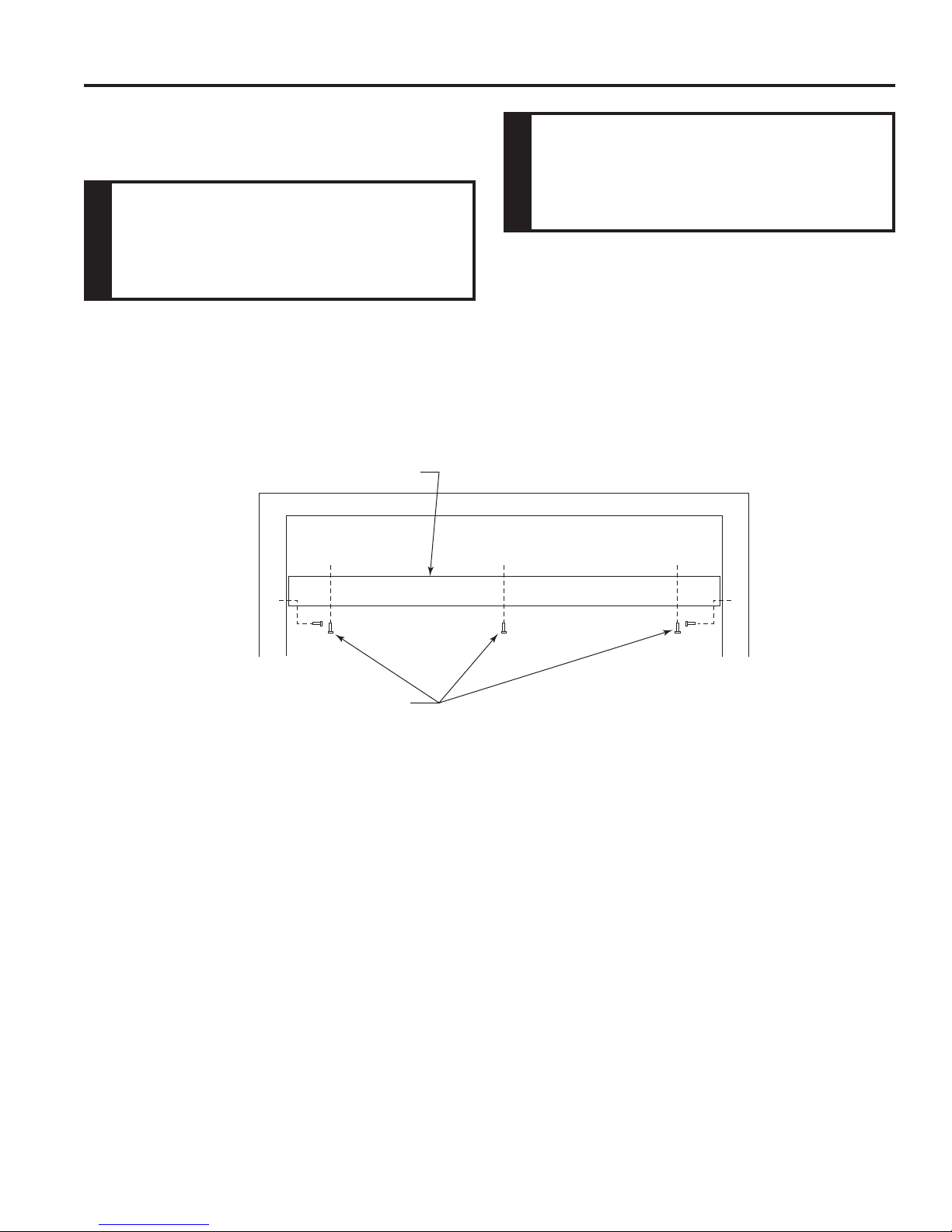

Figure 11 -
Canopy Installation
26D4720
12
MCUF Series Vent-Free Firebox
1. Locate combustion air assembly at an exterior location
which is not likely to be accidentally blocked in any man-
ner. Locate assembly a min. of 12" above the snow line
to prevent blockage by snow accumulation.
2. Never mount the combustion air inlet assembly in a
garage or storage area where combustible fumes such
as gasoline might be drawn into the replace.
3. Combustion air can be drawn from the crawl space un-
der a house when an adequate supply of air is provided
by open ventilation.
4.
5. Locate air supply inlet at least 3' away from any ap-
pliance vent terminal.
6. Avoid extremely long runs and numerous turns in the
duct leading from the replace to the combustion air
assembly. These conditions increase the resistance to
the free ow of air through the duct. Refer to Figures
12 through 15 for methods of installing the outside air
for combustion assemblies.
FP2843
OA basement
Above
Snow
Level
Ground
Level
FP2843
Figure 12 -
Basement Installation
8’ Max
FP2844
OA concrete slab
Inlet Grille
in Soft
(Overhang)
FP2844
Figure 13 -
Concrete Slab Installation
(Optional Outside Air Runs)
FP2845
OA crawl space
Duct
Extended to
Miss Joist
To Outside Wall
FP2845
Figure 14 -
Installation Above Basement
or Crawl Space
FP2846
OA corner install
Outside
Wall
FP2846
Figure 15 -
45° Corner Installation on Slab Floor
13
26D4720
MCUF Series Vent-Free Firebox
The use of outside air for combustion is optional unless
required by building codes. It is only necessary to supply
outside combustion air to one side of the replace. Use the
model AK4 combustion air kit.
1. Remove the cover plate from the 4" outlet opening loca-
tion on the left or right outside of the replace.
2. Place the insulation ring between the AK-4 starting collar
and replace wall.
3. Place the starting collar (4") into the hole on the side
of replace. Fasten it in place with the four sheet metal
screws provided. Figures 16 and 17
The air starting collar extends through the replace
outer wrap. When the air starting collar is securely attached,
it will form a seal against the replace wall.
4. Attach outside duct to starting collar with duct clamp or
screws. Figure 17
FP1900
OA start collar
8/08
Figure 16 -
Attach Outside Air Starting Collar and Insulation
Ring to Left Side of Fireplace
Insulation
Ring
AK-4 Starting
Collar
Sheet Meal
Screws
Left Side of
Fireplace
Shorter End
of Air Starting
Collar
FP2700
OA duct
Screws
Air Starting
Collar
Duct
Left Side of
Fireplace
FP2700
Figure 17 -
Attach Outside Duct to Starting Collar
FP1904
AK4 install
8/08
6"
Diameter
Hole
Duct
Extending
3" Min.
Screws
Nail
Hole
Screws
AK-4 Inlet
Air Vent
Figure 18 -
Combustion Air Assembly for Model
AK-4
FP1904
5. Cut a 6-inch diameter opening for model AK-4 in the
outside wall covering where the outside vent is to be
located. Figure 18
6. Select and cut a piece of duct long enough to attach to
the replace and stick out at least 3" beyond the face of
the wall to which the AK-4 inlet air vent will be attached.
Figure 17
26D4720
14
MCUF Series Vent-Free Firebox
7. If the duct is the insulated type, push the insulation back
from one end of the duct approximately 2". Figure 19
8. Slip the exposed end of the duct over the starting collar
on the replace.
9. Using the sheet metal screws provided, secure the duct
end to the collar attached to the replace.
10.Nail or screw the combustion air assembly to the surface
of the wall.
If the wall covering is brick or stone, use appropriate
masonry fasteners. If necessary, splice the duct. Use a
model 403-duct connector to splice duct sections.
1. Push insulation back approximately 2" from the end of
each duct.
2. Slip each duct over duct connector until an equal length
of connector extends into each duct.
3. Place duct clamp over the end of each duct. Tighten
duct clamp down snuggly.
4. Push insulation back into place and over duct clamp.
FP1907
Duct connector
8/08
Approximately
2”
Figure 19 -
Install Duct Connector 403
Insulation
Duct
Connector
Duct Clamp
Duct
FP1907
15
26D4720
MCUF Series Vent-Free Firebox
Optional brass trim kits can be used with unit when installed
as a free standing replace with wood surround.
The optional wide canopy can be installed. See installation
instructions provided with kit.
(BLOTMC)
If you are installing the forced air kit, Model BLOTMC,
on MCUF36 or MCUF42 models, refer to the installation
instructions provided with the kit for electrical wiring require-
ments, or the blower installation section. The rebox must
be connected to main power supply at time of rebox instal-
lation. The blower must be installed prior to the installation
of the vent-free heater. The electrical connections must
be made before the rebox is framed and enclosed in the
nished walls.
Any of the original wire as supplied with the replace must
be replaced. Contact dealer for proper replacement wiring
harness. (see parts list for part number). 120 volts, 60Hz,
1 amp.
Electrical power cord (plug) can be routed to exit the
MCUF36/MCUF42 on either the left side or the right side.
Remove cord protector from side of unit, route power cord
through hole opposite side. Reinstall cord protector.
Always check local building codes. The
installation must comply with local regulations as well as
the national electric codes.
110/115V AC
OFF
Fan Switch
ON
Black
White
Green
Thermostat
Control
Blower
Motor
Black
FP2847
BLOTMC wiring
Figure 20 -
BLOTMC Wiring Diagram
1. This should be done before framing the replace. Wire
the receptacle into an electrical circuit. Wire with mini-
mum 60° C wire in accordance with prevailing codes.
2. Remove the external junction box cover by removing
the screw from the side of the outside rebox wall.
Junction box was installed at the factory.
3. The junction box cover has a factory installed “romex”
style strain relief connector. After connecting the wires,
route the wire leads through this connector. Refer to
the wiring diagram in Figure 21.
FP1912
Junction box wiring
8/08
Figure 21 -
Junction Box Wiring Diagram
Junction Box
Factory Supplied
Not Supplied
120V AC
60Hz
26D4720
16
MCUF Series Vent-Free Firebox
2
3
5
6
264720

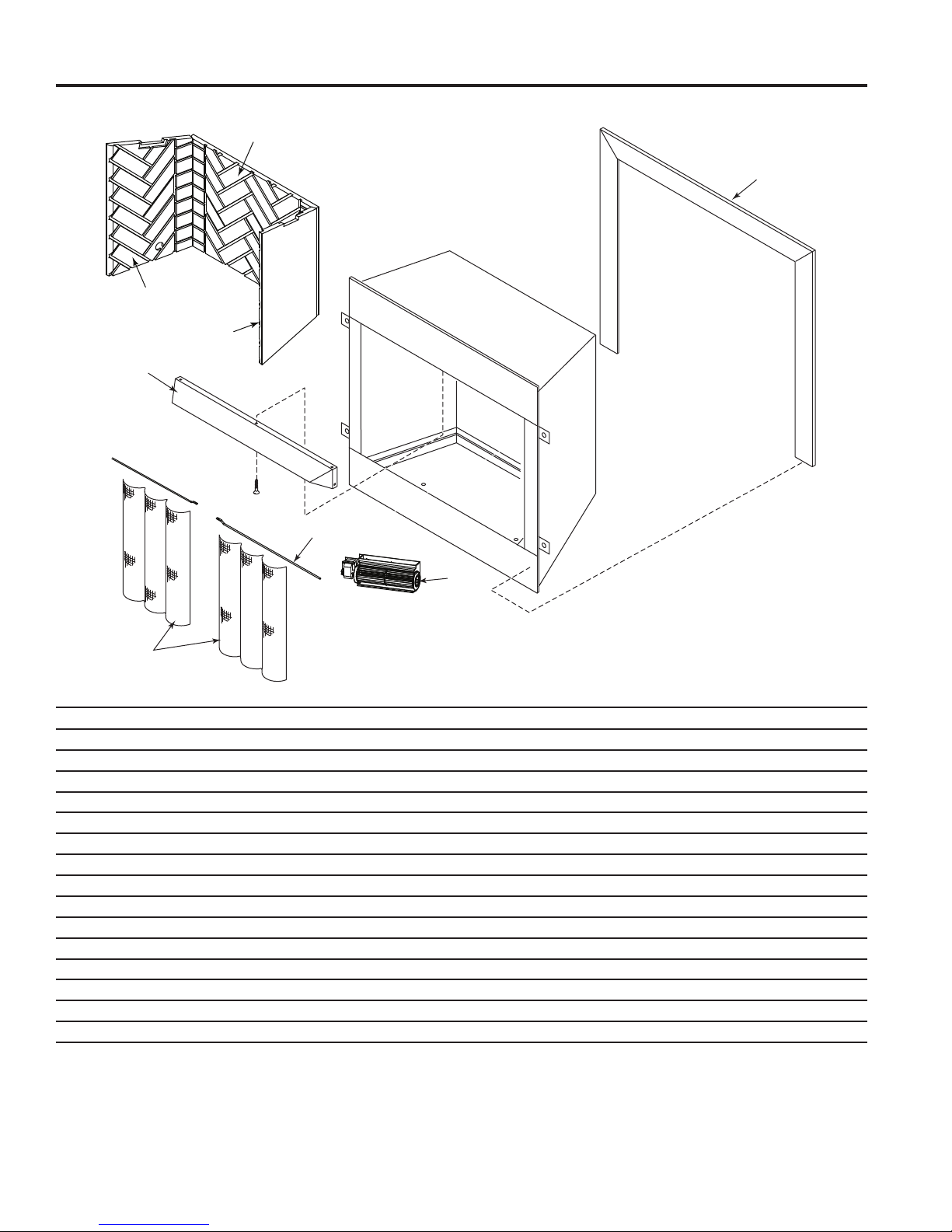

MCUF parts
1
4
4a
4b
4c
1. Canopy 1 71D0500 71D0500 71D1000 71D1000
2. Screen Panel 2 26D4562 26D4562 26D4562 26D4562
3. Screen Rod 2 26D0132K 26D0132K 26D0133K 26D0133K
4. Brick Set 1 20302364 71D3009 20302366 71D3503
4a. Right Side Brick 1 20302359 71D3011 20302359 71D3011
4b. Rear Brick 1 20302360 71D3010 20302365 71D3504
4c. Left Side Brick 1 20302361 71D3012 20302361 71D3012
1. Standard Brass Canopy 1 BRCU36 BRCU36 BRCU42 BRCU42
1. Wide Brass Canopy 1 BRC36 BRC36 BRC42 BRC42
5. Blower w/Rheostat 1 BLOTMC BLOTMC BLOTMC BLOTMC
6. Brass Trim Curved Design 1 BRTKM36 BRTKM36 BRTKM42 BRTKM42
6. Pewter Trim Curved Design 1 PWTKM36 PWTKM36 PWTKM42 PWTKM42
6. Black Trim Curved Design 1 BLTKM36 BLTKM36 BLTKM42 BLTKM42
7. Outside Air Kit (not shown) 1 AK-4 AK-4 AK-4 AK-4
17
26D4720
MCUF Series Vent-Free Firebox
26D4720
18
MCUF Series Vent-Free Firebox
19
26D4720
MCUF Series Vent-Free Firebox
The following components are warranted for life to the original owner, subject of proof of purchase:
Firebox, Combustion Chamber, Heat Exchanger, Grate, and Stainless Steel Burners.
The following components are warranted for 5 years to the original owner, subject of proof of pur-
chase: Vent Free Ceramic Fiber Logs, Catalytic Filter and Aluminized Burners.
Vermont Castings Group warrants the components and materials in your gas appliance to be free
from manufacturing and material defects for a period of two years from date of installation. After
installation, if any of the components manufactured by Vermont Castings Group in the appliance
are found to be defective in materials or workmanship, Vermont Castings Group will, at its option,
replace or repair the defective components at no charge to the original owner. Vermont Castings
Group will also pay for reasonable labor costs incurred in replacing or repairing such components
for a period of two years from the date of installation. Any products presented for warranty repair
must be accompanied by a dated proof of purchase.
This Limited Lifetime Warranty will be void if the appliance is not installed by a qualied installer
in accordance with the installation instructions. The Limited Lifetime Warranty will also be void if
the appliance is not operated and maintained according to the operating instructions supplied with
the appliance, and does not extend to (1) rebox/burner assembly damage by accident, neglect,
misuse, abuse, alteration, negligence of others, including the installation thereof by unqualied
installers, (2) the costs of removal, reinstallation or transportation of defective parts on the appliance,
or (3) incidental or consequential damage. All service work must be performed by an authorized
service representative.
This warranty is expressly in lieu of other warranties, express or implied, including the warranty of
merchantability of tness for purpose and of all other obligations or liabilities. Vermont Castings
Group does not assume for it any other obligations or liability in connection with the sale or use of
the appliance. In states that do not allow limitations on how long an implied warranty lasts, or do
not allow exclusion of indirect damage, those limitations of exclusions may not apply to you. You
may also have additional rights not covered in this Limited Lifetime Warranty.
Vermont Castings Group reserves the right to investigate any and all claims against the Limited
Lifetime Warranty and decide upon method of settlement.
1. Contact your supplier. Make sure you have your warranty, your sales receipt and the model/
serial number of your Vermont Castings Group product.
2. DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.
149 Cleveland Drive • Paris, Kentucky 40361
www.vermontcastingsgroup.com
This manual suits for next models
3
Table of contents
Other Monessen Hearth Indoor Fireplace manuals
Monessen Hearth
Monessen Hearth GCUF32 User manual
Monessen Hearth
Monessen Hearth Premium KHLDV500 Covington Installation instructions
Monessen Hearth
Monessen Hearth MCUF36D-R Magnum Installation instructions
Monessen Hearth
Monessen Hearth ILDV20NV User manual
Monessen Hearth
Monessen Hearth AVFLST42NTSC Manual
Monessen Hearth
Monessen Hearth Covington Direct Vent KHLDV400 User manual
Monessen Hearth
Monessen Hearth ACUF32-BD User manual
Monessen Hearth
Monessen Hearth Direct Vent Gas Fireplace BDV400 User manual
Monessen Hearth
Monessen Hearth BBV400NV User manual
Monessen Hearth
Monessen Hearth 624DVNVC User manual
Monessen Hearth
Monessen Hearth SDV500 User manual
Monessen Hearth
Monessen Hearth KW24-R User manual
Monessen Hearth
Monessen Hearth Direct Vent BLDV500 Installation instructions
Monessen Hearth
Monessen Hearth Unvented Vent-Free Fireboxes BUF400 User manual
Monessen Hearth
Monessen Hearth Indoor Gas Fireplace BDV600C Installation instructions
Monessen Hearth
Monessen Hearth BR400 Mounting instructions
Monessen Hearth
Monessen Hearth WC400 Mounting instructions
Monessen Hearth
Monessen Hearth 36" and 42" Wood Burning Fireplaces BWB500A Installation instructions
Monessen Hearth
Monessen Hearth VFF32LI Manual
Monessen Hearth
Monessen Hearth MCUF36 User manual
Popular Indoor Fireplace manuals by other brands
FireplaceXtrordinair
FireplaceXtrordinair 21 TRV GSR2 owner's manual
Home Decorators
Home Decorators WSFP42HD-11 Assembly instructions
Superior Fireplaces
Superior Fireplaces WRT3920WS Installation & operation instructions
Town & Country Fireplaces
Town & Country Fireplaces TCWS54 SERIES D Installation and operating instructions
Heatiator
Heatiator BIR42 owner's manual
Lennox Hearth Products
Lennox Hearth Products MPE-36R Installation instructions and homeowner's manual
FMI
FMI UM36 Series Owners manual and installation manual
Regency
Regency Excalibur P90 Brochure & specs
kozy heat
kozy heat 911-XXL Installation & operating manual
Duluth Forge
Duluth Forge DF300L OWNER'S OPERATION AND INSTALLATION MANUAL
Heatilator
Heatilator ECO-WINS18 owner's manual
Touchstone
Touchstone 80024 owner's manual
Valcourt
Valcourt FP14 Cartier Installation and operation manual
Heat-N-Glo
Heat-N-Glo BAYFYRE-TRS Installer's guide
decoflame
decoflame Denver user manual
Aurora
Aurora Archer IS760 Installation & operating instructions
Lennox Hearth Products
Lennox Hearth Products B-Vent Elite LBV-3824MN installation instructions
AFLAMO
AFLAMO IMPERIAL AV-WM36IMP owner's manual
