Naomi Home IF-1340 User manual

Instruction Manual
Please take a moment to read through the entire instruction booklet before assembly to
familiarize yourself with this product. Once you feel ready to start, follow the instructions
step by step and this should make this process as easy as we could make it for you.
If you need help or have damaged or missing parts, contact customer service at
www.NaomiHome.com.
Page 1 of 15
NAOMI
Kimball Electric Fireplace
HOME
©
2021 Naomi Home, Inc. - All Rights Reserved.
Insert Completed Product Line Art
Lines min 0.75 - 1.0pt weight
2 Warning
4 Unpacking & Assembly Instructions
5 Installation Instructions
11 Operating Instructions
14 Cleaning & Maintenance
17 Troubleshooting

ADULT ASSEMBLY REQUIRED
PARENTAL SUPERVISION IS REQUIRED
.
WARNING CAUTION
Page 2 of 15
IMPORTANT SAFETY INFORMATION!
WARNING
Read all instructions before using this heater!
This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front
of the heater, and keep them away from the sides and rear.
Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner, Discard heater, or return to authorized
service facility for examination and /or repair.
DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances.
Arrange power cord away from traffic area, and where it will not be tripped over.
WARNING
Connect to properly grounded outlets ONLY.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust openings, as
this may cause electric shock or fire, or damage the heater.
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so
could cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become
blocked.
A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
ALWAYS plug heaters directly into a wall outlet/receptacle. Never use with an
extension cord or relocatable power tap (outlet/power strip).
DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool,become damp or come in contact with water.
AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
Blockage.Unplug the unit and clean with a vacuum ONLY.DO NOT rinse or get wet.
ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.

Page 3 of 15
.
WARNING CAUTION
NEVER use a wall mount bracket from another manufacturer.
This product is not intended to be a primary heat source. It is for supplemental heat only.
INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
Risk of electric shock!DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn this heater off before unplugging it from the outlet.
ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
ALWAYS store this heater in a dry location.NEVER use the fireplace if it has become wet.
NEVER plug this heater into an outlet that is old,cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or face plate is HOT!
iv) If the outlet or face plate is HOT,discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
The power cord supplied with the heater
has a plug with two flat blades (live and
neutral) and one round pin (ground). If a 3-
slot receptacle is not available, an adapter
MUST be used. The adapter MUST be
properly grounded to the outlet box (see
figure at right).(Note:Adapter NOT
INCLUDED.)
SAVE THESE INSTRUCTIONS!
PREPARATION
This product includes a GLASS panel! Always use extreme caution when handing
glass. Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts
and assembly steps are grounded for wall-hanging or recessing use. Check the parts list to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever
possible. You will need the following tools (not included): Phillips screwdriver; stud finder; level;
tape measure; electric drill; 1/4” wood drill bit, hammer.

COMPONENT PARTS
Please check that you have all the parts listed below
6
37
1. Fireplace firebox x1
2. Fireplace Front Glass Panel x1
3. Wall Bracket - at back of firebox x1
4. Metal Bracket x1
5. Firelog setx1
6. Decorative Crystals x1
7. Remote Control x1
1
C
Page 4 of 15
A
m
Model Number A B C D E F G
IF-1340 40”
101.6cm
16.97”
43.1cm
5.50”
14.07cm
36.32”
92.24cm
16.25”
41.27cm
9.21”
23.4cm
33.72”
85.65cm
IF-1350 50”
127.0cm
16.97”
43.1cm
5.50”
14.07cm
46.28”
117.55cm
16.25”
41.27cm
9.21”
23.4cm
43.70”
111.0cm
IF-1360 60”
152.4cm
16.97”
43.1cm
5.50”
14.07cm
56.28”
142.95cm
16.25”
41.27cm
9.21”
23.4cm
53.70”
136.4cm
B
4
5
2
DIMENSIONS
ASSEMBLY HARDWARE
A. Wood Screws Long x2 B. Wood Screws Short x9 C. Wall Anchors x9

INSTALLATION
Page 5 of 15
Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a
suitable location that is not susceptible to moisture and is away from drapes, furniture
and high traffic areas.
NOTE: FOLLOW ALL NATIONAL AND LOCAL ELECTRICAL CODES.
MINIMUM CLEARANCE TO COMBUSTIBLES
Measurements are taken from the glass front
Top 8” (300mm) to mantel
Top 8” (300mm) to ceiling
Bottom 0”
Sides 0”
Back 0”
MINIMUM MANTEL CLEARANCE
WARNING
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE HEAT
RESISTANT TO PREVENT DISCOLORATION
Mantel required clearance from the
Top - 11 3/4 “ inches
HARD WIRING INSTALLATION
TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED
SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE.
WARNING

2
1
INSTALLATION
Page 6 of 15
Framing Hole Size
Model Number W H
IF-1340 36.81”(93.5cm) 16.46”(41.8cm)
IF-1350 46.85”(119.0cm) 16.46”(41.8cm)
IF-1360 56.89”(144.5cm) 16.46”(41.8cm)
RECESSED WALL INSTALLATION
Select a dry wall to open a hole and mount firebox. Review the chart below
to verify the size of the install hole to open. Figure A.
Drill and insert four (4) wall anchors in each side of the firebox according to the dimensions
of the framing hole size selected. Figure B.
AB
C
C
C
C

INSTALLATION
Page 7 of 15
3
RECESSED WALL INSTALLATION CONTINUED
Remove the two (2) silver color screws in both sides of the fireplace. Figure C
Remove one (1) screw near the hot air exhaust port on both sides of unit. Figure D.
With 2 persons, carefully lift off and remove the part 2 front glass from the firebox and store aside
in a clean, secure, soft location where the panel will not fall or be disturbed. Figure E.
Remove 2 packing foams from the firebox holding in the firelog set.
5
C
4
D
E
1
2
2

INSTALLATION
Page 8 of 15
6
RECESSED WALL INSTALLATION CONTINUED
With 2 persons, carefully lift part 1 firebox and insert the unit into the wall hole.
If the appliance is fully recessed into the wall
- Use 4 screws (included) to attach the appliance into the wall with the two side flanges. Figure F
- Replace the part 5 log set or distribute the part 6 Decorative Crystals in the firebox display.
Re-install the front glass and lock the appliance. Figure G.
Installation complete. Figure H.
8
F
7
G
H
1
1
5
2

Due to various building materials used for different walls, it is highly recommended you consult your local
builder before you install this appliance on the wall.
- Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible
materials such as drapes, furniture, bedding, paper, trash, etc.
- Use 2 persons to hold the appliance against the wall and determine the final location.
- Place unit face down on a soft, non abrasive surface. Remove the wall bracket (Figure A) from the back of
the unit (Figure B) by removing the screws (Figure C).
NOTE: It is strongly recommended that the metal mounting bracket 4 be screwed into wall studs where
possible. If wall studs cannot be used, ensure that the plastic anchors (included) or the local builder
recommended hardware is used to install the bracket on the wall and the bracket is adequately secured.
- Using the mount bracket as a template, mark out the location holes and then mount the bracket(s) on
to the wall using the wall anchors and screws included or using local builder recommended hardware
for the type of wall to safely secure and hold the weight of the fireplace.
This bracket MUST have the hooks facing upward and level.
INSTALLATION
Page 9 of 15
1
WALL MOUNTED INSTALLATION
2
AB
D
Fasten the metal bracket 4 at the bottom back of fireplace with screws (included), (Figure D).
After wall mounting bracket 3 is installed on the wall, 2 person lift appliance and hang on bracket by
inserting two hooks into the two slots on the back of unit (Figures E & F).
Mark the holes for bottom metal bracket 4 on the wall. 2 person carefully dismount the appliance from
the two hooks and safely store again in soft non abrasive location.
Drill and insert 2 pcs anchor in wall for Mounting Bracket 3 hole.
Repeat 2 person lift appliance and hang on bracket for final installation.
Secure bottom mount bracket to wall with screws (included) or recommended by local builder.
Check the appliance for stability ensuring the wall bracket will not pull free from the wall (Figure A).
C
E F
3
3
3
4
4
3
1
1
1
1
3
3

INSTALLATION
Page 10 of 15
NOTE: Please install the embers or log set which you bought or selected with this fireplace. Do not install
after market logs or crystals. Ensure the unit is cool prior to servicing or removal of glass front panel.
-Glass front-part 2 must be removed and the appliance must be mounted in its final location before the
log set / crystal / pebble embers are installed.
LOG SET -part 5
- remove the log set packing materials from the firebox. Fire logs can be placed in the
bottom of firebox if not already preinstalled. Figure A
CRYSTALS-part 6
-carefully open the crystal pouch.
-crystals may have a fine oil residue that needs to be cleaned prior to installation. CLEAN THE CRYSTALS
with mild dish soap / water bath. Drain, rinse thoroughly and dry before placing into the tray of firebox.
-Place the plastic tray into the firebox. Figure B
-Carefully place crystals into the bottom tray on the front of the appliance. Apply an even layer of crystals
from side to side. Figure C
LOG SET / CRYSTAL EMBER INSTALLATION
AB
C
5
6

OPERATION
Page 11 of 15
Read and understand this entire owner’s manual, including all safety information, before plugging in
or using this product. Failure do to so could result in electric shock, fire, serious injury, or death.
WARNING
POWER
Plug the power cord into a 110-120V Volt 12 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION
on pages 2, & 3. Make sure the outlet is in good condition and that the plug is not loose. Never exceed the
maximum amperage for the circuit. DO NOT plug other appliance into the same circuit.
METHODS OF OPERATION

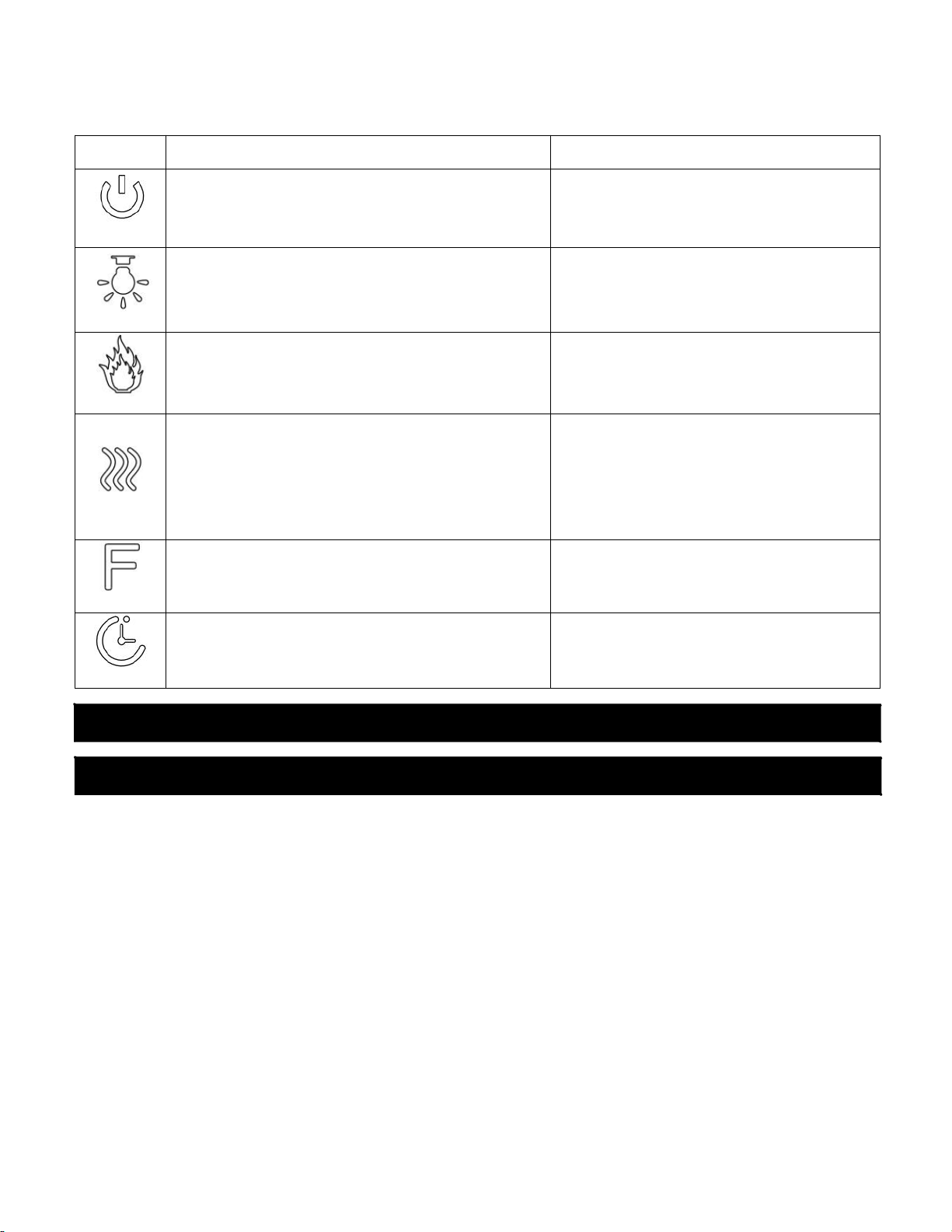

This electric fireplace can be operated by the TOUCH PANEL, located on the BOTTOM
right side glass panel of the fireplace, or by the battery-operated REMOTE CONTROL.
The operation and functions of the two methods are the same.
Before operating, please review the IMPORTANT SAFETY INFORMATION on pages 2 and
3, and follow all warnings.
TOUCH PANEL
REMOTE CONTROL
7

TOUCH PANEL & REMOTE CONTROLS
Page 12 of 15
POWER
COLOR
FLAME
HEATER
TEMP.
TIMER
NOTICE
r is first turned on, a slight odor may be odor may be present. This is normal and
gain unless the heater is not used for a long period of time.
BUTTON FUNCTION ACTION & INDICATION
ON: Enables control panel functions and remote
control. Powers on flame effect.
OFF: Disables control panel functions and remote
control. Powers off flame effect.
COLOR: Change flame to 9 different colors
FLAME: control the brightness intensity of the flame
NOTE: Flame effect stays on until power button is
pressed to power off. Flame effect must also be
on in order to use heater.
HEATER: Powers heater on / off
NOTE: To prevent overheating, the heater fan will
blow cool air for 30 seconds after the heater button
used for for heater off
TEMPERATURE: Select temperature settings to
control optimal temperature range from 62 to 82
degrees (F).
TIMER: Select time range from 1 to 8 hours for
automated shutoff of the fireplace.
ON - Press once. Indicator light turns on.
Power turns on. All functions enabled.
OFF - Press once. All functions end.
Press to cycle through multiple color effects
Press once to decrease intensity. Press
again to dim to desired brightness.
Press once. Indicator lights up, 750W heater
powers on and blows warm air.
Press again. Indicator lights up, 1500W heater
powerts on and blows hot air.
Press again. Heaters power off. Fan blows cool
air for 30 seconds to cool down before power off.
Press once. Indicator lights up, Temperature
is set to 62 degrees (F).
Press until desired temperature is reached.
LED displays temp setting (62-82F).
Press once. Indicator lights up, Timer is set to
1 hour.
Press again until desired shutoff time is set. LED
displays timer setting (1-8) hours.
When the heater is first powered on, a slight odor may be present. This is normal and should
not occur again unless the heater is not used for a lengthy period of time.
NOTICE
To improve operation, aim the remote control at the front of the fireplace. DO NOT press the
buttons too quickly. Remember to give the unit time to respond to each button press.
This heater is equipped with a Temperature Limitiing Control. Should the heater reach an unsafe
temperature the heater will automatically shut OFF.
To Reset after auto shutoff due to overheat:
1. Unplug the power cord from power outlet
2. Press the ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes.
3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint.
If the unit is blocked or clogged, use a vacuum with hose and crevice tool to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet
5. If the problem continues, have your outlet and wiring inspected by a professional.
TEMPERATURE LIMITING CONTROL
REMOTE CONTROL BATTERY REPLACEMENT
Remote control requires two (2) AAA batteries.

Download App
You can download the App by searching “Tuya Smart” in mobile app stores or
scanning the following QR code.
Keep the appliance Master power switch
.
turned on
Kindly check our user manual to
learn how to connect the Tuya Smart App
CARE AND MAINTENANCE
Cleaning
NEVER immerse in water or spray with water. Doing so could result in electric
shock, fire, or personal injury.
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
Use a good quality glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Clean the exterior of the fireplace with a slightly damp cloth or duster.
Maintenance
Risk of electric shock!DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or mov ng this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
APP | CARE & MAINTENANCE




NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.
Page 13 of 15
CONNECT WIFI
i

Electrical and Moving Parts:
The fan motors are lubricated at the factory and will not require lubrication.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
Store heater in a clean dry place when not in use.
WARNING! No other servicing should be performed by the consumer. Do not attempt to
service the unit yourself.
WARNING
DISCONNECT THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE.
ONLY A QUALIFIED SE VICE PERSON SHOULD SERVICE AND EPAIR THIS ELECTRIC APPL AI NCE.



RR
MAINTENANCE & TROUBLESHOOTING
TROUBLESHOOTING
1. Fireplace turns off and will not
turn on.
2. Flame is not moving
1. Loose Wiring
2. Flame motor defective
3. Flame rod out of place
3. Flame is not visible
4. Log set and / or crystal is not
glowing
5. Remote control does not work
1. Wiring is loose
1. Wiring is loose
2. Color / Brightness is off mode
1. Low batteries
2. Not aiming remote at unit correctly
3. Defective remote control and/or
sensor
Page 14 of 15
1. Fireplace has overheated and safety
device has caused thermal switch to
disconnect or circuit breaker has
tripped
PROBLEM POSSIBLE CAUSE SOLUTION
1. Reset switch by turning main POWER
OFF, wait 5 minutes, check for blockage,
power ON or check circuit breaker
1. Inspect wiring for loose connections.
2. Call a qualified service technician to
replace flame motor.
3. “Flame Rod” out of alignment due to
rough transit / handling of appliance.
This issue can be corrected by removing
the glass, turning the fireplace upside
down, remove a set of screw holding
the bottom frame plate and placing
the flame rod back into place.
1. Disconnect from power source
and inspect wiring for loose
connections and repair or replace
if necessary.
2. Press the flame button to high
1. Disconnect from power source
and inspect wiring for loose
connections and repair or replace
if necessary.
1. Replace AAA batteries in remote
control.
2. Aim control at sensor located
directly behind glass screen in
center of unit just above logs.
3. Replace remote control and/or
sensor.

INSTALLATION & INSTRUCTION COMPLETE
www.NaomiHome.com
MADE IN CHINA
Product Packaging Information
Model #:
Color:
Shipment Ref. #:
Date:
________________________________
__________________________________
_________________________
__________________________________
CONGRATULATIONS, YOUR NAOMI HOME KIMBALL
ELECTRIC FIREPLACE IS COMPLETE!
NAOMI
HOME
Page 15 of 15
