BST100 V2 SUPER OVERDRIVE MANUAL

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER
Congratulations on choosing our new BST100 V2 Super Overdrive Guitar Amplier!
This plugin faithfully reproduces the behavior and character of a famous 90s snake skin guitar amplier that dened
an era of the modern high gain.
The BST100 V2 incorporates two independent preamps, Normal and Boost, driven by four 12AX7/7025 virtual tubes.
It features individual preamp gain controls and separate master volume controls.
But we have extended the possibility of the original hardware thanks to the versatility of the digital world with new
features for the maximum control of your tone!
Thanks to the versatility of the digital world, we have extended the possibility of the original hardware with new
features for the maximum control of your tone:
- 6 carefully selected cabinet emulations
- 4 of the best mic emulations used in real recording sessions
- selectable mic positions with volume and pan controls
- noise gate and clean circuit
- a powerful impulses loader to load your favorite IRs

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER
Front Panel
The front panel contains the main control of the BST100 V2 Guitar Amplier plugin
1 - Bright Switch: offers sparkling highs to the Normal channel adding to its versatility
2 - Clean/Crunch Switch: When set to clean, the gain is cut, providing full, clean, undistorted warmth, which is in
credibly responsive and alive. When switched to crunch, the Normal channel responds with higher gain and a
tough, metal edged crunch.
3 - Normal : the control change the level of the normal preamp
4 - Boost : overdrive preamp level control
5 - Tone Stack : bass/mid/treble, these controls adjust the gain on xed ranges within the frequency spectrum in
common for both channels
6 - Normal Master : normal master volume control
112233445566778899

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER
7 - Boost Master : boost master volume control
8 - Presence : acts as overall tone control
9 - Power on/off and Channels Switch :
Power on/off - bypass the plugin to compare your processed and unprocessed signal
Channels - this switch the normal channel and the boost super overdrive channel
1 - Cabinet - Impulse Loader button: opens and closes the Cabinet - Impulse Loader panel
1

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER
Cabinet - Impulse Loader panel
1
1 - Recording Chain Mode: this three buttons switches between the included cabinet/recording
chain emulation, the Impulse Loader and the complete bypass of the entire cabinet/recording chain
emulation. The Cleaner (2), Noise Gate (3) and Levels (4) sections are always active in all the three
Cabinet Mode.
22
33
44
55

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER
2 - Cleaner: this lter section has ben added to our BST100 V2 Guitar Amplier for clear your tone
Rumbling: reduces the low frequency content
Harsh: reduces the high frequency content
3 - Noise Gate: allows you to eliminate the noise produced by the large amount of gain
Power: activates the Noise Gate circuit
Threshold: denes the level where the gate is activated
Range: selects the quantity of noise reduction
4 - Levels: this section let you to control the level before the plugin process and after all the processing
Input : adjust the input level from minus innite to 12db
Output : adjust the output level from minus innite to 12db
5 - Fix button: pressing this button your input level remains the same when you change presets.

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER
Cabinet MODE
1 - Cabinet: you can choose between six selected cabinet emulation
1- SLD 4x12 LEGEND: Based on Soldano* 412B 4x12 cabinet with Eminence* Legend V12 speakers
2- MRH 4x12 G12 : based on Marshall* 1960B 4×12 with Celestion G12T-25W speakers
3- MB RECT 4x12 V30: based on Mesa Rectier* 4x12 with Celestion Vintage 30 speakers
4- ORANGE 4x12 V30: based on Orange* 4×12 with Celestion Vintage 30 speakers
5- BG 2x12 V30: based on Bogner* 2x12 Celestion Vintage 30 speakers
6-TWEED 4x10 P10Q: based on Fender* Tweed Bassman 4x10 Jensen P10Q speakers
112233

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER
2 - Mic 1 and Mic 2 settings: You can use 2 virtual microphones for your amp recording chain and select between 4
different models, select between On or Off Axis postions, change the Position and Distance.
The emulated microphone are:
1- Dynamic 57: based on popular Shure* SM-57 dynamic microphone
2- Ribbon 121: based on modern Royer* Labs R-121 ribbon microphone
3- Condenser 414: based on classic AKG* C 414 condenser microphone
4- Dynamic 421: based on vintage Sennheiser* MD-421 dynamic microphone
3 - Mixer: This 3 faders controls the volume of the 2 microphones in front of the guitar cabinet and the stereo
ambience microphones.
Each channel have a pan control for stereo positions, solo, mute and phase inversion switch.
* Please note that all marks and models are all trademarks of their respective owners, which are in no way associated or afliated with
Nembrini Audio. These marks and names are used solely for the purpose of describing certain tones produced using Nembrini Audio’s modeling
technology.

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER

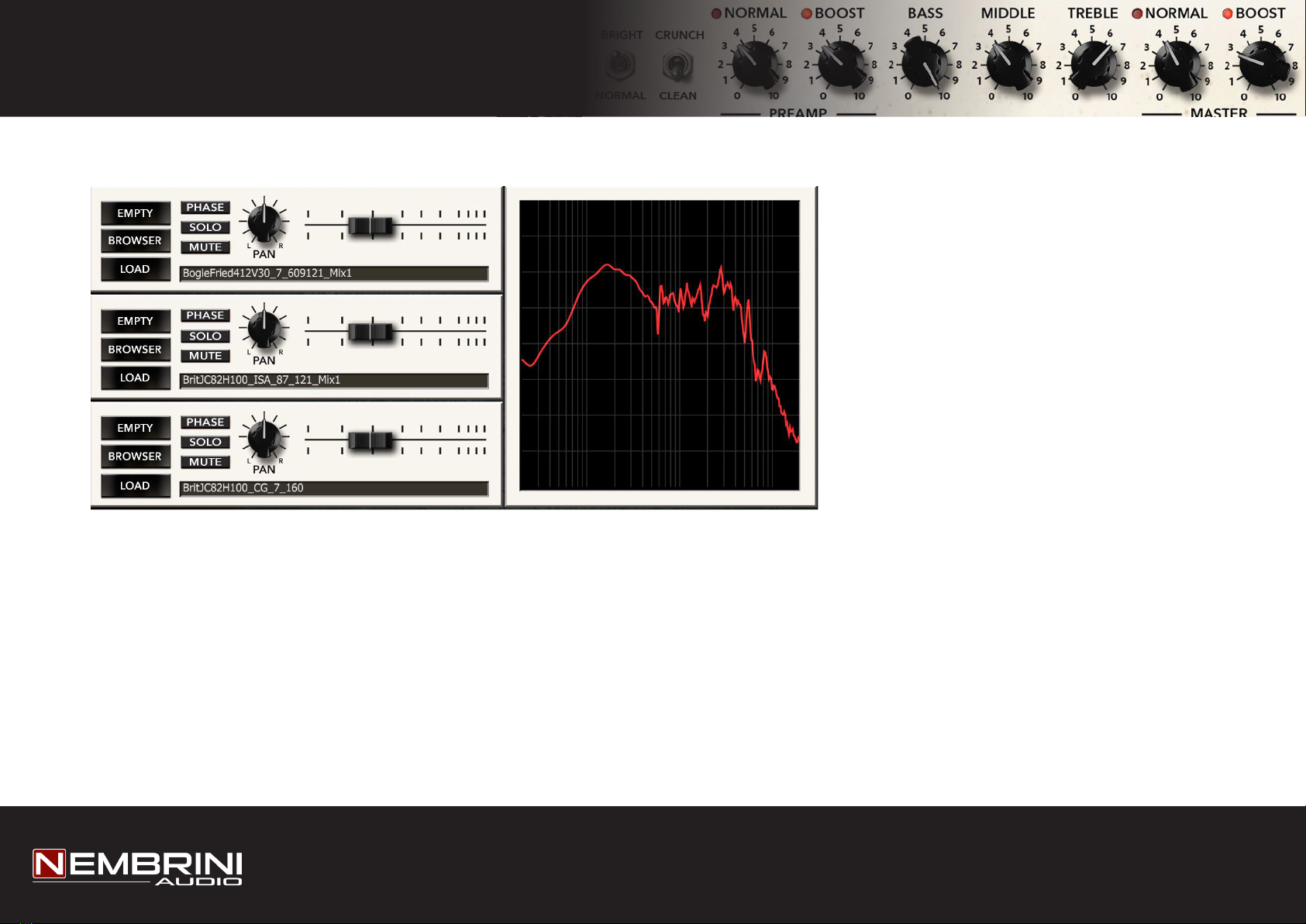

IMPULSES MODE
The Nembrini Audio Impulses Loader let you load up to three 3rd-parties impulse responses and blend
them together. The following settings are available for each of the three loaded IRs:
1 - Empty button: unload the current IR
2 - Browse button: open an explorer window that permit you to select a folder and show you the contained wav les
in the adjacent display (5).
3 - Load button: open an explorer window that permit you to load your favorite impulse response.
11
22
33
44
55

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER

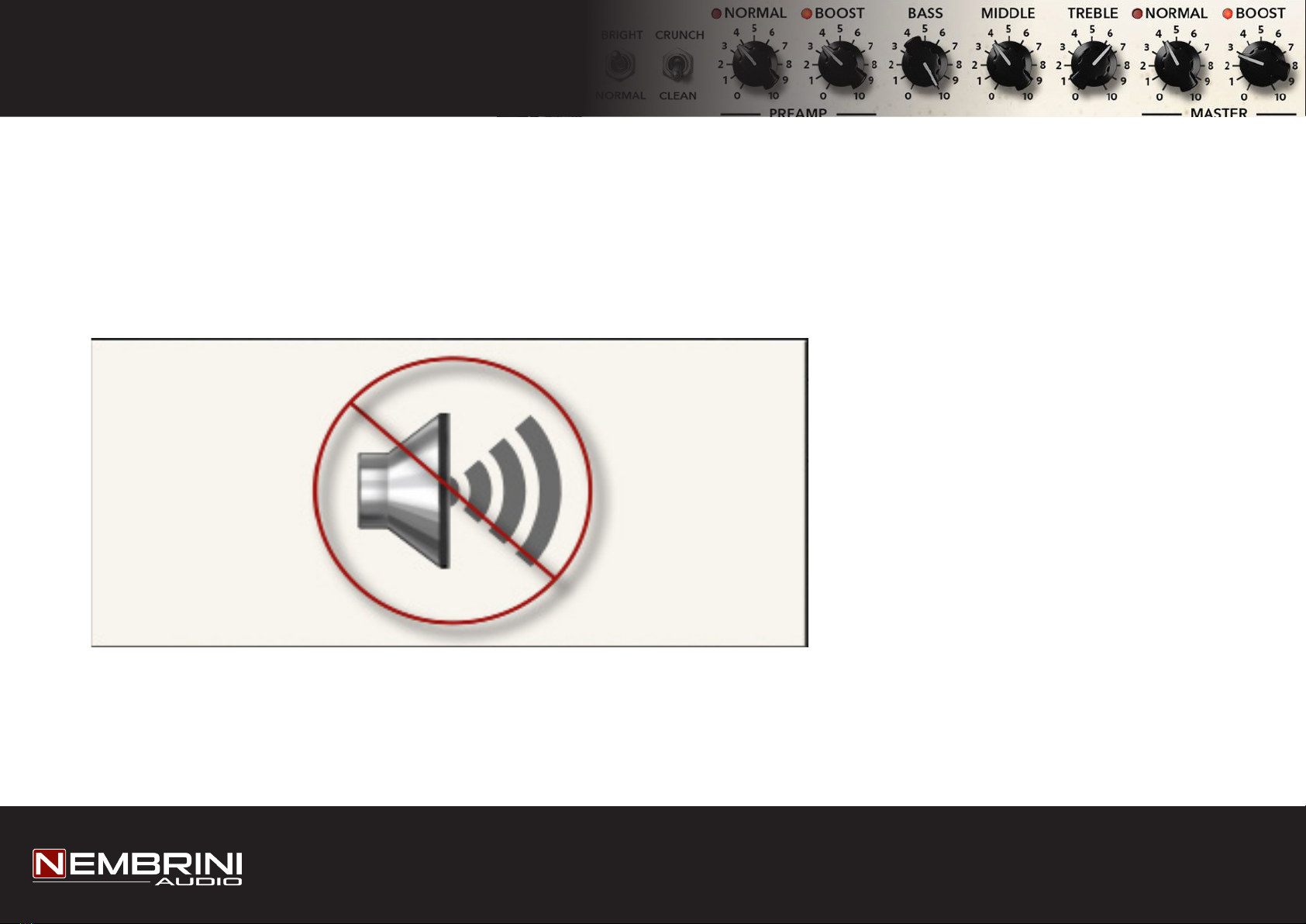

In this mode the whole cabinet / recording chain section and impulses loader are completely bypassed,
letting you use your favorite impulse loader or your real power amplier and speakers system with
the BST100 V2 Guitar Amplier
BYPASS MODE
4 - IR controls: you can change the volume, pan, phase of each IR and Solo or Mute it
5 - Browse/Preview display: in this display you can browse your favorite IRs or view a preview
of the resulting waveform

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER

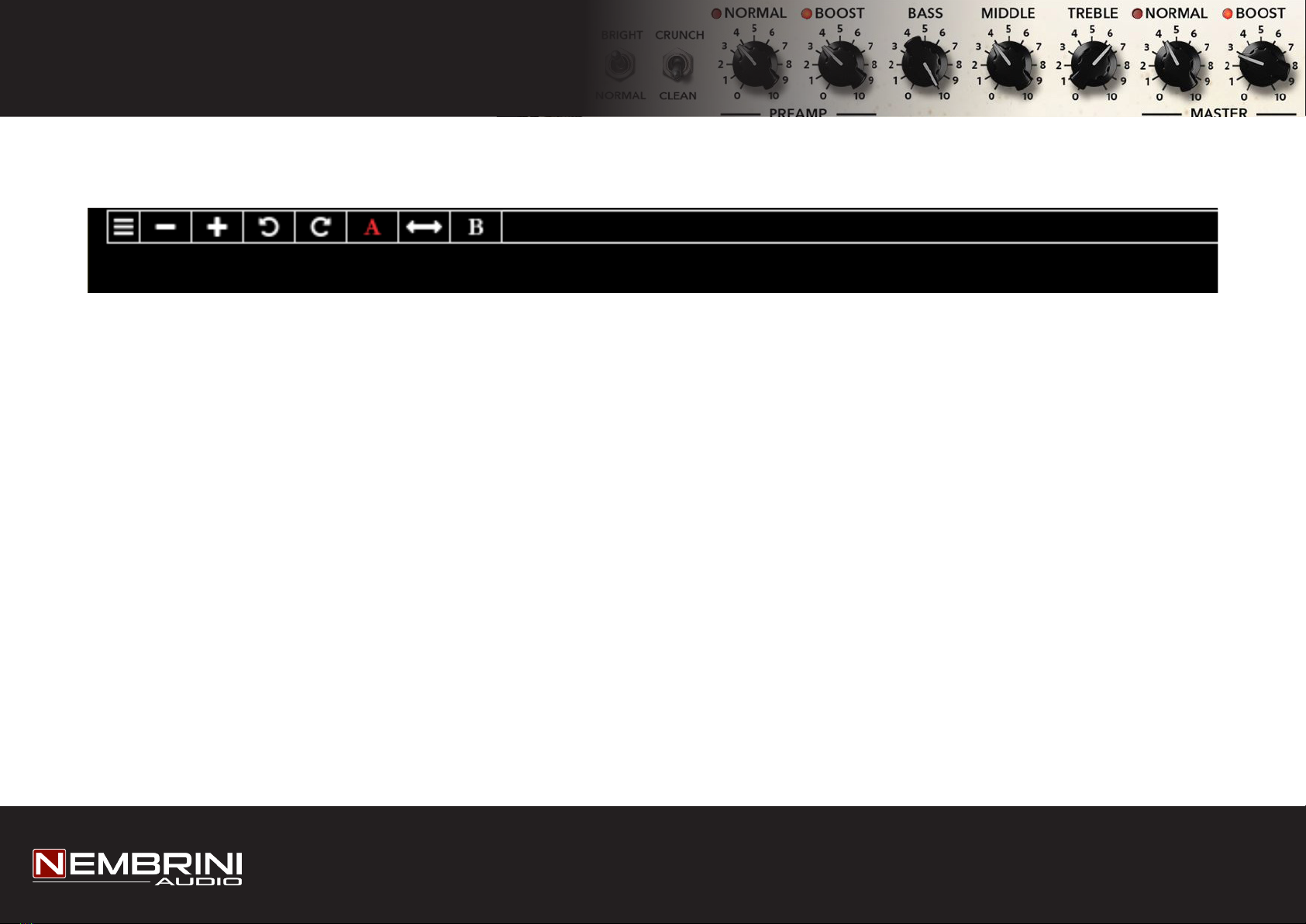

The Toolbars
1 2 3 4 5 4
Top Toolbar
1 - Open the manual and the information about the plugin.
2 - + and - buttons allow you to scroll through the presets.
3 - Undo/Redo changes made to the parameters of the plugin at any time.
4 - With A/B banks, it is possible to compare two different settings in an easy way. It is also possible to compare pre
sets by loading them in the two different A/B banks.The red highlight will show the currently selected bank and what
you will modify/save.
5 - Copy the settings from a bank to another, so you can make slight changes to the controls and compare the two
settings for example.

BST100 V2 SUPER OVERDRIVE GUITAR AMPLIFIER
2 3 4 5
1 - Shows you the active preset. Click on the label to see the preset list.
2 - Allow you to override the current selected preset.
3 - Save the current selected preset as a new preset with a name of your choice.
4 - Delete the selected preset.
5 - Bypass the plugin in order to compare your processed and unprocessed signal.
1
