Nembrini Audio 8180 User manual

8180 Monster TUBE guitar amplifier

8180 MONSTER TUBE GUITAR Amplifier
Thank you for purchasing our 8180 Monster Tube Guitar Amplier plugin!
The 8180 Monster Tube Guitar Amplier plugin is the landmark for heavy and rock guitar sounds.
If you are looking out for a modern and rich high gain tone ideal for the most aggressive rock and metal genre, then
your search ends here!
Nembrini Audio has carefully modeled the fabulous tone of the original 120-watt all tube American guitar head still
used today by many guitar gods all around the world.
Thanks to the versatility of the digital world, we have extended the possibility of the original hardware with new
features for the maximum control of your tone:
- 6 carefully selected cabinet emulations
- 4 of the best mic emulations used in real recording sessions
- selectable mic positions with volume and pan controls
- noise gate and clean circuit
- a powerful impulses loader to load your favorite IRs

8180 MONSTER TUBE GUITAR Amplifier

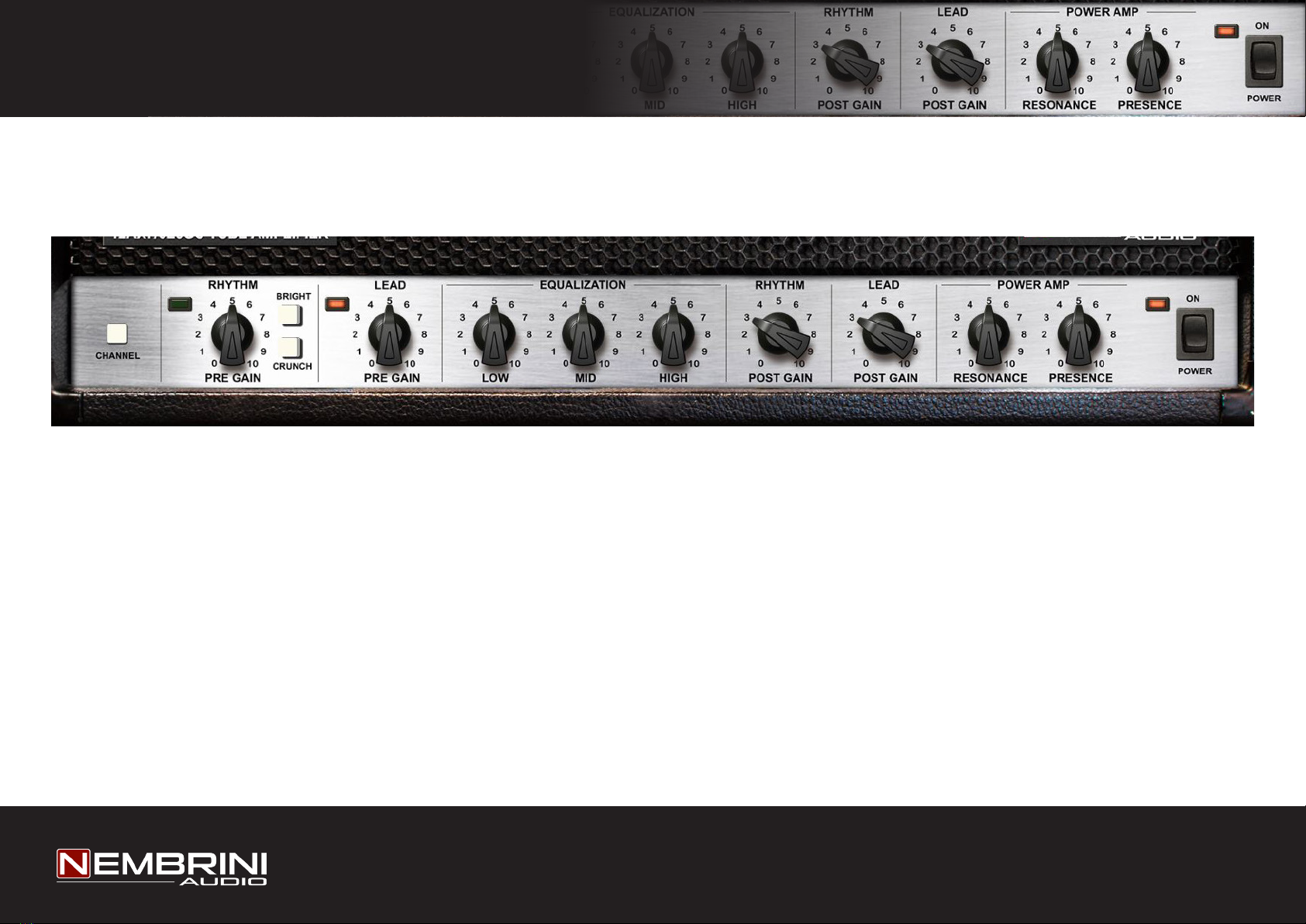

Front Panel
The front panel contains the main control of the 8180 Monster Tube Guitar Amplier plugin:
1 - Channel Selector: switches between Rhythm Channel and Lead Channel.
2 - Rhythm Channel Pre Gain: controls the overall overdrive of the Rhythm Channel.
3 - Bright switch: activates a preset boost in the treble frequencies for the Rhythm Channel.
4 - Crunch switch: boosts the gain of the Rhythm Channel to create a medium distortion tone.
5 - Lead Channel Pre Gain: controls the overall overdrive of the Lead Channel.
6 - Equalizzation section: contains controls for Low, Mid and High passive equalization common to both channels.
1 2 3
4
5 6 7 8 9

8180 MONSTER TUBE GUITAR Amplifier
7 - Post Gain section: two indipendent knob to control the master volume for Rhythm and Lead Channels.
8 - Power Amp section: Resonance boosts the gain of the power amp in the low frequencies.
Presence opens up the sound in the high frequencies.
9 - Power On/Off Switch: bypass the plugin to compare your processed and unprocessed signal.
1 - Cabinet - Impulse Loader button: opens and closes the Cabinet - Impulse Loader panel
1

8180 MONSTER TUBE GUITAR Amplifier
Cabinet - Impulse Loader panel
12
3
4
5
1 - Recording Chain Mode: this three buttons switches between the included cabinet/recording
chain emulation, the Impulse Loader and the complete bypass of the entire cabinet/recording chain
emulation. The Cleaner (2), Noise Gate (3) and Levels (4) sections are always active in all the three
Cabinet Mode.

8180 MONSTER TUBE GUITAR Amplifier
2 - Cleaner: this lter section has ben added to our 8180 Monster Tube Guitar Amplier for clear your tone
Rumbling: reduces the low frequency content
Harsh: reduces the high frequency content
3 - Noise Gate: allows you to eliminate the noise produced by the large amount of gain
Power: activates the Noise Gate circuit
Threshold: denes the level where the gate is activated
Range: selects the quantity of noise reduction
4 - Levels: this section let you to control the level before the plugin process and after all the processing
Input : adjust the input level from minus innite to 12db
Output : adjust the output level from minus innite to 12db
5 - Fix button: pressing this button your input level remains the same when you change presets.

8180 MONSTER TUBE GUITAR Amplifier
Cabinet MODE
1 - Cabinet: you can choose between six selected cabinet emulation
1- MB Rect 4x12 V30: based on Mesa Rectier* 4x12 with Celestion Vintage 30s speakers
2- Shefeld 4x12: based on Peavey* 5150 4×12 with Shefeld 1200 speakers
3- SLD 4x12 Legend: based on Soldano* 412B 4x12 cabinet with Eminence* Legend V12s
4- 1960B 4x12 G12M: based on Marshall* 1960B 4×12 with Celestion G12T-75 speakers
5- BG 2x12 V30: based on Bogner* 2x12 Celestion Vintage 30 speakers
6-Tweed 4x10 P10Q: based on Fender* Tweed Bassman 4x10 Jensen P10Qs speakers
1 2 3

8180 MONSTER TUBE GUITAR Amplifier
2 - Mic 1 and Mic 2 settings: You can use 2 virtual microphones for your amp recording chain and select between 4
different models, select between On or Off Axis postions, change the Position and Distance.
The emulated microphone are:
1 - Dynamic 57: based on popular Shure* SM-57 dynamic microphone
2 - Ribbon 121: based on modern Royer* Labs R-121 ribbon microphone
3 - Condenser 414: based on classic AKG* C 414 condenser microphone
4 - Dynamic 421: based on vintage Sennheiser* MD-421 dynamic microphone
3 - Mixer: This 3 faders controls the volume of the 2 microphones in front of the guitar cabinet and the stereo
ambience microphones.
Each channel have a pan control for stereo positions, solo, mute and phase inversion switch.
* Please note that all marks and models are all trademarks of their respective owners, which are in no way associated or afliated with
Nembrini Audio. These marks and names are used solely for the purpose of describing certain tones produced using Nembrini Audio’s modeling
technology.

8180 MONSTER TUBE GUITAR Amplifier
IMPULSES MODE
The Nembrini Audio Impulses Loader let you load up to three 3rd-parties impulse responses and blend
them together. The following settings are available for each of the three loaded IRs:
1 - Empty button: unload the current IR
2 - Browse button: open an explorer window that permit you to select a folder and show you the contained wav les
in the adjacent display (5).
3 - Load button: open an explorer window that permit you to load your favorite impulse response.
1
2
3
4
5

8180 MONSTER TUBE GUITAR Amplifier

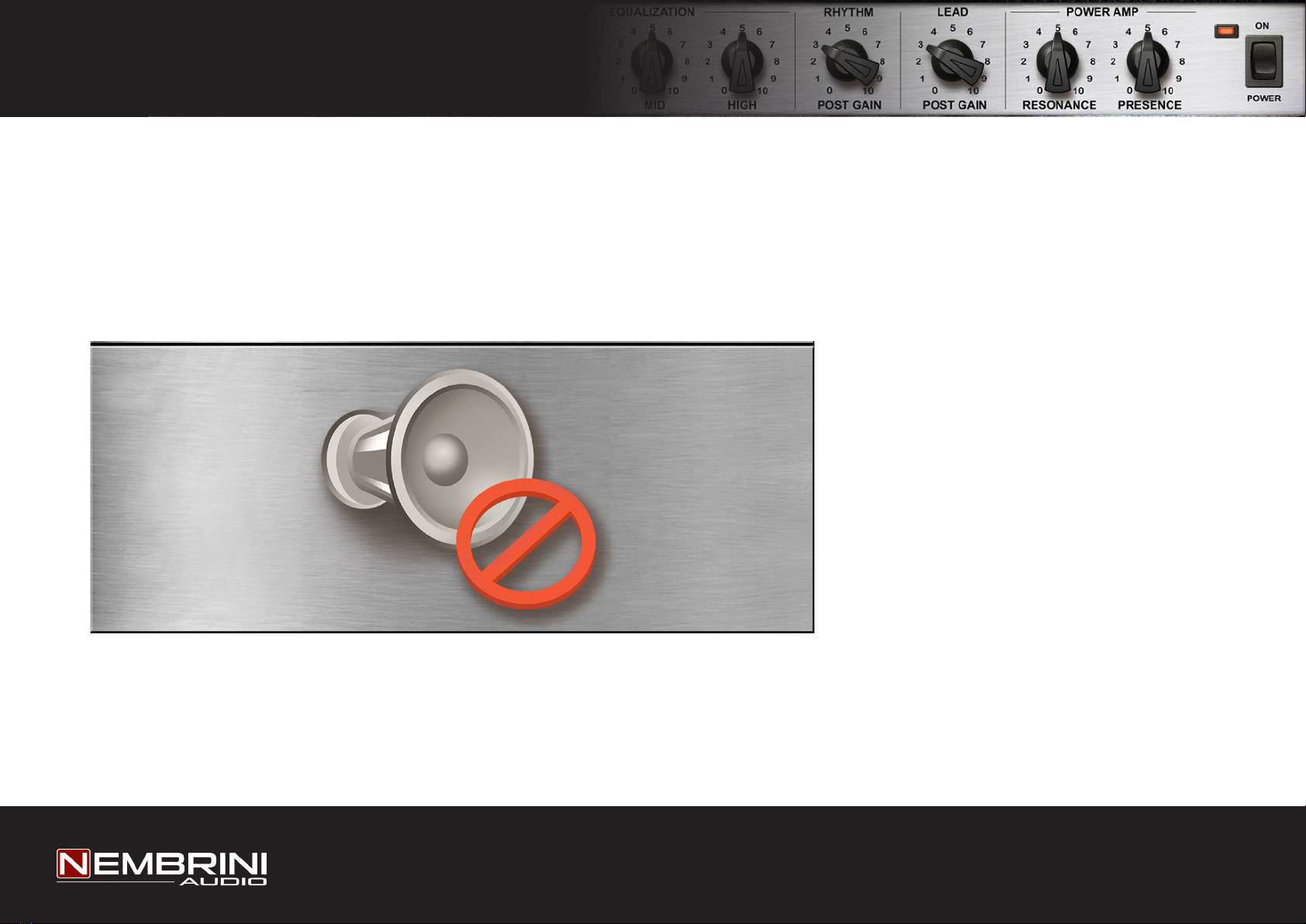

In this mode the whole cabinet / recording chain section and impulses loader are completely bypassed,
letting you use your favorite impulse loader or your real power amplier and speakers system with
the 8180 Monster Tube Guitar Amplier.
BYPASS MODE
4 - IR controls: you can change the volume, pan, phase of each IR and Solo or Mute it
5 - Browse/Preview display: in this display you can browse your favorite IRs or view a preview
of the resulting waveform

8180 MONSTER TUBE GUITAR Amplifier
The Toolbars
1 2 3 4 5 4

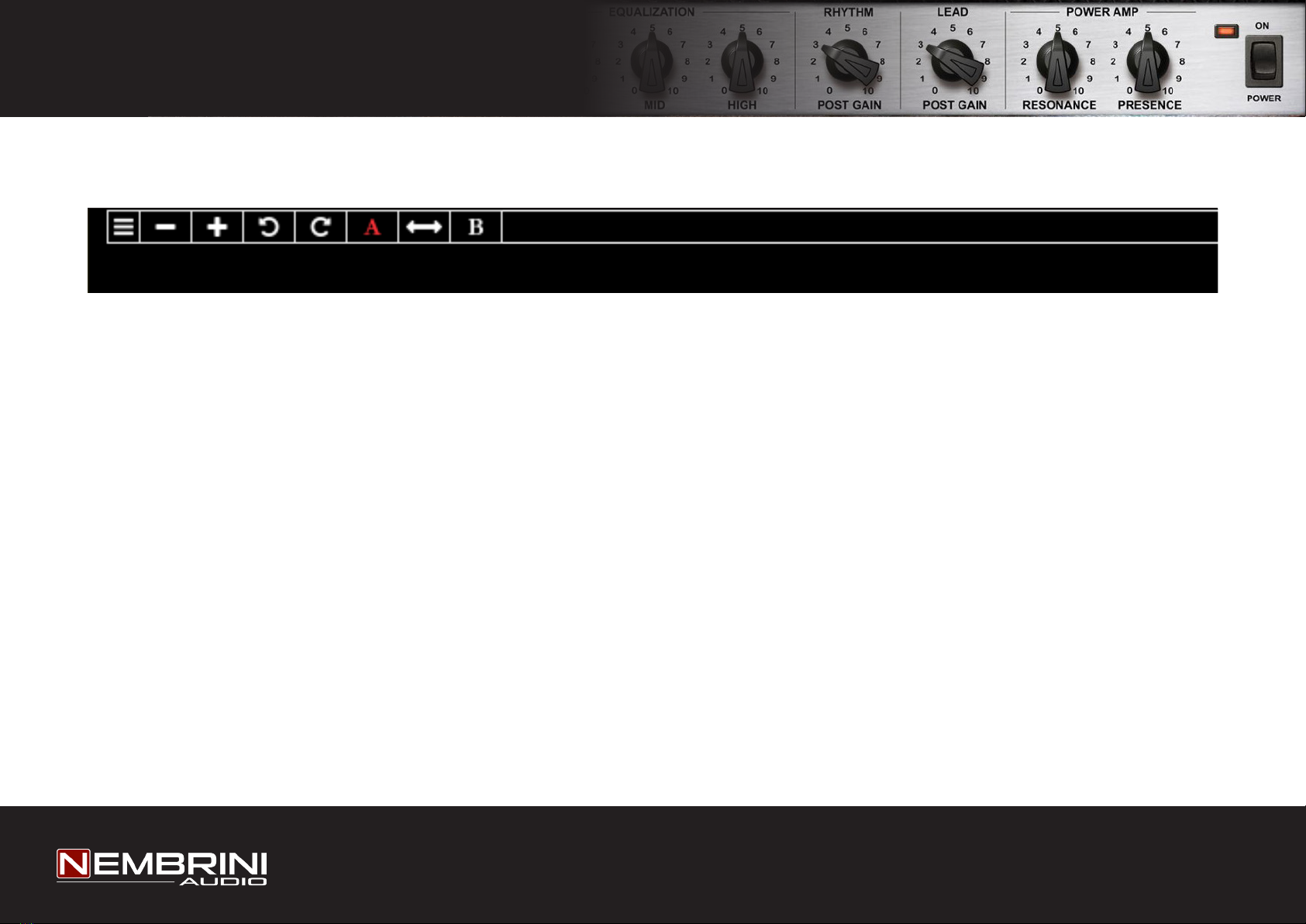

Top Toolbar
1 - Open the manual and the information about the plugin.
2 - + and - buttons allow you to scroll through the presets.
3 - Undo/Redo changes made to the parameters of the plugin at any time.
4 - With A/B banks, it is possible to compare two different settings in an easy way. It is also possible to compare pre
sets by loading them in the two different A/B banks.The red highlight will show the currently selected bank and what
you will modify/save.
5 - Copy the settings from a bank to another, so you can make slight changes to the controls and compare the two
settings for example.

8180 MONSTER TUBE GUITAR Amplifier
2 3 4 5

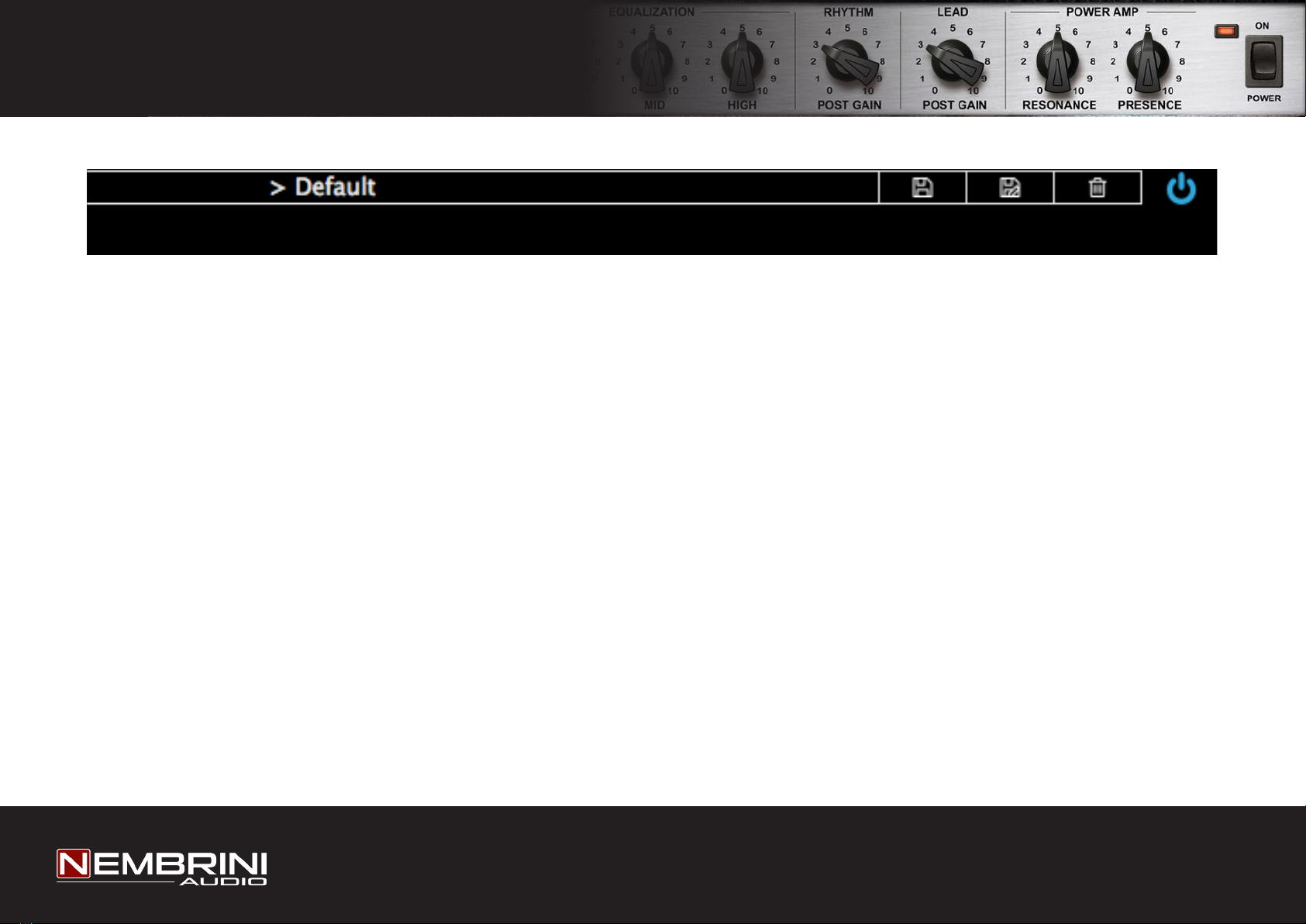

1 - Shows you the active preset. Click on the label to see the preset list.
2 - Allow you to override the current selected preset.
3 - Save the current selected preset as a new preset with a name of your choice.
4 - Delete the selected preset.
5 - Bypass the plugin in order to compare your processed and unprocessed signal.
1
