Installation Guide for the
9 dBi Omni-directional
Antenna ANT2409

ii
201-10080-01
© 2004 by NETGEAR, Inc. All rights reserved.
Trademarks
NETGEAR is a trademark of Netgear, Inc.
Microsoft, Windows, and Windows Media Player are trademarks or registered trademarks of Microsoft Corporation.
RHAPSODY is a registered trademark of Listen.com.
Other brand and product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice. NETGEAR does not assume any liability that
may occur due to the use or application of the product(s) or circuit layout(s) described herein.
Federal Communications Commission (FCC) Compliance Notice: Radio
Frequency Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
In the U.S., the ANT2409 antenna should only be used with devices that have been FCC approved for use with it. Please
check the NETGEAR web site at http://www.NETGEAR.com/go/antannas_fcc for an updated list of FCC
approved devices.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures: (1) Reorient or relocate the receiving antenna, (2) Increase the separation
between the equipment and receiver, (3) Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected, (4) Consult the dealer or an experienced radio/TV technician for help.

201-10080-01
iii
Federal Communications Commission (FCC) and European Radiation
Exposure Statements
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 30 cm (12 inches) during normal operation. This device should not be
co-located with other transmitters.
European Emission Statement
For EU, use of any antenna requires careful planning and extra consideration to comply with EU emissions,
health standards and regulations. It is recommended that a qualified professional installer service is
consulted for site survey and proper installation. Antenna installation must comply with the maximum level
authorized by each country. See http://www.NETGEAR.com/go/antannas_eu for product combinations that
comply with EU regulations.
Safety
The NETGEAR wireless devices WG302, FWG114P, FVM318, ME103, and FM114P have been tested with the antenna
ANT2409 and have successfully passed all relevant tests contained in the Standard for the Safety of Information
Technology Equipment for Europe (EN 60950-2000) equivalent to North American Standards UL 60950, Third Edition,
CAN/CSA-C22.2 No. 60950-00, Third Edition and Australian/New Zealand Standards ACA TS 001-1997, and AS/NZS
3260:1993 with A1 through A4.

201-10080-01
iv

Contents v
Contents
Chapter 1
Getting Started with the ANT2409
Welcome .........................................................................................................................1-1
Package Contents ..........................................................................................................1-1
Pole Mount Configuration ...............................................................................................1-3
Flat Surface Mount Configuration ...................................................................................1-4
Placement and Other Important Considerations ............................................................1-5
Chapter 2
Installing the 9 dBi Omni-directional Antenna
First, Assemble and Mount the Antenna ........................................................................2-2
Now, Connect the Antenna ............................................................................................2-3
Connecting the Antenna for and Outdoor Installation ..............................................2-3
Connecting the Antenna for an Indoor Installation ...................................................2-5
Chapter 3
Specifications
9 dBi Omni-directional Antenna and Mounting Assembly ..............................................3-1
2 Meter Antenna Cable ...................................................................................................3-2
N/SMA Adaptor Accessory .............................................................................................3-3
Lightening Arrestor .........................................................................................................3-4
Radiation Pattern: Elevation (Vertical plane) ..................................................................3-5
Radiation Pattern: Azimuth (Horizontal plane) ...............................................................3-6

vi Contents

Getting Started with the ANT2409 1-1
Chapter 1
Getting Started with the ANT2409
Welcome
Thank you for purchasing the NETGEAR ANT2409 antenna. This Installation Guide provides
installing instructions and guidelines for using the NETGEAR 9 dBi Omni-directional Antenna.
Package Contents
Figure 1-1: Package contents
The package should contain the following items:
D"I/MNI$IRECTIONAL
!NTENNA!.4
.3-!ADAPTER
,IGHTNING
!RRESTOR
MCABLE
,-OUNT"RACKET(ARDWARE
0OLE-OUNT"RACKET(ARDWARE
!NTENNA-OUNTING
!SSEMBLY

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
1-2 Getting Started with the ANT2409
• NETGEAR Indoor / Outdoor 9 dBi 2.4 – 2.5GHz Omni-Directional Antenna ANT2409
• 2-meter low loss antenna cable to connect the antenna to a lightning arrestor
• Lightning Arrestor
NOTE: a ground cable is not included but required for outdoor installation. The grounding
cable must be equivalent or better than: AWG 10, UL 1015, Stranded, 600 V, 105 oC, green or
green/yellow insulation, 2 clip of 5.5 mm inner diameter cramped at both ends, cable no longer
than 5 meters.
• Reverse N/SMA Adapter
• Antenna mounting assembly (tube, grommet, 2 brackets, screws, washers)
• L shape bracket for top & ceiling mounting
• Screws, bolts, washers, U-bolts and plastic anchors
• Installation Guide
• Warranty and Support Information card
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton, including the original packing materials, in case you need to return the product for repair.
Antenna cable for connecting the wireless device is sold separately. Please use a NETGEAR
model ACC-10314-01, 02, 03, 04, or 05 cable.
To obtain optimal results in extending wireless range with antenna installations, consult a qualified
professional installer for site survey and installation assistance.
In the U.S., the ANT2409 antenna should only be used with devices that have been FCC approved
for use with it. Please check the NETGEAR web site at
http://www.NETGEAR.com/go/antennas_fcc for an updated list of FCC approved devices.
For Europe, use of any antenna requires careful planning and extra consideration to comply with
EU emissions and health standards and regulations. Antenna installation must comply with the
maximum level authorized by each country. Please check the NETGEAR web site
at http://www.NETGEAR.com/go/antennas_eu for a list of restrictions and approved devices.

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
Getting Started with the ANT2409 1-3
Pole Mount Configuration
This illustration shows the pole mount configuration option.

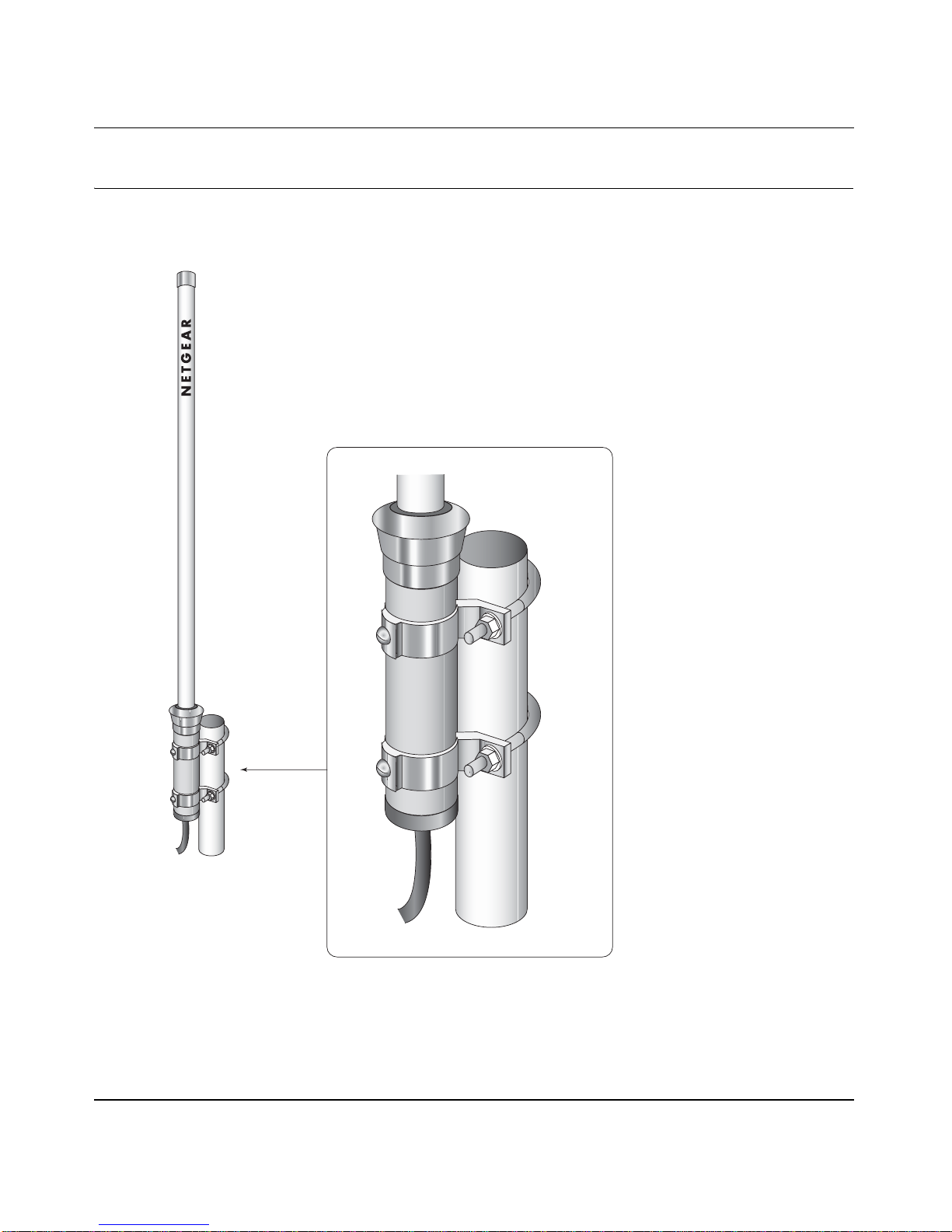

Figure 1-2: Antenna Assembled in Pole Mount Configuration

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
1-4 Getting Started with the ANT2409
Flat Surface Mount Configuration
This illustration shows a flat surface mount configuration.
Figure 1-3: Antenna Assembled in the Flat Surface Mount Configuration
Note: For wall mount installation, the L-bracket is not used.

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
Getting Started with the ANT2409 1-5
Placement and Other Important Considerations
Before installing your wireless antenna, observe the placement considerations. Antenna placement
dramatically affects potential coverage. Follow these guidelines to maximize coverage:
• Place the ANT2409 in a vertical position. Either right side up or up-side-down is Ok.
• Place the antenna in the middle of the coverage zone and at 1.5m or higher above the floor.
• Minimize obstructions around the antenna. Ideally there shall be a visual line of sight between
the ANT2409 and the client antenna(s).
• High Ceiling: place the ANT2409 in the center of the room installed up side down on a pole or
on the ceiling with the L shape bracket.
•Outdoors: Place the ANT2409 on a roof fixed on a pole 2m above the roof level, or fixed
directly on the roof near the edge, or against a wall, or on top of a telephone box. In most of
the cases one ANT2409 is sufficient because the multipath fading is low or acceptable.
However in cases where the building density is high, or narrow streets, or direct echo from
another building, etc. two ANT2409 can improve the wireless performance (throughput and
range). This latter is applicable only if the wireless device has two RF ports.
NOTE: Ground cable is not provided but is required. Use AWG 10, UL 1015, Standard 600 V,
105°C, green or green/yellow insulation, 2 clips with a 5.5 mm inner diameter clamped at both
ends, and cable no longer than 5 meters.
•Indoors: Place the ANT2409 above cubicle level, at the center of large room area preferred
attached to the ceiling, a pole, or a column. Ideally, it should be located outside an IT data
center or outside a room with multiple metal partitions. Use a NETGEAR antenna cable of up
to 10 m length to connect the antenna to the wireless access point/router. In some situations
one ANT2409 is sufficient because the multipath fading is low or acceptable and/or the client
adapter wireless node provide spatial diversity. However in other cases where the multipath
fading effect is medium to high two ANT2409 spaced by a few meters can improve the
wireless performance (throughput and range). This latter is applicable only if the wireless
device has two RF ports.
Indoor wireless propagation loss increases as follows:
• Wood building -- relatively little loss
• Floors in concrete -- some loss
• Reinforced concrete -- more loss
• Metal floor or reinforced concrete with a lot of metal pipes, metal air conditioning
channel, etc. -- most loss

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
1-6 Getting Started with the ANT2409
• The best performance is achieved with a short cable between the antenna and the wireless
device. The shortest approved cable to be used in conjunction with the ANT2409 in North
America is the NETGEAR 1.5 m (ACC-10314-01) cable.
• The antenna should be installed so that it is a minimum of 30 cm (12 inches) away from
people.

Installing the 9 dBi Omni-directional Antenna 2-1
Chapter 2
Installing the 9 dBi Omni-directional Antenna
There are two parts to the wireless antenna installation process:
• Assemble the wireless antenna for pole mount installation or flat surface mount installation.
• Connect the appropriate electrical hardware depending on if the installation is indoors or
outdoors.
Follow the instructions in this section of the manual to install your antenna.

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
2-2 Installing the 9 dBi Omni-directional Antenna
First, Assemble and Mount the Antenna

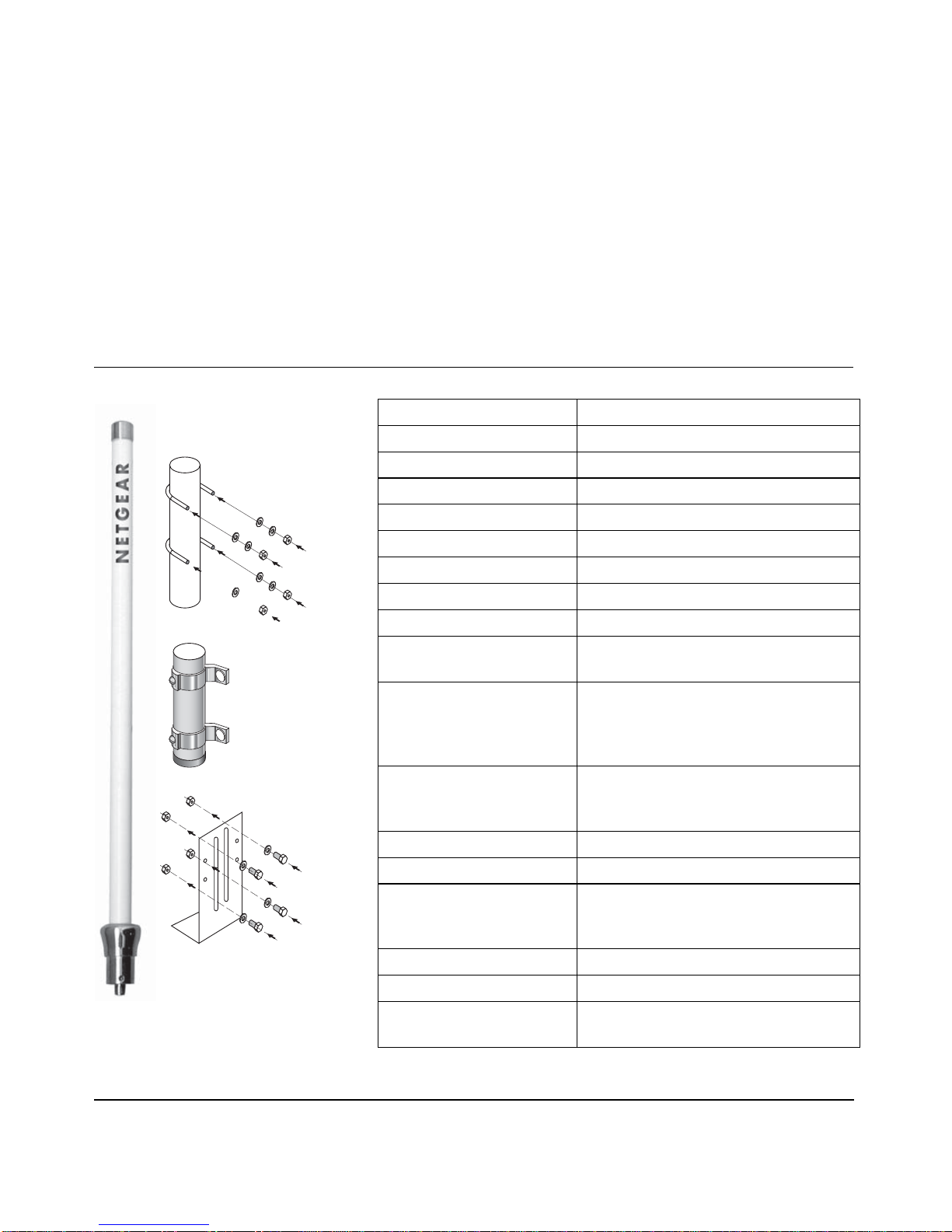

Figure 2-1: Antenna Assembly and Mounting
Step Procedure
Step 1 Feed the antenna cable through the antenna
mounting assembly.
Note: Use the correct cable.
•Outdoors: use the provided 2m antenna
cable.
•Indoors: use the provided N/SMA adapter
with a Netgear cable model
ACC-10314-01, 02, 03, 04 or 05 (sold
separately). For indoors, do not use the
provided 2m cable.
Step 2 Securely attach the antenna cable by screwing
it onto the antenna.
Step 3 Insert the antenna into the mounting assembly.
Step 4 Position the key slot on the antenna so that it
is aligned with the mounting screw hole
illustrated in step 5.
Step 5 Tighten the mounting screw so that it fits in the
key slot on the antenna.
Step 6 Attach the assembled antenna to the mounting
surface with the appropriate hardware (U-bolts
for pole mount, L-bracket or no bracket for flat
mount).
Note: The antenna can be mounted vertically
right-side-up or up-side-down.
#ABLE!SSEMBLY





3TEP
3TEP
3TEP
3TEP
3TEP

3TEP

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
Installing the 9 dBi Omni-directional Antenna 2-3
Now, Connect the Antenna
The instructions below cover outdoor and indoor installations.

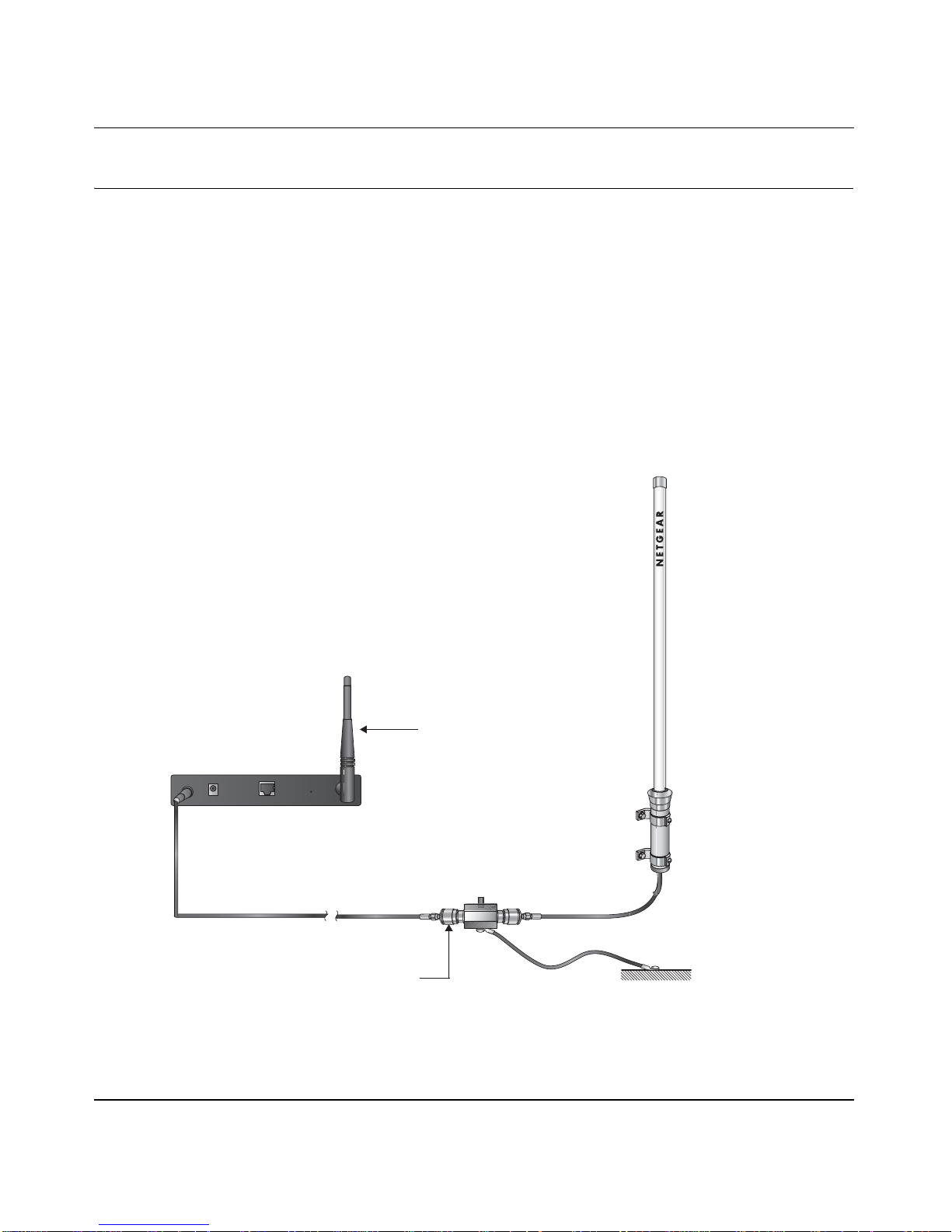

Connecting the Antenna for and Outdoor Installation
1. Turn off your wireless unit.
2. In the procedure “First, Assemble and Mount the Antenna” on page 2-2, the antenna should
have been assembled for outdoor installation using the provided 2-meter cable. Connect the
other side of the cable to the lighting arrestor as shown here. You can connect the cable to
either of the two RF ports on the lightening arrestor.
Figure 2-2: Antenna Assembly Installation Outdoors
MCABLE
PROVIDED
D"I/MNI$IRECTIONAL
!NTENNA!.4
.%4'%!2CABLE
!##
3OLDSEPARATELY
'ROUNDCABLE
.OTPROVIDED "UILDING
GROUNDING
.3-!ADAPTER
,IGHTNING
ARRESTOR
$ONOT
REMOVE
%4(%2.%4
2%3%4
6$#
7IRELESS!CCESS0OINT
3ECONDARY0RIMARY

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
2-4 Installing the 9 dBi Omni-directional Antenna
3. Connect the grounding cable (not included) from the lightning arrestor to the ground of the
building.
Grounding cable: The grounding cable must be equivalent or better than: AWG 10, UL 1015,
Stranded, 600 V, 105 oC, green or green/yellow insulation, 2 clip of 5.5 mm inner diameter
cramped at both ends, cable no longer than 5 meters.
WARNING: the lightning arrestor and appropriate ground cable must be used for outdoor
installation. NETGEAR does not assume any responsibility in case of hazard resulting of
non-compliance with these instructions.
4. Screw the N/SMA Reverse Adapter on the lightning arrestor (clockwise) on the second RF
port. Connect a NETGEAR cable model ACC-10314-01, 02, 03, 04 or 05 (sold separately) to
the adapter.
5. Locate the primary detachable antenna on the wireless access point. Remove the antenna and
connect the other end of the NETGEAR cable ACC-10314-01, 02, 03, 04 or 05 to this port.
NOTE: On access points with two antennas, if you are only replacing one antenna, be sure to
replace the primary antenna and do not remove the secondary antenna.
6. After attaching your new 9 dBi antenna(s), reconnect your wireless device to the network and
turn them on.

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
Installing the 9 dBi Omni-directional Antenna 2-5
Connecting the Antenna for an Indoor Installation
1. Turn off your wireless unit.
2. In the procedure “First, Assemble and Mount the Antenna” on page 2-2, the antenna should
have been assembled for indoor installation using a NETGEAR cable ACC-10314-01, 02, 03,
04 or 05 and the reverse N/SMA adaptor connected to the antenna. The provided 2m cable
should not have been used.
Figure 2-3: Antenna Assembly Installation Indoors
3. Locate the primary detachable antenna. Remove the antenna and connect the other end of the
NETGEAR cable ACC-10314-01, 02, 03, 04 or 05 to this port.
NOTE: On access points with two antennas, if you are only replacing one antenna, be sure to
replace the primary antenna and do not remove the secondary antenna.
4. After attaching your new 9dBi antenna, reconnect your wireless device to the network and turn
it on.
%4(%2.%4
2%3%4
6$#
7IRELESS!CCESS0OINT
0RIMARY 3ECONDARY
$ONOT
REMOVE
!NTENNA
#ONNECTION
D"I/MNI$IRECTIONAL
!NTENNA!.4
!TTACHUSING
2EVERSE.3-!ADAPTER
.%4'%!2ANTENNACABLE
0URCHASEDSEPARATELY

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
2-6 Installing the 9 dBi Omni-directional Antenna

Specifications 3-1
Chapter 3
Specifications
This chapter provides the 9 dBi Omni-directional Antenna specifications.
9 dBi Omni-directional Antenna and Mounting Assembly
Usage OUTDOOR and INDOOR
Frequency Range 2400 - 2485 MHz
Type Omnidirectional
Impedance 50 Ohms nominal
SWR ≤2.0
Return Loss < -10 dB
Gain 8.5 dBi
Polarization Vertical
Connector Type Reverse N Female
Dimensions 22 mm (0.9 in) diameter, antenna
element 610 mm (24 in) length
Maximum volume Diameter: 44 mm (1.7 in) max. at
antenna base
Length: ~ 750 mm (30 in) max. for
cabling with hardware
Hardware included Guide pipe, grommet, 2 brackets, 2
U-bolts for pole fixation, L shape
bracket, screws, washers, etc.
Antenna Color White
Antenna Weight 0.9 kg (2 lbs)
Rust proof Screws, washers, bracket, tube,
antenna metal parts and connectors
are rust proof.
Water Water Resistant
UV UV resistant
Temperature, Humidity -30oC to +80oC (-22 oF to 176 oF), 20
to 90% RH

Installation Guide for the 9 dBi Omni-directional Antenna ANT2409
3-2 Specifications
2 Meter Antenna Cable
Frequency Range 0 - 3 GHz
VSWR 1.5 max.
Cable Type HPF195 Harbour Industries
Transmission Loss 2.2 dB max. @ 2.4 - 2.5 GHz
Connector Type 2 N type Male reverse
Max. Working Voltage 250 Vrms min.
Minimum Bend Radius 25 mm (1 in)
Jacket FRPBC Black, 0.195 in. diameter
Recommended coupling nut torque 229 mm.kg* to 559 mm.kg* (4.1 in lbs to
10.0 in lbs)
Coupling nut retention force 22 kg* (50 lbs) min.
Connector Body & Contact Brass Per JIS H3250 C3604 BD, Plated
Insulation PTFE Fluorocarbon Per ASTM D 1710
Storage, Transportation & Operating
Temperature - 40°C to + 75°C (-40 oF to 167 oF)
Storage, Transportation & Operating
Humidity 20 to 95%RH
Waterproof Water Resistant
UV UV resistant
MCABLE
