Ruijie Networks RG-ANTx3-2400D Installation and operating manual

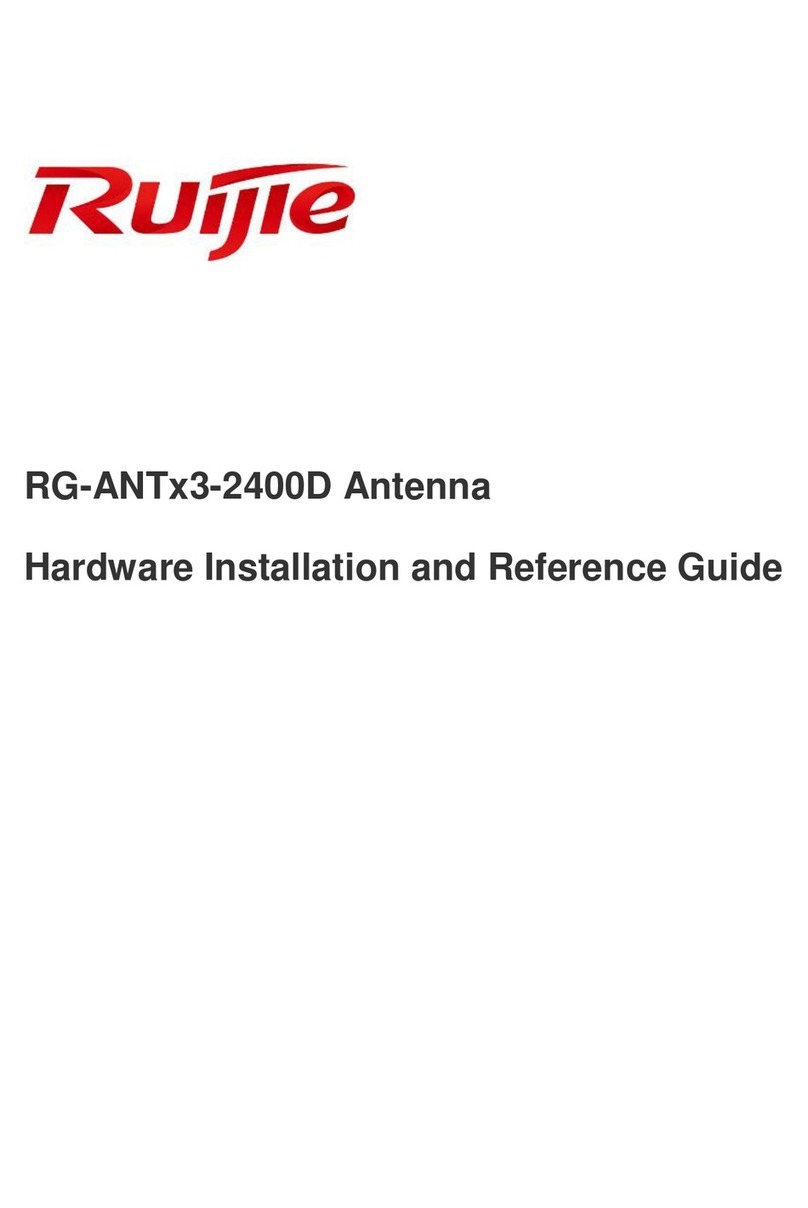

RG-ANTx3-2400D Antenna
Hardware Installation and Reference Guide

·
Copyright statement
Ruijie Networks© 2000-2016
Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,
transmission, translation or commercial use of this document or any portion of this document, in any form or by any means,
without the prior written consent of Ruijie Networks is prohibited.
, , , , ,
, , , ,
, , are registered trademarks of Ruijie Networks.
Counterfeit is strictly prohibited.
Exemption statement
This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain
the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will
not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface
Thank you for using our products. This manual will guide you through the installation of the antenna.
Scope
It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it
is assumed that the users are already familiar with the related terms and concepts.
Obtaining Technical Assistance
Ruijie Networks website: http://www.ruijienetworks.com
Service Email: [email protected]
Technical Support: http://www.ruijienetworks.com/service.aspx
Technical Support Hotline: [phone]
Related Documents
Documents
Description
Configuration Guide
Describes network protocols and related mechanisms that supported by the
product, with configuration examples.
Command Reference
Describes the related configuration commands, including command modes,
parameter descriptions, usage guides, and related examples.
Symbol Conventions
Means reader take note. Notes contain helpful suggestions or references.
Means reader be careful. In this situation, you might do something that could result in equipment damage or
loss of data.

Product Overview
1-2
Chapter 1 Product Overview
The RG-ANTx3-2400D is an outdoor directional 2.4GHz antenna that supports 3X3 MIMO and works with the RG-AP630
series products for coverage and bridge applications of the 2.4GHz band.
RG-ANTx3-2400D
Specifications
Table 1-1 RG-ANTx3-2400D Technical Specifications
Product Model
RG-ANTx3-2400D
Dimensions (L x W x H)
400 mm x 240mm x 35mm
Operating Frequency
2.4 GHz-2.483 GHz
Antenna Gain
3 x 15dBi
Antenna Lobe Bandwidth
2.4G: E:16°; H:65°
Isolation
≤-25 dB
Port Resistance
50 ohm
Polarization Mode
2 x VP + 1 x HP
Connector Type
3×N-K
Weight
2.3 Kg
Operating Temperature
-40°C~+60°C
Installation Method
Pole mounting (pole with a diameter of 30 mm to 50 mm)
Product and Accessory Appearance
Figure 1-1 Product Appearance of the RG-ANTx3-2400D
Figure 1-2 Standard Feeder of the RG-ANTx3-2400D

Product Overview
1-3
Figure 1-3 Standard Waterproof Material of the RG-ANTx3-2400D

Installation
2-4
Chapter 2 Installation
To avoid personal injury and equipment damage, please carefully read the safety suggestions before you
install the RG-ANTx3-2400D.
The following safety suggestions do not cover all possible dangers.
Check Before Installation
The following tools are required when you install outdoor antennas:
Installation Tools
Phillips screwdriver, flat-head screwdriver, paper knife, adjustable wrench, and
strapping tape.
No toolkit is delivered with the RG-ANTx3-2400D outdoor directional antenna suite and you need to prepare
the tools by yourself.
After you open the package, check and accept the products one by one according to the packing list in the package. If the
products in the package do not comply with the packing list, directly contact the supplier or agent.
Installing the Antenna
Please carefully read the precautions before you install the RG-ANTx3-2400D.
Do not install the RG-ANTx3-2400D near the conductive positions, such as power supplies or street lamps.
Do not touch electric wires that may cause injury or death during the installation.
Note that the antenna should be in the range of the 45°lightening protection angle of the lightning rod.
The antenna should be installed at a position away from electric cables and conductive positions.
Avoid installing the antenna alone and try to confirm the installation procedures with other installation personnel.
Work with others when erecting the pole to prevent injuries.
Avoid falling antenna or radio frequency cables.

Installation
2-5
Do not stand on metals or install the antenna in wet and windy days. Wear clothes suitable for antenna installation
and insulated shoes and gloves.
Go to the hospital when accidents happen.
Installing the Antenna Mounting Bracket
Figure 2-1 Fixing the Antenna and Mounting Bracket
Installing the Feeder and Performing Waterproof Treatment
Connect the feeder cable to the antenna port.
Perform waterproof treatment in the connection point for three layers: waterproof tape as the first layer, waterproof clay as
the second layer, and waterproof tape as the third layer.
The procedures are as follows:
a). Wrap the waterproof tape and ensure that the upper layer tape covers more than 50% of the lower layer, as shown in
the following figure:
Figure 2-2 Wrapping Waterproof Tape
Waterproof tape
Patchcord
b). Get 10 cm waterproof clay and wrap the connection point, as shown in the following figure:

Installation
2-6
Figure 2-3 Wrapping Waterproof Clay
c). Wrap the waterproof tape again, as shown in Figure 2-2.
Adjusting the Antenna
Adjust the location of the U-shape hook of the antenna mounting bracket the clamp arc slot to adjust the inclination angle
of the antenna. Then fasten the mounting bracket and the pole, as shown in the following figure:
Figure 2-4 Adjusting the Antenna Angle
Connecting to the AP and Performing Waterproof Treatment
Connect the other end of the feeder cable to the AP port.
Connect the feeder ports of the RG-ANTx3-2400D to the 2.4G-1, 2.4G-2, 2.4G-3 ports of the AP630 with no sequence.
Perform waterproof treatment on the feeder connection point by referring to section Installing the Feeder and Performing
Waterproof Treatment. After waterproof treatment, fix the feeder with the pole and other cables with cable ties.

Installation
2-7
When you use external antennas, configure the RG-AP630 to work in external antenna working mode. For detailed
configuration commands, see the RG-WLAN Series Wireless Access Point RGOS Configuration Guide.
