KWGR Open Source Guide (Rev 2.0)
Open Source User Guide
Open source Wireless-G Router - KWGR614
!!!! Opening The Router Housing or Putting In Any Customer Software on The Router Will Void
The Warranty On Your Router!!!!
Hardware Specification
Chipsets:
- CPU: Realtek RTL8651B (200MHz), embedded with a 5-port Fast Ethernet switch
- Wireless: Realtek RTL8185L / RTL8225
Total memory:
- Flash: 4MB
- SDRAM: 16MB
Memory usage of the latest router firmware:
- Flash: 2MB used = 1,804KB (router firmware V1.0.1-10.17WW) + 192KB (Bootloader + BoardInfo + POT + Configuration)
- SDRAM: about 8.5MB (without including the dynamic memory allocation)
Module and Software Specification
KWGR614 is running Linux 2.4.26.
The following table lists the functional modules of the KWGR614 router and the source and versions of the different modules.
More information on these functional modules can be obtained directly from the source of the packages.
Module Package Version Location (directory)
NAT/NAPT RomeDriver-Realtek 3.6.3 linux-2.4.x/drivers/net/re865x/rtl865x
RIPv1/RIPv2 Copyright 2005, DNI 1.0.0 user/ripd
DHCP server/client udhcpd/udhcpc of Busybox
V1.00-pre2 0.9.10 user/busybox/networking/udhcp
DNS Proxy Dnrd 2.17.2 user/dnrd-dnshijack
Dynamic DNS ez-ipupdate 3.0.11b7 user/ez-ipupdate-3.0.11b7
Web Server BOA 0.94 user/boa
UPNP Copyright 2005, DNI 1.0.0 user/upnp
Telstra's Big Pond Bpalogin V2.0 user/bpalogin
Email Smtpclient 1.0.0 user/smtpclient
Schedule Crond of Busybox V1.00-pre2 1.0.0 user/busybox/miscutils/crond.c
PPP/PPPoE Pppd 2.3.8 user/pppd
PPTP Client pptp-client 1.3.1 user/pptp-client
Ntpclient Copyright 2005, DNI 1.0.0 user/ntpclient
Miscellaneous Copyright 2005, DNI 1.0.0 user/dniutil, user/init
Wireless driver Copyright Realtek 1.12 linux-2.4.x/drivers/net/wireless/rtl8185
L2TP l2tpd 0.69 user/l2tpd
Iptables iptables 1.2.7a user/iptables
Making a Console debug Interface for KWGR614
This section contains instructions on how to make a console interface to a NETGEAR KWGR614 wireless router
for developer’s firmware development and debugging.
KWGR Open Source Guide (Rev 2.0)

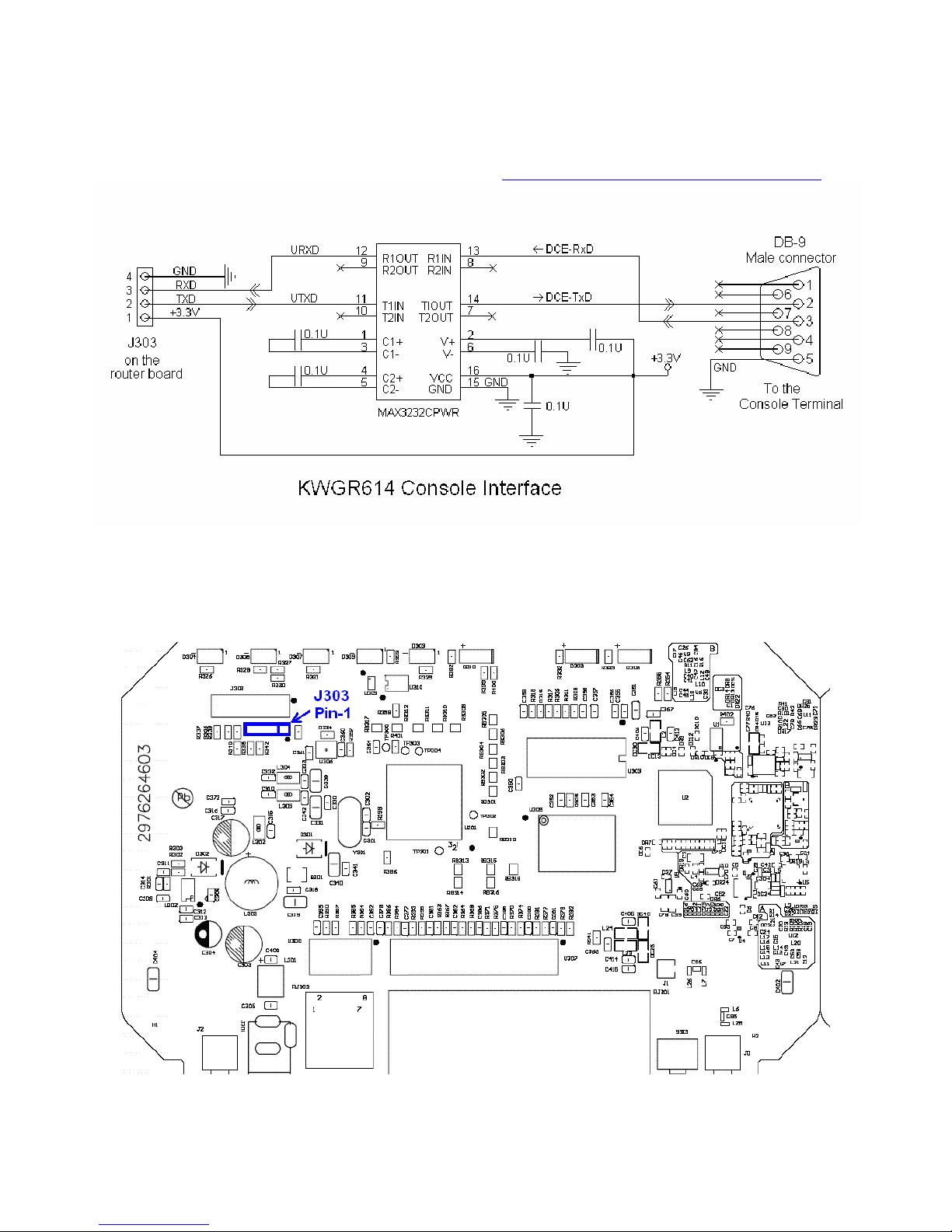

Provided below is an example schematic using MAX3232, the RS-232 Line Driver/Receiver from Texas Instruments
(TI), to make a console board.
(Datasheet of the MAX3232 can be found on TI web site at http://focus.ti.com/lit/ds/symlink/max3232.pdf)
The DB9 (Male) connector is wired as a DCE (think of this as a peripheral serial port), and can be connected
directly to the serial port on a host PC. This gives you access to the built-in serial console on the router (using the
protocol of 38400bps, 8 data bits, none parity, 1 stop bit, without flow control).
Connect the console board to the pin header (J303) on the router board.
KWGR Open Source Guide (Rev 2.0)
The pin-out of J303 on the KWGR614 board is as follows:
Pin 1: VDDH (3.3V)
Pin 2: TxD
Pin 3: RxD
Pin 4: GND (Ground)
There are 3rd party vendors who provide compatible console boards, such us the AD233AK/AD233BK RS232
adapter kits at:
http://www.compsys1.com/workbench/On_top_of_the_Bench/Max233_Adapter/max233_adapter.html
Make sure the adapter board is connected correctly to the corresponding pins of J303 on the router board.
KWGR Open Source Guide (Rev 2.0)
Source Code and Executable
The following section of the document highlights the steps and procedures that are required to download the source code,
install the toolchain, compile and link the existing source code and develop the user applications for the KWGR614 Router.
Suse Linux 10.1 was used for development throughout this guide.
Note: The KWGR614 firmware had been built successfully on the following Linux OS platforms
- Redhat 9.0/8.x
- Fedora 5
- SuSE Linux 10.1
1. Download the complete archive from Netgear OSC web site
(http://kbserver.netgear.com/kb_web_files/open_src.asp) and unpack
KWGR614_V1.0.1_10.17WW_gpl_package.zip
Note: V1.0.1_10.17 is the firmware version number. WW denotes Worldwide version. Other versions are available
e.g NA for North America. Apply the correct file name where appropriate, if you download a different version.
2. unzip KWGR614_V1.0.1_10.17WW_gpl_package.zip
Unzip will result in three files:
KWGR614_README.txt (The Opensource User Guide)
KWGR614_V1.0.1_10.17WW_src.tar.bz2
toolchain_mips_20050831.tar.bz2
3. Unpack the Source code.
tar –xvf KWGR614_V1.0.1_10.17WW_src.tar.bz2
This will create a sub directory KWGR614_xxx/.
xxx -> V1.0.1_10.17WW (xxx denotes the version number)
The Directory has a number of useful documents that we recommend to read before proceeding.
Useful Documents
- /vendors/Documentation/KWGR614_README.txt
- /SOURCE
- /README
- /Documentation/Adding-User-Apps-HOWTO
- /Documentation/Addid-Platforms-HOWTO
4. Install the Tool chain in the root Directory
# cd /
# mkdir uclibc
# cd uclibc
# tar jxvf toolchain_mips_20050831.tar.bz2
# mv toolchain_mips.pv.0831 toolchain_mips
Note: Root user permissions may be required to create the uclibc directory and install the toolchain into the root directory of
the filesystem.
5. Compile
Change working directory to KWGR614_xxx/
a. Type "make menuconfig", and customize your kernel config options.
- Target Platform Selection --->
[ * ] Customize Kernel Settings (NEW)
- Exit
KWGR Open Source Guide (Rev 2.0)
- Exit
- Save configuration? yes
- Exit
- Save configuration? yes
Note: If you are building runtime image for the first time, be sure to save the configuration
when leaving "make menuconfig", even if no change is made to default settings.
b. Type "make dep"
c. (Optional) If you need to customize busybox, goto KWGR614_xxx/user/busybox/, and type "make menuconfig" to
select user level application you need. Then go back to KWGR614_xxx/, and type "make dep" again. This would
update all dependencies.
d. Type "make"
This would build the kernel, user apps, and create image file run.bix under KWGR614_xxx/images/
directory.
After compiling and linking the existing source code already provided, you can now upload the
KWGR614_xxx/images/run.bix file directly to the router after connecting the router to your PC and using the “Router
firmware Upgrade” page on the Router Web GUI.
Custom Applications on OpenSource Router
To develop any custom applications on this router, please follow the following steps
Version String
Set your custom version string in the file user/dni/nvram_realtek.c by defining OS_VERSION. Be certain to remove any
duplicate definition.
user/dni/nvram_realtek.c
The country suffix can be removed from the version string by redefining EXTENSION.
user/dni/nvram_realtek.c
New NVRAM Parameters
Define the structure of the parameter.
#if 1
#ifdef EXTENSION
#undef EXTENSION
#endif
#define EXTENSION “”
#endif
#define OS_VERSION “V1.01.01 Custom”
KWGR Open Source Guide (Rev 2.0)
user/boa/src/rtl865x/board.h
Add the new parameter to the main parameter structure to include it in the configuration set.
user/boa/src/rtl865x/board.h
Create get/set functions for the parameter.
user/dniutil/nvram_realtek.c
Add the get/set handlers to the NVRAM handler table.
char *
nvram_get_example_question (char *name)
{
DPRINTF("nvram_get(\"%s\")\n", name);
sprintf(str, "%s", pRomeCfgParam->exampleParam.question);
return (str);
}
int
nvram_set_example_question(char *name, char *value)
{
DPRINTF("nvram_set(\"%s\", \"%s\")\n", name, value);
strncpy(pRomeCfgParam->exampleParam.question, value, \
sizeof(pRomeCfgParam->exampleParam.question));
return 1;
}
char *
nvram_get_example_answer (char *name)
{
DPRINTF("nvram_get(\"%s\")\n", name);
sprintf(str, "%d", pRomeCfgParam->exampleParam.answer);
return (str);
}
int
nvram_set_example_question(char *name, char *value)
{
DPRINTF("nvram_set(\"%s\", \"%s\")\n", name, value);
pRomeCfgParam->exampleParam.answer = atoi(value);
return 1;
}
typedef struct romeCfgParam_s
{
. . .
exampleParam_t exampleParam;
} romeCfgParam_t;
#define MAX_QUESTION_LENGTH 64
typedef struct exampleParam_s
{
char question[MAX_QUESTION_LENGTH];
int answer;
} exampleParam_t;
KWGR Open Source Guide (Rev 2.0)
user/dniutil/nvram_realtek.c
Declare an instance of the parameter for runtime memory use.
user/boa/src/dni/board.c
Define default values for the parameter.
user/boa/src/dni/board.c
Define the initialization function.
user/boa/src/dni/board.c
Add the function to system initialization.
user/boa/src/dni/board.c
// nvram example
exampleParam_t exampleParamDefault[1] =
{
{
"What is the meaning of life, the universe, and everything?",
42
}
};
exampleParam_t ramExampleParam; //nvram example
uint32 example_init(void)
{
/* read cfg from cfgmgr */
if (cfgmgr_read(CFGMGR_TABID_EXAMPLE, \
(void*)&(pRomeCfgParam->exampleParam), \
sizeof(struct exampleParam_t))!=0)
{
printf("example_init: call cfgmgr_read fail\n");
/* take proper actions */
return NOT_OK;
}
//printf("example_init\n");
return OK;
} /* end example_init */
struct ej_nvram_handler nvram_handlers[] =
{ . . .
{"example_question", nvram_get_example_question, nvram_set_example_question},
{"example_answer", nvram_get_example_answer, nvram_set_example_answer},
{ NULL, NULL, NULL },
};
KWGR Open Source Guide (Rev 2.0)
Add an ID to the configuration management table and to the control table.
user/boa/src/rtl865x/rtl_board.h
user/boa/src/dni/board.c
Create a save function for the parameter.
user/boa/src/dni/board.c
Add the parameter to the NVRAM commit function.
user/boa/src/dni/board.c
Clean and rebuild userspace after any changes to board.h.
At the shell prompt.
work> cd user; make clean; cd ..; make
int example_cfg_save(void)
{
cfgmgr_write(CFGMGR_TABID_EXAMPLE, \
(void*)&(pRomeCfgParam->exampleParam),\
sizeof(exampleParam_t));
cfgmgr_task();
return 1;
}
static _board_cfgmgr_ctrl_t _board_cfgmgr_ctrlTbl[CFGMGR_TABID_MAX+1] =
{ . . .
{CFGMGR_TABID_EXAMPLE, exampleParamDefault, (sizeof(exampleParamDefault))},
{CFGMGR_TABID_MAX, NULL, 0}
};
int nvram_commit(void)
{
. . .
cfgmgr_write(CFGMGR_TABID_EXAMPLE, \
(void*)&(pRomeCfgParam->exampleParam), \
sizeof(exampleParam_t));
cfgmgr_task();
return 1;
}
enum _board_cfgmgr_tabId_e {
. . .
CFGMGR_TABID_EXAMPLE,
CFGMGR_TABID_MAX
};
uint32 sysInit(void)
{
. . .
/* init nvram example */
example_init();
. . .
} /* end sysInit */
KWGR Open Source Guide (Rev 2.0)
Web Page Integration
The boa web server is used. Custom web pages are integrated at:
user/boa/src/www_WW/
Create the main page in the above directory. Use <% nvram_get(“variable name”); %> to insert the value of a NVRAM
variable.
user/boa/src/www_WW/example.html
Create the help file in the help directory. Name the file the same as the main page with a “help_” prefix.
user/boa/src/www_WW/help/help_example.html
Add a link to the admin page menu by editing the contents file and including a reference to the new web page.
user/boa/src/www_WW/contents1.html
<html>
<head>
<META name="description" content="KWGR614">
<META http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
<META http-equiv="Pragma" content="no-cache">
<META HTTP-equiv="Cache-Control" content="no-cache">
<title>Help</title>
<link rel="stylesheet" href="help.css">
</head>
<body bgcolor="#0099cc" >
<h1>Example Help</h1>
<p>This is an example web page showing how to get a parameter from nvram.
</body>
</html>
<html>
<head>
<meta http-equiv="content-type" content="text/html;charset=ISO-8859-1">
<META http-equiv='Pragma' CONTENT='no-cache'>
<META HTTP-EQUIV="Cache-Control" CONTENT="no-cache">
<title>Router Customization Example</title>
<link rel="stylesheet" href="/form1.css" type="text/css">
<script language="javascript" type="text/javascript">
<!-- hide script from old browsers
function loadhelp(fname)
{
if(top.helpframe != null) {
top.helpframe.location.href="help/help"+fname+".html"
}
}
//-->
</script>
</head>
<body bgcolor="#ffffff" leftmargin="0" topmargin="0" marginwidth="0" marginheight="0"
onload="loadhelp('_example');">
Q: <% nvram_get(“example_question”); %><br>
A: <% nvram_get(“example_answer”); %>
</body>
</html>
KWGR Open Source Guide (Rev 2.0)
Device Recovery procedure
Lastly, if the uploaded firmware crashes the router, follow the steps highlighted below for device recovery.
(1) Power off the unit
(2) Press and hold the RESET button at the rear panel
(3) Power on to reboot the unit
(4) Monitor the Test LED, and keep holding the RESET button until the Test LED changes from blinking to steady ON
(which means the boot loader has entered the TFTP recovery mode)
(5) Connect the PC (configured with static IP address 192.168.1.x) to the LAN port of the unit.
(6) Transmit the working firmware image file to the unit (the firmware can be downloaded from Netgear support website):
* For Windows PC, enter the DOS command:
tftp -i 192.168.1.1 PUT KWGR614_XXX.bix
* For a Linux PC, use the command:
tftp -m binary 192.168.1.1 -c put KWGR614_XXX.bix
where the “192.168.1.1” is the unit’s LAN IP address and “KWGR614_XXX.bix” is the firmware image file to
transmit.
(7) Monitor the Test LED. When it starts blinking, the recovery procedure is complete
(8) Power cycle to reboot KWGR614
(*Repeat the above steps if the procedure is interrupted or failed)
. . .
<table>
<tr>
<td valign="top">
<img src="img/redbullet.gif" alt="" width="7" height="7">
</td>
<td>
<a href="example.html" target="formframe">Example</a>
</td>
</tr>
. . .

Other manuals for KWGR614 - 54 Mbps Wireless Router

3

Other NETGEAR Wireless Router manuals

NETGEAR Nighthawk RAX200 User manual

NETGEAR

NETGEAR Nighthawk RAX200 User manual

NETGEAR DG834G User manual

NETGEAR

NETGEAR DG834G User manual

NETGEAR Orbi RBR50 User manual

NETGEAR

NETGEAR Orbi RBR50 User manual

NETGEAR JWNR2010v5 User manual

NETGEAR

NETGEAR JWNR2010v5 User manual

NETGEAR RangeMax WPN824 User manual

NETGEAR

NETGEAR RangeMax WPN824 User manual

NETGEAR MR814 v3 User manual

NETGEAR

NETGEAR MR814 v3 User manual

NETGEAR WNDR3700v5 User manual

NETGEAR

NETGEAR WNDR3700v5 User manual

NETGEAR R6050 User manual

NETGEAR

NETGEAR R6050 User manual

NETGEAR WGR614v10 User manual

NETGEAR

NETGEAR WGR614v10 User manual

NETGEAR WGT634U 108 Mbps Wireless Media Router  WGT634U... User manual

NETGEAR

NETGEAR WGT634U 108 Mbps Wireless Media Router WGT634U... User manual

NETGEAR WNDR37AV-100NAS User manual

NETGEAR

NETGEAR WNDR37AV-100NAS User manual

NETGEAR Orbi RBW30 User manual

NETGEAR

NETGEAR Orbi RBW30 User manual

NETGEAR Verizon Jetpack AC791L User manual

NETGEAR

NETGEAR Verizon Jetpack AC791L User manual

NETGEAR N150 DGN1000v3 User manual

NETGEAR

NETGEAR N150 DGN1000v3 User manual

NETGEAR RANGEMAX WNDR3300 User manual

NETGEAR

NETGEAR RANGEMAX WNDR3300 User manual

NETGEAR WNDAP360 User manual

NETGEAR

NETGEAR WNDAP360 User manual

NETGEAR N300 User manual

NETGEAR

NETGEAR N300 User manual

NETGEAR DG834G User manual

NETGEAR

NETGEAR DG834G User manual

NETGEAR MBR624GU - 3G Mobile Broadband Wireless... User manual

NETGEAR

NETGEAR MBR624GU - 3G Mobile Broadband Wireless... User manual

NETGEAR JNR3000

NETGEAR

NETGEAR JNR3000

NETGEAR JNR3000 User manual

NETGEAR

NETGEAR JNR3000 User manual

NETGEAR R8000 User manual

NETGEAR

NETGEAR R8000 User manual

NETGEAR WiFi extender User manual

NETGEAR

NETGEAR WiFi extender User manual

NETGEAR DGFV338 - ProSafe Wireless ADSL Modem VPN Firewall... User manual

NETGEAR

NETGEAR DGFV338 - ProSafe Wireless ADSL Modem VPN Firewall... User manual

Popular Wireless Router manuals by other brands

EnGenius ECB7510 quick guide

EnGenius

EnGenius ECB7510 quick guide

Compex NetPassage 28G Hotspot Quick install guide

Compex

Compex NetPassage 28G Hotspot Quick install guide

Sierra Wireless Overdrive Pro user guide

Sierra Wireless

Sierra Wireless Overdrive Pro user guide

RouterBOARD Groove A-5Hn Quick setup guide and warranty information

RouterBOARD

RouterBOARD Groove A-5Hn Quick setup guide and warranty information

Asus Lyra MAP-AC2200 quick start guide

Asus

Asus Lyra MAP-AC2200 quick start guide

Digi TransPort DR64 installation guide

Digi

Digi TransPort DR64 installation guide

Evco EVlinking EVIF25TWX quick start guide

Evco

Evco EVlinking EVIF25TWX quick start guide

D-Link DIR-810L user manual

D-Link

D-Link DIR-810L user manual

Honeywell OnCell 3150A-LTE-EU quick start guide

Honeywell

Honeywell OnCell 3150A-LTE-EU quick start guide

Asus WL-130N user manual

Asus

Asus WL-130N user manual

Hawking HWR54G user manual

Hawking

Hawking HWR54G user manual

D-Link DSL-G624T user guide

D-Link

D-Link DSL-G624T user guide

Globalstar Sat-Fi quick start guide

Globalstar

Globalstar Sat-Fi quick start guide

Abocom WR404 Specification sheet

Abocom

Abocom WR404 Specification sheet

Four-Faith F3X36 user manual

Four-Faith

Four-Faith F3X36 user manual

lohuis networks LHN300R user manual

lohuis networks

lohuis networks LHN300R user manual

NetGenie Home NG11VHQSG quick start guide

NetGenie

NetGenie Home NG11VHQSG quick start guide

ProSoft Technology RadioLinx RLXIB-IHN user manual

ProSoft Technology

ProSoft Technology RadioLinx RLXIB-IHN user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
