Instruction Manual
LED 8-Scan Laser Light
-01-
LED 8-Scan Laser Light Instruction Manual
Thank you for purchasing the product. To optimize the performance of this product, prior to
use, please read these operating instructions carefully to familiarize yourself with the basic
operation of this unit. Please keep the manual in safe place for future reference.
Once after received the product, please take and put carefully. And check cautiously that whether
the product was damaged or not during the transportation.
Please check if the following parts are included:
1 x LED 8-Scan Laser Light
1 x Power cable
1 x User manual
1.Please check the voltage whether is the same with the one showed on the equipment or not.
2.It must ask for the technical person and set the light safety when installation. And let the light
beam at the suitable angle.
3.when install this equipment, please make sure there's no flammable surfaces (decorated thins,
etc) within at lest 2.5Mand maintain minimum distance of 1.5M form the equipment to the walls.
4.Please make sure thethere's no other equipment or decorating materials obstructed the exhaust
fan and the vent-pipe.
5.Products should be install immobility.
6.In case of safety, it's very important that to connect the earth with line.
This unit has been tested at our factory before being shipped to you, there is no assembly
required.
Checking Parks
Installation
Alerts
The laser is dangerous, don't look
at the light directly.
High voltage-risk of electric shock,
don't disassociate without unauthorized
-02-
Attention:
Function Instructions
1.Please do not open the bottom cover yourself without permission. Operated it accord the user
manual. Call the technician when the machine breaks down.
2.Please do not see the laser beam directly to avoid any damage.
3.Before connect or disconnect the power, please adjust the luminance of the laser diode to the
least to avoid any damage to the laser diode.
4.This unit should be keep dry, do not use in the rain and dusty environment. It can be use in the
outdoor with the water-proof cover protector.
5.Set the light immobility and try to avoid strong shake or hit.
6.Prevent dust into the equipment to avoid problems.
7.Please keep the there's no other equipment or decorating materials obstructed the exhaust fan
and the vent-pipe when the equipment was working.
8.Before connect power, check the plug is immobility or not, power line should be connect well.
9.Please do not open or close the equipment frequently that's to avoid any affect to the life span
of the laser diode, and try the best to avoid the long time working.
10.Due to the characteristic of laser diode, after four hours working, it should be close at least 25
minutes until the laser diode cooling then work again.
11.Don't touch the light or draw the power line when your hand was wet. And do not pull the electronic
power line.
12.Maintain the distance at least 3M above from the equipment to the object.
13.This equipment does not have any parts can repair for the users, please do not open the equipment.
14.When the laser diode became dim or damaged please contact the dealer timely.
15.when you want to retransfer the products, you'd better use the original package to shockproof.
:

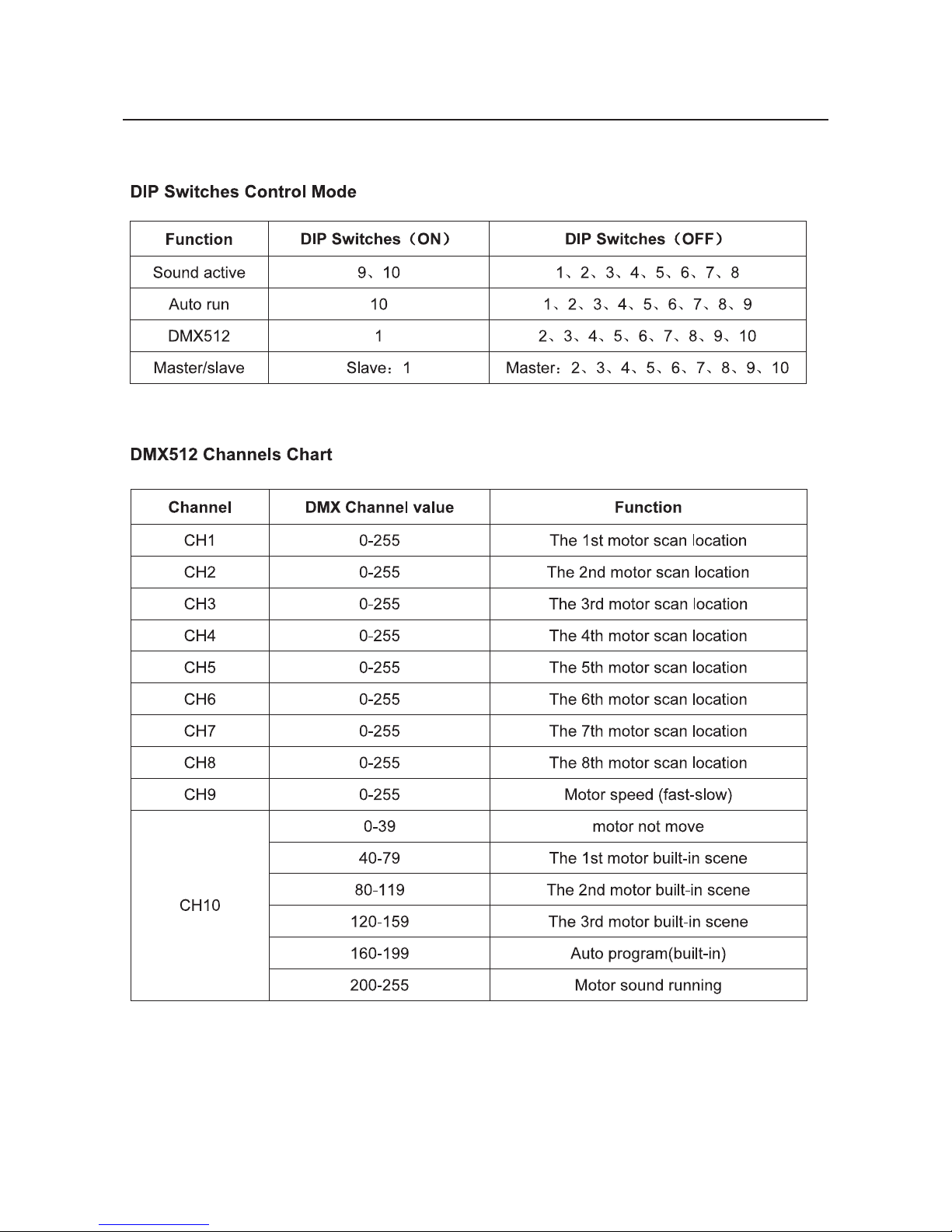

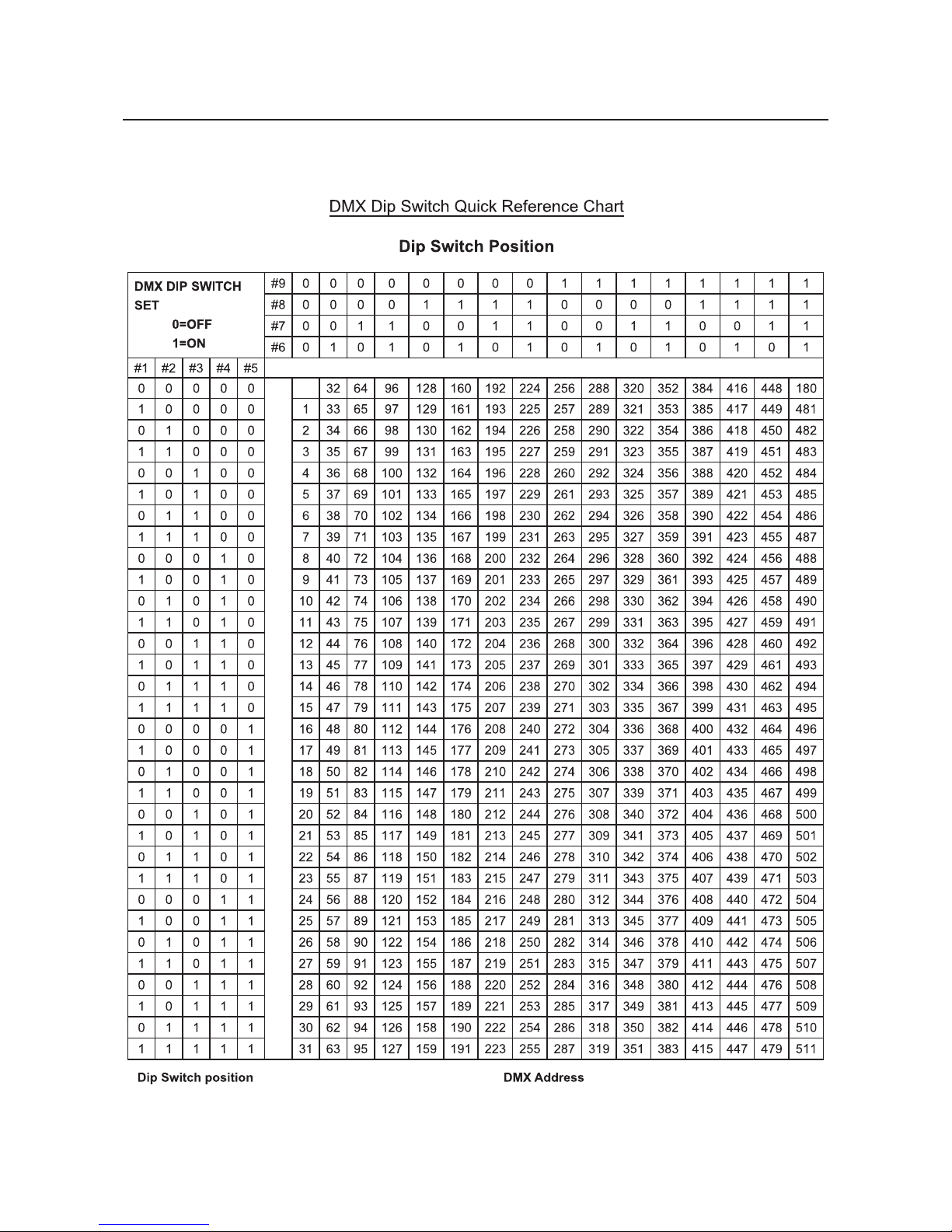

1.If you put dip switch 10 to “on”, the light will be in auto-play mode.
2.Auto-Play/Master-Slave Function when the master machine put dip switch 10 to “on”, this light
will pay the fixed program automatically.
LED 8-Scan Laser Light Instruction Manual
-03-
LED 8-Scan Laser Light Instruction Manual
Maintenance:
Warning:
Note:
Technical Specification:
Declaration:
Maintenance should be performed every 15-day period, by using a sponge which is dipped with
alcohol, rather than wet cloth or other chemical liquid, to clean the mirror.
Always disconnect from the mains when the device is not in use or before cleaning it.
Power must be disconnected before maintenance or repair. Do not look at the light source directly.
Don't separate laser machine from laser power and repair them by yourself. Otherwise no good
repair service will be supplied.
This device has left our premises in absolutely perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instruction
and warning notes writer in this user manual.
We cannot be made liable for damager caused by incorrect installations and unskilled operation!
Power supply: AC90-240V 50/60Hz
Rated power: 150W
LED: 5mm LED 267 PCS (R: 33, G: 126, B:93,Y:15)
Laser output:
Laser Wave length: 532nm
Working mode: Sound Active, Auto-play, DMX512 and Master-slave

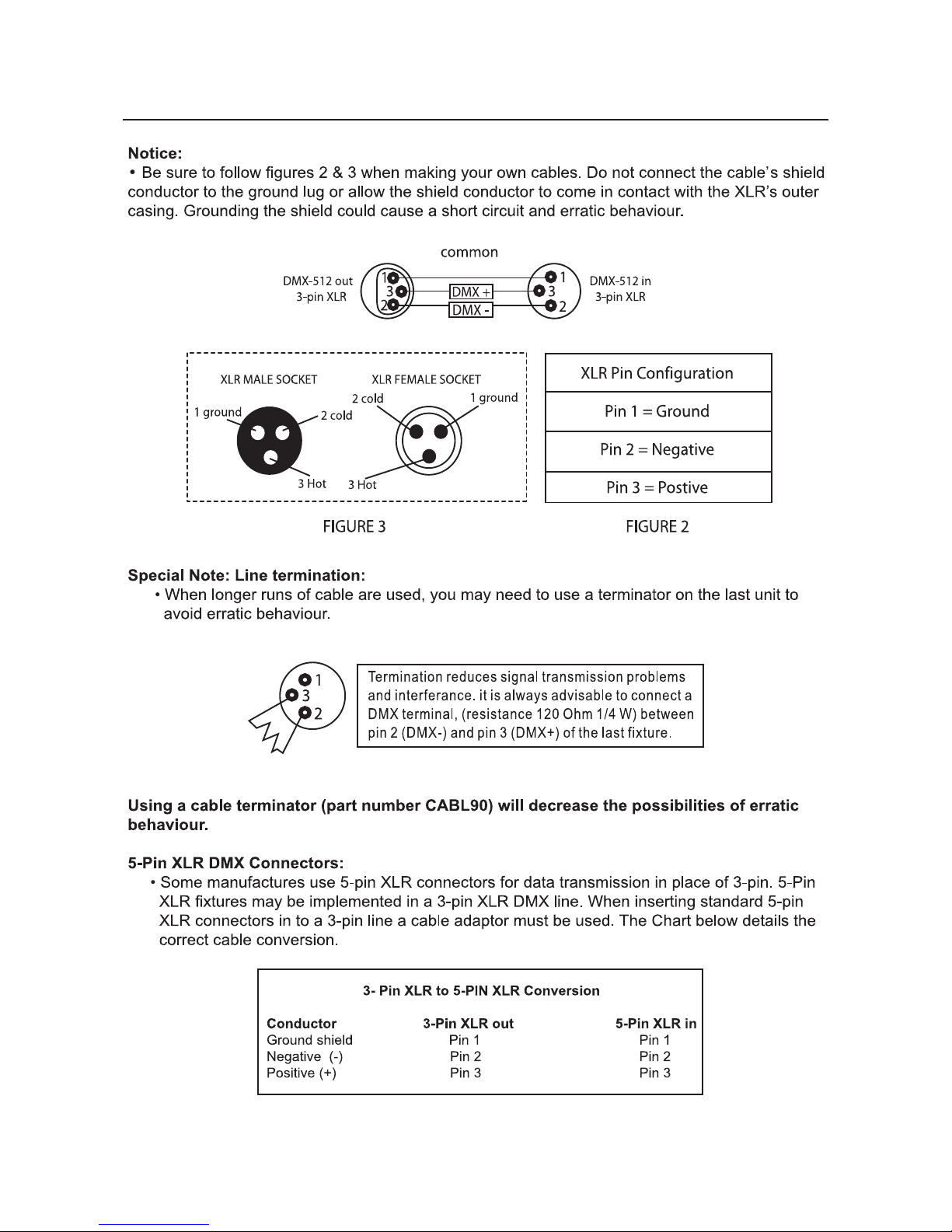

Control signal: DMX512 signal linkable via 3-pin XLR cable.
DMX channels: 15 channels
Operating temperature: -1°--35° Storage temperature: -10°--60°
Warm-up time: 15 min Laser classification: 3b
Modulation: TTL N.W: 39 Kgs
G.W: 41 KGs (Flight case packing)
G:Laser output(16 pcs of 50mw green laser).
R:Laser output(16 pcs of 150mw red laser).
B:Laser output(16 pcs of 400mw blue laser).
RGB:Laser output(8pcs of 150mw red laser &4pcs of 50mw green laser and 4pcs of 400mw blue laser).
RG:Laser output(8pcs of 150mw red laser & 8pcs of 50mw green laser).
RB:Laser output(8pcs of 150mw red laser & 8pcs of 400mw blue laser).
，
＜
-04-
If we did not put DMX signal to the light and turn switch to “Auto”, the laser will be in auto-play mode,
or put the switch to “ sound “ , it will pay sound program.
When have DMX signal, put potentiometer in ”off”, it will be controlled by DMX512

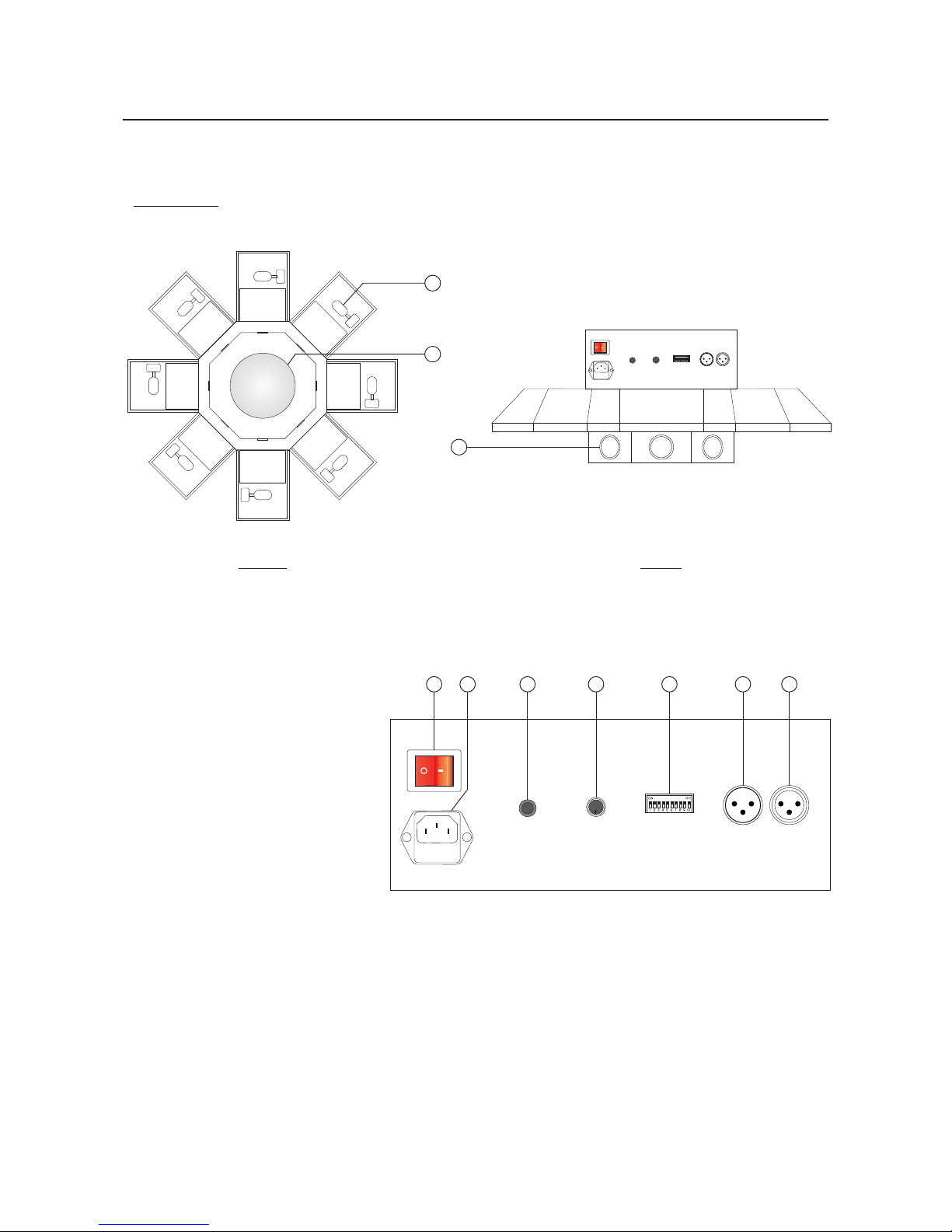

Overview
Front Side
1. Laser Mirrors
2. LED Lens
Laser Mirrors
4. Power switch
5. Power Input
6. MIC
7. Sound sensitivity control
8. Diswitches
9. DMX Out
10. DMX In
3.
Identification:
2
1
3
4 5 6 7 8 9 10
LED 8-Scan Laser Light Instruction Manual
-05-
LED 8-Scan Laser Light Instruction Manual
-06-
LED 8-Scan Laser Light Instruction Manual
-07-
LED 8-Scan Laser Light Instruction Manual
-08-
LED 8-Scan Laser Light Instruction Manual
-09-
LED 8-Scan Laser Light Instruction Manual
