• Read these instructions carefully before using your
appliance and keep this manual for future reference.
Please check the packaging of your machine
before installation and the outer surface of the
machine once the packaging has been removed. Do
not operate the machine if it appears damaged or if
the packaging has been opened.
• Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly
as they are recyclable. Use of recycled material
reduces raw material consumption and decreases
waste production.
This appliance can be used by children aged from
8 years and above, and by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
appliance in a safe way and understand hazards
involved. Children should not be allowed to play with
the appliance.
Remove packaging and keep it out of reach of
children.
Keep children away from detergents and rinse
aids.
EN - 5
There may be some residue left in the machine
after washing. Keep children away from the machine
when it is open.
• Choose a suitable and safe place to install your
machine.
• Only original spare parts should be used with the
machine.
Unplug the machine before installation.
Your machine must only be installed by an
authorised service agent. Installation by anyone other
than an authorised agent may cause your warranty to
be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the values on
the plate.
Ensure the machine does not stand on the
electrical supply cable.
Never use an extension cord or a multiple socket
connection.
The plug should be accessible after the machine is
installed.
• After installation, run your machine unloaded for the
The machine must not be plugged in during
positioning.
EN - 6
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should only
• Connect the hose directly to the water inlet tap. The
pressure supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If the
pressure exceeds 1 MPa, a pressure relief valve
• This machine is for domestic use only; do not use
it for other purposes. Commercial use will void the
guarantee.
Do not stand, sit or place loads on the open door
the dishwasher.
Only use detergents and rinse aids produced
responsible for any damage that may occur due to
misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place any
chemical dissolving agents into the machine’s washing
section.
• Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are suitable for
EN - 7
Do not open the door while the machine is in
operation, hot water may spill out. Safety devices
ensure the machine stops if the door is opened.
The machine door should not be left open. It may
cause accidents.
Place knives and other sharp objects in the cutlery
basket in a blade-down position.
For models with the automatic door-opening
system, when the EnergySave option is active, the
door will open at the end of a program. To prevent
damage to your dishwasher, do not attempt to close
the door for one minute after it has opened. For
after a programme has ended. Do not stand in front of
the door after the auto-open signal sounds.
In the case of a malfunction, repair should only
be performed by an authorised service company,
otherwise the warranty will be void.
Before repair work, the machine should be
disconnected from the mains. Do not pull the cable to
Operation at a low voltage will cause a decline in
performance levels.
For safety, disconnect the plug once a program has
To avoid an electric shock, do not unplug the
machine with wet hands.
EN - 8
Pull the plug to disconnect the machine from the
mains, never pull on the cord.
EN - 9
When positioning the machine, place it in
an area where dishes can be easily loaded
and unloaded. Do not put the machine in
an area where the ambient temperature
falls below 0°C.
Read all warnings located on the packaging
before removing the packaging and
positioning the machine.
Place the machine close to a water tap
and drain. Take into consideration that the
connections will not be altered once the
machine is in position.
Do not hold the machine by its door or
panel.
Leave an adequate distance around the
machine to allow ease of movement when
cleaning.
Ensure the water inlet and outlet
hoses are not squeezed or trapped
and that the machine does not stand on the
electrical cable while positioning.
Adjust the feet so the machine is level and
balanced. The machine should be placed
and the door of the machine will not close
properly.
inlet supply in order to prevent damage to
your machine due to contamination (sand,
rust, etc.) from indoor plumbing. This will
also help prevent yellowing and deposit
formation after washing.
Note printing on the water inlet hose!
If models are marked with 25°, the water
temperature may be max. 25 °C (cold
water).
For all other models:
Cold water preferred; hot water max.
temperature 60 °C.

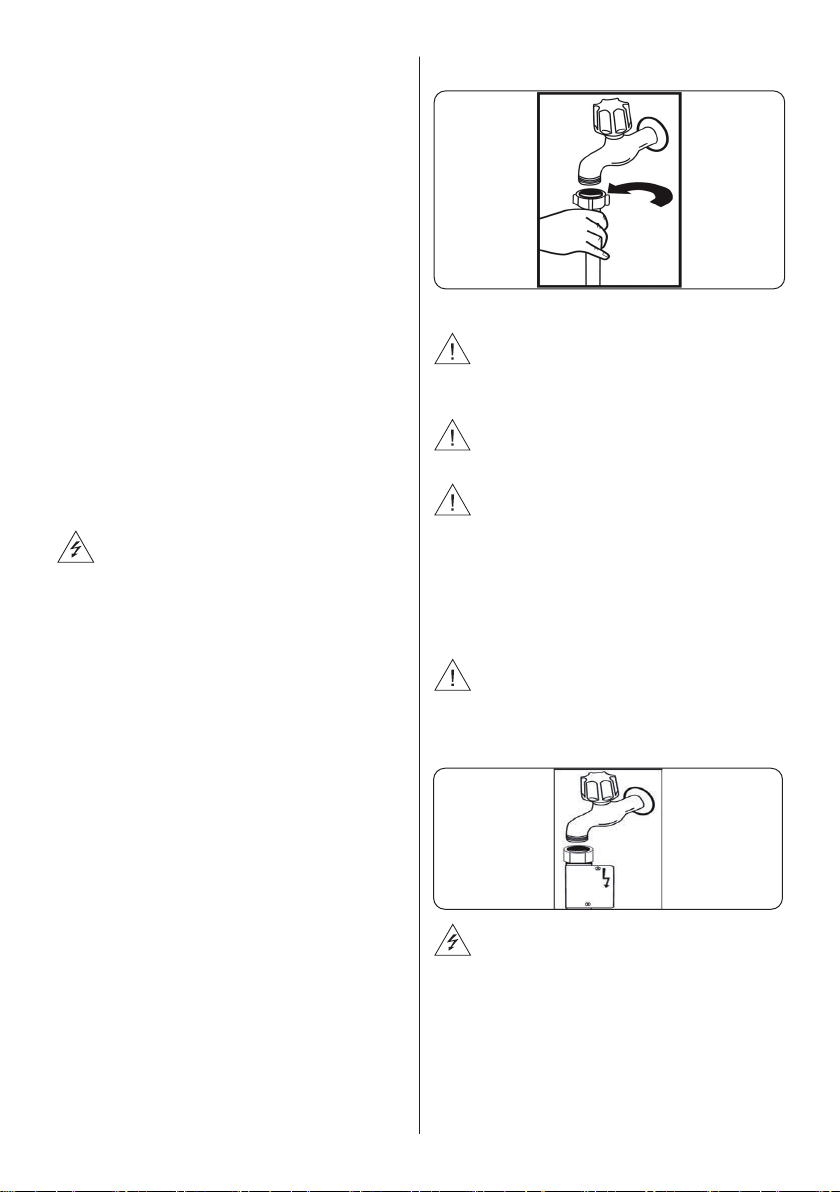

WARNING: Use the new water inlet
hose supplied with your machine, do not
use an old machine’s hose.
WARNING: Run water through the
new hose before connecting.
WARNING: Connect the hose
directly to the water inlet tap. The pressure
supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If
the pressure exceeds 1 MPa, a pressure
connection.
WARNING: After the connections are
made, turn the tap on fully and check
An Aquastop water spout is available
with some models. Do not damage it
or allow it to become kinked or twisted.
EN - 10
Connect the water drain hose directly to
water drain hole or to the sink outlet spigot.
This connection should be minimum 50
dishwasher is placed.
Items will not wash
properly if a drain hose longer than 4 m
is used.
WARNING: Your machine is set to
operate at 220-240 V. If the mains
voltage supply to your machine is 110
3000 W between the electrical connection.
EN - 11
space to do so and the wiring-plumbing
must be suitable to do so (1). If the space
your machine, remove the worktop as
shown in the illustration (2).

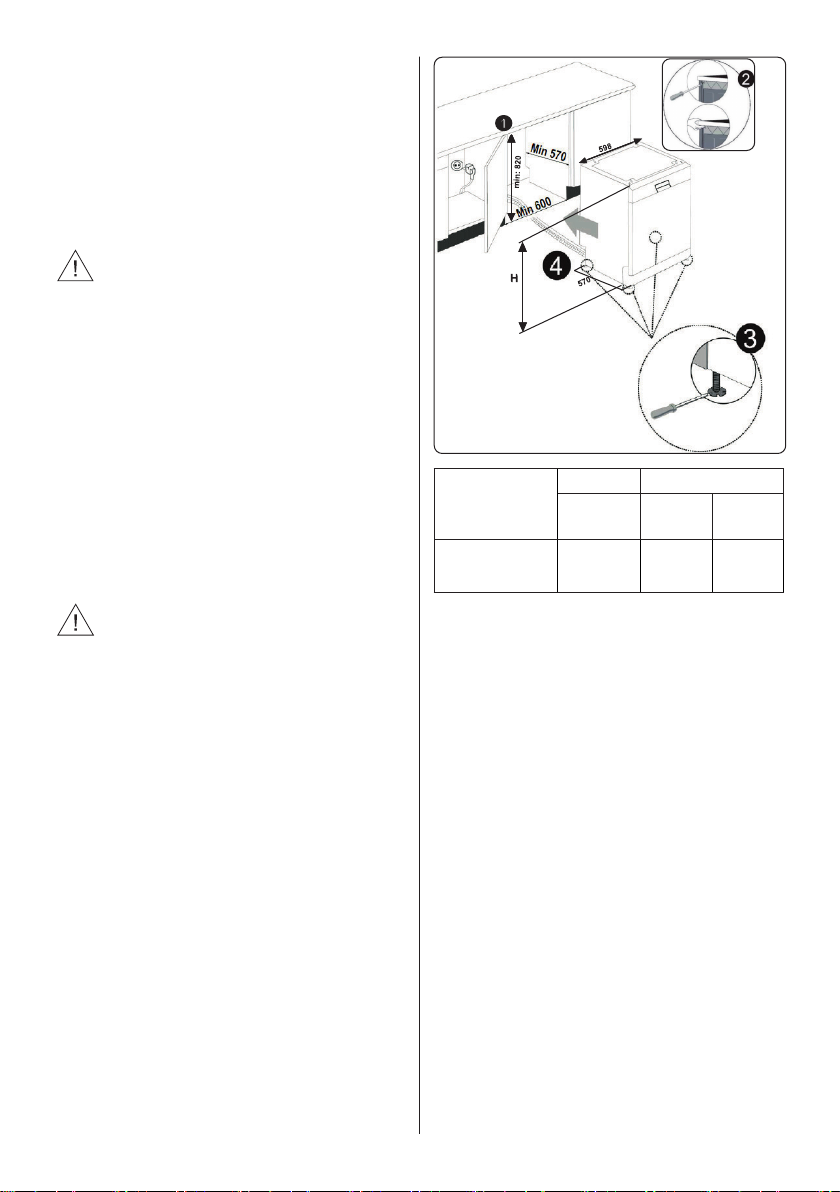

WARNING: The countertop, which
the machine will be placed under, must be
stable in order to prevent imbalance.
The top panel of the dishwasher must
countertop.
To remove the top panel, remove the
screws that hold it on, located at the rear
of the machine. Then, push the panel 1 cm
from the front towards the rear and lift it.
Adjust the machine feet according to the
3).
Fit your machine by pushing it under the
counter taking care not to crush or bend the
hoses (4).
After removing the top
panel of your dishwasher, the machine
should be placed in a space of the
60 cm
A B
All
Products B1B2
(±2 mm) 820 mm 830 mm 835 mm
A: If there is no felt on the top of the
product; you should take into account this
product’s height.
: If there is felt on the top of the product
with 2nd basket; you should take into
account this product’s height.
: If there is felt on the top of the product
with 3rd basket; you should take into
account this product’s height.
EN - 12

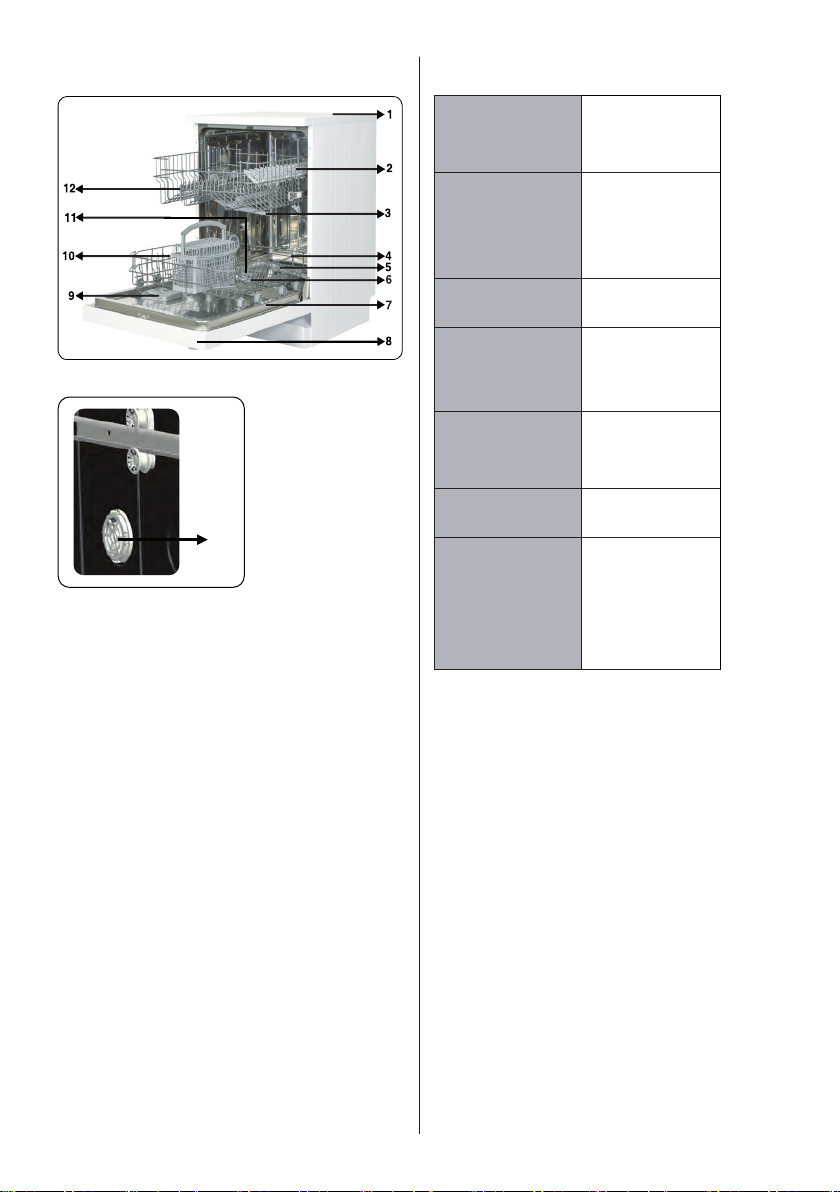

13
Worktop
Upper basket with racks
Upper spray arm
Lower basket
Lower spray arm
Filters
Rating plate
Control panel
Detergent and rinse-aid dispenser
Cutlery basket
Salt dispenser
Upper basket track latch
This system
provides better drying performance your
dishes.
Capacity 12 place
settings
Dimensions
Height
Width
Depth
850(mm)
598(mm)
598(mm)
Net weight 40 kg
Operating
frequency
220-240V
50 Hz
Total current 10(A)
Total power 1900(W)
Water supply
pressure
Maximum:
1 (MPa)
Minimum:
0.03 (MPa)
EN - 13
• Some machine components and
packaging consist of recyclable
materials.
• Plastics are marked with the
international abbreviations:(>PE<,
>PP<, etc. )
• The cardboard parts consist of recycled
paper. They can be put into waste
paper containers for recycling.
• Material unsuitable for domestic waste
must be disposed of at recycling
centres.
• Contact a relevant recycling centre to
obtain information about disposal of
different materials.
• Packaging materials protect your
machine from damage that may occur
during transportation. The packaging
materials are environmentally friendly
as they are recyclable. The use of
recycled material reduces raw material
consumption and therefore decreases
waste production.
We declare that our products meet the
applicable European Directives, Decisions
and Regulations and the requirements
listed in the standards referenced.
The symbol on the product or
on its packaging indicates that
this product may not be treated
as household waste. Instead, it
shall be taken to the applicable
collection point for the recycling
of electrical and electronic
equipment. By ensuring
this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling this product, please contact
your local city office, your household waste
disposal service or the shop where the
product was purchased.
EN - 14
• Make sure the electricity and supply
indicated in the installation instructions
for the machine.
• Remove all packaging material inside the
machine.
• Set the water softener level.
• Fill the rinse aid compartment..
For a good washing function, the
dishwasher needs soft, i.e. less calcareous
water. Otherwise, White lime residues
will remain on the dishes and the interior
machine’s washing, drying and shining
the softener system, the ions forming the
hardness are removed from the water and
the water reaches the softness required to
obtain the best washing result. Depending
water, these ions that harden the water
accumulate rapidly inside the softener
system. Therefore, the softener system
has to be refreshed so that it operates with
the same performance also during the next
wash. For this purpose, dishwasher salt is
used.
Machine can only be used by special
dishwasher salt to soften the water. Do not
use any small grained or powdered type
of salts which can easily soluble. Using
any other type of salt can damage your
machine.

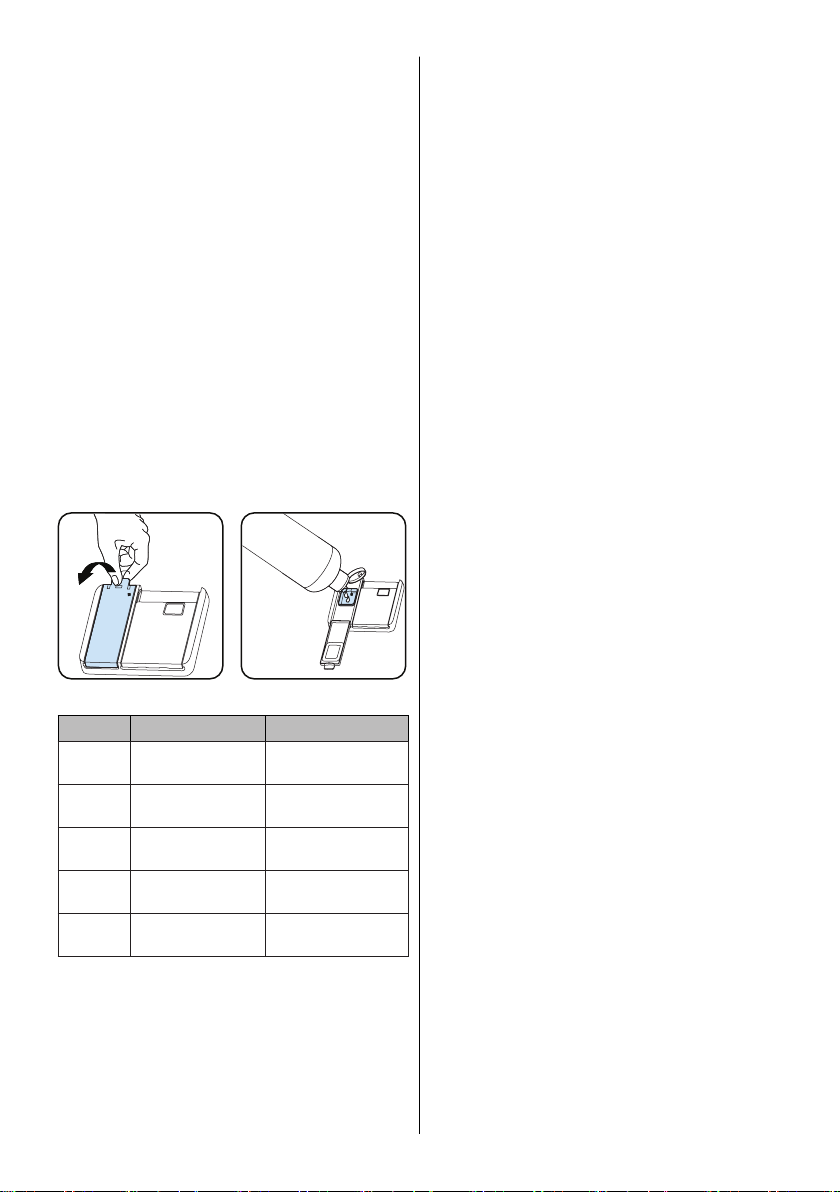

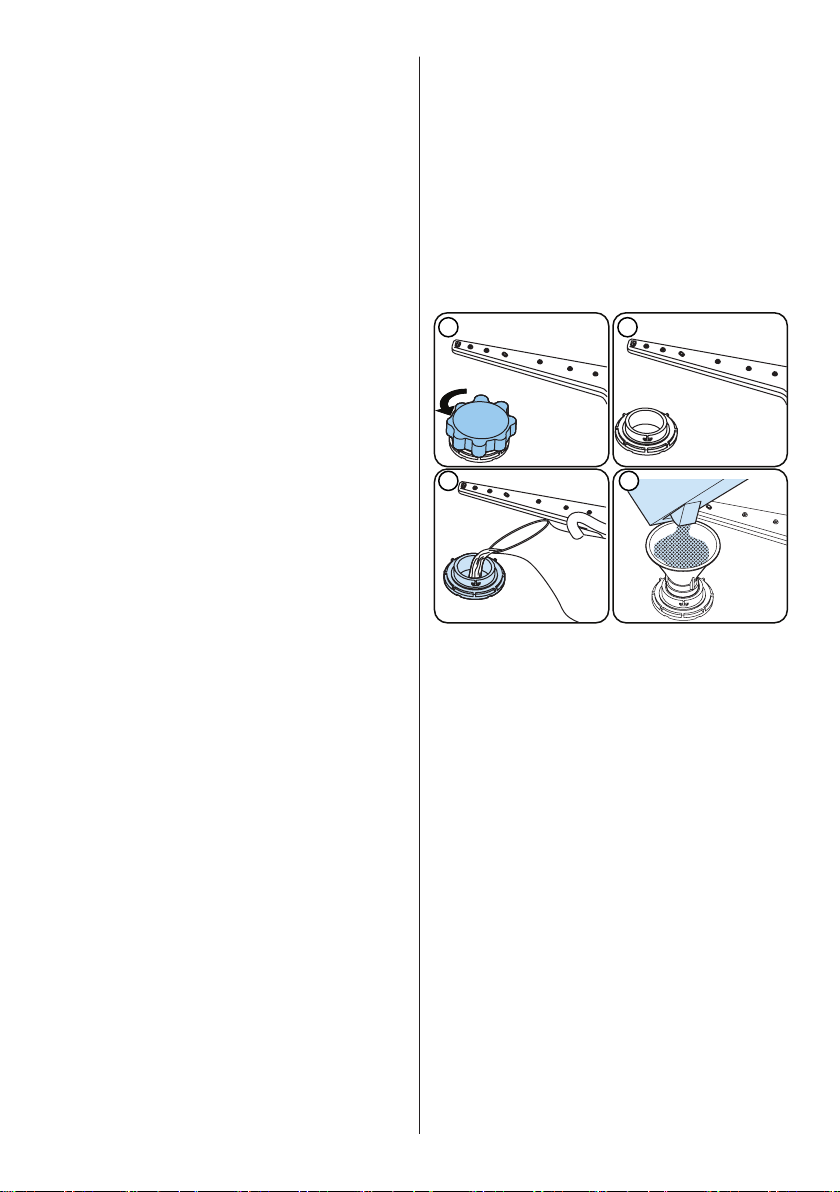

To add softener salt, open the salt
compartment cap by turning it counter
clockwise.
compartment with 1 kg salt and water
using a funnel
Replace the cap and close it. After every
20-30 Cycles add salt into your machine
3 4
1 2
use in dishwashers.
When you start your dishwasher, the salt
put the softener salt in prior to starting your
machine.
do not start the machine immediately, run
a short washing program to protect your
machine against corrosion.
EN - 15
1
2
3
4
5
6
1
munite
1
second
1
munite
The level is set to 3 as default. If the water is well water or has a hardness level
1 0-5 0-9 0-6
2 6-11 10-20 7-14
3 12-17 21-30 15-21
4 18-22 31-40 22-28
5 23-31 41-55 29-39
6 32-50 56-90 40-63
The dishwasher is equipped with a water softener which reduces the hardness in the
company or use the test strip (if available).
•
• Press the Program button for at least 3 seconds immediately after the machine is turned
on.
• Release the Program button when “SL” is shown. Next, the last setting level is displayed.
• Press the program button to set the desired level. Each press of the program button
increases the level. Once level 6 has been reached, the next press returns the level to 1.
•
EN - 16
for domestic dishwashers. Keep your
detergents in cool, dry places out of reach
of children.
Add the proper detergent for the selected
program to ensure the best performance.
The amount of detergent needed depends
on the cycle, load size, and soil level of
dishes.
compartment more than required; otherwise
you can see whitish streaks or bluish layers
on glass and dishes and may cause glass
corrosion. Continued use of too much
detergent may cause machine damage.
Using little detergent can result in poor
cleaning and you can see whitish streaksin
hard water.
See the detergent manufacturer’s
instructions for a further information.

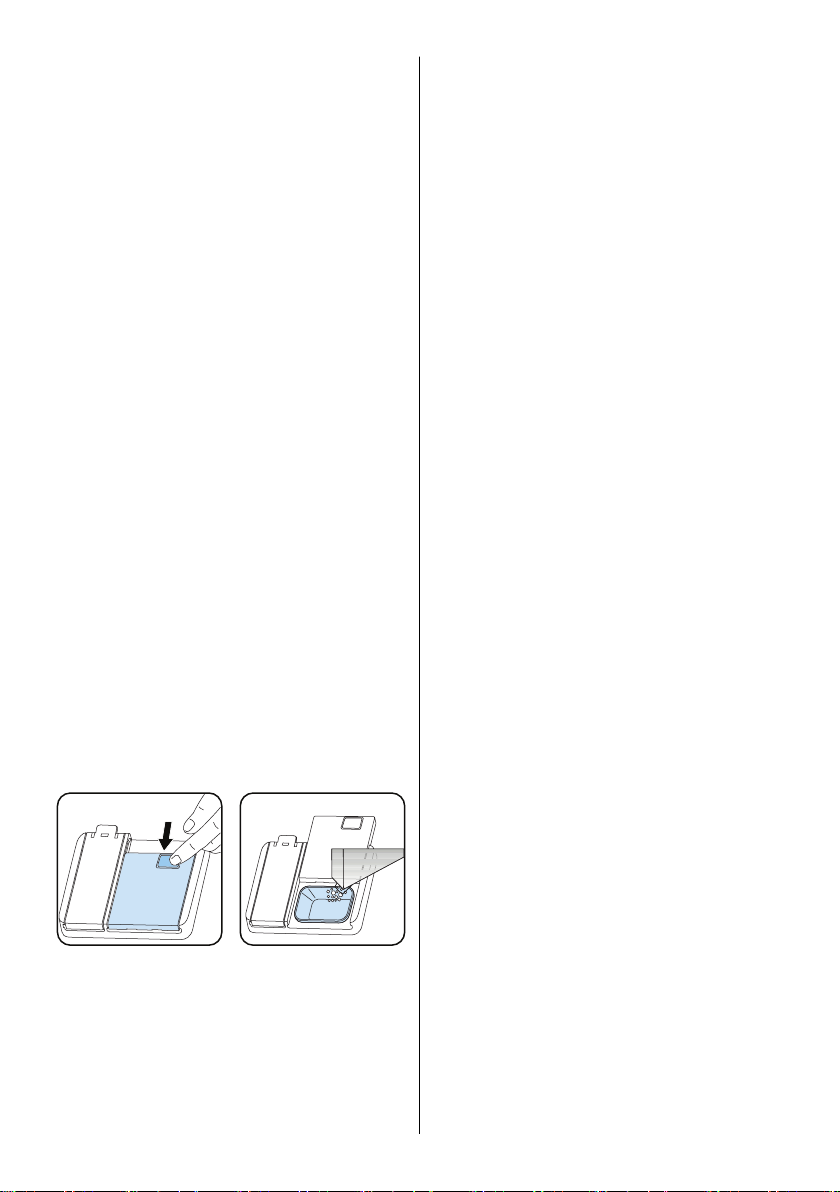

Push the latch to open the dispenser and
pour in the detergent.
Close the lid and press it until it locks in
before the start of each programme. If the
dishes are heavily soiled, place additional
detergent in the pre-wash detergent
chamber.
DETERGENT
These products should be used according
to the manufacturer’s instructions.
Never put combined detergents into the
interior section or the cutlery basket.
Combined detergents contain not only
the detergent but also rinse-aid, salt
replacement substances and additional
components depending on the combination.
We recommend you do not use combined
detergents in short programmes. Please
use powder detergents instead. If you
encounter problems when using combined
detergents, please contact the detergent
manufacturer.
When you stop using combined detergents,
make sure that water hardness and rinse
aid settings are set to the correct level.
The rinse aid helps to dry the dishes
without streaks and stains. Rinse-aid is
required for stain-free utensils and clear
glasses. The rinse aid is automatically
released during the hot rinse phase. If
rinse aid dosage setting set too low, whitish
stains remains on dishes and dishes do not
dry and washed clean.
If rinse aid dosage setting set too height,
you can see bluish layers on glass and
dishes.
the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX
level and then close the cap. Be careful not
wipe up any spills.
EN - 17
• Push the programme button and hold it
down.
• Turn the machine on.
• Hold down the programme button until
“rA” disappears from the display. Rinse
aid setting follows water hardness
setting.
• The machine will display the last setting.
• Set the level by pushing the programme
button.
•
setting.
• The factory setting is “4”.
If the dishes are not drying properly or are
spotted, increase the level. If blue stains
form on your dishes, decrease the level.
1 Rinse-aid not
dispensed
r1 is shown on the
display.
2 1 dose is
dispensed
r2 is shown on the
display.
3 2 doses are
dispensed
r3 is shown on the
display.
4 3 doses are
dispensed
r4 is shown on the
display.
5 4 doses are
dispensed
r5 is shown on the
display.
EN - 18

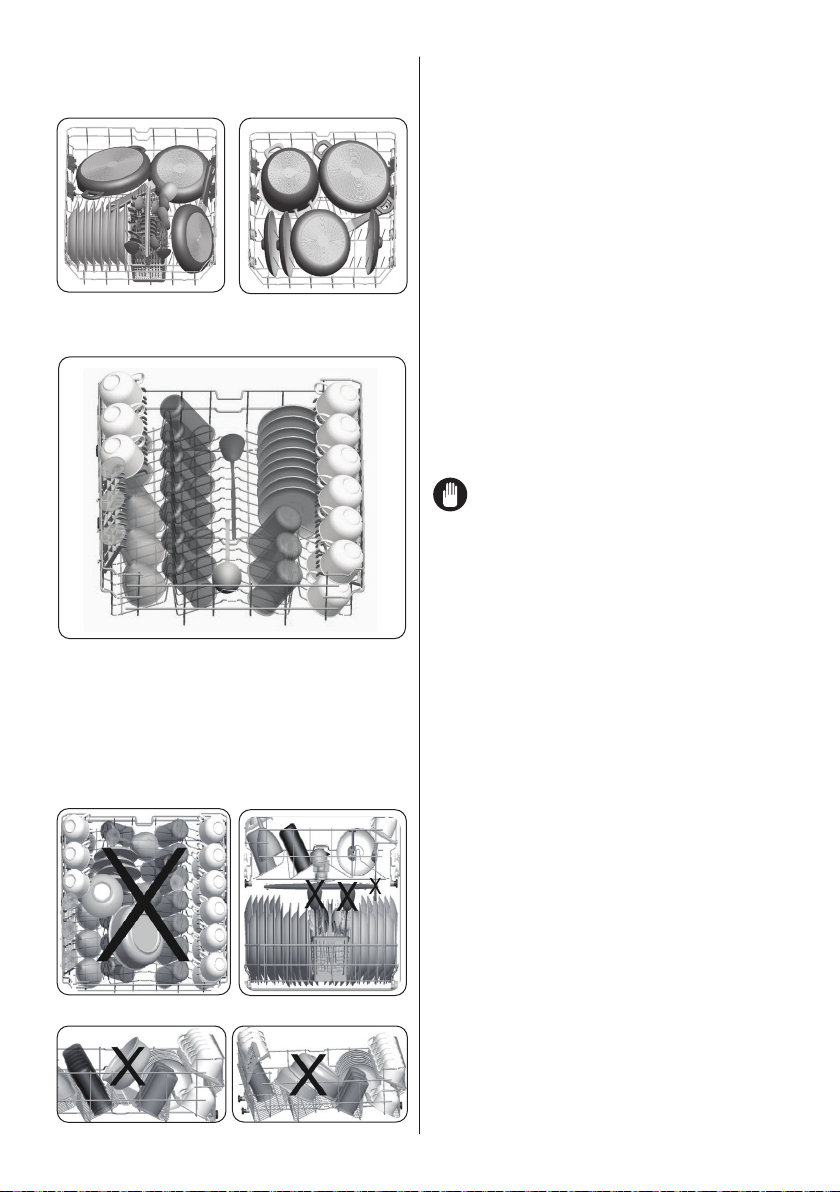

For best results, follow these loading
guidelines.
Loading the household dishwasher up to the
capacity indicated by the manufacturer will
contribute to energy and water savings.
Manual pre-rinsing of tableware items leads
to increased water and energy consumption
and is not recommended You can place
cups, glasses, stemware, small plates,
bowls, etc. in upper basket. Do not lean long
glasses against one another or they cannot
remain steady and may receive damage.
When placing long stem glasses and
goblets, lean them against the basket edge
or rack and not against other items.
Place all containers such as cups, glasses
and pots into the dishwasher with the
opening facing downwards otherwise water
can collect on items.
If there is cutlery basket in machine, you
are recommended to use the cutlery grid
in order to obtain the best result. Place all
large (pots, pans, lids, plates, bowls etc.)
and very dirty items in the lower rack.
Dishes and cutlery should not be placed
above each other.
Take care not to obstruct
the rotation of spray arms.
WARNING:Make sure after loading
the dishes do not prevent opening the
detergent dispenser.
Remove any coarse residue on dishes
before placing the dishes in the machine.
Start the machine with full load.
Do not overload the drawers or place
dishes in the wrong basket.
WARNING: To avoid any possible
injuries, place long-handle and sharp-
pointed knives with their sharp points facing
down or horizontally on the baskets.

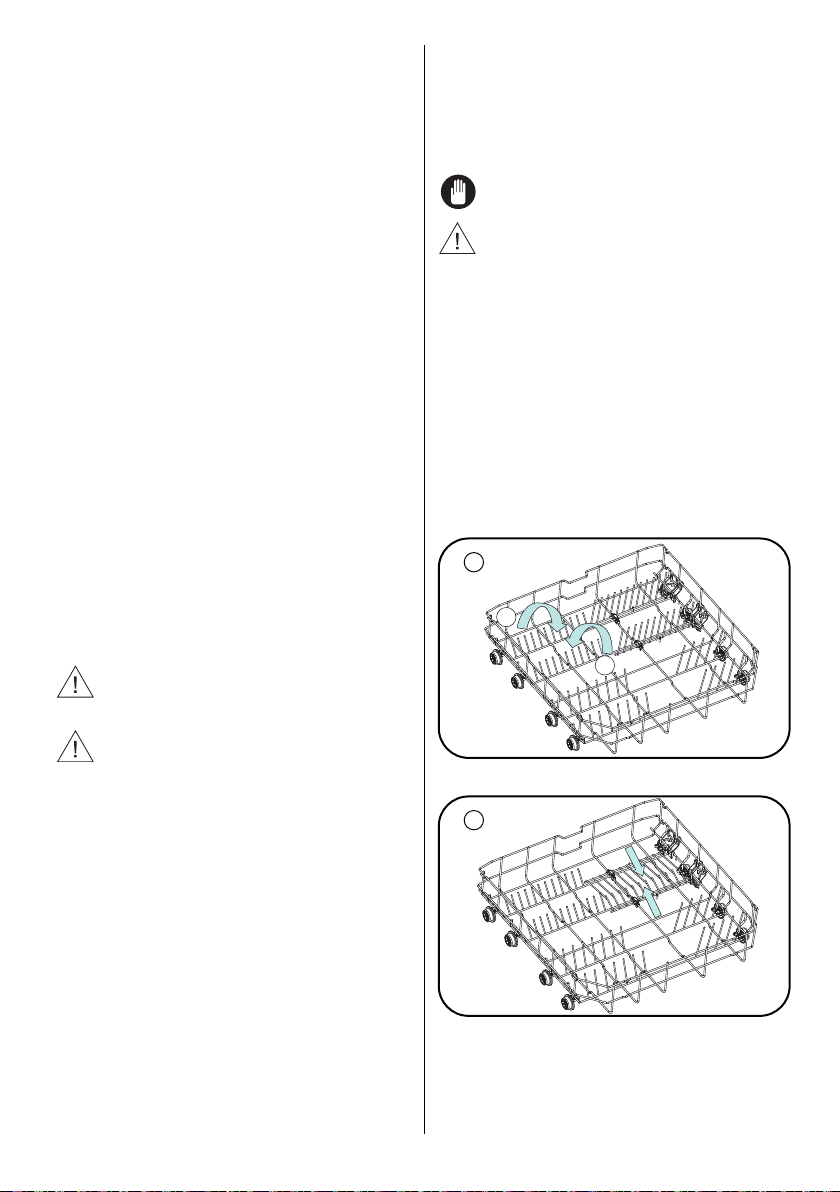

The folding racks on the lower basket allow
for the placement of larger items, such as
pots and pans. Each section can be folded
separately. They can either be folded down
or raised up, as shown in the images below.
b
a
1
2
EN - 19

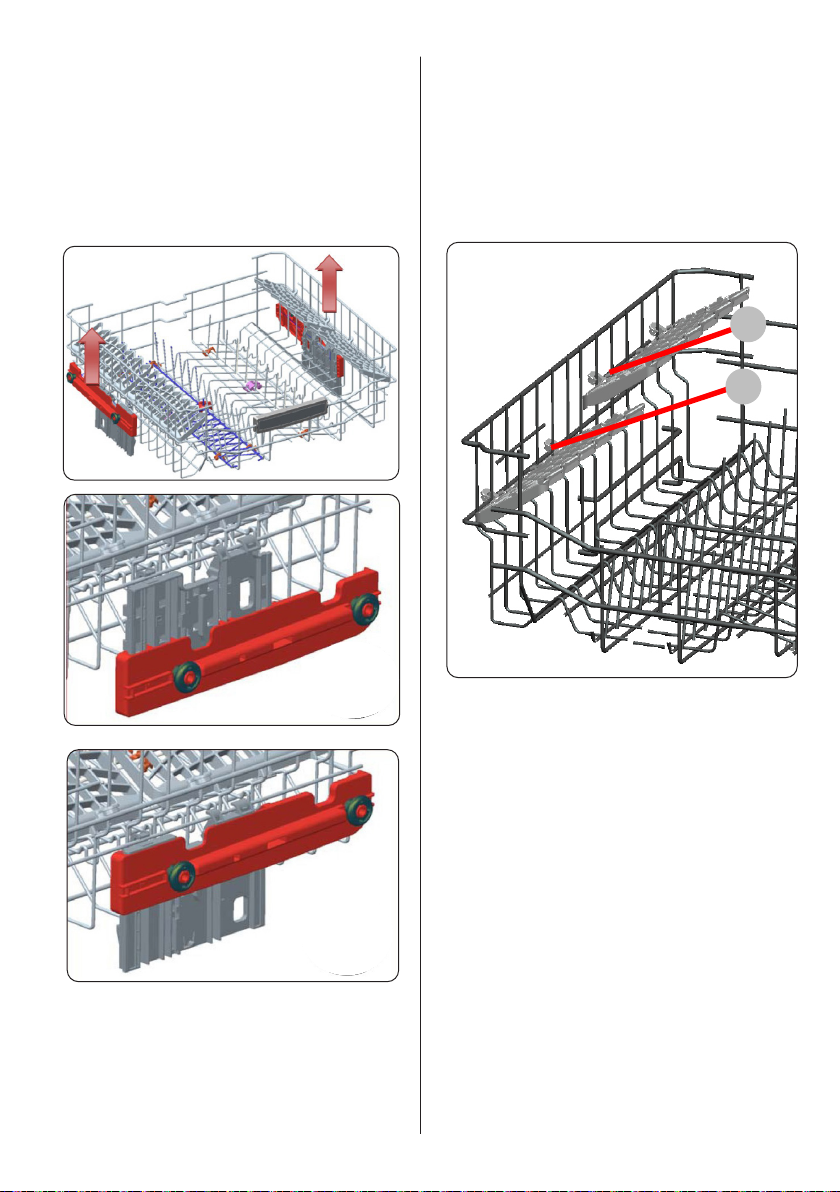

Height Adjustment
The upper basket includes a mechanism
which enables the height of the basket
to be adjusted up (1) or down (2) without
having to remove the basket. Hold the
basket on both sides and pull it up or push
it down, ensuring both sides of the upper
basket are in the same position.
1
2
Height Adjustable Rack (peg type)
The height adjustable racks enable glasses
and cups to be placed on or under the
racks. The racks can be adjusted to 2
dierent heights. Cutlery and utensils can
also be placed on the racks horizontally.
1
2
EN - 20
Incorrect loading can cause poor washing
and drying performance. Please follow the
manufacturer’s recommendations for a
good performans result.
• Cigarette ashes, candle leftovers, polish,
paint, chemical substances, iron-alloy
materials.
• Forks, spoons and knives with wooden,
bone, ivory or nacrecoated handles;
glued items, items soiled with abrasive,
acidic or base chemicals.
• Temperature-sensitive plastics, copper or
tincoated containers.
• Aluminium and silver objects.
• Some delicate glasses, ornamental
printed porcelains; some crystal items,
adhered cutlery, lead crystal glasses,
• Absorbent items such as sponges or
kitchen rugs.
In future, purchase
dishwasher-proof kitchenware.
For detailed information required for tests
according to EN normatives and a softcopy
of the manual, please send the model name
and serial number to the following address:
Table of contents
Other NEW POL Dishwasher manuals
NEW POL
NEW POL XD900DG Manual
NEW POL
NEW POL NWD605W User manual
NEW POL
NEW POL XD500 Manual
NEW POL
NEW POL LVB 1040 User manual
NEW POL
NEW POL NW3605DX User manual
NEW POL
NEW POL LVG 2040 User manual
NEW POL
NEW POL LVP 1030 User manual
NEW POL
NEW POL NW456W User manual
NEW POL
NEW POL LVP1040 User manual
NEW POL
NEW POL NWD3606DX User manual
