INSTALLATION
 This product is designed to operate at 240V

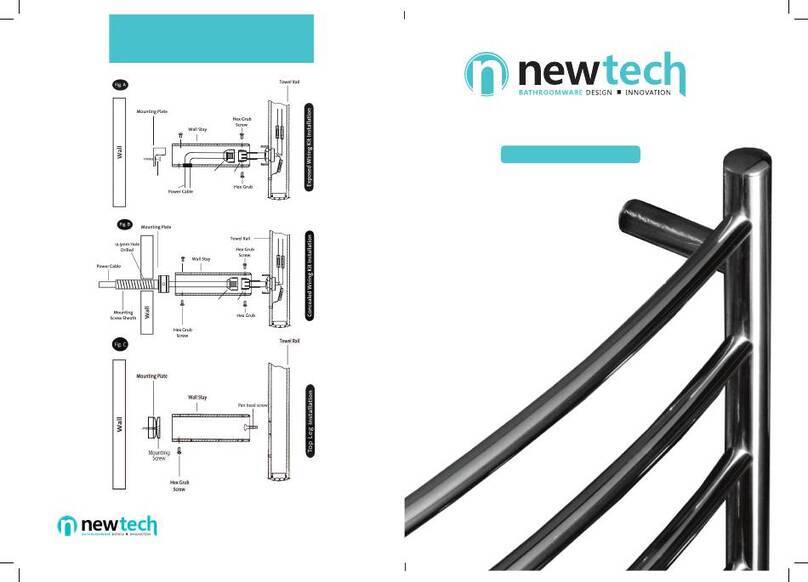

 We recommend assembling towel rail to get accurate mounting positions prior to final installation.
 All heated towel rails must be installed by a registered electrician.
It is recommended they be installed 600mm from the floor.
 Fig. A also applies to installation of unheated towel rails.
Mounting
Screw
Plug and
Nut
Threaded
Socket
Plug and
Nut
Threaded
Socket
Heated Towel Rail Selection
GUARANTEE
Installation Instructions
Evoke & Quadro Heated Towel Rail

INTRODUCTION
You have made a great decision, you have purchased a Newtech Heated Towel Rail. Thank YOU!
Expect your bathroom to have a lovely cosy feel year round.
This heated towel rail has been crafted using high quality products and will have a long lasting and
productive life provided it is used in accordance with manufacturers general conditions.
This towel rail must be installed by a registered electrician.
This product is designed to be used at a stabilised temperature of 60˚C under towelling, depending on
towel dryness and ambient temperature.
This product comes with a ten year warranty. If you feel you have a complaint or issue with this towel
rail, in the first instance contact the retailer from whom you purchased this product. Newtech will
endeavour to provide a satisfactory outcome for your complaint. If the retailer or installer needs to
discuss any installation issues, then please use the following contact details:
Phone [phone] or 0800 728 662, Fax [phone], or email [email protected].nz
CARE OF YOUR TOWEL RAIL
To clean, use mild cleaning detergents. Any harsh scrubbing or scratching of the product surface is
strictly prohibited, same to the use of any cleaning products which contain acid or any corrosive agents.
If you are loving your Newtech Towel warmer tell others; if you are not tell US! Please use and enjoy
your Newtech heated towel rail.
WARNING
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
WARNING: In order to avoid a hazard for very young children, this appliance should be installed so that
the lowest heated rail is at least 600 mm above the floor.
The installation of the towel rail must be performed by a registered electrician and installation is to
comply with AS/NZS 60335.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard. All pole disconnection in the fixed wiring shall be provided.
ELECTRICAL INSTALLATION
Please ensure your towel warmer is installed by a registered electrician and ensure the electrical
supply, plug and switch location, and product location will comply with your local regulations.
New Zealand electrical wiring requirements stipulate that this must be adhered to.
This appliance must be fitted with an air gap phase isolation switch which isolates the “Phase” and
“neutral” in accordance with local wiring regulations.
This product must be used in conjunction with a hard wired switch.

Model Product Size
(mm)
W X D X H
Power (W) Vertical Distance Horizontal
Distance
SL115 530 x 600 x 122 55 330 568
ST65 530 x 600 x 120 58 330 570
CL100 800 x 600 x 122 77 600 568
ST75 800 x 600 x 120 82 600 570
SL150 1060 x 600 x 122 98 860 568
ST80 1060 x 600 x 120 107 860 570
SL130 800 x 450 x 122 60 600 418
ST78 800 x 450 x 120 65 600 420
SL155 1060 x 450 x 122 78 860 418
ST85 1060 x 450 x 120 85 860 420
SL125 530 x 800 x 122 70 300 768
ST95 530 x 800 x 120 76 330 770
ST60 430 x 600 x 122 46 230 570
CL120 430 x 600 x 120 44 230 568
Power Supply : 230 - 240 Volt AC, 50Hz
International protection rating: IP45
