smirthwaite 3171 User manual

12/20
SHOWER
STRETCHER
Fixed Height
INSTRUCTIONS FOR USE
Codes: 3171-3176

Shower Stretcher Fixed Height 1
CONTENTS PAGE
1.0 INTRODUCTION 1
2.0 ILLUSTRATION OF YOUR SHOWER STRETCHER 2
3.0 TECHNICAL DATA 3
4.0 FOR YOUR SAFETY 4
5.0 SURVEYING AND INSTALLATION 5
6.0 HOW TO USE YOUR SHOWER STRETCHER 10
7.0 CARE & MAINTENANCE 12
8.0 WARRANTY & SERVICE 16
9.0 CONTINUOUS IMPROVEMENT 17
10. SERVICE INSPECTION 18
1.0 INTRODUCTION
Thank you for choosing the Smirthwaite Easi Change shower stretcher fixed height.
The stretcher has been designed to fit into a room where space is at a premium, and
provides a durable and economic solution to showering requirements.
Its compact and lightweight design is simple to use, and is suitable for use by both
children and adults with a maximum user weight of 200kg. When not required for
use, the stretcher can simply be stored vertically.
IMPORTANT!
These instructions should be read by all therapists and carers using
the equipment and should be retained for future reference. The
product should always be used under adult supervision.
Any incorrect use of the product and failure to follow the instructions
may put the user at risk or impede the function. If you have any
queries using this product or wish for further copies, please do not
hesitate to contact Customer Service department on
T: [phone].

Shower Stretcher Fixed Height 2
2.0 ILLUSTRATION OF YOUR SHOWER STRETCHER
A. Durable non-rip vinyl
B. Stainless steel powder coated frame
C. Wall mount frame cover
D. Enclosed dampener strut
E. Safety guard rail (Optional accessory)
A
B
C
D

Shower Stretcher Fixed Height 3
3.0 TECHNICAL DATA
Code
Size
Table Dimensions
Height
Range
Wall Frame
Guard Rail*
Stored
Width
Max User
Weight
Shipping
Weight
L
mm
W
mm
M
mm
H
mm
A
Mm
B
mm
Height
mm
Length
mm
S
Mm
Kg
Kg
3171
1
1400
650
1000
Fixed
665
80
145
1400
200
200
75
3172
2
1500
650
1000
Fixed
665
80
145
1400
200
200
76
3173
3
1600
650
1000
Fixed
665
80
145
1400
200
200
77
3174
4
1700
650
1000
Fixed
650
80
145
1400
200
200
78
3175
5
1800
650
1000
Fixed
650
80
145
1400
200
200
79
3176
6
1900
650
1000
Fixed
650
80
145
1400
200
200
80
* Safety Guard rail optional Accessory

Shower Stretcher Fixed Height 4
4.0 FOR YOUR SAFETY
STOP!
Please read these instructions CAREFULLY and THOROUGHLY.
• The patient should NOT be left unattended whilst in the product. Always ensure a
responsible therapist or carer is in attendance.
• The carer should be familiar with the methods of use before transfer of a patient
onto the product
• If fitted, ensure the safety guard rail is in the ‘up’ position once a patient is on the
shower stretcher
• When storing the product vertically (up position), check to ensure that the locking
plunger pin is fully engaged.
• Regular maintenance checks and cleaning are essential for the safe use of this
equipment (see care and maintenance section).
• Always keep this product away from naked flames, cigarettes and sources of heat
including open fireplaces, radiators and heaters.
• DO NOT fit parts or accessories of other manufacturers to this product unless
authorized to do so in writing by Smirthwaite Ltd. Failure to follow these
instructions will not only invalidate the guarantee but could make the product
dangerous to use. Smirthwaite Ltd will not accept liability for any injury or damage
incurred through such malpractices.
• In the unlikely event repair work is required it must ONLY be undertaken by
Smirthwaite authorized personnel.
• If you believe the product or any fitted accessory to be faulty at any time, DO NOT
USE – contact Smirthwaite by telephone on [phone].
• This product is CE marked. This certifies that it meets all relevant/applicable
European directives.

Shower Stretcher Fixed Height 5
5.0 SURVEYING AND INSTALLATION
STOP!
If in any doubt, ALWAYS seek ADVICE.
Always turn screws clockwise to tighten or anti-clockwise to loosen.
5.1 SURVEYING PROCEDURES
• Shower stretchers are often installed in small rooms with limited space. In such
circumstances it is vitally important to take accurate measurements of the whole
room in question, and make a plan to scale if possible.
• Ensure that the intended wall for installation is strong enough to support
the weight of the stretcher plus the patient.
• If the wall is of brick or concrete construction it will be strong enough to support
the equipment without need of the backing board.
• If the wall is of hollow or soft insulation block construction, then we would always
recommend the backing board is used.
• Check for the position of dado rails, window sills, electrical power points, switches,
etc. which may adversely affect the installation.
• Check there is sufficient room around other facilities, e.g. wash basins, toilets, etc.
• Remember to take into account the guard rail dimensions (accessory).
• Check that access to doorways is still possible.
• Inspect the wall to see if padding/spacing is required to correct wall imperfections.
STOP!
If in any doubt, ALWAYS seek PROFESSIONAL ADVICE.
5.2 INSTALLATION TOOLS REQUIRED
• Electric drill, with appropriate drill bits for wood and masonry
• Set of spanners
• Tape measure
• Spirit level
• Hammer
• Screw driver set
• Personal Protection Equipment (PPE); gloves, safety glasses.

Shower Stretcher Fixed Height 6
5.3 INSTALLATION PROCEDURE
• Carefully unpack the shower stretcher and lay all parts on to the floor.
• Check all component packs are present
• Check all components for damage that may have occurred during transit

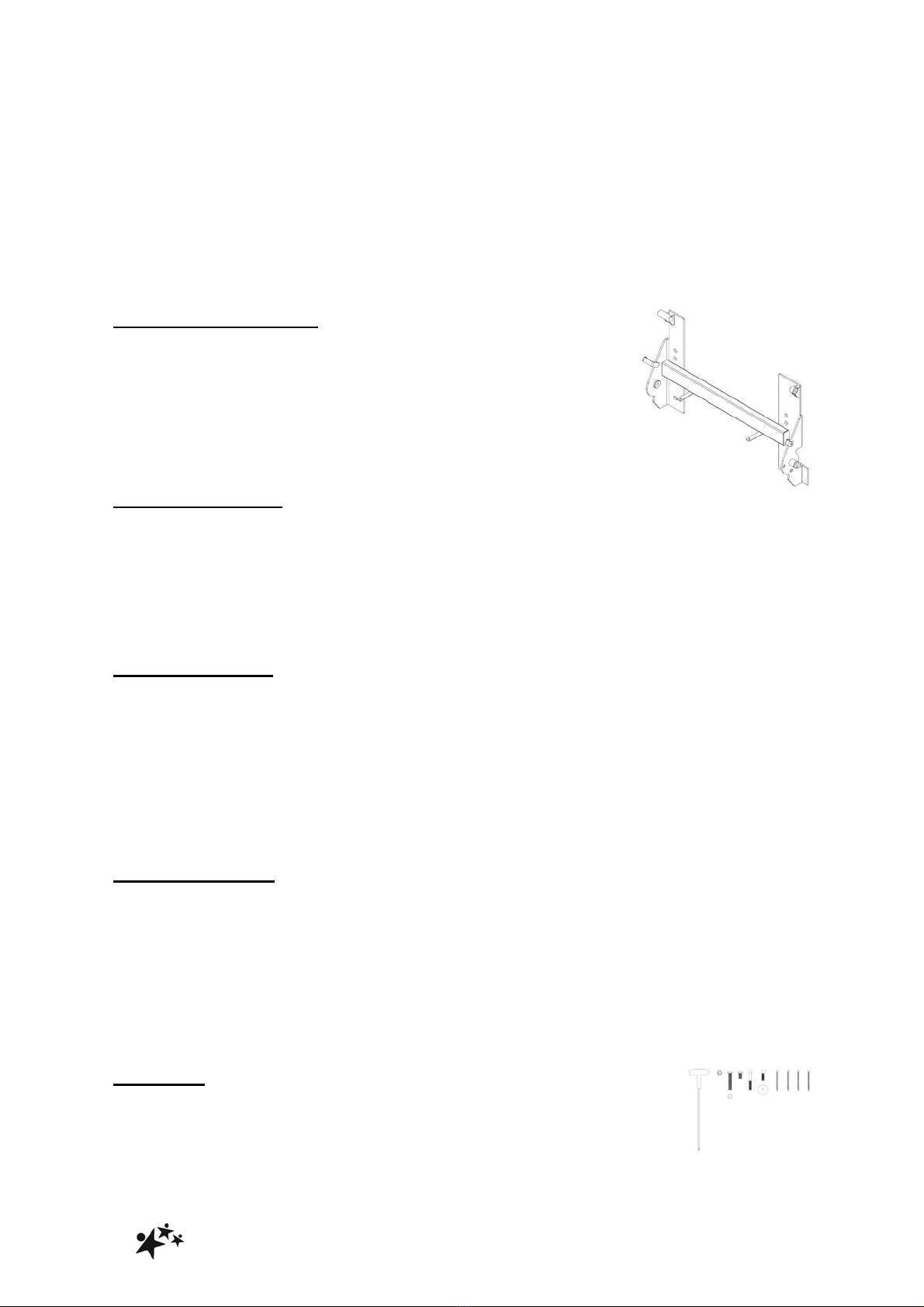

Wall Bracket Assembly
Qty: 1
Wall Bracket Cover
Qty: 1
Stretcher Frame1,2
Qty: 1
1.Frame will vary dependent upon length chosen
2.Frame will vary if headrest accessory is chosen
Safety Guard Rail3
3.Accessory item
Fixing Kit4
Qty: 1
4.Exact contents may vary from illustration

Shower Stretcher Fixed Height 7
5.3 INSTALLATION PROCEDURE (Cont)
STOP!
Due to the size of this product, it is recommended installation is
undertaken by two persons
• Store the stretcher frame, back cover and backing board (if ordered)
somewhere safe.
• Position the wall bracket assembly level on the desired wall at an appropriate
height, ensuring you have checked for clearances as described before.
• The bench can be positioned above a bath to aid water collection, or simply
fastened to a wall in a suitable wet room.
• Mark and drill the holes for the fixings.
• Where a backing board is to be used, it should be drilled to take a minimum of 8
fixing screws – check screws do not interfere with the wall bracket assembly
once mounted.
• Fix the frame assembly to the wall, checking the wall bracket assembly is level
and vertical before tightening the fixings – use packing if required.

Shower Stretcher Fixed Height 8
5.3 INSTALLATION PROCEDURE (Cont)

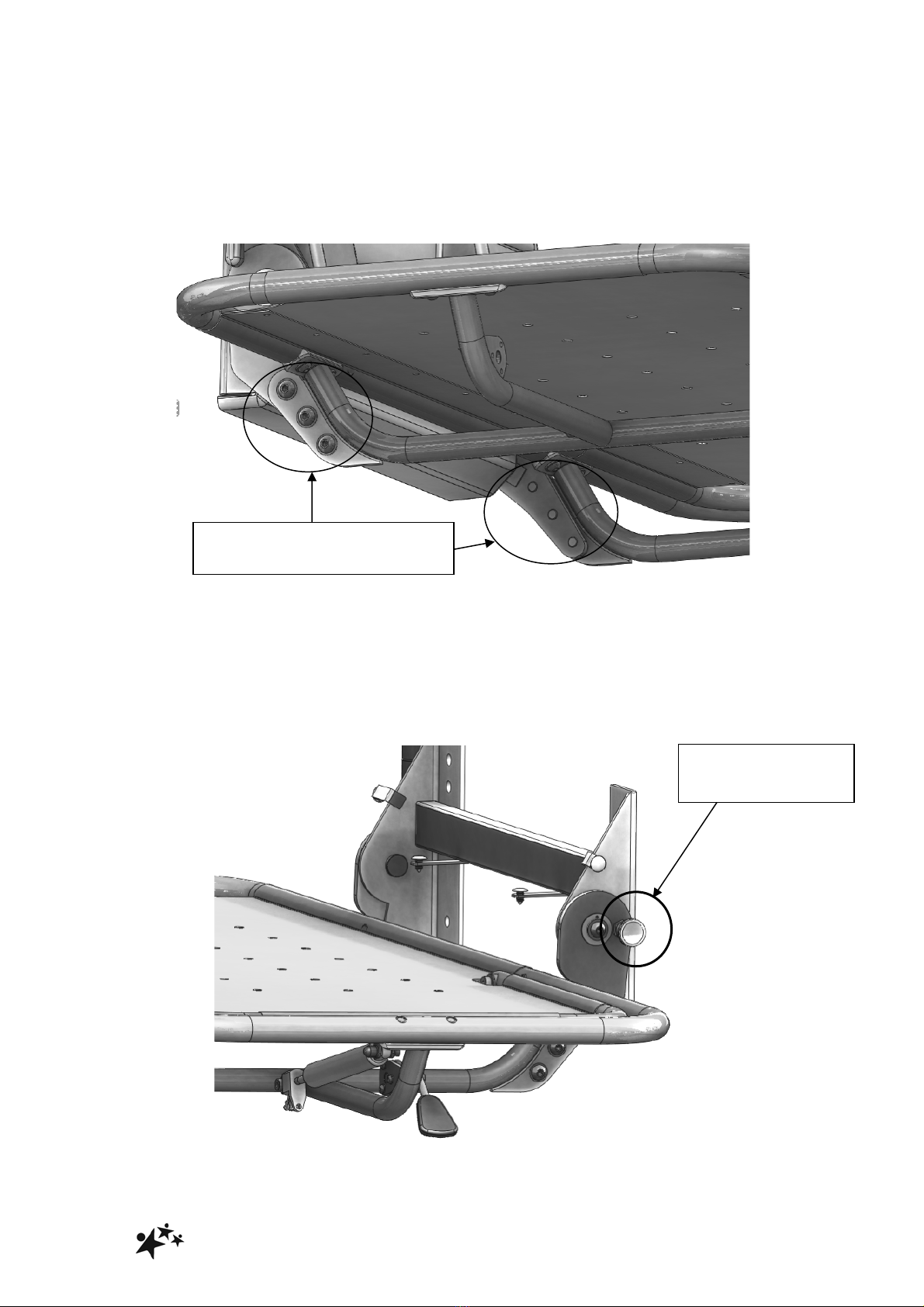

• Offer up the stretcher frame to the wall bracket assembly, fixing into place using
3 screws per side as shown below (M10 x 20mm screws, total quantity 6)
• Ensure the screw fixings are tight
• Check that the stretcher frame can be rotated from horizontal to vertical without
obstruction.
• Check that the stretcher frame can be stored securely vertically using the
plunger locking pin (circled below). To return the stretcher to horizontal, pull the
plunger locking pin, and rotate the stretcher downwards.
FIXINGS 6 x M10 x 20mm
PLUNGER
LOCKING PIN

Shower Stretcher Fixed Height 9
5.3 INSTALLATION PROCEDURE (Cont)

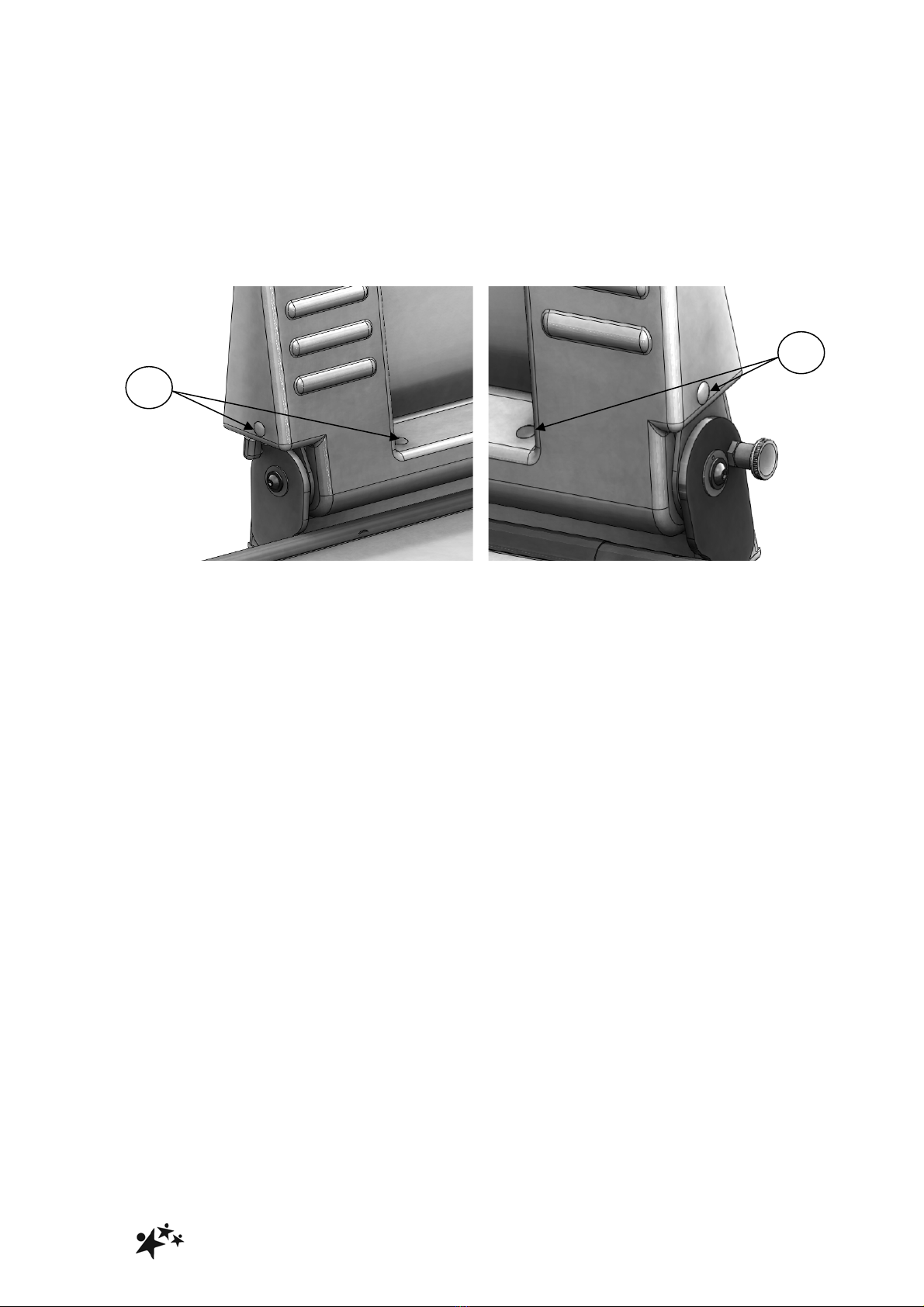

• To complete installation, it is necessary to fit the wall bracket cover to the wall
bracket assembly.
• Offer up the cover to the wall bracket assembly and secure in place with 4 push
fixings (D) as shown below
5.4 SHOWER STRETCHER HEAD REST ACCESSORY
If the customer has specified on order a head rest accessory, this will be fitted to the
shower stretcher at the time of manufacture at the factory. See section 6.0 for
instructions on use.
5.5 SHOWER STRETCHER SAFETY GUARD ACCESSORY
If the customer has specified on order a safety guard rail accessory, this will be fitted
to the shower stretcher at the time of manufacture at the factory. See section 6.0 for
instructions on use.
D
D

Shower Stretcher Fixed Height 10
6.0 HOW TO USE YOUR SHOWER STRETCHER
6.1 GENERAL USE AND STORAGE
• Where space is at a premium, the stretcher should always be stored vertically
when not in use.
• By rotating the stretcher vertically, it will automatically lock into the stored
position.
• To return the stretcher to horizontal for use, pull plunger pin (E), and rotate the
bed to horizontal.
6.2 HEAD REST ACCESSORY
• To operate the head rest, simply pull the head rest lever (F) toward the top of
the stretcher and the gas assisted head rest will rise – let go of the lever when
the head rest is at the desired angle.
• To lower, simply pull the lever and push the headrest flat.
E
F

Shower Stretcher Fixed Height 11

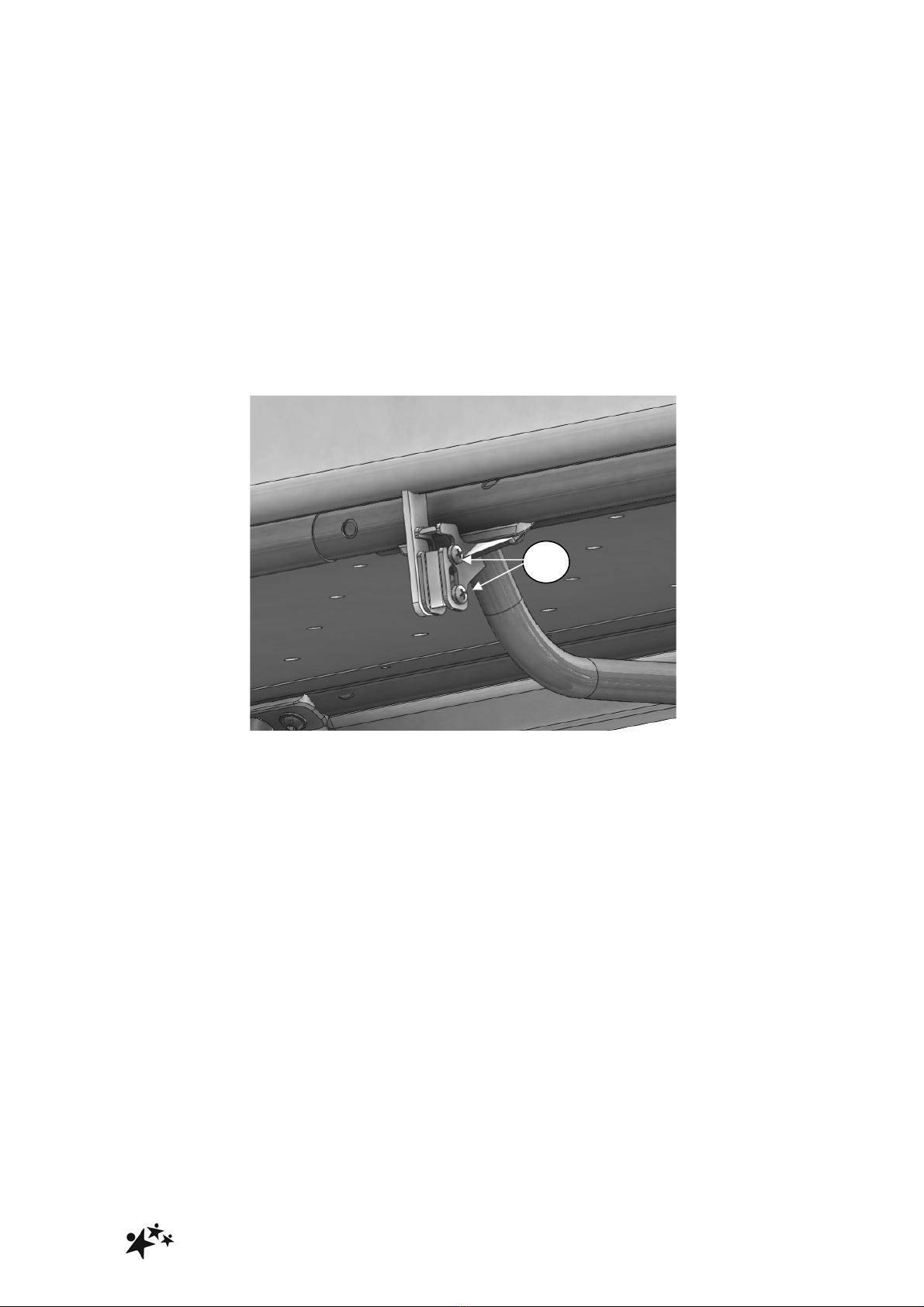

6.3 SAFETY GUARD RAIL ACCESSORY
• To operate the guard rail rotate it upwards to vertical position.
• When in the upright position, lift the guard rail to engage the locking pins (G)
• To lower the guard rail, slightly lift the item to disengage the locking pins (G)
• Support the guard rail whilst rotating it underneath the bed, to hang freely.
G

Shower Stretcher Fixed Height 12
7.0 CARE AND MAINTENANCE
IMPORTANT!
CLEANING IS RECOMMENDED ON A REGULAR BASIS
• To clean the shower stretcher use a damp soft cloth with mild soap.
• Rinse with clean cloth and water.
• DO NOT use solvents, abrasives, synthetic detergents and wax polishes.
• ALWAYS wipe dry after use.
• ALWAYS keep this product away from naked flames, cigarettes and sources of
heat including open fireplaces, radiators and heaters.
• For further information please refer to MHRA or Local Authority cleaning
guidelines.
7.1 DAILY CHECKS
IMPORTANT!
Regular maintenance checks are required
• Check for missing parts
• Check the shower stretcher for signs of damage or wear and tear
• Keep the shower stretcher parts clean
• Check that the guard rail can be stowed and locked into the vertical position (if
fitted)
• Check that the head rest can be operated (if fitted).
• Check that the shower stretcher can be securely stored in the vertical
position, and that the plunger locking pin engages.
7.2 SERVICE INTERVAL
This product should be serviced every year. Servicing must only be undertaken by a
Smirthwaite service engineer, or by a Smirthwaite trained representative.

Shower Stretcher Fixed Height 13
7.3 NOMINAL SERVICE LIFE
Your product has a nominal service life of 7 years, during which full post-sales
support will be available with regard to spares and servicing.
Product service life has been determined based upon the design complexity of
product, and the anticipated exposure to normal use.
Good practice dictates all Smirthwaite products have been designed and
manufactured to high levels of safety and quality, and will meet requirements of
normal use when maintained in line with our servicing recommendations.
STOP!
If the product has been out of use for an extended period of time (6
months or more) it should always be serviced prior to being
reissued.
If the product has been subjected to ‘heavy’ or ‘constant’ use, the
service should be reduced to half the recommended period.
Constant and/or heavy use is considered to be:
• Daily use above 7 hours duration
• Weekly use above 5 days duration
• Monthly use above 10 months per year
• Use by a client who is at 90% to 100% of the maximum weight limit of
the product. The maximum weight limit must NEVER be exceeded
• Use by a client who is extremely active, either voluntarily or
involuntarily

Shower Stretcher Fixed Height 14
7.4 EXTENDING NOMINAL SERVICE LIFE
We are proud to produce products that have a reputation for quality and durability.
We believe our products have the potential to provide benefits to our clients beyond
the nominal service life documented above.
We will continue to provide full support beyond the nominal service life provided the
following conditions are met:
1. A full-service schedule has been maintained.
2. A full service and inspection are undertaken at the end of the nominal service
life period
3. The product is subsequently serviced annually (or biannually if under
‘heavy/constant’ use conditions)
4. We reserve the right to limit support where parts/components are no longer
available
7.5 DOCUMENTATION/RECORDS
• It is the responsibility of the current equipment owner to ensure the ‘Instructions
for Use’ manual and any further manuals for accessories fitted to the equipment
are handed over to the new owner at the time of exchange/sale
• It is the responsibility of the current equipment owner to ensure the service and
inspection record form is kept up to date
7.6 PRODUCT CONFIGURATION
• We will document and maintain a record of the original product configuration at
the time of first sale
• We will not be held responsible for any subsequent changes to this configuration
unless authorized to do so in writing by Smirthwaite Ltd
• It is the equipment owner’s responsibility to maintain their own records of
changes to the equipment configuration and to be able to provide such records to
subsequent owners to maintain traceability
• We recommend an inspection/service by a Smirthwaite Service Engineer (or
Smirthwaite trained engineer) whenever a significant change is made to product
configuration to ensure the product is safe to use. If in any doubt, ALWAYS
seek ADVICE

Shower Stretcher Fixed Height 15
IMPORTANT REMINDER!
DO NOT fit parts or accessories of other manufacturers to this product
unless authorized to do so in writing by Smirthwaite Ltd.
Any servicing or repairs required must be carried out by Smirthwaite Ltd
(or a Smirthwaite trained engineer).
If you believe this product to be faulty – DO NOT USE – Contact
Smirthwaite Ltd on T: [phone]
If in any doubt, ALWAYS seek ADVICE.

Shower Stretcher Fixed Height 16
8.0 WARRANTY & SERVICE
Smirthwaite Ltd warrants the products detailed on your order to be free from defects
in materials and workmanship for a period of 2 years from date of delivery. If a fault
develops during the period, please call Customer Services by email or telephone
01626 835552 who will advise you on the best course of action. Possible action may
be for us to arrange to send out one of our Service Engineers, or have the goods
returned to us. Should a repair not be possible within the guarantee period we will
replace the product for new or nearest equivalent product. In the unlikely event that
we cannot repair or exchange we will refund in full.
This warranty is for the UK only. The warranty excludes faults due to accident,
neglect, misuse, not following the Instructions and normal wear and tear. This
warranty is in addition to your legal rights. Goods will only be collected from the
original delivery address.
A charge may be made where the goods cannot be repaired under the terms of the
warranty. You will be advised before this is made.
T: [phone] E: [email protected]

Shower Stretcher Fixed Height 17
9.0 CONTINUOUS IMPROVEMENT
Smirthwaite Ltd are committed to continuous improvement to their product range.
Should you have any suggestions or comments please send them to our product
design department at: [email protected]
Smirthwaite Ltd reserve the right to change the specification or material without prior
notice.
For catalogues, help and further information on our products please contact us at:
Smirthwaite Ltd
16 Wentworth Road
Heathfield,
Devon
TQ12 6TL
T: [phone]
F: [phone]
E: [email protected]
W: www.smirthwaite.co.uk

Shower Stretcher Fixed Height 18
10.0 SERVICE INSPECTION
10.1 Product Information
Model:
Size:
Date of Manufacture:
Serial Number:
Final Inspection:
10.2 Service & inspection record form:
Date
Procedure
Service
Personnel

Shower Stretcher Fixed Height 19
Smirthwaite, 16 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL
T: [phone] F: [phone] E: [e-mail] www.smirthwaite.co.uk
