Nextlevel Acoustics UM1 User manual

Z-CLIP AND UM1 BRACKET
SPEAKER INSTALLATION

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fusion Series Z-Clip Mount
1) Withastudnderndthepositionofthe
studsinthedrywallandmarktheir
location(Fig.1)
2) Determinetheoptimalplacementforthe
speaker,baseduponyourdesiredlook
3) Ifaz-clipwaspre-mountedtotheback
ofthespeaker,skiptostep5
4) Mountandleveloneofthez-clipstothe
backofthespeakerusingtheprovided
#10½”screws(Fig.2)
5) Mountandlevelthesecondz-cliptothe
wall.Hittingstudsonhorizontalspeakers
isrecommended(Fig.3)
6) Fornon-studmounting,onlyuse
hardwareratedtocarrytheweightofthe
speaker
7) Connectthespeakerwirestothe
terminalslocatedonthebackofthe
speaker
9) Ifapplicable,funnelthewiresintocable
managementchannelsandcoverw/
blacktape
10)Installtherubberbumperstothebackof
thespeakerifdesired
11)Lowerthespeakermountedz-cliponto
thewallmountedz-clippushinganyexcess
wireintothewall(Fig.4)

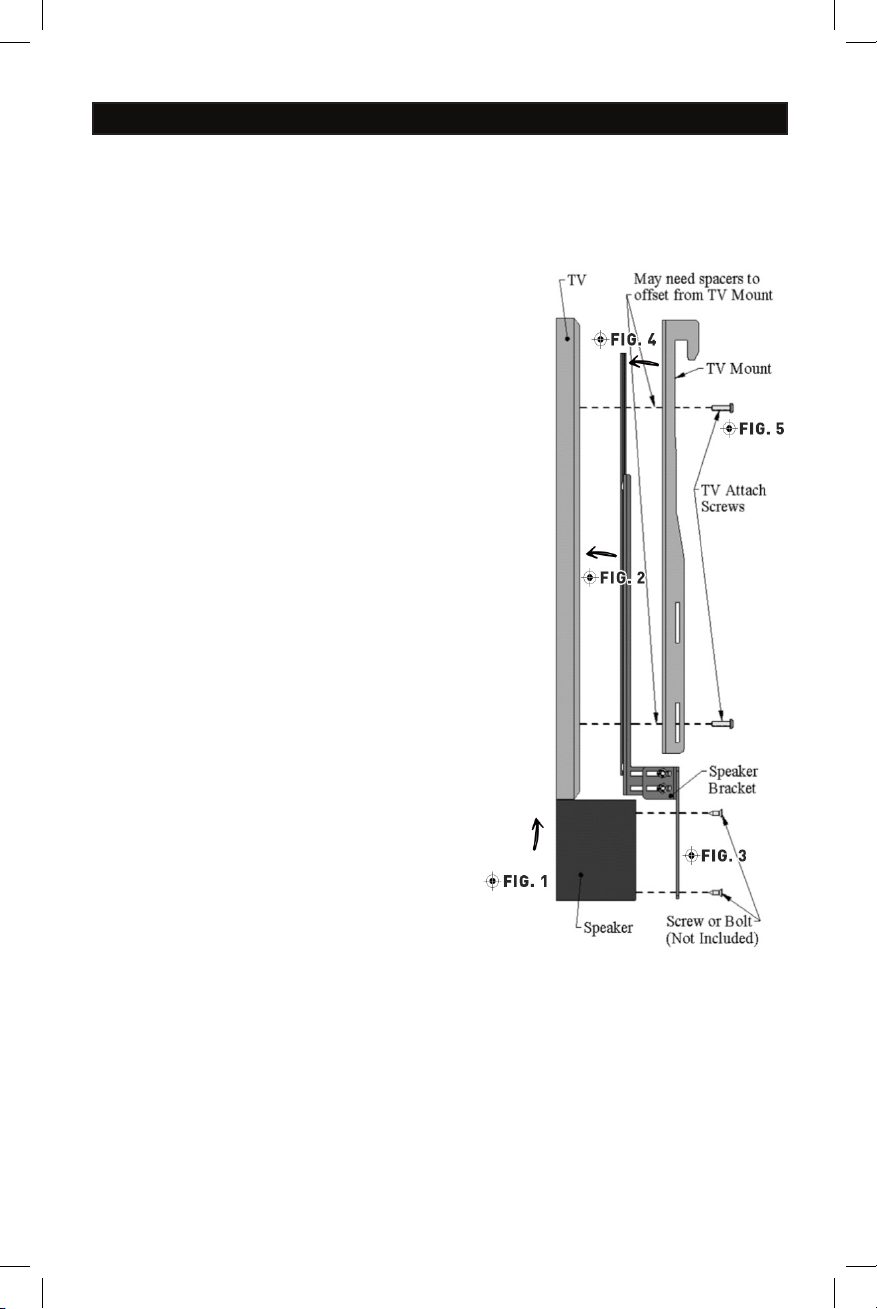

Fusion Series Mounting Using the UM1 Bracket
1) Verycarefullylaythedisplayfacedownonasoft
surfacemakingsurenottodamage
2)Placethespeakerfacedownushwith
thebottomofthedisplay(Fig.1)
3)LaytheUM1bracketarmsontotheback
ofthedisplaysothatthearmsanchorholes
passoverthedisplaysthreadedinserts.
TheUM1’sslotteddepthbracketsshould
alsooverhangontothebackofthespeaker
(Fig.2)
4)AdjusttheUM1bracketarmsuntilthe
depthsupportslottedbrackettssnuggly
ontothebackofthespeaker.Youwillbeable
tonetunetheheight,depth,andtiltatthe
endoftheinstall(Fig.3)
5)Layyourdisplaywallmounts
bracketarmsovertheUM1bracket
armsandsecuretothebackofthe
displaymakingsurethatthebolts
(notprovided)passthroughboth
thedisplaywallmountbracketarmsand
theUM1bracketarms(Fig.4/5)
6)AnchortheUM1’sslotteddepthbracketstothebackof
thesoundbarusing#10½”screwsandwashers(providedinthe
UM1box),twoperbracket.Youwillneedtopre-drillbefore
anchoringthe#10½screws(Fig.3)

nextlevelacoustics.com
tel + 617.237.2875
[e-mail]
Fusion Series Mounting Using the UM1 Bracket
Steps1-6shouldlooklikethepicturebelow
7)UnscrewthenylonnutsandremovetheboltssecuringtheUM1’s
slotteddepthbracketstotheUM1bracketarmandremovethe
speakerfromthebottomofthedisplay.Thedepthadjustmentbracket
armsshouldstillbescrewedintothebackofthespeaker
8)Liftandmountthedisplayontowall,followingtheinstructions
providedbythemountsmanufacturer
9)Liftthespeakerandre-attachtotheUM1bracketarms
withtheboltsandnylonnutsthatyouremovedinstep7
10)Adjusttheheight,depth,andtiltfeaturesoftheUM1bracket
toachievethedesiredlookandconnectthespeakerwirestothe
backofthespeaker
