Nexus Standard Mk II User manual

Nexus Standard Mk II
metal detector
User Manual

2
Table of contents.
1. General description –page 3, 4, 5, 6
2. Assembly & Preparation –page 6. 7
3. Controls –page 7, 8, 9
-DDM –Definite Discrimination LED Meter –page 8
-Discrimination Control –page 8
-Ground Balance Control –page 8
-Threshold and Auto Mode Control –page 8
-Sensitivity Control –page 8
-Volume Control and Power On/Off switch. –page 9
-Multi Tone Control –page 9
-Mode (Iron Rejection) toggle switch –page 9
-Silent Motion/ Standard Motion and Battery Test toggle switch –
page 9
-Recovery Mode toggle switch –page 9
4. Operation –page 9, 10, 11, 12
-If you are a novice in the hobby or a child –page 9, 10
-If you have some experience, but still not on a professional level –
page 10
-If you are a professional or have extensive experience with metal
detectors –page 10
-Full Manual Set Up –page 10, 11, 12
-Search method –page 12
-All Metal Mode –page 13
-Discrimination Mode –page 13
-Pinpointing –page 13
5. Special Modes of operation –page 13, 14, 15, 16
-Discriminating Ground Minerals in severe mineral conditions
page 13
-Discriminating all types of hot rocks and metallic ore –page 13, 14
-Discriminating salt water on tidal beaches and salt water lakes –
page 14
-Discriminating all large metal objects leaving only the
Smaller ones.
Special gold nugget hunting tune –page 14, 15
-Discriminating all small targets and leaving only larger
metal objects –page 15, 16
Silent motion -page 15, 16
6. Tips –page 16, 17
7. Care of Nexus Standard MkII –page 17
8. Guarantee –page 17, 18
9. Technical specifications –page 18
10. Troubleshooting –page 18

3
General Description

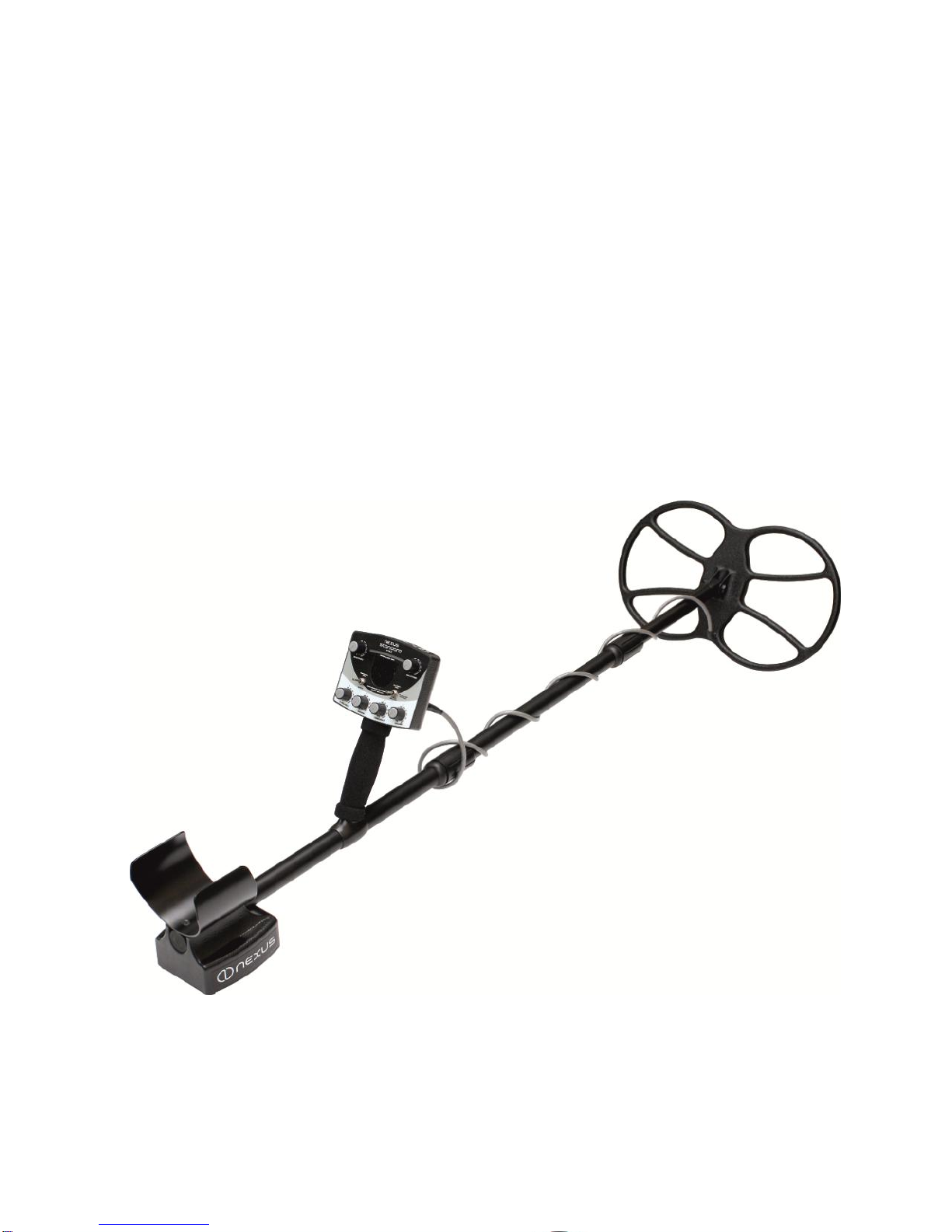

The Nexus Standard Mk II is an Analogue Induction Balance (IB) metal
detector that operates in the very low frequency (VLF) range and it is
designed for use on all Inland Sites and Tidal Salt Water Beaches. It may
be used in any of the three basic modes of operation - Auto, All-Metal or
Discriminate.
The Nexus Standard Mk II is designed to be a general-purpose metal
detector, capable of finding both small and large targets at extreme depths.
The standard coil supplied is the classic dual 9” unit or the 13”DD and this
is ideal for general searching operations.
There are 11 different search coils that can be used as accessory with the
Nexus Standard MkII.
Classic number 8 shape search coils.

4
- classic dual 20" SE Ultima search coil at 5.2kHz, High Energy
For maximum dept on medium and large metal targets in all conditions.
The most powerful hand held search coil in the world.
The full extend of the detecting capabilities with Nexus Standard MkII is yet
to be established. Guaranteed detection dept on a metal helmet 2 meters
under ground.
- classic dual 9" at 6.8kHz , High Energy
Best for general search in all conditions.
Exhibits maximum achievable dept on small, medium and large targets in
all conditions. With the previous Nexus Standard SE this coil design was
capable to detect small 18mm coin up to 40 cm under ground and 30mm
coin up to 48 cm under ground. The extend of the detection dept with
Nexus Standard MkII have not been fully tested.
- classic dual 6" at 5.2kHz, High Energy
For maximum dept of small and medium targets in mineralised conditions
and contaminated sites. Also very good for general search.
- classic dual 6" at 8.5kHz, High Energy
Best for general search in all conditions. Good for all targets. It detects
30mm coin at 40 cm under ground in real search conditions.
- classic dual 6" at 18 kHz, High Energy
Best for small targets, gold nuggets and gold coins.
- classic dual 4" at 7.3kHz, High Energy
Specially designed for contaminated areas with best possible dept for small
and medium targets. It detects a small 18mm coin at 28 cm and 30mm coin
at 36 cm in real search under ground. Very good for checking holes and
ditches.
- classic dual 4" at 15 kHz, High Energy
The ultimate gold nugget hunter. It can detect gold nuggets as small as 10
milligrams.

5
DD shape search coil range.
- 13"DD at 6kHz, High Energy
General search coil designed for higher detection ratio of small, medium
and large targets in normal search conditions. It exhibits greater depth than
any other DD search coil made by other competitive brands. It detects
18mm coin at 28 cm with very loud signal responses.
Due to large search area it will find more targets for shorter period of time
compared to smaller search coils. Not suitable for mineralised conditions
due to high probability of producing multiple signal responses.
Extend of detection dept not fully tested yet.
- 10"DD at 7kHz, High Energy
It could be the best general search coil that you’ll ever need. It exhibits
excellent dept and discrimination in most conditions. Very efficient in
detecting small targets at great dept. Very fast in isolating individual
targets. It detects 18mm coin at 28cm with very good signal response.
Extend of detection dept not fully tested yet.
- 10"DD at 18kHz, High Energy
Specially designed for gold nuggets and small targets at great dept.
Extend of detection dept not fully tested yet.

6
- 7"DD at 8kHz, High Energy
General search coil designed for quick scan of new detecting fields and
areas. Very good for searching narrow spaces, holes and ditches. Best
suited for small and medium targets in contaminated areas.
Each coil is tuned to a slightly different frequency within the design range,
to minimise interference from other Nexus detectors. Performance values
for all Nexus detectors will be identical.
To obtain the best results with the Nexus Standard Mk II, as with all metal
detectors, it is essential to understand the settings and operation of the
detector.
The Auto mode of the Nexus Standard Mk II will provide exceptional quality
results in the hands of every user, regardless of their experience with metal
detectors. With the Nexus Standard Mk II everyone can enjoy the benefits
of the deep seeking Nexus technology, both novice and professional alike.
As a general rule the best results will always be obtained when the Nexus
Standard Mk II is properly set in manual mode. Therefore users will need to
practice and experiment in order to obtain the best possible results on any
particular site. All sites and soils are different and settings that will give
good results on one site may be less successful if used elsewhere. The
Nexus Standard Mk II is designed to detect the very deepest of targets and
operates near to the limits of what is achievable with induction balance.
Assembly & Preparation
The Nexus Standard Mk II is supplied boxed and ready for quick assembly
by simply attaching the two lower stem poles to the top one, tightening the
collars and attaching the coil to the lower stem section, using the plastic
bolt and friction washers supplied and tightened by hand so that coil is held
at the correct angle to the stem; the coil cable plug is inserted to the socket
in the control box and then tighten the knurled ring, taking care when
winding the cable around the stem that the cable is not strained.
The centre stem pole is of the same tube diameter as the top one and can
be left off in circumstances where a short stem is needed; it is meant for
use on steep sites, river banks, caves, ditches and similar conditions. This
configuration is also useful if the Nexus Standard Mk II is to be used by
children and makes it a good family metal detector that can be used by
anyone in the family.
The Nexus Standard Mk II is supplied with a drop in battery holder that can
be used for all types of AA size batteries, (alkaline or rechargeable); a
charging socket is provided to the battery box for connecting a charger unit.

7
To insert or change batteries remove any three of the thumb plastic screws
from the base lid of the battery box (the battery box is below the arm cup at
the top of the detector stem) and loosen the fourth screw. Turn the cover to
the side. Insert the 10 batteries, in their correct alignments, into the plastic
holder and make sure that all the terminals have a good electrical contact.
Locate the battery holder into the compartment, ensuring the connecting
terminals of the battery holder are in good contact with the two electric
spring loaded terminals behind the recharge socket. Do not over-tighten the
plastic thumb screws when refitting.
If you wish to use headphones (highly recommended) connect your
available set to the 6 mm jack socket on the battery box. The Nexus
Standard Mk II has an internal loudspeaker so headphones are not
absolutely essential. For any headphones that have a volume control,
ensure that this is set to MAXIMUM and use the Nexus Standard Mk II
Volume knob on the control box to set the volume level.
Controls

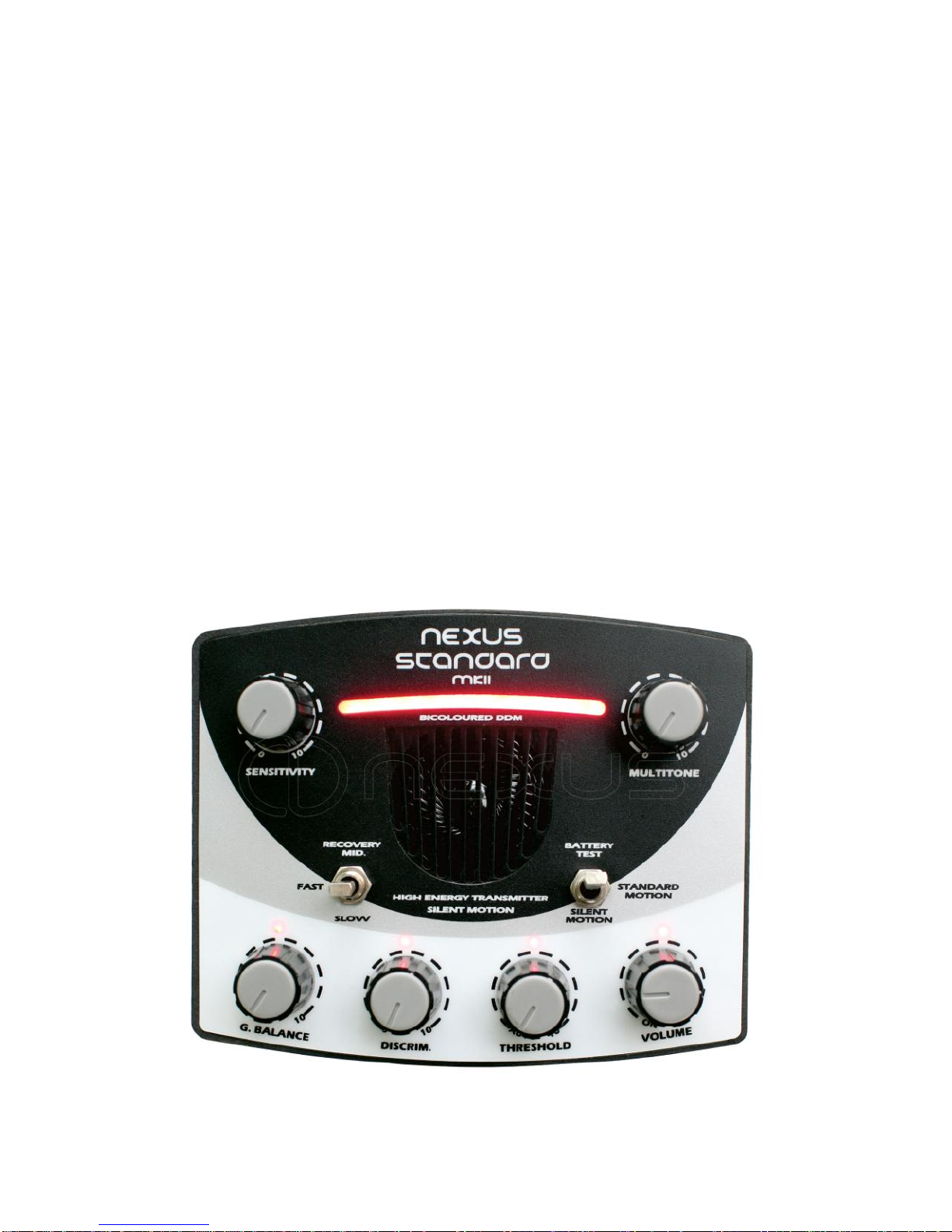

The Nexus Standard Mk II has six rotary control knobs and three toggle
switches (two located on the front panel of the control box and one
underneath the control box)

8
DDM –Definite Discrimination Meter
The DDM meter is based on LED technology and provides a reliable visual
discrimination analysis in All-Metal Mode and Iron Rejection Mode. The bar
will light RED for non ferrous and BLUE for ferrous (iron) targets.
Discrimination
This knob sets the level of the discrimination. Rotating the Discrimination
knob clockwise (from 0 to 10) will INCREASE the level so that Iron is
increasingly not detected (but high settings will result in the loss of
potentially good targets). Generally, the discrimination level should be set
as low as is possible; to avoid masking the smallest and deepest desired
targets.
Ground Balance
This knob is used to set the balance of the Nexus Standard Mk II to suit the
soil conditions on any given site.
Threshold and Auto Mode
This knob sets the level of the threshold tone. The Nexus Standard Mk II
may be operated in silent mode, with no audible background tone or with
this tone set to give a slight tone level. In order to readily discern the
faintest and smallest of signals, operation with a slight background tone is
recommended.
The Threshold control knob is combined with a switch that enables the
Auto function. When the Threshold knob is turned fully anti clock wise the
switch will click and the Auto function will automatically set base levels for
the Threshold, Discrimination, Ground Balance and Iron Rejection controls
(those controls will not work manually unless the Auto Mode is turned off
from the Threshold knob). In Auto mode, the Sensitivity level is
recommended to be set to minimum.
Once the Auto function is turned on three LED lights will indicate that
Ground balance, Discrimination and Threshold are automatically controlled.
Sensitivity
This knob controls the level of sensitivity of the responses. The sensitivity
level setting chosen will depend on the soil conditions but, in general, the
highest possible setting should be used. On contaminated or mineralised
sites, it may be necessary to reduce the sensitivity to avoid some false
signals.

9
Volume and Power On/Off switch.
This knob sets the volume of the tone and responses and it is used also to
turn on/off the Nexus Standard Mk II. This knob should always be used for
setting the volume. Any volume control on the headphones should be set
to MAXIMUM.
When the Power is turned on an LED light above the Volume control knob
will indicate that detector is turned on.
Multitone.
This knob activates and adjusts the audio discrimination option and gives a
high-pitched tone response for non ferrous and low-pitched tone for ferrous
(iron) responses.
Mode Toggle Switch
Located under the control box and accessible from the hand-grip, this
toggle switch is used to change operating modes. When pushed to the left,
the Nexus Standard Mk II operates in Discrimination Mode. In the right
position, the Nexus Standard Mk II operates in All-Metal Mode.
Standard Motion/Silent Motion/Battery Test Toggle Switch.
This is located on the front panel of the control box. It is used to check the
condition of the batteries by using the DDM; if the meter bar lights one third
or less of its length, changing or recharging the batteries is recommended.
The other positions for this switch toggles the Nexus Standard Mk II
between Tone and Silent search modes.
This toggle switch also controls the change from Standard Motion of
detecting to the Silent Motion filter.
Recovery Toggle Switch.
This is located on the front panel of the control box. It is used to control the
recovery or reset speed of the detector for Slow, Middle and Fast reset. A
slow recovery is best for sites with few signals and a fast recovery for sites
with many signals or contamination.
General Operation and Setting Up
Having assembled the Nexus, inserted batteries and connected the
headphones, The Nexus is ready for use.
If you are a novice metal detector user.
Simply turn on the Auto Mode, activated on the Threshold control knob on
and start detecting. With a little time and practice, as you gain experience

10
with the detector, you can progress to Manual Modes, already then having
some idea of what most target responses will be like. A minimum
Sensitivity level is recommended in Auto Mode to minimise clicking or/and
possible false signals.
If you have some metal detector experience.
We recommend the Auto function above for at least the first couple of days.
If you have considerable experience with metal detectors.
No metal detector, however powerful, will operate at its best unless it is set
up properly for the conditions in which it is to be used. To obtain the best
results and maximum depth and sensitivity to desired targets, the Nexus
Standard Mk II must be properly tuned to the site and the settings to
achieve this are set out below.
Full Manual Set-Up
Firstly, ensure that no metal is in close proximity to the coil. It is also
advisable to carry out the tuning and setting up of the Nexus Standard Mk II
away from other metal detectors or potential sources of electronic
interference.
Turn the Nexus Standard Mk II on. A tone will be heard and the DDM
meter will flash. The tone will fade and the meter bar will settle after a few
seconds.
To check the condition of the batteries, turn up the Battery Check toggle
switch. After the battery check is been done turn the toggle switch back to
Standard motion or Silent motion to allow the DDM to indicate metal
targets. Keeping the DDM in battery check mode for a long time will drain
the batteries.
Holding the Nexus Standard Mk II with the coil well above ground level,
adjust the Sensitivity control knob to minimum. Adjust the Threshold knob
to obtain a minimal (faint) tone setting. Adjust the Volume knob to set a
comfortable level (remembering to set any adjustable headphone volume
control to MAXIMUM). Lower the coil to the ground and sweep side to side
slowly to ensure that there are no metal targets in the place you are tuning
the detector When you are satisfied proceed as follows.
Position the coil about 3” above and parallel to the ground surface. Raise
the coil gently to about 10” (250 mm) above the ground and lower back to
3” (75 mm) above ground several times. Note whether the threshold tone
remains the same or if it increases or decreases in intensity while raising

11
and lowering the coil. If the tone rises when LOWERING the coil towards
the ground, then adjust the Ground Balance knob slightly in the clockwise
direction. If the tone rises when LIFTING the coil away from the ground,
then adjust the Ground Balance knob slightly in the anti-clockwise direction.
Repeat this procedure to check and if the tone remains constant, the
ground balance is set properly.
IF THE GROUND BALANCE IS INCORRECTLY SET THE DDM METER
WILL INDICATE STRONG FALSE SIGNALS FROM THE GROUND
MINERALS.
To achieve the best ground balance tuning, it is essential that the coil be
held parallel to the ground surface at all times during the procedure.
The next setting is to adjust the Sensitivity to suit the site conditions. From
the minimum setting of the Sensitivity knob (set at minimum in the initial
ground balancing procedure), adjust the control clockwise to increase the
sensitivity. Repeat the procedure of raising and lowering the coil between
3” (75 mm) and 10” (250 mm) above the ground surface, as for ground
balancing. If there is no change in tone while doing this, then the sensitivity
may be increased further. For best results, the setting should be at the
maximum possible while maintaining a stable threshold tone. At maximum
sensitivity settings, a slight tone change may be noted when both raising
and lowering the coil. This will not adversely affect the operation of the
Nexus Standard Mk II, providing that the coil is kept at a reasonably
constant level above the ground surface and parallel to it while detecting.
Setting the desired Discrimination level is done by rotating the
Discrimination knob clockwise to INCREASE the discrimination level and
REDUCE the sensitivity to ferrous (iron); higher than necessary settings will
result in desired targets being missed. Rotating the Discrimination knob
anticlockwise will DECREASE the discrimination level and INCREASE the
sensitivity to ferrous (iron) targets.
In general, an effective method of setting the Discrimination level, suitable
for most search conditions, is by passing a rusty iron nail (about 50mm
long) close to the search coil. Rotate the Discrimination knob clockwise
until the iron nail is rejected in every possible position against the coil. After
this procedure check if small non-ferrous targets are detectable without
loss of depth.
Finally, check again the threshold and volume settings for comfortable
levels.

12
The Nexus Standard Mk II is now set up for the particular site conditions
and is ready for use.
Search Method
With the Nexus Standard Mk II set up and ready, the coil should be swung
smoothly from side to side, a little above the ground surface. The sweep
speed should be according to the Recovery settings. It is not effective to
‘scrub’ the coil on the surface of the ground (this can also damage the coil
and places strain on the stem assembly).
Suggested operating heights for the standard coils are:
Dual 9” coil 2” (50 mm) minimum above ground surface
Dual 6” coil: 1” (25 mm) minimum above ground surface
Dual 4” coil; Any distance.
13” DD coil: 2” (50 mm) minimum above ground surface
10” DD coil: 1½” (40 mm) minimum above ground surface
7”DD coil; Any distance.
Make sure that the coil is swung evenly over and parallel to the ground
surface and that the coil does not rise at each end of the swing. Cover the
ground in smooth, parallel swings to ensure maximum detection coverage.
In All-Metal Mode, both ferrous and non-ferrous targets will give the same
audio response (unless the Multitone function is turned on) by a sudden
increase in the intensity of the threshold tone. A strong response indicates
a large or relatively shallow target and a weak response indicates a small
or deep target. Any audio signal in All-Metal Mode may be analysed by
using the DDM meter. To analyse a signal with the Meter observe its
colour response.
In Discrimination Mode, good non-ferrous targets will give a clear, well-
defined, two-way, repeatable audio signal. Ferrous targets will give a
‘clicking’ audio response or an indistinct and erratic response.
Silent Motion is a very powerful discriminator that will stop all signal
responses from Iron, ground minerals, how rocks and electrical
interference.
Pinpointing is by simply X-ing the coil across the signal. The position
where the signals are strongest below the coil centre indicates the target
position. As with all detectors, when targets are of complex shape or are
located at an angle in the soil, pin-pointing may not be entirely accurate so
it is suggested that, when digging, the user allow space to avoid possible
damage to finds.

13
Special Modes of operation.
Discriminating Against Ground Minerals in severe mineral conditions.
If normal Ground Balance proves to be ineffective in dealing with the
Ground Minerals then the recommended settings here will help to
overcome the problem. To cancel out the effect of Ground Minerals, turn on
the Iron Rejection Mode using the toggle switch under the control box; this
switch is moved to the LEFT.
Lower and raise the search coil over the ground surface, as you would do
in the standard Ground Balance procedure. Begin turning the Ground
Balance knob anti-clockwise, slowly while swinging the coil until the
ground mineral signals reduce to small clicks. Now the Nexus Standard Mk
II is ready to work in severe Ground Mineral conditions.
Discriminating Against ‘hot rocks’and metallic ore.
In some instances, the ground balance and/or Discrimination settings may
not be sufficient to remove the audio responses from some types of ‘hot
rocks’or highly metallic ore pieces.
If this proves to be a nuisance while detecting, the procedure required to
remove the hot rocks and/or metallic ores from the audio signals, or at least
to reduce their interference, is similar to that used for Discriminating
Ground Minerals.
To remove the hot rocks and/or metallic ores from the audio signals turn on
the Iron Rejection Mode using the toggle switch under the control box; this
switch is move to the LEFT.
Start swinging the search coil over a sample of the specific type of a hot
rock or ore piece that you wish to be removed from the audio responses,
positioned as you would detect them during normal searching. Begin
turning the Ground Balance knob from approximately middle position in
anti-clockwise direction, slowly and while swinging over the target until the
audio signal reduces to clicks. The Nexus Standard Mk II is now able to
work effectively in fields loaded with hot rocks or metallic ore pieces.
Discriminating Against Salt Water on wet sand or tidal beaches.
The procedure is very similar to that used for ‘hot rocks’ and minerals; After
initial set-up, begin turning the Discrimination knob from position 0 to

14
clockwise direction, very slowly until the salt water signals turn into small
clicks. Keep the Ground Balance know in position where the ground
minerals are usually cancelled (balanced out).
Discriminating Against Large Metal Objects (leaving only the smaller
ones) and Special Gold Nugget hunting setting.
There are some conditions where only small targets are required in a
particular search; desirable targets such as gold nuggets or tiny coins.
These are especially difficult to search for in contaminated conditions or in
the presence of mineralised soils.
To remove all large targets and leave only the desired very small objects,
make sure that the Discrimination level is set to allow your desired small
targets to be in the range of good (non-ferrous) targets. Turn on the Iron
Rejection Mode using the toggle switch under the control box; this switch is
moved to the LEFT
Begin swinging the coil over any target that you wish to remove from the
audio responses. While swinging the coil, start turning the Ground Balance
knob anti-clockwise position as slowly as possible. Keep doing so until all
large targets and minerals are removed and only the gold nuggets and
smallest non-ferrous objects are left for detection.
The Nexus Standard Mk II is now ready for hunting only those small
targets.
Note: Gold nuggets and all small targets are best detected at the standard
ground balance setting in All Metal Mode. This procedure is only
recommended in severe contamination or bad mineral conditions. As
setting the detector in this way will result in a high discrimination setting,
while rejecting all large targets, there will be also a loss of depth for the
remaining small targets as much as 50%.
Discriminating Against Small Targets and leaving only larger metal
objects.
Many treasure hunters have been looking for the perfect metal detector.
One of those aims is for a detector that is capable to ignore or not detect at
all small metal objects such as coins, bottle caps even ring-pulls and detect
only larger metal targets such as hoards, metal pots, helmets, shields etc.
To reject all small metal targets after proper Ground balance is been done
turn the Iron Rejection Mode on, the Mode switch to the left.

15
Place on the ground surface samples of all small targets that you do not
wish to be detected.
Start swinging the search coil closely over the unwanted targets. While
doing so start turning slowly the Discrimination knob from position 0
towards position 10, clockwise. Keep doing so until all small targets are
giving small clicks in the audio responses and also not giving a response
on the DDM meter. Now the Nexus Standard Mk II is ready for hunting
larger objects only.
Note; During this procedure discriminating hot rocks and /or metallic ore
may not be possible or with great limitations. Using a considerable level of
discrimination against hot rocks and/or metallic ore during this procedure
will result in detecting only medium size targets.
The best way to get rid of all small objects while using the Nexus Standard
MkII is by far the Silent Motion filter.
Silent Motion setting can be used when the detector is set in Auto mode or
Manual mode.
To reject most undesired small and medium objects turn the Auto function
on. Then choose Silent Motion from the relevant toggle switch on the front
panel. In this setting and while conducting a normal sweep speed the
detector will be silent to all ground minerals, all small and medium Iron
targets and to all small to medium non ferrous targets. Only considerable in
size non ferrous and Iron objects will be detectable.
If the sweep speed is considerably reduced while using this setting the
detector will start detecting medium targets and coins, but not small and
medium Iron.
If Silent Motion is used in Manual detector settings that will allow the
complete rejection of all small and medium targets.
To achieve this level of rejection simply set the detector in manual mode
with it’s normal setting for ground search. Then turn the Silent Motion filter
on.
Get any small or/and medium target that you wish to be completely
rejected. Begin swinging the target in immediate proximity to the search coil
in all possible positions and very slowly. While doing so start turning the
Discrimination know from 0 to clockwise slowly until the tested target is no
longer detected.

16
Tips
The Nexus Standard Mk II may seem different in operation to some
detectors presently available. Some practice and experimentation with the
settings is necessary to get the best results on different sites.
Users should persist and regular use over a reasonable period is likely to
be needed to become proficient, especially in successfully locating the very
deepest and smallest of targets.
It must always be remembered that no detector can find what is not there –
nor can any detector give a signal unless the coil is passed directly over
that target!
There will always be sites on which any single detector does not work to
peak efficiency. All detectors and sites are different and a particular
combination of frequency and filtering might be best on a specific site,
although the range of accessory coils available for the Nexus Standard Mk
II will allow effective operation under almost all conditions and for all types
of targets.
Site conditions will significantly affect depths and performance. Heavily
furrowed, broken ground or thick stubble are all especially difficult ground
types to search. Sites where the ground conditions vary to a considerable
degree may require the Ground Balance to be adjusted from time to time
for best results.
Care of the Nexus Standard Mk II
All metal detectors are precision instruments and require careful handling
to ensure they remain in good working order.
Avoid dropping, impacts or violent shaking of the detector and protect it
while transporting.
The detector should not be used in extremely wet weather conditions,
without protecting the control box and the battery. The coil assembly is fully
waterproofed.
If water penetrates any of the boxes, switch off the detector and remove the
batteries. It is suggested that the detector be placed in a warm place to dry
out slowly.

17
Mud and soil should be carefully removed, using a damp cloth or water
only. Do not use detergents or abrasives and avoid getting water in the
control boxes.
When storing the detector for long periods or when shipping, the batteries
should be removed. Avoid storing the detector in areas where it will be
exposed to extreme temperatures, dust, moisture or contaminants.
Do not attempt to modify or repair the detector or allow any unauthorised
repair centre to do so.
Guarantee
The Nexus Standard MkII metal detector is guaranteed for a period of 24
months from date of purchase against all manufacturing defects.
The Control Box is sealed and contains no user-serviceable parts Opening
the Control Box will invalidate the Guarantee.
This Guarantee does not cover:
Damage due to dropping, impact or accident
Damage due to improper use or care of the detector
Damage resulting from leakage of batteries
Damage to the coil or coil cable
In the event of any problem, please contact us. Any detector returned
under Guarantee must be properly packed, preferably in the box supplied
and be sent by insured carrier. The sender is responsible for any loss or
damage in transit.
A full repair and replacement parts service is available.
Technical Specifications:
Operating Frequency Range 6-18kHz kHz
Coil Design DD and Twin Concentric Overlapping
Coil Weights Dual 9” or13”DD – 650gr.10”DD –540g;
6”–450g; 4” – 380gr, 7”DD – 350gr.
Weight (main unit only) 1.0 kg (without batteries)
Coil Case Construction ABS plus Fibreglass
Audio Frequency Custom tuned
Audio Output 6mm stereo headphone jack
Power Supply 15v (10 AA alkaline batteries)
Battery Life up to 10 hours
Operating Modes All-Metal , Discriminate and Auto tune.

18
Optimum Temperature Range -15° to +60° C
Optimum Humidity Range 0 to 85% RH
Troubleshooting
1. The detector does not turn on. Check the batteries. If they are
old replace them with new. Make sure the batteries are properly
inserted into the battery holder and have a good electrical contact.
2. The detector is giving too many false signals. If this happens
first turn the Sensitivity to 0, minimum level. Check the Ground
Balance if it is adjusted correctly according to the ground balance
procedure. If the problem still persist check if the soil does not
contain hot rocks or other contaminants. If this is the case then use
Silent Motion and /or Iron Rejection to stop the interference. Auto
mode will also assist in such conditions.
3. The detector is picking up too much Iron. Check the
Discrimination level according to the recommended settings or use
Auto mode.
4. I only plug the search coil and detector does not work after
that. Make sure that it is the correct search coil for your Nexus
model. The search coils for Nexus Standard MkII are not
interchangeable with the lower Nexus models and vice versa.
5. One or more control functions does not work. Make sure that
you know how to use those control functions according to this User
Manual. In case that any of the control functions do not cause any
change of response in the detector functions then return the
detector to your dealer for check and possible repair.
6. The detector is unstable. Make sure not to use the detector with
full Sensitivity while using fast Recovery speed setting. Fast
Recovery setting and high Sensitivity together will result in
considerable amount of chatter in the loudspeaker and/or
headphones. If this is not the case check for sources of electronic
interference. Using Silent motion will remove all interference,
chatter and electronic noise.
7. The detector stopped working during rain. Nexus detectors are
not water or weather proofed. Knowing that we strongly
recommend that no Nexus metal detector model is used in rain. If
this happens turn off the power of the detector from the Volume
knob. Take out the batteries and leave the detector near a warm
place for a couple of days to dry out. After that if still not working
return the detector to your dealer for maintenance and repair.

19
