OWNER'S MANUAL
Please read before using this equipment.
LAB-1100
Fully Automatic Belt-Drive Turntable

2
FEATURES
Your Nexxtech LAB-1100 Fully Auto-
matic Belt-Drive Turntable is a high
quality stereo turntable with sensitive
pickup and a built-in preamp that deliver
great sound from your records.
Your turntable’s features include:
Belt-Drive System — reduces turntable
noise by absorbing even the slightest
motor vibration.
DC Motor — keeps wow at a minimum
by providing a stable, controlled speed.
Stereo Preamplifier — lets you connect
the turntable to the LINE IN inputs on a
receiver/amplifier (or stereo audio mixer)
which does not have low-level phono in-
puts.
Quick Stop — lets you quickly stop play
with the press of a button.
331/3or 45 RPM Speed Selector — lets
you play records made at either speed.
Cue — lets you raise and lower the tone
arm without touching it, so you do not
damage the stylus or your records.
We recommend you record the turnta-
ble’s serial number here. The serial
number is on the turntable’s rear panel.
Serial Number: ___________________
INTERFERENCE
Your turntable might cause TV or radio
interference even when it is operating
properly. To determine whether your
turntable is causing the interference,
disconnect your turntable. If the interfer-
ence goes away, your turntable is caus-
ing it. Try to eliminate the interference
by:
•Moving your turntable away from the
receiver
•Connecting your turntable to an out-
let that is on a different electrical cir-
cuit from the receiver
•Contacting your local electronic
store for help
If you cannot eliminate the interference,
you may be required to stop using your
turntable.
©1998 ORBYX Electronics.
All Rights Reserved.

3
CONTENTS
Preparation .............................................................................................................. 5
Unpacking the Turntable .................................................................................... 5
Assembling the Turntable ................................................................................... 5
Connecting the Turntable to Your Receiver/Amplifier ......................................... 6
Connecting Power .............................................................................................. 7
Operation ................................................................................................................. 8
Using the Cue Button ......................................................................................... 9
Troubleshooting .................................................................................................... 10
Care and Maintenance .......................................................................................... 12
Record Care ..................................................................................................... 13
Cleaning/Replacing the Stylus ......................................................................... 13
Specifications ....................................................................................................... 14
WARNING: To reduce the risk of
fire or shock hazard, do not ex-
pose this product to rain or mois-
ture.
CAUTION
!
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICE-
ABLE PARTS INSIDE. REFER SERVIC-
ING TO QUALIFIED PERSONNEL.
This symbol is intended to alert you to
the presence of uninsulated danger-
ous voltage within the product’s enclo-
sure that might be of sufficient
magnitude to constitute a risk of elec-
tric shock. Do not open the product’s
case.
!
This symbol is intended to inform you
that important operating and mainte-
nance instructions are included in the
literature accompanying this product.

4
PREPARATION
UNPACKING THE
TURNTABLE
When you remove the turntable assem-
bly with its attached dust cover from the
box, be sure to also remove the supplied
rubber mat and 45 RPM adapter before
you store the packing material.
ASSEMBLING THE
TURNTABLE
Note: The LIN (lead in), RET (auto re-
turn), and SW (tone arm switch) screws
on the bottom of the turntable are set at
the factory and should not be adjusted.

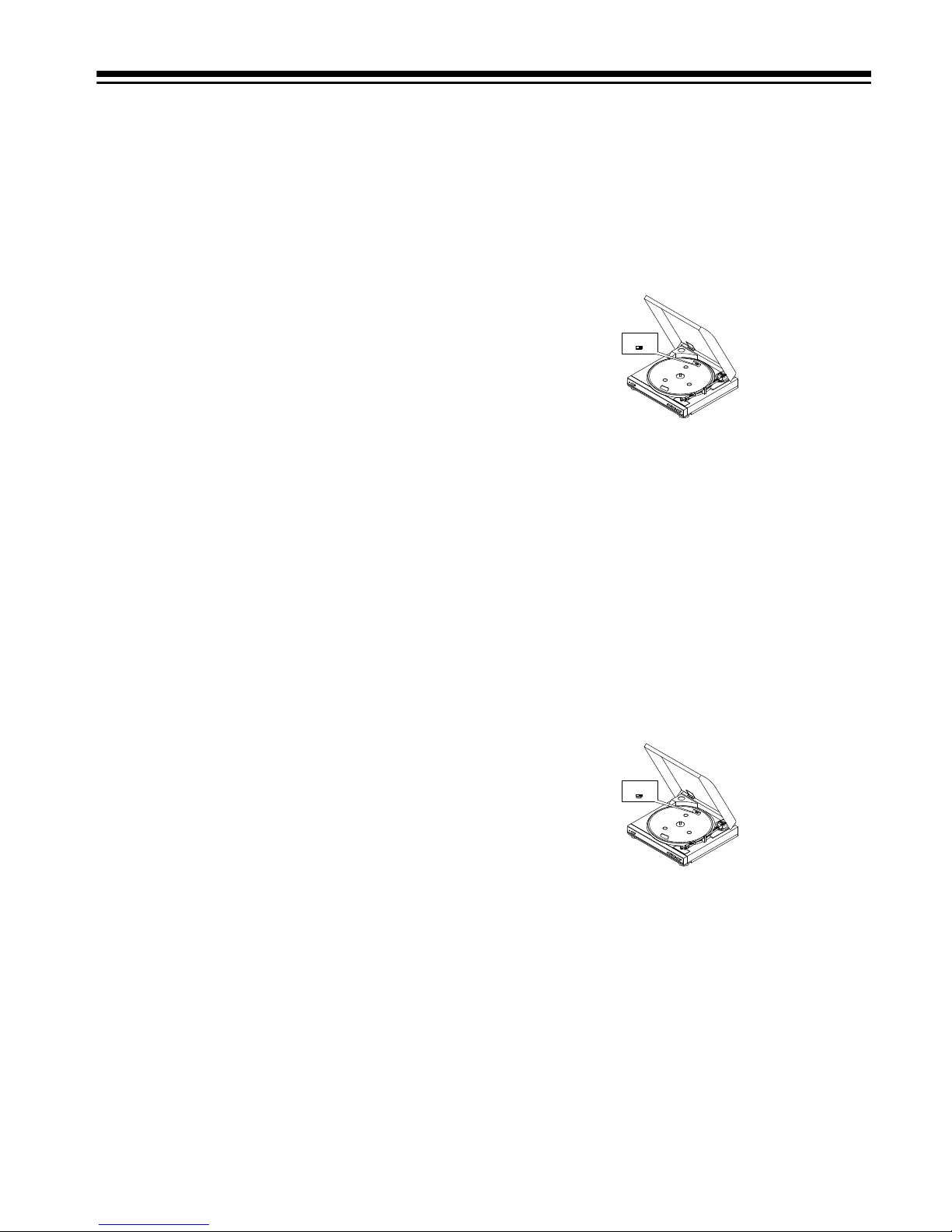

1. Open the dust cover.
2. Rotate the turntable’s platter until
one of the platter’s two larger holes
is above the drive motor spindle on
the turntable’s upper left side.
3. Remove the adhesive tape and two
ribbons from the rubber drive belt.
Be sure that the drive belt is not
twisted, then stretch the belt over
the drive motor’s spindle.
4. Remove the shipping wire which
holds the tone arm to the tone arm
rest.
Note: Save this wire with the pack-
ing materials for future use.
5. Turn the turntable’s platter by hand
clockwise six or seven times to clear
the tone arm mechanism.
Drive Motor'Splindle

5
CONNECTING THE
TURNTABLE TO YOUR
RECEIVER/AMPLIFIER
You can connect your LAB-1100 to a re-
ceiver/amplifier (or stereo audio mixer)
that has low-level phono inputs (such as
left and right PHONO jacks) or line-level
inputs (such as left and right AUX, TV,
TAPE, or CD jacks).
Note: If you are not sure which type of
input your receiver/amplifier has, check
your receiver’s/amplifier’s owner’s man-
ual.
Cautions:
•Be sure to follow all the installation
instructions described in the en-
closed “Important Safety Instruc-
tions.”
•Do not connect the turntable to AC
power until you complete all other
connections.
•Do not place the turntable on top of
the receiver/amplifier or on any
other component that gets hot.
•To avoid possible damage to your
receiver/amplifier, turn it off before
making the connections.
1. With the receiver/amplifier off, plug
the turntable’s white (left) and red
(right) plugs into the appropriate
jacks on your receiver/amplifier.
•To connect the turntable to a low-
level phono input, plug the white
and red plugs into the receiver’s/
amplifier’s left and right PHONO
jacks. Then set LINE OUT ON/
PHONO OUT OFF to PHONO OUT
OFF
.
•To connect the turntable to a line-
level input, plug the white and red
plugs into the receiver’s/ampli-
fier’s left and right AUX, TV, TAPE,
or CD jacks. Then set LINE OUT
ON/PHONO OUT OFF to LINE OUT
ON.
2. Connect the turntable’s ground wire
to the amplifier’s/receiver’s GND or
earth terminal to avoid hum.
LINE PHONO
OUT OUT
ON OFF
LINE PHONO
OUT OUT
ON OFF

6
3. Place the rubber mat, ridged side
down, on top of the platter.
CONNECTING POWER
Once you have connected the turntable
to your receiver/amplifier, plug the turn-
table’s power cord into a switched or un-
switched AC outlet on your receiver/
amplifier or into a standard AC outlet.
Caution: To prevent electric shock, the
plug’s blades are polarized and fit only
one way. If the plug does not fit easily,
turn it over and try again. Do not force
the plug into the AC outlet.

7

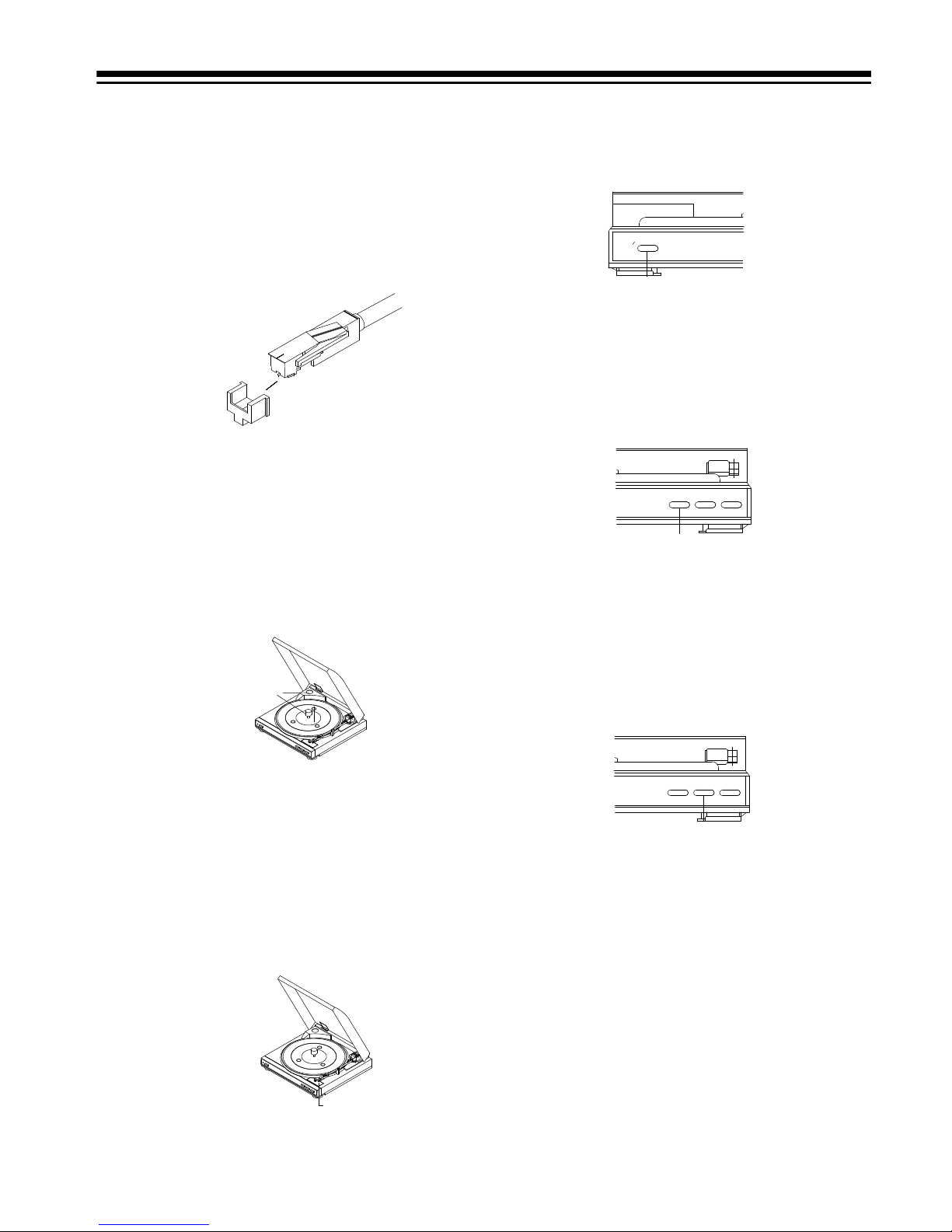

OPERATION
Note: Make sure you have set LINE OUT
ON/PHONO OUT OFF for the type of
sound system you have before operat-
ing the turntable.
1. Open the dust cover.
2. Remove the stylus cover.
3. If you are playing a 331/3RPM
record, place it directly over the
spindle.
If you are playing a 45 RPM record,
place the supplied 45 RPM adapter
over the turntable spindle, then
place the record over the adapter.
4. Set the 6"/12" selector according to
the record’s diameter. Then close
the dust cover.
5. Press SPEED in or out to set the
turntable’s speed (331/3or 45 RPM).
6. Press PLAY. The turntable starts to
rotate and the tone arm moves to
the beginning of the record, lowers
to the record, then starts to play.
7. At the end of the record, the tone
arm automatically returns to the
tone arm rest and the turntable
stops. To stop playing the record
sooner, press STOP.
Notes:
•If the tone arm does not automati-
cally return when it reaches the
end of the record, press STOP to
reset the mechanism.
•To protect the stylus from dam-
age, we recommend you replace
the stylus cover when you are not
using the turntable.
45 RPM Adapter
6"/12"SELECTOR
SPEED OPTI
LAB-1100 FULL AU
45
33 13
PLAY STO CUE
MUS
TOMATIC TURNTABLE
TOMATIC TURNTABLE
MUS CUESTO
PLAY

8
USING THE CUE BUTTON
The cue button raises the tone arm so
you can safely move it to a specific sec-
tion of the record without worrying about
accidentally scratching it with the stylus.
1. Press CUE to raise the tone arm.
2. Push the tone arm to a spot directly
over the desired part of the record.
The turntable starts to rotate.
3. Press CUE again. The tone arm
slowly lowers and the record plays.
Note: You can also use CUE to lift
the tone arm anytime during play.
PLAY STO CUE
MUS
TOMATIC TURNTABLE

9
TROUBLESHOOTING
If your turntable is not working as it should, these suggestions might help you solve
the problem. If the turntable still does not operate properly, take it to your local
electronic store for assistance.
Symptom Possible Cause Suggestion
Turntable does not work
when plugged into an AC
outlet
Connected receiver/
amplifier not turned on.
Turn on receiver/
amplifier.
Rubber drive belt slipped,
broken, or not mounted
properly.
Check rubber drive belt.
Power problem. Check the power cord and
AC outlet.
No sound Receiver/amplifier vol-
ume set to minimum.
Adjust receiver/amplifier
volume.
Turntable not connected
correctly to receiver/ampli-
fier.
Recheck connections.
LINE OUT ON/PHONO OUT
OFF is set to PHONO OUT
OFF and turntable is con-
nected to receiver’s/ampli-
fier’s line-level input jacks.
Set LINE OUT ON/PHONO
OUT OFF to LINE OUT ON.
Stylus needs replacing. Replace the stylus
(See “Cleaning/Replacing
the Stylus” on Page 13).

10
Sound from turntable not
clear or scratchy during
play
Record is dirty. Clean the record.
Stylus is dirty. Clean the stylus with a
soft brush (See “Cleaning/
Replacing the Stylus” on
Page 13).
Stylus is improperly
installed.
Check the stylus and rein-
stall it if necessary.
Stylus is worn. Replace the stylus.
LINE OUT ON/PHONO OUT
OFF is set to LINE OUT ON
and turntable is connected
to receiver’s/amplifier’s
low-level phono input
jacks.
Set LINE OUT ON/PHONO
OUT OFF to PHONO OUT OFF.
Hum from turntable dur-
ing play
Stylus is improperly
installed.
Check the stylus and rein-
stall it if necessary.
Turntable is picking up
induction hum from other
components.
Check ground terminal
and reposition the turnta-
ble away from other com-
ponents.
LINE OUT ON/PHONO OUT
OFF is set to LINE OUT ON
and turntable is connected
to receiver’s/amplifier’s
low-level phono input
jacks.
Set LINE OUT ON/PHONO
OUT OFF to PHONO OUT OFF.
Feedback or howling
sound from turntable dur-
ing play
Turntable is picking up
sound pressure of vibra-
tions from speakers.
Reposition the turntable
away from speakers.
Symptom Possible Cause Suggestion

11
CARE AND MAINTENANCE
Your Nexxtech LAB-1100 Fully Automatic Belt-Drive Turntable is an example of su-
perior design and craftsmanship. The following suggestions will help you care for
your turntable so you can enjoy it for years.
Keep the turntable dry. If it gets wet, wipe it dry immediately. Liquids
might contain minerals that can corrode the electronic circuits.
Handle the turntable gently and carefully. Dropping it can damage cir-
cuit boards and cases and can cause the turntable to work improperly.
Use and store the turntable only in normal temperature environments.
Temperature extremes can shorten the life of electronic devices and
distort or melt plastic parts.
Keep the turntable away from dust and dirt, which can cause premature
wear of parts.
Wipe the turntable with a damp cloth occasionally to keep it looking
new. Do not use harsh chemicals, cleaning solvents, or strong deter-
gents to clean the turntable.
Modifying or tampering with the turntable’s internal components can cause a mal-
function and might invalidate your warranty. If your turntable is not performing as it
should, take it to your local electronic store for assistance.

12
RECORD CARE
• Always hold your records by the
edges. Touching the grooved sur-
face can leave fingerprints that can
collect dust and dirt.
• Always return your records to their
jackets immediately after use. This
helps protect them from dust and
scratches.
• Store your records in a vertical posi-
tion and protect them from extreme
temperatures, moisture, and direct
sunlight.
CLEANING/REPLACING
THE STYLUS
A dirty or worn stylus causes rough, dis-
torted sound and could damage your
records.
Caution: Do not touch the stylus while
cleaning or installing it.
If the stylus gets dirty or dusty, use a
soft brush to gently clean it.
If the stylus is worn, follow these steps
to replace it. You can order a replace-
ment stylus assembly AT3600LAX (RSU
No. 12039012) through your local Ra-
dioShack store.
1. Turn your receiver/amplifier off.
2. Remove the stylus assembly from
the cartridge by gently grasping its
sides and pulling it down.
3. Insert a new stylus assembly and
gently snap it into place.

13
SPECIFICATIONS
Turntable Platter
Type .................................................................................................................. Plastic
Outer Diameter ...................................................................... 300 mm (1113/16 Inches)
Drive System ............................................................................................... Belt Drive
Motor Type ................................................................................................... DC Motor
Turntable Type ................................................................................ Automatic Return
Rotation Speeds ............................................................ 2-Speed (331/3and 45 RPM)
Tone Arm
Type ................................................................................................ Dynamic Balance
Effective Length ........................................................................ 195 mm (11/16 Inches)
Overhang ......................................................................................... 15 mm (9/16 Inch)
Tracking Error ........................................................................................ Less Than 4°
Cartridge
Output Voltage:
2.5 mv at 1 kHz (with LINE OUT ON/PHONO OUT OFF set to PHONO OUT OFF)
450 mv at 1 kHz (with LINE OUT ON/PHONO OUT OFF set to LINE OUT ON)
Frequency Response ............................................................................ 20–20,000 Hz
Channel Separation (1 kHz) ........................................................... More Than 15 dB
Load Resistance : 47 kohm (with LINE OUT ON/PHONO OUT OFF set to PHONO OUT
OFF)
Tracking Force ..................................................................................... 3.5 ±1.0 Gram
Stylus
Tip ...................................................................................................... Diamond Stylus
Replacement ............................................................................................ AT3600LAX

14
General
Signal-to-Noise Ratio (DIN-B) ........................................................................ >50 dB
Wow and Flutter (JIS WARMS) at 3 kHz ....................................................... <0.25%
Power Source .............................................................................. AC 120 Volts 60 Hz
Power Consumption ........................................................................................ 3 Watts
Dimensions (HWD) ........................ 98 ×360 ×349 mm (313/16 ×141/4×1315/16 Inches)
Weight .......................................................................................... 2.38 kg (5 lbs 4 oz)
Included Accessory .......................................................................... 45 RPM Adapter
Specifications are typical; individual units might vary. Specifications are subject to
change and improvement without notice.
illustration
DON’T SHOW STYLUS
REMOVAL; CAN BE
CLEANED IN PLACE

15
NOTES

7A8 Printed in China
LIMITED WARRANTY
Who is Providing This Warranty?
• Orbyx Electronics, LLC (“Orbyx), as the distributor of this
Nexxtech product (your “Product”).
What Does This Warranty Cover?
• This warranty covers defects in materials or
workmanship in your Product under normal use and
conditions.
What is the Period of Coverage?
• This warranty covers your Product for 90 days from the
original purchase date.
Who Is Covered?
• This warranty covers the original consumer purchaser.
Coverage terminates if you sell or otherwise transfer
your Product.
What Will We Do To Correct Problems?
• We will repair your Product or replace your Product with
a new or reconditioned equivalent product, at our option.
How Do You Get Service?
• Call Orbyx TOLL FREE at 1-866-363-3059 for
instructions for obtaining warranty service from Orbyx’s
authorized service providers.
• Or, return your Product directly to the retail store from
which you purchased the Product.
• When you obtain service for your Product, you must
provide a purchase receipt (or other proof of the original
purchase date) and a description of the defect(s).
What Does This Warranty Not Cover?
• This warranty DOES NOT COVER:
• damage due to misuse, abuse, alteration, unauthorized
repair, or accident (such as improper electrical current);
• damage due to “acts of God” (such as lightning) or other
contingencies beyond our control;
• cosmetic damage;
• externally generated static, signal reception or antenna
problems not caused by your Product; or batteries.
• This warranty also DOES NOT COVER, and in no case
will we be liable for, any incidental damages (such as
transportation costs to and from an authorized service
provider, or loss of time) or consequential damages
(such as costs of repairing or replacing other property
which is damaged, including tapes, discs, speakers not
included with your Product or other accessories, or
external electrical systems) resulting from the use of
your Product. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
• Defacing the serial number, or using your Product for
commercial or institutional purposes, voids this warranty.
Are There Other Warranties?
• There are no express warranties other than those
expressed herein. Neither the sales personnel nor any
other person is authorized to make any other warranties
or to extend the duration of any warranties.
• ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY (AN
UNWRITTEN WARRANTY THAT A PRODUCT IS FIT
FOR ORDINARY USE), ARE LIMITED TO 90 DAYS.
Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not
apply to you.
How Does State Law Apply?
• This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state.
ORBYX ELECTRONICS WARRANTY
ORBYX Electronics warrants that this product will be free
from defects in materials and workmanship for a period of
ninety (90) days from the date of purchase. Within this
period, simply take the product and your proof of purchase
to any ORBYX Electronics store or dealer and the product
will be repaired without charge for parts and labour. ORBYX
Electronics reserves the right to charge for transportation.
Any product which has been subject to misuse or accidental
damage is excluded from this warranty.
This warranty is only applicable to a product purchased
through ORBYX Electronics' company owned stores and
dealers and to a product that is presented for repair in a
country where ORBYX Electronics offers the product for
sale. While this warranty does not confer any legal rights
other than those set out above, you may have additional
statutory rights which will vary under the laws of the various
countries, states, province and other governmental entities
in which ORBYX Electronics operates. This warranty is
subject to all statutory rights you may have in the country of
purchase.
LIMITED WARRANTY
Distributed exclusively in the U.S. by
Orbyx Electronics, LLC
501 South Cheryl Lane,
Walnut, CA 91789
Imported in Canada for/Importé au Canada pour
Orbyx Electronics,
Concord, Canada, L4K 4M3
Manufactured in China
For parts, service, and general inquiries please call 1-866-363-3059
Limited Warranty/Garantie Limiteé
U.S.A & Canada
© 2004 ORBYX Electronics. All Rights Reserved.
