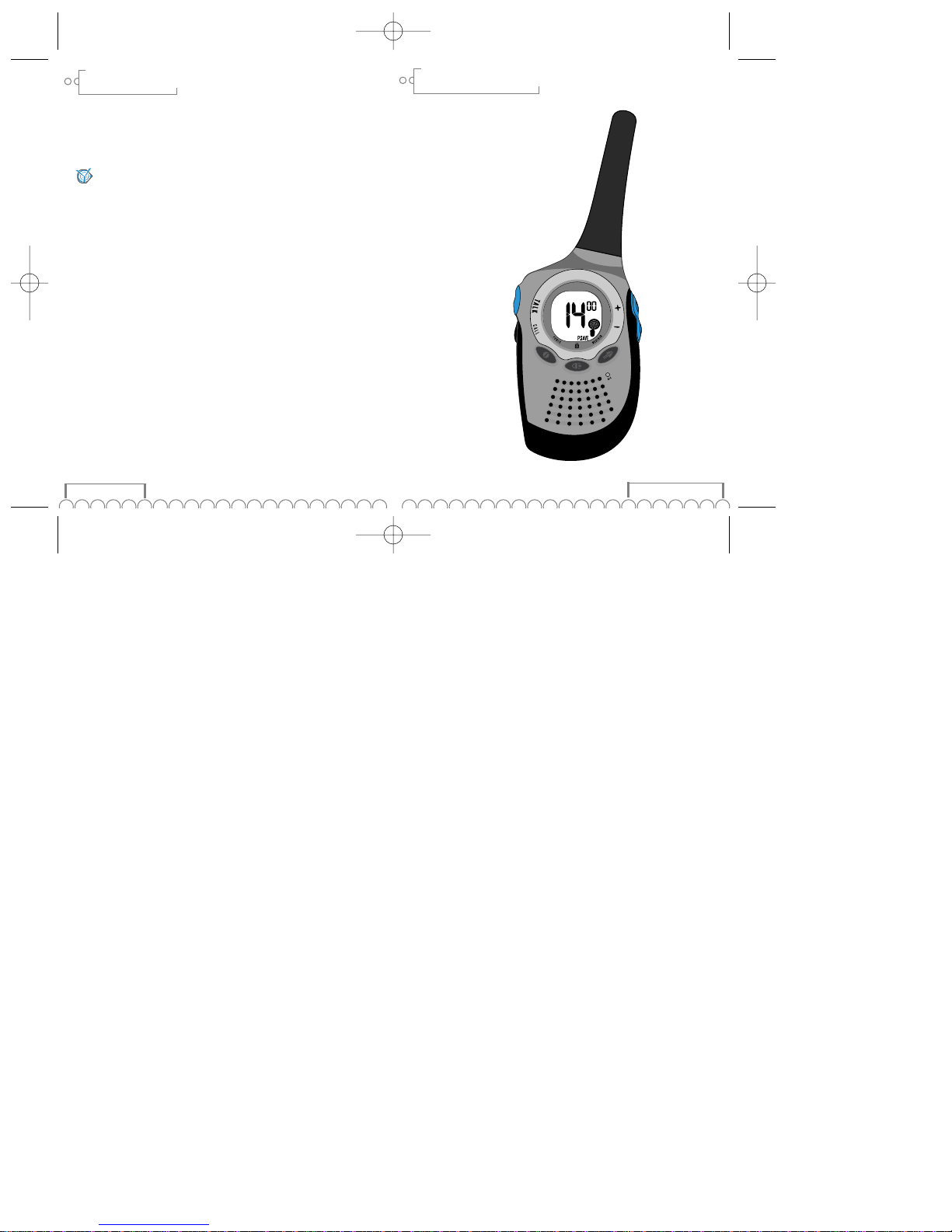

Congratulations. The psc[communicate is an advanced
Portable Sport Communication device. Use it to broadcast
and receive voice transmissions over a range of up to 2
miles. The psc[communicate was specially designed by Nike
for sport utility and reliability. It is small and lightweight,
easy to use, and includes special features that improve
battery life and ensure dependability.
This manual provides simple instructions for 2 different
products, the Nike psc[communicate and the Nike
psc[communicate wx.
The symbol points to especially important
information and helpful tips.
introduction
1
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 1

battery installation
Replace with three AAA batteries as shown.
Note: When Battery power is low the
indicator will blink.
liquid crystal display
¥Weather Mode Indicator
¥Button Lock Indicator
¥Boost/Power save Indicator
¥Transmitting indicator
¥Receiving Indicator
¥Sub Channel Indicator
¥ Channel indicator
¥Battery power remaining indicator
¥ Voice activated call Indicator (psc
communicate wx only)
¥On/off indicator
¥Volume indicator
¥Button confirmation tone/roger beep indicator
2
battery installation
liquid crystal display
power button
select power settings
talk button
adjust volume
call button
light/lock button
10 mode button
12 select main channel
12 select sub channel
14 scan channels
16 scan sub channels
18 button confirmation tone
20 vox
22 weather mode

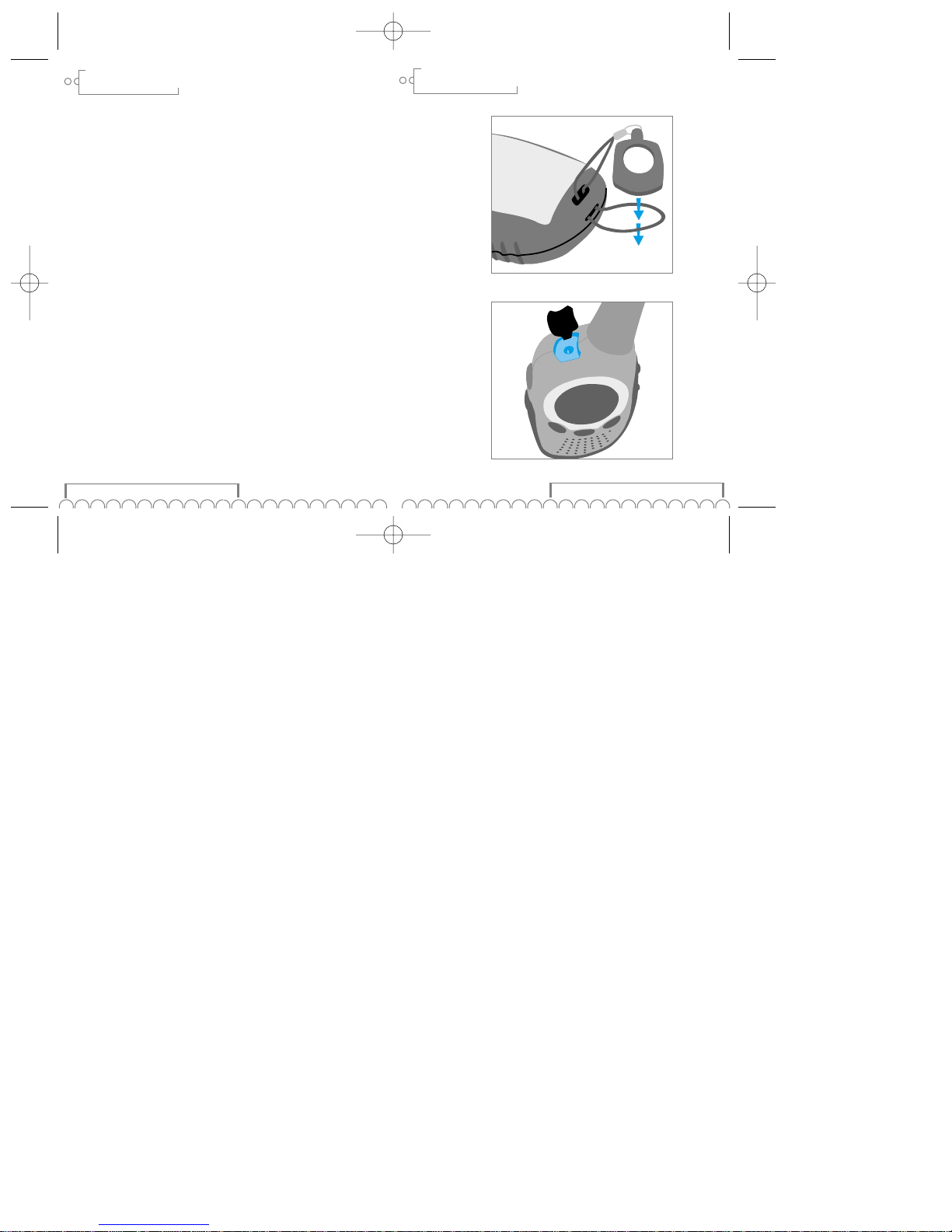

24 attaching the lanyard
24 microphone / speaker jack
26 warranty
FCC Warning: Replacement or substitution of transistors,
regular diodes or other parts of a unique nature, with parts
other than those recommended by Nike, may cause a violation
of the technical regulations of part 95 of the FCC rules, or
violation of Type Acceptance requirements of Part 2 of the
Rules.
table of contents battery installation, lcd
3
battery compartment access
liquid crystal display
3
3
4
4
6
6
8
8
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 2

power button
There are 3 different power settings:
1. Power Off
2. Power Save Mode.
¥Power is on. Transmit at 60% of maximum power. Use Power
Save Mode to save battery life when talking over shorter
distances. This is the default setting. When you first turn on
the unit, Power Save is selected.
3. Power Boost Mode.
¥Power is on. Transmit at 100% power. Use Power Boost Mode
to achieve maximum talk range.
select power settings
1. Press POWER once to turn unit on. Power Save mode is selected.
2. Press POWER again to alternate between Power Save and
Power Boost mode.
3. Press and hold POWER to turn off the unit.
Note: Power Save and Power Boost modes don’t effect the receiver. The
psc[communicate always receives at maximum power.
basic operation power button
45
psc[communicate.manual.3qx 6/29/00 2:47 PM Page 4

talk button
Just push and speak clearly into the microphone. Users on the
same channel who are within range will be able to hear you.
You cannot hear incoming voice transmissions when the talk
button is being pressed!
About the effective range
The range of the psc[communicate on Power Boost is about 2
miles. However, this range may be extended or lessened by
many factors. Among these are battery power remaining,
obstacles to clear transmission like buildings, mountains or
hills, cloud cover, trees, altitude, etc.
adjust volume
Adjust the volume of incoming transmissions and button
confirmation tones by pressing the + and - keys.
basic operation talk button, volume
67
