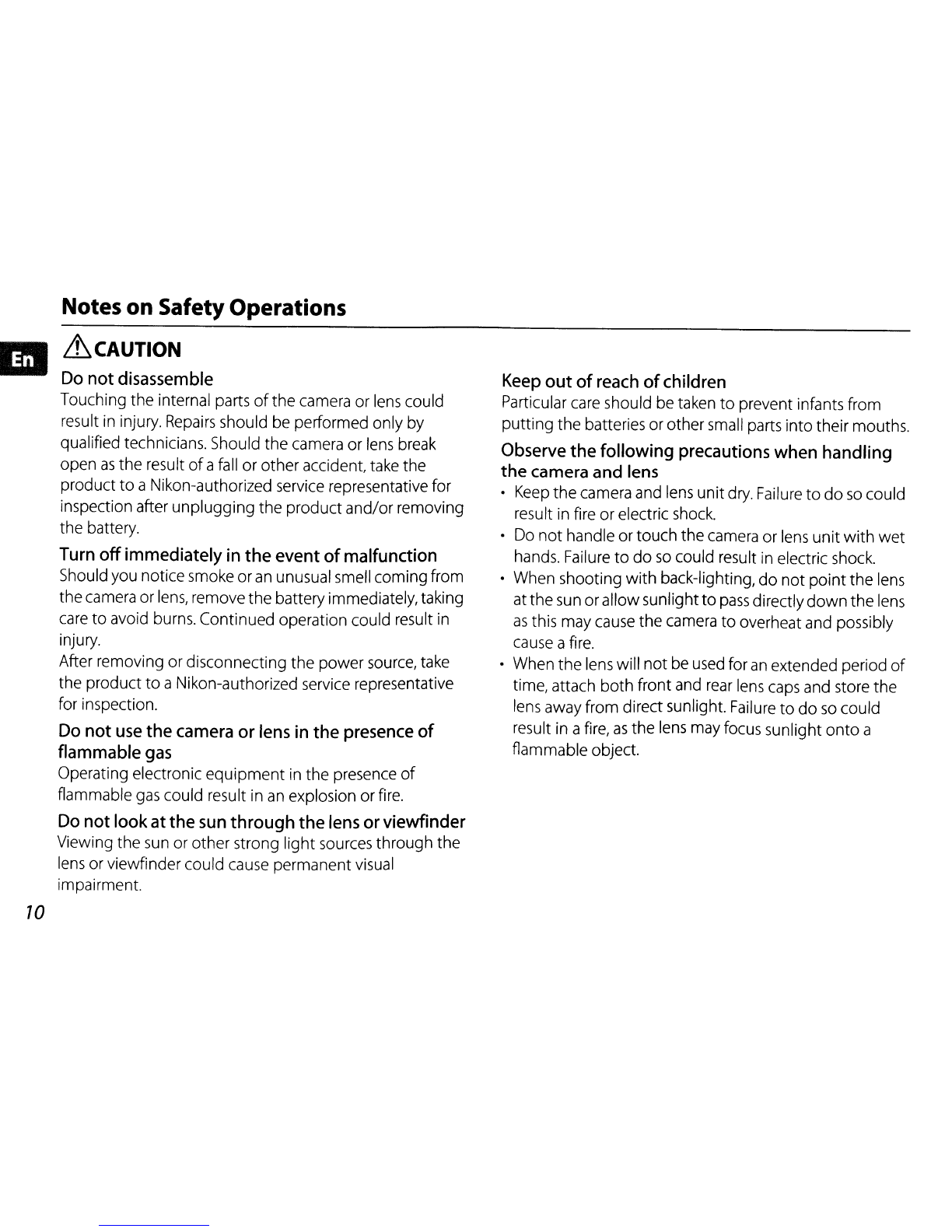

Notes on Safety Operations
~CAUTION
Do not disassemble
Touching the internal parts of the camera or lens could
result
in injury. Repairs should be performed only by
qualified technicians. Should the camera
or lens break
open
as the result of afall or other accident, take the
product
to aNikon-authorized service representative for
inspection after
unplugging the product and/or removing
the battery.
Turn off immediately in the event of malfunction
Should you notice smoke or an unusual smell coming from
thecamera or
lens, remove the battery immediately, taking
care
to avoid burns. Continued operation could result in
injury.
After removing or disconnecting the
power source, take
the product
to aNikon-authorized service representative
for inspection.
Do not use the camera or lens in the presence of
flammable gas
Operating electronic equipment in the presence of
Aammable gas could result in an explosion orfire.
Do not look at the sun through the lens or Viewfinder
Viewing the sun or other strong light sources through the
lens orviewfinder could cause permanent visual
impairment.
Keep out of reach of children
Particular care should be taken to prevent infants from
putting the batteries or other small parts into their mouths.
Observe the following precautions when handling
the camera and lens
• Keep the camera and lens unitdry. Failure to do so could
result in fire
or electric shock.
•Do
not handle ortouch the camera or lens unit with wet
hands. Failure to do so could result in electric shock.
•When shooting
with back-lighting, do not point the lens
atthe sun orallowsunlight
to pass directly down the lens
as this may cause the camera to overheat and possibly
cause afire.
•When
the lens will not be used for an extended period of
time, attach both front and rear lens caps and store the
lens away from direct sunlight. Failure
to do so could
result in afire,
as the lens may focus sunlight onto a
Aammable object.

II Nomenclature
1
'.,
o
~f)
CD Lens hood (Po 14)
@ Lens hood attachment index (Po 14) II
@ Lens hood setting index (Po 14)
@ Lens hood mounting index (Po 14)
®Zoom ring (Po 12)
®Focal length scale (P. 12)
(j) Focus ring (P. 13)
®Distance index line
® Mounting index
@) Lens mount rubbergasket (Po 15)
® CPU contacts (P. 15)
@Focal length index
@Distance scale
@Focus mode switch (Po 13)
( ) : reference page
77

Thankyou for purchasing the AF-S OX NIKKOR 10-24mm f/3.5-4.5G EO lens. OX NIKKOR lenses are specially designed
for
use with Nikon digital-SLR (Nikon OX-format) cameras, such as the 0300 and 090. When mounted on Nikon OX-
format cameras, the lens picture angle is equivalent to approximately l.5x the focal length in 35mm format. Before
using this lens, please read these instructions and refer
to your camera's User's Manual.
12
• Major features
•This lens employs aSilent Wave Motor to drive the
focusing mechanism, making autofocusing smooth,
silent and almost instantaneous. The focus
mode
switch @ is provided for simple selection of
autofocus (A) or manual focus (M) operation.
•More accurate exposure control
is possible when this
is mounted on aNikon camera with 30 color matrix
metering capability, because subject distance
information
is transferred from the lens to the camera.
•Superior optical performance and rendering
characteristics
are maximized with the use of three
asphericallens elements and
two extra-low
dispersion
(EO) glass elements, which ensure
correction
of chromatic aberration. In addition, the
rounded aperture produces soft and pleasing blur
characteristics in portions
of pictures that are out-of-
focus.
•Focusing, zooming, and depth of
field
Before focusing, rotate the zoom ring ® to adjust the
focal length until the desired composition is framed.
If
your camera has adepth-of-field preview (stop-
down) button or lever, depth of field can be previewed
through the camera viewfinder.
•This lens
is equipped with the Internal Focusing (IF)
system. As the shooting distance decreases, the focal
length also decreases.
•The distance scale does
not indicate the precise
distance between the subject and the camera. Values
are approximateand should be used only as ageneral
gUide. When shooting distant landscapes,
depth of
field may influenceoperation so that the camera may
focus at aposition
that is closer than infinity.

II Setting the aperture
Use the camera to adjust the aperture setting.
II Variable maximum apertures
Zooming the lens from 1 Omm to 24mm decreases the
maximum aperture
by 2/
3
stop.
However, there is no need to adjust the aperture
setting
to achieve correct exposures because the
camera automatically compensates for this variable.
,.
• Focusing (Fig. A)
Set your camera's focus mode selector according tothe
chart below:
Camera focus Lens' focus
mode switch
mode
MIA
M
AF (A/S/C)
Autofocus with
Manual focus (Focus
manual override
assist is available.)
MF Manual focus (Focus assist is available.)
For more information on camera focus modes, refer to
your
camera's User's Manual.
Autofocus with manual override (MIA
mode)
OJ Set the lens focus mode switch @ to MIA.
WAutofocus is enabled, but autofocus operation can
be overridden
by rotating the separate focus ring
(j) while pressing the shutter-release button
halfway, or by pressing the AF-ON button on the
camera body of cameras so equipped.
[]] Press the shutter-release button halfway or the AF-
ON button once again to cancel manual focus and
resume autofocus.
Getting good results with autofocus
Refer to "Notes on using wide- or super wide-angle AF
NIKKOR lenses" (P. 17).
13
