2
Top-notch Lenses
Only the best lenses are good enough for a profes-
sional camera system.
For your Rolleiflex 6008 AF and Rolleiflex 6008 Integral2
you may choose between lenses from ultra-wide-angle,
wide-angle and standard lenses to telephoto, zoom
and several special-purposes lenses. All of them cut-
ting-edge products made by Carl Zeiss and Schneider-
Kreuznach, the world-famous specialists for medium-
format optics. All of them with Rollei HFT coating (High
Fidelity Transfer) for optimum flare suppression and bril-
liant colors.
Our PQ (Professional Quality) and PQS lenses, the latter
with a top shutter speed of 1/1000 s, are the result of
advanced optical design techniques, innovative technol-
ogy and permanent optimization. All of them use the
unique Rollei Direct-Drive technology: The diaphragm
and shutter blades in the lens are driven by two linear
motors and very precisely controlled and monitored in
1/3 increments by the camera’s microcomputer. Control
pulses and power are transmitted from the camera to
the lens via ten gold-plated contacts – without friction,
free from wear and with high speed. As soon as the
lens is in place on the camera, all important informa-
tion is immediately transferred to the camera. In other
words, you are instantly ready to shoot.
PQ and PQS lenses by Franke & Heidecke, Carl Zeiss
and Schneider-Kreuznach are in a class of their own.
They are the ideal combination of between-the-lens
and focal-plane shutter technology, offering both wide
apertures and fast top shutter speeds that are fully syn-
chronized. Their outstanding features are optimum
sharpness, color rendition and brilliance as well as reli-
ability and high operating speed.
Glass
A combination of proper lens curvatures and suitable
glass types are your guarantee that the Rollei line of
lenses are optimally corrected for aberrations for sharp
and brilliant pictures. Carl Zeiss, Schneider-Kreuznach
and Franke & Heidecke use advanced glass types, some
of which with particularly high refractive indices.
Mechanics
A lens consists of several elements, some of which may
be combined in components. These are axially shifted
for focusing and zooming, sometimes even in opposite
directions. All these motions have to be very precise in
order not to degrade the high performance of the
lenses over their entire focusing and zooming ranges.
Precise manufacturing techniques and high-quality
materials make sure that the tight tolerances are met
even after many years of use.
Anti-reflection coating
Lenses for Rollei cameras are HFT coated (High Fidelity
Transfer). The coating consists of special ultra-thin films
evaporated on the lens surfaces. The result is a notice-
able reduction in the amount of light reflected from the
lens elements and thus less contrast-degrading flare.
Also, light transmission is increased, allowing full use to
be made of lens speed.
Centration
As a user of a Series 6000 Rolleiflex SLR, you have a
right to expect edge-to-edge sharpness in your pictures.
Reason enough for the manufacturers of these lenses to
place special emphasis on the exact centration of their
optical components.
Schneider AF-Xenotar 2.8/80 mm HFT PQS
The classical standard focal length for fast general-
purpose AF shooting in almost all areas of photography.
Its legendary sharpness is complemented by a super-
fast 1/1000 s for fast-moving subjects or when using
high-speed film.
Cat. No. 711.81.014
Schneider AF-Super-Angulon 2.8/50 mm HFT PQS
With its high speed of f/2.8, this high-performance
wide-angle lens offers a very bright viewfinder image.
It is particularly versatile for indoor photography with
available light.
Cat. No. 711.81.012
Schneider AF-Longar Converter 1.4x HFT
High-quality teleconverter extending the focal length of
Rollei AF lenses 1.4x. Aperture values change by only
one f-stop. The AF-Tele-Xenar 180 mm f/2.8 thus
becomes a high-speed 250 mm f/4. No change in mini-
mum focusing distance!
Cat. No. 711.61.044

3
Top-notch Lenses
Neutral colors
Due to different glass types used for the different lens
elements, lenses may exhibit subtle differences in color
rendition. The design of dedicated Rollei lenses there-
fore places special emphasis on reducing these color
variations to an absolute minimum. In practical terms
this means that pictures taken of one and the same
subject with different lenses will have identical color
characteristics and can thus be combined without any
problem.
Sharpness
This is the product of the resolving power and contrast
rendition of a lens – criteria that are given great impor-
tance in the design of Rollei camera lenses. Precise
focusing is easy due to the bright focusing screens of
Rolleiflex 6000 Series cameras (and the fast and precise
autofocus of the Rolleiflex 6008 AF) and makes sure
that your pictures are tack-sharp.
Lens speed
Lens speed, or the aperture ratio, is an important crite-
rion for choosing lenses. The higher the speed of
your lenses, the longer will you be able to shoot
without a tripod or flash unit and the easier the use
of selective focus for creative composition. High lens
speed and high performance, however, are difficult
to reconcile. Still, the high standards employed in
the design and production of Rollei lenses are your
guarantee that even at full aperture your pictures
will be brilliant and sharp from edge to edge.
Flare reduction
In addition to anti-reflection coating, additional care is
taken to minimize flare. Special black varnish blocks out
light that might be reflected into the optical path, and a
separate pin-hole diaphragm cuts off any and all light
rays that are not required for image formation. (This
pin-hole diaphragm should not be confused with the
iris diaphragm that is needed for exposure and depth-
of-field control.)
Precise aperture control
The aperture, on the one hand, controls the amount
of light reaching the film, on the other the depth of
field in your pictures. At wide apertures, depth of field
is shallow. Only the plane you have focused on will
appear sharp, the fore and background being blurred.
Owing to the almost circular shape of the lens aperture
in Rollei lenses, the transition from sharp to blurred
is very smooth and pleasing, while reflections in
the blurred portions of the subject appear round and
natural.
Specially designed for Rolleiflex 6008 AF cameras, there
is a line of pioneering autofocus lenses. These latest
lenses by Schneider-Kreuznach provide a degree of
focusing comfort that makes full use of the high speed
of the 6008 AF. Thanks to fast and precise focusing,
you can concentrate fully on your subject.
On a Rolleiflex 6008 integral, 6003 professional or
6001 professional, these AF lenses may be used with
manual focusing.

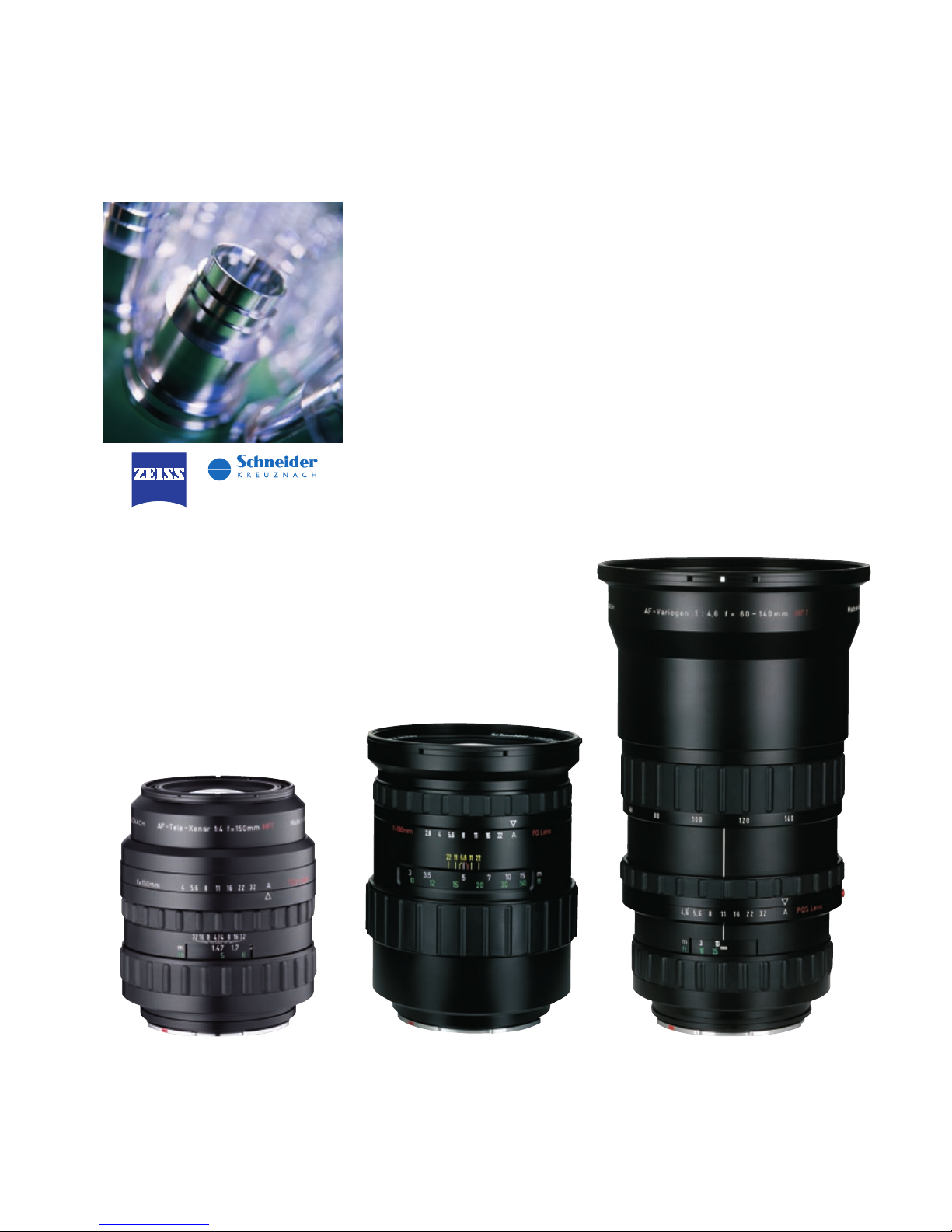

Schneider AF-Variogon 4.6/60 – 140 mm HFT PQS
A top-notch zoom lens of outstanding performance
equivalent to very good lenses of fixed focal length. The
two-ring zoom is a genuine general-purpose lens offer-
ing focal lengths from moderate wide-angle right up to
medium telephoto. The ideal solution when your choice
of camera stations is limited.
Cat. No. 711.81.020
Schneider AF-Tele-Xenar 2.8/180 mm HFT PQ
High-speed and high-performance telephoto lens par-
ticularly well-suited for portraiture, sports and fashion
photography. Its wide initial aperture is ideal for selec-
tive focusing, available-light and action photography
requiring fast shutter speeds.
Cat. No. 711.81.018
Schneider AF-Tele-Xenar 4/150 mm HFT PQS
Classical focal length best suited for portraiture in the
6x6 medium format. Produces the ideal perspective for
the classical portraiture work with head and shoulder.
Excellent performance in the close range thanks to its
floating lens element.
Cat. No. 711.81.016

4
▲

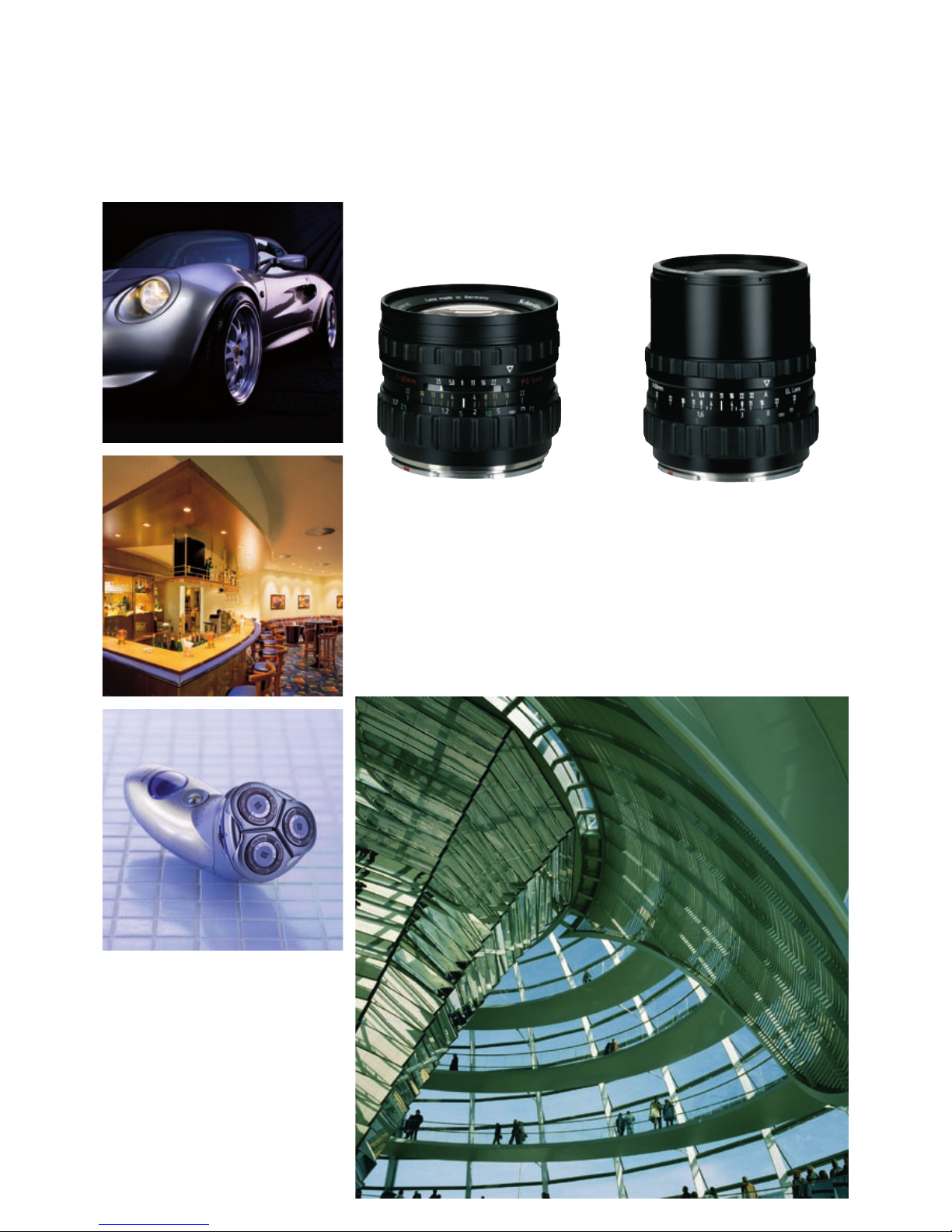

Rollei Distagon 4/50 mm HFT EL PQ
A versatile wide-angle lens that is very popular as a
standard wide-angle for architectural, indoor and land-
scape photography.
Cat. No. 711.81.050
Super-Angulon 3.5/40 mm HFT PQ
An ultra-wide-angle lens whose speed and compact-
ness are unprecedented in this type of lens. Floating
elements keep its outstanding performance constant
right up to a subject distance of 0.4 m.
Cat. No. 711.81.030
PQ Wide-angle Lenses

5

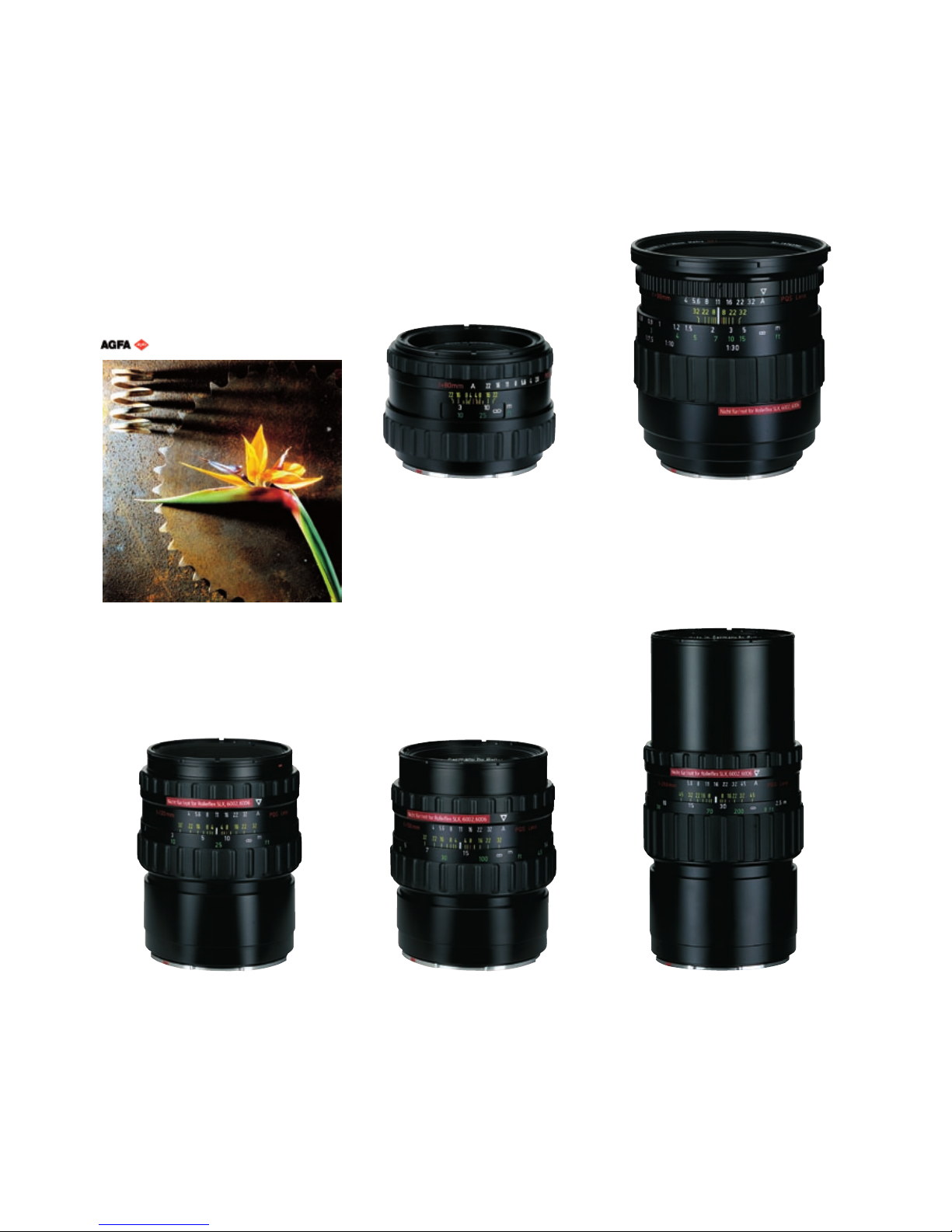

Schneider Apo-Symmar 4/90 mm HFT PQS
Versatile macro lens with apochromatic correction.
Optimized for close-up photography. Long helical
mount for focusing from infinity up to a reproduction
ratio of 1:2 without additional accessories. Short
minimum focusing distance is ideal for copy work.
Cat. No. 711.81.042
Zeiss Sonnar 4/150 mm HFT PQS
A short telephoto that is well-suited for many creative
uses, above all in portraiture, but also for full-frame
shots from a longer distance. Its top shutter speed of
1/1000 s makes this standard telephoto a favorite for
rapid flash shots.
Cat. No. 711.81.062
Zeiss Makro-Planar 4/120 mm HFT PQS
The ideal high-performance lens for copy work and
high magnifications. Optimized for a reproduction
ratio of 1:8, it may also be used (with a bellows unit)
for an extended range of 1:5 to about 2:1. Particularly
well-suited for product photos and close ups.
Cat. No. 711.81.060
Schneider Xenotar 2.8/80 mm HFT PQS
The classical standard focal length for almost all areas
of photography. Its legendary sharpness is comple-
mented by a super-fast 1/1000 s for fast-moving
subjects or when using high-speed film.
Cat. No. 711.81.040
Zeiss Sonnar 5.6/250 mm HFT PQS
Classical, easy-to-use telephoto lens of compact design.
Particularly well-suited for “close-ups” from a certain
distance as well as wild-life and sports photography.
Ideal for perfectly lit flash shots and well-balanced fill-in
in studio and stage work.
Cat. No. 711.81.064
PQS Lenses With Super-fast Between-the-Lens Shutters
If Rollei shutter technology allows 1/500 s at oversize
shutter openings, it is only logical that even faster
speeds have become feasible with normal sizes. And in
fact, Rollei has been able to overcome the technical
limit of 1/500 s. Several focal lengths have meanwhile
been fitted with the new Direct Drive Shutter that per-
mits speeds up to 1/1000 s. These special shutter ver-
sions are designated PQS.
Profi -Workshop pk02
Photo: Florian Adler
Lens: Schneider Apo-Symmar 90 mm f/4 HFT PQS

6
Zeiss Planar 2/110 mm HFT PQ
High-speed lens for portraiture and news photography.
Its wide aperture is particularly useful, for example, for
precise focusing in portraiture and fashion work. Mini-
mum distortion and high image quality even at maxi-
mum aperture and close up are the strong points of
this lens.
Cat. No. 711.81.052
Schneider Apo-Tele-Xenar 4/300 mm HFT PQ
Its high speed and apochromatic correction make this
an extraordinary lens that sets new standards in its
class. Used with a 1.4x Longar teleconverter, the lens
becomes a 420mm supertelephoto with a maximum
effective aperture of f/5.6.
Cat. No. 711.81.036
Schneider Variogon 5.6/140 – 280 mm HFT PQ
A zoom lens with macro setting, zooming without refo-
cusing and a minimum focusing distance of only 2.5 m.
In the macro setting, close-ups are possible down to
75 cm from the front lens. The lens takes the place of
several lenses of fixed focal length and is particularly
versatile due to its macro setting. Often enough it is the
only solution to filling the frame from a given camera
station. Its optical performance is equivalent to that of
fixed focal lengths.
Cat. No. 711.81.038
Ultra-fast PQ Lenses and Special-purpose Lenses
from Zeiss and Schneider
High lens speed is particularly valuable in reflex photog-
raphy. Apart from its optical benefits, there is higher
focusing accuracy due to a brighter viewfinder image
and shallower depth of field. The selective use of shal-
low depth of field and fast shutter speeds is particularly
attractive to the creative photographer. However, these
ultra-fast lenses are not only pioneering optical designs.
No less impressive is the fact that these wide apertures
have been combined with a between-the-lens shutter
with speeds of up to 1/500 second, in the case of the
Super-Angulon even to 1/1000 second. To solve this
problem, the shutter blades are not made of conven-
tional steel, but of a carbon-fiber laminate that reduces
their mass to 60 %. Another advantage of this super-
thin multilayer material is its excellent sliding character-
istics. One final factor is that the efficiency of the linear
motors used has been increased through the use of
neodymium magnets.

7
Zoom extension tube 22 – 68 mm
Variable extension tube with precise helical focusing
mount for extensions from 22 to 68 mm. Gives easy
access to close-up photography without gaps or com-
ponent changes. Primarily suited for use with Zeiss
lenses from 40 to 250 mm. In conjunction with the
reversing adapter, reproduction ratios far beyond 1:1
are possible. Only partly suitable for use with wide-
aperture lenses.
Cat. No. 711.61.038
Reversing adapter
Extends the uses of your Rolleiflex in close-up photog-
raphy. Allows reverse-mounting of lenses from 50 to
120mm focal length while retaining all automatic func-
tions. Should preferably be used in conjunction with
the bellows unit. With a reverse-mounted Planar 80
mm f/2.8, for example, reproductions ratios from 1.8:1
to 3.5:1 can be attained.
Cat. No. 711.61.040
Extension tubes
9, 17, 34, 67 mm long; retaining all automatic func-
tions, can be used alone or in various combinations,
also with bellows unit and reversing adapter. Rollei
bayonet on either side.
9 mm Cat. No. 711.61.030
17 mm Cat. No. 711.61.032
34 mm Cat. No. 711.61.034
67 mm Cat. No. 711.61.036
2x Teleconverter HFT
Designed for use with any of the standard, telephoto
and zoom lenses, this converter doubles the focal
length of the basic lens. Initial apertures are reduced by
two f-stops. The sophisticated optical design leaves the
performance of the basic lens almost fully intact. The
minimum focusing distance of the basic lens also
remains unchanged.
Cat. No. 711.61.042
Close-up Accessories / Converters

8
Rapid focusing lever
Clamps to focusing ring of PQ/PQS lenses of 40, 50,
60, 80, 120, 150 and 250 mm focal length.
Cat. No. 711.61.046
RC-120 Electronic remote release
40 cm release cable with handset for remote control
and mirror lock-up, also available with cable lengths
of 5 and 10 m.
0.4 m Cat. No. 711.34.024
5.0 m Cat. No. 711.34.025
10.0 m Cat. No. 711.34.026
Quick-release adapter
For quick and easy mounting of your camera on a
tripod. The adapter may remain attached to the tripod.
Cat. No. 711.51.010
Size VI and M95x1 filters for color film
The R 1.5 color conversion filter reduces a bluish
cast, blocks out degrading UV radiation and increases
subject contrast. The UV filter improves color rendition
and eliminates blur caused by UV light. Primarily used
in high mountains and on the beach.
R 1.5 Size VI Cat. No. 711.91.010
R 1.5 M95x1 Cat. No. 711.91.012
UV Size VI Cat. No. 711.91.014
UV M95x1 Cat. No. 711.91.016
Sizes VI and M95x1 polarizing filters
This is one of the most important filters of all. It sup-
presses or reduces reflections on non-metallic surfaces
and is particularly useful in landscape photography
where it enhances and differentiates colors. It increases
contrast, penetrates haze and UV radiation.
Size VI Cat. No. 711.91.018
M95x1 Cat. No. 711.91.020
Gelatine-filter holder size VI and bayonet 104
Designed for 75x75 mm (size VI) and 100x100 mm
(bayonet 104) gelatine filters.
Size VI Cat. No. 711.91.030
Bayonet 104 Cat. No. 711.91.032
Filters, Lens Attachments
and other Accessories

9
Profi -Workshop pk02
Size VI lens hoods
Two lens hoods for focal lengths from 80 – 250 mm
and 50 as well as 60 mm. The hoods have an outside
bayonet.
50/60 Cat. No. 711.61.014
80–250 Cat. No. 711.61.016
Size VI bellows lens hood
This practical accessory is designed like a bellows and
effectively shades the lens against stray light. Its exten-
sion scale is engraved with the focal lengths 50 mm
and 80 – 250 mm. Masks for 120mm and 250 mm
focal lengths are included. A rear drawslide accepts
gelatine filters of 75x75 mm size.
Cat. No. 711.61.020
Custom lens hood
for Schneider 40 mm f/3.5 and Tele-Xenar 180 mm
f/2.8. The 40 mm hood is slipped onto the outside
diameter of the lens and secured with its clamp ring.
The hood for the 180 mm f/2.8 lens has an outside
bayonet of 104 mm dia. Filters may remain on the lens.
3.5/40 Cat. No. 711.61.010
2.8/180 Cat. No. 711.61.018
Custom lens hood
for Distagon 40 mm f/4 FLE taking 93 mm-dia. drop-in
filters.
Cat. No. 711.61.022
Lens Hoods

10
90° 90°
Magnifying hood
This consists of the Rollei 6x6 magnifier and a base
frame for your Rolleiflex camera. The magnifier covers
the entire frame of 6x6 slides, negatives or prints, but
also mounted or unmounted 35mm slides. The 3x
linear achromat is highly corrected and shows the
entire object field in true color and with high brilliance.
The interchangeable base frame allows the pictures to
be viewed in either incident or transmitted light. The
camera base frame converts the magnifier to a rigid
magnifying hood.
Magnifier Cat. No. 711.54.014
Base frame Cat. No. 711.54.016
45° Prism finder
Replaces the standard folding viewfinder. The prism
finder gives an unreversed and upright viewfinder
image. It has four click stops at 90° intervals so that
convenient viewing is possible even from awkward
angles.
Cat. No. 711.54.010
90° Telescopic viewfinder
The telescopic viewfinder has an eyesight correction
from +2 to –4 dp and can be set for various magnifica-
tions. Like the prism finder, it has four click stops at
90° intervals.
Cat. No. 711.54.012
Viewfinder Attachments

11
High-D screen for outstanding viewfinder
brightness and precise focusing
Super-bright focusing screen with micro-pattern surface
for optimum control of depth of field and focus transi-
tion. Split-image rangefinder for maximum focusing
accuracy with vertical lines, 4.5x6 frame marks for verti-
cal and horizontal format. Standard focusing screen of
6001, 6008. This screen may also be used with Rollei-
flex 2.8 FX, 4.0 FW and GX cameras.
Cat. No. 711.54.036
Bright focusing screen with split-image
rangefinder and microprism collar
General-purpose focusing screen with split-image
rangefinder, microprism collar and ground-glass area.
The split-image rangefinder gives maximum focusing
accuracy, while the focusing criterion of the microprism
collar is a „non-shimmering image“. The micro-fine
ground-glass screen allows sharpness to be checked
over the entire frame.
Cat. No. 711.54.030
Bright focusing screen
Focusing screen with micro-fine pattern for focus con-
trol over the entire frame and comfortable composi-
tion, also suitable for lenses with very small effective
aperture and for judging depth of field. With orienta-
tion aids for vertical and horizontal 4.5x6 format.
Cat. No. 711.54.032
Bright microprism focusing screen
General-purpose focusing screen for rapid shooting,
with microprism spot and ground-glass screen, for opti-
mum focusing even in poor light. Focusing criterion:
non-shimmering image. Vertical and horizontal 4.5x6
format outlines.
Cat. No. 711.54.034
Ground-glass focusing screen
Fine-matte glass focusing screen for very precise focus-
ing, above all in close-ups, at any aperture and high
magnification. Specially suited for convenient composi-
tion when focusing aids might be found disturbing.
Cat. No. 711.54.038
AF High-D screen
Ultra-bright focusing screen with AF focusing areas, for
optimum control of depth of field and focus transition.
Brilliant viewfinder image even in poor light. Vertical
and horizontal 4.5x6 format outlines.
Standard focusing screen of Rolleiflex 6008 AF.
Cat. No. 711.54.040
Focusing Screens

12
Profi -Workshop pk02
TTL Flash Adapter
Flash photography with the dedicated
Rollei flash adapter
Using dedicated flash units in conjunction with the
SCA-3562 Rollei Flash Adapter, you can take advantage
of the TTL flash-metering feature of your camera.
To do this, switch the flash unit to TTL metering. A
sensor in your camera will meter the light reflected
from the film surface during actual exposure and
control flash duration as a function of film speed and
ambient light. The result is very precise exposure within
an ISO range of 25 – 1600.
The SCA-3562 adapter allows the following values
to be exchanged between flash unit and Rolleiflex
6008 AF:
♦Focal-length setting of AF lenses to control the flash
reflector
♦Lens aperture and film-speed setting to control the
autoflash exposure mode of the flash unit
♦The flash-output compensation set on suitable flash
units
♦Control of AF preflash.
With the dedicated Rollei SCA-3562 Flash Adapter
and a Rolleiflex 6008 AF, the following flash modes are
possible:
♦Programmed AE flash
♦Aperture-priority AE flash
♦Shutter-priority AE flash
♦Fill-in autoflash (compensating and additive)
♦Flash bracketing.
Rollei SCA-356 Flash Adapter
The Rollei SCA-356 Flash Adapter allows dedicated
flash photography with all dedicated flash units offering
the SCA-300 System. Simply slip the flash unit with its
SCA adapter into the accessory shoe of the camera,
and optimum flash exposure is guaranteed.
Cat. No. 711.34.040
Rollei SCA-3562 Flash Adapter
The Rollei SCA-3562 Flash Adapter converts the Rollei-
flex 6008 AF for dedicated flash photography with any
compact or handle-mount flash unit of the SCA-3000
System. The corresponding flash units are connected to
the adapter simply by slipping them on or with the aid
of a cable.
Cat. No. 711.34.042
Photo: Florian Adler
Technique:
Background: Convex reflecting sheet; in front, colorful
decorative mini-lights and colored neon light.
First-curtain sync, camera and neon light moved slightly
during exposure.
Exposure time ½ s.

13
Interchangeable Magazines
Interchangeable 6x6/120 or 6x6/220 magazine
With film-speed indication in one-third increments from
ISO 25/15° to 6400/39° and automatic frame counter.
Particularly fast and convenient work flow due to exter-
nal preloading of film inserts. The integral laminar
drawslide guarantees safe and rapid magazine and thus
film change without loss of pictures.
6 x 6/120 Cat. No. 711.64.012
6 x 6/220 Cat. No. 711.64.014
Film insert
Externally preloadable, in plastic case. Case separately
available. For extremely rapid film change.
Cat. No. 711.64.020
Rollei type 4560 magazine
Small and light-weight 4.5x6 magazine. Fitted to the
camera via an adapter frame; easily reset for vertical or
horizontal format. Viewfinder eyepiece and camera
position remain unchanged. Separate motor for film
advance and winding (power supplied by NiCd battery
of camera).
With integral laminar drawslide, preloadable film insert,
input of film speed and type (120 or 220), multiple
exposures. LC display of ASA/DIN setting and frame
number. With 4.5x6 viewfinder mask (vertical /
horizontal).
Magazine Cat. No. 711.64.010
Adapter Frame Cat. No. 711.64.024
Type 4560 film insert
Preloadable, symmetrical film insert for type 4560 mag-
azine. Guarantees rapid film change without time-con-
suming replacement of film spool.
Cat. No. 711.64.022
Instant-film magazine with film-speed input
and drawslide
For 8 or 10 size 6x6 exposures on instant 8.5x10.8cm
film pack. The magazine can be used with any of the
interchangeable viewfinders.
Cat. No. 711.64.016

14
Rapid charger
100 – 240 V, 50/60 Hz, with automatic rapid-charging
stop. Indicators for rapid and normal charging. Rapid
charging up to about one hour. 12V terminal for car
battery and 3.5mm jack 12V/500 mA. Power-supply
cable.
Cat. No. 711.34.022
10V Nicad battery
Dedicated rapid-changing battery with overload protec-
tion and spare-fuse compartment; e.g. for extended
shoots.
Cat. No. 711.34.010
External battery adapter
Separates the power-supply holder from the camera
and ensures reliable power supply even at very low tem-
peratures because it can be carried close to your body.
Consists of connecting cable with terminals for the bat-
tery holder and the corresponding slot in the camera.
Cat. No. 711.34.011
PowerInterface
Same size as the Nicad battery. Permits connection of
different power sources, thus facilitating the stationary
and mobile use of the camera. Requires 12 V Power-
supply adapter 711.34.013.
Cat. No. 711.34.012
Battery box
Rollei battery box with cable for 5x type DL 123 A 3V-
lithium batteries as power source of Rollei PowerInter-
face. Should always be in your bag – just in case.
Capacity about 30 – 40 films (6x6/120) in normal
ambient temperature (~ + 20 to + 21°C).
Cat. No. 711.34.020
12V Power-supply adapter
Power-supply unit for System 6000 cameras in conjunc-
tion with Rollei PowerInterface. Ideal for stationary use
of dedicated cameras.
Cat. No. 711.34.013
Professional Power Supply
The dedicated power supply is tailored to the needs of
its users. The camera‘s electronics and motors are sup-
plied with power by a rechargeable sintered high-per-
formance Nicad battery. The benefits of this profes-
sional solution are high shooting capacity, easy handling
and safe operation even at low temperatures.
At standard room temperature, the energy of the dedi-
cated battery is good for about 200 shots. When only
about 20 exposures remain, a warning will light up in
the camera viewfinder. Below a minimum charge, all
camera functions will be disabled. Interchangeable bat-
teries will see you through even extensive shoots.
Sufficient power is assured even at very low tempera-
tures. Just carry the battery on your body or in your bag
and connect it to the camera via an external battery
adapter. Rolleiflex 6000 cameras come with a rapid
charger with automatic charge limiter. It takes about
one hour to recharge the battery outside the camera.
The charger will then switch back from rapid to normal
charging. In a hurry, you may stop charging after only
15 minutes. The battery will then provide sufficient
energy for about 50 shots.
If there is no wall outlet around, the charger may be
connected to a 12V car battery via an optional cable.
The Rollei PowerInterface offers even more power-
supply options. It is the same size as the Nicad battery
and can be inserted in the battery compartment instead
of the latter. A choice of different power sources can
then be connected to it, which opens up new possibili-
ties for the stationary or mobile use of the camera.
These are, for example, the standard charger, the 12V
Rollei power-supply adapter, the Rollei battery box for
lithium batteries, the Einhell Mobile Energy Station or
the car‘s cigarette-lighter socket.
The PowerInterface requires 12 – 18 VDC of at least
200 mA.

15
System-6000 Lens Table
** in preparation
* manually also for Rolleiflex 6008 integral
Technical modifications reserved.
Aperture Shutter Angular Elements / Focusing Max. Max. Weight Filter size
range speeds field compo- range diameter
30 s to diagonal / nents
horizontal
AF-Flektogon 1 : 3.5/35 mm** PQS 3.5 – 22 1/1000 96/76° 10 / 8 ∞– 0.5 m 104 mm 105 mm 1300 g Bayonet 104
(with floating elements)
Super-Angulon 1 : 3.5/40 mm PQ 3.5 – 22 1/500 88/68° 8 / 8 ∞– 0.4 m 83.2 mm 72 mm 750 g M 77 x 0,75
(with floating elements)
Distagon 1 : 4/50 mm EL PQ 4 – 32 1/500 75/57° 7 / 7 ∞– 0.5 m 81.5 mm 96 mm 840 g M 67 (inside)
VI (outside)
AF-Super-Angulon* PQS 2.8 – 22 1/1000 74/56° 9 / 8 ∞– 0.6 m 104 mm 115 mm 1500 g M 95 x 1
1 : 2.8/50 mm
Planar 1 : 2.8/80 mm PQS 2.8 – 22 1/1000 52/38° 7 / 5 ∞– 0.9 m 81.5 mm 63 mm 590 g Rollei size VI
bayonet
AF-Xenotar 1 : 2.8/80 mm* PQS 2.8 – 22 1/1000 52/38° 7 / 6 ∞– 0.8 m 84.5 mm 66.5 mm 520 g Rollei size VI
bayonet
Xenotar 1 : 2.8/80 mm PQS 2.8 – 22 1/1000 52/38° 7 / 6 ∞– 0.8 m 84.5 mm 66.5 mm 520 g Rollei size VI
bayonet
Apo-Symmar 1 : 4/90 mm PQS 4 – 32 1/1000 47/34° 6 / 4 ∞– 0.4 m 104 mm 110 mm 860 g M 95 x 1
Makro
Planar 1 : 2/110 mm PQ 2 – 16 1/500 39/28° 7 / 6 ∞– 0.8 m 104 mm 95 mm 1295 g M 95 x 1(filter)
bay. 104 (lens hood)
Makro-Planar 1 : 4/120 mm PQS 4 – 32 1/1000 36/26° 6 / 4 ∞– 0.8 m 81.5 mm 102 mm 960 g Rollei size VI
bayonet
Sonnar 1 : 4/150 mm PQS 4 – 32 1/1000 29/21° 5 / 3 ∞– 1.4 m 81.5 mm 102 mm 890 g Rollei size VI
bayonet
Sonnar 1 : 4/150 mm EL PQ 4 – 32 1/500 29/21° 5 / 3 ∞– 1.4 m 81.5 mm 102 mm 890 g M 67 (inside)
VI (outside)
AF-Tele-Xenar 1 : 4/150 mm* PQS 4 – 22 1/1000 29/21° 5 / 5 ∞– 1.4 m 95 mm 114 mm 890 g Rollei size VI
bayonet
AF-Tele-Xenar 1 : 2.8/180 mm* PQ 2.8 – 22 1/500 26/18° 7 / 7 ∞– 1.8 m 100 mm 135 mm 1480 g M 95 x 1 (filter)
bay. 104 (lens hood)
Sonnar 1 : 5.6/250 mm PQS 5.6 – 45 1/1000 18/13° 4 / 3 ∞– 2.5 m 82.5 mm 170 mm 1150 g Rollei size VI
bayonet
Apo-Tele-Xenar 1 : 4/300 mm PQ 4 – 32 1/500 15/11° 6 / 6 ∞– 3.2 m 101 mm 262 mm 2000 g M 95 x 1
AF-Variogon PQS 4.6 – 32 1/1000 67/50° 13 / 11 ∞– 0.7 m 119 mm 210 mm 2400 g M 122 x 1
1 : 4.6/60 – 140 mm* 32/23° filter adapter
Variogon 1 : 5.6/140 – 280 mm PQ 5.6 – 45 1/500 32/23° 17 / 14 ∞– 2.5 m 94 mm 238 mm 1750 g M 95 x1/
16/11° Makro 93 mm drop-in
filter

1)
SINAR AG
CH-8245 Feuerthalen/Switzerland
Phone [phone]
Fax [phone]
E-mail [e-mail]
Website www.sinarcameras.com
Photos on the frontpage:
Prof. Heinrich Treude (Architecture)
Dirk Bethge (Landscape)
Gerhard Vormwald (Portrait)
Florian Adler (Close-up)
Technical modifications reserved
999.06/12.12 e
System Chart
ElectronicShutter1
X-Act2 View Camera
Sizes 0/1 view camera lenses
PanShot LensControlS Rolleiflex 6008 AF Rolleiflex 6008 integral Sliding
adapter
Film insert
6x6 Magnifier
with base frame
90° Telescopic
viewfinder
45° Prism finder High-D-Screen AF High-
D-Screen
Bright screen
with micro-fine
pattern
Bright screen
with grid and
split-field
Ground glass,
plain
6x6/120
Magazine
6x6/220
Magazine
4560
Magazine Instant film
magazine
Average metering
back
Spot metering
back
SCA-356
Flash adapter
SCA-3562
Flash adapter
Rapid tripod lock Handgrip Shoulder strap
Battery charger External battery adapter NiCad
battery
Power-
Interface
Battery box 12V Power-supply
adapter
Remote release
RC 120
Gelatine-filter
holder, size VI
Rapid focusing lever Circular
polarizing filter
Bellows lens
hood
Lens hood for
40 mm f/4
Lens hood for
80 – 250 mm
Lens hood for
50 mm f/4+,
60 mm f/3.5
Lens hood for
180 mm f/2.8
Zoom extension tube
22 – 68 mm
Extension tube
67 mm
Extension tube
34 mm
Extension tube
17 mm
Extension tube
9 mm
Reversing adapter
AF Xenotar
80 mm f/2.8
HFT PQS
AF Super-Angulon
50 mm f/2.8
HFT PQS
AF Variogon
60 – 140 mm f/4.6
HFT PQS
AF Tele-Xenar
180 mm f/2.8
HFT PQ
AF Tele-Xenar
150 mm f/2.8
HFT PQS
AF Flektogon
35 mm f/3.5
HFT PQS
Apo Tele Xenar
300 mm f/4
HFT PQ
Super Angulon
40 mm f/3.5
HFT PQ
Sonnar
150 mm f/4
HFT PQS
Sonnar
250 mm f/5.6
HFT PQS
Apo Symmar
90 mm f/4
HFT PQS
Xenotar
80 mm f/2.8
HFT PQS
Makro Planar
120 mm f/4
HFT PQS
Planar
110 mm f/2
HFT PQ
Distagon
50 mm f/4
HFT EL PQ
Sonnar
150 mm f/4
HFT EL PQ
Variogon
140 – 280 mm
HFT PQ
1.4 x Longar
teleconverter AF
2x Teleconverter
HFT
