Noble UH30-FND Setup guide

INSTALLATION, OPERATION,
AND SERVICE MANUAL
NOBLE UH30-FND
NOBLE UL30
NOBLE UL30H
Noble UH30-FND/UL30/UL30H Manual • 07610-004-37-38-G
NOBLE UNDERCOUNTER DISHMACHINES

i
REVISION HISTORY
Revision
Letter
Revision
Date Made by Applicable ECNs Details
A 7-18-16 JH N/A Initial release of the manual.
B 3-7-17 JH N/A Added UL30 and UL30H units.
Updated pg. 43 with new motor and assembly P/Ns.
C 5-17-17 JH 8511
Updated water line connection information.
Changed wording in the chemical feeder pump programming section to
indicate changes are lost if closed without saving.
Changed the steps in the Heater Contactor Wiring and Shutdown & Cleaning
sections to be applicable to units with a mechanical timer.
Removed item #25 from pg. 48.
Changed Discharge Hose to 05700-004-43-76 in the Wash Manifold
Assembly.
Added 05700-004-36-95 to UH30-FND Display page and corrected the P/N
for the Display Decal.
Added a Plumbing Options page.
D 6-6-17 JH N/A
Corrected draining procedure.
Corrected wash motor amps for UL30/UL30H on Electrical Requirements
page.
Updated the UL30/UL30H schematic.
Removed the UH30-FND from the manual.
E 8-23-17 JH QOF-386 Added the 100" chemical tubes for red, white, and blue to Chemical Feeder
Pump Assembly page.
F 10-17-17 JH N/A Added the UH30-FND to the manual.
G 2-19-19 JH 8585
8599
Updated pg. 2.
Corrected references to ow pressure on pg. 6.
Updated references to E and F outputs on pgs. 9-10.
Corrected part numbers of motor assembly and motor only on pg. 42.
Updated parts on pg. 44.
Changed item #11 on pg. 48.
Updated item #6 on pg. 52 and added link to instructions.
Added links to instructions on pg. 53.

ii
NOMENCLATURE
The manufacturer provides
technical support for all of
the machines detailed in
this manual. We strongly
recommend that you refer to
this manual before making a call
to our technical support sta󰀨.
Please have this manual open
when you call so that our sta󰀨
can refer you, if necessary, to
the proper page.
Technical support is not
available on holidays.
Contact technical support toll
free at 1-888-800-5672.
Technical support is available
for service personnel only.
UH30-FND
Undercounter dishmachine; high-temperature, hot-water
sanitizing, with a booster tank and
detergent and rinse-aid chemical feeder pumps.
UL30
Undercounter dishmachine; low-temperature, chemical-
sanitizing, with detergent, rinse-aid, and sanitizer chemical
feeder pumps.
UL30H
Undercounter dishmachine; low-temperature with wash tank
heater, chemical-sanitizing, with detergent, rinse-aid, and
sanitizer chemical feeder pumps.

iii
TABLE OF CONTENTS
GUIDES
Symbols............................................................................................................................................ 1
Abbreviations & Acronyms ............................................................................................................... 1
SPECIFICATIONS
Machine Dimensions ........................................................................................................................ 2
Operating Parameters ...................................................................................................................... 3
Electrical Requirements ................................................................................................................... 4
INSTALLATION
Installation Instructions..................................................................................................................... 5
Inspection......................................................................................................................... 5
Unpacking........................................................................................................................ 5

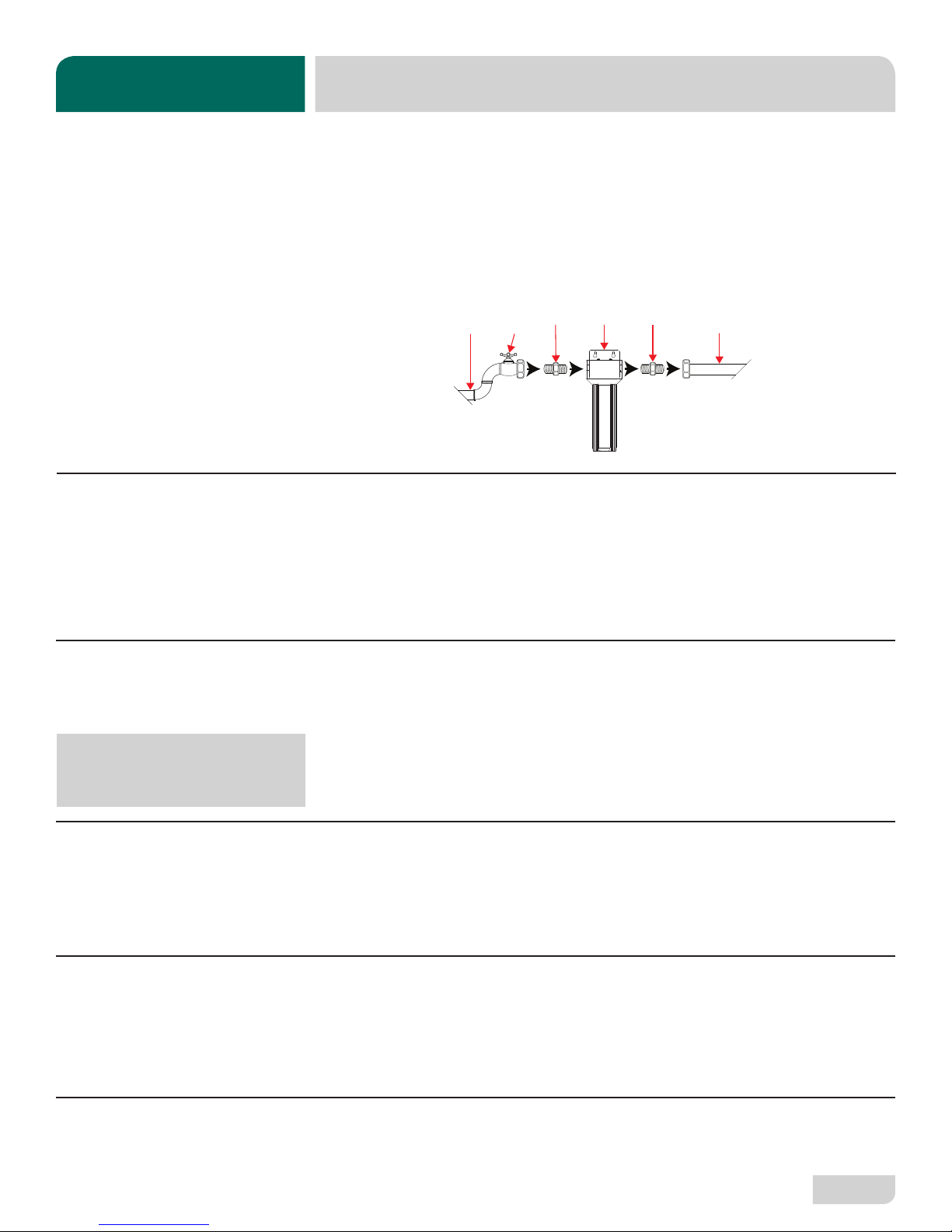

Plumbing.......................................................................................................................... 5
Water Supply Connections .............................................................................................. 5
Pressure Regulator.......................................................................................................... 6
Shock Absorber ............................................................................................................... 6
Connecting the Drain Line ............................................................................................... 6
Plumbing Check............................................................................................................... 6

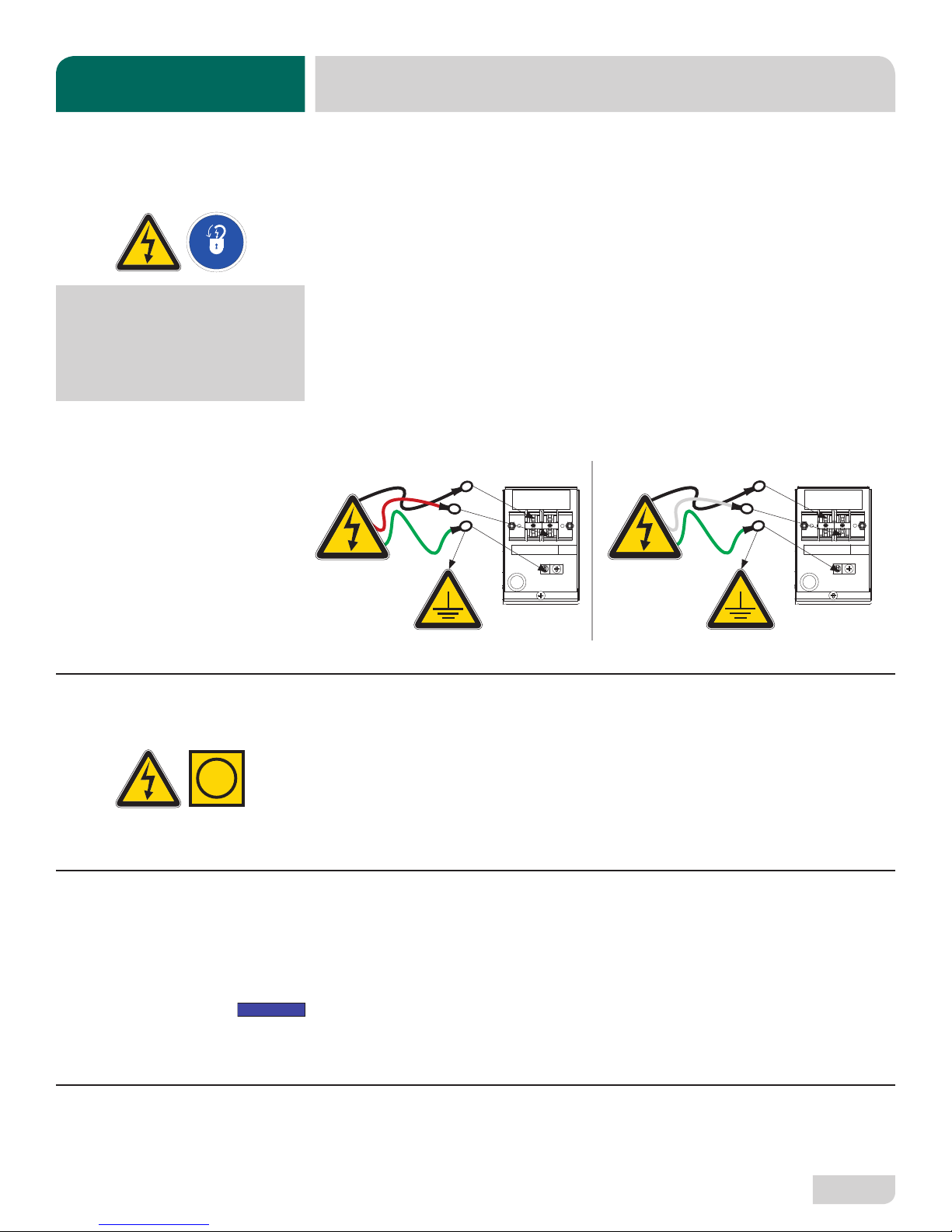

Electrical Power Connections .......................................................................................... 7
Voltage Check.................................................................................................................. 7
Surrounding Area............................................................................................................. 7

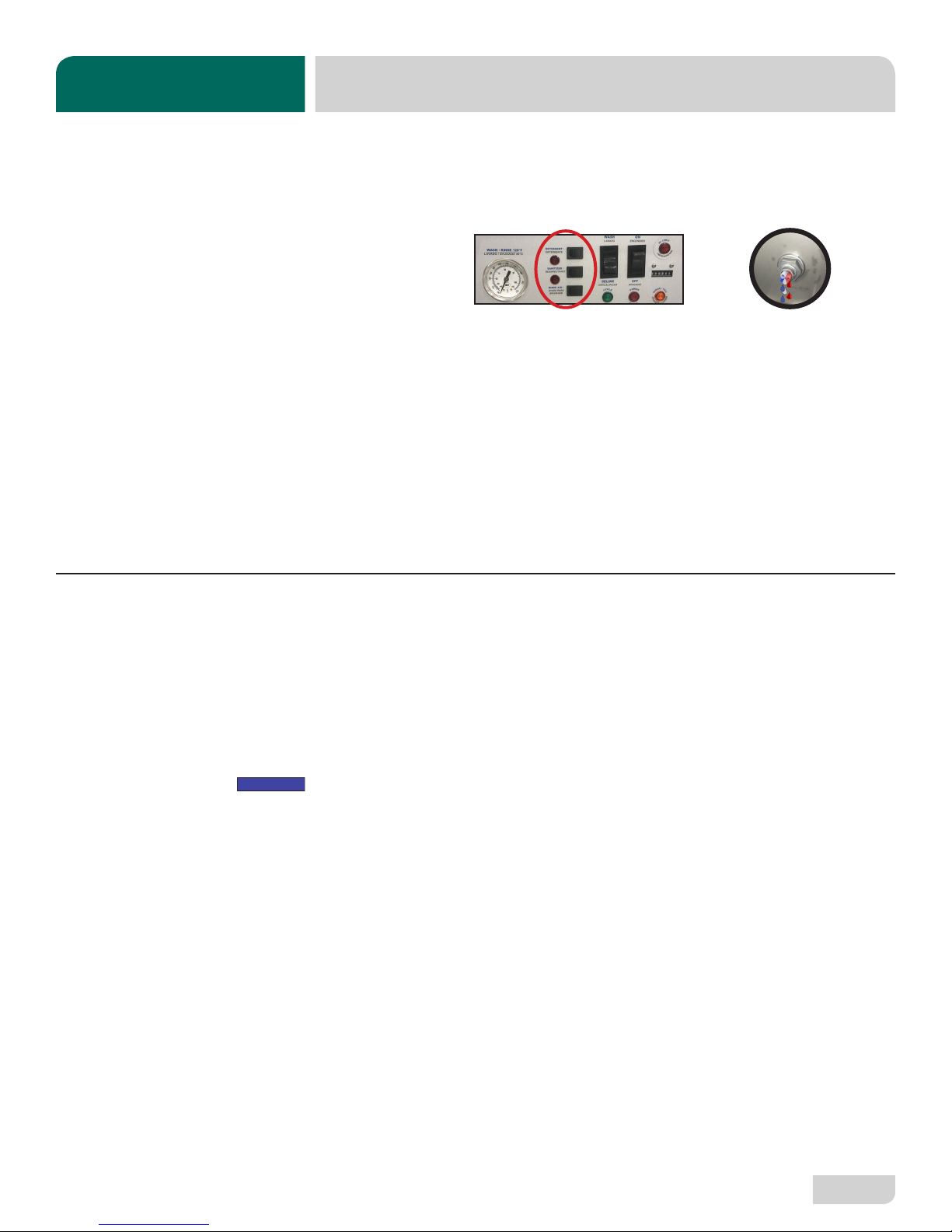

Thermostats..................................................................................................................... 7
Chemical Feeder Equipment ........................................................................................... 8
Preparing Chemical Feeder Pumps................................................................................. 8
Priming Chemical Feeder Pumps .................................................................................... 8
Programming Chemical Feeder Pumps........................................................................... 9
Leveling...........................................................................................................................11
Heater Contactor Wires (UH30-FND Only).....................................................................11
OPERATION
Operating Instructions .................................................................................................................... 13
Preparation .................................................................................................................... 13

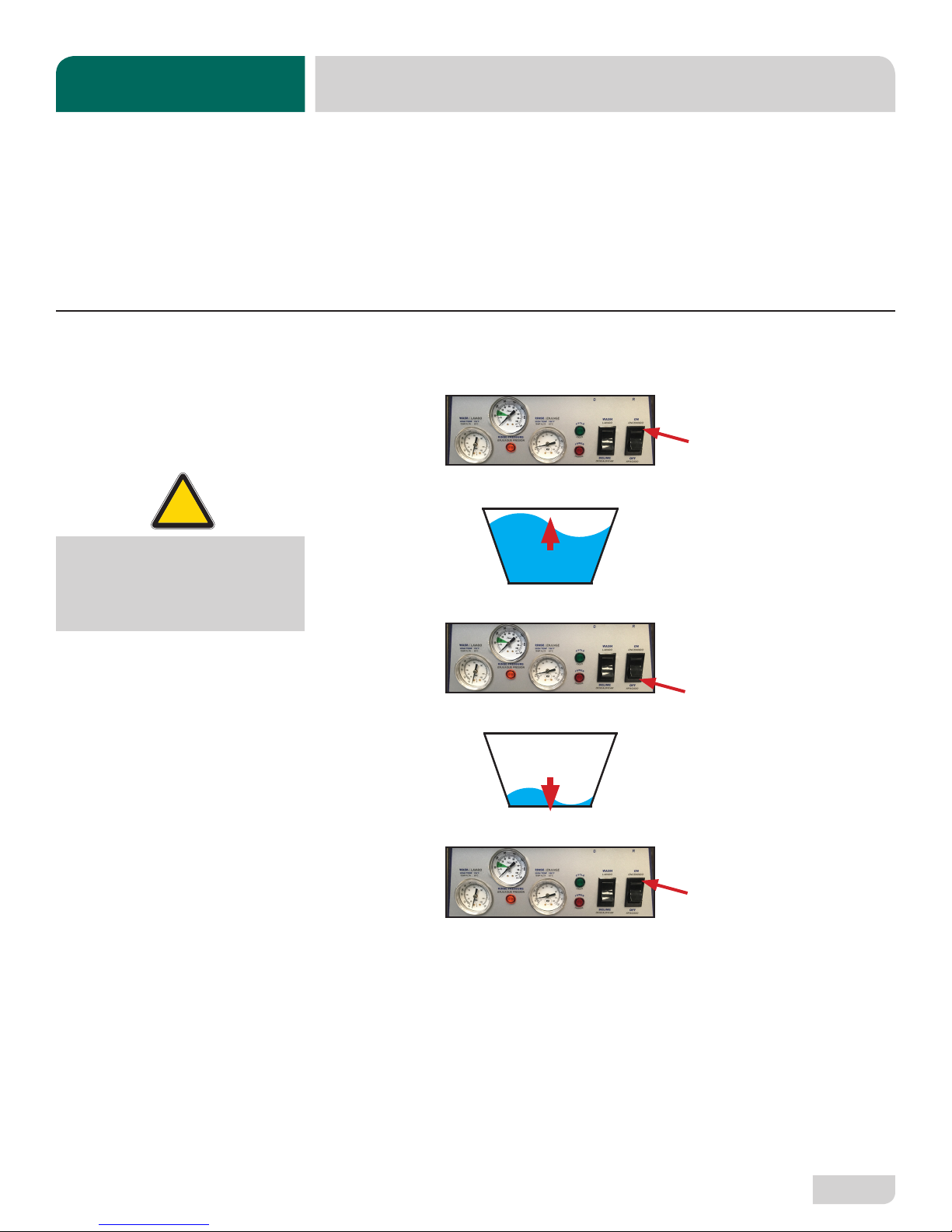

Filling the Wash Tub ...................................................................................................... 13
Ware Preparation........................................................................................................... 14
Washing a Rack of Ware ............................................................................................... 14

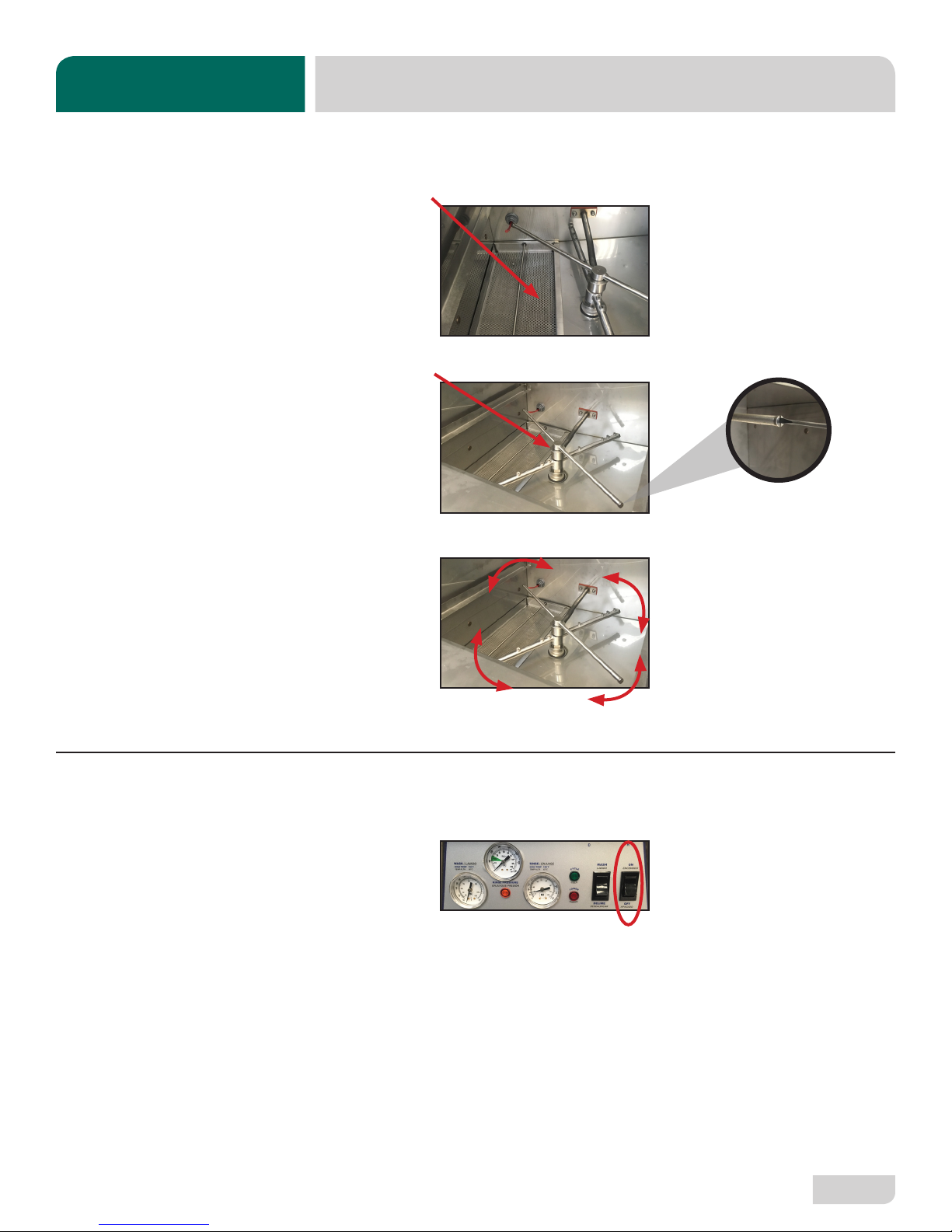

Operational Inspection................................................................................................... 14
Shutdown & Cleaning .................................................................................................... 14
Deliming......................................................................................................................... 17
Detergent Control........................................................................................................... 18

iv
MAINTENANCE
Preventative Maintenance.............................................................................................................. 19
TROUBLESHOOTING
Troubleshooting.............................................................................................................................. 20
PARTS
UH30-FND Control Panel............................................................................................................... 22
UL30 Control Panel ........................................................................................................................ 23
UL30H Control Panel ..................................................................................................................... 24
UH30-FND Display Panel............................................................................................................... 25
UL30 Display Panel........................................................................................................................ 26
UL30H Display Panel ..................................................................................................................... 27
Terminal Block Box......................................................................................................................... 28
UH30-FND Chemical Feeder Pump............................................................................................... 29
UH30-FND Chemical Feeder Pump Components ......................................................................... 30
UL30/UL30H Chemical Feeder Pump............................................................................................ 31
UL30/UL30H Peri-pump Track ....................................................................................................... 32
UH30-FND Plumbing...................................................................................................................... 33
UL30/UL30H Plumbing................................................................................................................... 35
Plumbing Options ........................................................................................................................... 37
Vacuum Breaker ............................................................................................................................ 38
Wash Manifold................................................................................................................................ 39
Motor & Pump ................................................................................................................................ 41
Rinse Arms & Wash Arms .............................................................................................................. 43
Thermostat & Rinse Tank ............................................................................................................... 45
Door................................................................................................................................................ 46
Miscellaneous Door Components .................................................................................................. 48
Frame & Panel Components .......................................................................................................... 50
Miscellaneous Parts ....................................................................................................................... 52
Stands & Components ................................................................................................................... 53
Go Box Kit ...................................................................................................................................... 54
UL30H Optional Heater Components............................................................................................. 55
UL30/UL30H Vacuum Switch ......................................................................................................... 56
UL30/UL30H Vacuum Switch Install............................................................................................... 57
SCHEMATICS
UH30-FND 208-240 V, 50/60 Hz, 1/3 Phase ................................................................................. 58
UL30/UL30H 115 V, 50/60 Hz, 1 Phase ......................................................................................... 59
TABLE OF CONTENTS

07610-004-37-38-G 1
GUIDES GUIDES
SYMBOLS
ABBREVIATIONS & ACRONYMS
!
CAUTION
!
WARNING
NOTICE
- Risk of Injury to Personnel
- Risk of Damage to Equipment
- Risk of Electrical Shock
- Lockout Electrical Power
- Reference Data Plate
- Important Note
i
- Caustic Chemicals
 - Instructions Hyperlink
ANSI - American National Standards Institute
Btu/Hr - British Thermal Units per Hour
CFM - Cubic Feet per Minute
GHT - Garden Hose Thread
GPH - Gallons per Hour
GPM - Gallons per Minute
GPG - Grains per Gallon
HP - Horsepower
Hz - Hertz
ID - Inside Diameter
kW - Kilowatts
MCA - Minimum Circuit Ampacity
MOP - Maximum Overcurrent Protection
NFPA - National Fire Protection Association
NPT - National Pipe Thread
OD - Outside Diameter
PRV - Pressure Regulating Valve
PSI -Pounds per Square Inch
V- Volts

2
07610-004-37-38-G
SPECIFICATIONS MACHINE DIMENSIONS
1 5/8
[41 mm]
24 1/4
[615 mm]
14 1/4
[362 mm]
CLEARANCE
33 5/16
[846 mm]
10 1/2
[267 mm]
1 7/8
[48 mm]
2 1/8
[54 mm]
8 5/8
[220 mm]
3 5/8
[18 mm]
2 3/4
[70 mm]
1/4
[7 mm]
25
[635 mm]
16 3/4
[426 mm]
DOOR OPEN
41 3/4
[1061 mm]
A
BC
BACK
FRONT
TOP
LEGEND
A - Electrical Connection
B - Water Inlet (with 6' Hose)
(3/4" Male GHT, connect to true
1/2" ID line, MIN 110 °F)
C - Drain Connection
(1" ID, 1 3/8" OD)
(Connect to MIN 1 1/2" Drain with Air-gap)
All dimensions from the floor can be increased 1” using the machine’s adjustable feet.
NOTICE
UH30-FND shown.

07610-004-37-38-G 3
Operating Capacity UH30-FND UL30/UL30H
Racks per Hour 24 24
Dishes per Hour 600 600
Glasses per Hour 864 864
Gallons per Rack 1.1 1.2
Gallons per Hour 26.4 28.8
Tank Capacity (Gallons):
Wash Tank 1.1 1.2
Rinse Tank 3.0 N/A
Electrical Loads (as applicable):
Wash Motor HP 1.0 1.0
Rinse Heater kW 6.7 (208 V)/8.2 (230 V) N/A
Wash Heater kW N/A 1.5
Always refer to the machine data plate for specic electrical and water
requirements. The material provided on this page is for reference only and is
subject to change without notice.
HOT WATER SANITIZING
Water Temperatures (°F):
Minimum Wash Temperature 150 N/A
Minimum Rinse Temperature 180 N/A
Minimum Incoming Water Temperature 110 N/A
CHEMICAL SANITIZING
Water Temperatures (°F):
Minimum Wash Temperature N/A 120
Minimum Rinse Temperature N/A 120
Minimum Incoming Water Temperature N/A 120
Other Water Requirements:
Water Flow Pressure (PSI) 20 ± 5 20 ± 5
Flow Rate Minimum (GPM) 6.6 6.6
Water Line Connection Size (NPT) 3/4" GHT 3/4" GHT
Water Line Size (NPT) 1/2" 1/2"
Drain Line Size (NPT) 1" ID 1" ID
1 3/8" OD 1 3/8" OD
Connect drain line to MIN 1 1/2" Drain with Air-gap.
Minimum Chlorine Required (PPM) N/A 50
OPERATING PARAMETERS
SPECIFICATIONS
NOTICE
i
NOTICE

4
07610-004-37-38-G
All electrical ratings provided in this manual are for reference
only. Always refer to the machine data plate to get exact electrical
information for this machine. All electrical work performed on
machines should be done in accordance with applicable
local, state, territorial, and national codes. Work should only
be performed by qualied electricians and authorized service
agents.
Note that all electrical wiring used in this series of machines must
be rated, at a minimum, for 212 °F (100 °C), and that only copper
conductors must be used.
Where applicable, heating element amperage draws have been
adjusted for the assumed input voltage. The manufacturer
assumes incoming voltages will be either 208 or 230 V. Some
heating elements used in the machines are rated for other voltages,
such as 240 V and 480 V. Always verify the amperage draw of the
machine in operation when sizing circuit protection.
If the dishmachine is equipped with the optional rinse heater, note
the rinse heater might have its own electrical connection and
require a separate service. Amperage loads for motors and heaters
are indicated on the machine data plate.
The electrical congurations of this series of machines are as
follows:
Available Electrical Characteristics:
UH30-FND
• 208 V, 60 Hz, Single-phase
• 230 V, 60 Hz, Single-phase
UL30/UL30H
• 115 V, 60 Hz, Single-phase
Available Wash Tank Heaters:
• 1.5 kW (UL30H Only)
*The UL30H is designed so that the wash motor is never running
when the wash heater is on. Total Load is based on the higher of
the two loads.
VOLTS 208 230
PHASE 1 1
FREQ 60 60
WASH
MOTOR
AMPS
5.0 A 5.0 A
RINSE
HEATER
AMPS
32.2 A 35.7 A
TOTAL
LOAD 37.2 A 40.7 A
NOTICE
i
UL30
VOLTS 115
PHASE 1
FREQ 60
WASH
MOTOR
AMPS
10.0 A
TOTAL
LOAD 10.0 A
ELECTRICAL REQUIREMENTS
SPECIFICATIONS
UH30-FND
UL30H
VOLTS 115
PHASE 1
FREQ 60
WASH
MOTOR
AMPS
10.0 A
WASH
HEATER
AMPS
13.1 A
TOTAL
LOAD 13.1 A*
Electrical Characteristics

07610-004-37-38-G 5
Before installing the unit, check packaging and machine for damage. Damaged
packaging might be an indication of damage to the machine. If there is any type
of damage to both packaging and unit, do not throw away the packaging. The
dishmachine has been inspected at the factory before shipping and is expected to
arrive in new, undamaged condition. However, rough handling by carriers or others
might result in damage to the unit while in transit. If this occurs, do not return the unit to
the manufacturer. Instead, contact the carrier and ask them to send a representative
to the site to inspect the damage and request that an inspection report be completed.
Contact the carrier within 48 hours of receiving the machine as well as the dealer that
sold you the unit.
Remove the box and machine from the pallet before installing. Open the front door and
remove all of the materials from inside. Once unpacked, verify there are no missing
parts (reference the Parts section). If a part is missing, contact the manufacturer
immediately.
All plumbing connections must be made to adhere to local, state, territorial, and
national codes. The installing plumber is responsible for ensuring the incoming
water lines are ushed of debris before connecting to the machine. Note that chips
and materials from cutting processes can become lodged in the solenoid valves
and prevent them from opening or closing. Any valves that are found to be fouled
or defective because of foreign matter left in the water line, and any subsequent
damage, are not the responsibility of the manufacturer.
A water hardness test must be performed. A hardness test kit can be found on the
warning tag that is attached to the incoming plumbing connection on the back of the
machine. If water hardness is higher than 3 GPG, install a water softener or install the
optional Scale Prevention System (SPS). See the Plumbing Options page and the
next section for more information on the SPS.
See the Machine Dimensions page and reference item "B" for water inlet connection
location.
The manufacturer does NOT endorse "Tankless On-demand" water heaters
for use with their dishmachines. The manufacturer DOES endorse, and highly
recommends, the standard "Tank" style water heaters, sized to properly handle the
water heating requirements of the facility.
INSTRUCTIONS
INSTALLATION
INSPECTION
Do not throw away
container if damage is
evident!
UNPACKING
PLUMBING
A water hardness test
must be performed.
The plumber must ush
the incoming water line!
NOTICE

6
07610-004-37-38-G
PRESSURE
REGULATOR
SHOCK ABSORBER
CONNECTING THE
DRAIN LINE
A water hardness test must be performed. There is a hardness test kit on the warning
tag attached to the incoming plumbing connection on the back of the machine. If
water hardness is higher than 3 GPG and a water softener is not being used, install
an SPS (see Plumbing Options page) into the water line between the facility water
line and the machine water line (installed at the factory). Observe proper inlet/outlet
water directions. A water shut-o󰀨 valve should be installed before installing the SPS
to allow access for service. The water supply must be capable of a minimum of 20 ±
5 PSI “ow” pressure at the recommended temperature indicated on the data plate.
If water hardness tests at 3 GPG or lower, connect the machine water line (installed
at the factory) to the facility water line. A water shut-o󰀨 valve should be installed in
the water line between the facility supply and the machine to allow access for service.
The water supply line must be capable of a minimum of 20 ± 5 PSI “ow” pressure at
the recommended temperature indicated on the data plate.
The manufacturer has an optional water pressure regulator to accommodate areas
where water pressure uctuates or is higher than the recommended pressure. Take
care not to confuse static pressure with ow pressure: static pressure is line pressure
in a “no ow” condition (all valves and services are closed); ow pressure is the
pressure in the ll line when the valve is opened during the cycle. See the Plumbing
Options page.
It is suggested that a shock absorber (not supplied) be installed on the incoming water
line. This prevents water hammer (hydraulic shock)—induced by the solenoid valve
as it operates—from causing damage to the equipment. See the Plumbing Options
page.
The dishmachine has a pumped (pressure) drain capable of pumping waste water
to a height of 24” above the oor to the kitchen’s drain system. Each dishmachine is
supplied with a drain hose. When installed, it will extend from the rear of the machine.
There must be an air-gap between the machine drain line and the oor sink or drain.
If a grease trap is required by code, it should have a ow capacity of 12 GPM.
After installing the incoming ll line and the drain line, slowly turn on the water supply
to the machine. Check for any leaks and repair as required. All leaks must be
repaired before operating the machine.
Take care not to confuse
static pressure with
ow pressure!
PLUMBING CHECK
INSTRUCTIONS
INSTALLATION
WATER SUPPLY
CONNECTIONS:
WATER HARDNESS
HIGHER THAN 3 GPG
WATER SUPPLY
CONNECTIONS:
WATER HARDNESS
LOWER THAN 3 GPG
Shut-off
Valve
Adapter AdapterSPS Machine
Water Line
Facility
Water Line
*Adapters needed will vary.
Example

07610-004-37-38-G 7
Electrical and grounding conductors must comply with the applicable portions of the
National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.
The data plate is located at the left-front side of the dishmachine. Refer to the data plate
for machine operating requirements, machine voltage, total amperage, and serial number.
Remove the back panel and set aside. This will require removing the screw at the
bottom of the back panel with a phillips screwdriver. Install 3/4” conduit into the pre-
punched holes in the back of the control box. Route power wires and connect to power
block and grounding lug. Install the service wires (L1 and L2 for UH30-FND, L1 and
N for UL30/UL30H) to the appropriate terminals as they are marked on the terminal
block. Install the grounding wire into the lug provided. It is recommended that “DE-
OX” or another similar anti-oxidation agent be used on all power connections.
UH30-FND UL30/UL30H
Ensure that the "ON/OFF" switch is in the "OFF" position and apply power to
dishmachine. Check the incoming power at the terminal block and ensure it
corresponds with the voltage listed on the data plate. If not, contact a qualied service
agency to examine the problem. Do not run dishmachine if voltage is too high or too
low. Shut-o󰀨 the service breaker and advise all proper personnel of the location of
the breaker and any problems. Replace the control box cover and tighten-down the
screws.
This is a commercial dishmachine and reaches temperatures that can exceed
those generated by a residential machine. Surrounding countertops, cabinets, ooring
material, and suboor material must be designed and/or selected with these higher
temperatures in mind.
Any damage to surrounding area that is caused by heat and/or moisture to materials
that are not recommended for higher temperatures will not be covered under warranty
or by the manufacturer.
The thermostats on this dishmachine have been set at the factory. They should only
be adjusted by an authorized service agent.
INSTRUCTIONS
INSTALLATION
ELECTRICAL POWER
CONNECTIONS
Disconnect electrical
power at the breaker or
disconnect switch and
tag-out in accordance with
procedures and codes.
THERMOSTATS
SURROUNDING
AREA
VOLTAGE CHECK
NOTICE
i
DETAIL A
SCALE 1 / 3
DETAIL A
SCALE 1 / 3
L1 L2 GRND L1 N GRND

8
07610-004-37-38-G
CHEMICAL FEEDER
EQUIPMENT
PRIMING CHEMICAL
FEEDER PUMPS
WARNING! Some of the
chemicals used in
dishwashing might cause
chemical burns if they
come in contact with skin.
Wear protective gear when
handling these chemicals.
If any contact with skin
occurs, immediately
follow the treatment
instructions provided
with the chemicals.
PREPARING
CHEMICAL FEEDER
PUMPS
CAUTION! Chlorine-based sanitizers can be detrimental to this machine
if the chemical solution is too strong. See a chemical professional to
ensure the dispenser is set-up correctly.
The bottom of the chemical container cannot be located any higher than 8” from the
oor. If the unit is equipped with the 6” or 18” table stand, the highest position will be
14” or 26” from the oor, respectively. It is important to remember that if you decide
to operate the unit in chemical-sanitizing mode, you must ensure an appropriate
chlorine-based sanitizer is used in the nal rinse line.
The UH30-FND dishmachine is supplied with detergent and rinse-aid chemical feeder
pumps.
The UL30 and UL30H dishmachines are supplied with detergent, rinse-aid, and
sanitizer chemical feeder pumps.
Locate the open ends of the chemical tubes with the tube sti󰀨eners and place each
one in the appropriate container.
A. Red Tubing = Detergent B. Blue Tubing = Rinse-Aid
C. White Tubing = Sanitizer

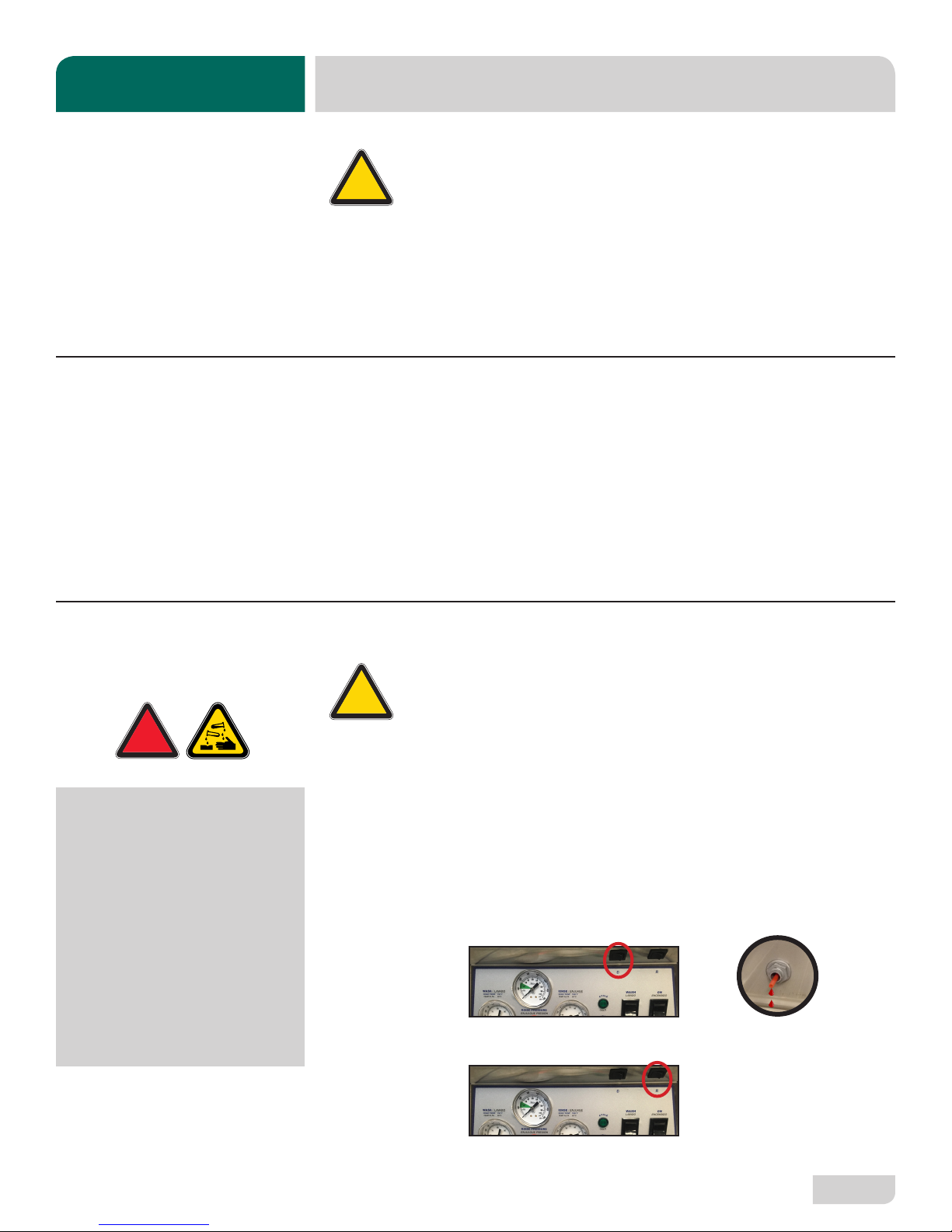

Chemical feeder pumps need priming when the machine is rst installed or if the
chemical lines were removed and air was allowed to enter.
CAUTION! Water must be in the sump and wash tank before chemicals
are dispensed.
1. Verify that the proper chemical tube sti󰀨ener inlet is in the proper container.
2. Use the prime switches located on the control panel at the bottom of the unit to
prime each pump. The switches are clearly marked, "D" for detergent and "R"
for Rinse-aid.
3. To prime the pumps:
UH30-FND
• Detergent - hold the "D" switch in the momentary position until detergent is
seen entering the wash tank.
• Rinse-aid - hold the "R" switch in the momentary position for one minute.
!
CAUTION
!
WARNING
!
CAUTION
INSTRUCTIONS
INSTALLATION

07610-004-37-38-G 9
PROGRAMMING
CHEMICAL
FEEDER PUMPS
To access the programming mode, the machine must be ON and idle (between
cycles).
On the timer board, press and hold both the MOVE and ENTER buttons on the timer
board simultaneously for two seconds.
The PROGRAM (PGM) light and light A will illuminate.
Once in the programming mode, the MOVE button is used to scroll between the
programming categories and the ENTER button is used to select the category.
Press the MOVE button to move the solid light to the desired location of FILL, RINSE
AID, DETERGENT, or SANITIZER. Please note that options A, B, C, and D are not
adjustable outputs (E and F are also not adjustable on the UH30-FND).
Press the ENTER button for the chosen category. Now, the (PGM) light will illuminate
along with lights corresponding to the time values for the chosen category. The
ACCEPT light will blink.
The PROGRAM light will illuminate.
INSTRUCTIONS
INSTALLATION
UL30/UL30H
• Detergent, Rinse-aid, and Sanitizer - hold each priming switch until the
respective chemical can be seen entering the wash tank.
4. Detergent is dispensed as required during the wash cycle by the timer. The
amount of detergent might need to be increased or decreased depending upon
water quality and type of detergent.
5. Rinse-aid is dispensed as required into the nal rinse. The amount of rinse-aid
might need to be adjusted depending upon water hardness and results.
6. Sanitizer is dispensed proportionally into the nal rinse water line. The amount
of sanitizer might need to be adjusted depending on concentration.
7. Please refer to the instructions below on adjusting the chemical feeder pumps
on the universal timer.
PRIMING CHEMICAL
FEEDER PUMPS
NOTICE

10
07610-004-37-38-G
To change the value of a parameter, use the MOVE button to illuminate the light next
to the time option (time is measured in seconds). In the time categories, each second
in use will light up. To deselect the option, press ENTER and the light will go o󰀨, press
ENTER again and it will illuminate. Once you have set your time category, press the
MOVE button until the ACCEPT light illuminates and press ENTER. This will save the
changed parameters and exit the programming mode.
To change any other values, you will have to return to the programming mode. To
revert back to a previous setting, you must return to that option and change the
parameter back to the previous setting.
Once in the programming mode, if there have been no keypad inputs for approximately
two minutes, the system will automatically exit out of the programming mode. Any
changes to parameters will be lost when the programming mode is automatically
exited.
The wash and drain cycles are not adjustable.
All time adjustments are in seconds. Refer to the chart below for adjustable outputs.
TIMER PROGRAMMING BOARD
PROGRAMMING
CHEMICAL
FEEDER PUMPS
PGM UH30-FND UL30/UL30H
E Not adjustable Rinse-Aid
F Not adjustable Fill
G Detergent Sanitizer
H Rinse-Aid Detergent
INSTRUCTIONS
INSTALLATION
PGM
A
B
C
D
E
F
G
H
ACCEP T
TIME IN SECONDS
8
4
2
1
0.8
0.4
0.2
0.1
MOVE
ENTER

07610-004-37-38-G 11
INSTRUCTIONS
INSTALLATION
LEVELING The dishmachine is designed to operate while level. This is important to prevent any
damage to the machine during operation and to ensure the best possible results. The
unit comes equipped with adjustable bullet feet which can be turned using a pair of
pliers. Since this machine is an undercounter unit, it should be leveled as close as
possible to the unit's location before it is pushed under the counter.
1. Flip the "ON/OFF" switch to "ON."
2. Listen for the water to stop lling.
3. Flip the "ON/OFF" switch to "OFF."
4. Listen for the water to stop draining.
5. Flip the "ON/OFF" switch back to "ON."
6. Listen for the water to stop lling.
7. Flip the "ON/OFF" switch back to "OFF."
8. Listen for the water to stop draining.
9. Flip the "ON/OFF" switch back to "ON."
10. Listen for the water to stop lling. This time the water should begin to splash
into the cavity of the machine.
11. Once you hear water splashing, ip the "ON/OFF" switch back to "OFF."
12. Listen for the water to stop draining.
HEATER CONTACTOR
WIRES
(UH30-FND ONLY)
Heater contactor wires
must NOT be connected
before water lls the unit
the rst time!
!
CAUTION

12
07610-004-37-38-G
Disconnect electrical
power at the breaker or
disconnect switch and
tag-out in accordance with
procedures and codes.
13. Disconnect electrical power at the breaker or disconnect switch and tag-out in
accordance with procedures and codes.
14. Remove the front panel of the machine.
15. Locate the loose connector with the orange/white and blue/black wires.
16. Plug the loose connector into the empty connector on the Right side of the
ELAN thermostat board.
17. Replace the front panel of the machine.
18. Reconnect electrical power at the breaker or disconnect switch in accordance
with procedures and codes.
19. The machine is now ready for operation.
HEATER CONTACTOR
WIRES
(UH30-FND ONLY)
INSTRUCTIONS
INSTALLATION

07610-004-37-38-G 13
OPERATING INSTRUCTIONS
OPERATION
Before operating the unit, verify the following:
1. Strainer is in place and clean.
2. Wash and rinse arms are screwed securely into place and end-caps are tight.
3. Wash and rinse arms rotate freely.
4. Chemical levels in chemical containers are correct.
1. Close the door.
2. Flip the “ON/OFF” switch to the “ON” position.
3. The unit will automatically begin to fill.
4. Once the wash tub is filled, wait for five minutes.
5. Flip the “ON/OFF” switch to the “OFF” position and wait for unit to drain.
6. Flip the “ON/OFF” switch to the “ON” position and wait for unit to fill.
7. Ensure wash temperature is at least 150 °F before operating the unit.

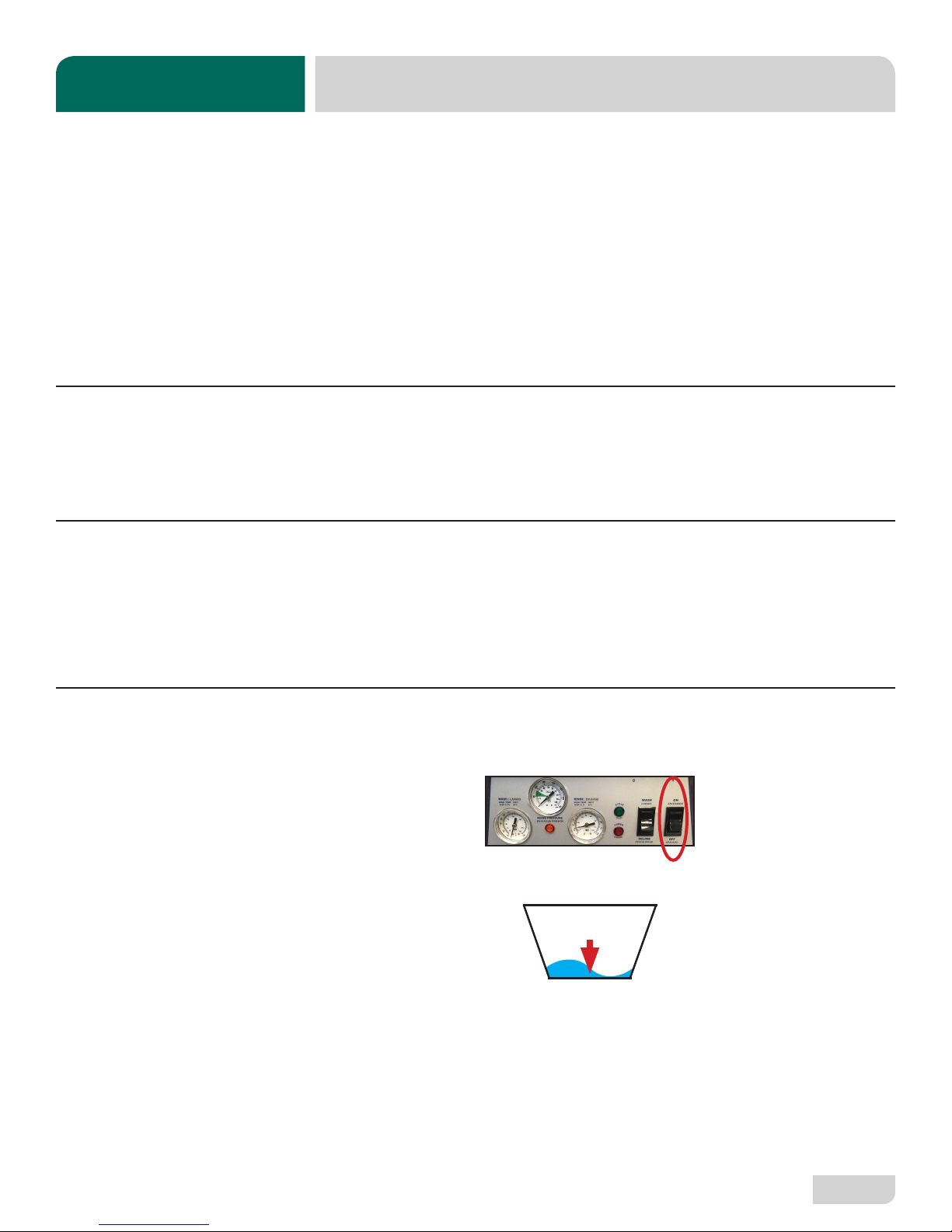

PREPARATION
FILLING THE
WASH TUB
(UH30-FND Controls Shown.)

14
07610-004-37-38-G
Proper preparation of ware will help ensure good results and fewer re-washes. If not
done properly, ware might not come out clean and the e󰀩ciency of the dishmachine
will be reduced. Putting unscraped dishes into the machine a󰀨ects its performance,
so scraps should always be removed from ware before being loaded into a rack.
Pre-rinsing and pre-soaking are good ideas, especially for silverware and casserole
dishes.
Place cups and glasses upside-down in racks so they don't hold water during the
cycle. The dishmachine sanitizes as well as cleans. To do this, ware must be properly
prepared before being placed in the machine.
To wash a rack, open the door completely and slide the rack into the unit. Close the
door, ensure the "WASH/DELIME" switch is on "WASH," press the "Start" button, and
the unit will start. After the cycle light turns o󰀨, the cycle is complete. When the ush
light is on (steady, not ashing), tank water should be drained and relled.
Based on use, the strainer might become clogged with soil and debris as the
workday progresses. Operators should regularly inspect the strainer to ensure it has
not become clogged. If clogged, it will reduce the washing capability of the machine.
Instruct operators to clean out the strainer at regular intervals or as required by
workload.
1. At the end of the workday, close the door. Flip the “ON/OFF” switch to the “OFF”
position.
2. The drain pump will activate and empty the unit of water.
WASHING A RACK
OF WARE
WARE
PREPARATION
OPERATIONAL
INSPECTION
SHUTDOWN &
CLEANING
(UH30-FND Controls Shown.)
OPERATING INSTRUCTIONS
OPERATION

07610-004-37-38-G 15
OPERATING INSTRUCTIONS
OPERATION
3. When draining stops, remove the strainer.
4. Remove soil and debris from the strainer and set to the side.
5. Unscrew the wash and rinse arms from their manifolds. Remove the end-caps and
ush the arms with water. Use a brush to clean out the inside of the arms. If the
nozzles appear to be clogged, use a toothpick to remove the obstruction.
6. Wipe the inside of the unit out, removing all soil and scraps.
7. Reassemble the wash/rinse arms.
SHUTDOWN &
CLEANING
End-Cap
Nozzle
