WASHING MACHINESERVICE MANUALCAUTIONREAD THIS MANUAL CAREFULLY TO DIAGNOSE PROBLEMSCORRECTLY BEFORE OFFERING SERVICE.BEFORE SERVICING THE WASHING MACHINE, UNPLUG THE POWERCORD TO AVOID THE RISK OF AN ELECTRIC SHOCK. WHEN SERVICING INTERNAL PARTS, USE ONLY SERVICE PARTS SUPPLIED FROM LG. AFTER SERVICING THE ELECTRIC WIRE, INSURE THAT INSULATIONTAPE IS APPLIED TO PREVENT AN ELECTRIC SHORT.MODEL : F14U2TDH(P)(0~9)Nwebsite : http://biz.lgservice.come-mail : http://LGEservice.com/techsup.html

CONTENTS1.SPECIFICATIONS.................................................................................................................................................32.FEATURES & TECHNICAL EXPALNATION.......................................................................................................43.PARTS IDENTIFICATION ....................................................................................................................................64.INSTALLATION....................................................................................................................................................75.OPERATION .........................................................................................................................................................126.WIRING DIAGRAM / PCB LAYOUT...................................................................................................................197.TROUBLESHOOTING.........................................................................................................................................227-1.CHECK BEFORE SERVICE ...........................................................................................................................227-2.LOAD TEST MODE......................................................................................................................................227-3.HOW TO CHECK THE WATER LEVEL FREQUENCY ...............................................................................237-4.ERROR DISPLAY ..........................................................................................................................................247-5.TROUBLESHOOTING WITH ERROR .........................................................................................................26IE(Water Inlet Error) .............................................................................................................................

UE (Unbalanced Error) .........................................................................................................................27OE(Water Outlet Error) .......................................................................................................................28 FE (Over Flow Error) .............................................................................................................................30 PE (Pressure Sensor S/W Error) ..........................................................................................................31 dE2 (Door open Error).........................................................................................................................32 dE1 (Door switch Error) .......................................................................................................................32 tE (Thermistor (Heating) Error) .........................................................................................................33 LE (Motor Lock Error) ..........................................................................................................................348.TROUBLESHOOTINGWITHOUT ERROR CODES...........................................................................................36 Power Failure or no power...............................................................................................................36 Vibration & Noise during spin ...........................................................................................................37 Detergent & Softener does not flow in ...........................................................................................38 Before using the Tag On function....................................................................................................41 Water Leak ............................................................................................................................................399. DISASSEMBLY INSTRUCTIONS.....................................................................................................................435110.EXPLODED VIEW AND PART LIST ...............................................................................................................

1.SPECIFICATION

ITEM

POWER SUPPLY

PRODUCT WEIGHT

WASHING

SPIN

REVOLUTION

SPEED

DRY

WASH

SPIN

CONTROL TYPE

WASH CAPACITY

DIMENSION

WASH COURSE

TEMP

DOOR SWITCH TYPE

INTELLIGENT DRYING

Automatic

Adapted

11 Items

Adapted

3~19Hours

Cotton,Cotton Large,Mix,Easy Care,Duvet,Allergy Care,

Steam Refresh,Sports Wear,Gentle Care,Stain Care,

Direct Wear,Quick 30,Wash+Dry(5kg),Download Cycle

Electronic

OPERATION WATER PRESSURE

WASH HEATER

STEAM

DRIAN MOTOR

ELECTRICITY

CONSUMPTION

220V~,60Hz

F14U2TDH(P)(0~9)N

PRESERVATION

SENSING LAUNDRY AMOUNT

FUZZYLOGIC

ERROR DIAGNOSIS

POWER AUTO OFF

AUTO RESTART

TIME SAVE

CHILD LOCK

DISPLAY REMIANING TIME

No Spin/400/800/1000/1200/1400rpm

50rpm

0.3-10kgf/cm2(30-1000kPa)

8.0kg

600mm(W)x560mm(D)x850mm(H)

Cold/20/30/40/60/95℃

170W

550W

35W

2100W

67kg

1250W

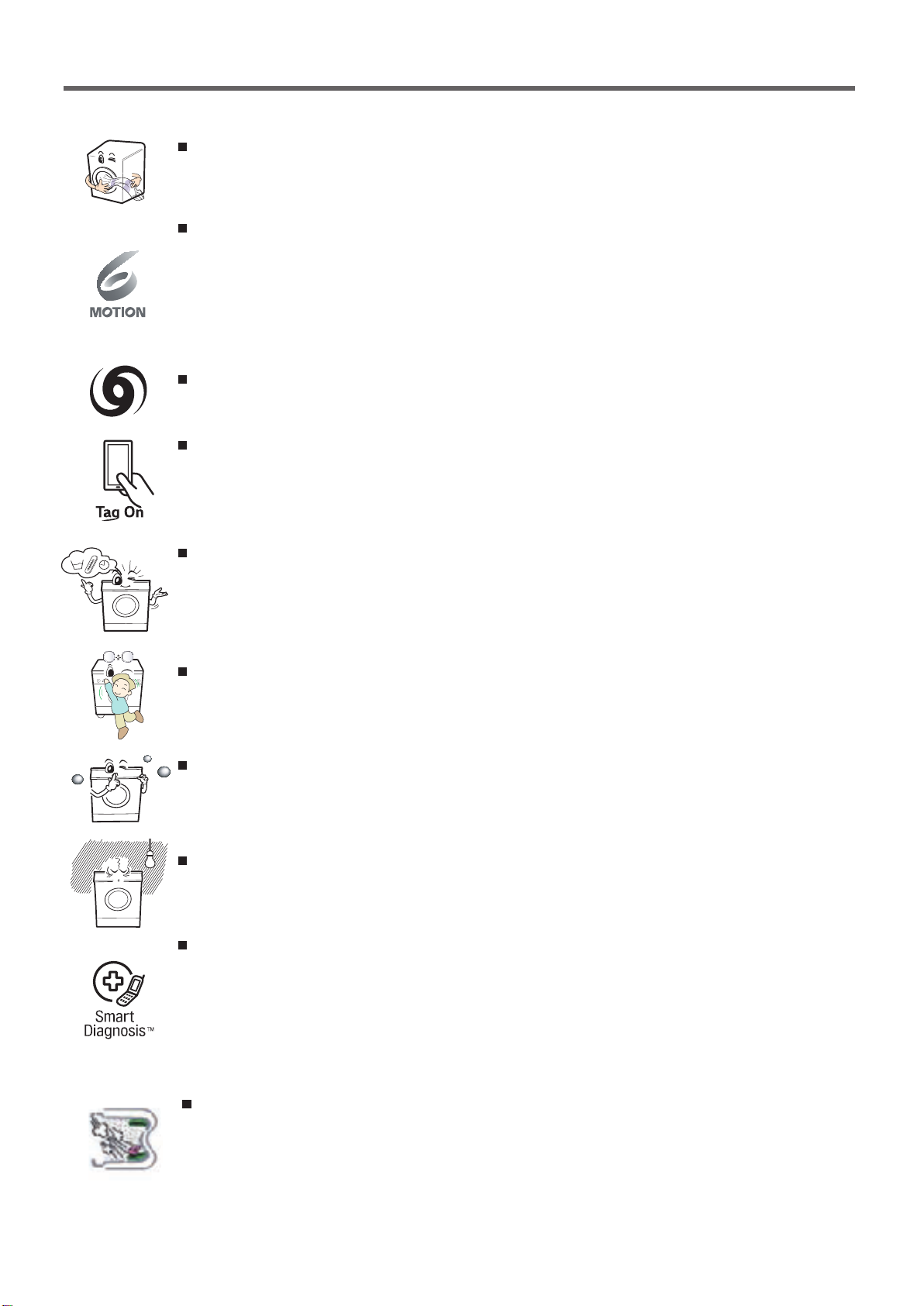

42.FEATURES & TECHNICAL EXPLANATION2-1.Product FeaturesInverter Direct Drive system

The advanced Brushless DC motor directly drives the drum without belt and pulley.Low noise speed control system

By sensing the amount of load and balance, it evenly distributes loadto minimize the spinning noise level.Child Lock

The Child Lock prevents children from pressing any button to changethe settings during operation.More economical with Intelligent Wash system

Intelligent Wash System detects the size of load and water temperature,and then determines the optimum water level and washing time tominimize energy and water consumption.Turbo Wash

Wash the laundries in 1 hour with energy and water saving.Tag on

This is a function that may use Diagnosis, Download Course, WashingCoach, One Touch Washing, etc. when you touch the Tag On logo ofthe washing machine by using your smartphone with NFC. 6 Motion

Washer is able to perform various drum actions or a combination ofdifferent actions depending on the wash program selected. Combined with a controlled spin speed and the ability of the drum torotate both left and right, the wash performance of the machine is greatlyimproved, giving you perfect results every time.Auto Restart

Auto Restart allows the program to restart all by itself in case of powerfailure. It does from the stage where it stopped.SmartDiagnosis™

Should you experience any technical difficulty with your washingmachine, it has the capability of transmitting data by phone to theCustomer Information Center. The call center agent records the datatransmitted from your machine and uses it to analyze the issue,providing a fast and effective diagnosis. Steam Wash & Steam Refresh

The characteristics of steam washing is rising washing performanceby low-energy ascension. Steam refresh process can reduce the creasesin clothes.

52-2. DETERMINE WASHING TIME BY FUZZY LOGICTo get the best washing performance optimal time is determined by sensing the watertemperature, selected washing temperature and laundry amount.2-3. WATER LEVEL CONTROLThis model adopts a pressure sensor which can sense the water level in the tub.

Water supply is stopped when the water level reach the preset level, then washing program proceeds.

Spinning does not proceed until the water in the tub reduces to a certain level.watertemperaturewashing timerinse timethe bestwashingperformancespin rhythm, timelaundryamountFUZZYLOGICselectedwashingtemperatureSENSINGEFFECTPROCESSING

DETERMINATION

2-4. THE DOOR CAN NOT BE OPENEDWhile program is operating.WhileDoor Locklight is on.2-5. NFC (Tag On Function)The Tag On function can only be used with smart phones equipped with the NFC function and based on the Android operating system (OS).Position your smart phone so that the NFC antenna on the back of your smart phone matches the position of the Tag On icon on the appliance.NFC reading performance of your smart phone must be higher thana certain level for using this function.

63.PARTS IDENTIFICATION

Power supply : 220 V~, 60 HzSize: 600 mm (W) X 560 mm (D) X 850 mm (H)Weight: 67 kgName: Front loading washing machineMax.Watt : 2100 W0.45 W (The off-mode, The left-on mode)Wash capacity: 8 kg Permissible water pressure: 30 - 1000 kPa (0.3 - 10.0 kgf / cm ）

The appearance and specifications may vary without notice to improve the quality of the unit.

(For detergent and fabric softener)

DrawerDrain hoseTransit boltsPower plugControl panelDrain pump filterLower cover cap

• If the supply cord is damaged,it must be replaced by themanufacturer or its service agentsor a similarly qualified person in order to avoid a hazard.

DrumDoorDrain plugAdjustable feet

Accessories

Inlet hoseSpanner

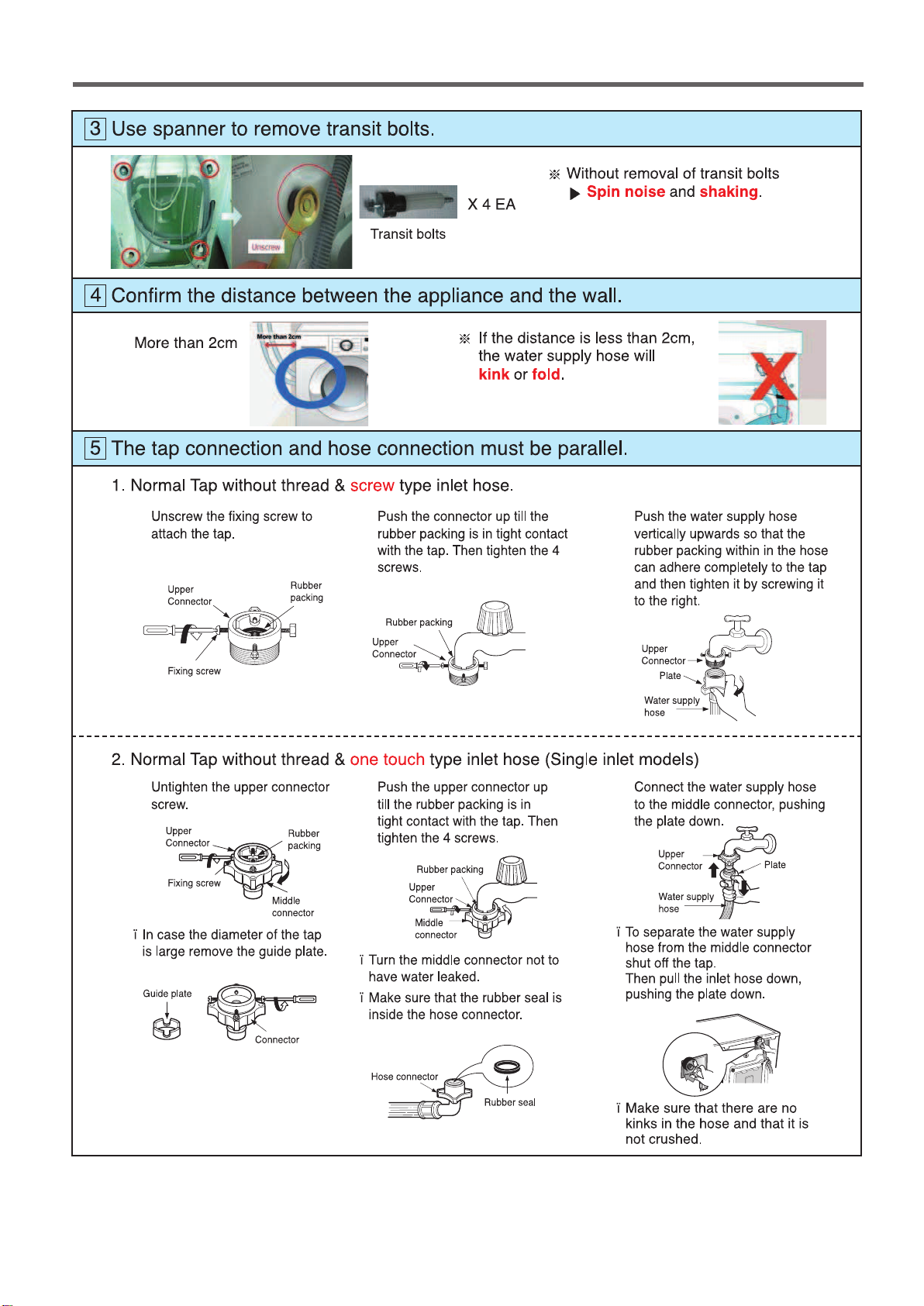

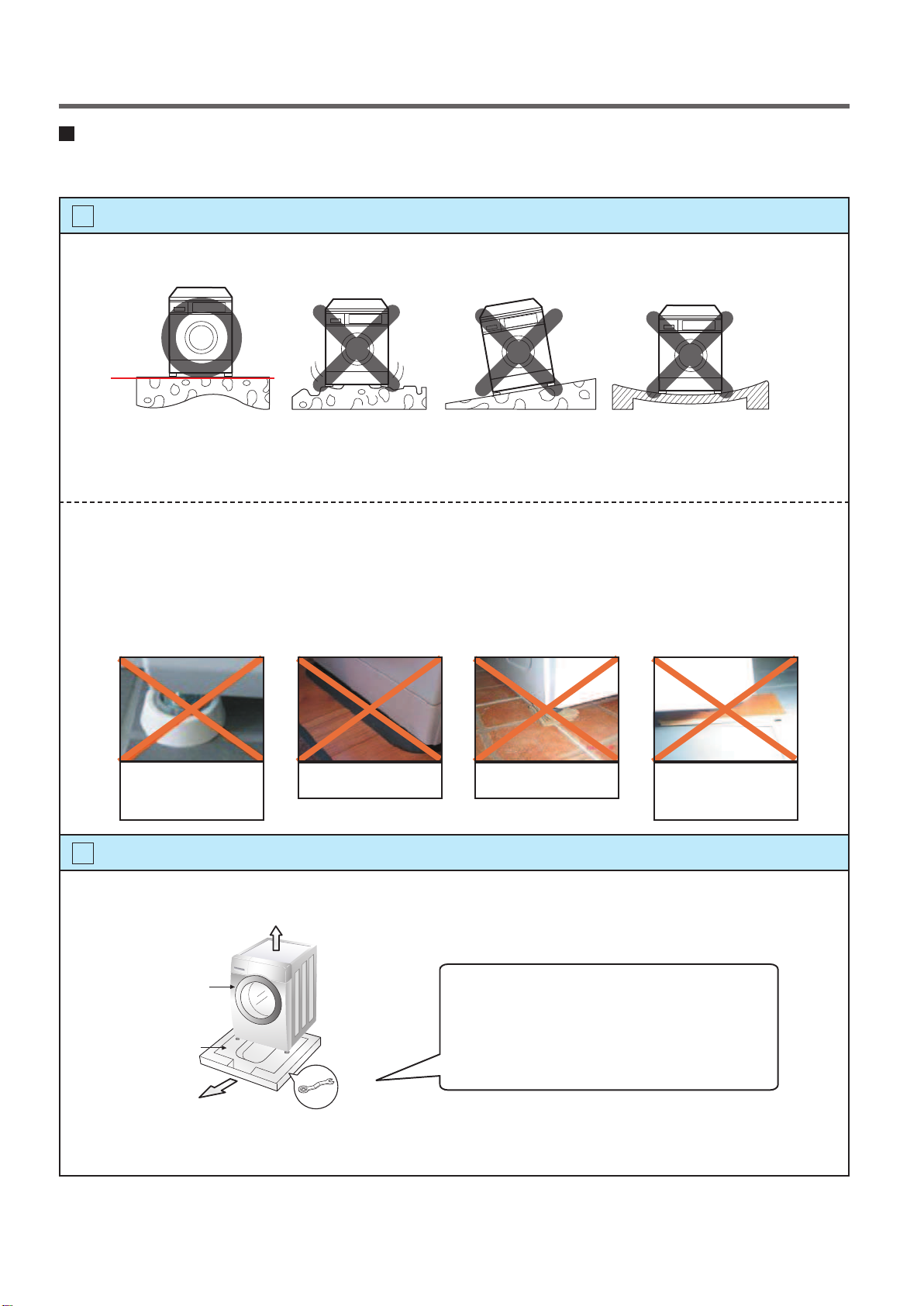

74.INSTALLATIONINSTALLATIONThe appliance should be installed as follows.Check the conditions of installation area.1. Check level ground.On raised foundations or upper level homes, the vibrationscan be caused by the type of flooring. It may be necessary to movethemachineto a different area in the home or have the floorreinforced to properly support the operation of the unit.2. Check for humidity or any foreign objects under the feet.Clean the floor, there should be no foreign objects under the feet.If the unit has foreign objects underneath the feet, this will prevent the unit from being leveled properly and will cause vibrationsandslipping.Remove any foreign objects, if any from underneath the machine and level unit properly.See below for examples of foreign objects.1Open the box and check appliance condition.2horizontalCarpetPaperLaminatedpaperPurchasedstopper

Base PackingWasherSpanner

This leveling (or spanner) wrench mustbe used to remove the shipping boltsand level the unit. This should be keptfor future use.

1.2.3.1.2.3.

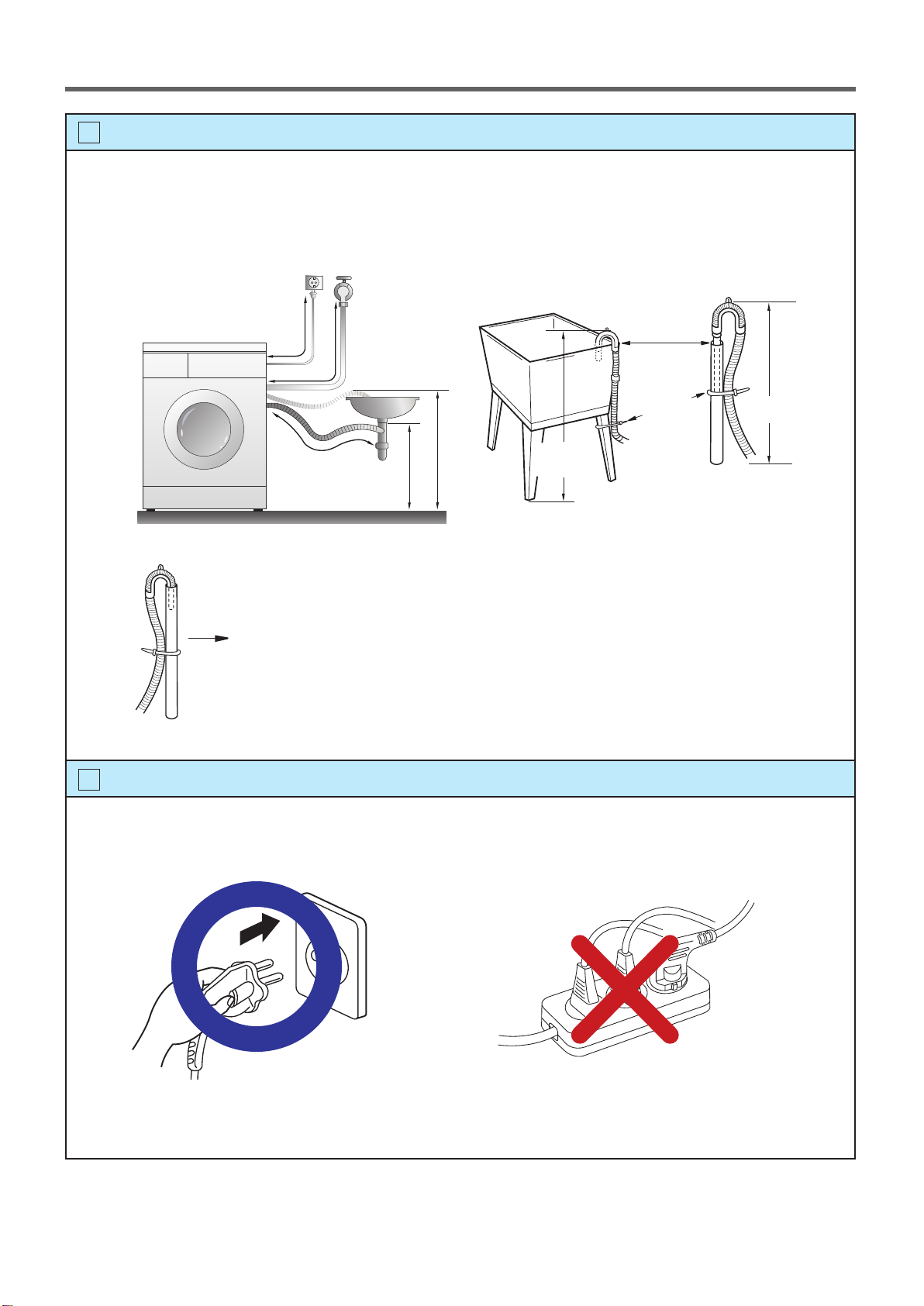

9Connect Drain Hose.6Connect power plug.7If the drain hose is not installed properly, the unit will not drain properly.This allows water to back flow into the unit which can cause odors.Refer to Owner Manual for proper drain hose installation.The odor could also be coming from the home’s drain to which the drain hose is attached.In this type of drain hose installation, the odor could be coming from the standpipe.This odor can come up the drain hose and into the unit.Pour a cup or two of bleach or vinegar down the home drain and let it sit for 24 hours before running another cycle.This will help eliminate odor from the home drain. If a cycle is started too soon after doing this, it will not help the issue.Connect the power plug to the wall outlet.Avoid connecting several electric devices, it may be the cause of a fire.about 100 cmabout 145 cmabout 105 cmLaundry tubMax. 100cmmin. 60cmMax. 100cmmin. 60cmRetainerTiestrapHose

min. 60 cmmax. 100 cm

10Rubber CupCheck the horizontality with a level (Gage).8Step 1If washing machine legs are loose or not Screwed in, then tightenwith the spanner wrench. Using the level, level the washing machine from front to back and side to side.Step 2Use the spanner wrench to adjust Legs until level and try the Diagonal test.Step 3Perform a Rinse and Spin with some clothing in the machine.To do this, put 2~3kg of clothing in the unit, turn on the unit, Select the Rinse+Spin and then start. When the unit reaches the spin cycle, watch for vibrations.If the unit is vibrating, make small adjustments to the leg until they subside. (Repeat step 2)Step 4Tightenthe lock nut against the base of the machine to locktheposition leg.Lower the foot until there is no gap between floor and foot.And only use adjustment rubberwhen difference at the leg adjustment is more than 10mm.

Place your right hand on the back, right corner and your left hand on the front,left corner of the unit, then attempt to rock the unit from corner to corner.Then, move your right hand to the front, right side and your left hand to theback, left corner and attempt to rock the unit from corner to corner.If the unit is level, it will not rock. However, if the unit is not level, it will rock.If the unit rocks, it will be necessary to adjust the leveling feet of the unit.Adjust the foot under the hand that is on the front of the machine.

How to perform a diagonal test:A levelHigherTightenAdjustable feetDiagonal testTightenAdjustable feetHigherTightenAdjustable feetLower

4620ER4002B(Gray)for Wooden floors

Rubber Cup

4620ER4002A(Black)for Tile floors

Lock nut10mmAdjustable boltTighen the lock nutFloorNo GapFloorNo GapFloorGap

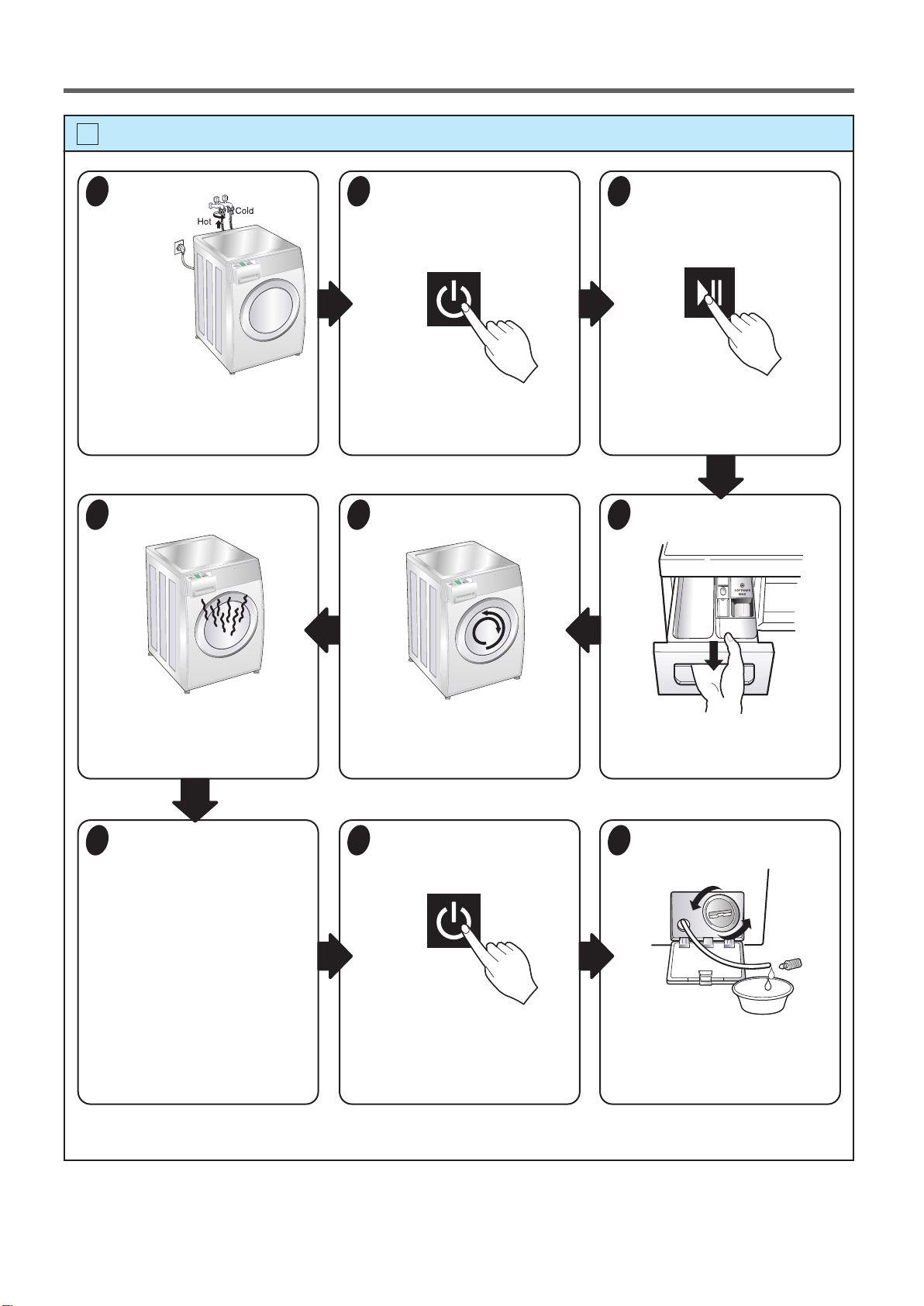

11Test operation91Preparationforwashing.·Connect the power plug to theoutlet.·Connect the inlet hose. 2Touch the power button.3Touch the START/PAUSEbutton.6Check the water heating.·Touch the Wash and Spinbutton simultaneously and thepresent temperature will bedisplayed.·Check if the drum rotatesclockwise and counterclockwise. 5

Check automatic reverse turn.

4Check the water supply.·Check if water is supplied throughthe detergent dispenser.7Check the drain and spinfunctions.·Turn power off and then power on.·Select the spin rpm·Touch the START PAUSE button.·Check the spin and drainfunctions.·Turn power off and then power on.·To turn off, touch the power button for 1sec·Listen for a click to determine if thedoor is unlocking.8Turn power off and openthe door.9Water removal.·If SVC is needed during check,remove the remaining water bypulling out the hose cap.·In case of Coloreds program.

125. OPERATIONHow to use washerPower

Touch and release your fingers to turn iton.Program dial

Programs are available according to thelaundry type. Lamp will light up to indicate selectedprogram.LED display

The display shows the settings, estimatedtime remaining, options, and statusmessages for your washer. The display will remain on through thecycle.Start/Pause

This Start/Pause button is used to startwash cycle or pause the wash cycle. If temporary stop of wash cycle isneeded, touch the Start/Pause button. When in Pause, the power is turned offautomatically after 4 minutes.Options

This allows you to select an additionalcycle and will light when selected. Use thise buttons to select the desiredcycle options for the selected cycle.Control panel Start/Pause ButtonPower ButtonLED displaySmartDiagnosis™function isavailable only for the products witha SmartDiagnosis™mark. Program dialOptions

13How to use washer

If the laundry is heavily soiled, “Pre Wash”course is effective.1.Touch the Power button.2.Select a cycle.3.Touch the Pre Wash button.4.Touch the Start/Pause button.

Pre Wash ( )

Options Steam Wash features enhanced washingperformance with low energy consumption.

1.Touch the Power button.2.Select a cycle.3.Touch the Steam button.4.Touch the Start/Pause button.For heavily stained clothes, underwearor baby clothes.Available with the Cotton, Cotton Large, Mix, Easy Care, Duvet, Allergy Care, Steam Referesh, Wash+Dry cycles.Do not use Steam Wash for easily discoloured clothes and delicates such aswool, silk.

Steam( )

14How to use washer

Spin Speed level can be selected bytouching 'Spin' button repeatedly. Spin Only1. Touch the Power button.2. Touch the Spin button to select RPM.3. Touch the Start/Pause.

Spin

By touching the Temp button the watertemperature can be selected. - Cold - 20°C, 30°C, 40°C, 60°C, 95°C Water temperature can be selectedaccording to the program.

Temp.

Rinse ( )

1. Touch the Power button.Add rinse once.2. Select a cycle.3. Touch the Time Delay button and set timerequired.4. Touch the Start/Pause button.You can set a time delay so that the washingmachine will start automatically and finishafter a specified time interval.

Delay ( )

NOTE The delay time is the time to the endof the programme, not the start. The actual running time may varydue to water temperature, wash loadand other factors.

When you select "No Spin", it will stillrotate for a short time with low speed todrain quickly.

NOTE

15How to use washer

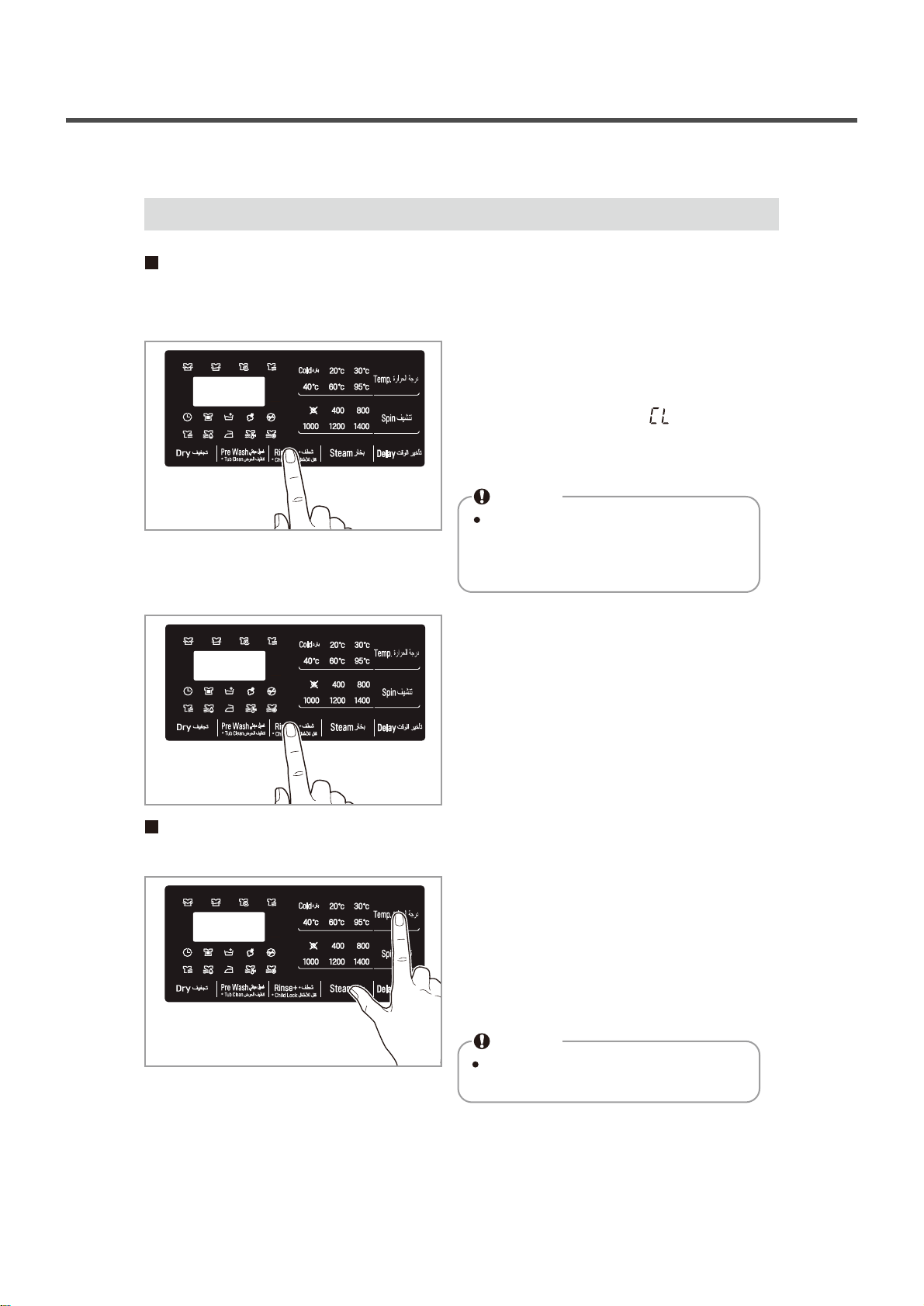

The Beep on/off function can be set only during the washing cycle.1. Touch the Power button.2. Touch the Start/Pause button.3. Touch and hold the Temp.andRinsebuttonsimultaneously for three seconds to set Beepon/off function.Once the Beep on/off function is set, the settingis memorized even after the power is turned off.Locking the control panel1. Touch and hold the Child Lock button for 3 seconds.2. A beeper will sound, and ' ' will appear onthe LED display.When the child lock is set, all buttons arelocked except the Power button.

Select this function to lock the buttons on the control assembly to prevent tampering."Child Lock" can be set only during the washing cycle.

Unlocking the control panel1. Touch and hold the Child Lockbutton for 3 seconds.2. A beeper will sound and the remaining timefor the current programme will reappear onthe LED display.

Child Lock

Beep On / Off NOTE

Turning off the power will not reset thechild lock function. You must deactivatechild lock before you can access anyother functions.

NOTE

If you want to turn the Beeper off,simply repeat this process.

How to use washer

Tub Clean is a special cycle to clean the inside of the washing machine. A higher water level is used in this cycle at higher spin speed. Perform this cycle regularly.

1. Remove any clothing or items from thewasher and close the door.2. Open the dispenser drawer and add Antilimescale(e.g. Calgon) to the main washcompartment.3. Close the dispenser drawer slowly.4.

Power On and then touch and hold TubClean button for 3 seconds. Then

' '

andtub clean pictogram will be displayed on theLED display.

5. Touch the Start/Pause button to start. 6. After the cycle is complete, leave the dooropen to allow the washer door opening,flexible gasket and door glass to dry. “Door Lock” - For safety reasons, thedoor will lock while machine is in use and the“Door Lock” icon will light up. You can safelyopen the door after the “Door Lock” iconturns off.While"Detecting"is shown on thedisplay the washing machine rotates slowlyand detects how much laundry is loaded inthe drum.It will take a short time.Tub Clean

Door Lock & Detecting

NOTE Do not add any detergent to the detergent compartments. Excessive suds may generate and leak from the washer.CAUTIONIf there is a child, be careful not to leave the door open for too long.
