Nonlinearcircuits Numberwang Manual

nonlinearcircuits
Numberwang Build guide & BOM
vers1 (5/4/2016)
This module is basically a 4:16 decoder with sync and async modes. In use, patch for signals to the 4 inputs and
generate an endless variety of gate patterns. If nothing is plugged into the sync input, then the circuit will change when
one of the 4 inputs is changed, with sync it will only change when the signal on sync is high.
The only tricky point in the build is choosing the resistors for the gate outputs and LEDs. These are marked 1k/2k2 on
the PCB, which are good values for low brightness LEDs. If using superbright LEDs and don’t want to go blind,
replace the 1ks with 3k3 and replace the 2k2 with 6k8. This will keep the gate outputs to around 5V as well.

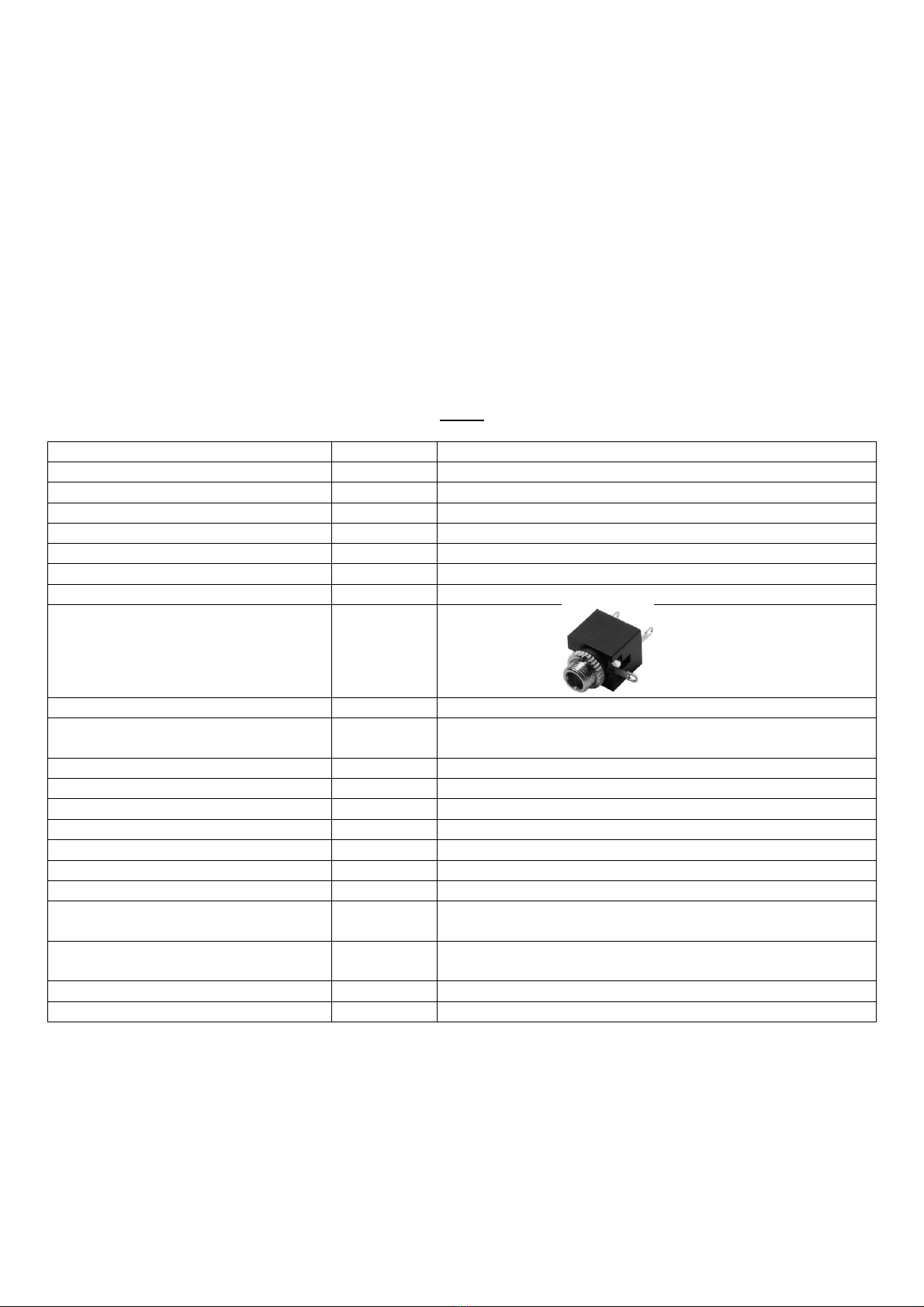

BOM
component
quantity
remarks
4514
1
SOIC, Mouser:595-CD4514BM96
TL072
3
SOIC
BC847
16
NPN SOT-23
1N4148
5
thru-hole
LED
16
NOTE: 3mm size for NLC panel
jacks
21
Kobiconn style
100nF capacitor (or larger)
(‘104’ on PCB)
6
0805, for decoupling
10uF electro
3
thru-hole, minimum 25V rating, 2mm lead spacing
10R
2
thru-hole
1k
1
0805
10k
6
0805
100k
11
0805
1k on PCB (use 3k or 3k3 for
superbright LEDs)
16
0805, select value to suit LED brightness and gate voltage
2k2 on PCB (use 6k8 for superbright
LEDs)
16
0805, select value to suit LED brightness and gate voltage
eurorack power connector (10 pins)
1
