CU-450 SPLIT ECO
English
OPERATING &
INSTALLATION
INSTRUCTIONS

2 3
Please visit www.norcool.no for operating &
installation instructions in other languages.
Shape

4 5
Content
1. Product information ..................................................................................... 9
2. Important information ................................................................................. 11
3. Dimensions and technical specifications ............................................ 12
4. Pre-installation .............................................................................................. 13
5. Installation instructions .............................................................................. 15
5.1 Evaporator element ......................................................................... 16
5.2 Condenser element .......................................................................... 16
5.3 Refrigeration installation ................................................................ 16
5.4 Electric connections ........................................................................ 16

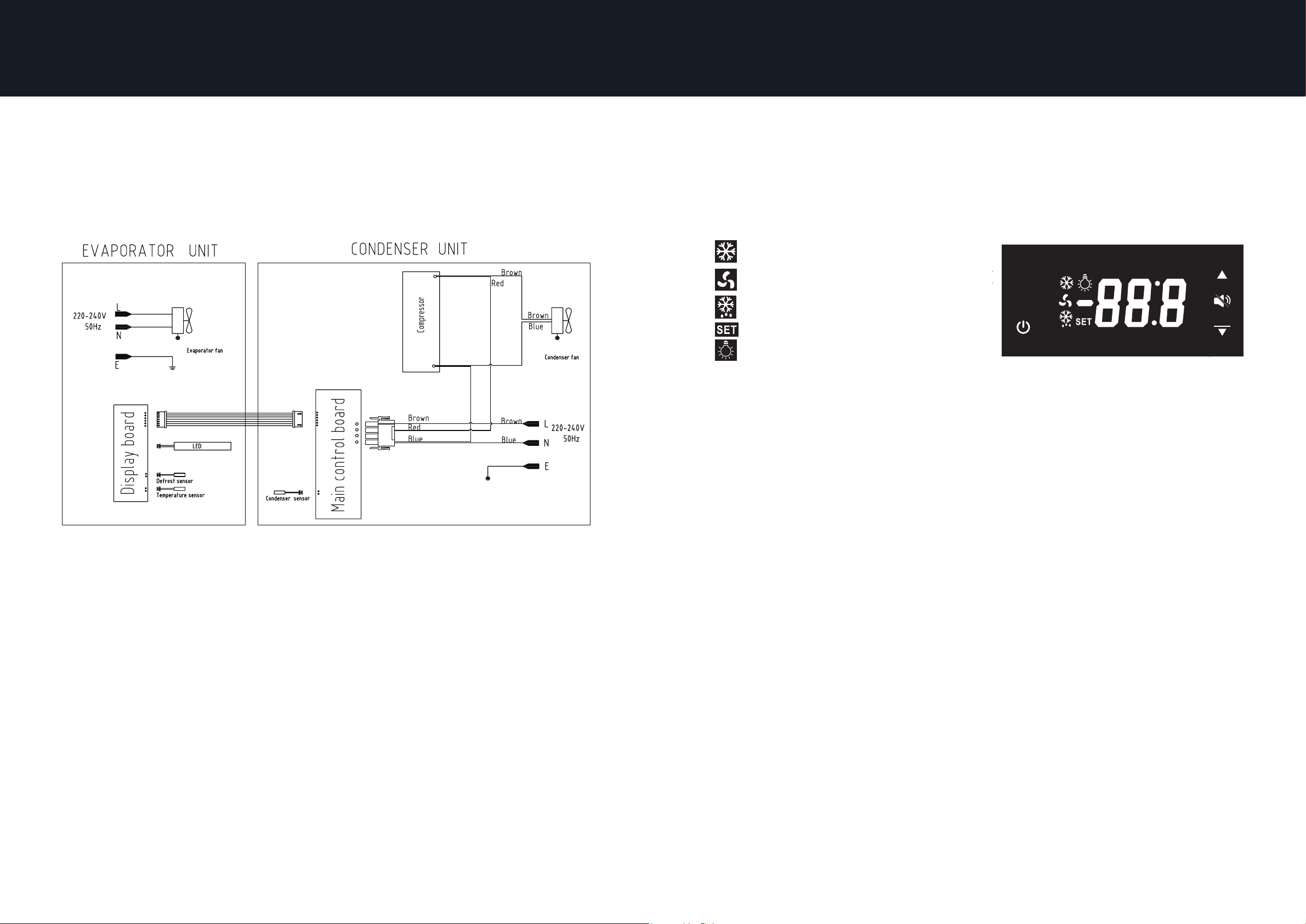

5.5 Wiring diagram .................................................................................. 16
6. Using the appliance .................................................................................... 15
6.1 Replacing the LED bars .................................................................. 16
6.2 Controller icons and temperature settings ............................. 16
6.3 Switching on/o the light .............................................................. 16
6.4 Manual defrost ................................................................................... 16
6.5 Alarm function ................................................................................... 16
6.6 Cleaning and maintenance ............................................................. 17
7. Service and troubleshooting ................................................................... 18
8. Disposal of used products ....................................................................... 19

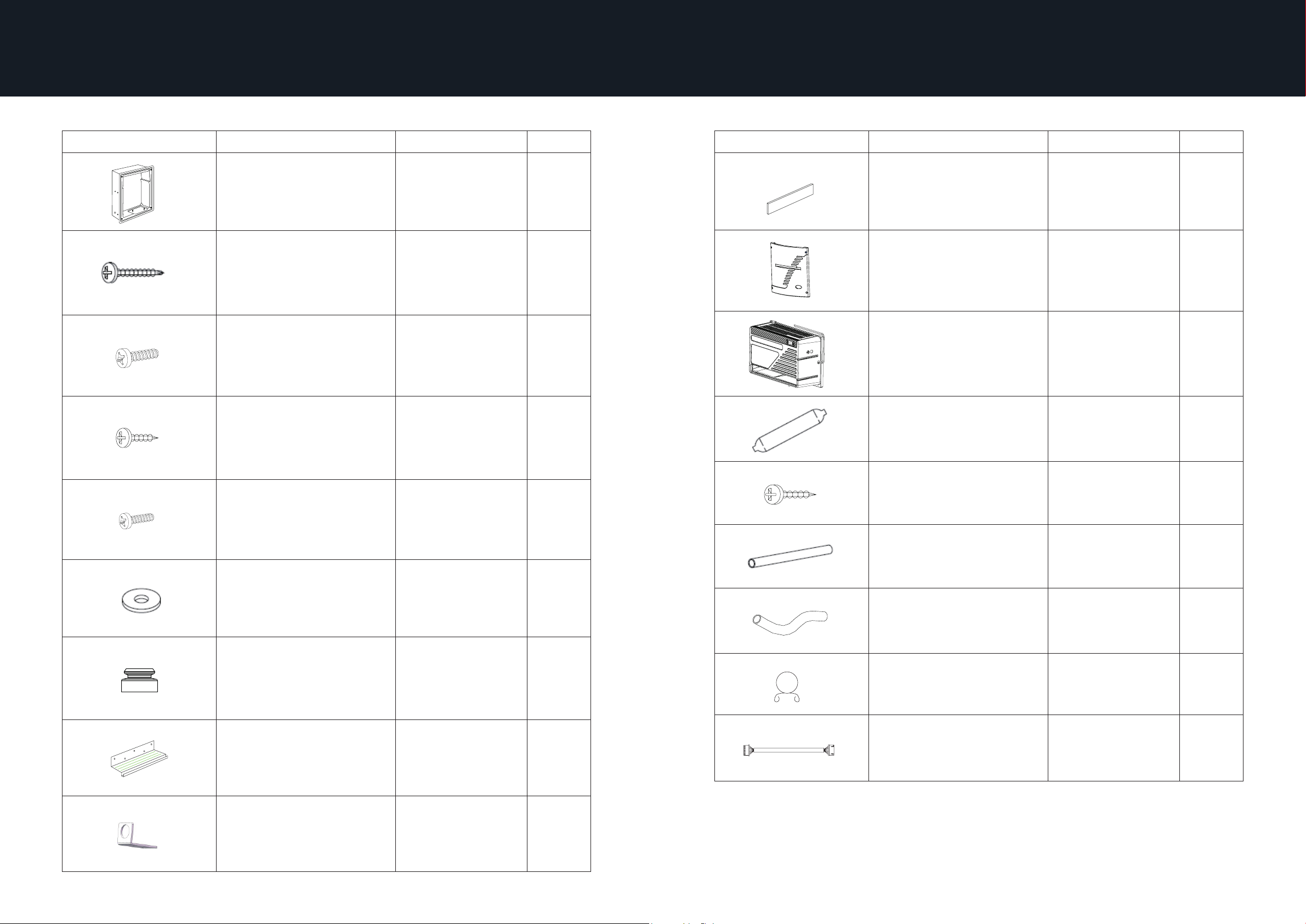

9. CU-450 ECO Split Item list .................................................................... 20
Warning
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unlessthey have been given supervision or instruction concerning use of the appli-
ance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the tem-
perature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not
in contact with or drip onto other food.
• If it is left empty for long periods, switch o, defrost, clean, dry, and leave the
door open to prevent mould developing within the cooling room.
Appliances shall be constructed so that lubricants are prevented from polluting
food compartments.
Use this appliance only for its intended purpose as described
in this instruction manual. The appliance must be properly
installed in accordance with the manual before it is used.
When positioning the appliance, ensure the mains power cable
is not trapped or damaged.
Do not connect unit to multiple portable socket-outlets or por-
table power supplies.
Caution: risk of fire/flammable materials
Refrigerant R290, this gas is natural gas with high environmen-
tal compatibility that is, however, also combustible.
WARNING:
WARNING:
WARNING:

6 7
Connect the supplied plastic tube to the water overflow pipe
on the cold side of the unit, and connect this to a permanent
drainage or water container.
Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
Do not use electrical appliances inside the cold room unless
they are of the type recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not store explosive substances such as aerosol cans with a
flammable propellant in the cold room of this appliance.
The door to use for assembling the cold room, shall be made in
a way that can be opened from the inside with a force smaller
than 70N.
In order to reduce flammability hazards the installation of this
appliance must only be carried out by a suitably qualified
person.
To avoid a hazard due to instability of the appliance, it must be
fixed in accordance with the instructions.
WARNING:
WARNING:
WARNING:
WARNING:
WARNING:
WARNING:
WARNING:
WARNING:
The installation of the appliance and the refrigerant unit must only be made by
the manufacturer’s service personnel or suitably qualified person.
Warning
When transporting and installing the appliance, ensure that no parts of refrigerating
circuit are damaged.
Refrigerant leaked from the refrigerating pipes could ignite, if leaking is detected,
to avoid any potential source of ignition (spark, naked flames etc.), please open
window or door, and keep good ventilating.
For appliances which use flammable refrigerants, the instructions shall include
information pertaining to the handling, servicing and disposal of the appliance. The
appliance has to be unplugged after use and before carrying out user maintenance
on the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
This appliance is intended to be used in households and similar applications such as:
• sta kitchen areas in shops, oces and other working environments;
• farm houses and by clients in hotels, motels and other residential type
environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
Warning
This product is defined as a customized product and is an unconventional refrig-
eration appliance. Only one single batch is produced. The main function of this
product is not to store food through a refrigeration system, but to provide a refrig-
eration environment.
An explanation shall be given of the meaning of the alpha-numeric characters,
indicating the test room climatic class of the appliance, that are marked on the
appliance.
Ambient temperature
Test room
climate class
Dry bulb
temperature ˚C
Relative
humidity % Dew point ˚C Water weight in dry air g/kg
0 20 50 9.3 7.3
1 16 80 12.6 9.1
2 22 65 15.2 10.8
3 25 60 16.7 12
4 30 55 20 14.8
5 40 40 23.9 18.8
627 70 21 15.8
735 75 30 27.3

8 9

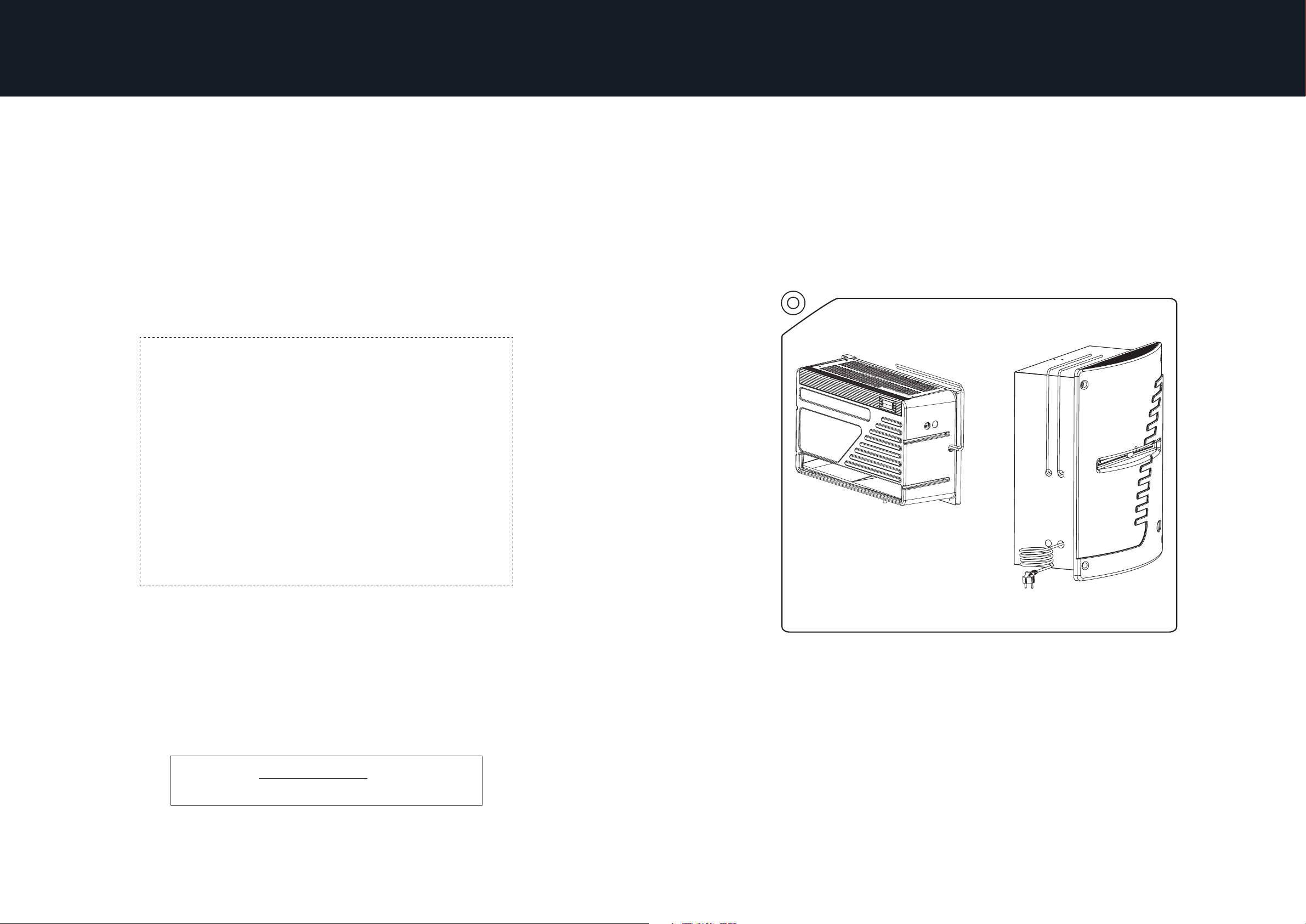

CU-450 Split ECO is our split unit, with capacity of 10,000 litres respectively. It is
designed for chilling food for use in private households and similar applications.
The correct temperature in the cold room will depend on correct construction and
insulation.
The warm and cold elements of split units are separate. The cold element is installed
in the cold room and consists of: evaporator, fan, thermostat, capillary tubes, fil-
ter and light fitting with switches. The warm element is installed in the machinery
compartment and consists of: refrigeration compressor, condenser, fan, electrical
cabinet and defrosting timer. There are several reasons why the warm element
should not be installed in an adjacent room: heat emission, lack of space, aesthetic
grounds etc.
The units require a power supply of 220-240VAC 50 Hz and must be connected to
an earthed min.10A mains socket. The power cable is connected to the condenser.
If the cable is not long enough (2.6m) call an electrician to install a socket closer.
The mains socket must be easily accessible for installation/service. The warm ele-
ment can be located up to 10m pipe length from the cold room, and the two parts
must be connected by copper pipe and electric cable. The mains socket must be
easily accessible for installation/service.
It is essential that there is sucient ventilation around the warm element in the
machinery compartment. Ambient temperature on the warm side outside the cold
room must always be higher than inside, but must not exceed 38°C, or be less than
16°C.
Scandinavian Appliances AS also supplies other products that you need for a self-
build cold room.
1. Product information 2. Important information
Scandinavian Appliances AS consumer products are sold for normal use in private
households. Split units must only be installed by a refrigeration engineer. To ensure
correct use and thereby extend the product service life, please read these instruc-
tions carefully. The manufacturer will not assume liability for any damage resulting
from non-compliance with the instructions. The product will require maintenance
even in normal use, plus replacement of components which are worn out can be
necessary. These are not covered during the warranty period but are covered by
the guarantee in accordance with the Sale of Goods Act.
Other authorities can apply regulations for e.g. lighting, alarm and the like for
installation. The electrical safety of the appliance is only guaranteed when it is
installed in accordance with the regulations and supplied with the prescribed
voltage.
Never allow the unit to be permanently connected via an extension lead. Disconnect
plug when cleaning.
The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
Data plate with serial number is located on the front of the condenser and at the
right side of the condenser element. Always state the serial number when con-
tacting the service company or the manufacturer. Repairs must only be made by
qualified personnel.
Scandinavian Appliances AS disclaims all liability for typographical errors in these
instructions and reserves the right to alter the product specifications.

10 11
3. Dimensions and technical specification
CU-450 Spilt ECO cold element
Evaporator element
External dimensions,
warm element w590 x h690 x d315mm
External dimensions,
cold element w537 x h360 x d221mm
Power Max. Max. 500W
Lighting 6.5W LED
Defrost Automatic
Coolant R290
Net weight
cold element 8.5 kg
Net weight
warm element 27 kg
Power cable length 2.6 m
Compressor Cubigel NUY80RA1
Volt/Hz 220-240V AC 50Hz
Capacity Up to 10,000 litres
Thermostat setting 2-18°C (default 5 °C)
Ambient temperature 16-38°C
Unit cold element installed on wall
4. Pre-installation
First, unpack the cabinet and check it for any transport damage. Do not use a
damaged cooling unit. In the event of damage, please contact the shipping com-
pany and make sure that the damage is noted on the consignment note. Check
that all the items on the item list are present. Contact the manufacturer in the
event of damage or missing parts.
Do not locate the unit directly opposite the door as this can cause condensation
on the magnetic seals.
The unit is fitted with a defrost timer. This ensures that the evaporator melts the
frost every 210 minutes. Defrost water must be drained to a collection tank, drum
or the like. Can also be connected to a drain.
NOTE: Remember a water lock if connecting to a drain.

12 13
5. Installation instructions
Installation must be performed by a refrigeration engineer.
5.1 Evaporator element

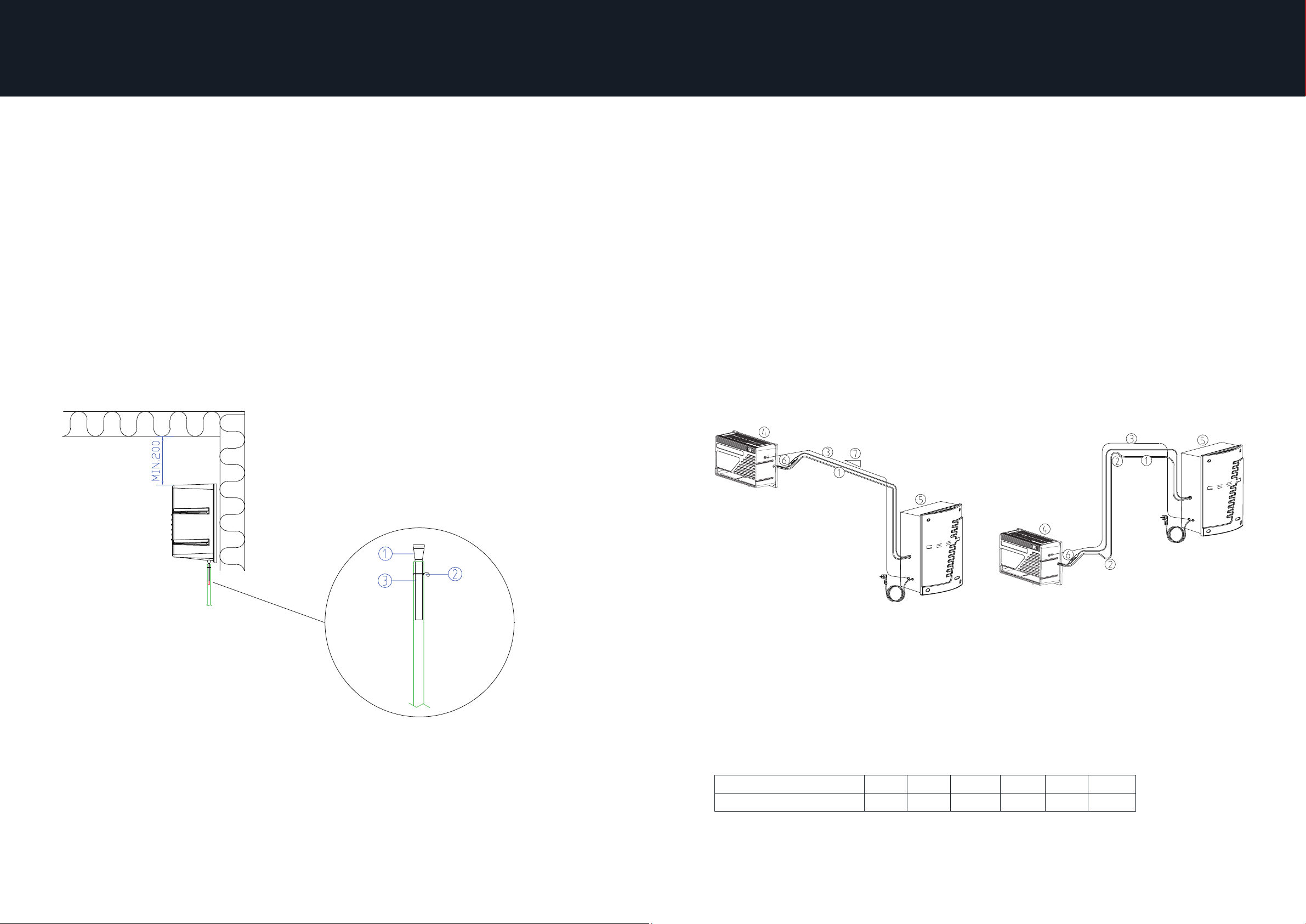

1. Install evaporator element using 6 x 4.2 x 32mm screws on wall 200 – 300mm
down from ceiling and with space at sides for pipe installation.
2. Do not locate the unit directly opposite the door as this can cause condensation
on the magnetic seals around the door.
3. Pipe connection is on right side of evaporator. Prepare appropriate piping. Install
dry filter.
4. Prepare for electric connection between units.
5. Fit cover using 6 x 4.2 x 32mm screws.
6. Connect plastic hose to drain nozzle
NOTE: Reinforce join with plastic drainpipe. See diagram.
5.2 Condenser element
• Mount shelf (galvanised element) on wall using the 5 screws supplied.
• Secure foam insulation on rear, nearest the galvanised element.
• Place condenser element on shelf, secure at top using screw and rubber sleeve.
Drain condensation to a container (tub or the like) or to a floor drain using a plastic
hose (remem- ber a U-bend).
1. Plastic drainpipe
2. Pipe clamp
3. Plastic hose
5.3 Refrigeration installation
Suction pipe (8mm) and fluid pipe (6mm) connected (braised) to nozzles on condenser
and evaporator element.
NOTE: Remember filter. Pipes should be insulated.
Pressure test unit. Evacuate and fill with R290 coolant. Evaporation temperature -10 °C.
NOTE: An oil lock may be required.
5. Installation instructions
Alternative 1
Pipes can be installed with a fall towards
the evaporator element all the way from
where they go down to the machine
element.
1. Suction pipe
2. Oil lock
3. Electric cable 3
plus earth
During installation, adjust the filling amount according to the length of copper pipe,
referring to the following:
4. Cold element
5. Warm element
6. Filter
7. Fall
Alternative 2
Oil lock must be fitted so that the entire
height dierence is a vertical pipe with
oil lock up and down.
NOTE: It is vital to avoid oil pockets, i.e.
a completely level horizontal stretch.
Length of copper tube 0 m 2 m 4 m 6 m 8 m 10 m
Liquid addition 86 g 95 g 100 g 110 g 110 g 120 g

14 15
5.4 Electric connections
Run a 3 wire plus earth cable (for minimum 10A current) from cable clamp on evaporator
element to that on the condenser element. Connection diagram built in to condenser
element cover.
5.5 Wiring diagram
6. Using the Appliance
6.1 Replacing the LED bars for CU-450 Split ECO
The LED bars must be replaced by authorized technician.
6.2 Controller icons and temperature settings
The unit is equipped with an electronic controller located on the cover of the cold side
Indicates compressor is activated.
Indicates fan is activated.
Indicates defrosting is activated.
Indicates parameter programming.
Indicates buzzer alarm occurred.
The controller has a range of 2 °C – 18 °C, with default setting of 5 °C. In order to
adjust the set point please follow the steps below:
• Press and hold ‘SET’ for two seconds, the display will flash the current set
point value.
• Press ‘UP’ or ‘DOWN’ arrow button to adjust the temperature.
• Press ‘SET’ again or do nothing for 30 seconds and the system will automati-
cally save the setting and end setting mode
6.3 Switching on / o the light
• Press ‘Lig’ to turn on/o the light.
6.4 Manual defrost
• Press and hold ‘def/down’ button for 8 seconds to start manual defrost. The
defrost will stop automatically when the deicing temperature is reached.
6.5 Alarm function
If the temperature of the compressor exceeds a specific value the controller will
generate an audible alarm. If the alarm sounds and the display show the code
“ACH” you need to clean the condenser filter and the condenser as described in
the “Cleaning & Maintenance” section and reset the alarm by pressing the “Mute’’
controller button. If the problem persists, please order service call.
If the compressor’s temperature exceeds the compressor’s operating temperature
limits, the controller will generate an audible alarm and shut down the cooling sys-
tem, as high temperatures can reduce the cooler’s service life considerably. In this
case you need to clean both the filter and the condenser as described in the “Clean-
ing & Maintenance” section, and reset the alarm and the cooling system by pressing
the “Mute’’ controller button. If the problem persists, please order service call.
Set
Lig
def

16 17
6. Using the Appliance
6.6 Cleaning and maintenance
To achieve optimum operation (longer service life) it is important that the condenser
is cleaned to remove dust and dirt regularly, at least four times per year, in addition
to other requirements.
To access condenser, remove the 4 screws on the cover of the condenser element.
Remember! Disconnect mains plug before removal. Cleaning the condenser is best
performed by vacuum cleaning the condenser fins. On CU-450 Split they are
placed on the underside of the con- densor. Exercise caution. The fins are thin and
easily damaged. Replace cover after cleaning. Check drain on cold side to ensure
the water can run freely to the collection tank, drum or the like, on the cold room
side.
To avoid mould forming, bad smells etc, regular cleaning (including inside the cold
room) is essential. We recommend mild, warm soapy water for cleaning inside the
cold room.
Remove the screw, press the lid,
remove the screw and remove
the LED lamp.
Concerning the cooling room this cooling unit is built into, observe the following:
• Children aged from 3 to 8 years are allowed to load and unload the cooling room.
• Consider the temperature distribution in the cooling room concerning storage of
specific types of food.
• Opening the door for long periods can cause a significant increase of the tempera-
ture in the compartment of the appliance.
• Clear regularly surfaces that can come in contact with food and accessible drainage
systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
• If it is left empty for long periods, switch o, defrost, clean, dry, and leave the door
open to prevent mould developing within the cooling room.
• Keep clear of obstruction all ventilation openings in the appliance enclosure or in
the structure for building-in.
• Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant
in the cold room of this appliance.
• Do not use electrical appliances inside the cold room of the appliance, unless they
are of the type recommended by the manufacturer.
• The door to use for assembling the cold room, shall be made in a way that can be
opened from the inside with a force smaller than 70N.
Using the appliance
7. Services and Troubleshooting
For service, see our website at www.norcool.com.
By checking the above before calling for service help, you will help the service
engineer know what parts they may need to bring and what measures to take.
FAULT CAUSE REMEDY
Unit not cooling
suciently.
1. Controller set point too high.
2. Ambient temperature too high.
3. Ambient temperature too low.
4. Door not sealed/closed.
5. Condenser blocked (dust etc.).
6. Evaporator iced up.
1. Adjust set point to lower value.
2. Reduce temperature in room at
the unit’s warm side. Check that
the air flow is unobstructed over
and under the unit.
3. Increase temperature in room
atthe unit’s warm side.
4. Check door is sealed/closed.
5. Remove and clean dust filter.
6. Switch o the unit to defrost.
Unit not wor-
king
1. Fuses.
2. Mains power cable.
1. Check fuses in main house fuse
box.
2. Check power cable is properly-
connected to the mains socket.
Light/fan not
working.
1. LED or power supply defective.
2. Fan defective.
1. Order service call.
2. Order service call.
Water leak 1. Drainpipe blocked.
2. Drip pan leaking.
3. Warm air getting into cold room.
1. If possible, remove blockage.
2. Order service call.
3. Check magnetic seal on door,
locate leak and repair.
Controller Error
code
1. E0, temperature sensor error.
2. E1, defrost sensor error.
3. E2, condenser sensor error.
4. H1, high temperature alarm.
5. AC, condenser high temperature
alarm.
6. ACH, condenser excess tempera-
ture alarm.
1.- 3. Unplug the power cord for two
minutes, and reconnect. If problem
remains, order service call.
4. Check compressor icon, order
service call.
5. Clean the dust filter, and check
that airflow is unobstructed over
and under the front cover on
warm side.
6. Clean dust filter.

18 19
8. Disposal of used products
This is based on guidelines laid down in environment protection legislation accord-
ing to the European Parliament’s directives on disposal of electric and electronic
products (WEEE). The directive is intended to protect and improve the environ-
ment, protect human health and exploit natural resources sparingly and sensibly.
We kindly ask you, the end-user, to observe the following:
1. If the product stops working, including after having been repaired, check if it can
be repaired before you dispose of it. If in doubt, contact your vendor or dealer for
further information on possible repair of the product.
2. If the product is at the end of its service life – i.e. cannot be repaired or recycled,
do not dispose of the product with other unsorted refuse. Contact your local waste
disposal or recycling facility, in order for them to collect the product for recycling.
To contribute to the improvement and recycling process of this product, do not
remove or destroy parts of the product before collection. By doing so you can
reduce its potential for recycling.
NOTE: Disposing of electronic and electrical products in landfill and by incinera-
tion can cause severe harm to the environment. When worn out substances
are not recycled, new resources have to be used for new products. This
represents a loss of resources, as the consumption of energy, transport and
the negative eect on the environment if such processes is great. Another
problem is that this type of product can contain coolants with gases such
as hydro fluorocarbon (HFC). HFC gases exacerbate the greenhouse eect
which in turn causes a warmer climate when they are released into the
atmosphere.
The symbol below, which is also found on the product, indicates separate collection
of electric and electronic appliances based on the European Union’s WEEE
directive.
Disposal Old appliances still have some surplus value. An environmentally friendly
approach will ensure that valuable raw materials are recycled. The refrigerants
used in your equipment and insulation materials require special handling proce-
dures. Make sure there is no pipe damage on the back of the equipment before
handling. Up-to-date information on the options for disposing of old equipment
and packaging from old equipment can be obtained from the local municipal
oce.
If the product carries this symbol, it is your respon-
sibility as consumer to contribute to recycling by
ensuring the product is not disposed of with other
refuse, but is delivered to your local refuse depot
and recycling centre. Please contact the relevant
authorities in your area for more information on
collection schemes.
Finally, make sure you comply with all recycling legislation applicable in your
municipality or your country.
NOTE:
8. Disposal of used products

20 21
9. CU-450 Split ECO item list
Figure: Description: Item number: Qty:
CU-450 Split ECO warm part 8900007748 1
ST4.8x25 8900007704 5
M5x16 8900006768 4
ST4x30 8900006767 4
M4x12 8900007706 2
Skive 10x20 / Washer 10x20 8900007702 1
Rubber pad 8900007698 1
Brakett / Bracket 8900007694 1
Top Plate 8900007695 1
Figure: Description: Item number: Qty:
Tettelist / Cell rubber 8900007700 2
Frontdeksel / Front cover 8900007684 1
CU-450 Split ECO cold part 8900007749 1
Filter / Dryer 8900007696 1
ST4.2x32 8900007703 6
Copper tube 6 x 80mm 8900007697 1
Drain tube Ø11x1500mm 8900006771 1
Pipe clamp 8900006766 1
4m Connecting wire 8900007693 1
9. CU-450 Split ECO item list

Notes:Notes:

Version 1.0 - nov 2019
Scandinavian Appliances AS
Postboks 61
1740 Borgenhaugen
Norway
T: [phone]
[e-mail]
Please visit out website for operating & installation
instructions in other languages.
www.norcool.no
