Norden secnor NAC-8008AR User manual

www.nordencommunication.com
NAC-8008AR
IP66 WATERPROOF RFID
ACCESS READER WITH
METAL BODY
User Manual

1. Introduction
The proximity reader is housed in a metal anti-vandal case
offering an IP66 rating and can be mounted either indoor or
outdoor in harsh environments.
Model Card Type
EM Version
Mifare Version
HID+EM Version
EM+HD+MF
Version
Read 125KHz EM Card
Read 13.56MHz Mifare Card (ISO 14443A Compatible)
Read 125KHz HID & EM Cards
Read 125KHz HID, EM Cards & 13.56MHz Mifare Card
(ISO 14443A Compatible)
2. Specification
Operation Voltage
Standby Current
Frequency
Read Range
9~24V DC
£25mA
125KHz/13.56MHz
³ 3cm
Output Format 26 bits Wiegand (default)
26~37 bits available upon request
Operating Temp.
Operating Humidity
Index of Protection
Dimension
Net Weight
Shipment Weight
-40°C~60°C
10% to 95% RH
IP66
103x48x19mm (Square), D73xH20mm (Mini)
0.26Kg (Square)/0.18Kg (Mini)
0.32Kg (Square)/0.26Kg (Min)
1
www.nordencommunication.com

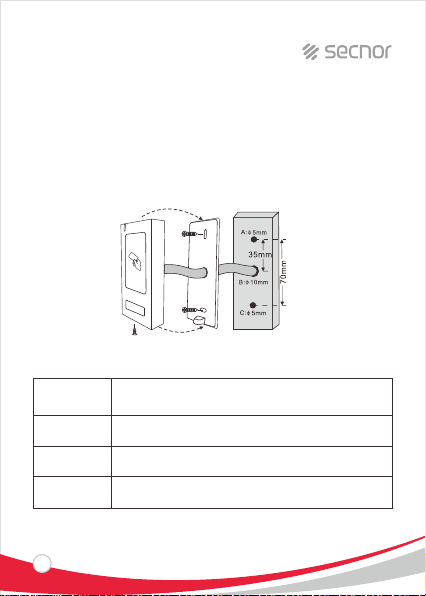

3. Installation
Drill 2 holes (A, C) on the wall for the screws and one hole for
the cable
Knock the bungs from the holes A & C
Fix the back cover on the wall with 2 screws
Thread the cable though the cable hole (B)
Attach the unit to the back cover
4. Functions Table Sheet
Read Card The LED light will turn green, and the buzzer will emit a beep,
while the reader outputs the Wiegand signal
External LED
Control
When the input voltage for LED is low, the LED will turn green
External Buzzer
Control
When the input voltage for the Buzzer is low, the Buzzer will
sound
Wiegand Data
Output
Wiegand 26-37 bits range available for the reader with the
factory default setting set at Wiegand 26 bits
2www.nordencommunication.com

5. Connection Diagram
Color Function Notes
Red
Black
Green
White
Brown
Yellow
Power
GND
D0
D1
LED
Buzzer
+DC (9-24V DC)
Ground
Data 0
Data 1
Green LED Light Control
Buzzer Control
(Remarks : Brown and Yellow wires are Optional connections)
5. Data Signal
Description
Pulse Width Time
Pulse Interval Time
Reader Typical Time
42mS
2 mS
3
www.nordencommunication.com

The table above shows the wave form of the pulse width time (the duration of a
pulse) and pulse interval time (the time between pulses) of the Wiegand data
output from the readers. (Example 1010).
6. Packing List
Reader
Manual
Screw Driver
Wall Fixing Plugs
Self Tapping Screws
1
1
1
2
2
Name Quantity
