NORDline RD195R User manual

Vážení zákazníci,
Přejeme Vám, abyste byli se zakoupeným chladicím zařízením plně
spokojeni. Předkládáme Vám návod na obsluhu, který Vám umožní osvojit
si správný postup při používání tohoto zařízení, které pak bude pracovat
bezpečně a spolehlivě.
REFRIGERATOR
Instruction booklet
HLADILNIK
Navodila za uporabo
CHLADNIČKA
Návod na použití
RD195R

EN - 1 -
Index
BEFORE USING THE APPLIANCE .................................................................... 2
General warnings .............................................................................................................. 2
Old and out-of-order fridges ............................................................................................. 4
Safety warnings .................................................................................................................. 4
Installing and operating your fridge ................................................................................. 5
Before Using your Fridge .................................................................................................. 6
THE VARIOUS FUNCTION AND POSSIBILITIES ............................................... 6
Thermostat Setting ............................................................................................................ 6
Accessories ........................................................................................................................ 7
“Door Open” Indicator; ................................................................................................................. 7
Making Ice cubes; ........................................................................................................................ 7
Removable Tabletop ......................................................................................................... 8
ARRANGING FOOD IN THE APPLIANCE .......................................................... 9
Refrigerator Compartment ................................................................................................ 9
Freezer Compartment ....................................................................................................... 9
CLEANING AND MAINTENANCE ...................................................................... 10
Defrosting ......................................................................................................................... 11
Replacing The Light Bulb ............................................................................................... 12
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ..............12
Repositioning the door ...................................................................................................12
BEFORE CALLING YOUR AFTER SALES SERVICE .........................................13
Tips For Saving Energy ................................................................................................... 14
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .......................15

EN - 2 -
PART- 1. BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be fixed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant – you can learn
this information from the label on the cooler- you should be careful
during shipment and installation to prevent your appliance’s cooler
elements from being damaged. Although R600a is an
environmentally friendly and natural gas. As it is explosive, in the
event of a leak due to damage to the cooler elements, move your
fridge from open flame or heat sources and ventilate the room
where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• This appliance is intended to be used in household and similar
applications such as;
- staff kitchen areas in shops, offices and other working
environments
- farm houses and by clients in hotels, motels and other residential
type environments

EN - 3 -
- bed and breakfast type environments;
- catering and similar non-retail applications
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes. If there is no such
socket in your house, please have it installed by an authorized
electrician.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazard involved.
Children shall not play with the appliance. Cleaning and user
maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualified persons in
order to avoid a hazard.

EN - 4 -
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children
to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to
prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer
department. Bottles or cans may explode.
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this
manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled
and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling /
storing foods. It is not suitable for commercial or common use and/or for storing
substances except for food. Our company is not responsible for the losses to be
occurred in the contrary case.
The symbol on the product or on its packaging indicates that This product
may not be treated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling
of this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where you purchased the product. These instructions are only valid in the EU member
states.

EN - 5 -
• Do not place explosive or flammable material in your fridge for your
safety. Place drinks with higher alcohol amount vertically and by
closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice
may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream
and ice cubes immediately after you have taken them out of the
freezer department!
• Do not re-freeze frozen goods after they have melted. This may cause
health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your
fridge.
• Fix the accessories in the fridge during transportation to prevent damage to
accessories.
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• We do not take the responsibility of the damages that occur due to ungrounded
usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, Gas
ovens and heater cores, and should be at least 5 cm away from
electrical ovens.
• Your fridge should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at
least 2 cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a
suitable place so that at least 15 cm is available on the upper side.
• The adjustable front legs should be adjusted to make sure your appliance is level
and stable. You can adjust the legs by turning them clockwise (or in the opposite
direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts back with warm water
added with a tea spoonful of sodium bicarbonate, and then
rinse with clean water and dry. Place all parts after cleaning.
• Install the plastic distance guide (the part with black vanes at the
rear) by turning it 90° as shown in the figure to prevent the
condenser from touching the wall.
• Refrigerator should be placed against a wall with a free distance not exceeding 75
mm.

EN - 6 -
PART- 2. THE VARIOUS FUNCTION AND POSSIBILITIES

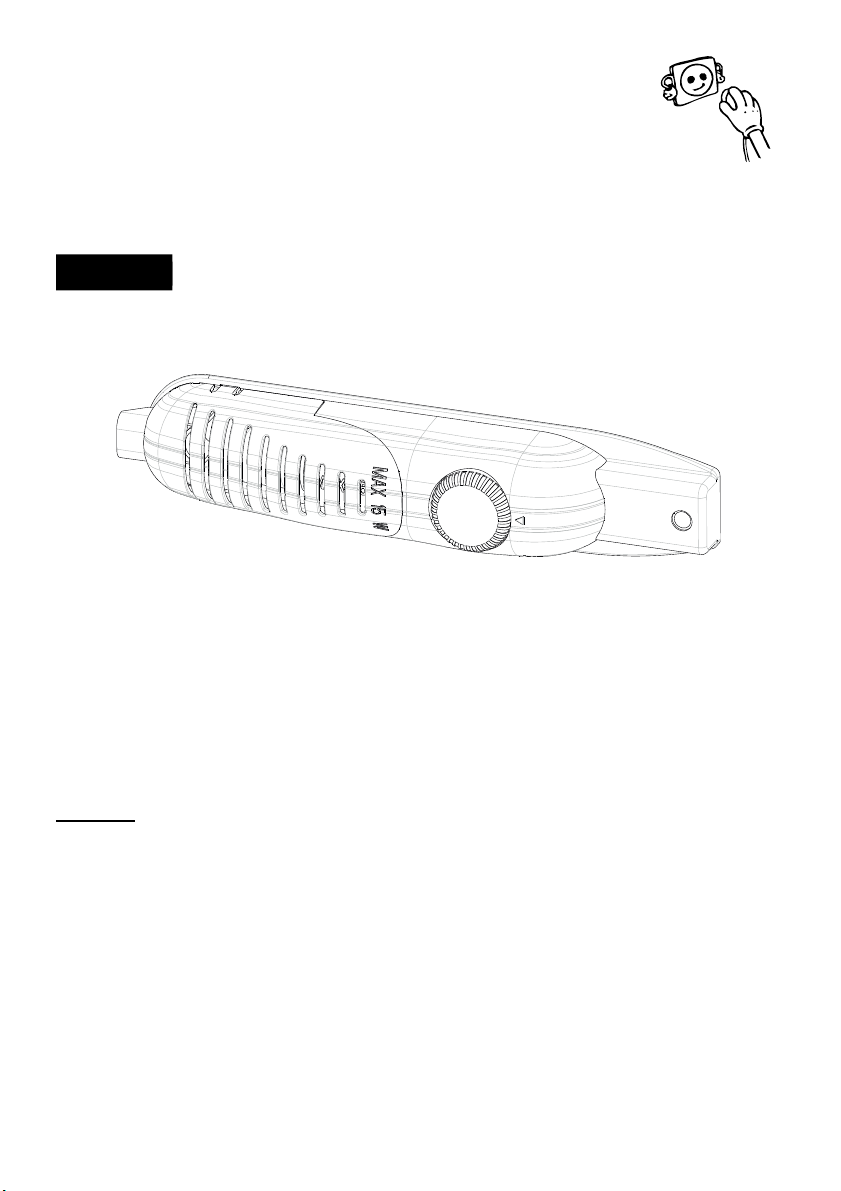

Thermostat Setting
Thermostat automatically regulates the inside temperature of the refrigerator compartment
and freezer compartment.By rotating the knob from position 1. to 5., colder temperatures
can be obtained.
Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.
• For short-term storage of food in the freezer compartment, you can set the knob
between minimum and medium position.(1-3)
• For long-term storage of food in the freezer compartment, you can set knop medium
position.(3-4)
Note that; the ambiant temperature, temperature of the freshly stored food and how
often the door is opened, affects the temperature in the refrigerator compartment. If
required,change the temperature setting.
• When you first switch on the appliance, for starting a suitable cooling, the appliance
should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before
restarting or re-plugged the unit in order not to damage the compressor.
• The freezer of the refrigerator can cool up to -18°C .
Before Using your Fridge
• When it is operated for the first time or after transportation, keep
your fridge in the upright position for 3 hours and plug it on to
allow efficient operation. Otherwise, you may damage the
compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade
away when your fridge starts to cool.

EN - 7 -
“Door Open” Indicator;
• The « Door Open » indicator on the handle shows whether the door
has closed properly or whether it is still open.
• If the indicator is red, the door is still open.
• If the indicator is white, the door is properly closed.
• Observe that the freezer’s door should always be kept closed. This
will prevent food products from defrosting; it will avoid heavy ice and
frost build-up inside the freezer and an unnecessary increase in
energy consumption.
Making Ice cubes;
Ice tray ;
• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get
the ice cube.
Accessories

EN - 8 -

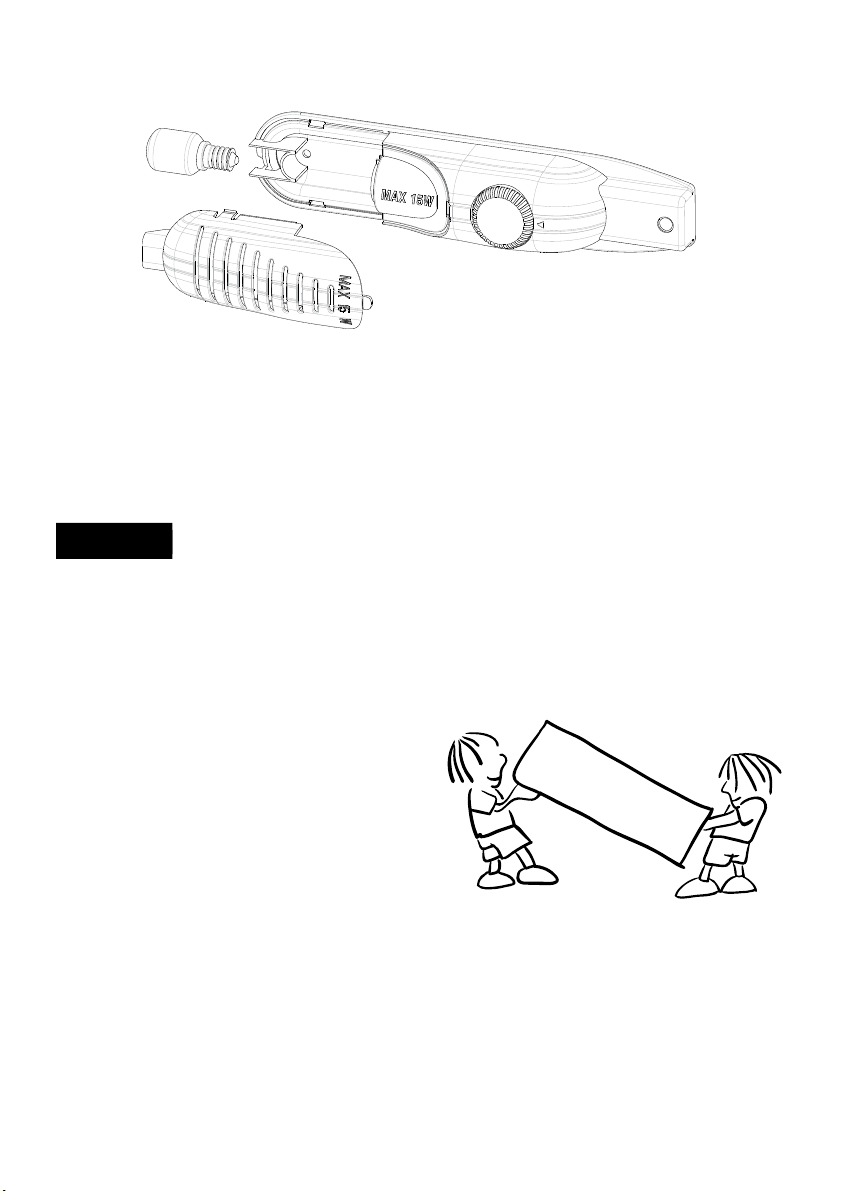

Removable Tabletop
In order to remove tabletop please kindly notice followings;
• Unscrew the fixing screw of the table top at the back. (FIG-1)
• Take out the table top by first upwards then sliding forwards. (FIG-2)

EN - 9 -
ARRANGING FOOD IN THE APPLIANCE PART- 3.
Refrigerator Compartment
Refrigerator compartment is used for storing fresh food for few days.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
Leave some space around food to allow circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
• Always store food in closed containers or wrapped.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed
containers in the refrigerator.
• Meat of all types, wrapped in packages, is recommended to be placed on the glass
shelf just above the vegetable bin, where the air is colder.
• You can put the fruits and vegetables into crisper without packing.
• To avoid the cold air escaping, try not to open the door too often, and not leave the
door open for a long time.
Freezer Compartment
Freezer compartment is used for freezing fresh foods and for storing frozen foods for the
period of time indicated on packaging, and for making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging
should be air tight and shouldn’t leak. Special freezer bags, aluminum foil (heavy
grade, in doubt double wrap), polythene bags and plastic containers are ideal.
• Do not allow the fresh food to be frozen to come into contact with the already frozen
food.
• Always mark the date and the content on the pack and do not exceed the stated
storage time.
• In case of a power failure or malfunction, the freezer compartment will maintain a
sufficiently low temperature for food storage. However, avoid opening the freezer
door to slow down the temperature rise within the freezer compartment.
• The maximum amount of fresh foods that can be loaded in the freezer within 24
hours is indicated on the name plate ( see Freezing Capacity).
• Never place warm food in the freezer compartment.
• When purchasing and storing frozen food products; ensure that the packaging is
not damaged.
• The storage time and the recommended temperature for storing frozen foods are
indicated on the packaging. For storing and using, follow the manufacturer’s
instructions. If no information is provided, food should not be stored for more than 3
months.
• Place frozen food in the freezer compartment as soon as possible after buying it.
• Once the food is thawed, it must not be refrozen; you must cook it as quickly as
possible in order to consume or to freeze once again.
• When making ice cubes, fill the ice tray with water and place in freezer compartment.
After the water completely turned into ice, you can twist the tray as shown below to get
the ice cube.

EN - 10 -
CLEANING AND MAINTENANCE PART- 4.
• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator compartment should be cleaned periodically
using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories seperately with soap and
water Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps.After washing,
rinse with clean water and dry carefully. When the cleaning
operations have been completed reconnect the plug of the unit
with dry hands.
• You should clean the condenser with broom at least twice
a year in order to provide energy saving and increase the
productivity.

EN - 11 -
Defrosting
For cooler compartment ;
• Defrosting occurs automatically in refrigerator compartment during operation ; the
defrost water is collected by the evaporating tray and evoparates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically
with defrost drain plug to prevent the water from collecting on the bottom of the
refrigerator instead of flowing out.
• You can also pour ½ glass of the water to drain hole to clean inside.
For freezer compartment;
The frost, accumulated in the freezer compartment, should be removed periodically. The
freezer compartment should be cleaned in the way as the refrigerator compartment, with
the defrost operations of the compartment at least twice a year.
For this;
• The day before you defrost, set the thermostat dial to 5. position to freeze the foods
completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and
kept in a cool place. The inevitable rise in temperature will shorten their storage life.
Remember to use these foods within a relatively short period of time.
• Switch the refrigerator off at the socket outlet and pull the main plug
• Leave the door open and to accelerate the defrosting process one or more basins of
warm water can be placed in the freezer compartment.
• Dry the inside of the unit and water tray, refit the tray plug and set the thermostat knob
to 5 position.

EN - 12 -
PART- 5. TRANSPORTATION AND CHANGING OF
INSTALLATION POSITION
Transportation and Changing of Installation Position
• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The
rules written on the corrugated box must be applied while transporting.
• Before transporting or changing old
installation position, all the moving
objects (ie,shelves,crisper…) should be
taken out or fixed with bands in order to
prevent the shake.
Replacing The Light Bulb
When replacing the light of the refrigerator compartment;
1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.
Repositioning the door
• It is not possible to change the opening direction of your refrigerator door, if the door
handle on your refrigerator is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any
handles.
• If the door opening direction of your refrigerator may be changed, you should contact
the nearest Authorised Service to have the opening direction changed.

EN - 13 -
PART- 6. BEFORE CALLING YOUR AFTER SALES SERVICE
If your refrigerator is not working properly,it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your refrigerator does not operate ;
Check that ;
• There is no power,
• The general switch in your home is not disconnected ,
• The thermostat setting is on “•” position,
• The socket is not sufficient. To check this, plug in another appliance that you know
which is working into the same socket.
What to do if your refrigerator performs poorly ;
Check that ;
• You have not overloaded the appliance ,
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
If there is noise ;
The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If
these sounds are different check that ;
• The appliance is well leveled ,
• Nothing is touching the rear ,
• The stuffs on the appliance are vibrating.
If there is water in the lower part of the refrigerator ;
Check that ;
The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain
hole)
If your fridge is not cooling enough;
Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in the information label. W e do not
recommend operating your fridge out of stated temperatures value limits in terms of
cooling effectiveness.
Climate Class Ambient Temperature (°C)
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)

EN - 14 -
Recommendations
• In order to increase space and improve the appearance,the « cooling section » of
refrigerators is positioned inside the back wall of the refrigerator compartment. When
the appliance is running, this wall is covered with frost or water drops,according to
weather the compressor is running or not. Do not worry. This is quite normal. The
appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for long time (for example during the summer holidays)set
te thermostat knob to “•” position. Defrost and clean the refrigerator leaving the door
open to prevent the formation of midew and smell.
Conformity Information
• This appliance is designed for use at an ambient temperature within the 16°C - 32°C
range.
• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24,
2004/108/EC standards.
Tips For Saving Energy
1– Install the appliance in a cool, well ventilated room , but not in direct sunlight and
not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2– Allow ward food and drinks to cool down outside the appliance.
3– When thawing frozen food, place it in the refrigerator compartment. The low tem-
perature of the frozen food will help to cool the refrigerator compartment when it is
thawing. So it causes energy saving. If the frozen food is put out, it causes wastage
of energy.
4– When placing, drinks and slops they must be covered. Otherwise humidity in-
creases at the appliance. Therefore the working time gets longer. Also covering
drinks and slops helps to save smell and taste.
5– When placing food and drinks, open the appliance door as briefly as possible.
6– Keep close the covers of any different temperature compartment in the appliance
(crisper, chiller ...etc ).
7– Door gasket must be clean and pliable. Replace gaskets if worn.

EN - 15 -
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.

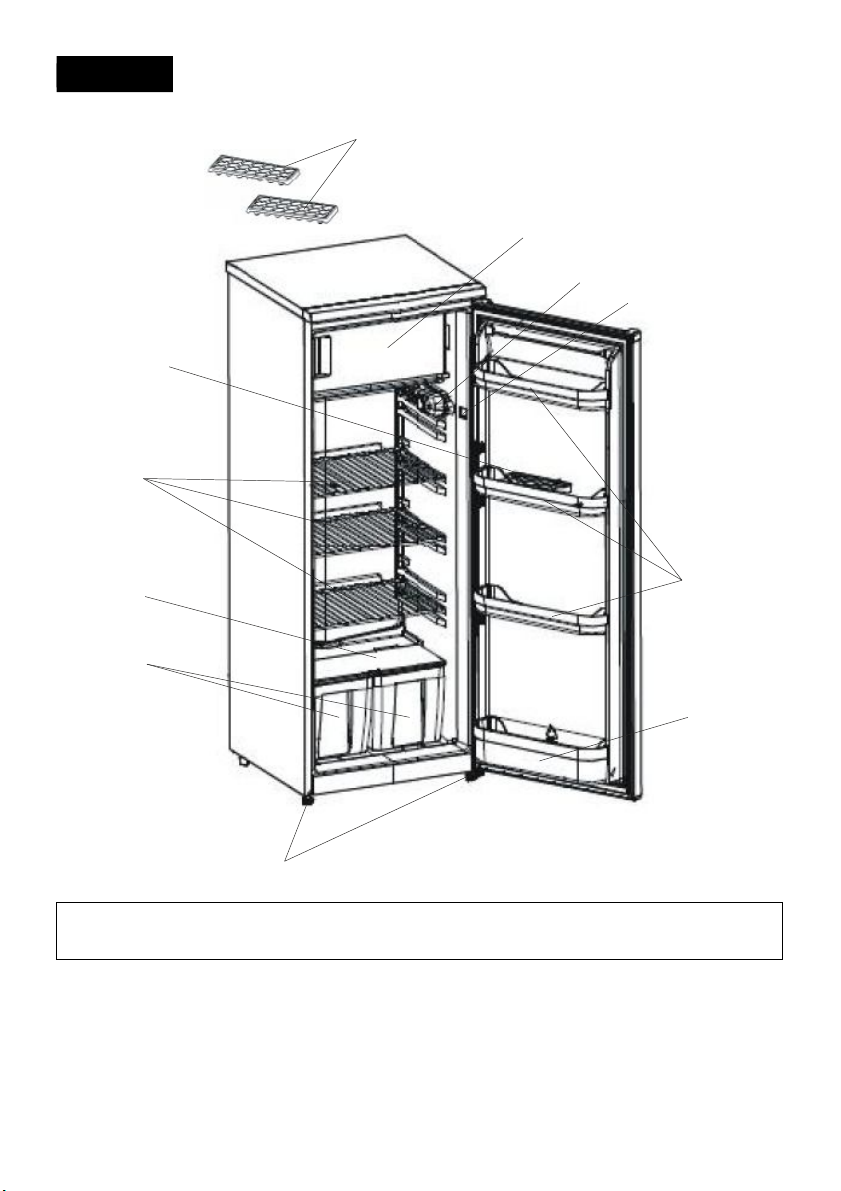

PART- 7. THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
1
2
3
4
5
6
7
8
9
10
11
1) Ice tray
2) Freezer door
3) Thermostat box
4) Egg holder
5) Refrigerator shelves
6) Crisper cover
7) Crispers
8) Levelling feet
9) Bottle shelf
10) Cheese&Butter shelves
11) Light button

CZ - 16 -
Obsah
PŘED POUŽITÍM PŘÍSTROJE ..................................................... 17
Všeobecná upozornění ................................................................................ 17
Staré a nefunkční lednice ............................................................................ 19
Bezpečnostní upozornění ............................................................................ 19
Instalace a obsluha lednice ......................................................................... 20
Před prvním použitím lednice ....................................................................... 21
RŮZNÉ FUNKCE A MOŽNOSTI ................................................... 21
Seřízení termostatu ..................................................................................... 21
“Indikátor otevřených dveří” ...................................................................................22
Výroba ledových kostek: ........................................................................................22
Odstranéní vrchního víka chladničky............................................................. 23
UKLÁDÁNÍ POTRAVIN V ZAŘÍZENÍ ............................................ 24
Chladící prostor ........................................................................................... 24
Mrazící prostor ............................................................................................ 24
ČIŠTĚNÍ A ÚDRŽBA ..................................................................... 25
Odmrazování ............................................................................................... 26
chladnička bez mrazničky .....................................................................................26
Pro modely se dvěma a čtyřmi mrazicími symboly ............................................. 26
Výměna žárovky ......................................................................................... 27
PŘEPRAVA A PŘEMÍSTĚNÍ ......................................................... 27
Změna směru otevírání dveří......................................................................... 27
PŘEDTÍM NEŽ BUDETE VOLAT OPRAVÁŘE ............................ 28
Jak ušetřit energii ........................................................................................29
ČÁSTI PŘÍSTROJE A PŘÍSLUŠENSTVÍ ................................... 30

CZ - 17 -
PŘED POUŽITÍM PŘÍSTROJE
ČÁST 1.
Všeobecná upozornění
UPOZORNĚNÍ: Ventilační otvory v blízkosti spotřebiče ponechte
bez překážek.
UPOZORNĚNÍ: Pro urychlení rozmrazení nepoužívejte mechanická
zařízení nebo jiné prostředky jinak, než je doporučeno výrobcem.
UPOZORNĚNÍ: Uvnitř lednice nezapínejte žádný elektrický spotřebič
vjma toho, který byl doporučen výrobcem.
UPOZORNĚNÍ: Nepoškozujte chladící okruh.
UPOZORNĚNÍ: Aby se zabránilo nebezpečí související s nestabilitou
spotřebiče, musí být upevněno podle následujících pokynů.
• Pokud Vaše lednice používá R600a jako chladící médium - tuto
informaci zjistíte ze štítku na chladiči -, buďte obzvlášť opatrní
při přesunu a instalaci, abyste zabránili poničení chladícího
prvku. I kdyžž je R600a přirozený plyn a je přátelský k žživotnímu
prostředí, je výbušný a v případě úniku způsobeným poškozením
chladícího prvku, umístěte chladničku od otevřeného plamene
či zdrojům tepla a na pár minut vyvětrejte místnost, kde je spotřebič
umístěn.
• Při přenášení a umísťování chladničky nepoškoďte chladící
obvod.
• Neskladujte v tomto zařízení výbušné látky, jako jsou například
aerosolové plechovky s hořlavým hnacím plynem.
• Spotřebič je určen k domácímu použití a užitím podobným, jako
jsou;
- kuchyně pro zaměstnance v obchodech, kancelářích a jiných
pracovních prostředích
- farmářské domy a klienty v hotelech, motelech a jiných typech
ubytovacích zařízení.
- v ubytovací zařízení typu bed and breakfast ;

CZ - 18 -
- v stravovacích zařízeních a jiných maloobchodních prostorech
• Pokud zásuvka nevyhovuje zástrčce chladničky , zástrčka musí
být vyměněna výrobcem , servisním technikem nebo podobně
kvalifikovanou osobou , aby nedošlo k úrazu.
• Tento přístroj není určen pro použití osobami (včetně dětí) se
sníženými fyzickými, smyslovými či duševními schopnostmi nebo
osobami bez zkušeností a znalostí použití kromě těch, nad
kterými je dohlíženo nebo kteří jsou naváděni osobou
zodpovědnou za jejich bezpečnost. Na děti musí být dohlíženo,
aby bylo zaručeno, že si se spotřebičem nehrají.
• K napájecímu kabelu Vaší chladničky byla připojena speciálně
uzemněná zástrčka. Tato zástrčka by měla být použita spolu se
speciálně uzemněnou 16 ampérovou zásuvkou . Pokud se
takováto zásuvka ve Vašem domě nenachází, nechte si ji prosím
namontovat od kvalifikované osoby.
• Tento spotřebič mohou používat děti ve věku od 8 let a osoby s
omezenými fyzickými , smyslovými nebo duševními schopnostmi
, nebo nedostatkem zkušeností a znalostí, pokud jsou pod
dohledem nebo jim byly dány instrukce týkající se bezpečného
použití přístroje a rozumějí vznikajícímu riziku. Děti si se
spotřebičem nesmějí hrát. Čištění a údržbu nesmí provádět děti
bez dozoru.
• Pokud je napájecí kabel poškozen, musí být vyměněn výrobcem,
servisním technikem nebo podobně kvalifikovanou osobou, aby
nedošlo k úrazu.
