MICROWAVE
USER MANUAL
NM515X
Read these instructions carefully before using your
microwave oven and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

Table of Contents
Important safety information
Important safety information
Causes of damage
Installation
Your new appliance
Control panel
Function selector
Cooling fan
Accessories
Before using the appliance for the first time
Setting the clock
Heating up the oven
Cleaning the accessories
Setting the oven
Setting the type of heating and temperature
Rapid preheating
The microwave
Notes regarding ovenware
Microwave power settings
Setting the microwave
Setting the time-setting options
Setting the timer
Setting the cooking time
Setting the clock
Childproof lock
Switching on the childproof lock
Switching off the childproof lock
Childproof lock with automatic programmes
Care and cleaning
Cleaning agents
Malfunction table
Technical data
Acrylamide in foodstuffs
Energy and environment
Saving energy
Environmentally-friendly disposal
Defrosting, heating up and cooking with the microwave
Microwave tips
Cakes and pastries
Baking tips
Roasting and grilling
Tips for roasting and grilling
Bakes, gratins, toast with toppings
Convenience products, frozen
Expert Cooking Guide
..........................................................................18
........................................................................................ 6
Touch keys and display
Parameter selector
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction
manual for future use or for subsequent owners.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. The microwave
oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges,damp
cloth and similar may lead to risk of injury, ignition or fire.
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under
warranty.
This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The
appliance must be supervised during operation. Only use this appliance indoors.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capacity
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the the appliance in a safe
way and understand the hazards involved.
Children may not play with the appliance. Cleaning and user maintenance may not be carried out by children without supervision. The
appliances are not intended to be operated by means of an external timer or separate remote-control system. This appliance is
intended to be used in household and similar applications. Commercial use will void the guarantee.
2
Quick Start
Combi-MicrowaveOperation
Setting Combi-MicrowaveOperation
$XWRPDWLF3URJUDPPHV
6HWWLQJD3URJUDPPH
'HIURVWLQJ3URJUDPPH
............................................................................. 6
........................................................... 2
........................................................................... 7
.................................................................................... 7
................................................................... 7
.............................................................................. 7
............................................................................ 7
....................................................................................... 7
....................................................................................... 8
................................. 8
................................................................................ 8
......................................................................... 8
............................................................... 8
................................................................................ 8
.................................. 8
.............................................................................. 9
............................................................. 9
.............................................................. 9
.................................................................. 10
............................................................ 10
............................................ 10
.................................................................. 11
.................................................................... 11
.................................................................... 11
................................................................................ 9
.. ....................................................... 12
................................................................................ 12
................................................................................. 12
............................................................................... 12
................................................................... 12
.................................................... 12
.................................................... 12
................................. 12
........................................................................................ 12
............................................................................ 13
................................................................................. 13
................................................................................... 13
.............................................................................. 14
................................................................... 14
..tips................................................................. 15
.................................................................................... 15
................................................... 15
....................................................................... 15
.............. 15
.................................................................................... 16
........................................................................................ 19
......................................................................... 20
........................................................... 22
................................................. 22
........................................................ 23

■Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment.
Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the
circuit breaker in the fuse box.
■When heating food in plastic or paper containers, keep an eye on the oven due to the possibilities of ignition.
■If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames
WARNING: Accessible parts may become hot during use .Young children should be kept away.
WARNING: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the microwave oven door glass since they
can scratch the surface, which may result in shattering of the glass.Risk of fire!
Risk of fire!
3
■Do not select a microwave power or time setting that is higher than necessary. Follow the information provided in this instruction
manual. Never use the microwave to dry food. Never defrost or heat food with a low water content, e.g. bread, at too high a
microwave power or for too long.
■Cooking oil may catch fire. Never use the microwave to heat cooking oil on its own.
Risk of explosion!
■Liquids and other food may explode when in containers that have been tightly sealed. Never heat liquids or other food in
containers that have been tightly sealed.
■Only use utensils that are suitable for use in microwave ovens.
Risk of serious damage to health!
■The surface of the appliance may become damaged if it's not cleaned properly. Microwave energy may escape. Clean the
appliance on a regular basis and remove any food residue immediately. Always keep the cooking compartment, door seal, door and
door stop clean; also see section "Care and Cleaning".
WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to microwave energy.
■Microwave energy may escape if the cooking compartment door or the door seal is damaged. Never use the appliance if the
cooking compartment door or the door seal is damaged. Contact the NordMende after-sales service.
■Microwave energy will escape from appliances that do not have any casing. Never remove the casing. For any maintenance or
repair work, contact the NordMende after-sales service
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs and the replacement of damaged power cables may only be carried out and by one of our
■NordMende technicians. If the appliance is defective, unplug it from the mains or switch off the circuit breaker on the fuse box.
Contact the after-sales service.
■7KHFDEOHLQVXODWLRQRQHOHFWULFDODSSOLDQFHVPD\PHOWZKHQWRXFKLQJKRWSDUWVRIWKHDSSOLDQFH1HYHUEULQJHOHFWULFDODSSOLDQFH
FDEOHVLQWRFRQWDFWZLWKKRWSDUWVRIWKHDSSOLDQFH
■3HQHWUDWLQJPRLVWXUHPD\FDXVHDQHOHFWULFVKRFN'RQRWXVHDQ\KLJKSUHVVXUHFOHDQHUVRUVWHDPFOHDQHUV
■$GHIHFWLYHDSSOLDQFHPD\FDXVHHOHFWULFVKRFN1HYHUVZLWFKRQDGHIHFWLYHDSSOLDQFH8QSOXJWKHDSSOLDQFHIURPWKHPDLQVRU
VZLWFKRIIWKHFLUFXLWEUHDNHURQWKHIXVHER[&RQWDFWWKHDIWHUVDOHVVHUYLFH
■$GHIHFWLYHDSSOLDQFHPD\FDXVHHOHFWULFVKRFN1HYHUVZLWFKRQDGHIHFWLYHDSSOLDQFH8QSOXJWKHDSSOLDQFHIURPWKHPDLQVRU
VZLWFKRIIWKHFLUFXLWEUHDNHURQWKHIXVHER[&RQWDFWWKHDIWHUVDOHVVHUYLFH:$51,1*(QVXUHWKDWWKHDSSOLDQFHLVVZLWFKHGRII
EHIRUHUHSODFLQJWKHODPSWRDYRLGWKHSRVVLELOLW\RIHOHFWULFVKRFN

4
Risk of burns!
■During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
■Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking
compartment.
■Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a
high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care.
■Foods with a peel or skin may burst or explode during, or even after, heating. Never cook eggs in their shells or reheat hard-
boiled eggs. Never cook shellfish or crustaceans. Always prick the yoke when baking or poaching eggs. The skin of foods that
have a peel or skin, such as apples, tomatoes, potatoes and sausages, may burst. Before heating, prick the peel or skin.
■The contents of feeding bottles and baby food jars need to be stirred or shaken and the temperature checked before
consumption, in oder to avoid burns.
■Heated food gives off heat. The ovenware may become hot. Always use oven gloves to remove ovenware or accessories from
the cooking compartment.
Risk of burns!
WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. Always observe the
instructions on the packaging. Always use oven gloves to remove dishes from the cooking compartment.
Risk of scalding!
■When you open the appliance door hot steam may escape. Open the appliance door with care. Keep children at a safe
distance.
■Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the
container. This means that the liquid reaches boiling temperature without the usual steam bubbles rising to the surface. Even if
the container only vibrates a little, the hot liquid may suddenly boil over and spatter. When heating, always place a spoon in the
container. This will prevent delayed boiling.
Risk of injury!
■Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, or sharp or abrasive cleaning
aids or detergents.
■Unsuitable ovenware may crack. Porcelain or ceramic ovenware can have small perforations in the handles or lids. These
perforations conceal a cavity below. Any moisture that penetrates this cavity could cause the ovenware to crack. Only use
microwave-safe ovenware.
■Creation of sparks: Metal - e.g. a spoon in a glass - must be kept at least 2 cm from the oven walls and the inside of the door.
Sparks could irreparably damage the glass on the inside of the door.
■Water in the hot cooking compartment: Never pour water into the hot cooking compartment. This will cause steam. The temperature
change can cause damage.
■Moist food: Do not store moist food in the closed cooking compartment for long periods. Do not use the appliance to store food.
This can lead to corrosion.
Cooling with the appliance door open: Only leave the cooking compartment to cool with the door closed. Do not trap anything in the
appliance door. Even if the door is only slightly ajar, the fronts of adjacent units may be damaged over time.
■Heavily soiled seal: If the seal is very dirty, the appliance door will no longer close properly during operation. The fronts of adjacent
units could be damaged. Always keep the seal clean.
Causes of damage
Caution!

Causes of damage
Caution!
Installation
Fitted units
90
o C.
Note: There should be gap above the oven.

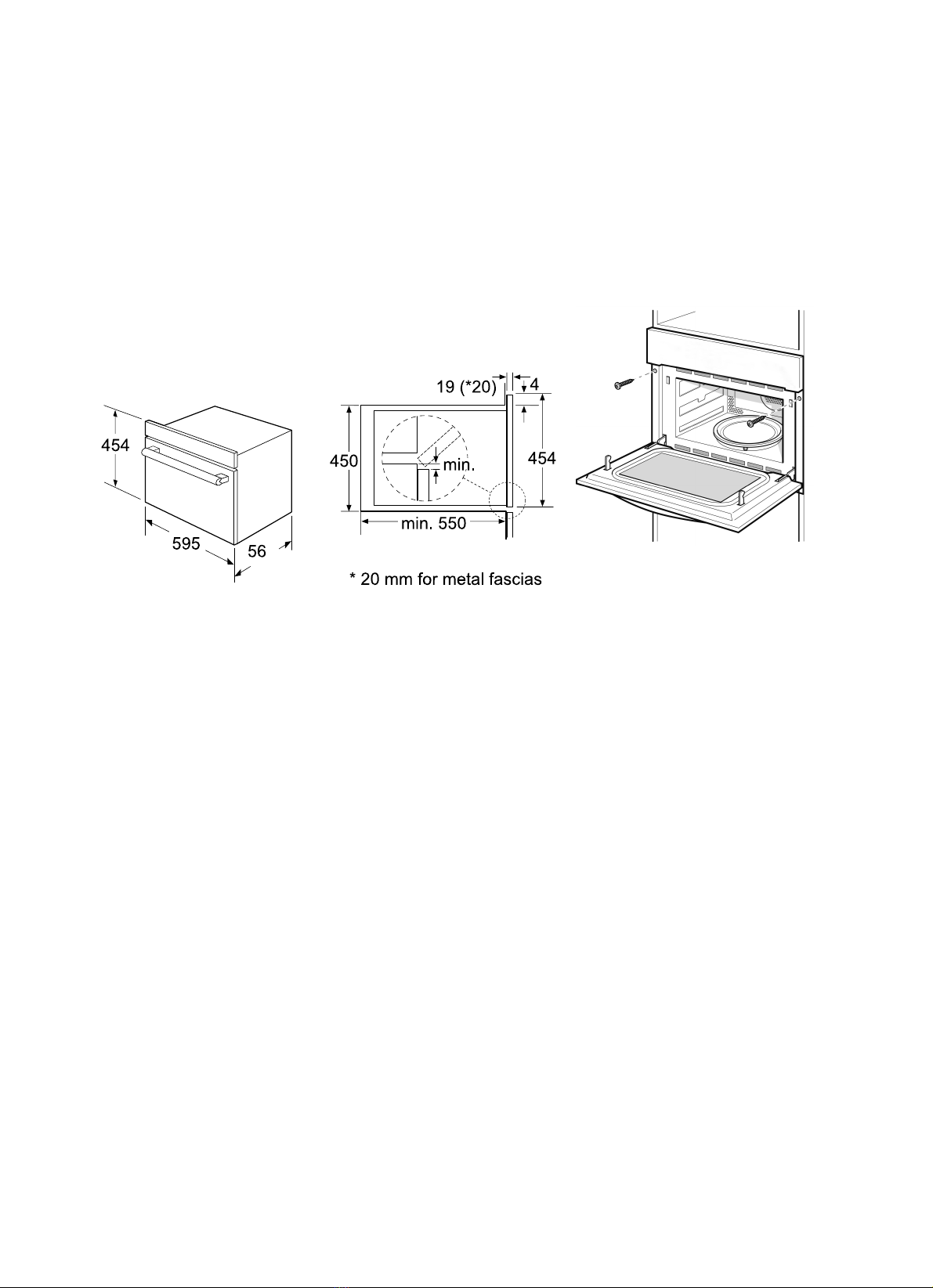

Installation dimensions
min 45
Cupboard feetVentilation grid
min 45
50
460
250
5
■Operating the microwave without food: Operating the appliance without food in the cooking compartment may lead to overloading.
Never switch on the appliance unless there is food in the cooking compartment. An exception to this rule is a short crockery test
(see the section "Microwave, suitable crockery").
■Using the appliance door for standing on or placing objecs on: Do not stand or place anything on the open appliance door. Do not
place ovenware or accessories on the appliance door.
■Transporting the appliance: Do not carry or hold the appliance by the door handle. The door handle cannot support the weight of
the appliance and could break.
■Microwave popcorn: Never set the microwave power too high. Use a power setting no higher than 600 watts. Always place the
popcorn bag on a glass plate. The disc may jump if overloaded.
■Liquid that has boiled over must not be allowed to run through the turntable drive into the interior of the appliance. Monitor the
cooking process. Choose a shorter cooking time initially, and increase the cooking time as required.
■The oven should be cleaned regularly and any food deposits removed since they may explode, even after microwave heating has
ended.
■Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the
appliance and possibly result in a hazardous situation.
■Ventilation slots and intakes must not be covered.
■The safe operation of this appliance can only be guaranteed
if it has been installed in accordance with these installation
instructions.
■The fitter is liable for any damage resulting from incorrect
installation.
■The units into which the appliance is fitted must be heat-
resistant up
■This appliance is only intended to be fully fitted in a kitchen.
■This appliance is not designed to be used as a tabletop appliance
or inside a cupboard.
■The fitted cabinet must not have a back wall behind the appliance.
■A gap of at least 45 mm must be maintained between the wall and
the base or back panel of the unit above.
■The fitted cabinet must have a ventilation opening of 250cm on
the front. To achieve this, cut back the base panel or fit a
ventilation grille.

10
8
6
Building in
WARNING: Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the
appliance and may break off.
■Carefully push the oven into the unit, making sure that it is in the centre.
■Open the door and fasten the oven with the screws that are supplied
■Fully insert the appliance and centre it.
■Do not kink the connecting cable.
■Screw the appliance into place.
■The gap between the worktop and the appliance must not be closed by
additional battens.
&RQQHFW WKH ZLUHV RI WKH PDLQV SRZHU FRUG LQ DFFRUGDQFH ZLWK WKHIROORZLQJFRORXUFRGLQJ
(SFFOBOE
ZFMMPX
#MVF
#SPXO
&BSUIXJSF <&
/FVUSBMXJSF/
-JWF-
Important Information
The appliance is designed to be permanently installed with a three pin power cable and may only be connected
by a licensed expert in accordance with the connection diagram. Only a qualified electrician who takes the
relevant regulations in account may replace the power cord. Do not use multiple plugs, power strips or
extensions. Overloading causes a risk of fire. If the connection is no longer accessible following the installation,
an all-pin isolating switch with a contact gap of at least 3mm must be provided.
Ireland, UK & Australia
Do not connect the appliance using a 13 A plug or protect it with a 13 A fuse. This appliance must be protected
using a fuse that is rated 16 A or higher. The appliance must be disconnected from the power supply during all
installation work. When the appliance is installed, protection must be provided against accidental contact in
future.

Your new appliance
Use this section to familiarise yourself with your new appliance. The control panel and the individual operating controls are
explained. You will find information on the cooking compartment and the accessories.
Control panel
The buttons are used to set the various additional functions.
e values that you have set.
Function selector
Use the function selector to set the type of heating.
Cooling fan
Your appliance has a cooling fan. The cooling fan switches on
during operation. The hot air escapes above the door.
The cooling fan continues to run for a certain time after operation.
Caution!
Do not cover the ventilation slots. Otherwise, the appliance will
overheat.
Notes
■The appliance remains cool during microwave operation. The
cooling fan will still switch on. The fan may run on even when
microwave operation has ended.
■Condensation may appear on the door window, interior walls
and floor. This is normal and does not adversely affect
microwave operation. Wipe away the condensation after
cooking.
Symbol
The type of heating and cooking time
are set by weight.
13 cooking programmes
Auto-programs
Microwave+Grill Fan
Grill with fan
On the display, you can read th
3D Hot air
Function Use
Baked casseroles and grilled dishes
work out best using this setting.
Poultry goes brown and crispy.
Grill Select between the levels high,
medium or low. This is ideal if you
wish to grill several steaks,
sausages, pieces of fish or slices of
bread.
Microwave+Hot air
Use this function to roast meals quickly.
And at the same time use the function
of 3D Hot air
Baked casseroles and grilled dishes
work out best using this setting.And
Poultry goes brown and crispy.
use the function to roast meals evenly.
Function
Use the selector to set the parameters.
Parameter selector
From P 01 to P 1 .
Select 13 automatic programmes.
Select the temperature of cooking( ).
:
°C
50,100,105,110...230
:100,105,110...230
:50,100,105,110...230
:100,105,110... 0
Set the weight of cooking.
Se the of cooking.t time
For baking sponge cakes in baking
tins, flans and cheesecakes as well
as cakes, pizza and small baked
items on the baking tray. 50°C can
maintain the taste of food after heat
preservation of 1-2 hours.
Parameter
Auto menu
Temperature
Weight
Time
Microwave Select microwave power. 100W,
300W, 450W, 700W and 900W
Defrost, reheat and cooking.
Function Use
2 defrosting programmes
Defrost
Microwave+Grill Use this function to cook meals quickly
and at the same time give the meal a
brown crust.
Pizza setting and dishes which require a lot of
heat from underneath.
For frozen convenience products
Microwave+Pizza
Use this function to roast meals quickly.
And at the same time use the function
of Pizza setting.
:100,105,110...230
:
100,105,110...230
3
Microwave
Function
Clock
Start
+
+
+
+
+
+
+
23
7
Microwave
Temperature/Weight
Press briefly: Rapid preheating
Press and hold: Childproof Lock
Press briefly:Stop
Press twice:Cancel
Buttons and display

Accessories
Before using the appliance for the first time
Here you will find everything you need to do before using your
oven to prepare food for the first time. First read the section on
Safety information .
Setting the clock
Heating up the oven
Cleaning the accessories
Before you use the accessories for the first time, clean them
thoroughly with hot soapy water and a soft dish cloth.
Setting the oven
There are various ways in which you can set your oven. Here we
will explain how you can select the desired type of heating and
temperature or grill setting. You can also select the oven cooking
time for your dish. Please refer to the section on
Setting the time-
setting options
.
Setting the type of heating and temperature
Example : Hot air at 200 °C for 25 minutes.
1.
Turntable
As a surface for the wire rack.
Food which particularly requires a lot of heat from underneath can be
prepared directly on the turntable.
The turntable can turn clockwise or anti-clockwise.
Place the turntable on the drive in the centre of the cooking
compartment. Ensure that it is properly fitted.
■Never use the microwave without the turntable.
■The turntable can withstand max. 5kg.
■The turntable must turn when using all types of heating.
Once the appliance is connected, "00:00" will blink, buzzer will
1.
button.
The time is set.
between 00:00 and 23:59
2.
ring once. Set the clock.
To remove the new cooker smell, heat up the oven when it is
empty and closed. One hour with Hot air at 230 °C is ideal.
Ensure that no packaging remnants have been left in the cooking
compartment.
1. Use the function selector to set Hot air.
2.
Opening the oven door during operation
Operation is suspended. After closing the door, press the
Pausing operation
Changing the cooking time
Cancelling operation
This can be done at any time.
Turn " "
to cancel operation.
Set the function selector to .
The oven begins to heat up.
4.
Turn " " knob to set the
minutes.
3.
Turn " " knob
temperature to 230 °C.
8
Press the
Use the temperature selector to set the
Press the
cooking time to 60
button.
Press the button.
The oven begins to heat up.
to set the cooking
Turn " "knob
2. The default temperature 180 C will blink.
to set the temperature to 200 .
°
°C
3.
4.
Turn " "knob
time to 25 minutes.
Press the
knob to change the cooking time.
Press the
Press the button.
Press the button.
button.
button. Operation continues.
button to pause operation. Then press the
button to continue operation.
Press the button twice
Changing the temperature
Turn
to set the
" " knob
This can be done at any time.
temperature
Press the for the new temperature setting.
Lower wire rack
For the microwave and for baking and roasting in the oven.
Higher wire rack
For grilling, e.g. steaks, sausages and for toasting bread.
As a support for shallow dishes.
.

With rapid preheating, your oven reaches the set temperature
particularly quickly.
able for the following types of
heating:
■
■
■
To ensure an ven cooking result, only put your food in the
cooking compartment when the preheating phase is complete.
1. Setting the type of heating and temperature.
2.
The symbol lights up in the display.
3.
The oven begins to heat up.
The preheating process is complete
A signal sounds. The symbol in the display blinks. Put your
dish in the oven.
Cancelling rapid preheating
The microwave
Microwaves are converted to heat in foodstuffs. The microwave
can be used solo, i.e. on its own, or in combination with a different
type of heating. You will find information about ovenware and how
to set the microwave.
Note:
Notes regarding ovenware
Suitable ovenware
Suitable dishes are heat-resistant ovenware made of glass, glass
ceramic, porcelain, ceramic or heat-resistant plastic. These
materials allow microwaves to pass through.
You can also use serving dishes. This saves you having to
transfer food from one dish to another. You should only use
ovenware with decorative gold or silver trim if the manufacturer
guarantees that they are suitable for use in microwaves.
Unsuitable ovenware
Metal ovenware is unsuitable. Metal does not allow microwaves to
pass through. Food in covered metal containers will remain cold.
Caution!
Creation of sparks: metal – e.g. a spoon in a glass – must be kept
at least 2 cm from the oven walls and the inside of the door.
Sparks could destroy the glass on the inside of the door.
Ovenware test
Do not switch on the microwave unless there is food inside. The
following ovenware test is the only exception to this rule.
Perform the following test if you are unsure whether your
ovenware is suitable for use in the microwave:
1. Heat the empty ovenware at maximum power for ½ to 1 minute.
2. Check the temperature occasionally during that time.
The ovenware should still be cold or warm to the touch.
The ovenware is unsuitable if it becomes hot or sparks are
generated.
Microwave power settings
Use the button to set the desired microwave power.
Notes
■When you press a button, the selected power lights up.
■The microwave power can be set to 900 watts for a maximum of
30 minutes. With all other power settings a maximum cooking
time of 1 hour 30 minutes is possible.
900 W
■Microwave+Grill Fan
Grill with fan
Microwave+Hot air
Note: 1.The rapid preheating function only works if you have already
chosen one of the modes above.During preheating,the
microwave function is switched off.
2.Only when you can hear alarm and preheating icon is
blinking you can open the door and put food inside.
The step quantities for the adjustment time of the coding switch
are as follow:
0-1 min : 1second
1-5 min :
10seconds
min :
min :
min :
5-15 30seconds
15-60 1minute
60 5minutes 10
-Defrosting irregularly-shaped foods
0W -Defrosting sensitive/delicate foods
-Softening ice cream
300 W -Defrosting
-Melting chocolate and butter
-Allowing dough to rise
450 W -cooking rise , soup
700 W
-Reheating
- fish
-
cooking mushrooms,shell
cooking dishes containing eggs and cheese
-cooking chicken, fish, vegetables
-Boiling water, reheating
Rapid Preheating
Rapid Preheating is avail
3D Hot air
Note:
In the
, you will find
examples for defrosting, heating and cooking with the microwave
oven.
button.
Expert Cooking Guide
During setting the rapid preheating function, press the can
cancel the function.
During rapid preheating, press the or
function. Also you can open the door to cancel the function.
Pizza setting
Microwave+Pizza
■
■
+
+
+
9
Press the
Press the button.
can cancel the
o

Setting the microwave
Example: Microwave power setting 300 W, cooking time
17 minutes
Operation begins. The cooking time starts counting down in the
The cooking time has elapsed
A signal sounds. Microwave operation has finished.
Opening the oven door during operation
Operation is suspended. After closing the door, press the
Notes
■When you set the function selector to
microwave power setting always lights up as the suggested
setting.
■If you open the appliance door during cooking, the fan may
continue to run.
MicroCombi operation
This involves simultaneous operation of the grill and the
microwave. Using the microwave makes your dishes ready more
quickly, but they are still nicely browned.
You can switch on all microwave power settings.
Exception: 900 watts
Setting Microwave Combi operation
Example: microwave 100 W, 17 minutes and hot air
1.
Appliance operation begins. The cooking time starts counting
down.
The cooking time has elapsed
A signal sounds. Combination mode has finished.
Opening the oven door during cooking
Operation is suspended. After closing the door, press the
amme will then continue.
Pausing operation
en is paused. Press the
button again to continue operation.
Changing the cooking time
Changing the microwave power setting
Cancelling operation
This can be done at any time.
Turn " "
Turn
to set the
" " knob
button to cancel operation.
This can be done at any time.
Changing the temperature
.
Turn
to set the
" " knob
This can be done at any time.
temperature
190 °C.
Set the function selector to .
display.
Changing the cooking time
Changing the microwave power setting
Cancelling operation
This can be done at any time.
Turn " "
Turn
to set the
" " knob
button to cancel operation.
This can be done at any time.
+
10
1.
2.
3. he cooking
4.
to adjust t
Turn " " knob
.
the
will appear.And the default cooking time will blink.
he microwave power to 300W.
to adjust t
Turn " " knob
time to 17 minutes.
Press the button. The default microwave power 900W
Press the button to activate the microwave function.
Press the button.
Press button
button. Operation continues.
Press the button.
knob to change the cooking time.
Press the twice
Press the for the new microwave power setting.
button briefly. The progr
Press the button briefly. The ov
Press the button.
knob to change the cooking time.
Press the for the new microwave power setting.
Press the for the new temperature setting.
Press the twice
.
Turn " " knob to set the cooking
2. The default temperature 180
°C will blink.
The default microwave power is 300W
turn " " knob
to set the microwave power to 100W.
then
. Press the button,
to set the temperature to .
3.
4.
5
190 °C
Turn " " knob
Press the button.
time to 17 minutes.
Press the button.
, the highest
microwave power.
Pausing operation
en is paused. Press the
button again to continue operation.
Press the button briefly. The ov
microwave power.
Another way of setting:
1. Set the function selector to .
2. The default temperature 180
°C will blink.
to set the temperature to .
190 °C
Turn " " knob
Turn " " knob to set the cooking
Press the button.
time to 17 minutes.
3.
4.
Press the button.
The default microwave power 300W
will blink. Turn " " knob to set the microwave power
to 100W.
Appliance operation begins. The cooking time starts counting
down.
.
5
Press the button.
