Nordyne E2EH 010H User manual

E2 Series
Electric Furnaces
Service Manual

3 E2 Service Manual
Electrical Requirements......................................................................... 10
Codes, Specifications Requirements............................................................................ 10
Connection Supply Service Wires ................................................................................ 10
Furnace Sequence of Operation .......................................................... 5
Air Circulator Motor ....................................................................................................... 9
Air Circulation Switch.................................................................................................... 8
Heating Elements ......................................................................................................... 7
Cooling Relay ............................................................................................................... 7
Limit Switches............................................................................................................... 8
Sequencer .................................................................................................................... 6
General..................................................................................................... 4
Furnace Specifications ................................................................................................. 4
Model Identification Code ............................................................................................. 4
Serial Number Identification Code ................................................................................ 4
Selecting Blower Speeds ...................................................................... 11
Blower Performance ..................................................................................................... 12
Changing Blower Speeds............................................................................................. 11
Service Diagrams ................................................................................... 21
4-7 Wire Relay Box for H/P E2EB 020 and 023 Units................................................... 23
2-Wire Relay Box for A/C E2EH 020 and 023 Units ..................................................... 21
4-7 Wire Relay Box for H/P E2EH 020 and 023 Units................................................... 22
Thermostat Sequence of Operation..................................................... 12
Wiring Diagrams ..................................................................................... 13
E2EB 010 ..................................................................................................................... 17
E2EB 012 ..................................................................................................................... 18
E2EB 015,017............................................................................................................... 19
E2EB 020, 023.............................................................................................................. 20
E2EH 010 ..................................................................................................................... 13
E2EH 012 ..................................................................................................................... 14
E2EH 015,017 .............................................................................................................. 15
E2EH 020, 023 ............................................................................................................. 16
Table of Contents

4 E2 Service Manual
MODEL IDENTIFICATION CODE
E 2 EB - 010 H - A
ElectricalCode
H - 240-1-60
ProductType
E-ElectricFurnace
PrimaryCapacity
010 - 10 kw
012 - 12 kw
015 - 15 kw
017 - 17 kw
020 - 20 kw
023 - 23 kw
Generation
2 - Second Series
Options
A -A/C Ready
ProductIdentifier
EH - Heat Only
EB - A/C Blower Equipped
Year
9705 01234
Month
DesignSeries
EE
ManufacuredHousing
Electric
2
SERIAL NUMBER IDENTIFICATION CODE
ProductionCode
General
E2 series electric furnaces are approved for use in
mobile/modular homes. The E2 series furnaces are
approvedfordownflowandupflowinstallationsasfree
standingunits, or foralcove installations. All furnaces
models are approved for “zero” inch clearance from
combustible materials. For downflow alcove
installations a grille with frame may be attached to the
top of the furnace and all paneling and trim flushed to
it.
This installations provides an access door for future
installationofanairconditioning/heatpumpcoil. AllE2
seriesfurnacesareA/C,heatpumpadaptable.Referto
table 2 For optional air conditioner/ heat pump
equipment. TheE2seriesincludestwomodels: E2EH
and E2EB models. The E2EH models are equipped
with a two speed blower and require the addition of a
replay package for the addition of air conditioning or
heat pump. The E2EB furnaces are equipped with a
multi-speed(4-speed)blower,blower relay,andcabinet
insulation.
1.Heatingoutputratedatlistedvoltage.Foroutputsatvoltagesotherthan240V,multiplyBtuhratingbythefollowingfactors:x0.92(230V),x0.84(220V),x0.75(208V)
2. Height is 56" with return air grille installed, 58" with coil cabinet and 72" with coil cabinet and upflow stand.
3. The factory installed blower for the EH models can be replaced with a multi-speed blower allowing the units to accept up to 4 or 5 tons of air conditioning or heat pump.
4. The factory installed blower for the EB models can be replaced with a multi-speed blower allowing the units to accept up to 5 tons of air conditioning or heat pump.
Table 1. Unit Specifications
Electric Furnace Models E2EH E2EB
010H 012H 015H 017H 020H 023H 010H 012H 015H 017H 020H 023H
Rated Heating Output, Btuh (see note1)
35,000 41,000 53,000 57,000 70,000 75,000 35,000 41,000 53,000 57,000 70,000 75,000
Watts (Total kw, Heatin
g
Elements and
Blower) 10.4 12.0 15.4 16.6 20.4 22.0 10.4 12.0 15.4 16.6 20.4 22.0
Supply Voltage 240/208 Volts/60Hz/1-Phase
Heating Elements, No.(Total kw) 2 (10.0) 2 (11.6) 3 (15.0) 3 (16.2) 4 (20.0) 4 (21.6) 2 (10.0) 2 (11.6) 3 (15.0) 3 (16.2) 4 (20.0) 4 (21.6)
Blower: Wheel Size 10.5" Dia., 8" Wide 10.5" Dia., 8" Wide
Motor Speeds, H.P. Rating, Amps 2 Speed, 1/5 Hp, 2.0 Amps 4 Speed, 1/3 Hp, 2.9 Amps
Test ESP, in. w.c. Max 0.3
Optional Coolin
g
Available with factory
installed blower 2.0 - 3.0 ton (see note 3) 2.0 - 4.0 ton (see note 4)
Optional Heat Pump Available with
factoryinstalled blower 2.0 - 3.0 ton (see note 3) n/a (see note 3) 2.0 - 4.0 ton (see note 4)
Air Filter (Standard) 16" x 20" x 1" (nominal)
Furnace Dimensions Width -20" (508 mm) Height- 29" (737 mm) ( see note 2) Depth - 24-1/2" (623 mm)

5 E2 Service Manual
NOTE: See Table 2 for descriptions and notes
Figure 1. Optional Accessories
Upflow Stand
29”(737mm)
233/4”
(603mm)
20”(508mm)
20”(508mm)
Cabinet
Insulation
233/4”(603mm)
Coil Cabinet
5
14”(357mm)
6
Filters(oneobtained
from furnace)
233/4”
(603mm)
20”
(508mm)
27”(686mm)
29”(737mm)
1
2
3
4
7
8
Sequence of operation
With the circuit breakers in the on position and the
blower switch in the auto position. One half of the
control heating element and motor electrical circuit is
activated. When the contacts close in the wall
thermostat 24 volts is supplied by the 240/24 volt
transformerto thesequencer heater. Thisheats abi -
metal in the sequencer which closes a set of contacts
and completes the circuit to the no.1 element and the
blowermotor. Astheheatercontinuestobuildupheat,
the bi-metal closes the remaining circuits to other
elements, until all elements are on. The “off” cycle is
reverse of the “on” cycle the blower and no.1 element
are first on and the last to be de-energized.
Table2. OptionalAir Conditioning and
Heat Pump Equipment
Item
Number
(See Fig. 1) Description
1 4-Speed Blower
4 Ton - See Notes:1 & 5
5 Ton - See Note:1
2 A.C./H.P. Relay Control Box
(not req’d on E2EB models)
See Note:1
3 CabinetInsulation Kit
See Notes: 1 & 5
4 "A"-Coil Conversion Kit
See Note:2
5 Coil Cabinet
See Note:3
6 Upflow Stand
See Note:4
7 A/C and H/P Indoor Coils
8 Return Air Grille and Frame
Assembly
Notes:
1) For A/C and H/P use.
2) Includes coil filters.
3) For upflow or downflow installations.
4) For upflow A/C or H/P installations (includes
one filter; use filter from furnace to complete
filtering system inthis accessory).
5) Standard in EB models.

6 E2 Service Manual

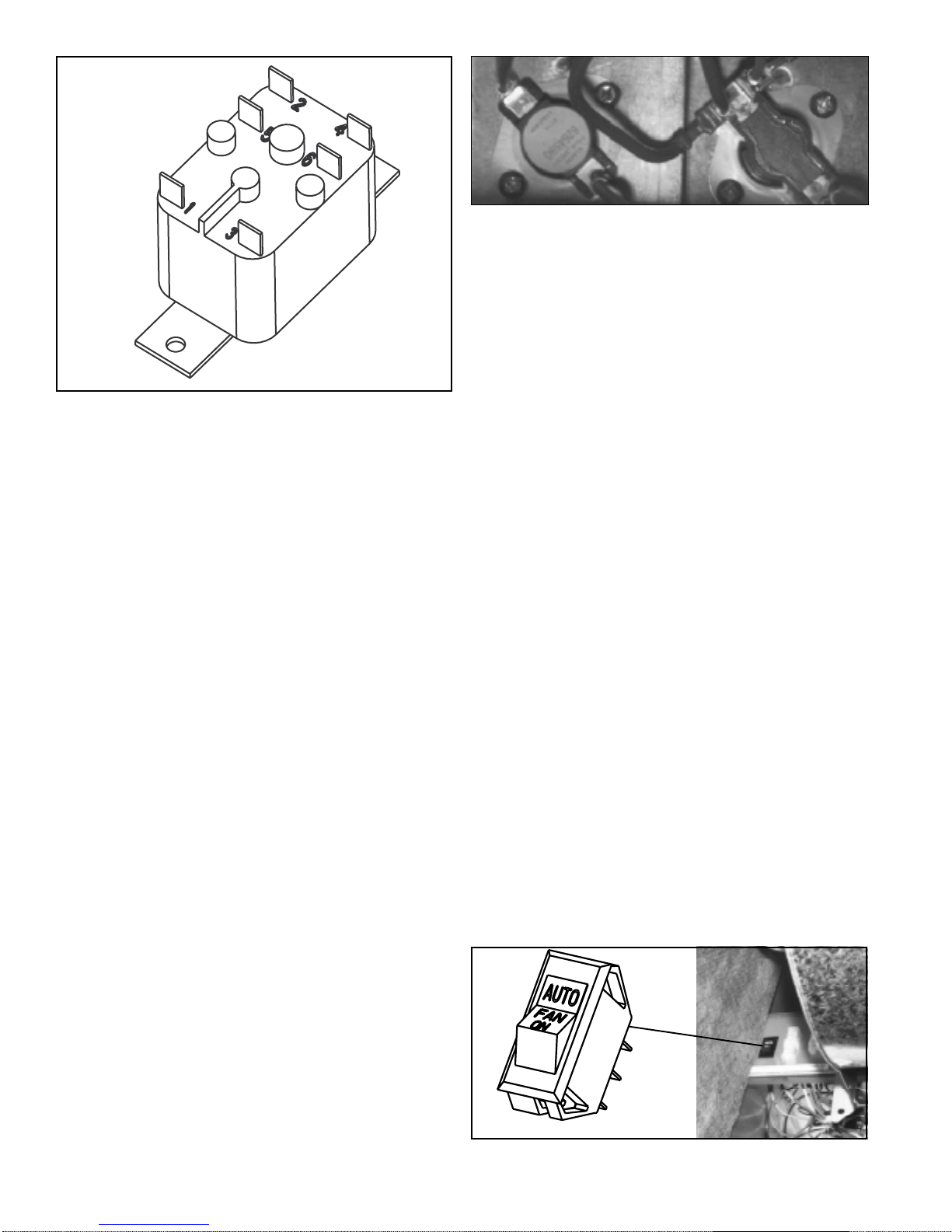

Sequencer (Figure 2)
In general all sequencers operate the same way. In
some applications one sequencer may be sufficient
(10 and 12 kw models) in other applications. One two
or more sequencers may be required.
Important: Sequencers should never be mixed. If
differentbrandsofsequencerareusedandtheirtiming
may be different.
Testing Sequencer
1. Shut off the power supply to the furnace, there
could be two circuits. Be sure both "A" and "B"
circuits are de-energized.
a. Removeall wiresfrom thesequencer (making
note of wire color and terminal location). The
bi-metalheaterportionofthesequencerwillbe
unmarked and at the bottom, closest to the
mounting plate. The switching portion will be
marked M1 through M8 depending on the
number of switches. Refer to unit wiring
diagram.
b. With an ohmmeter, test for continuity across
thebi-metalheaterterminals. Thereshouldbe
70to90ohmsof resistance.Ifthemeterreads
no continuity, the bi-metal heater is open and
mustbereplaced.TheOHMSvalueshouldbe
70 to 90 across the bi-metal.
Figure 2. Sequencer
c. With an ohmeter check all switches in the
sequencer. They are labled M1-M2, M3-
M4...refertoFigure2.Alloftheswitchesshould
be open and have no continuity.
2. With all power on to furnace, and thermostat
contacts closed: using a voltmeter (set scale for
220 vac.) On contact terminals of sequencer,
check each set of terminals of sequencer, check
each set individually. If you read voltage, contacts
are open. If you do not read voltage, contacts are
closed. Allow a maximum time (110 seconds) for
heater to close contacts. If any of the contacts
remain open after three minutes the sequencer is
defective and should be replaced.
Indoor Coil
(optional)
Coil Air Filters
(used with indoor coil)
Furnace Air Filter
(NOT used with indoor coil
and coil air filters)
Data Label
Control Panel Cover
(right)
Control Panel Cover (left)
Circuit Breakers
A/C or H/P Relay Box (optional)
Blower
Blower Selector Switch
(next to blower)

7 E2 Service Manual
Figure 4. Heating Element
then the transformer is nonfunctional and should
bereplaced. Observethetransformerthereshould
benodistortioninshape,oilresidueorodor. Ifany
of these symptoms exist replace the transformer.
Heating Elements (Figures 4 & 5)
The heating elements used are of modular design
consisting of helical-coiled nichrome resistance wire.
Aninsulatedwireformedassemblysupportstheheating
elements. All elements are rated at 240 volts. Each
element is individually controlled by a switch of the
sequencing system and is protected by a limit switch.
The function of the heating element, of course, is to
heattheairpassedacrossthembytheblowersystem.
Testing Heating Elements (Ohmmeter)
1. Shut off all electric supply to furnace
2. Remove all wires from terminals of heating coils
3. Using the ohmmeter test from terminal to terminal
of the coil-must show continuity-if not replace
element assembly.
4. Using the ohmmeter test from heating element
terminal to ground wire in the control panel, there
should be no continuity. If there is the coil is
grounded and must be replaced.
Caution: Heating elements must always be replaced
byanidenticalkWreplacement. Substitutionbyhigher
kW’s or elements of a different design may result in
unsafe operation of the furnace. Lower kW rated
elements will reduce output and may result in
unsatisfactory operation of the appliance. Refer to
element rating labels and furnace wiring diagrams.
Refer to unit wiring diagram section for wiring of
sequencer for each model furnace.
Control Transformer (Figure 3)
All E2 furnaces are equipped with a 30 VA, 240/208
vac primary, 24 vac secondary transformer.
The function of the transformer is to supply the 24
volts for the low voltage circuit which activates the
controls. Note: neverreplacea transformerwithone
oflessVArating: howeverahigherratedtransformer
canreplace alower ratedunit. Example: unit has30
VA replacement can be 40 VA.
Checking Transformer
1. Usingavoltmeter,testpowersupplyontheprimary
leads of the transformer- must be 240 v +/- 10%.
Iflessthan226vacswitchblackandblueprimary
leads.
2. Remove wires from the secondary side of the
transformer. Or find the area where the wires
terminate and remove from component.
3. Use the voltmeter check the output of the
transformer, it should read 22 to 28 volts. If not,
Figure 3. Transformer
Figure 5. Heating Elements in Furnace

8 E2 Service Manual
Figure 6. Cooling Relay
Cooling Relay (Figure 6)
The E2EB has a factory installed cooling relay. The
cooling relay operates the air circulator at the high
speed when the relay is energized. The relay is
energized by the low voltage circuit by the g terminal
ofthethermostat. Atthesametimeitbreaksthecircuit
to the heating speed of the air circulator. the cooling
relay has one set of normally closed and one set of
normally open contacts.
Testing Cooling Relay
1. Turn off all power supply to furnace.
a. Remove all wires from cooling relay.
b. Using ohmmeter, test from terminal no. 1 to
terminalno.3thecoilshouldhaveresistanceof
around 76 ohms. If there is no continuity, the
relay has a open coil and must be replaced.
c. Using ohmmeter, test from terminal no.5 to
terminal no. 6 there should be continuity, if no
continuity isshownrelayisdefectiveandmust
be replaced.
d. Replace wires on terminal no.1 and 3 restore
power supply.
e. Energizerelaybypositioningthefanswitchon
the thermostat to the fan position. The relay
should click.
f. Using ohmmeter, test terminals 2 and 4 there
should be continuity. If no continuity relay is
defective.
g. Turn off all power to furnace, reconnect all
wires to relay and restore power.
Limit switches
A limit switch is a heat sensing device utilizing a bi-
metal disc to open a set of normally, closed contacts.
The limit device is a safety which can be compared to
a fuse or a breaker in a electrical circuit. The function
of the limit switch is to open the electrical circuit to the
heating elements if over heating should occur. This
could be caused by air circulator failure, dirty filters,
lackofreturnair,restrictedducts,etc. Alllimitswitches
used are of the automatic reset type. On cool down
they will automatically reset.
Testing the Limit Switches
1. Shut off all electric supply to furnace.
2. Allow enough time for limit to cool down ( 5 to 10
minutes)
3. Remove wires from terminals of limit switches.
Note: all limit switches will be located on the
heating element rack face plate with red wires
attached to them.
4. Usingtheohmmeter,testfromterminaltoterminal
continuity must be read. If no continuity is read
aftercooldowntime,switchisdefectiveandshould
be replaced.
Caution: Limit switches must always be replaced by
theiridenticalreplacementpart,i.e.Samesetting,style
limits on the E2 series are either single or double pole
type thermo disc. Under no circumstance should a
limitofahighersettingorofadifferenttypebeinstalled.
Replacement with a lower setting limit may result
cycling of the control and insufficient heat output.
Air Circulation Switch
The air circulation switch is a manual rocker type
switch,singlepoledoublethrow,theswitchwheninthe
“auto”position,allowstheblowertobeactivatedbythe
Figure 8. Air Circulation Switch
Figure 7. Limits in furnace

9 E2 Service Manual
sequencer. The blower will run during the heating
cycle of the furnace. When the switch is in the “fan”
position the blower will run continuously. See Figure
8 for air circulation switch.
Figure 10. Capacitor
Capacitor(See Figure 10):
1. Shut off the electrical supply to the unit.
2. Disconnect he electrical leads to the capacitor.
3. Dischargethecapacitorusinga1500ohmresister.
4. Check the capacitor using a capacitor tester.
Blower Motor (See Figure 11):
1. Shut power off to the furnace.
2. Disconnect the electrical motor leads.
3. Usinganohmmeter,checkforcontinuityfromeach
terminaltotheshellofthemotor,ifthereiscontinuity,
the motor is grounded and should be replaced.
4. Using the ohmmeter, check the resistance across
the motor leads. See diagrams below. Note: the
higher the speed the lower the resistance of the
motor winding.
Figure 11. Blower
Figure 9. Fan Switch Shematic
Figure 12. Motor Schematic
Checking the Air Circulator Selector Switch
Tochecktheaircirculatorswitchshutofallpowertothe
furnace. Remove wires from air circulator selector
switchterminals.Checkcontinuityofterminalswiththe
switchin “on” and “auto”position.See Figure9for fan
switch schematic.
Air Circulator Motor
The circulator motor and blower wheel combination
move air across the heating elements to supply the
duct system with warm air.
To check the motor, be certain the capacitor is
functional.
1
Black
2
Red*
3
Yellow
* Yellow on E2EH 015, 017, 020, 023

10 E2 Service Manual
ELECTRICAL REQUIREMENTS
WARNING:
To avoid the risk of electrical shock, personal
injury or death, disconnect all electrical power
to the unit before performing any maintenance
or service. The unit may have more than one
electrical power supply.
Codes, Specifications, and Requirements
The wiring, installation, and electrical hookup of this
furnacemust complywith the NationalElectrical Code
(ortheCanadianElectricalCode)andallregulationsof
local authorities having jurisdiction. See Table 3 for
minimum circuit ampacity, maximum over-current
protection, and recommended wire size. See the unit
wiring diagram for other wiring details.
Supply-circuit requirements are as follows:
• -010modelisfactory-wiredforsingle-branchsupply
circuit only.
• -012 models are factory-wired for single-branch
supply circuit (single-circuit kit installed). Dual-
branch circuit can be used by removing factory-
installed single-circuit kit (see Figures 13 and 14).
• -015,-017,-020and-023modelsarefactory-wired
fordual-branchsupplycircuit.Single-branchcircuit
canbeusedbyinstalling optional single-circuit kit.
IMPORTANT:
Note: Circuit breakers installed within this unit
are for short-circuit protection of the internal
wiring and to serve as a disconnect. Circuit
breakersinstalledwithinthisunitDONOTprovide
over-currentprotectionofthesupplywiringand
therefore may be sized larger than the branch
circuit protection.
Connecting Supply Service Wires
1. Remove right-hand control panel (when viewing in
downflow position).
2. Locate power supply hole plugs in side of unit and
in bottom of unit. Remove appropriate plug(s) or
knockoutopeningapplicabletorecommendedwire
size(s).
3. Install listed cable connector(s) in opening(s). If
metal-sheathedconduitisusedforincomingpower
line(s),provideanapprovedmetalclamponconduit
and secure it in entrance knockout.
4. Insert supply service wire(s) through cable
connector(s) and connect wires to circuit breakers
(Figures 13 and 14).
NOTE: To install single-circuit kit, perform step 5. If
single-circuit kit installation is not necessary, go to
step 6.
5. To install single-circuit kit.
a. Loosen lugs at supply side of circuit breakers.
b. Remove cover from single-circuit kit (if
supplied).
c. Insert metal buss bars of kit into lugs of circuit
breaker.
d. Tightenlugssecurely(45in.-lbs.recommended).
6. Connectservicegroundwire(s)togroundinglug(s)
provided. One ground is required for each supply
circuit used.
WARNING:
Toavoidpersonalinjuryorpropertydamage,make
certain that the motor leads cannot come into
contact with non-insulated metal components of
the unit.
Figure 13. Installation of Optional Single Circuit Adaptor Kit
Figure 14. Installation of Supply Service Wires
Circuit Breaker
Bracket
60A
60A
ONON
OFF OFF
Circuit
Breaker Wire
Assemblies
(Factory
Installed)
Supply Service
Wire Connection
Without Single
Circuit Adaptor Kit
Optional Single Circuit
Adaptor Kit
Circuit Breaker
Bracket
60A60A
ONON
OFF OFF
Circuit
Breaker Wire
Assemblies
(Factory
Installed)
Supply Service
Wire Connection
With Single Circuit
Adaptor Kit
!
!
!

11 E2 Service Manual
Table 3. Electrical Specifications
Recommended
Wire
Sizes*
Model Max Over- Min. 75°C Copper Low-Voltage
E2EH/
E2EB-
Supply
Circuit
Total
Amperes Current Rating Circuit Ampacity Wire Size Ground Size Thermostat Wire Size
010 Single
45.5
60 57 6 10
012 Single
52.1
70 65 6 8
Dual "A"
28.0
40 35 8 10
"B"
24.2
30 30 10 10
015 Single
66.3
90 83 4 8
Dual "A"
45.5
60 57 6 10
"B"
20.8
30 26 10 10
017 Single
71.3
90 89 3 8
Dual "A"
48.8
60 61 6 10
"B"
22.5
30 28 10 10
020 Single
87.1
125 109 2 6
Dual "A"
45.5
60 57 6 10
"B"
41.7
60 52 6 10
023 Single
93.8
125 117 1 6
Dual "A"
45.5
60 57 6 10
"B"
48.3
60 60 6 10
* All wire sizesfor copper conductors only,based on NEC Table 310-16.Equivalentwiring maybe used per NEC.
2-Wire
system max wire
lengths :
24 Ga. = 55’
22 Ga. = 90’
20 Ga. = 140’
18 Ga. = 225’
4 or more-Wire
system max wire
lengths :
24 Ga. = 25’
22 Ga. = 45’
20 Ga. = 70’
18 Ga. = 110’
IMPORTANT:
If a relay box is installed, blower speeds for
heating and cooling are set inside the relay box
(see instructions included with relay box). The
blower speed inside the furnace control box
must besettolowormedium-low. Neverchange
to a heating speed lower than that shown in
Table 4.
WARNING:
Toavoidpersonalinjuryorpropertydamage,make
certain that the motor leads cannot come into
contact with non-insulated metal components of
the unit.
See Table 4 for the lowest speed approved for the heating
output of the unit. Since the blower leads connect to the
controlbox,blowerspeedselectionisaccomplishedthrough
useofthepropercolor-codedblowerleadlocatedinsidethe
controlbox. Thespeed(s)setbythefactorymaybedifferent
fromthatshownonthewiringdiagrams. Seetheunitcontrol
box for blower speed(s) set at factory.
ChangingBlowerSpeed
E2EH: The selected heating blower lead is attached to
terminal 2 of blower selector switch.
a. Remove blower lead from terminal 2.
b. Choosedesired speed andinstall new blowerleadonto
terminal 2 of blower selector switch.
E2EB: The selected heating blower lead is attached to
terminal6onblowerrelay. Theselectedcoolingblowerlead
is attached to terminal 4 on blower relay.
a. Remove heating blower lead from terminal 6 on blower
relay.
b. Choosedesired speed andinstall new blowerleadonto
terminal 6 of blower relay for new heating speed.
Selecting Blower Speed
Table 4. Furnace Blower Speed Data
!!
Plug/Receptical Position Pin 1 Pin 2 Pin 3 Pin 4
2-Speed Blower
Low High - -
4-Speed Blower
Low
Med-Lo Med-Hi
High
Control Box Blower Lead
Red Yellow Blue Black
Minimum approved speed for
017, 020 and 023 models.
Minimum approved
speed for 010, 012
and 015 models.

12 E2 Service Manual
c. Remove cooling blower lead from terminal 4 on blower
relay.
d. Installnewblowerleadontoterminal4ofblowerrelayfor
new cooling speed.
See Table 5 for blower performance data.
THERMOSTAT SEQUENCE OF OPERATION
NOTE: If appliance(s) is equipped with time delay
control, the system operation will lag behind the
thermostat.
For Heating
1. Turn on electrical power to appliance.
2. With thermostat cover off, move temperature-setting
lever until right-hand (heating) contacts close. For
CM65A-5ABO, CM65A-5JBO or CM65 with optional
sub-base, set heat/cool switch to “HEAT” and set ven-
tilateswitchto“AUTO.” Heatingsystemandaircircula-
tor blower should turn on.
3. Check air temperature at supply duct registers.
4. Move temperature-setting lever until right-hand (heat-
ing) contacts open. Heating system and air circulator
blower should turn off.
5. Replace thermostat cover.
For Cooling
1. Turn on electrical power to the appliance.
2. Withthethermostatcoveroff,movetemperature-setting
leveruntilleft-hand(cooling)contactsclose. ForCM65A-
5ABO, CM65A-5JBO or CM65 with optional sub-base,
set heat/cool switch to “COOL” and set ventilate switch
to “AUTO.” Cooling system and air circulator blower
should turn on.
3. Check air temperature at supply duct registers.
4. Movetemperature-settingleveruntilleft-hand(cooling)
contactsopen.Coolingsystemandaircirculatorblower
should turn off.
5. Replace thermostat cover.
For Continuous Air Circulation and Ventilation
NOTE: ForCM65,seefurnaceowner’smanualonindepen-
dentbloweroperation.ForCM65A-5ABO,CM65A-5JBOor
CM65 with optional sub-base, follow the steps below.
1. Set thermostat heat/cool switch to “OFF” and set venti-
lateswitchto“ON.” Aircirculatorbloweronlyshouldturn
on.
2. Set thermostat heat/cool switch to “HEAT.” Air circula-
tor blower should operate continuously with on and off
heat cycles.
3. Set thermostatheat/cool switchto“COOL.” Aircircula-
tor blower should operate continuously with on and off
cooling cycles.
For System Shutoff
1. With electrical power to appliance turned on, move
temperature-setting lever to turn on heating or cooling
system.
2. Setventilate switchto “AUTO”andset heat/coolswitch
to “OFF.” All system operations should turn off.
Standard 2-Speed Blower,
with filter, @ 0.3" ESP
Pin No. Speed CFM
#1 Low 840
#2 High 1160
4-Speed Blower, with Coil and
Coil Filters, @ 0.3" ESP
Pin No. Speed CFM
#1 Low 880
#2 Med.-Low 1170
#3 Med.-High 1310
#4 High 1460
Table 5. Blower Performance

13 E2 Service Manual

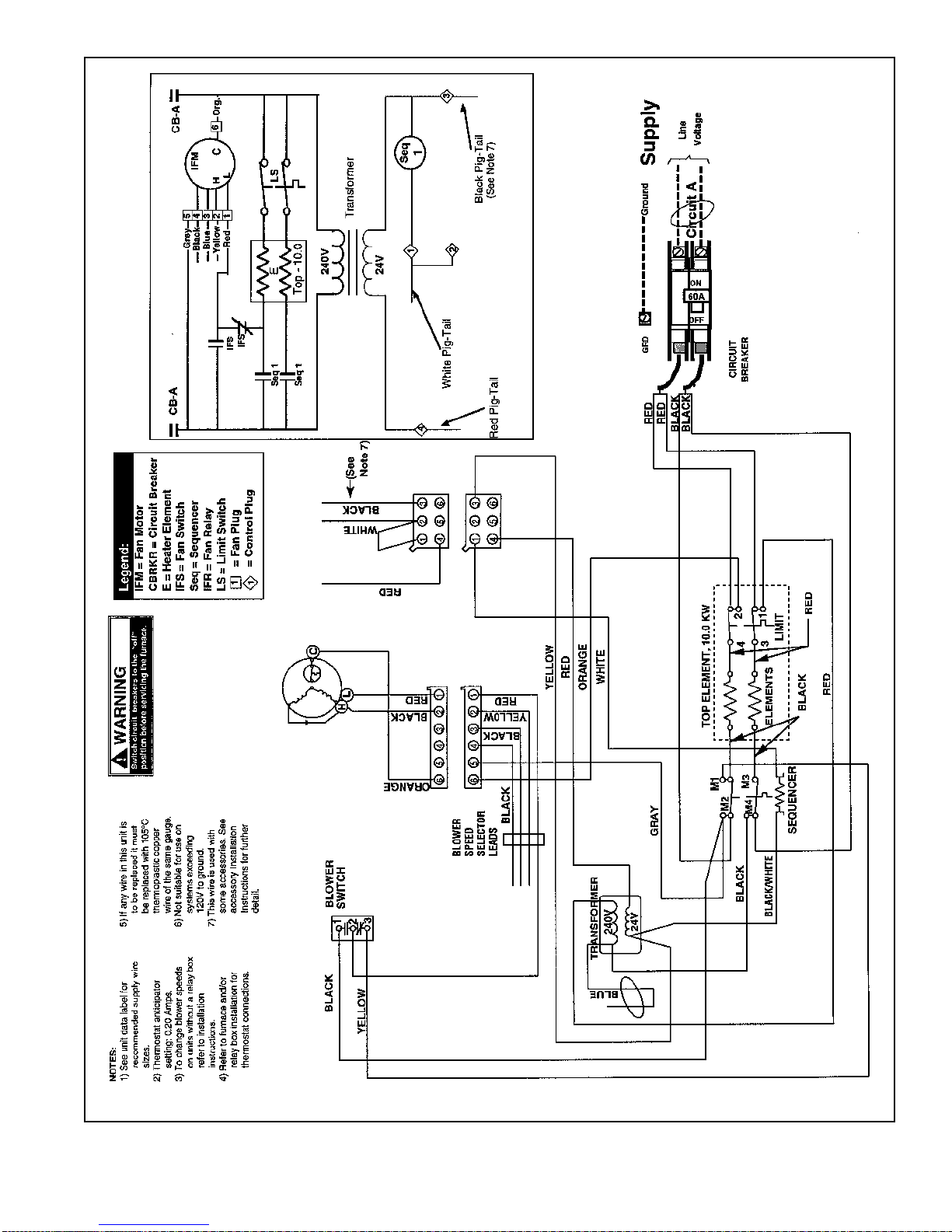

Figure 15. E2EH 010 Wiring Diagram

14 E2 Service Manual
Figure 16. E2EH 012 Wiring Diagram

15 E2 Service Manual
Figure 17. E2EH 015, 017 Wiring Diagram

16 E2 Service Manual
Figure 18. E2EH 020, 023 Wiring Diagram

17 E2 Service Manual
Figure 19. E2EB 010 Wiring Diagrams

18 E2 Service Manual
Figure 20. E2EB 012 Wiring Diagram

19 E2 Service Manual
Figure 21. E2EB 015, 017 Wiring Diagram

20 E2 Service Manual
Figure 22. E2EB 020, 023 Wiring Diagram
