Norelco QuadraAction 7865XL User manual

7865XL
SHAVING SYSTEM
7
7
QUADRA
Rechargeable Tripleheader®
Cordless/Cord Razor
7865DFU.qxd 8/2/04 05:41 PM Page 1 (Black plate)

2
7865DFU.qxd 8/2/04 05:41 PM Page 2 (Black plate)

ENGLISH 4
ESPAÑOL 25
7865XL
7865DFU.qxd 8/2/04 05:41 PM Page 3 (Black plate)

ENGLISH
IMPORTANT SAFETY
INSTRUCTIONS
When using an electric razor, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a corded razor/charging stand that has
fallen into water. Unplug immediately.
2. Do not use a razor/charging stand corded while bathing or in
a shower.
3. Do not place or store a razor or charging stand while
plugged in where it can fall or be pulled into a tub or sink.
Do not place or drop a razor or charging stand into water or
other liquid while plugged in.
4. Always unplug this razor/charging stand from the electrical
outlet immediately after use, except when razor is
(re)charging.
5. Unplug this razor/charging stand before cleaning.
6. When discarding razor, unplug razor and remove
rechargeable batteries. See Battery Removal Instructions.
WARNING
To reduce the risk of burns, fire, electric shock, or injury
to persons:
1. Close supervision is necessary when this razor is used by,
on, or near children or invalids.
2. Use this razor for its intended household use as described
in this manual. Do not use attachments not recommended
by Philips Electronics North America Corporation.
3. Never operate this razor/charging stand if it has a damaged
cord or charging plug, if it is not working properly, if it has
4
7865DFU.qxd 8/2/04 05:41 PM Page 4 (Black plate)

ENGLISH 5
been dropped or damaged, or dropped into water while
plugged in. Return the razor/charging stand to an
Authorized Norelco Service Location for examination and
repair.
4. Keep the razor, charging stand, cord and charging plug away
from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not charge or plug in razor/charging stand outdoors or
operate where aerosol (spray) products are being used or
where oxygen is being administered.
7. Do not use this razor with a damaged or broken comb, as
facial injury may occur.
8. For corded use, always attach plug to razor first, then to
outlet. Be certain that plug is inserted firmly into razor, up
to mark indicated on plug. For stand use, always put razor in
stand first, attach cord to stand, then plug into outlet.To
disconnect, turn razor off then remove charging plug from
outlet.
9. Never put the razor in direct sunlight or store in a pouch at
a temperature above 140°F.
10. Razor can be rinsed under running tap water. Do not
submerge razor in water.
11.To prevent possible damage to the cord, do not wrap cord
around the razor or charging stand.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
IMPORTANT:
YOUR RAZOR CONTAINS NICKEL-CADMIUM RECHARGEABLE
BATTERIES. See Battery Removal instruction
sheet for battery
disposal information.
7865DFU.qxd 8/2/04 05:41 PM Page 5 (Black plate)

ENGLISH6
60 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Norelco Men’s
Razor, the razor should be used exclusivelyfor 3 weeks.This allows your hair
and skin enough time to adapt to the Norelco Shaving System. If, after that
period of time, you are not fully satisfied with your Norelco Men’s Razor, send
the product back and we’ll refund you the full purchase price.
The razor must be shipped prepaid by insured mail, insurance prepaid,
and have the sales slip, indicating purchase price and the date of
purchase, enclosed. The razor must be postmarked no later than 60 days
after the date of purchase. Norelco reserves the right to verify the purchase
price of the razor and limit refunds not to exceed suggested retail price.
Send dated sales slip, your complete name and address as indicated
below, and the razor, prepaid to:
Norelco Consumer Products Company
A Division of Philips Electronics North America Corporation
450 North Medinah Rd, Dock 16
Roselle, IL 60172-2329
Please allow 4-6 weeks for delivery of check. (Please Print)
Name_________________________________________________________
Address________________________________________________________
City___________________________________________________________
State_____Zip__________________________________________________
Daytime Telephone No. (____)______________________________________
E-mail Address__________________________________________________
REASON FOR RETURNING:______________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
Area Code
7865DFU.qxd 8/2/04 05:41 PM Page 6 (Black plate)

ENGLISH
Table of Contents
Features.........................................................8-9
5 LED Battery Level Indicators ................10
Charging Stand Clock ...........................10-11
Before First Use............................................12
Charging ...................................................12-14
Recharging......................................................14
Quick Charge................................................15
Put It To The Test & Shaving Tips ........15-16
How To Shave With An
Electric Razor................................................16
Trimming.........................................................17
Cleaning....................................................17-21
Storage......................................................21-22
Assistance.......................................................22
Accessories....................................................22
Battery Removal...........................................23
Warranty.........................................................24
Spanish ............................................................25
7
7865DFU.qxd 8/2/04 05:41 PM Page 7 (Black plate)

100
80
60
40
20
Q UADR A
ENGLISH8
100
80
60
40
20

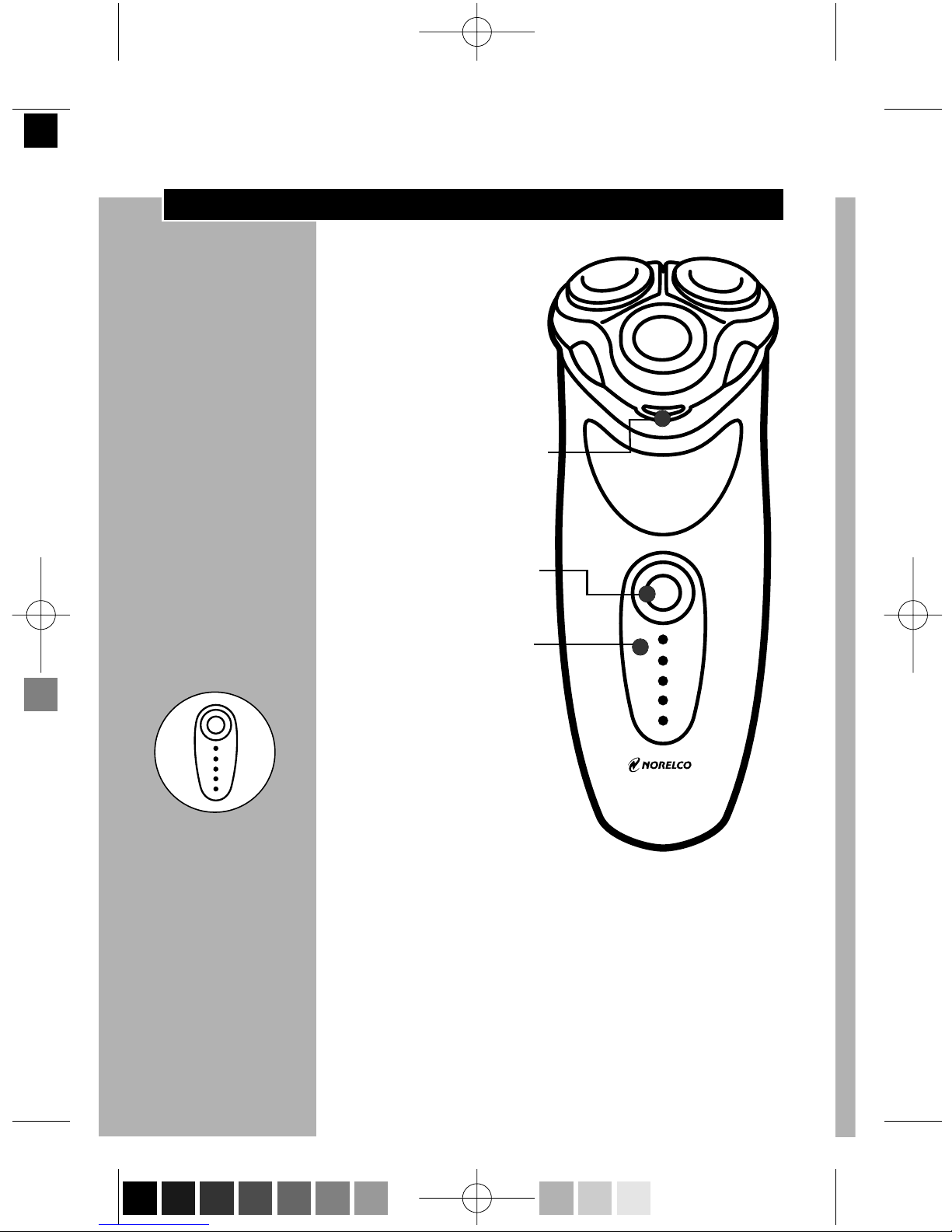

Features
Quadra Shaving System
Razor Head Assembly
Protective Razor
Head Cap
Individually Floating
Heads
Razor Head Release
Button
• Hair Chamber
captures shaven hair
Electronic ON/OFF
Button
5 LED Battery Level
Indicators
• Indicates the amount
of charge remaining
in batteries
7865DFU.qxd 8/2/04 05:41 PM Page 8 (Black plate)

ENGLISH 9
How the Unique Norelco Lift and Cut®
Shaving System Makes Close Comfortable:
Groove channels beard
closer to cutting system Lifter raises hair Slots to cut long hairs Holes to cut short hairs even closer
Pop-Up Trimmer
Automatic Worldwide
Voltage100V to 240V AC
Cleaning Brush
Storage/Travel Pouch
Charging Stand
Rechargeable - Initial
4 hour full charge
for up to
45 minutes of
cordless shave time
1-Hour Quick Charge
Cordless/Cord - To shave
with or without a cord
Full 2-Year Warranty
60-Day Money-Back
Guarantee
7865DFU.qxd 8/2/04 05:41 PM Page 9 (Black plate)

ENGLISH10

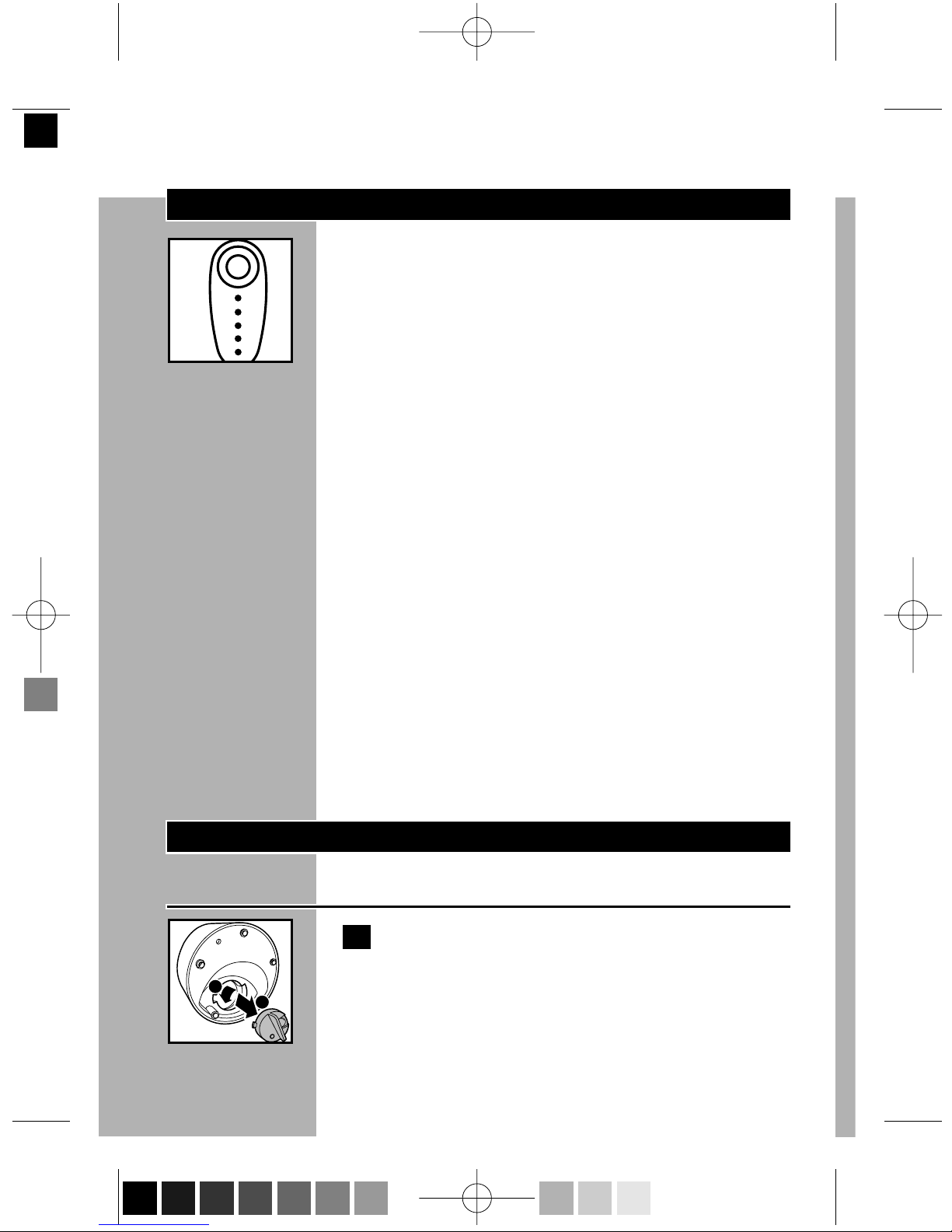

5 LED Battery Level Indicators
The Meter provides the following information:
Cw LED Battery Charge Meter
The number (percentage) on the display indicates
approximately how much power is left in the
batteries.
◗Low Battery Indicator
If the batteries run low, the "20" Light on the
display lights up red.When you turn the razor
OFF, the "20" light will blink for approximately 4
seconds.
◗Charging Indicator
When you charge razor, the "20" Light on the
display turns red. After approximately 3 minutes,
it will then turn green and blink. As charging
continues, more and more lights of the display
meter will briefly blink green and light up to
indicate what level (percentage) of the batteries
have been charged.
◗Full Charge Indicator
When the batteries have been fully charged, all
the lights on the display will light up green.
Charging Stand Clock
To set time
C1Turn clock module, located on underside
of stand, counterclockwise to remove
from stand.
1
2
100
80
60
40
20
7865DFU.qxd 8/2/04 05:41 PM Page 10 (Black plate)

ENGLISH 11
C2Press small, left button to set correct time.
C3Replace clock module into underside of
stand.Turn clockwise to secure in place.

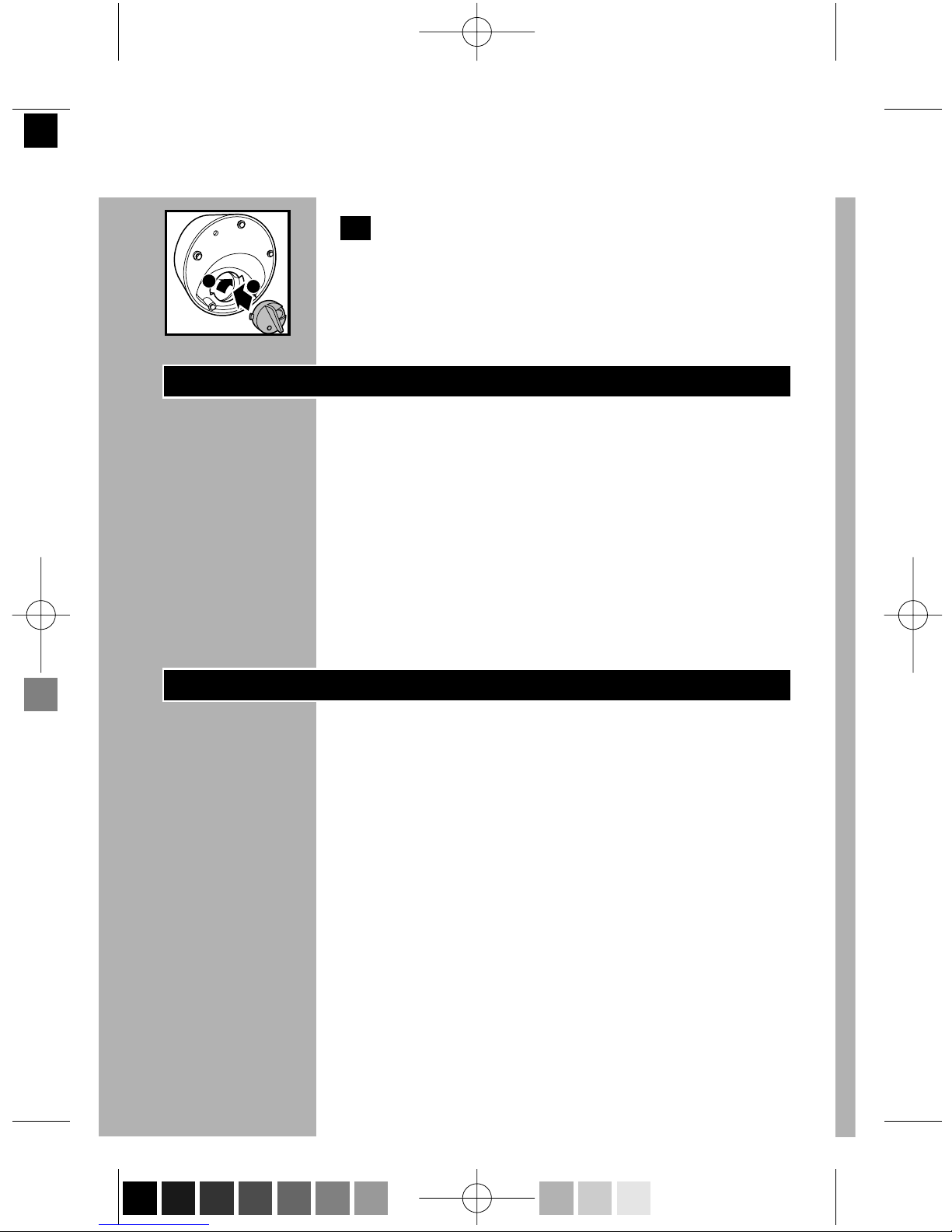

To replace clock battery
C1Turn clock module counterclockwise and
remove from stand.
C2Remove battery cover and then use a flat-
bladed screwdriver to lift out the battery.
C3Replace battery with 1.5V button cell
watch battery, placing rounded side of
battery into battery compartment, flat side
(+) facing out. Replace battery cover.
1
2
1
2
7865DFU.qxd 8/2/04 05:41 PM Page 11 (Black plate)

ENGLISH12
C4Replace clock module into stand and turn
clockwise to secure in place.
Before first use
◗Charge the razor before you start using it
(see ‘Charging’).
Important
◗Only use the power plug and/or charging
stand provided to charge the razor.
◗The charging plug transforms 100 – 240V AC
to 12V DC.
Charging
◗Battery performance is best if you recharge
only when the batteries are (almost)
completely empty.
◗Charging or recharging at temperatures below
40ºF or higher than 95ºF adversely affects
lifetime of batteries.
◗Continuously recharging or continuously using
as a corded razor will reduce life of batteries.
◗You may also shave using the charging plug
provided.This razor will not recharge while
being used corded.
◗Do not charge razor in a pouch.
◗Recharge only when the “20” lights up red.
1
2
7865DFU.qxd 8/2/04 05:41 PM Page 12 (Black plate)

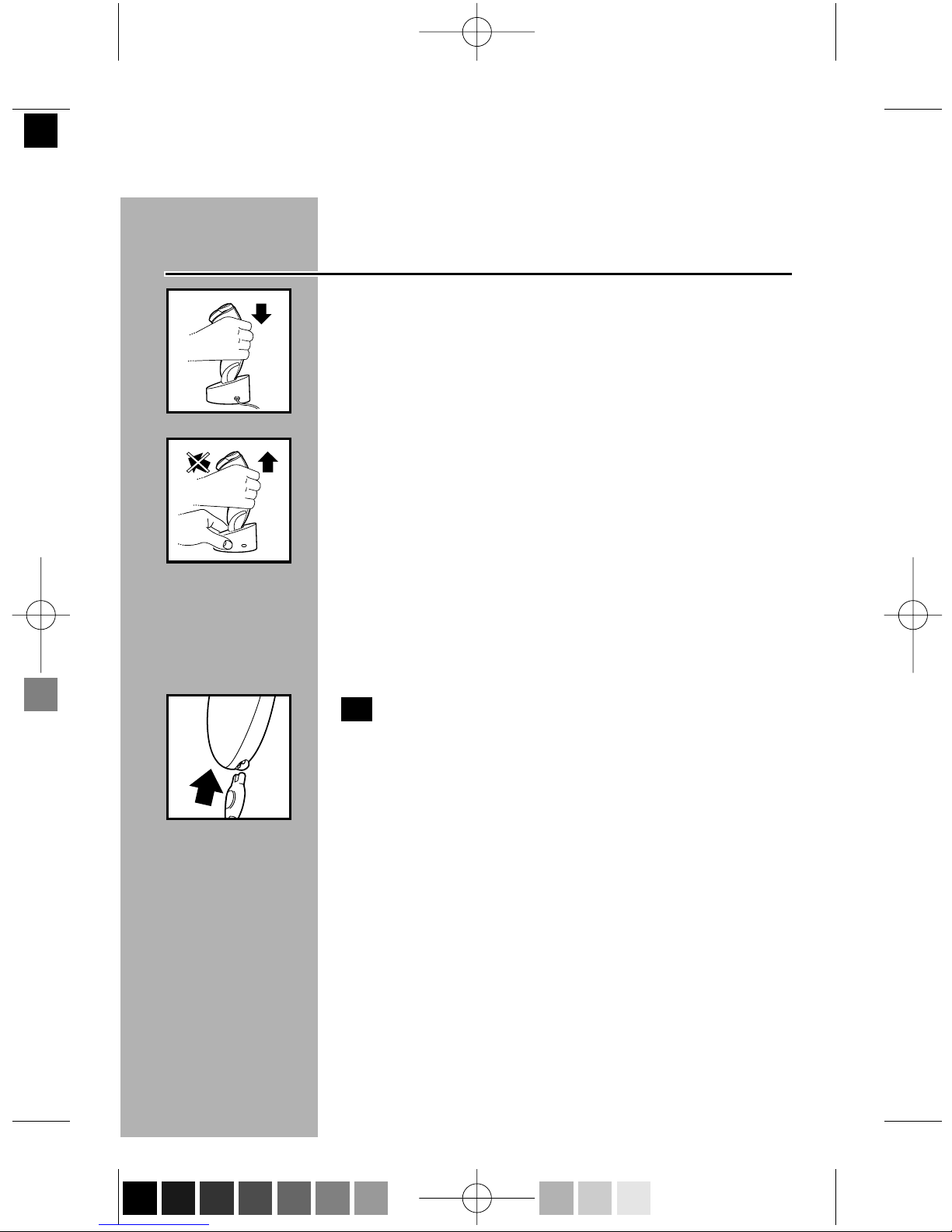

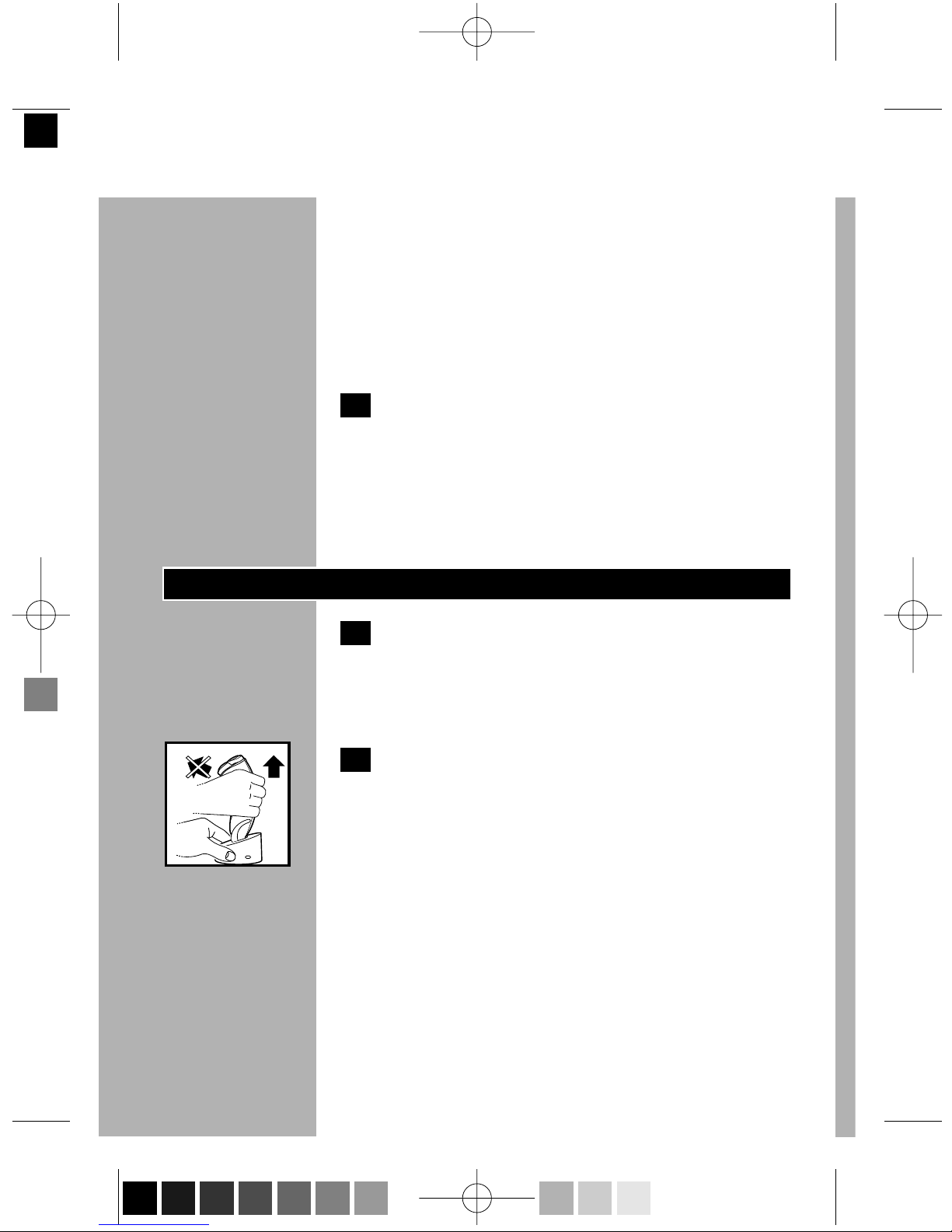

Placing or removing razor from
charging stand:
C◗Always place razor in stand in an upright
position making sure charging contacts in
bottom of stand fit into recess in bottom of
razor.
C◗Always remove razor from stand by lifting
straight up. Do not tilt razor.
◗Do not leave the charging stand with the
razor in it continuously plugged into outlet as
it would reduce life of batteries. If storing
razor in stand, remove the plug from outlet as
soon as the razor is fully charged.
C1Connect cord directly to razor or place
razor in charging stand and connect the
small plug of cord to charging stand.
Connect the charging plug into any 100V
to 240V AC outlet. Use only the charging
plug provided.
As you charge razor, the "20" Light on the display
turns red. After approximately 3 minutes, it will
then turn green and blink. As charging continues,
more and more lights of the display meter will
briefly blink green and light up to indicate what
level (percentage) of the batteries have been
charged.
ENGLISH 13
7865DFU.qxd 8/2/04 05:41 PM Page 13 (Black plate)

ENGLISH14
◗An adaptor plug may be necessary for
charging plug usage in some foreign countries.
Use an attachment plug adaptor of the proper
configuration for the power outlet.
The charging plug will automatically convert to
work on 100V to 120V AC systems.
2 First time charging and recharging after
non-use for 1 month or more requires a
full 4 hours.A fully charged razor has a
cordless shaving time of up to 45 minutes.
When batteries are fully charged, all the “lights” in
the display will light up green.
Recharging
1First time charging requires 4 hours. After
initial charge, recharging requires
1 hour.
Recharge only when the “20” lights up red.
C2When razor is fully charged, disconnect
the charging plug from outlet.
Do not keep razor or charging stand permanently
plugged into outlet. If using charging stand, always
remove razor from stand by lifting straight up. Do
not tilt razor.
7865DFU.qxd 8/2/04 05:41 PM Page 14 (Black plate)

ENGLISH 15
Quick Charge
When batteries are totally depleted, recharging
the razor for approximately 6 minutes gives
enough energy for a 3-minute cordless shave.
Put ItToThe Test & ShavingTips
◗21 Day Trial and Conversion Process. It is a
fact that your skin and beard need time to
adjust to a new shaving system.
◗Use your new razor exclusively for 3 weeks
to fully enjoy the closeness of a Norelco
shave.
◗At first you may not get as close a shave as
you expect, or your face may even become
slightly irritated.This is normal since your
beard and skin will need time to adjust. Invest
3 weeks and you’ll soon experience the full
joy of your new razor.
◗Stick with it! If you alternate shaving methods
during the adjustment period, it may make it
more difficult to adapt to the Norelco shaving
system.
◗If you are still not convinced after 21 days,
Norelco will refund you the full purchase
price, guaranteed.
HowTo Shave With An Electric Razor
◗Use this razor for its intended household use
as described in this manual.
◗Shaving with a clean face gives the best
results.
7865DFU.qxd 8/2/04 05:41 PM Page 15 (Black plate)

ENGLISH

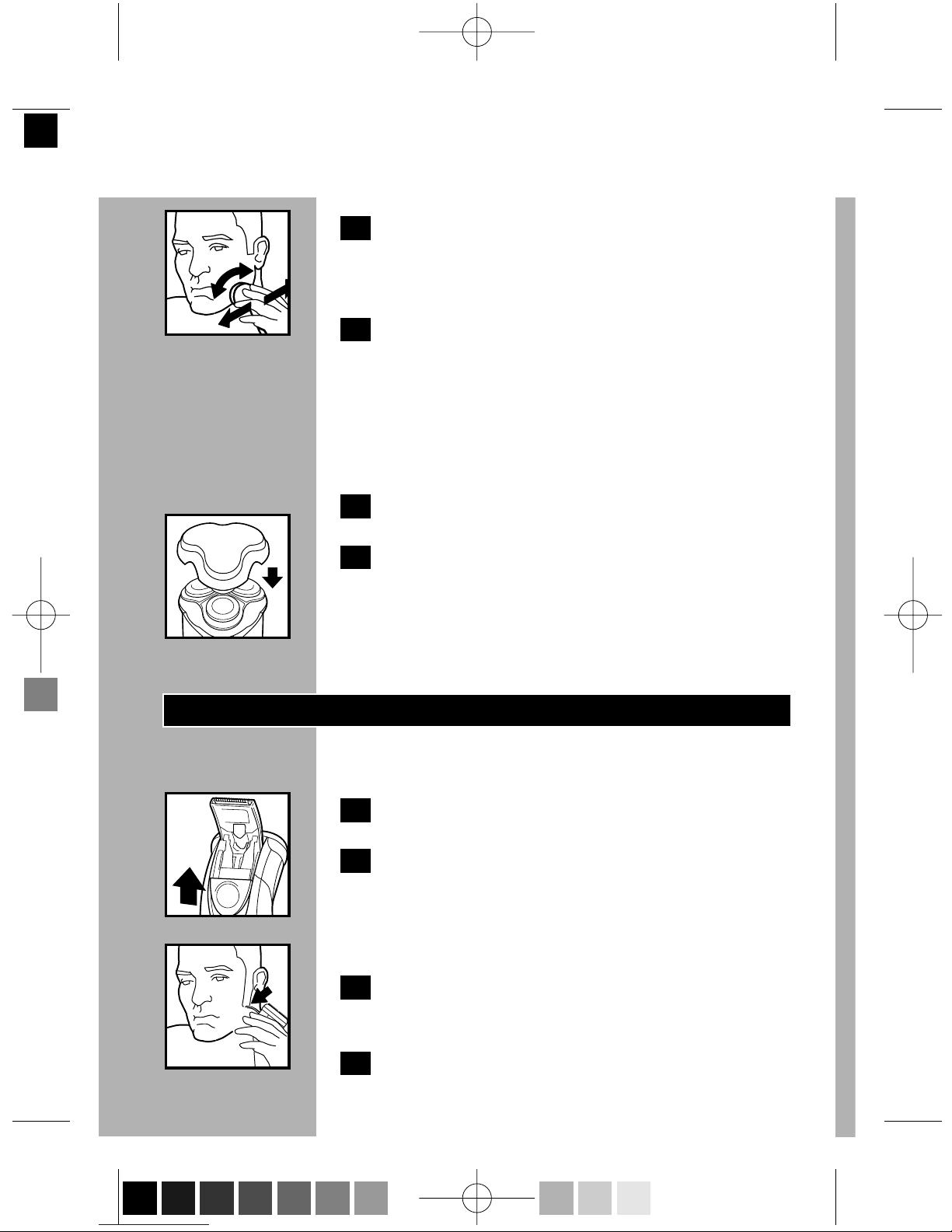

C1Turn razor ON. Shave against the direction
of beard growth using both straight and
circular movements.
2Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press razor to skin so the floating heads
can follow the contours of your face. DO
NOT press too hard.Too much pressure
can pinch the skin into the combs.
3Turn razor OFF.
C4Put the protective razor head cap on the
razor to protect razor heads.
Replace Quadra razor heads (model # HQ6)
once a year for optimal shaving results.
Trimming
To groom sideburns and moustache:
1Turn razor ON.
C2Push up Trimmer Slide Switch.
The trimmer can be activated while the razor is
running.
C3Hold Trimmer as shown and move in
downward strokes with gentle pressure.
4Close Trimmer by sliding Trimmer switch
down.
16
7865DFU.qxd 8/2/04 05:41 PM Page 16 (Black plate)

ENGLISH 17
5Turn razor OFF.
Cleaning
◗Regular cleaning guarantees better shaving
results.
◗Always switch Razor OFF and remove from
charging stand before cleaning.
◗Never clean, remove or replace head
assembly while motor is on.
◗Do not apply pressure to combs. Do not
touch razor heads with hard objects as this
may dent or damage precision-made slotted
combs.
◗Do not use razor if combs are damaged or
broken. Facial injury may occur.
Every Week: Razor Heads

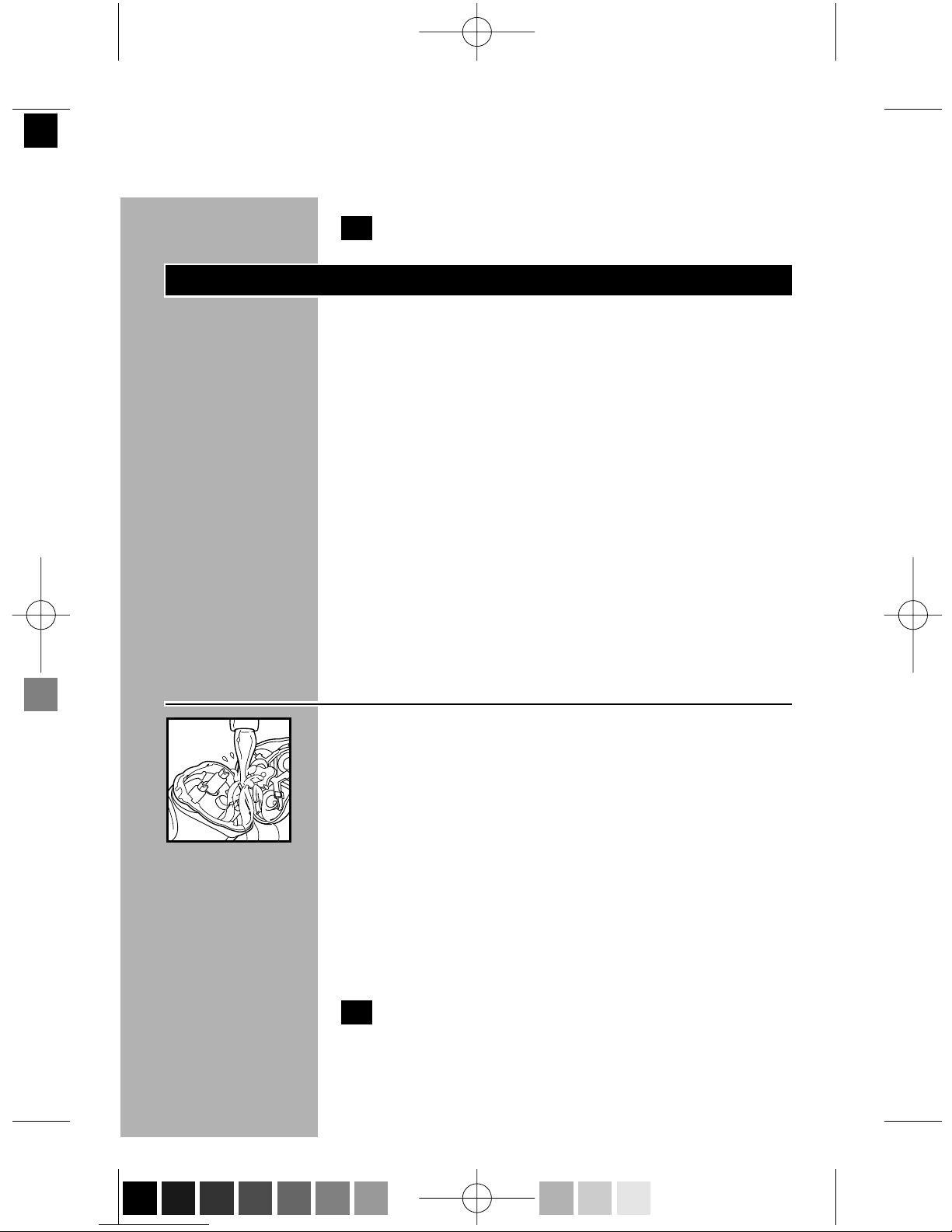

CThe easiest and most hygienic way to clean the
razor heads is to rinse them every week with
hot water: Water from the tap should be on a
hot setting, BUT BE CAREFUL TO TEST
WATER FIRST SO AS NOT TO BURN OR
SCALD HANDS.
◗Regular cleaning guarantees better shaving
results.
◗You may also quickly rinse your razor heads
after each use.
1Always turn razor OFF, unplug from outlet
and remove cord from razor or charging
stand before cleaning.
7865DFU.qxd 8/2/04 05:41 PM Page 17 (Black plate)

ENGLISH18

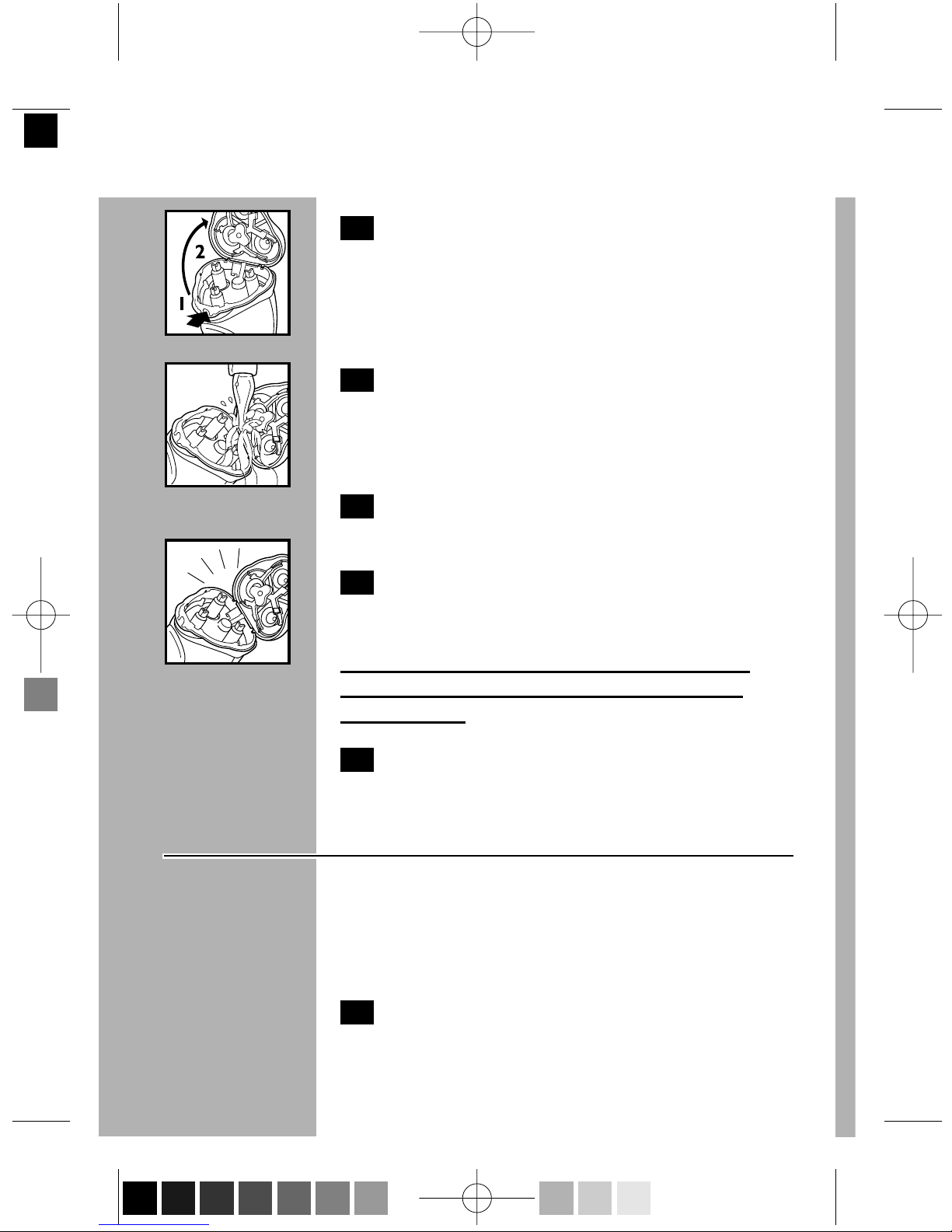

C2Press the Razor Head Release Button, flip
open the Razor Head Assembly.
C3Clean razor heads and hair chamber by
running under hot water.
4Close the Razor Head Assembly and shake
off excess water.
C5Open Razor Head Assembly again and
leave open to air dry.
NOTE: Do not wipe or dry the shaving heads
with a towel or tissue.This could damage the
shaving heads.
6You may also clean the hair chamber
without water by using the supplied brush.
Once A Month: Razor Heads
Do not mix up the cutters and combs as the
shaving performance may be adversely affected
for several weeks before optimal shaving
performance is restored.
1Turn razor OFF, remove the charging plug
from the outlet and cord from the razor
or charging stand.
7865DFU.qxd 8/2/04 05:41 PM Page 18 (Black plate)

ENGLISH 19
C2Press the razor head release button, open
and lift off the razor head assembly.
C3Turn the wheel counterclockwise and
remove the retaining frame.
4Remove and clean one set of cutters and
combs at a time.
C5Separate the cutter from the comb and
rinse clean under hot water.
Do not clean more than one cutter and comb at
a time,since they are all matching sets. If you
accidentally interchange the cutters and combs, it
could take several weeks before optimal shaving
performance is restored.
C6Replace the set back into the Razor Head
Assembly in such a way that the sides with
the little holes point to the middle of the
shaving unit.
The set will only fit into the Razor Head
Assembly if the ‘wings’ are between the brackets.
Make sure that the two pointy edges of the head
fit exactly into the recesses.
7Repeat the process for the other two sets
of cutters and combs.
7865DFU.qxd 8/2/04 05:41 PM Page 19 (Black plate)

ENGLISH20
8Replace the frame.
C9Press down and turn wheel clockwise until
it locks into place.
10 Replace the Razor Head Assembly back on
razor.
◗If the razor heads have been properly inserted,
a shiny circle is visible in the middle of the
razor head assembly.
Once A Month: Razor Heads
For optimum performance,razor cutters and
combs should be cleaned in a degreasing liquid
(e.g. Norelco Razor Cleaner,model RC1776, or
rubbing alcohol) and lubricated with Norelco
Razor Lubricant, model AL80, or one drop of
mineral oil (in the center of the head). This helps
prevent wear of the shaving heads.
After Each Use: Trimmer
1Turn razor OFF.
2Push Trimmer Slide Switch up to pop up
Trimmer.
C3Clean Trimmer with the brush every time
you use it.
7865DFU.qxd 8/2/04 05:41 PM Page 20 (Black plate)
