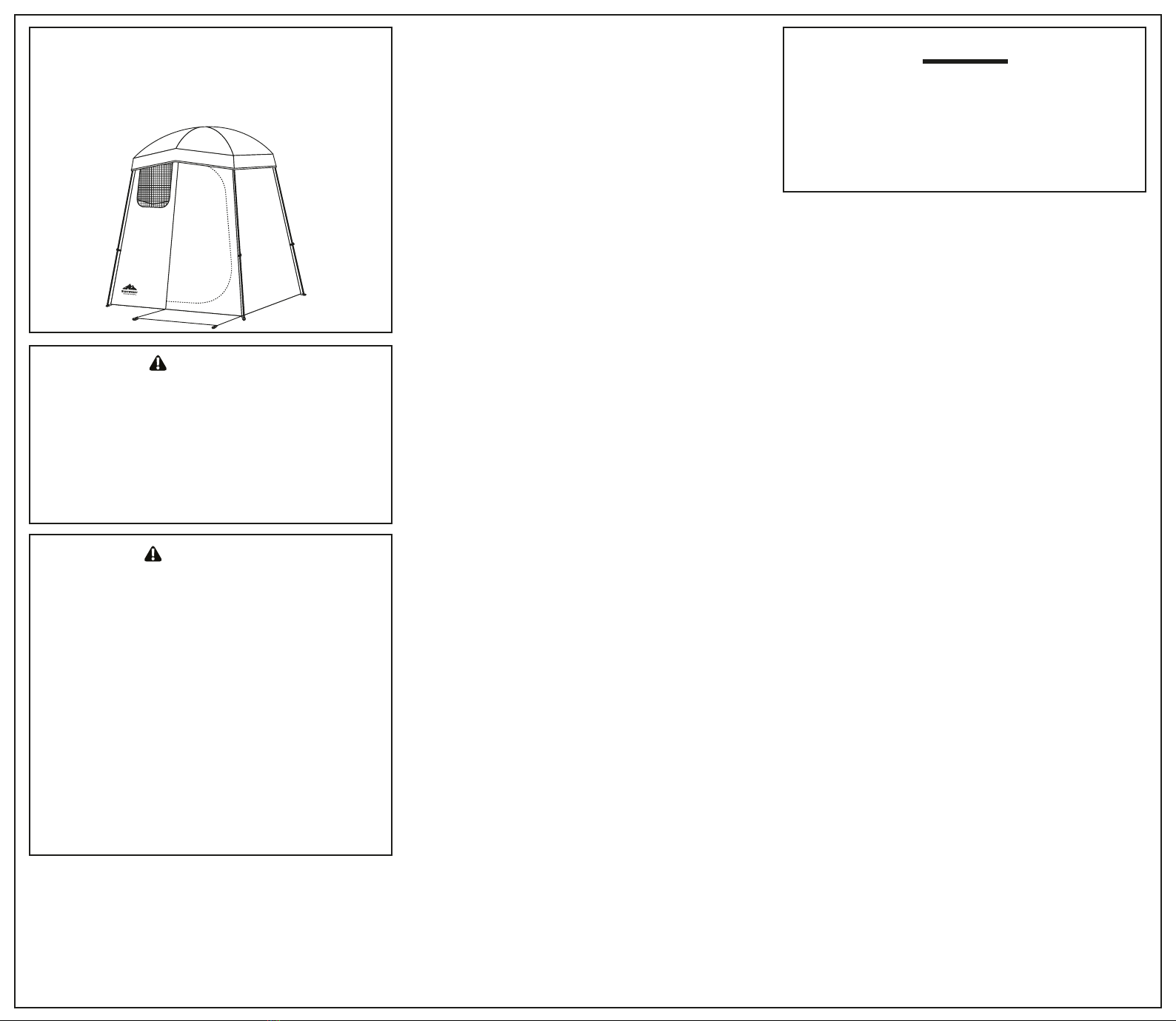

Northwest Territory KMT160704SW User manual

KMT160704SW 11/15
CLEANING:
Allow dirt to dry on the fabric after a rainfall before lightly
sweeping it off with a brush. For tougher stains, spray the area
with water and lightly wipe it off with a few strokes. Do not use
washer or dryer. DO NOT SCRUB THE FABRIC. ALWAYS MAKE
SURE IT IS COMPLETELY DRY BEFORE REPACKING.
WARNING!
DANGER!
Stoves, lanterns, candles, grills, heaters and other fuel-burning
devices produce carbon monoxide and will consume the
available oxygen in a tent. Use of such devices in a tent may
cause asphyxiation, carbon monoxide poisoning, and death or
serious and permanent injuries. For this reason:
- DO NOT use fuel-burning devices inside or near this product.
- Your failure to follow this warning may cause death or serious
and permanent injury to you or others.
6-Month REPLACEMENT PARTS WARRANTY
This product carries a replacement parts warranty against defects
in materials and workmanship for a period of 6-month from date
of purchase. At its discretion, the manufacturer may provide
replacement parts. Original purchaser will be required to provide
proof of purchase. The consumer will be responsible for shipping
costs incurred outside of the US or Canada.
Warranties DO NOT cover normal wear and tear, misuse, abuse,
inclement weather conditions (i.e. wind, rain, hail, lightning,
tornados or hurricanes) or other acts of God, mildew and rotting,
damage or fading caused by prolonged exposure to UV rays. This
warranty gives you specific legal rights. You may also have other
rights which vary from state to state.
Under no circumstances shall the manufacturer be liable for
any incidental or consequential damages.
The tent is water-repellent. It is not, however, waterproof.During
heavy or continuous rain, some leakage may occur. Avoid contact
between objects and the inside of the tent, as this may result in
leakage at points of contact. In the event of seam leakage, apply
a seam-sealer compound.
Although our products are manufactured according to rigorous
specifications, periods of wind or rain may loosen the stakes and
cause the frame to sink into the ground. This will weaken the
structure’s overall rigidity. Puddles may also form on the roof if
the unit has not been assembled tightly. If pooling should occur
it is advisable to drain the fly to avoid possible damage to frame
and fabric. Adjustment of guy lines may be necessary. In case of
inclement weather remove valuables and seek appropriate
shelter. Intended for recreational use only.
For your tent, screen house or canopy DO NOT...
- Pitch near an open fire.
- Use candles or open flames of any kind in or near.
- Leave children unattended inside.
- Use fuel-burning,oxygen-consuming devices (heaters,lanterns,
cooking stoves or other flame sources) inside.
- Refuel lamps, heaters or stoves inside.
- Smoke inside.
- Store flammable liquids inside.
- Use water-repellent compounds other than those recommended
for use on outdoor equipment.
- Spray with insecticide.
- Store on concrete floor.
For your tent, screen house or canopy DO...
- Always extinguish campfire before sleeping or leaving the area.
- Exercise care when using electricity and lighting.
- Make certain it is properly ventilated in all weather conditions.
In extreme weather conditions, snow could obstruct airflow and
cause asphyxiation. Clear frequently.
- Anchor securely to provide additional security in changing
climatic conditions. Snow pegs, skis and/or heavy rocks may be
necessary to supplement stakes and guy lines.
- Take down and store properly after camping.
- KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS
FABRIC. This product is made with flame-resistant fabric,
which meets CPAI-84 specifications. IT IS NOT FIREPROOF!
The fabric will burn if left in continuous contact with any
flame source. The application of any foreign substance to the
fabric may render the flame-resistant properties ineffective.
- Anchor properly at all times and carefully consider campsite
choice. Be aware of possible falling rocks or tree limbs,
lightning strikes, flash floods, strong winds and other hazards
which may cause harm to this product or its occupants.
- Have a minimum of two adults for assembly. During assembly
poles are under tension. If not held firmly in place during
assembly, poles could break or flip up, possibly causing
serious injury.
- Safety glasses may be worn throughout the assembly
process as an additional precaution.
- Exercise care when using electric devices in and near tents.
OWNER’S MANUAL
NORTHWEST TERRITORY
Model : Portable Shower
HKD Model: KMT160704SW
NOTICE!
Do Not Return to Retail Store
For Warranty consideration
or for replacement parts call
8 8 8 – 2 8 0 – 7 8 7 6
CAMPERS’TIPS
The key to an enjoyable camping experience is planning and
preparation.
Before you go …
Research the area where you intend to camp. Prepare for any
possible weather condition. Be aware of hazards and emergency
protocol. Know the rules and regulations.
Check out your equipment before your trip. Be sure your cook
stove, lanterns, flashlights, air mattress, etc. are in good working
order. Erect your tent to become familiar with setup. Once
you’ve assembled your tent in a dry, well-ventilated area, apply
seam sealing compound to the stitching of the inside seams
following manufacturer’s directions. Allow to dry thoroughly
before storage. Reapply annually.
Checklists are great planning tools. Here are some areas to
consider.
Camp setup: Tent, chairs, table, ground cloth, entrance mat, tarp,
poles, rope, stakes, bungee cords, duct tape, zip ties,
hammer/tools, bedding.
Kitchen setup, food and beverages: Plan for transport,
preparation, storage and disposal. Remember to pack
fire-starting devices in waterproof containers, and bring pots,
dishes, utensils, can opener, heavy duty trash bags and biode-
gradable soap. Store your food in lockers or out of sight in
vehicles.
Clothing: Be prepared for all your activities. Include a hat,
sunglasses and quality socks. Dress in layers.
Hygiene: Personal toiletries, rubber gloves, basic first aid items.
Don’t forget your medications.
Miscellaneous: Extra batteries, sewing kit, clothespins, dust
pan/brush and insect repellent.
Be considerate of others, humans and wildlife.
Remember to clean up and dispose of waste properly.
“Leave no trace behind.”

KMT160704SW
ASSEMBLY INSTRUCTIONS
IMPORTANT NOTES:
* Assemble your tent before camping to become
familiar with the assembly.
* Two people are recommended for setup.
* Select a clean, level area for the campsite,free
of debris and sharp objects, away from a
natural watercourse.
* Use of a ground cloth is recommended to
prolong the life of the tent floor and provide
additional insulation and moisture protection.
* To prevent damage to the zippers, unzip the
doors and windows prior to disassembly,
allowing air to move freely.
* Seam seal the inside stitched seams of a tent.
This will improve weather resistance. Available
in sporting goods departments. Discoloration
may occur if applied to outside seams.
Verify package contents Step 1: Assemble poles
1) Assemble fiberglass poles by inserting
sections into the metal ferrules.Assemble
steel poles by inserting the tapered pole
ends into the adjacent sections.
(A) 2 each Main
(B) 1 each Middle Roof
(C) 4 each Corner Leg
Tent : 1 each
Rainfly : 1 each
Hanging Shelf : 1 each
Step 2: Spread tent and insert roof poles
1) Spread out the tent flat,floor side down.
2) Use the illustration below as a guide. Insert the main roof poles (A) through the pole sleeves,
from corner to opposite corner.The poles will cross at the center of the roof.
3) Insert the middle roof pole (B) through the pole sleeves at the center of the roof. Place the
pole ends into the adjacent plastic cup.
Step 3: Attach leg poles
1) Use the illustration below as a guide. Position the 4 corner leg poles (C) at each corner and
insert the ends of the main roof poles (A) into the tops of the corner leg poles (C).
2) To raise the shower tent, place the bottom of the leg poles over the pin attached to the stake
loops at the corners of the tent.
3) Clip the plastic hooks at the corners of the roof of the tent to the frame.
(A) 2 each - Main Roof
(B) 1 each - Middle Roof
Fiberglass Poles : 3 each (total)
Tent Stakes : 12 each
Divider : 1 each
(C) 4 each - Corner Leg
Steel Poles : 4 each (total)
AA
B
C
C
C
C
A A
B
KMT160704SW 11/15

Tent appears as shown.
Disassembly
1) To take down the tent, disassemble in
reverse order.
2) Remove accessories.
3) Remove and fold fly.
4) Be sure to leave doors and windows
unzipped to avoid zipper damage.
5) Remove stakes with hammer or stake
puller. DO NOT pull on tent.
6) Carefully disengage poles from pins.Push
poles away from you through the sleeves
to minimize risk of damage to tent or poles.
7) Keep poles and stakes together in bags
provided.
Packing the tent
1) Spread tent flat,distribute evenly.
2) Fold into quarters not to exceed the length
of pole bag.
3) Lay pole bag at opposite end from door.
Tightly roll bag, skin and fly forcing air
through unzipped door.
4) Secure with ties and place in carry bag with
stakes and accessories.
5) Tent must be clean and dry before storage.
Store off concrete floor.
Be certain campfires are extinguished.
Dispose of trash appropriately.
Dimension A should
be close to but not
exceed the length
of the pole bag.
A
Fold tent into a
rectangular shape.
Front of tent
(door unzipped)
Step 9: Fully assembled
Note: Interior accessories with this model
can be attached to loops inside the tent.
Step 8: Secure guy Lines
1) Secure shower tent using all guy lines and
stakes. Shower tent must be secured for
proper function.
Step 6: Position fly
1) Unfold the fly and stretch out all corners.
Place the fly over the shower tent.
Step 7: Fasten the fly
1) Attach the fly to the shower tent by
hooking the plastic s-hooks at the fly
corners to the rings on the leg poles.
2) Wrap the hook and loop fasteners, sewn on
the underside of the fly, around the leg
poles.
Step 5: Body assembled
Tent appears as shown.
Step 4: Stake tent, fasten hooks
1) Stake down the shower tent by inserting a
stake through the stake loops, located
along the perimeter of the shower tent.
2) Make certain the tent floor is pulled out
evenly and tightly.
3) Hammer the stakes into the ground at a
450angle using a hammer or mallet.
4) Clip the plastic hooks on the side of the tent
to the leg poles.
KMT160704SW 11/15

SPECIFICATIONS: Floor size: 7’ x 4’ (2.13x1.22m)
Center height: 84” (2.13m)
Weight: 11.68 lbs (5.30kg)

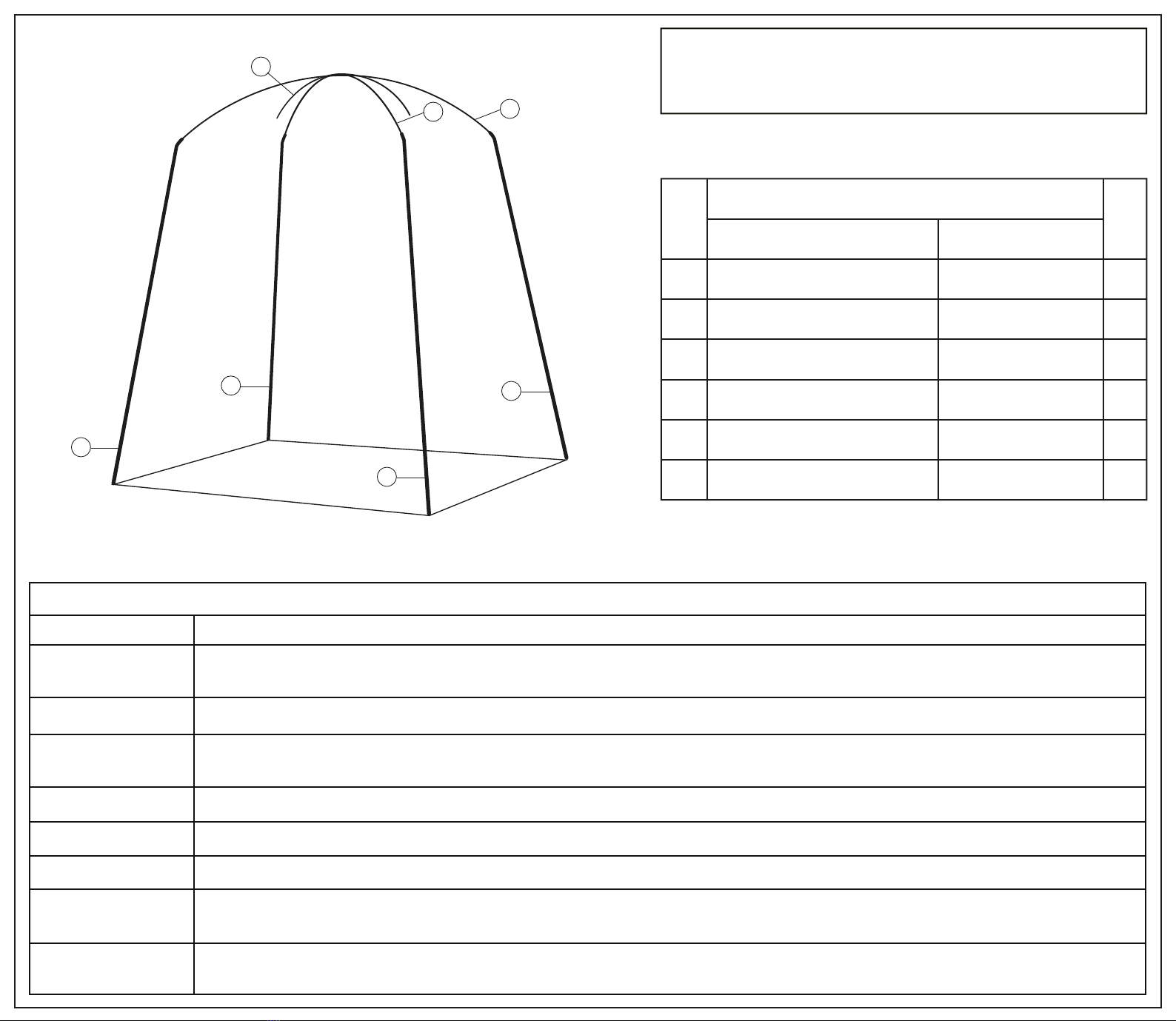

A2
B1
C
KEY
NO.
MODEL NO. KMT160704SW QTY.
REQ.
DESCRIPTION
Fiberglass Pole - Roof Main
Fiberglass Pole - Roof Middle
HFP9.5-196f
HFP8.5-132f
HSP16-196d,p,rd 4Steel Pole - Corner Leg
1HTFKMT160704SWReplacement Fly
1HHSregHanging Shelf
12HMS4-7Tent Stake - Metal
PART NO.
REPLACEMENT PARTS
TROUBLESHOOTING GUIDE
PROBLEM
1. CONDENSATION
2. SEAM LEAKAGE
3. MILDEW
4. REPAIRING A TEAR
5. FAULTY ZIPPER
6. FADING FABRIC
7. FLOOR CONDENSATION
This is caused by lower temperatures on the outside of the tent combined with body heat on the inside of the tent.When this occurs,avoid touching walls to reduce
contact leakage. Leaving the doors and windows open will reduce moisture condensation. Store wet clothing outside of tent. Not applicable to screen houses.
Apply a generous amount of seam sealer on inside seams.Seam sealer may be purchased at any local sporting goods store.
To avoid mildew, store tent/screen house ONLY when thoroughly dry. However, if mildew occurs use a soft bristle brush or sponge with mild dishwashing soap or Fels
Naptha soap to clean. Let dry thoroughly and a tent approved water repellent compound may be applied.
For small tears use a self-adhesive patch kit.We recommend a canvas or awning repair shop for larger tears.
Zippers are self repairing.If the zipper separates, you can move the slider to the beginning of the zipper tape and rework the zipper.
vDo not leave up in direct sunlight longer than necessary. If left in sunlight for prolonged periods of time, fabric will fade and weaken.v
A ground cloth under the floor helps prolong its life, provides additional insulation and moisture protection.The cloth should be smaller than the floor to prevent rain
from running under the tent. Not applicable to screen houses.
8. USE OF STAKES Stakes should be installed at a 45 degree angle using a hammer or mallet. Stake loops should be kept taut without over stretching fabric or webbing. This could cause
tears or leakage.To remove safely, use a hammer or stake puller. Do not remove by pulling on the fabric.
SOLUTION
C
C
C
A
B
A
C
KMT160704SW 11/15
